一种在线训练的自决策主题爬虫算法

熊观野; 杨百龙

doi:10.13700/j.bh.1001-5965.2023.0002

一种在线训练的自决策主题爬虫算法

doi: 10.13700/j.bh.1001-5965.2023.0002

熊观野,
杨百龙^,

火箭军工程大学作战保障学院，西安 710025

详细信息

通讯作者:
E-mail：xa_403@163.com

中图分类号: TP319.1
计量
- 文章访问数: 240
- HTML全文浏览量: 94
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2023-01-04
- 录用日期: 2023-03-03
- 网络出版日期: 2023-03-24
- 整期出版日期: 2025-02-28

A self-decision topic crawler algorithm with online training

XIONG Guanye,
YANG Bailong^,

Department of Operational Support，Rocket Force University of Engineering，Xi’an 710025，China

More Information

Corresponding author: E-mail：xa_403@163.com

摘要

摘要:
隧道穿越问题是主题爬虫发展过程中无法回避的一个问题，为解决隧道穿越问题，提出一种基于博伊德环的自决策主题爬虫 (FCIDOL) 算法。该算法以博伊德环为基本框架，按照“观察-评估-决策-行动”形成闭环，根据爬虫已完成的工作——记忆，对观察到的当前状态进行评估，产生激进或保守策略的决策，引导爬虫执行寻找新的主题相关网页团，或专注于短期收益的行动，记忆的作用在于为评估网络提供训练材料，实现对网络的在线训练满足爬虫的冷启动。实验表明：所提算法相较于多种主题爬虫算法在不同主题环境下收获率提升了7.8%以上，重复链接次数减少了15.6%以上。
- 主题爬虫 /
- 隧道穿越 /
- 自决策 /
- 在线学习 /
- 冷启动
Abstract:
Tunnel crossing problem is unavoidable in the development of the topic crawler. To solve this problem, a self-decision topic crawler algorithm based on Boyd loop (FCIDOL) was proposed. The algorithm took the Boyd loop as the basic framework and formed a closed loop according to the principle of “observation-assessment-decision-action”. According to the work completed by the crawler, which refers to memory, the algorithm evaluated the current state observed to generate decisions of radical or conservative strategies, guiding the crawler to search for new theme-relevant web pages or to focus on the actions of short-term benefits. The role of memory was to provide training materials for the assessment network, thus realizing the online training of the network to meet the cold start of the crawler. The experiment shows that compared with various topic crawler algorithms in different topic environments, FCIDOL achieves an improvement of over 7.8% in harvest rate, and the number of duplicate links is reduced by more than 15.6%.
- topic crawler /
- tunnel crossing /
- self-decision /
- online learning /
- cold start

HTML全文

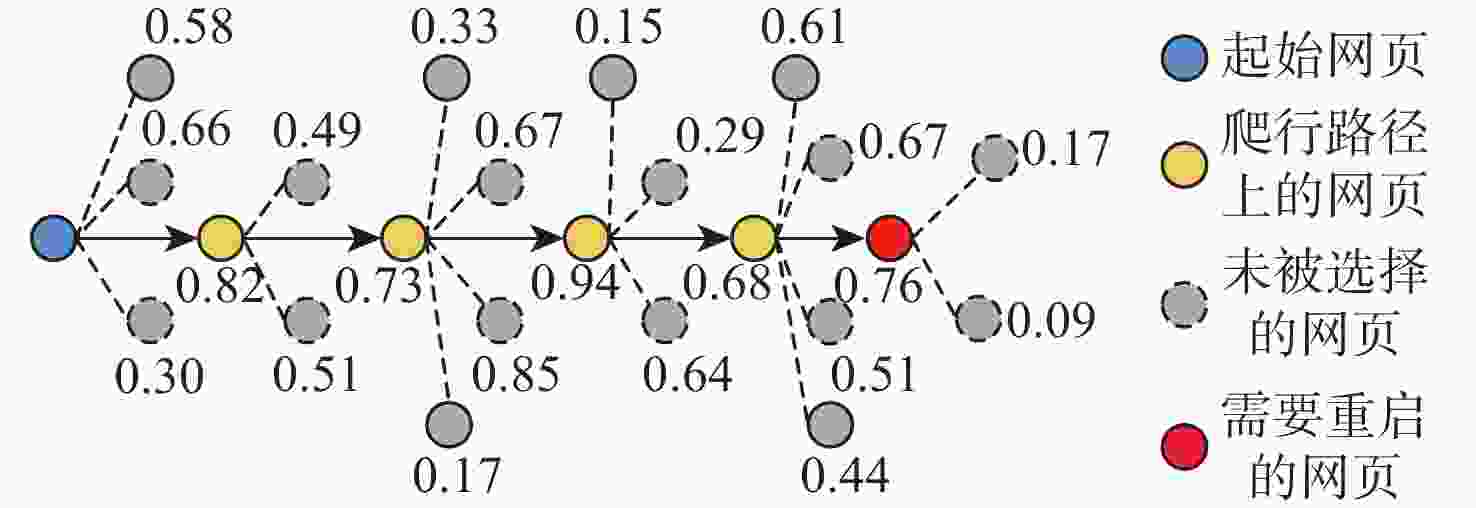

图 1 使用重启策略情况示例

Figure 1. Example of using restart strategy

下载: 全尺寸图片幻灯片

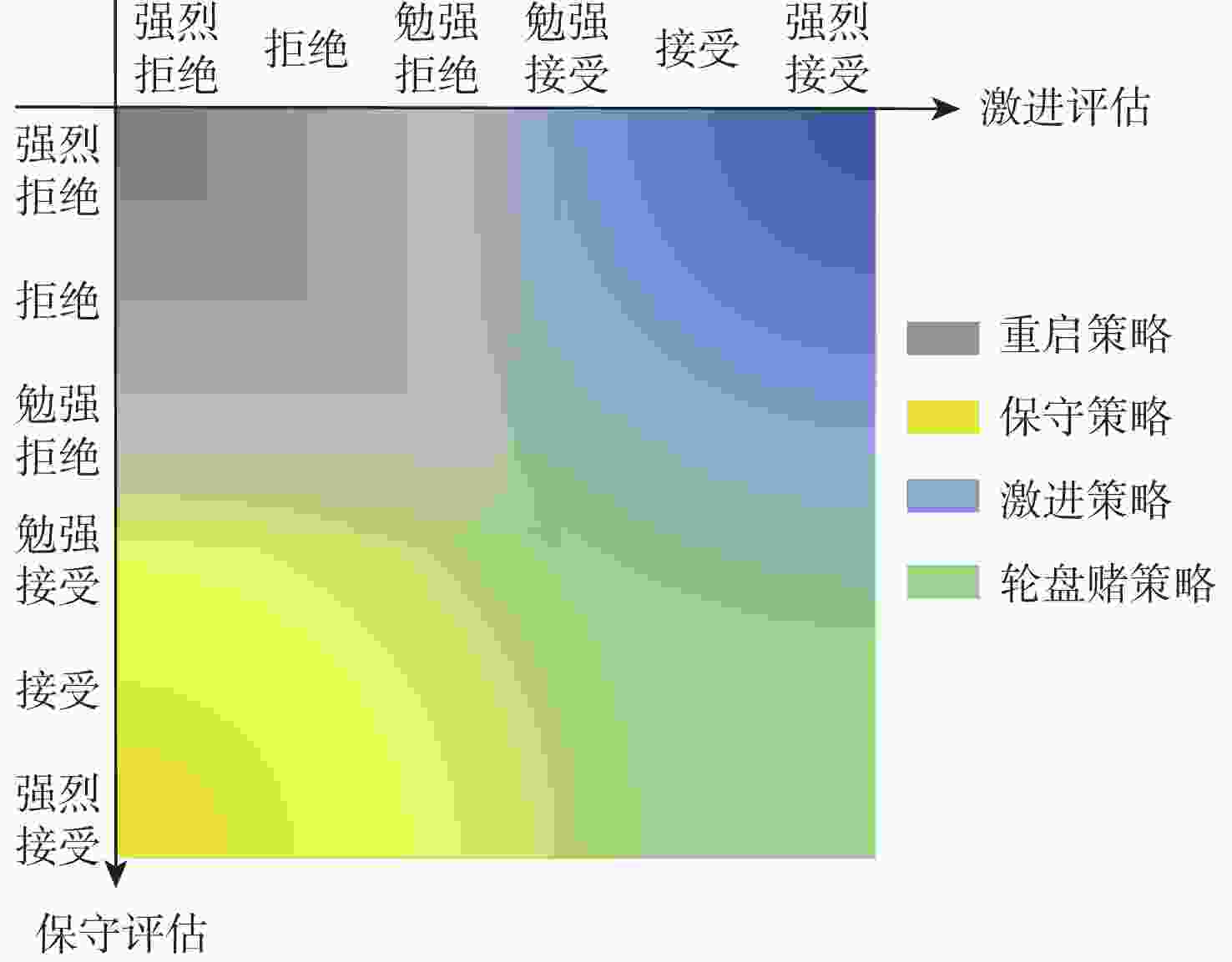

图 2 评估等级与对应策略

Figure 2. Assessment level and corresponding strategy

下载: 全尺寸图片幻灯片

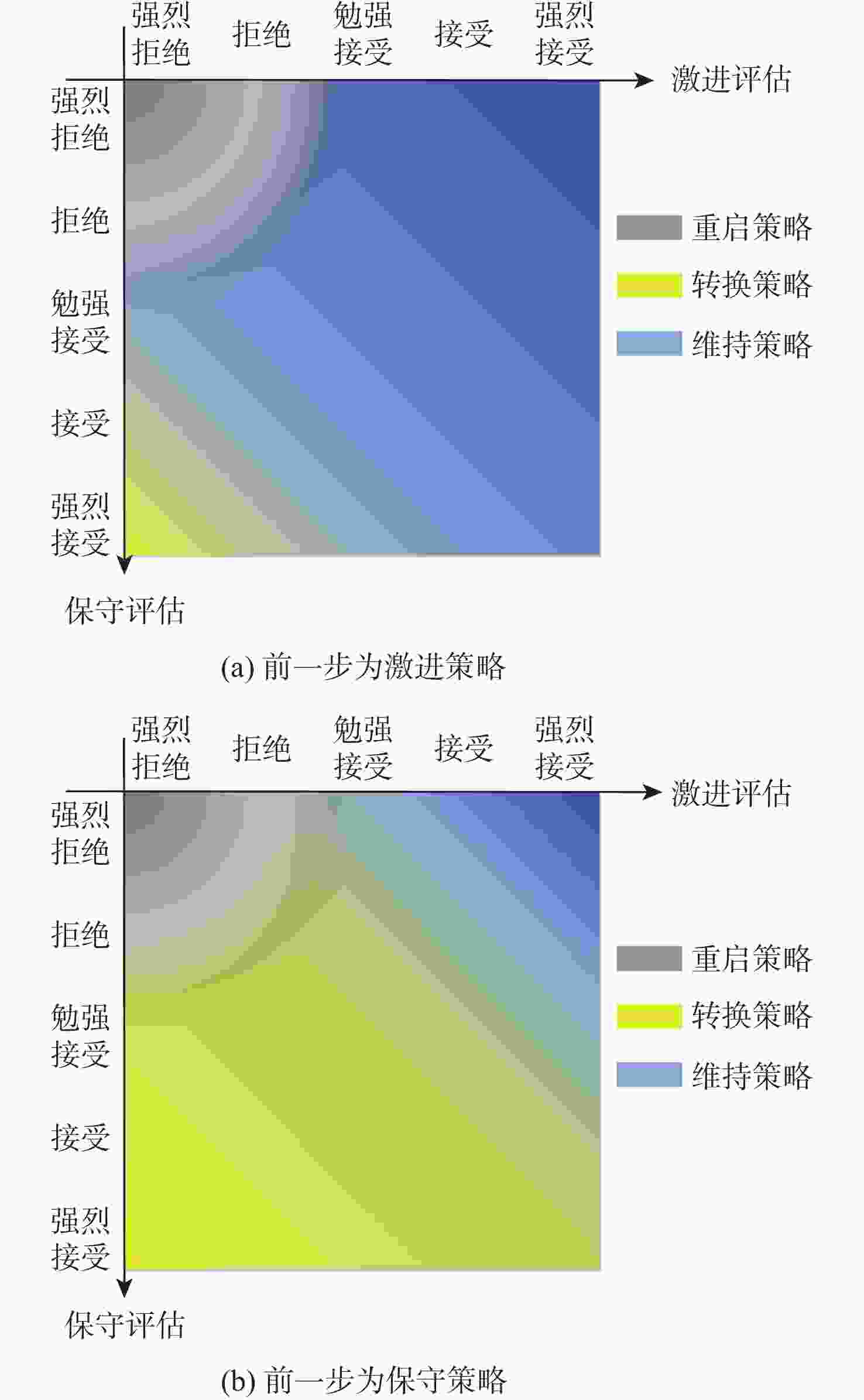

图 3 连续工作的场景评估等级与对应策略

Figure 3. Assessment level and corresponding strategy of continuous work scenario

下载: 全尺寸图片幻灯片

图 4 自决策主题爬虫OODA环

Figure 4. OODA loop of self-decision topic crawler

下载: 全尺寸图片幻灯片

图 5 历史状态的记忆片段

Figure 5. Memory fragments of historical state

下载: 全尺寸图片幻灯片

图 6 评估网络在线训练流程

Figure 6. Online training process of assessment network

下载: 全尺寸图片幻灯片

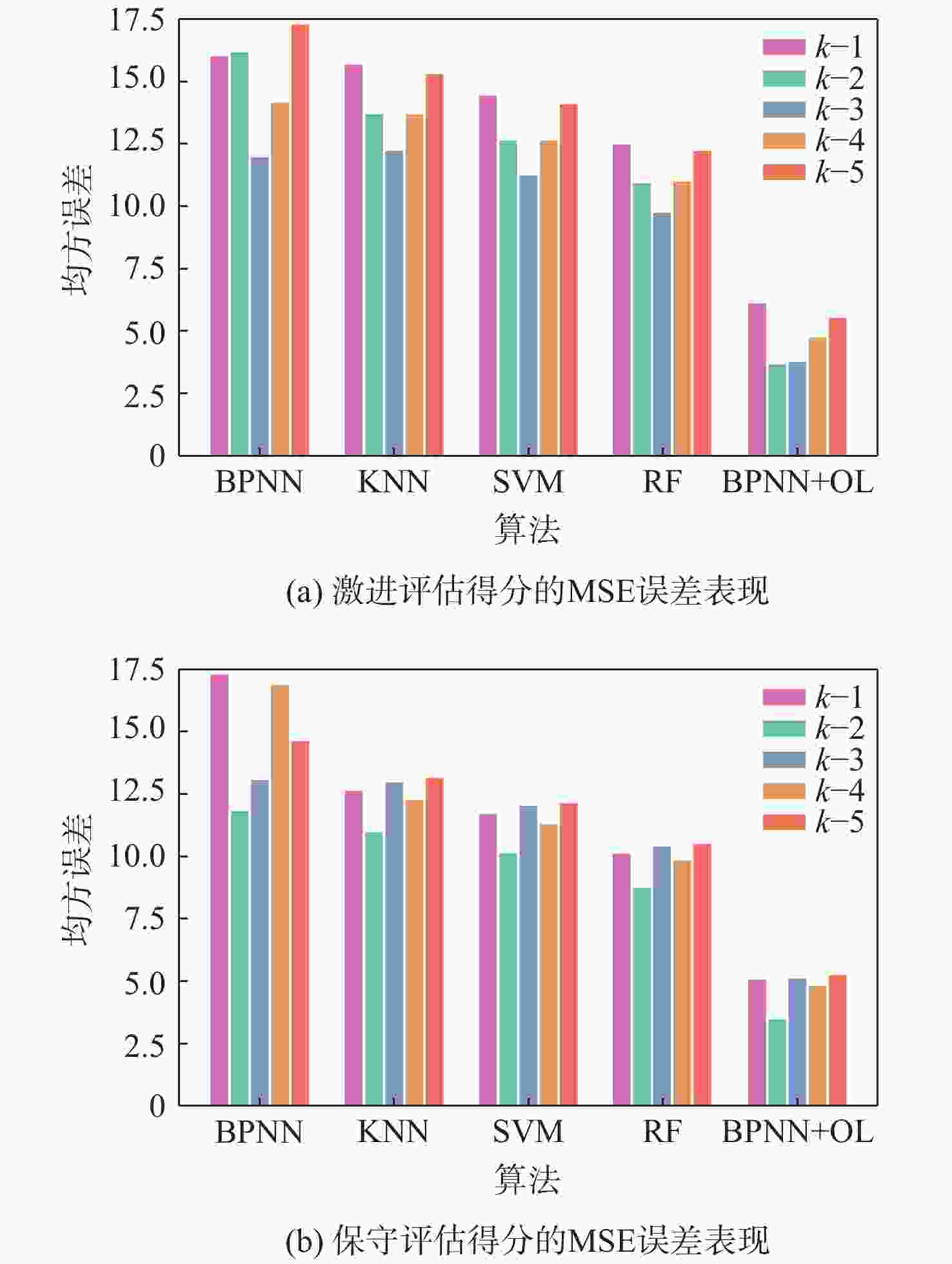

图 7 评估得分的MSE误差表现

Figure 7. Performance of MSE errors in score assessment

下载: 全尺寸图片幻灯片

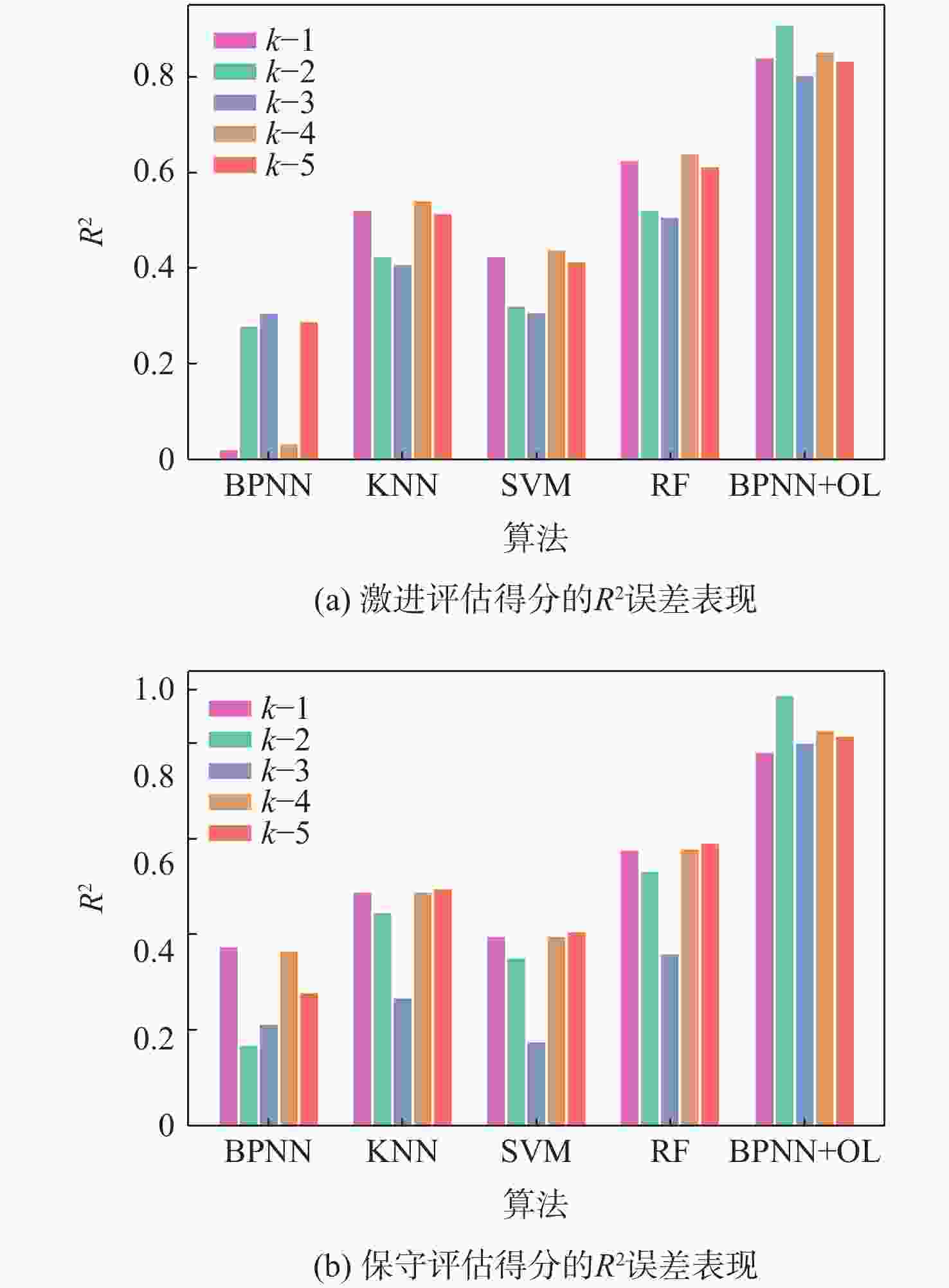

图 8 评估得分的R²误差表现

Figure 8. Performance of R² errors in score assessment

下载: 全尺寸图片幻灯片

图 9 主题爬虫收获率实验结果

Figure 9. Experiment results of topic crawler harvest ratio

下载: 全尺寸图片幻灯片

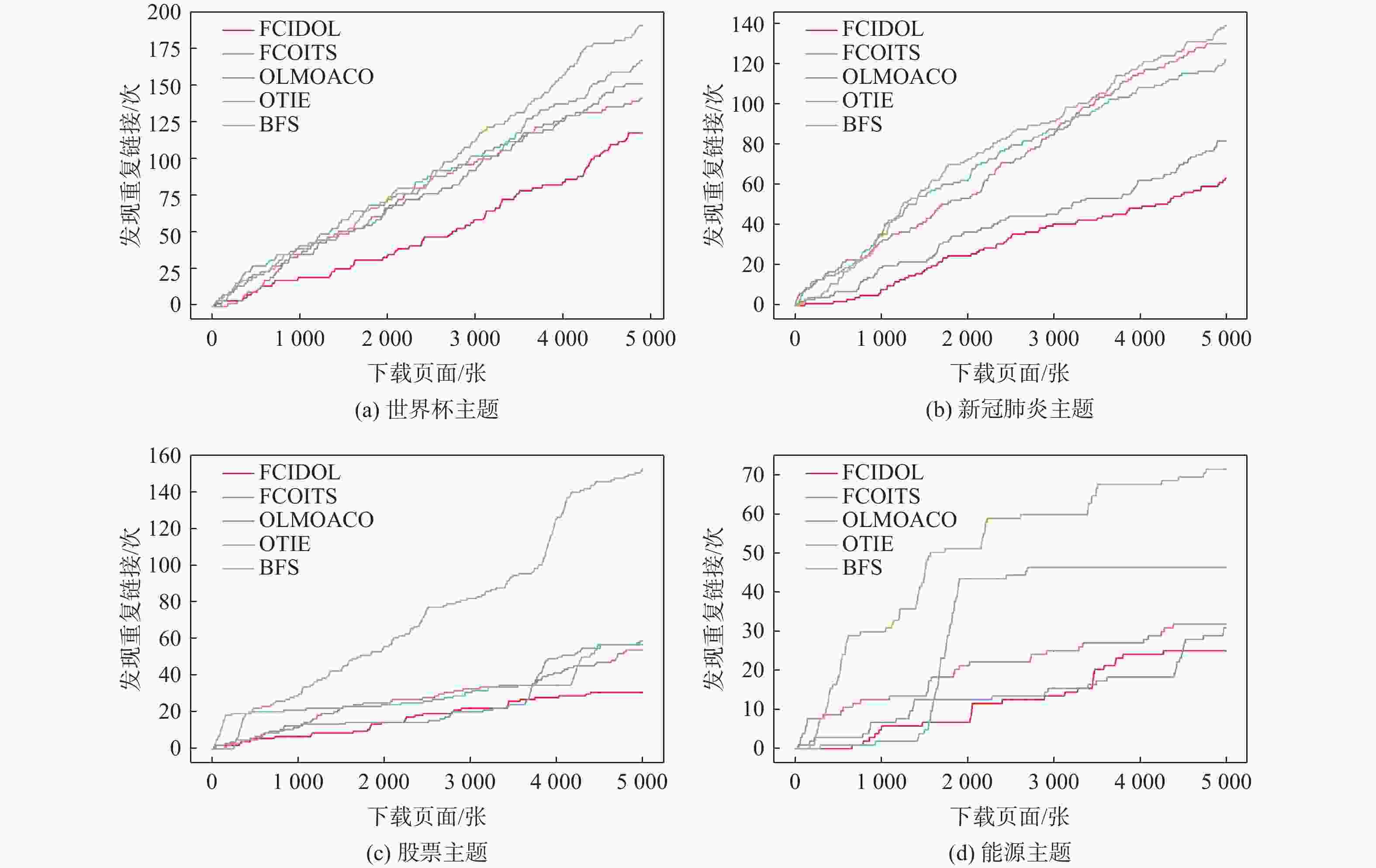

图 10 主题爬虫发现重复链接次数实验结果

Figure 10. Experiment results of duplicate link discovery frequency by topic crawlers

下载: 全尺寸图片幻灯片

表 1 评估网络的输入与输出

Table 1. Input and output of assessment network

信息	类别	值类型
主题相关度	输入	浮点型, (0,1)
网页权威值	输入	浮点型, (0,1)
相关性变化	输入	布尔型, 真/假
父网页平均主题相关度	输入	浮点型,(0,1)
与主题相关父网页距离	输入	整型, ≥1
重复链接存在性	输入	布尔型, 真/假
子网页主题相关预测值	输入	浮点型, (0,1)
子网页网页权威值	输入	浮点型, (0,1)
激进评估得分	输出	浮点型, (0,1)
保守评估得分	输出	浮点型, (0,1)

下载: 导出CSV

表 2 不同隐藏节点数的BPNN训练误差

Table 2. Training errors of BPNN with different numbers of hidden nodes

隐藏节点数	训练误差F_MSE
	k−1		k−2		k−3		k−4
	R	C	R	C	R	C	R	C
4	0.0137	0.0155	0.0152	0.0146	0.0144	0.0148	0.0152	0.0185
5	0.0323	0.0774	0.0925	0.0448	0.0674	0.0855	0.0898	0.0479
6	0.1001	0.1299	0.1696	0.1618	0.1063	0.1207	0.2183	0.1553
7	0.0279	0.0980	0.0109	0.0532	0.0079	0.0846	0.0401	0.0269
8	0.0002	0.0009	0.0065	0.0009	0.0008	0.0069	0.0023	0.0012
9	0.0161	0.5245	0.0389	0.2393	0.0404	0.4237	0.0255	0.2361
10	0.0230	0.0670	0.0278	0.0256	0.0344	0.0365	0.0109	0.0438
11	0.3730	0.2327	0.0713	0.5661	0.0879	0.0537	0.0261	0.1565
12	0.0839	0.4194	0.2262	0.1135	0.2022	0.1723	0.7254	0.0333
13	0.0826	0.2577	0.2488	0.1733	0.1442	0.1556	0.1389	0.9764
14	0.0966	0.3991	0.1656	0.1491	0.1941	0.3161	0.5263	0.2881

下载: 导出CSV

参考文献(21)

[1]	BERGMARK D, LAGOZE C, SBITYAKOV A. Focused crawls, tunneling, and digital libraries[C]// Lecture Notes in Computer Science. Berlin: Springer, 2002: 91-106.
[2]	ABITEBOUL S, PREDA M, COBENA G. Adaptive on-line page importance computation[C]//Proceedings of the Twelfth International Conference on World Wide Web-WWW '03. New York: ACM, 2003: 280-290.
[3]	PAGE L, BRIN S, MOTWANI R, et al. The PageRank citation ranking: Bringing order to the web[C]. Stanford Digital Libravies Working Paper, [s. l.]: [s. n.], 1998.
[4]	WANG C, GUAN Z Y, CHEN C, et al. On-line topical importance estimation: an effective focused crawling algorithm combining link and content analysis[J]. Journal of Zhejiang University: Science A, 2009, 10(8): 1114-1124. doi: 10.1631/jzus.A0820481
[5]	朱庆生, 徐宁, 周瑜. 一种基于链接和内容分析的自适应主题爬虫算法[J]. 计算机与现代化, 2015(9): 77-80. doi: 10.3969/j.issn.1006-2475.2015.09.016 ZHU Q S, XU N, ZHOU Y. An adaptive focused crawling algorithm based on link and content analysis[J]. Computer and Modernization, 2015(9): 77-80(in Chinese). doi: 10.3969/j.issn.1006-2475.2015.09.016
[6]	KANG X P, MIAO D Q. A study on information granularity in formal concept analysis based on concept-bases[J]. Knowledge-Based Systems, 2016, 105: 147-159. doi: 10.1016/j.knosys.2016.05.005
[7]	JING W P, WANG Y J, WEIWEI D. Research on adaptive genetic algorithm in application of focused crawler search strategy[J]. Computer Science, 2016, 43(8): 254-257.
[8]	LIU W J, DU Y J. A novel focused crawler based on cell-like membrane computing optimization algorithm[J]. Neurocomputing, 2014, 123: 266-280. doi: 10.1016/j.neucom.2013.06.039
[9]	ZHENG S. Genetic and ant algorithms based focused crawler design[C]//Proceedings pf the Second International Conference on Innovations in Bio-inspired Computing and Applications. Piscataway: IEEE Press, 2011: 374-378.
[10]	GUAN W G, LUO Y C. Design and implementation of focused crawler based on concept context graph[J]. Computer Engineering and Design, 2016, 37 (10): 2679-2684.
[11]	FEI C J, LIU B S. Focused crawler based on LDA extended topic terms[J]. Computer Applications and Software, 2018, 35 (4) : 49-54.
[12]	LIU J F, DONG Y, LIU Z X, et al. Applying ontology learning and multi-objective ant colony optimization method for focused crawling to meteorological disasters domain knowledge[J]. Expert Systems with Applications, 2022, 198: 116741. doi: 10.1016/j.eswa.2022.116741
[13]	ENCK R E. The OODA loop[J]. Home Health Care Management & Practice, 2012, 24(3): 123-124.
[14]	RANI M, DHAR A K, VYAS O P. Semi-automatic terminology ontology learning based on topic modeling[J]. Engineering Applications of Artificial Intelligence, 2017, 63: 108-125. doi: 10.1016/j.engappai.2017.05.006
[15]	CHURCH K W. Word2Vec[J]. Natural Language Engineering, 2017, 23(1): 155-162. doi: 10.1017/S1351324916000334
[16]	AIZAWA A. An information-theoretic perspective of tf–idf measures[J]. Information Processing & Management, 2003, 39(1): 45-65.
[17]	LI L, ZHANG G Y, LI Z W. Research on focused crawling technology based on SVM[J]. Computer Science, 2015, 42(2) : 118-122.
[18]	CHIBA Z, ABGHOUR N, MOUSSAID K, et al. A novel architecture combined with optimal parameters for back propagation neural networks applied to anomaly network intrusion detection[J]. Computers & Security, 2018, 75: 36-58.
[19]	BILSKI J, KOWALCZYK B, MARCHLEWSKA A, et al. Local levenberg-marquardt algorithm for learning feedforwad neural networks[J]. Journal of Artificial Intelligence and Soft Computing Research, 2020, 10(4): 299-316. doi: 10.2478/jaiscr-2020-0020
[20]	DE JESÚS RUBIO J. Stability analysis of the modified levenberg–marquardt algorithm for the artificial neural network training[J]. IEEE Transactions on Neural Networks and Learning Systems, 2020, 32(8): 3510-3524.
[21]	LIU J F, GU Y P, LIU W J. Focused crawler method combining ontology and improved Tabu search for meteorological disaster[J]. Journal of Computer Applications, 2020, 40(8): 2255-2261.
