一种面向非结构化道路的点云语义分割方法

王章宇; 陈阳; 周彬; 王杰; 段星集; 赵忠山

doi:10.13700/j.bh.1001-5965.2023.0045

一种面向非结构化道路的点云语义分割方法

doi: 10.13700/j.bh.1001-5965.2023.0045

王章宇^{1, 2, 3},
陈阳^{1, 4},
周彬^{1, 2, 3, ,},
王杰^{1, 2},
段星集^{1, 4},
赵忠山⁵

1.
北京航空航天大学交通工程与科学学院，北京 100191
2.
车路一体智能交通全国重点实验室，北京 100191
3.
北京航空航天大学合肥创新研究院，合肥 230012
4.
特种车辆无人运输技术工业和信息化部重点实验室，北京 100191
5.
国能北电胜利能源有限公司露天矿运输队，锡林浩特 026000

基金项目: 国家重点研发计划(2020YFB1600301)；国家自然科学基金青年基金(52102448)

详细信息

通讯作者:
E-mail：binzhou@buaa.edu.cn

中图分类号: TP391
计量
- 文章访问数: 585
- HTML全文浏览量: 102
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2023-02-12
- 录用日期: 2023-04-23
- 网络出版日期: 2023-04-26
- 整期出版日期: 2025-02-28

A point cloud semantic segmentation method for unstructured roads

WANG Zhangyu^{1, 2, 3},
CHEN Yang^{1, 4},
ZHOU Bin^{1, 2, 3
, ,},
WANG Jie^{1, 2},
DUAN Xingji^{1, 4},
ZHAO Zhongshan⁵

1.
School of Transportation Science and Engineering，Beihang University，Beijing 100191，China
2.
State Key Lab of Intelligent Transportation System，Beijing 100191，China
3.
Hefei Innovation Research Institute of Beihang University，Hefei 230012，China
4.
Key Laboratory of Special Vehicle Unmanned Transport Technology Ministry of Industry and Information Technology，Beijing 100191，China
5.
Open-pit Mine Transportation Team，Guoneng Beidian Shengli Energy Co.，Ltd.，Xilinhot 026000，China

Funds: National Key Research and Development Program of China (2020YFB1600301); National Natural Science Foundation of China Youth Fund (52102448)

More Information

Corresponding author: E-mail：binzhou@buaa.edu.cn

摘要

摘要:
针对以露天矿区为代表的非结构化道路场景环境恶劣、道路边界模糊、障碍物尺寸差异较大等问题，提出一种面向非结构化道路的点云语义分割方法，包括预处理、特征提取网络及逆处理3部分。其中，预处理通过坐标转换将三维点云映射到二维Range View (RV)图上，以提高网络推理速度；特征提取网络包括卷积注意力模块及多尺度残差模块，卷积注意力模块用于细化分割边界，解决道路边界模糊问题，多尺度残差模块使用大卷积核扩大感受野并融合上下采样特征，以适应非结构化道路环境下障碍物尺寸变化较大的问题；逆处理通过K最邻近(KNN)算法修正语义标签并将点云映射回三维空间。在典型非结构化道路露天矿区数据集上对所提方法进行测试，平均交并比达到85.1%，推理速度达到6.423 ms，与主流的基于球面投影的语义分割网络相比整体精度提升了3%，此外，所提方法在非结构化道路场景下进行了实际应用。
- 三维点云 /
- 语义分割 /
- 非结构化道路 /
- 深度学习 /
- 注意力机制
Abstract:
A point cloud semantic segmentation method for unstructured road scenes, represented by open-pit mining areas, is proposed to address issues such as harsh environmental conditions, blurred road boundaries, and significant differences in obstacle sizes. The method includes preprocessing, feature extraction networks, and inverse processing. Among them, preprocessing maps the three-dimensional point cloud to a two-dimensional Range View (RV) graph through coordinate transformation to improve network inference speed; The feature extraction network includes a convolutional attention module and a multi-scale residual module. The convolutional attention module is used to refine the segmentation boundaries and solve the problem of blurred road boundaries; The multi-scale residual module uses a large convolution kernel to expand the receptive field and fuse up and down sampling features to adapt to the problem of large changes in obstacle size in unstructured road environments; Inverse processing uses the K-nearest neighbor (KNN) algorithm to correct semantic labels and map point clouds back to three-dimensional space. The proposed method was tested on a typical unstructured road open-pit mining dataset, with an average intersection to union ratio of 85.1% and an inference speed of 6.423 ms. Compared with mainstream semantic segmentation network based on spherical projection, the overall accuracy was improved by 3%. In addition, the proposed method has been practically applied in unstructured road scenarios.
- 3D point-cloud /
- semantic segmentation /
- unstructured roads /
- deep learning /
- attention mechanism

HTML全文

图 1 本文方法的骨干网络架构

Figure 1. Backbone network architecture of the proposed method

下载: 全尺寸图片幻灯片

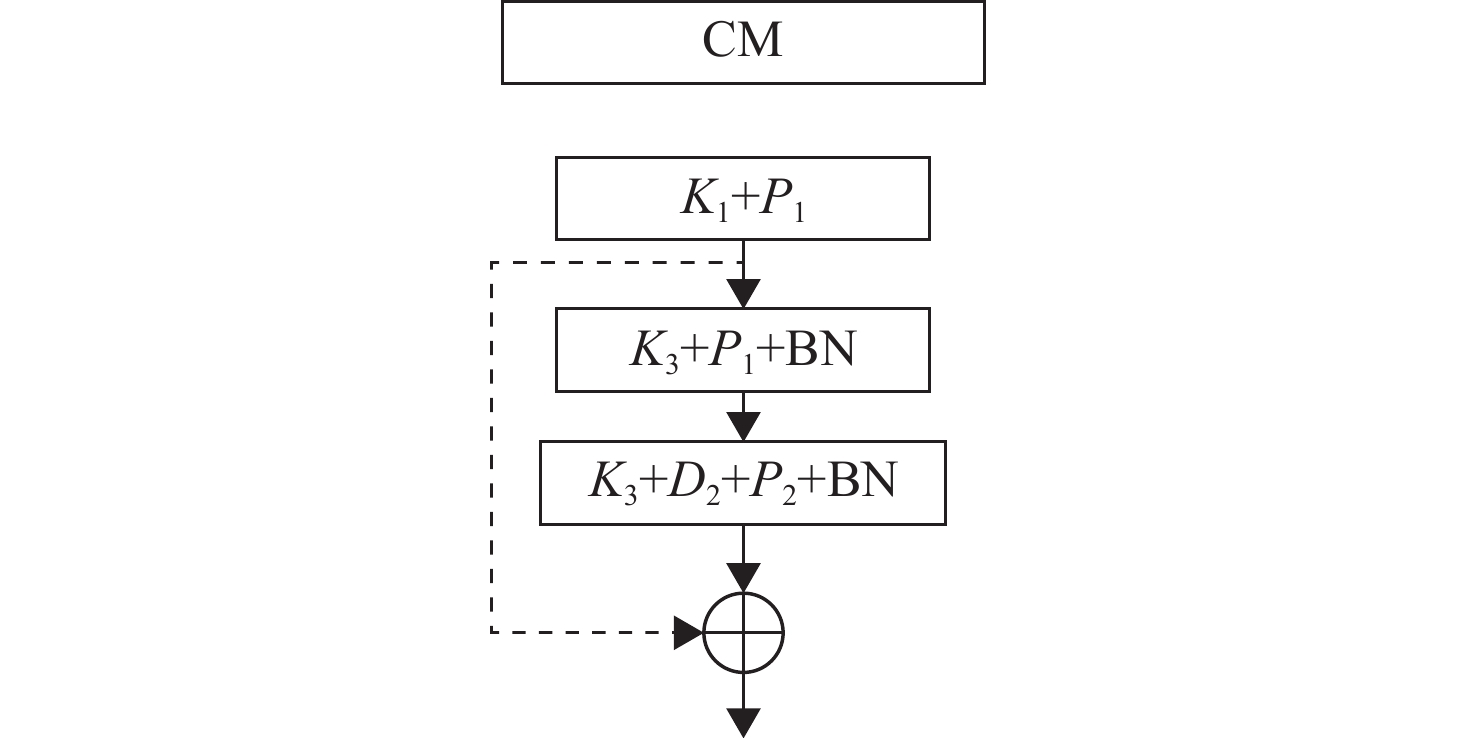

图 2 上下文模块

Figure 2. Contextual module

下载: 全尺寸图片幻灯片

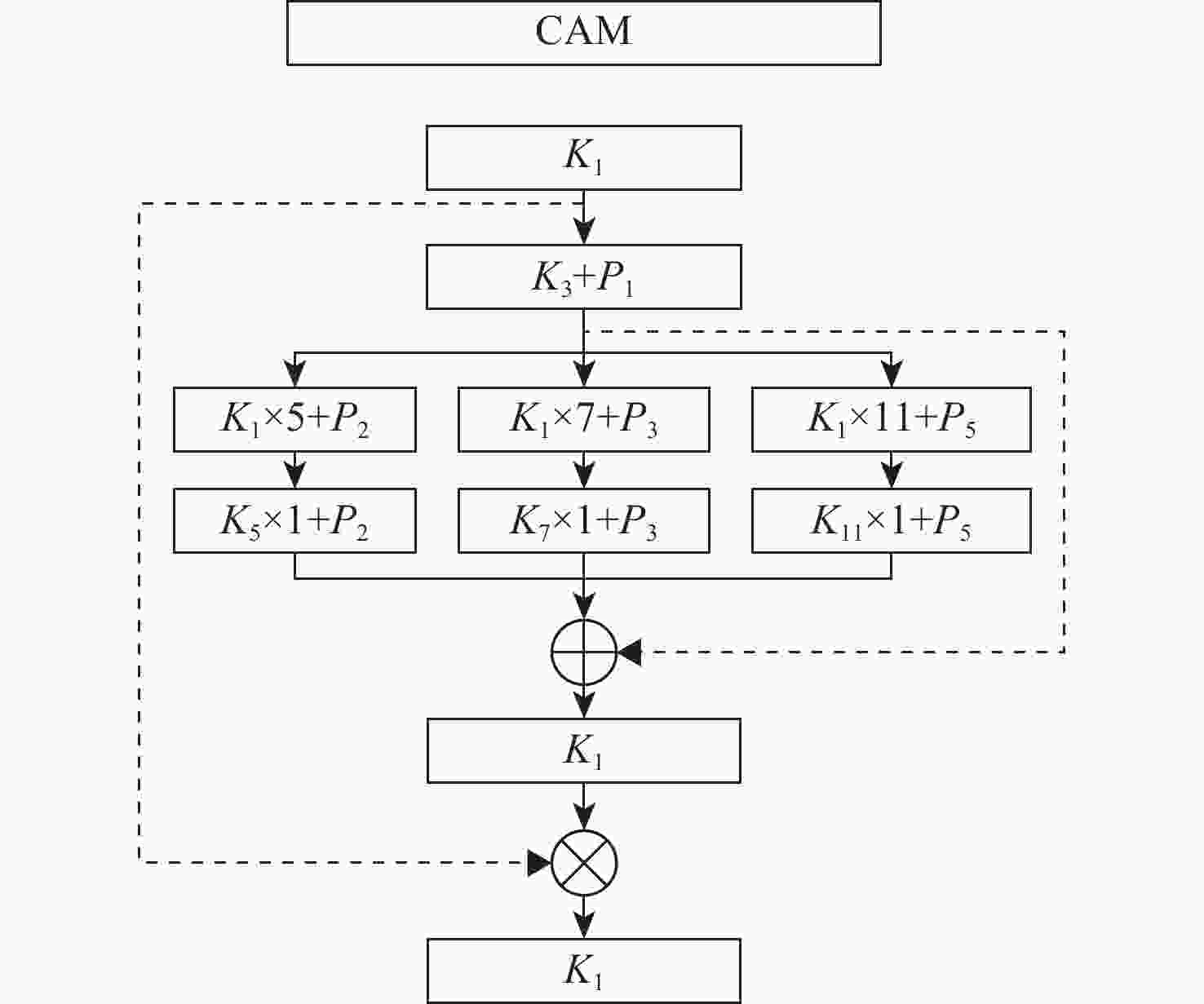

图 3 卷积注意力模块

Figure 3. Conv-attention module

下载: 全尺寸图片幻灯片

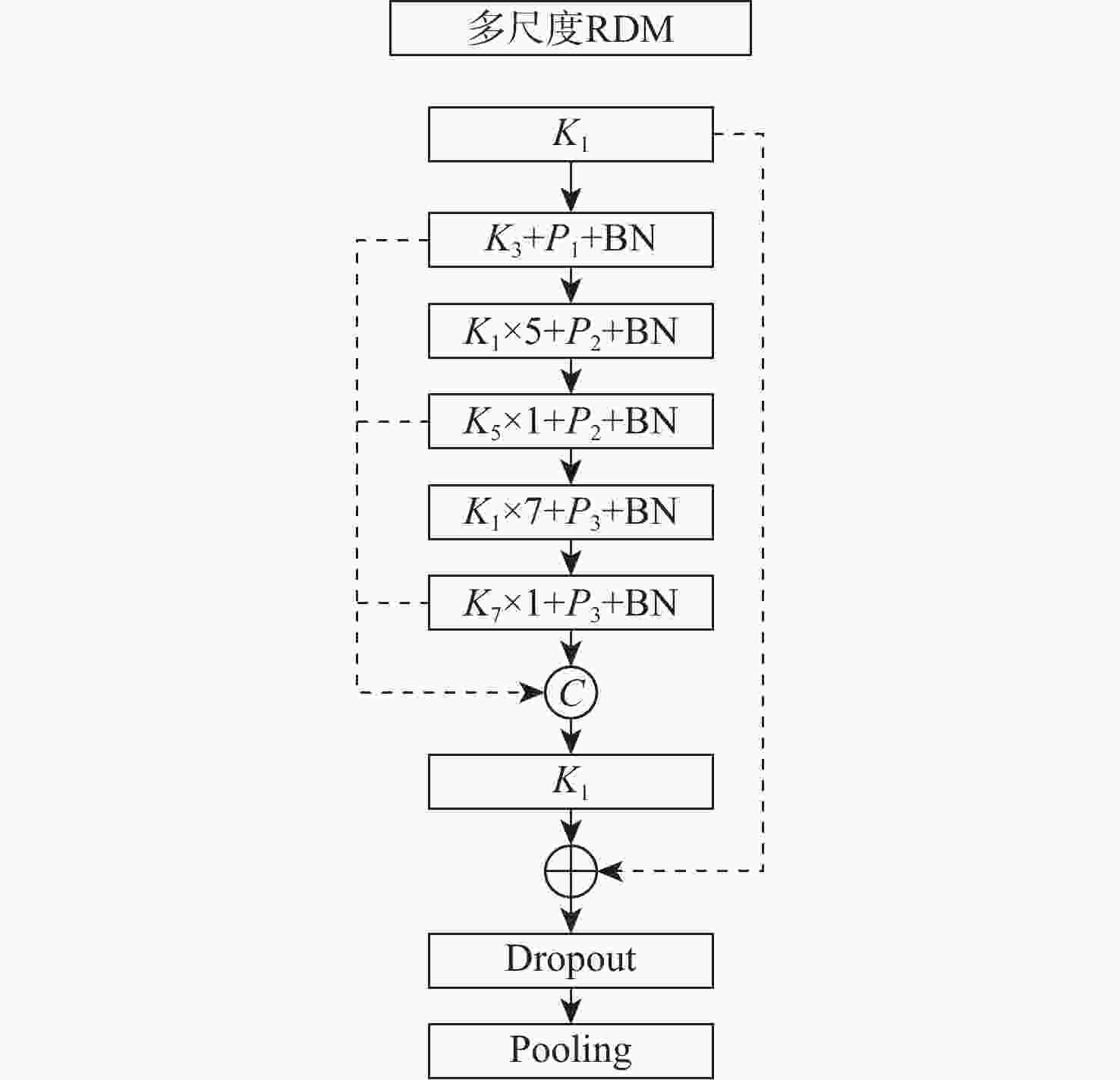

图 4 多尺度残差下采样模块

Figure 4. Multi scale res-down module

下载: 全尺寸图片幻灯片

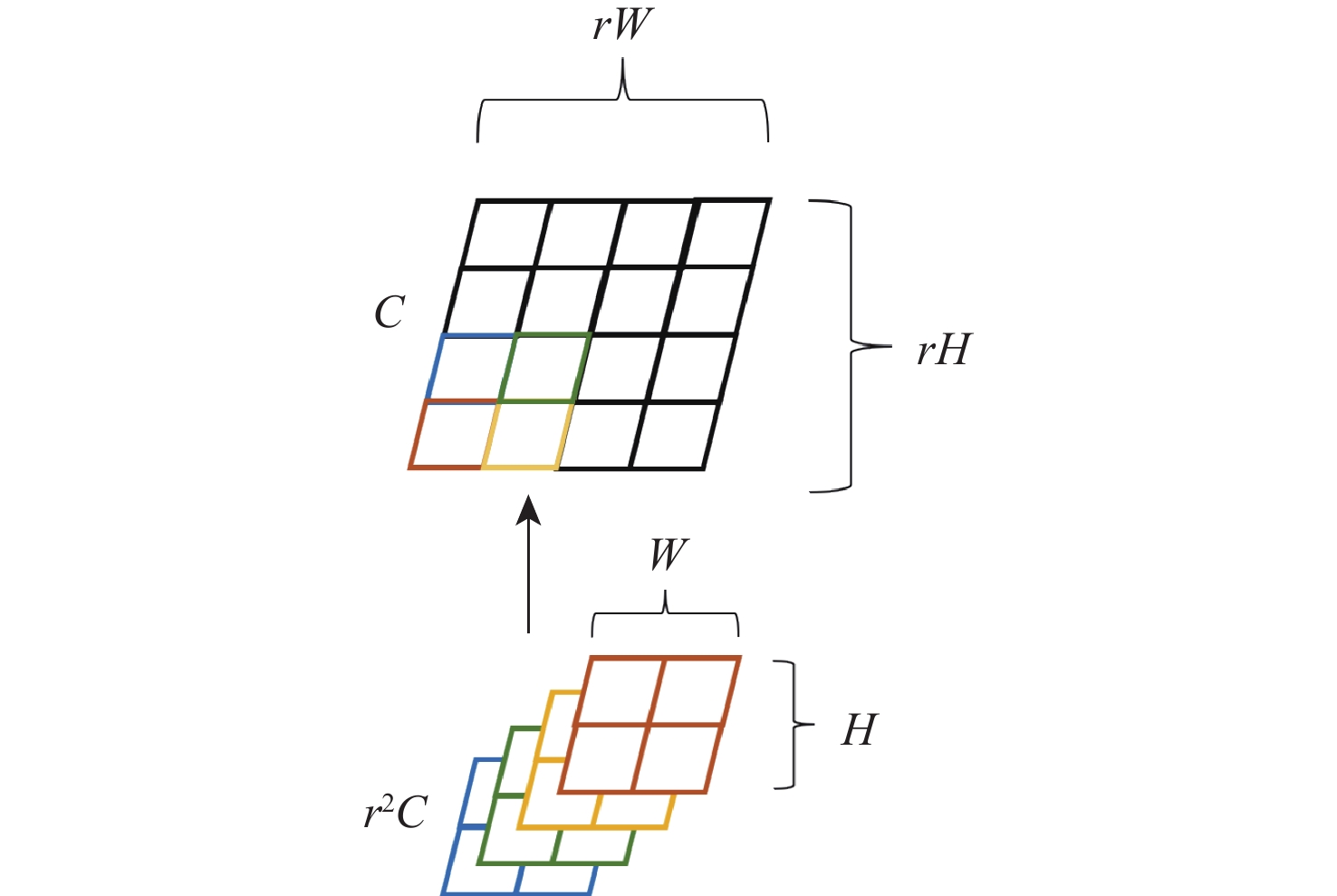

图 5 亚像素上采样层

Figure 5. Pixel-shuffle layer

下载: 全尺寸图片幻灯片

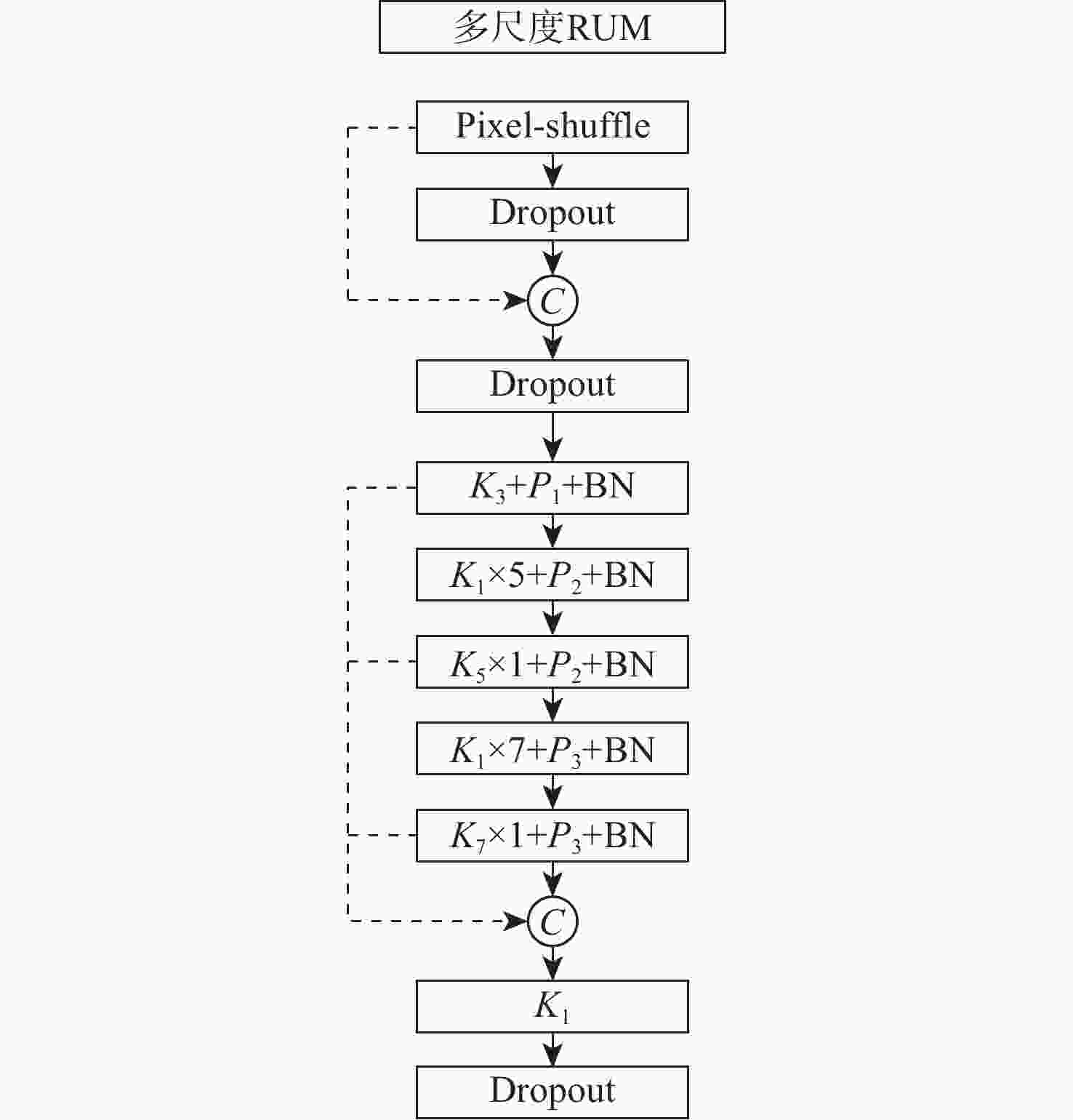

图 6 多尺度残差上采样模块

Figure 6. Multi scale res-up module

下载: 全尺寸图片幻灯片

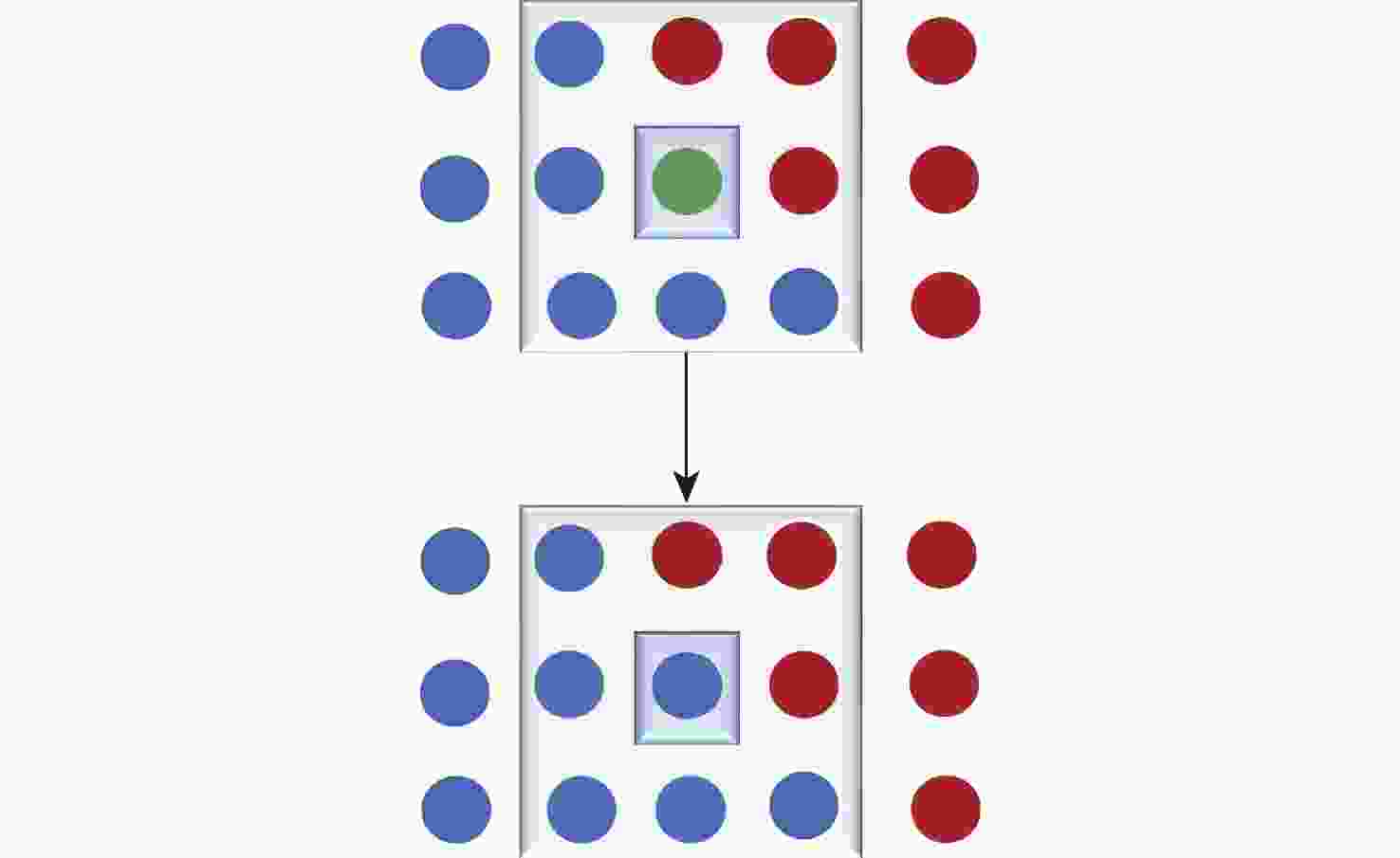

图 7 KNN算法

Figure 7. K-nearest neighbor algorithm

下载: 全尺寸图片幻灯片

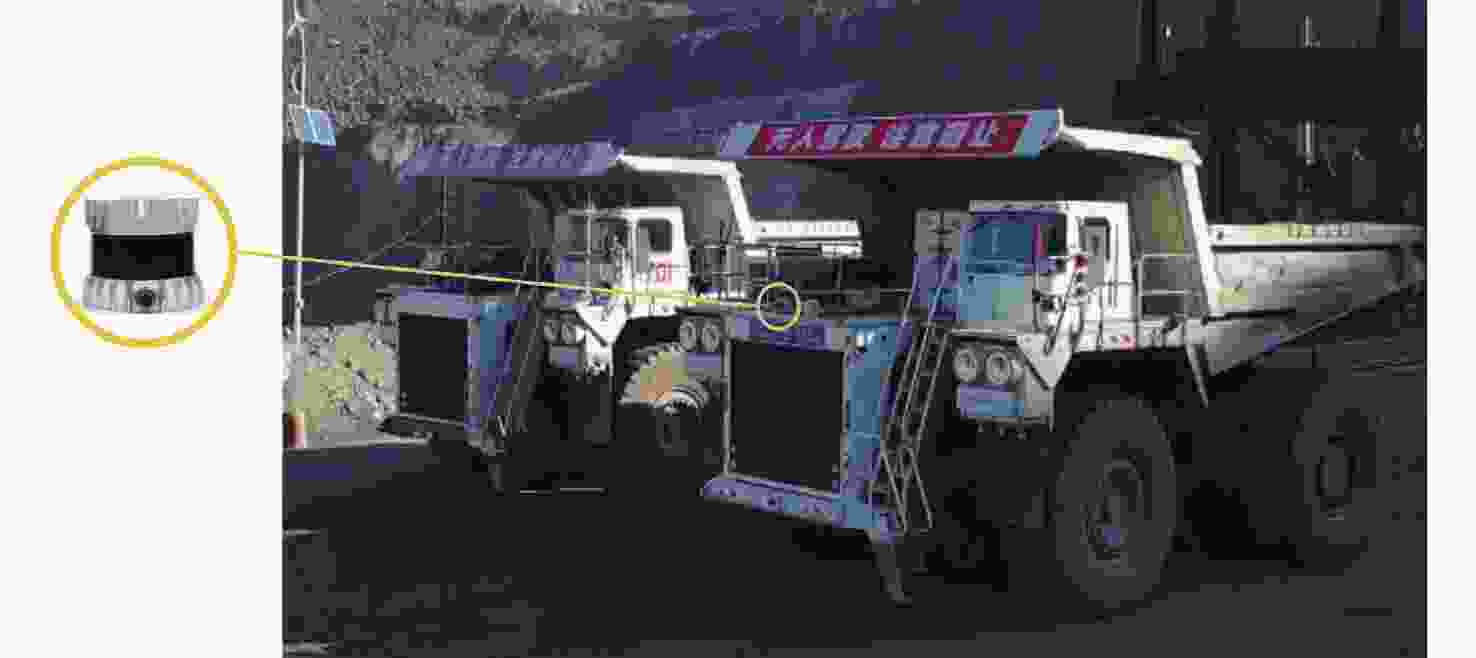

图 8 数据采集车

Figure 8. Data collection vehicle

下载: 全尺寸图片幻灯片

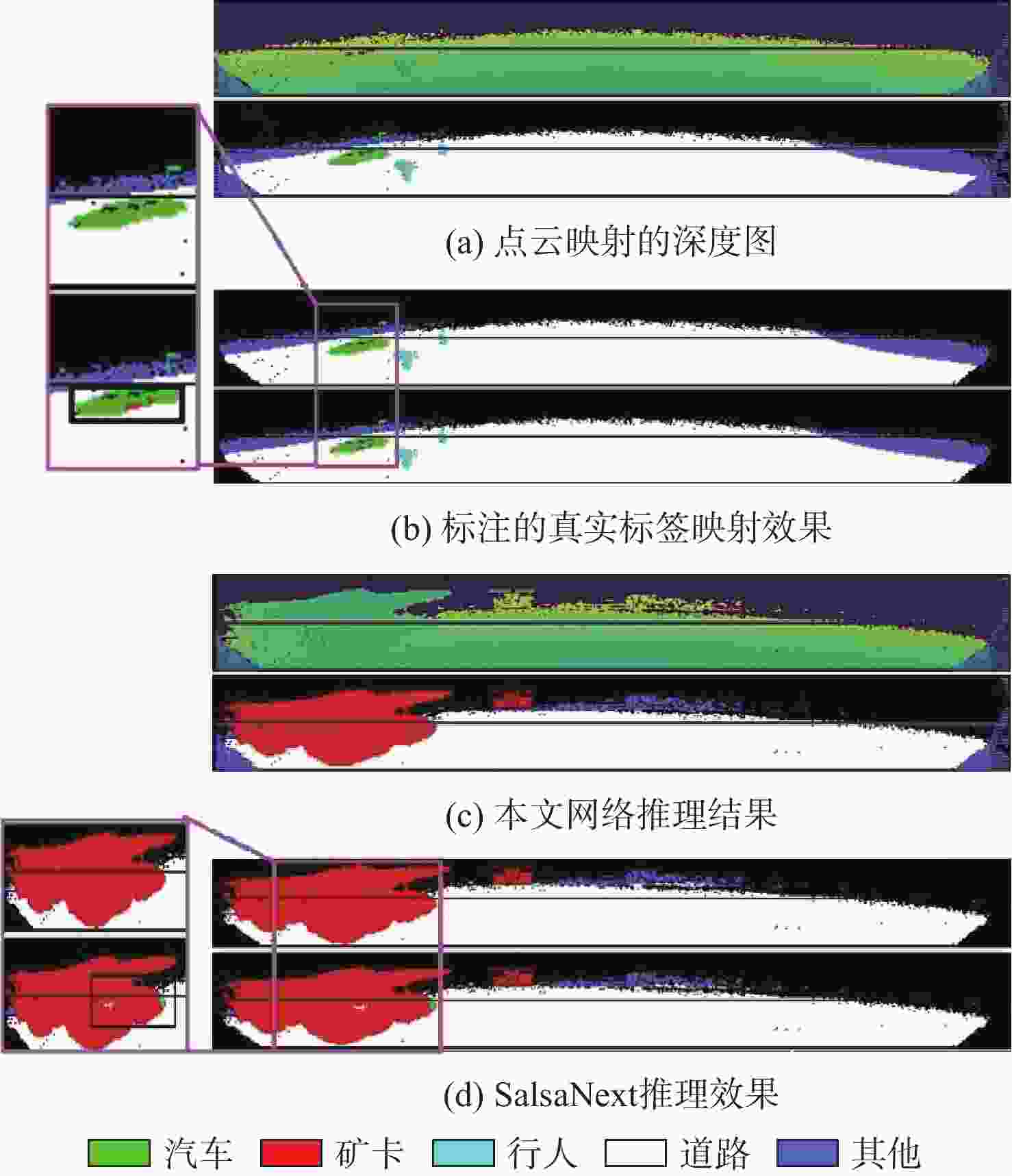

图 9 二维RV映射图

Figure 9. 2D range view image

下载: 全尺寸图片幻灯片

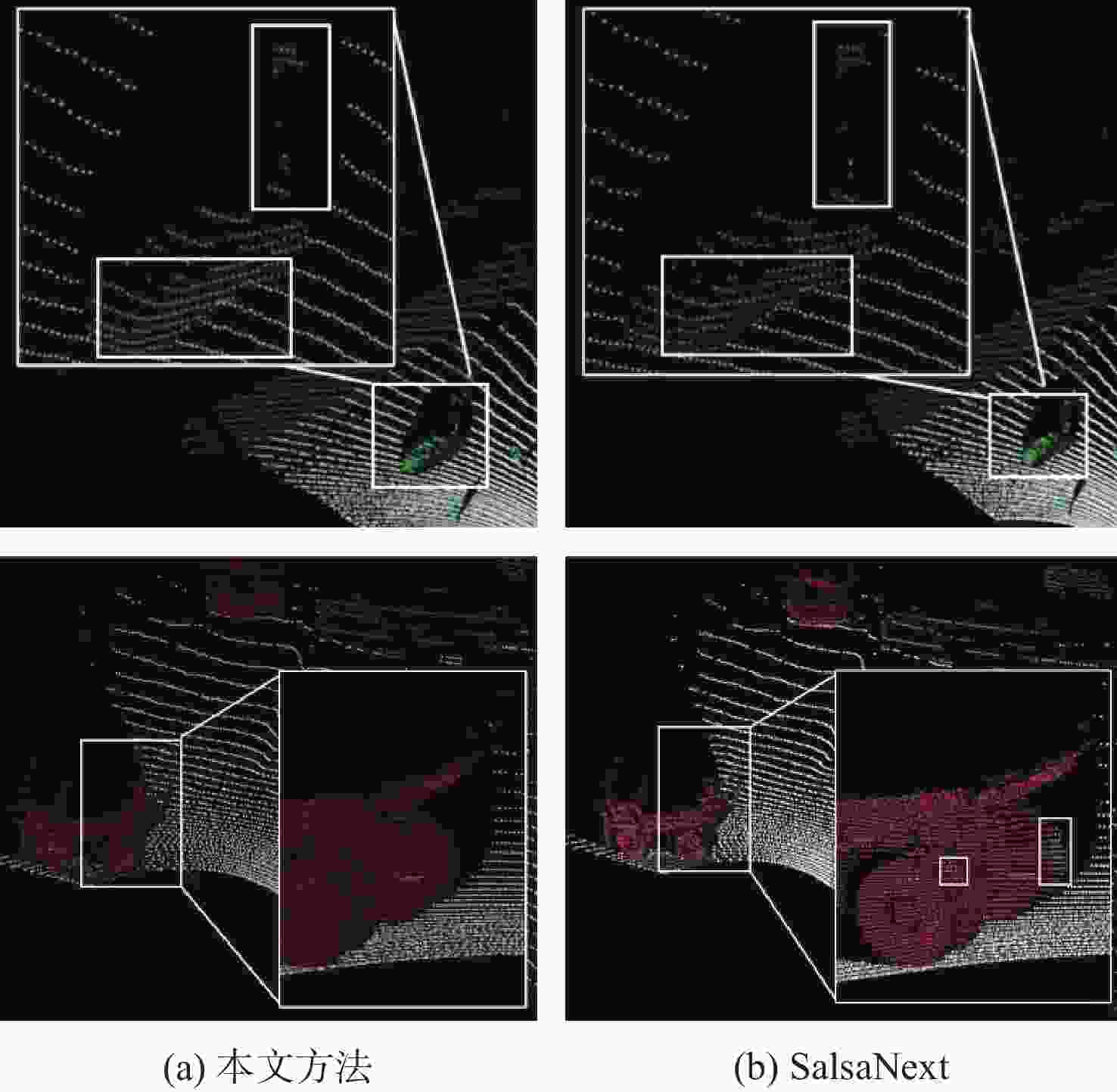

图 10 三维点云图

Figure 10. 3D point clouds image

下载: 全尺寸图片幻灯片

表 1 数据集类别标签

Table 1. Dataset category labels

类别名	RGB三维通道
汽车	[0, 255, 0]
矿卡	[255, 0, 0]
行人	[0, 255, 255]
道路	[255, 255, 255]
其他	[100, 100, 255]

下载: 导出CSV

表 2 各网络精度及推理时间测试表

Table 2. Accuracy and inference time test table of each network

网络结构	类交并比/%					平均精度/%	平均交并比/%	时间/ms
网络结构	汽车	矿卡	行人	道路	其他	平均精度/%	平均交并比/%	时间/ms
SalsaNext	63.7	65.9	94.7	92.5	93.6	96.3	82.1	6.91
SalsaNext+CM	66.1	64.0	94.9	93.0	93.9	96.5	82.4	6.678
SalsaNext+CAM	64.9	73.0	94.8	93.1	94.1	96.6	84.0	7.238
SalsaNext+RDM+RUM	65.0	72.7	94.8	92.3	93.4	96.3	83.6	6.273
本文方法(SalsaNext+CAM+RDM+RUM)	68.8	74.5	94.8	93.2	94.2	96.7	85.1	6.423

下载: 导出CSV

表 3 基于球面投影的网络精度及推理时间测试表

Table 3. Network accuracy and inference time test table based on spherical projection

网络	类交并比/%					平均精度/%	平均交并比/%	时间/ms
网络	汽车	矿卡	行人	道路	其他	平均精度/%	平均交并比/%	时间/ms
RangeNet++	38.0	36.3	92.4	91.2	92.1	95.4	70.0	15.83
SqueezeSegV2	44.1	39.3	92.9	92.7	93.3	96.1	72.4	49.47
SqueezeSegV3	57.7	56.8	94.8	93.5	94.2	96.7	79.4	50.00
SalsaNet	43.2	47.5	92.1	91.7	92.3	95.6	73.4	7.83
SalsaNext	63.7	65.9	94.7	92.5	93.6	96.3	82.1	6.91
本文方法	68.8	74.5	94.8	93.2	94.2	96.7	85.1	6.42

下载: 导出CSV
