Study progress of gap sealing structure for aircraft movable wing

1.
School of Aeronautic Science and Engineering，Beihang University，Beijing 100191，China
2.
The Military Representative Office of the Air Force Equipment Department in Shijiazhuang，Shijiazhuang 050081，China

More Information

Corresponding author: E-mail：xiaoquan_cheng@buaa.edu.cn

摘要

摘要:
主翼面与可动翼面之间的缝隙会对飞机飞行性能造成一定影响，缝隙封严结构的应用会改善机翼的表面光滑性，同时达到增升减阻、优化操纵等效果。基于此，对5种封严结构设计形式进行对比，并将封严结构的设计分为依靠机构和依靠材料2类，分析了其优缺点。比较了4家航空配件公司的封严结构产品，分析了耐磨自由端细节设计。给出了快速拆装修理、限制结构刚度范围、设计时仿真与试验相结合等设计建议。
- 飞机封严结构 /
- 缝隙密封 /
- 飞行性能提升 /
- 弹性大变形 /
- 疲劳性能
Abstract:
The gap between the main wing surface and the movable wing surface might have a certain impact on the flight performance of the aircraft. The application of the gap-sealing structure will improve the surface smoothness of the wing while achieving effects such as increasing lift, reducing drag, and optimizing operation. This article compares various sealing structure design forms and divides them into two categories: relying on materials and relying on mechanisms. The benefits and drawbacks of each category are examined.The sealing structure products of several aviation parts companies are compared. Analysis is done on intricate designs like wear-resistant free ends. Design suggestions are provided at last, such as rapid disassembly and repair, limitation for the range of the structural stiffness, and a combination of simulation and experiment while designing.
- aircraft sealing structure /
- gap seal /
- flight performance improvement /
- large elastic deformation /
- fatigue property

HTML全文

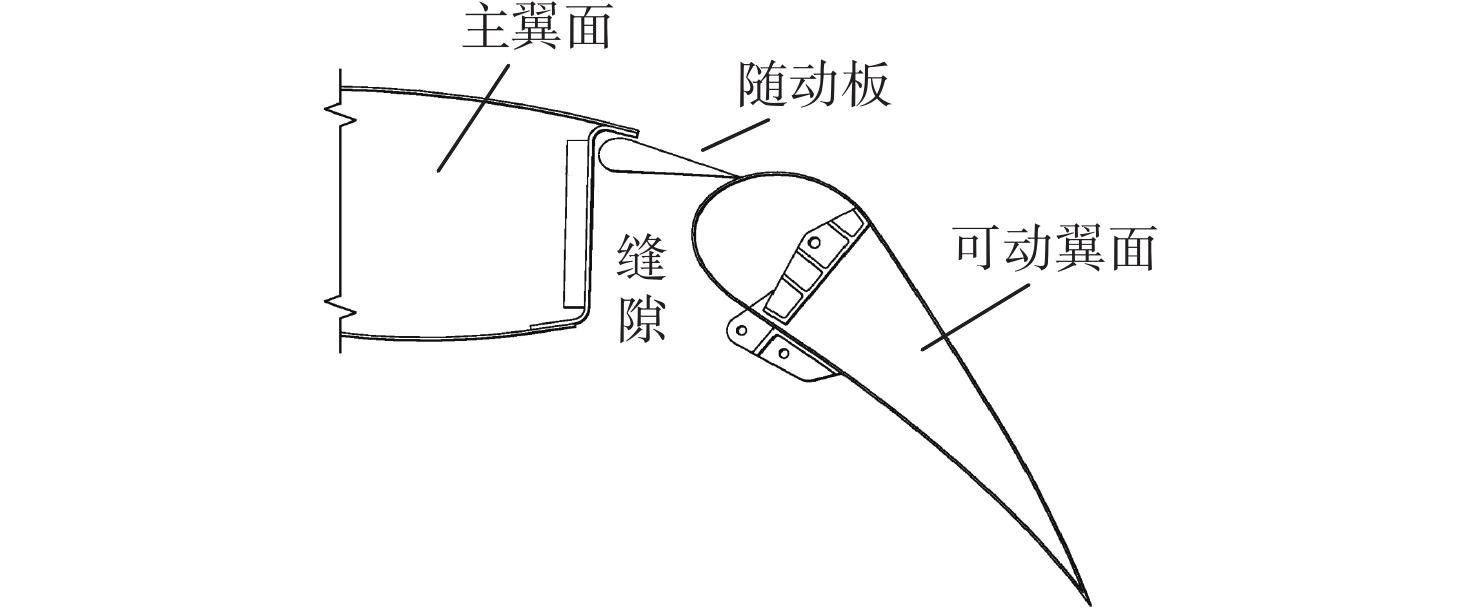

图 1 机翼可动翼面与主翼面间的缝隙^[1]

Figure 1. Gap between movable wing surface and main wing surface^[1]

下载: 全尺寸图片幻灯片

图 2 传统翼面封严结构^[7]

Figure 2. Traditional wing sealing structure^[7]

下载: 全尺寸图片幻灯片

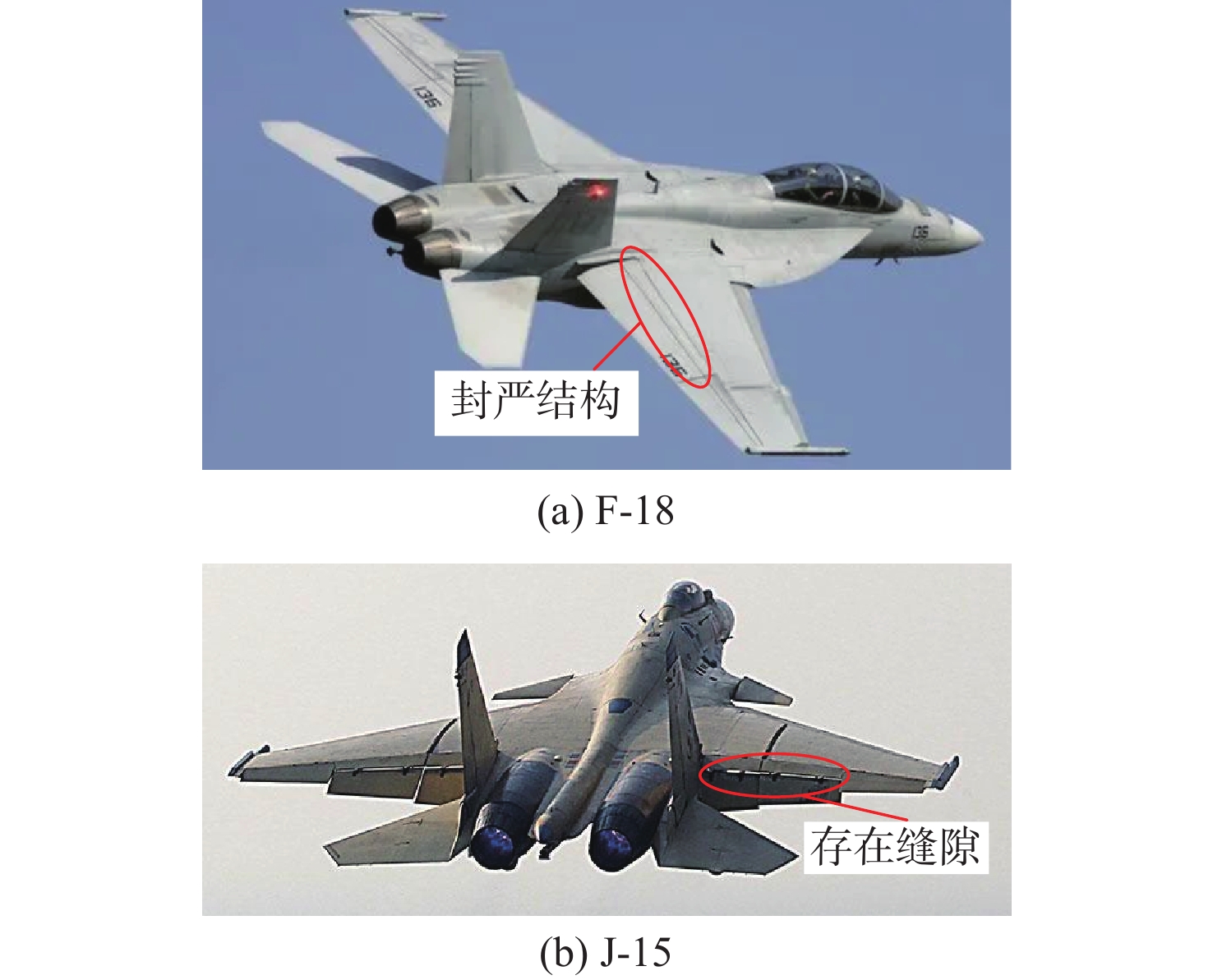

图 3 舰载机F-18与J-15对比

Figure 3. Comparison between shipboard aircraft F-18 and J-15

下载: 全尺寸图片幻灯片

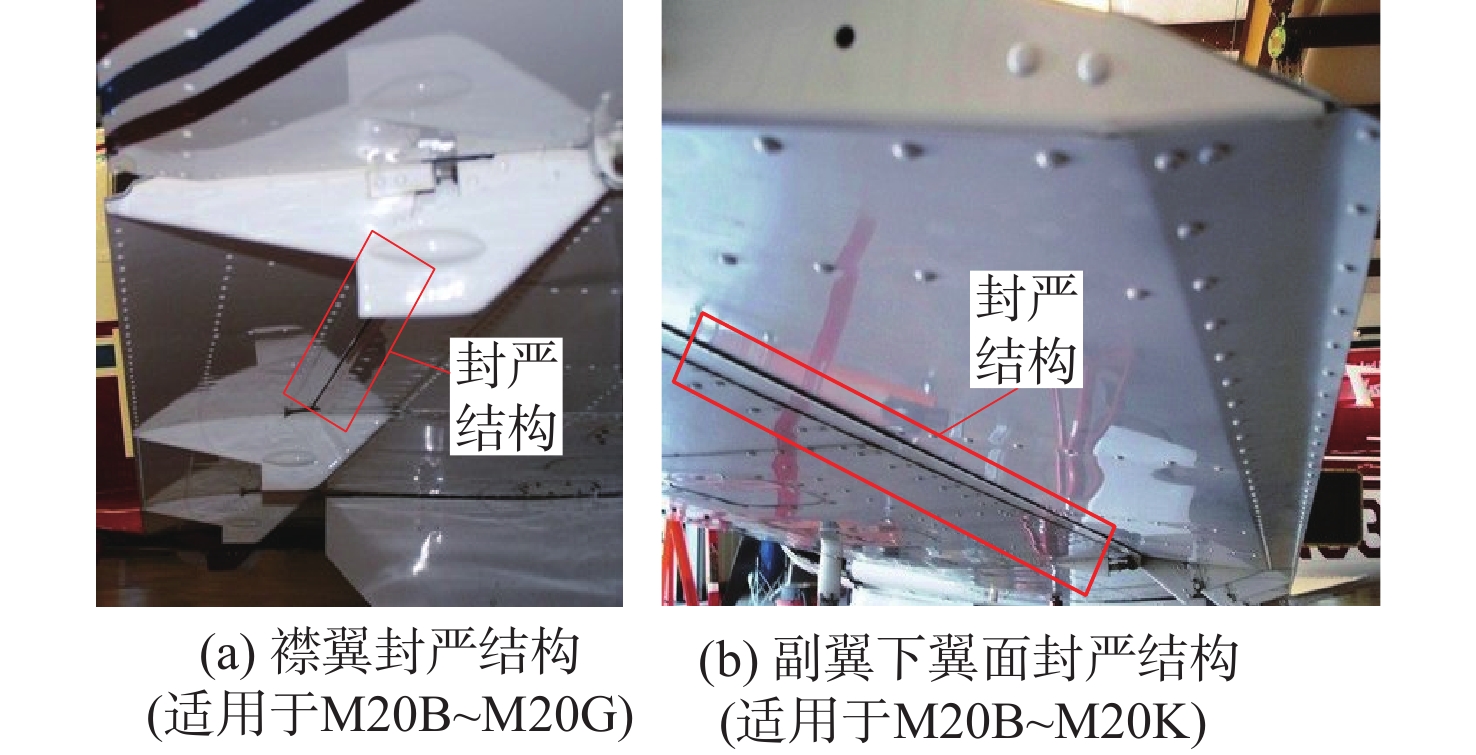

图 4 Lasar Aero Styling & Repair公司的封严结构产品安装示意图

Figure 4. Installation diagram of Lasar Aero Styling & Repair Company’s sealing structure products

下载: 全尺寸图片幻灯片

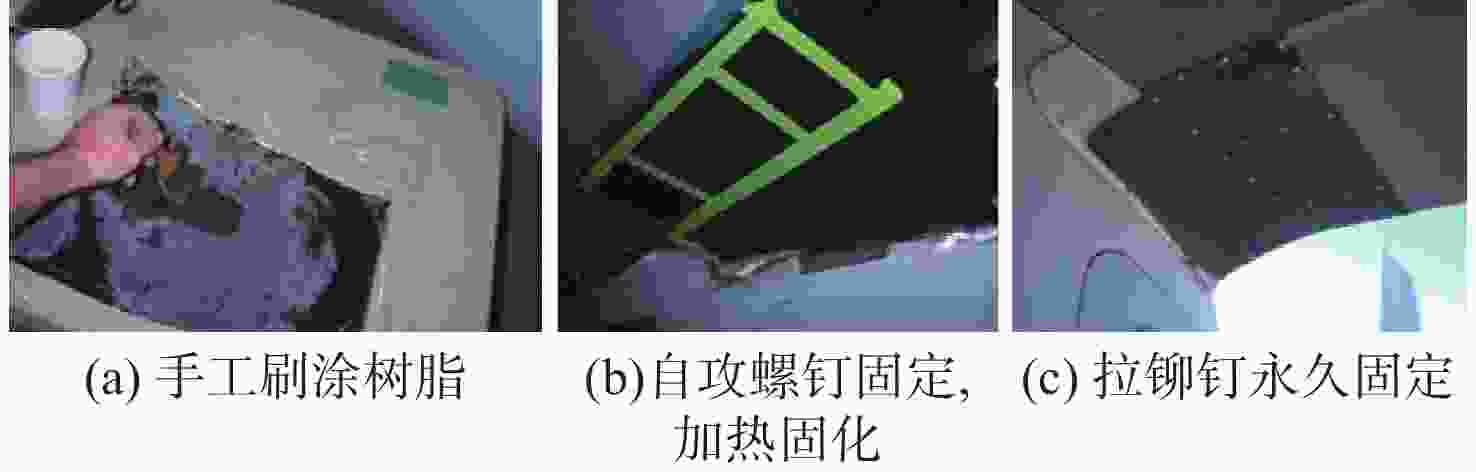

图 5 自制层合板封严结构

Figure 5. Self-made laminated plate sealing structure

下载: 全尺寸图片幻灯片

图 6 传统翼面封严结构^[7]

Figure 6. Traditional wing sealing structures^[7]

下载: 全尺寸图片幻灯片

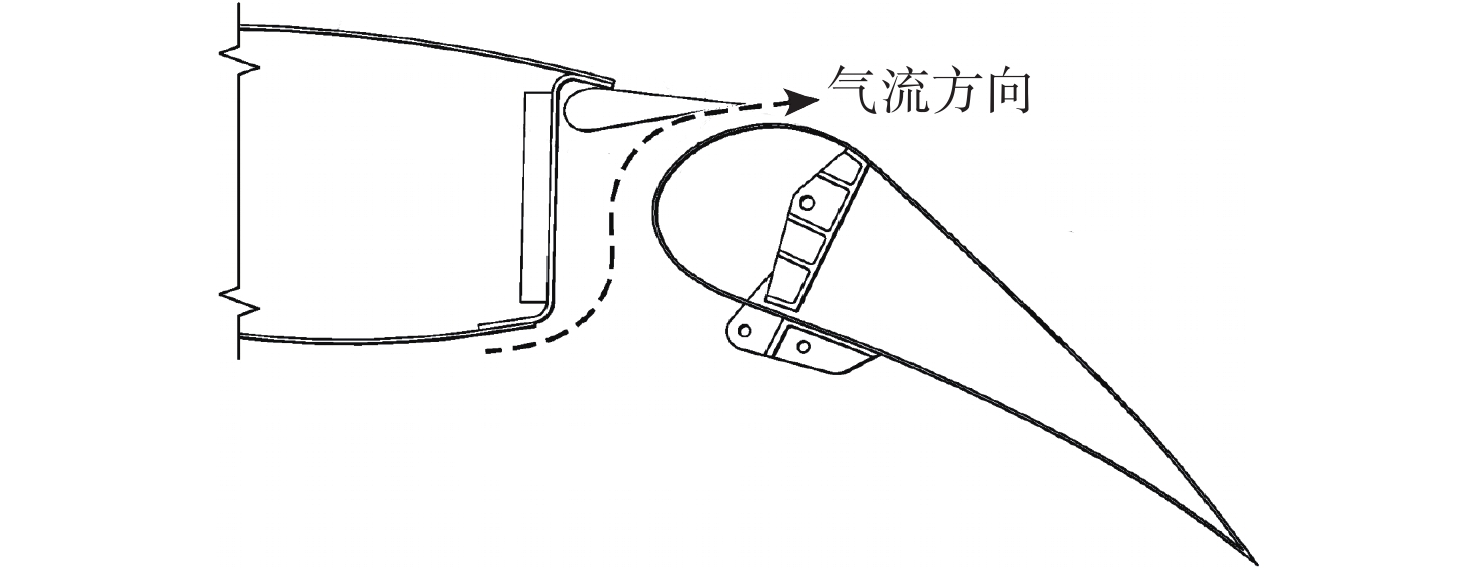

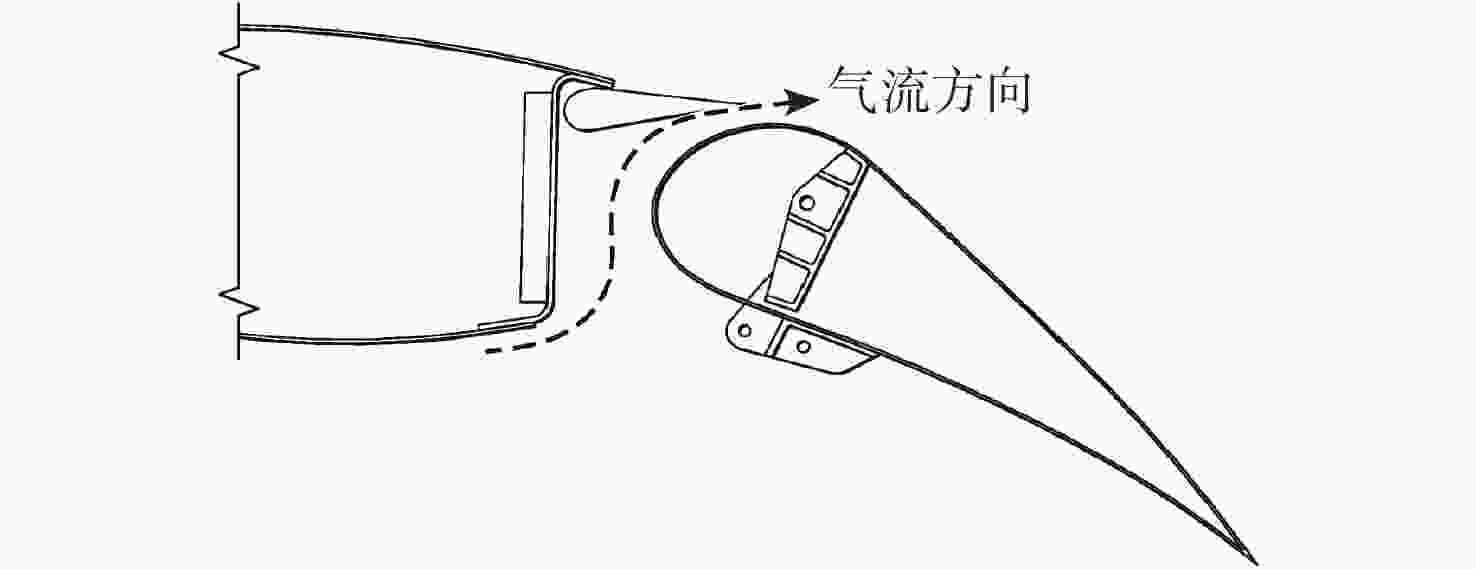

图 7 飞行舵面前缘随动封严结构^[8]

Figure 7. A kind of Follow-up sealing structure for leading edge of aircraft rudder surface^[8]

下载: 全尺寸图片幻灯片

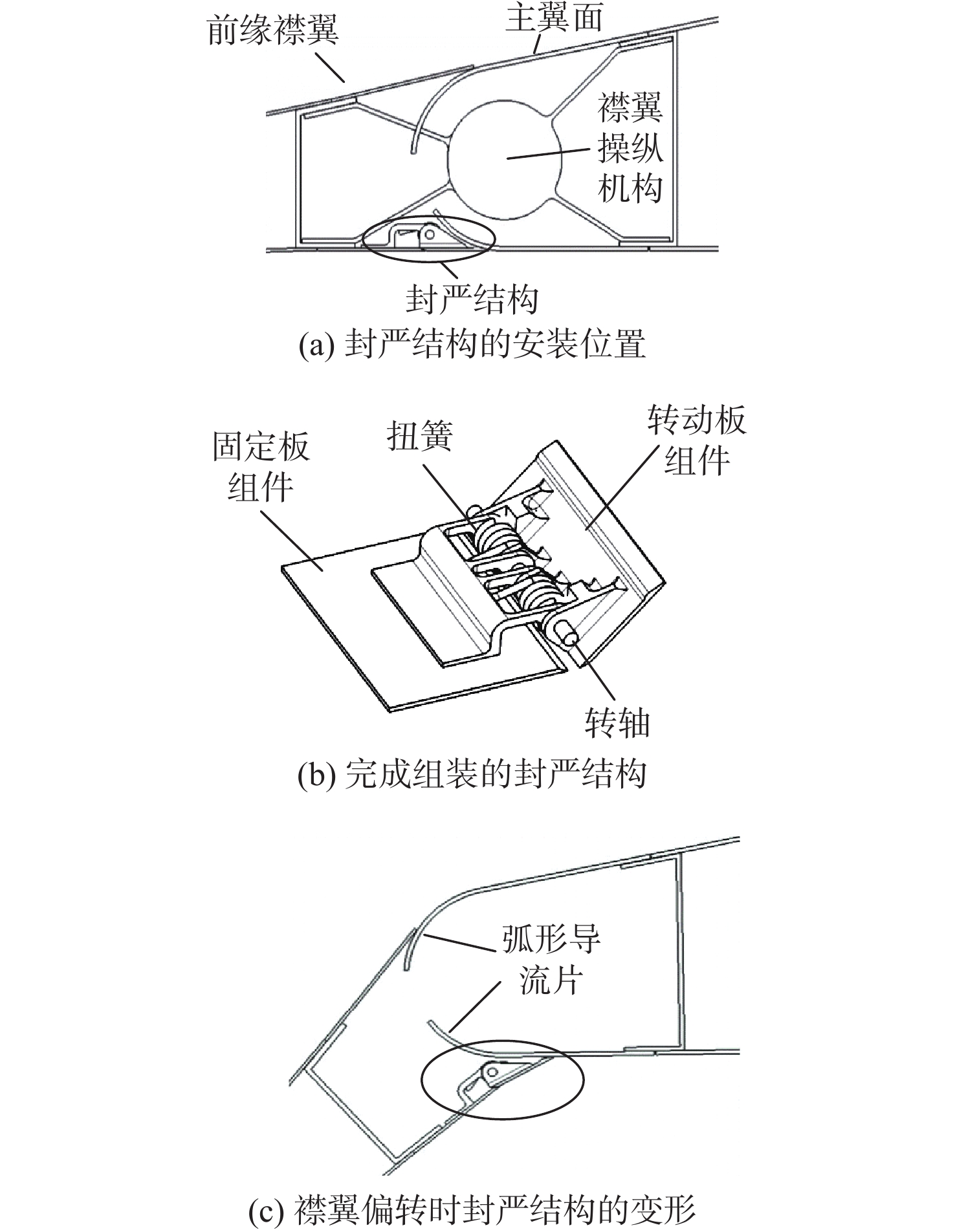

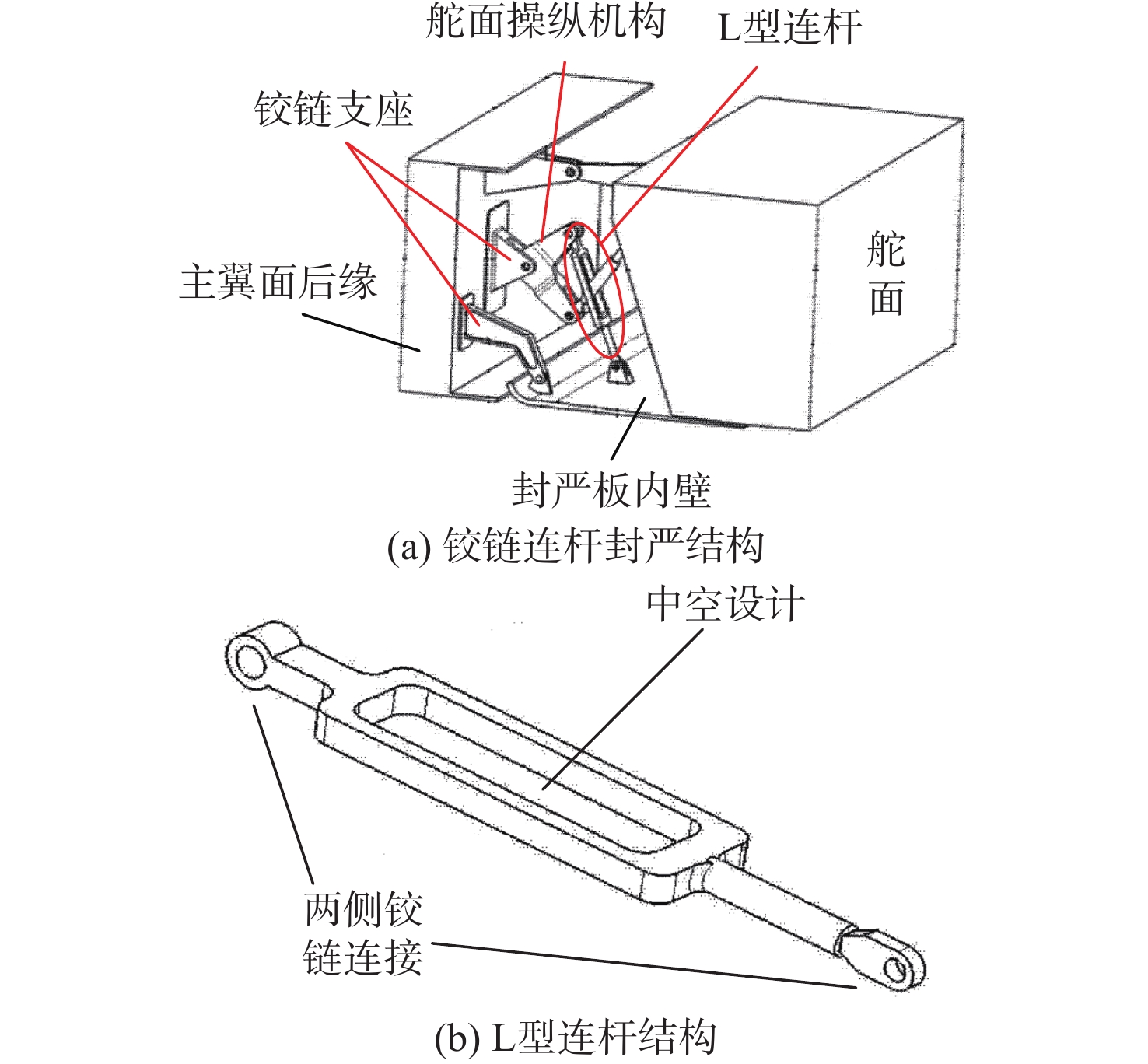

图 8 前缘襟翼缝隙封严结构^[9]

Figure 8. A kind of gap sealing structure for leading edge of flap^[9]

下载: 全尺寸图片幻灯片

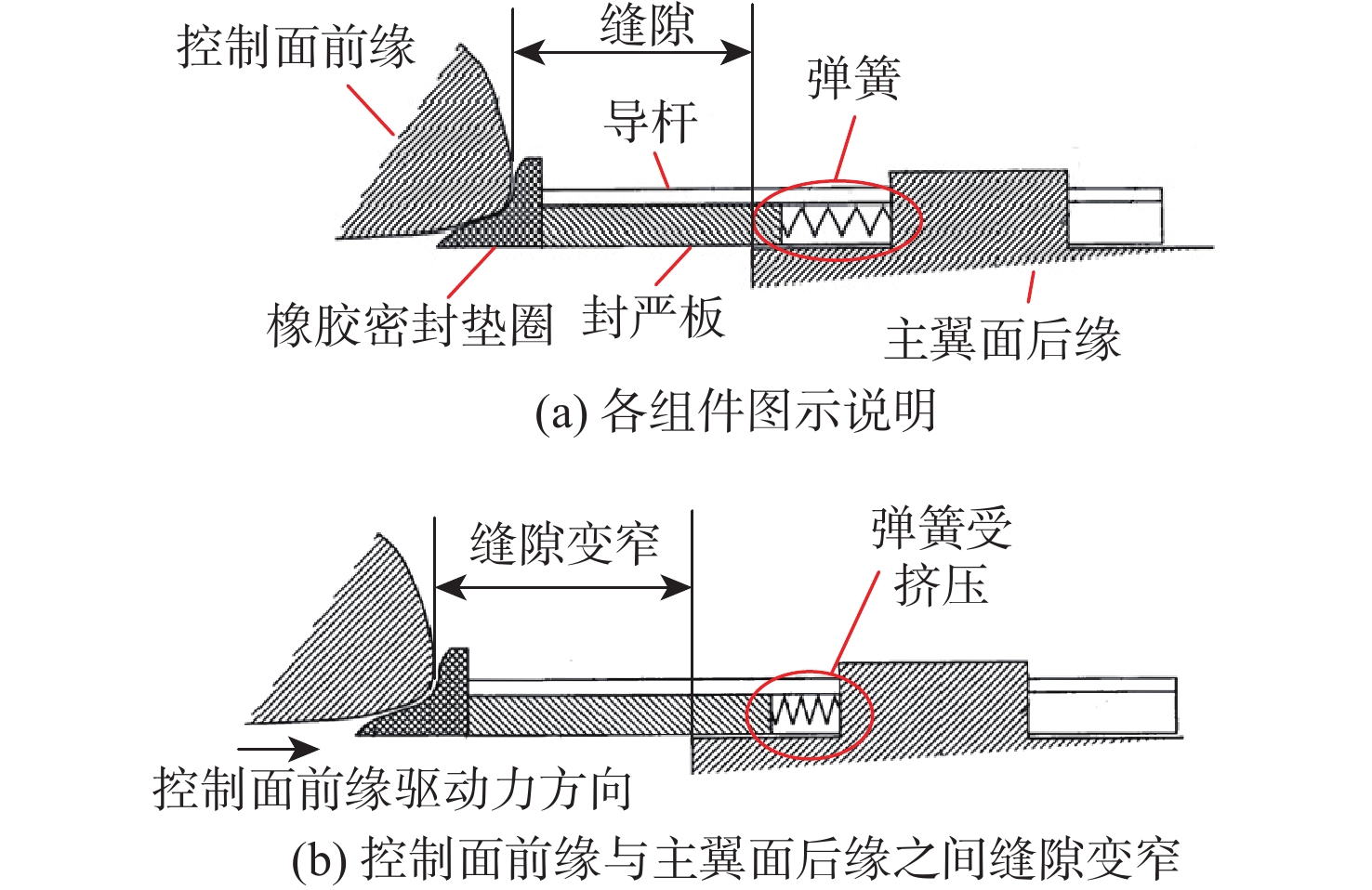

图 9 弹簧预加载式封严结构^[10]

Figure 9. Spring preloaded sealing structure^[10]

下载: 全尺寸图片幻灯片

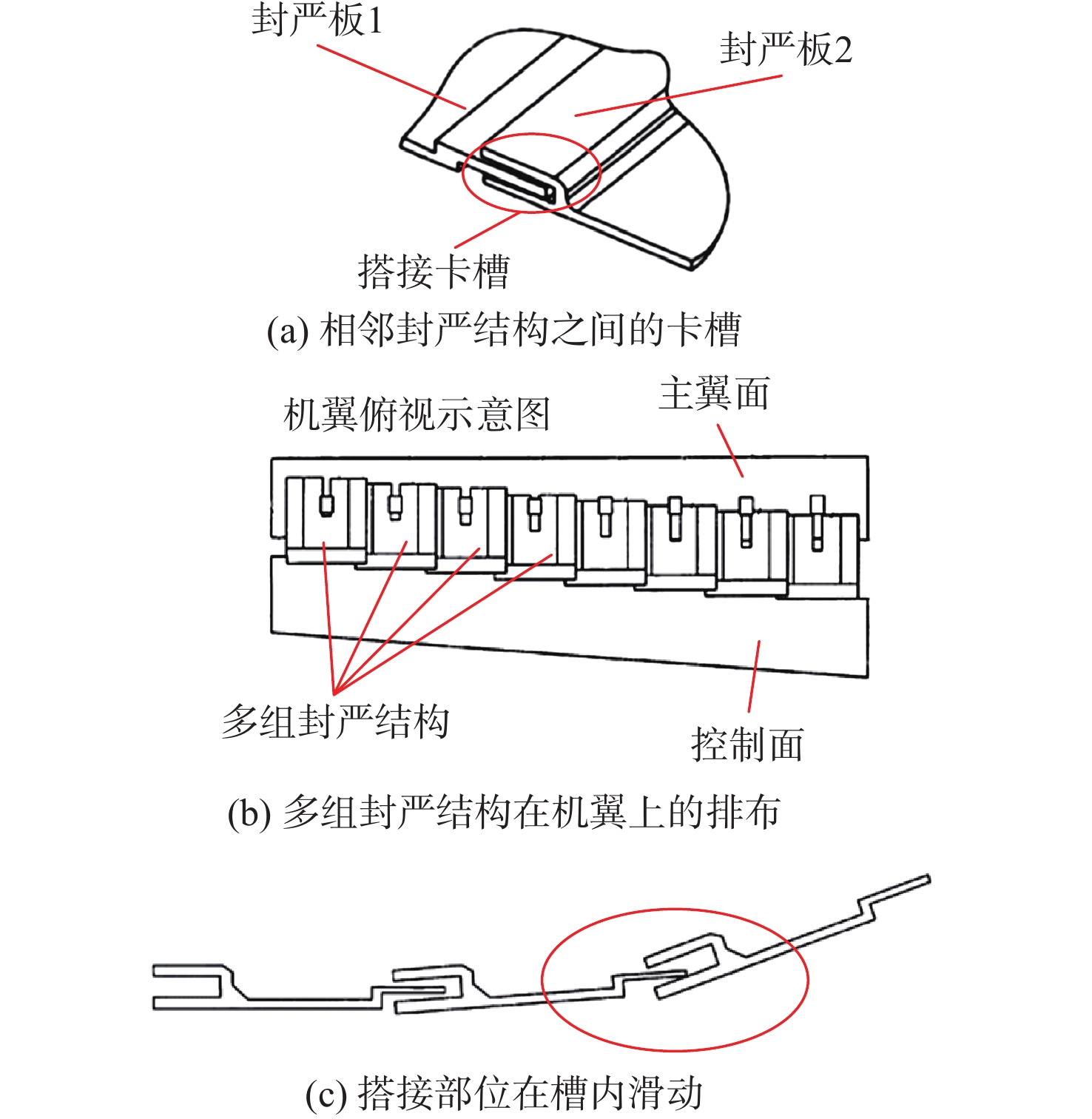

图 10 长机翼上的多组封严结构^[10]

Figure 10. Multiple sealing structures on long wings^[10]

下载: 全尺寸图片幻灯片

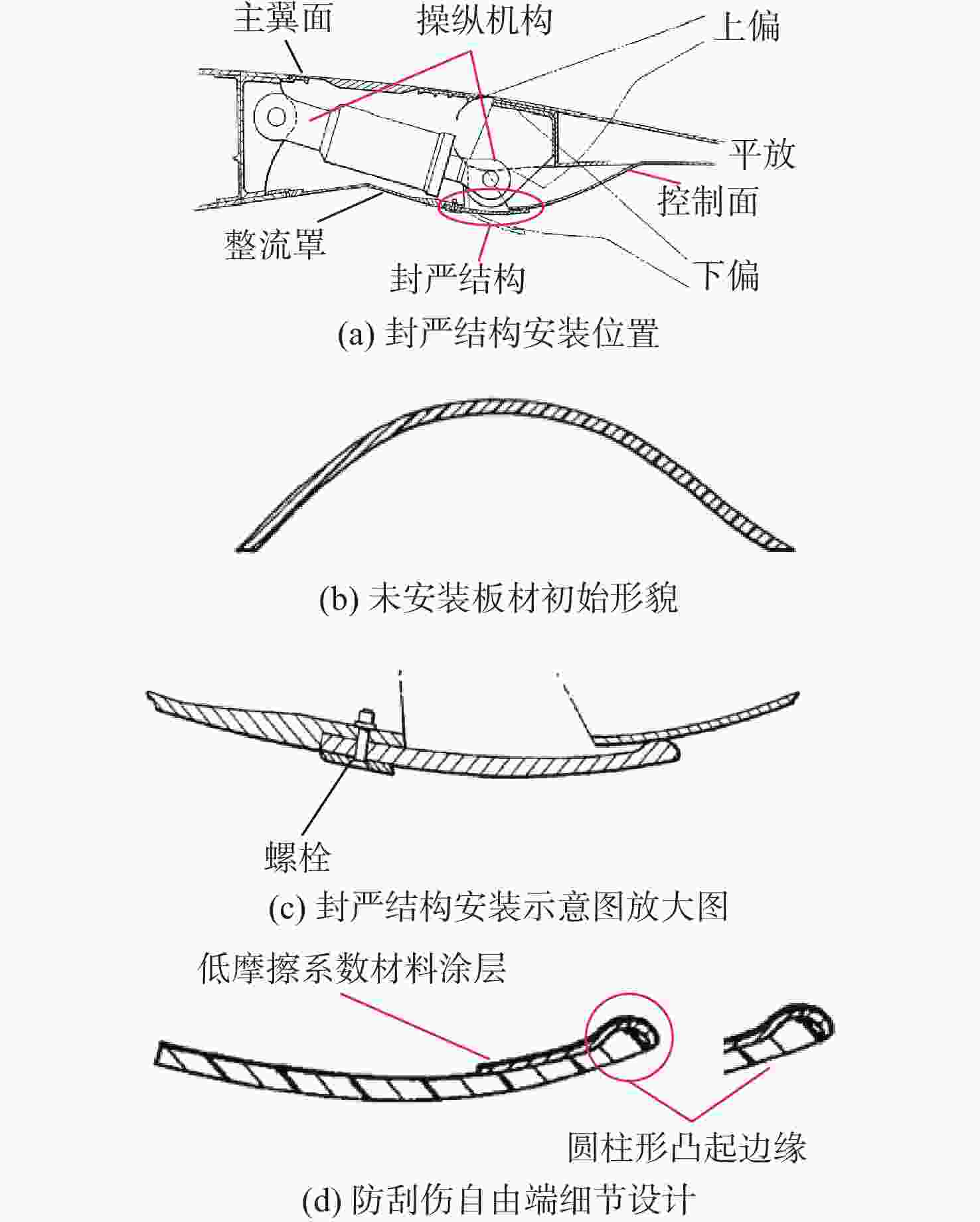

图 11 整流罩封严结构^[11]

Figure 11. A kind of fairing sealing structure^[11]

下载: 全尺寸图片幻灯片

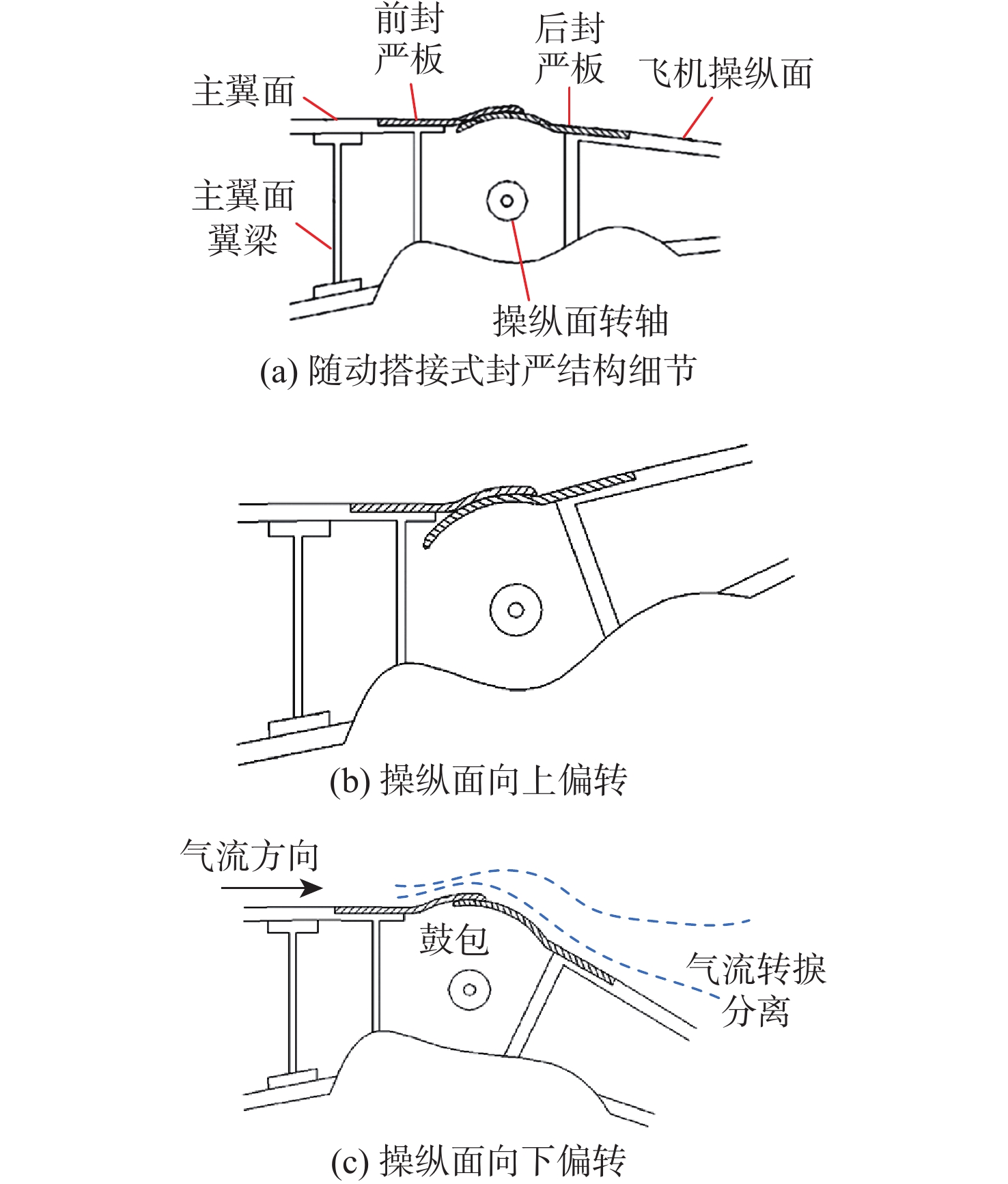

图 12 随动搭接式封严结构及偏转姿态^[12]

Figure 12. Follow-up overlapping sealing structure and deflection attitudes^[12]

下载: 全尺寸图片幻灯片

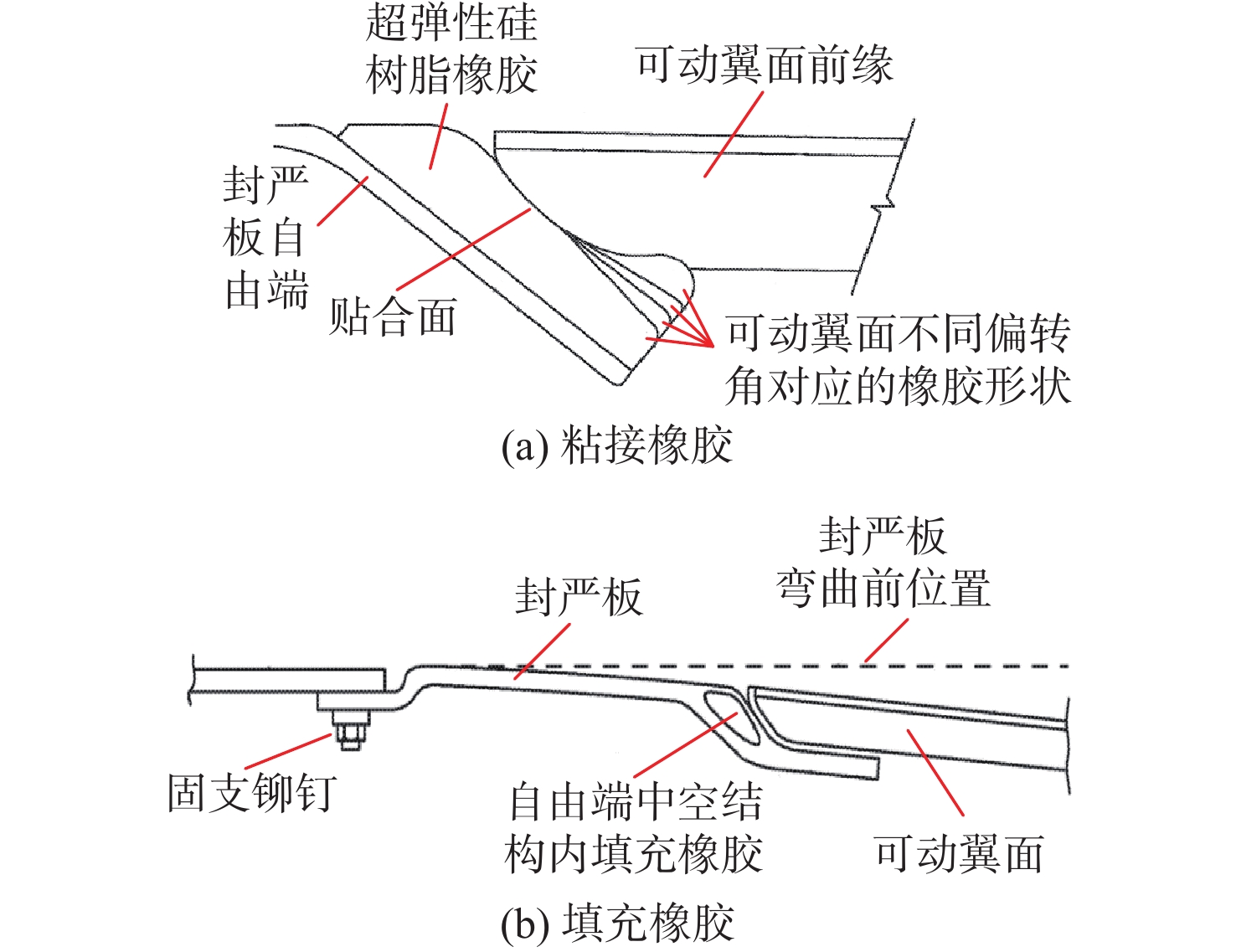

图 13 粘接或填充在封严板自由端的硅树脂橡胶^[14,20]

Figure 13. Silicone rubber bonded or filled at free end of sealing plate^[14,20]

下载: 全尺寸图片幻灯片

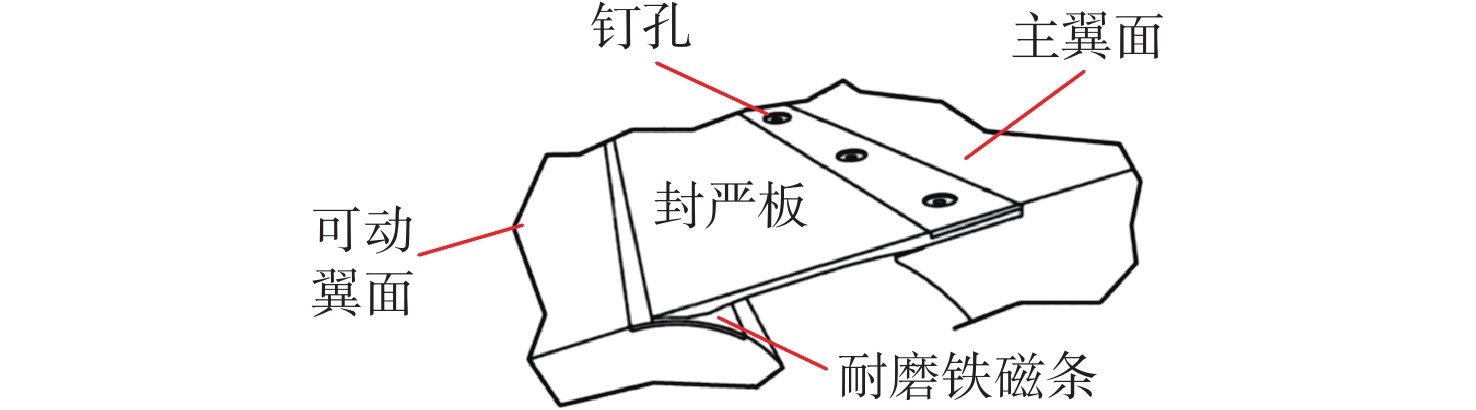

图 14 封严板自由端与可动翼面接触位置的耐磨铁磁条^[21]

Figure 14. Wear resistant ferromagnetic strip at contact position between free end of sealing plate and movable wing surface^[21]

下载: 全尺寸图片幻灯片

表 1 4家公司封严结构产品信息对比

Table 1. Comparison of product information for four companies with strict sealing structures

公司名称	适用机型	性能提升	选材和安装	产品价格/美元
Lasar Aero Styling & Repair	Mooney M20系列	巡航速度增加2～4 km/h，爬升速度显著增加，操纵性能改善	铝制板材，抽芯铆钉安装，襟翼部位安装需12 h，副翼部位为4 h	180～325
Whelen	Comanche PA-24, PA-28, PA-32, PA-34, PA-39, PA-44系列	巡航速度提升4～5 km/h ，着陆速度更低	高性能环氧树脂层合板，3～4 h安装时间	999～1799
Knots 2U	Piper、Beech、Cessna 等系列	将Piper Twin Comanche型号的巡航速度提升32 km/h，其余型号提升6～8 km/h	铝制板材、超高分子量塑料防摩擦条，用螺钉安装于可动翼面内部，安装时间4 h	250～900
Horton	Cessna 182 Skylane	巡航速度提升3 km/h，着陆时的滚转速率和低速状态下的操纵性能明显改善	铝制板材或玻璃纤维层合板，带有硅树脂黏合剂，使用空心铆钉固定，安装时间为8～12 h	350

下载: 导出CSV
