基于深度图卷积网络的自监督群体发现模型

王栽胜; 汪晓锋; 沈国栋; 张增杰; 全大英

doi:10.13700/j.bh.1001-5965.2023.0408

基于深度图卷积网络的自监督群体发现模型

doi: 10.13700/j.bh.1001-5965.2023.0408

中国计量大学信息工程学院，杭州 310018

基金项目:

浙江省自然科学基金(LQ20F020021)；国家重点研发计划(2019YFB1707104)

详细信息

通讯作者:
E-mail：xfwang@cjlu.edu.cn

中图分类号: TP39
计量
- 文章访问数: 138
- HTML全文浏览量: 42
- PDF下载量: 12
- 被引次数: 0
出版历程
- 收稿日期: 2023-06-21
- 录用日期: 2023-11-21
- 网络出版日期: 2023-12-06
- 整期出版日期: 2025-06-30

Self-supervised learning for community detection based on deep graph convolutional networks

College of Information Engineering，China Jiliang University，Hangzhou 310018，China

Funds:

Zhejiang Provincial Natural Science Foundation of China (LQ20F020021); National Key Research and Development Program of China (2019YFB1707104)

More Information

Corresponding author: E-mail：xfwang@cjlu.edu.cn

摘要

摘要:
为缓解图神经网络在群体发现任务中对先验知识的过度依赖并提高识别准确性，提出了一种基于自监督学习和深度图卷积网络(GCN)的群体发现模型。该模型充分利用少量标记节点的语义特征，并通过语义对齐机制获得未知节点的伪标签，从而引入一种自监督学习模块以缓解GCN模型训练过程中对大量先验标签的依赖性。同时，为通过获取网络全局信息以提高群体识别的准确性，通过堆叠多个自监督学习模块构建一种深度图自监督学习模型，并利用初始残差和恒等映射2种策略来克服深度模型带来的过平滑问题。在公开数据集上的实验表明：在给定少量先验标签和加深模型深度的情况下，所提模型与现有模型相比在群体识别精度上表现出了明显优势。
- 复杂网络 /
- 群体发现 /
- 图卷积网络 /
- 残差连接 /
- 自监督学习
Abstract:
To alleviate the excessive dependence of graph neural networks on prior knowledge in community discovery and improve recognition accuracy, a novel self-supervised learning model for community detection based on a deep graph convolutional network (GCN) is proposed. The model makes full use of the semantic features of a small number of nodes and obtains pseudo-labels of unknown nodes through a semantic alignment mechanism, and thus introduces a self-supervised module to alleviate the dependence on a large number of prior labels during the training of GCN. Furthermore, by stacking self-supervised modules, a deep graph self-supervised learning model is built to increase the accuracy of community detection by obtaining the global information of networks. Two strategies, identity mapping and initial residual, are employed to address the over-smoothing issues that the deep model introduces. According to experiments conducted on publicly available datasets, the suggested approach outperforms current models in terms of community recognition accuracy when a limited number of prior labels are used and the model depth is increased.
- complex network /
- community detection /
- graph convolutional network /
- residual connection /
- self-supervised learning

HTML全文

图 1 本文模型整体框架

Figure 1. Overall framework of the proposed model

下载: 全尺寸图片幻灯片

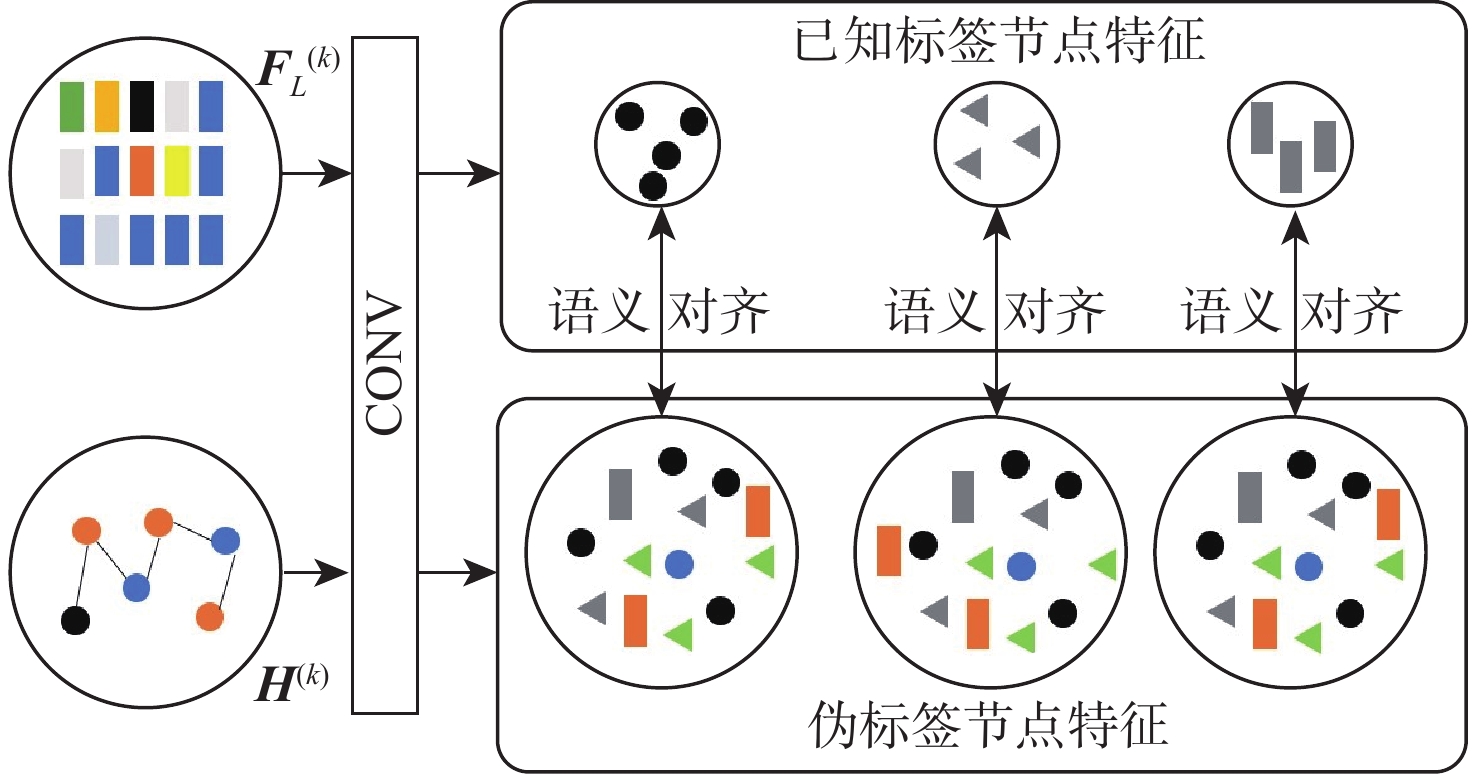

图 2 自监督学习模块结构框图

Figure 2. Structure of the self-supervised learning module

下载: 全尺寸图片幻灯片

图 3 不同已知标签数量条件下2种模型在Cora数据集上获得的节点特征 t-SNE 可视化

Figure 3. t-SNE visualization of node features obtained by two model on Cora dataset under different numbers of known labels

下载: 全尺寸图片幻灯片

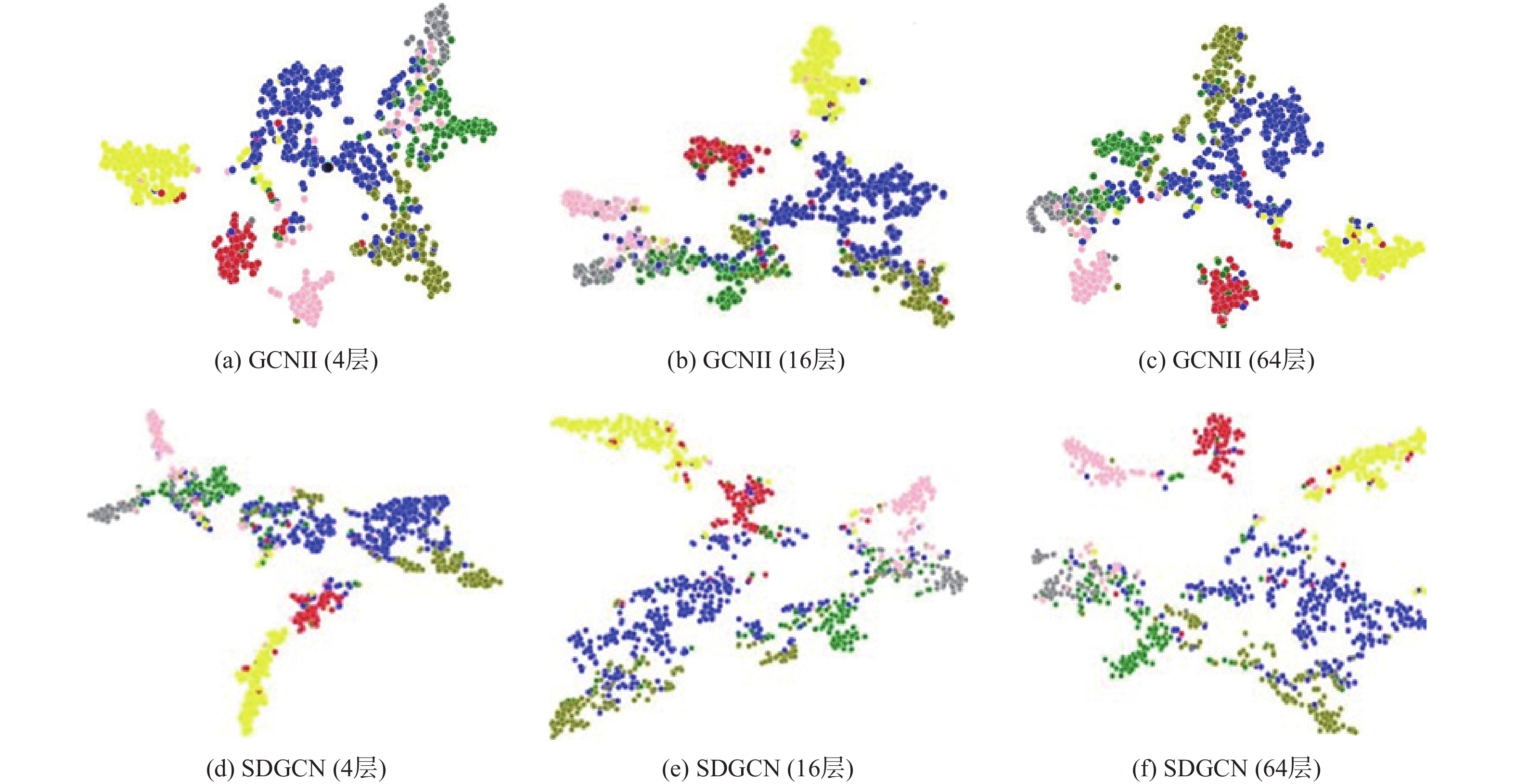

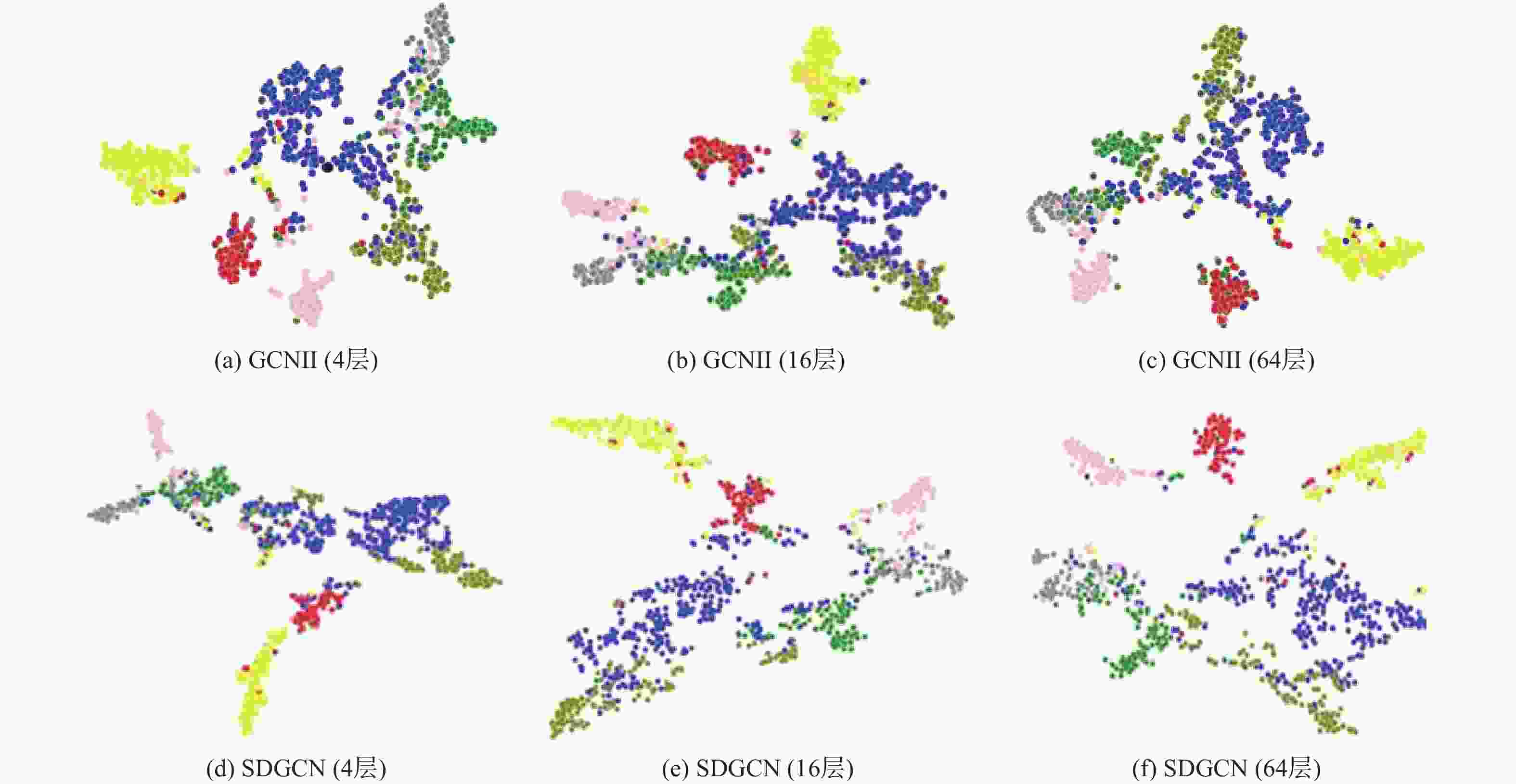

图 4 不同模型深度下2种模型在Cora数据集上获得的节点特征 t-SNE 可视化

Figure 4. t-SNE visualization of node features obtained by two models on Core dataset under different model depth

下载: 全尺寸图片幻灯片

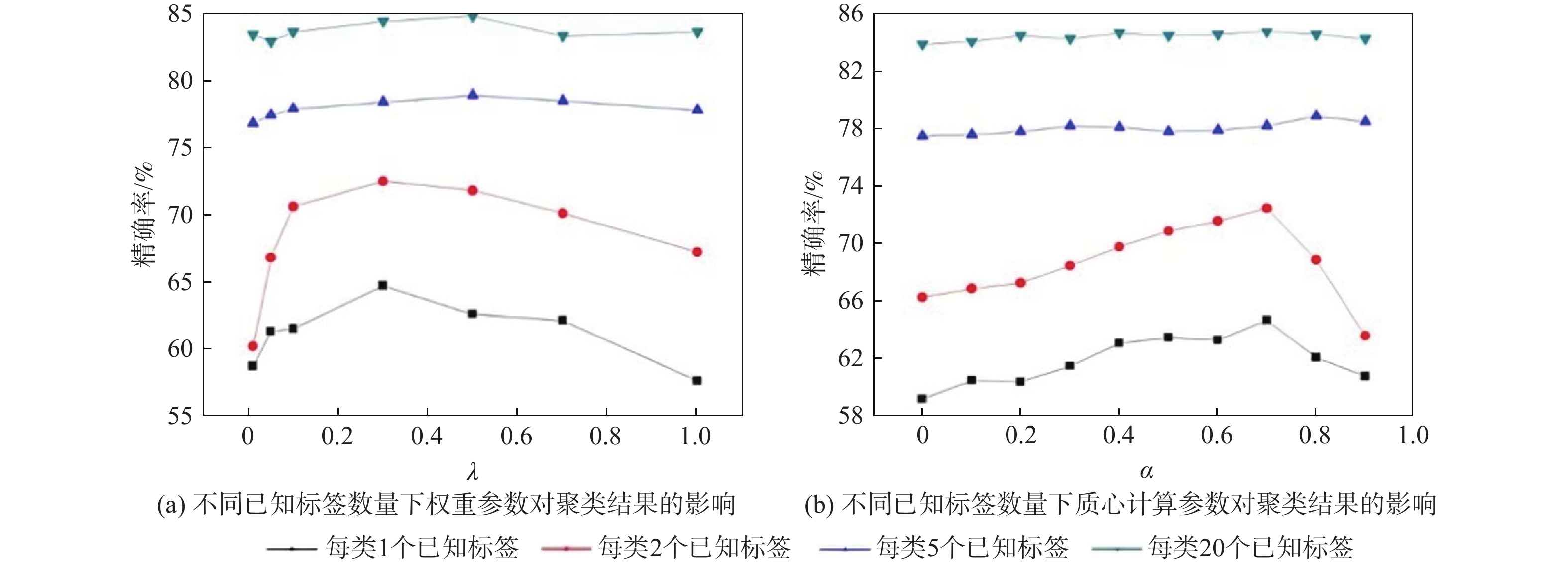

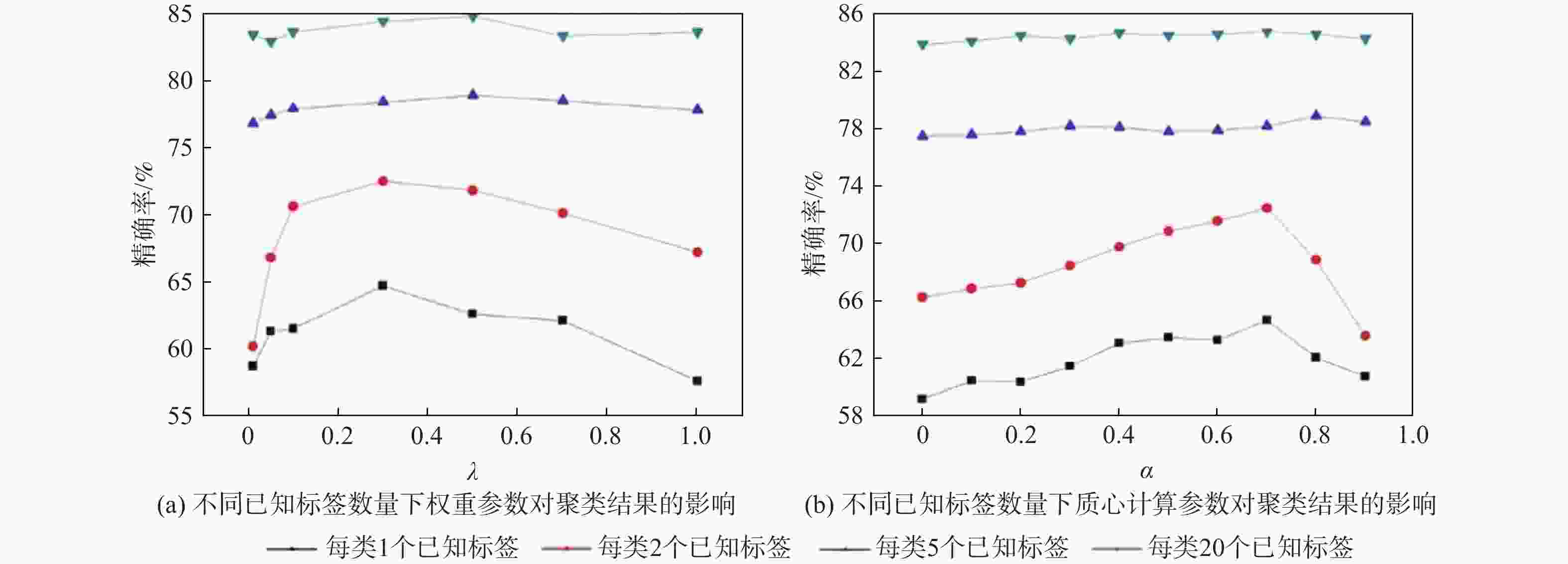

图 5 超参数对模型聚类准确率的影响

Figure 5. The influence of hyper-parameters on model clustering accuracy

下载: 全尺寸图片幻灯片

表 1 数据集基本信息

Table 1. Basic information of datasets

数据集	节点数	边数	社群数	特征维度
Cora	2 708	5 429	7	1 433
Citeseer	3 327	4 732	6	3 703
PubMed	19 717	44 338	3	500

下载: 导出CSV

表 2 在不同数量的已知标签条件下模型聚类精度比较

Table 2. Comparison of clustering accuracy of various models under different numbers of known labels %

模型	每类1个标签			每类2个标签			每类5个标签
模型	Cora	Citeseer	PubMed	Cora	Citeseer	PubMed	Cora	Citeseer	PubMed
MLP	42.5	27.9	49.5	48.9	33.6	55.9	59.9	43.2	65.1
GCN^[12]	43.2	33.6	51.9	50.1	41.8	54.9	69.0	53.2	68.1
GAT^[13]	44.6	33.9	52.1	59.6	44.1	58.6	70.6	54.3	68.8
DAGNN^[39]	59.1	44.3	56.3	64.2	53.8	64.8	71.2	54.7	70.6
Self-SAGCN^[25]	61.2	56.8	63.2	70.8	63.9	68.8	75.1	66.9	71.9
SDGCN	63.8	57.8	65.3	71.5	64.4	70.9	78.6	68.1	73.5

下载: 导出CSV

表 3 在不同模型深度条件下模型聚类精度对比

Table 3. Comparison of clustering accuracy of various models under different model depth

模型	层数为4			层数为16			层数为32			层数为64
模型	Cora	Citeseer	PubMed	Cora	Citeseer	PubMed	Cora	Citeseer	PubMed	Cora	Citeseer	PubMed
GCN^[12]	67.8	15.6	17.2	16.4	50.6	18.9	14.9	17.6	71.6	40.2	36.6	39.9
GCN(drop)	80.6	75.7	62.5	49.5	68.6	57.3	41.1	33.2	78.3	77.6	76.2	61.1
JKNet^[18]	78.9	79.3	80.6	70.9	67.9	68.2	69.2	63.1	78.1	72.1	73.6	73.1
GCNII^[20]	79.2	83.1	83.9	84.1	67.0	70.2	70.8	71.6	79.1	77.6	79.6	79.9
Self-SAGCN^[25]	75.1	34.6	31.6	30.8	62.5	48.9	26.2	18.1	75.3	50.8	43.7	40.1
SDGCN	81.2	82.6	84.1	85.2	70.2	71.6	72.7	72.2	78.6	79.2	80.1	80.6

下载: 导出CSV
