空间信息引导的双分支实时语义分割算法

侯志强; 戴楠; 程敏捷; 李富成; 马素刚; 范九伦

doi:10.13700/j.bh.1001-5965.2022.0980

空间信息引导的双分支实时语义分割算法

doi: 10.13700/j.bh.1001-5965.2022.0980

侯志强^{1, 2, ,},
戴楠^{1, 2},
程敏捷^{1, 2},
李富成^{1, 2},
马素刚^{1, 2},
范九伦³

1.
西安邮电大学计算机学院，西安 710121
2.
陕西省网络数据分析与智能处理重点实验室，西安 710121
3.
西安邮电大学通信与信息工程学院，西安 710121

基金项目:

国家自然科学基金(62072370)

详细信息

通讯作者:
E-mail：hou-zhq@sohu.com

中图分类号: TP391.4
计量
- 文章访问数: 543
- HTML全文浏览量: 82
- PDF下载量: 30
- 被引次数: 0
出版历程
- 收稿日期: 2022-12-10
- 录用日期: 2023-06-02
- 网络出版日期: 2023-07-03
- 整期出版日期: 2025-01-31

Two-branch real-time semantic segmentation algorithm based on spatial information guidance

HOU Zhiqiang^{1, 2
, ,},
DAI Nan^{1, 2},
CHENG Minjie^{1, 2},
LI Fucheng^{1, 2},
MA Sugang^{1, 2},
FAN Jiulun³

1.
School of Computer Science and Technology，Xi’an University of Posts and Telecommunications，Xi’an 710121，China
2.
Shaanxi Key Laboratory of Network Data Analysis and Intelligent Processing，Xi’an 710121，China
3.
School of Communication and Information Engineering，Xi’an University of Posts and Telecommunications，Xi’an 710121，China

Funds:

National Natural Science Foundation of China (62072370)

More Information

Corresponding author: E-mail：hou-zhq@sohu.com

摘要

摘要:
针对实时语义分割模型大量缩减参数造成特征空间信息损失，以及特征缺少上下文信息导致分割类别预测不准确的问题，提出一种基于空间信息引导的双分支实时语义分割算法。该算法采用双分支结构分别获取特征的空间信息和语义信息，为更好地保留空间信息，设计了一种空间引导模块(SGM)，同时捕获特征的局部信息和周围上下文信息，并通过通道加权给予重要信息更高的权重，有效弥补了图像高分辨率特征在降采样过程中的信息损失；为进一步强化特征的上下文信息表征能力，设计了池化特征增强模块(PFEM)，采用不同尺寸的池化核捕获多尺度特征信息，并采用条状池化核对特征之间的长距离依赖关系进行建模，更好地确定分割区域的类别。在Cityscapes和CamVid数据集上对所提算法进行验证，平均交并比分别达到77.4%和74.0%，检测速度分别达到49.1帧/s和124.5帧/s，在保证实时分割的情况下有效提升了精度，获得了良好的语义分割性能。
- 图像处理 /
- 实时语义分割 /
- 卷积神经网络 /
- 空洞卷积 /
- 上下文信息
Abstract:
In view of feature spatial information loss caused by the reduction of a large number of parameters in the real-time semantic segmentation model and inaccurate segmentation category prediction caused by the lack of context information of features, a two-branch real-time semantic segmentation algorithm based on spatial information guidance was proposed. In order to better retain the spatial information, the algorithm used a two-branch structure to obtain the spatial and semantic information of features, respectively. A spatial guided module (SGM) was designed to capture the local information and the surrounding context information of the features and give higher weight to the important information through channel weighting, which effectively made up for the image information loss of high-resolution features in the process of downsampling. A pooling feature enhancement module (PFEM) was designed to further enhance the ability of context information characterization of features. Pooling cores of different sizes were used to capture multi-scale feature information, and the long-distance dependence relationship between the features was modeled by strip-shaped pooling cores.The category of the segmentation region was better determined. The proposed algorithm was verified on Cityscapes and CamVid datasets, and the mean intersection over union reached 77.4% and 74.0%, respectively. The detection speed reached 49.1 frames per second and 124.5 frames per second, respectively, which effectively improved the accuracy and achieved good semantic segmentation performance while ensuring real-time segmentation.
- imaging processing /
- real-time semantic segmentation /
- convolutional neural networks /
- dilated convolution /
- context information

HTML全文

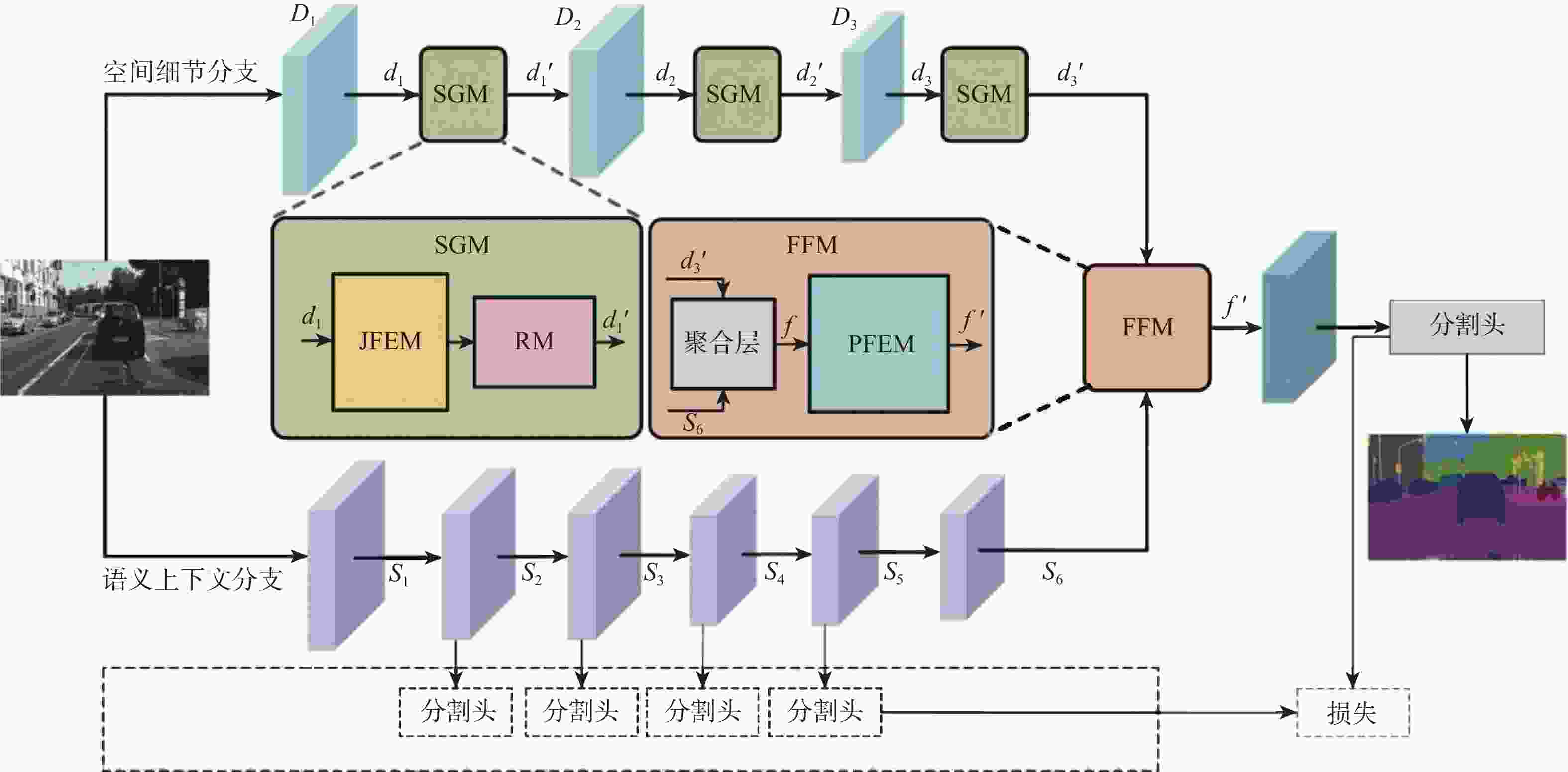

图 1 空间信息引导的双分支实时语义分割算法流程

Figure 1. Flow chart of two-branch real-time semantic segmentation algorithm based on spatial information guidance

下载: 全尺寸图片幻灯片

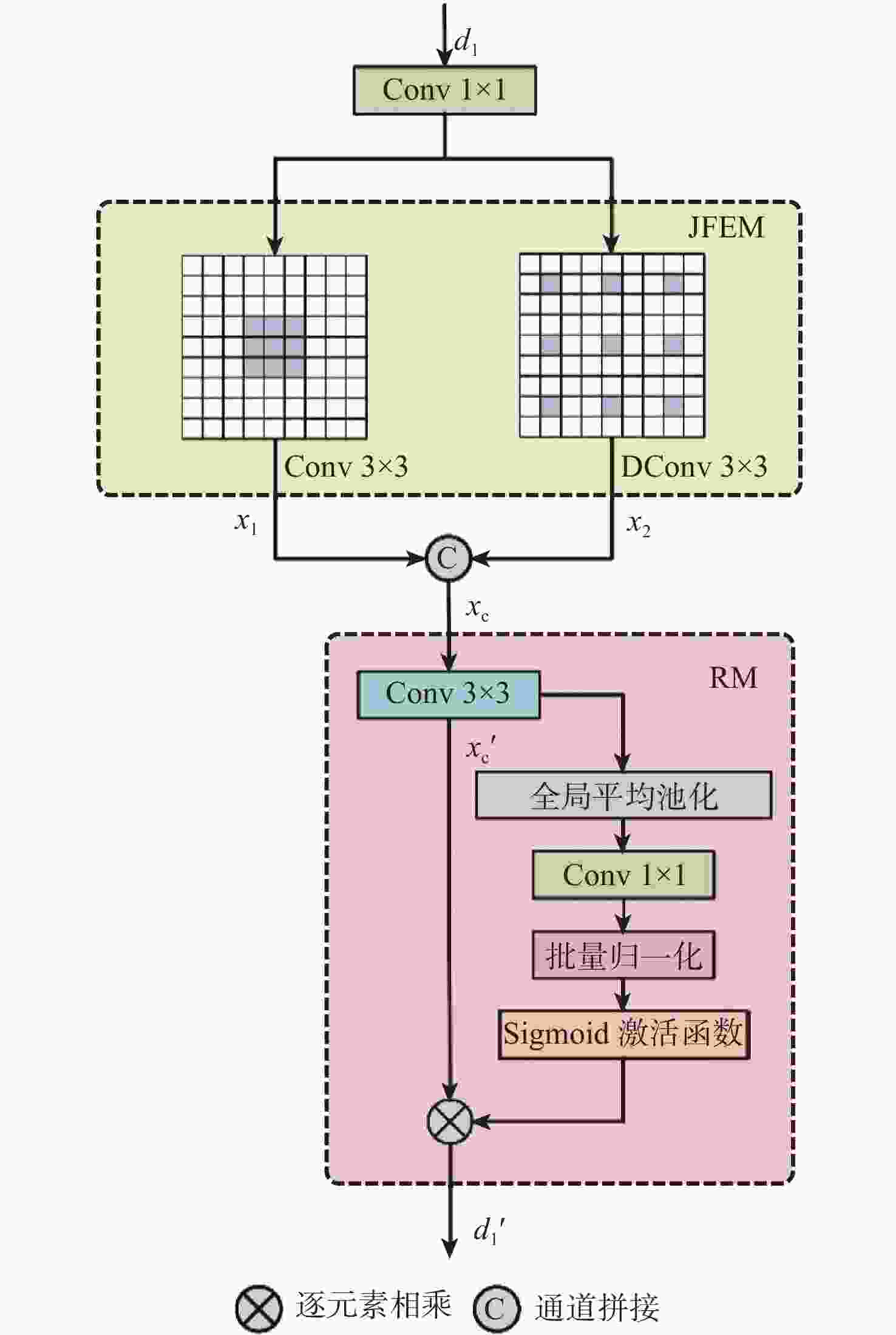

图 2 空间引导模块

Figure 2. Spatial guided module

下载: 全尺寸图片幻灯片

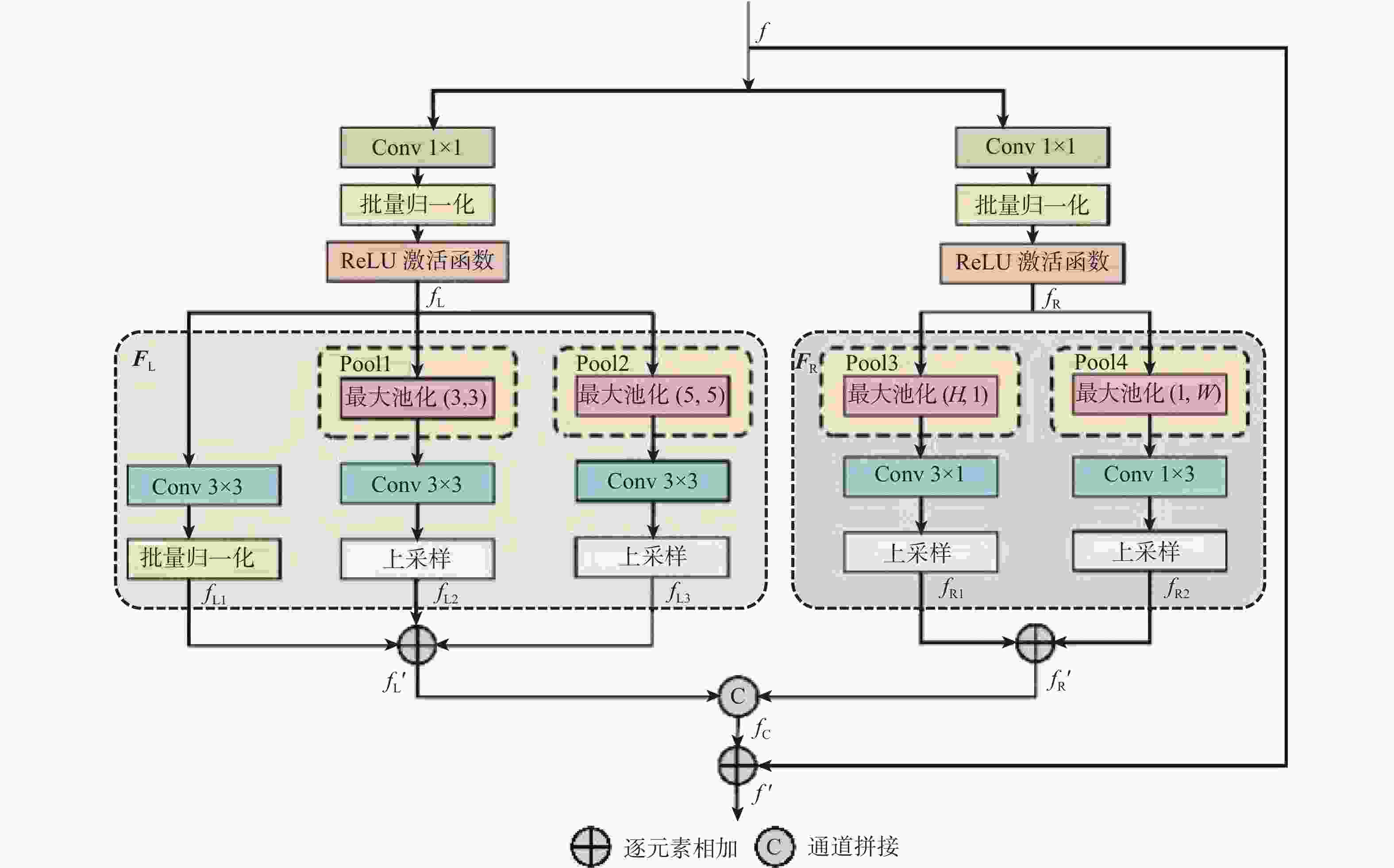

图 3 池化特征增强模块

Figure 3. Pooling feature enhancement module

下载: 全尺寸图片幻灯片

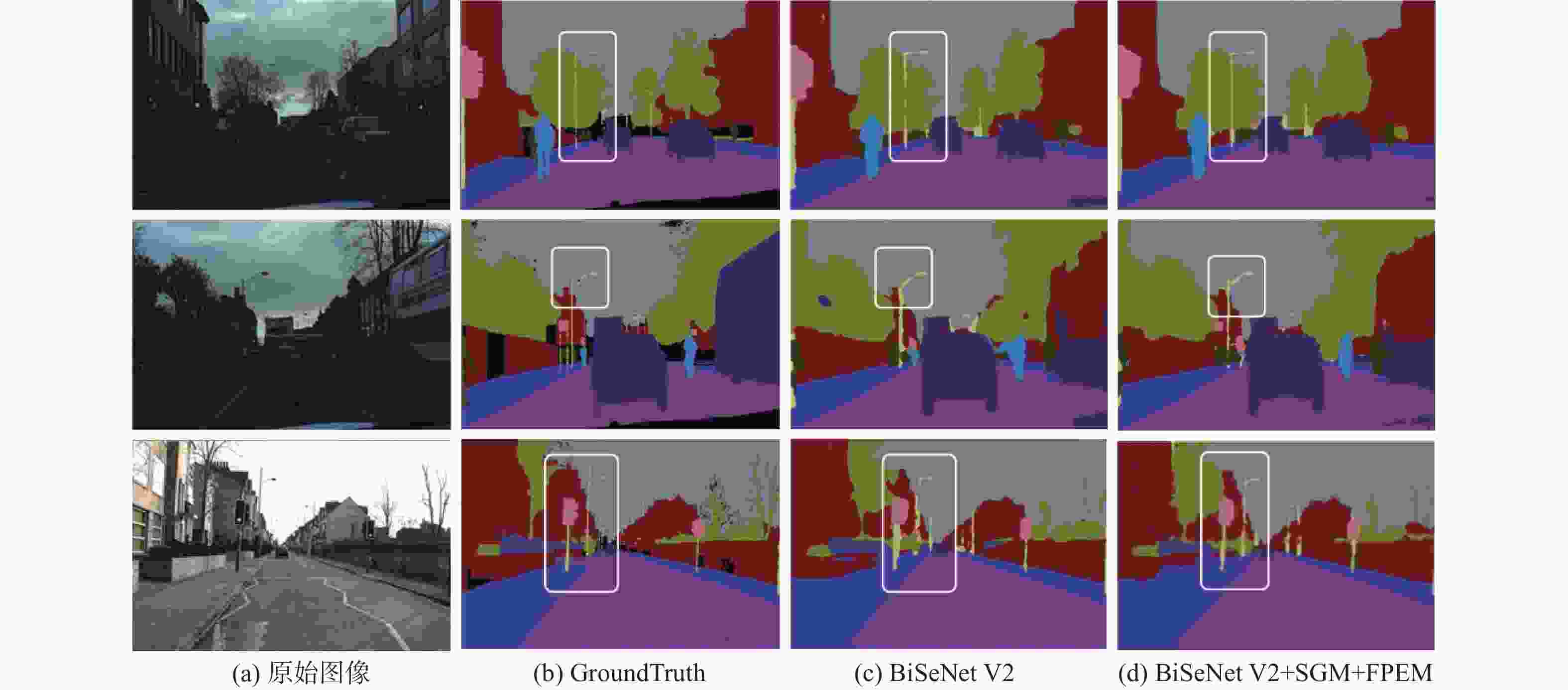

图 4 不同算法在Cityscapes数据集上的可视化结果对比

Figure 4. Comparison of visualization results of different algorithms on Cityscapes dataset

下载: 全尺寸图片幻灯片

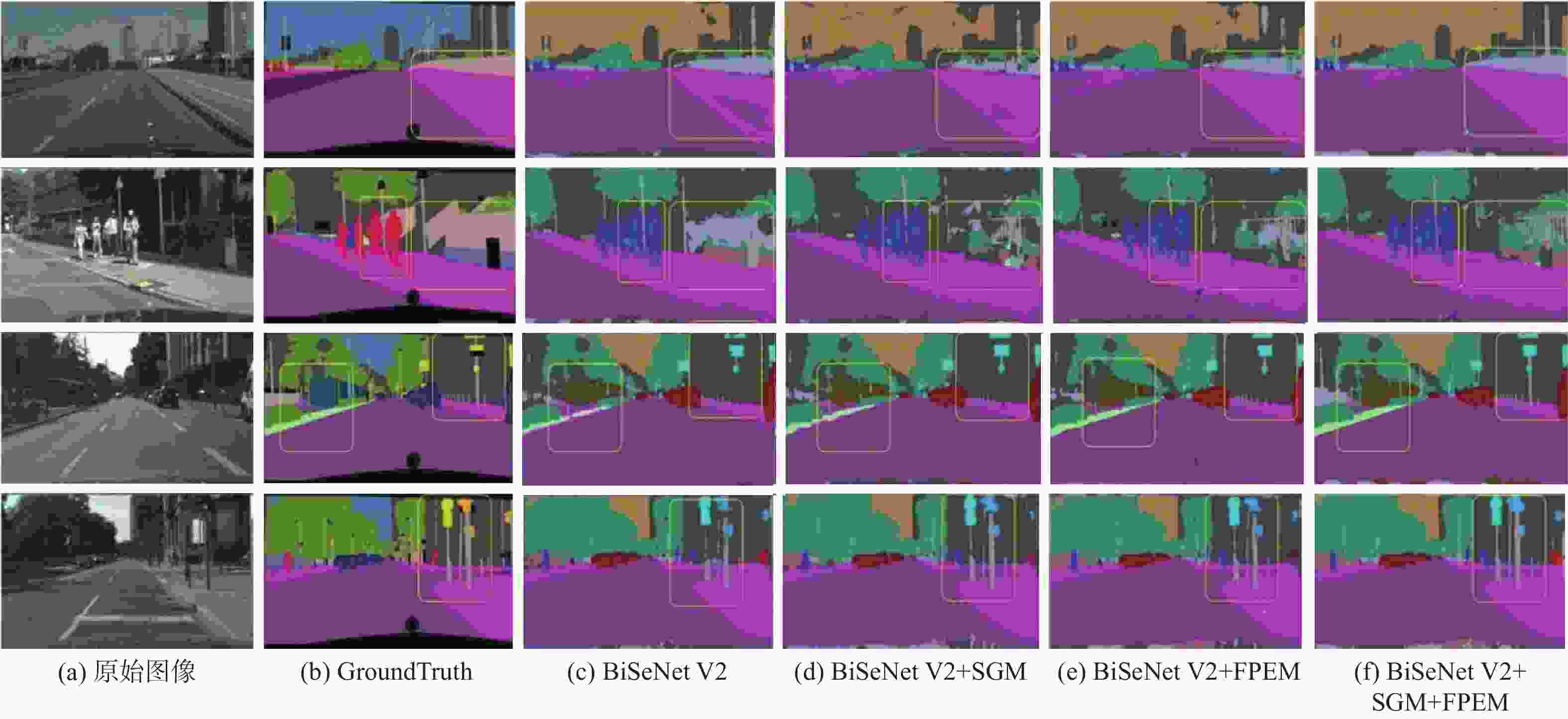

图 5 不同算法在CamVid数据集上的可视化结果对比

Figure 5. Comparison of visualization results of different algorithms on CamVid dataset

下载: 全尺寸图片幻灯片

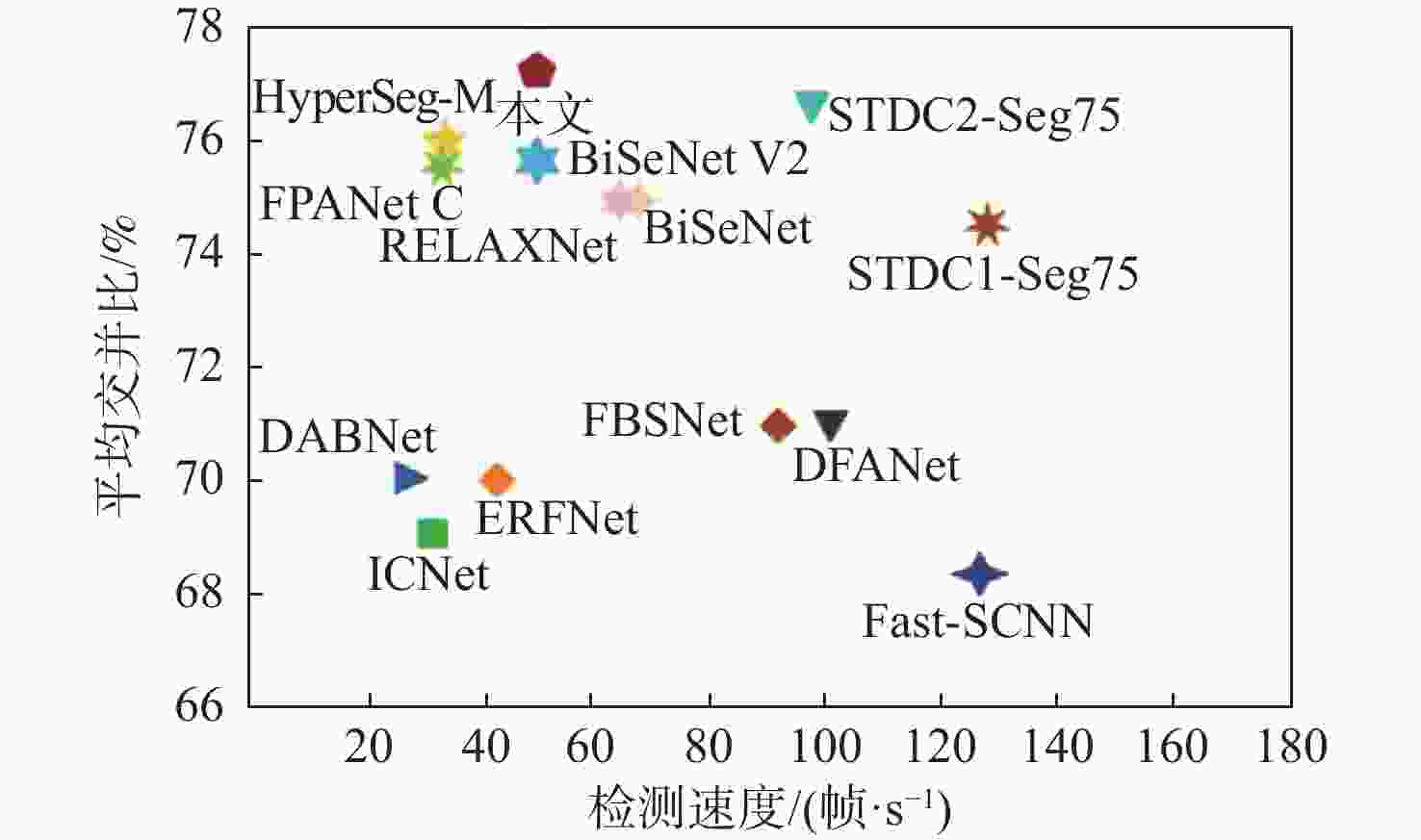

图 6 Cityscapes数据集上的准确性-速度参数比较

Figure 6. Comparison of accuracy-speed parameters on Cityscapes dataset

下载: 全尺寸图片幻灯片

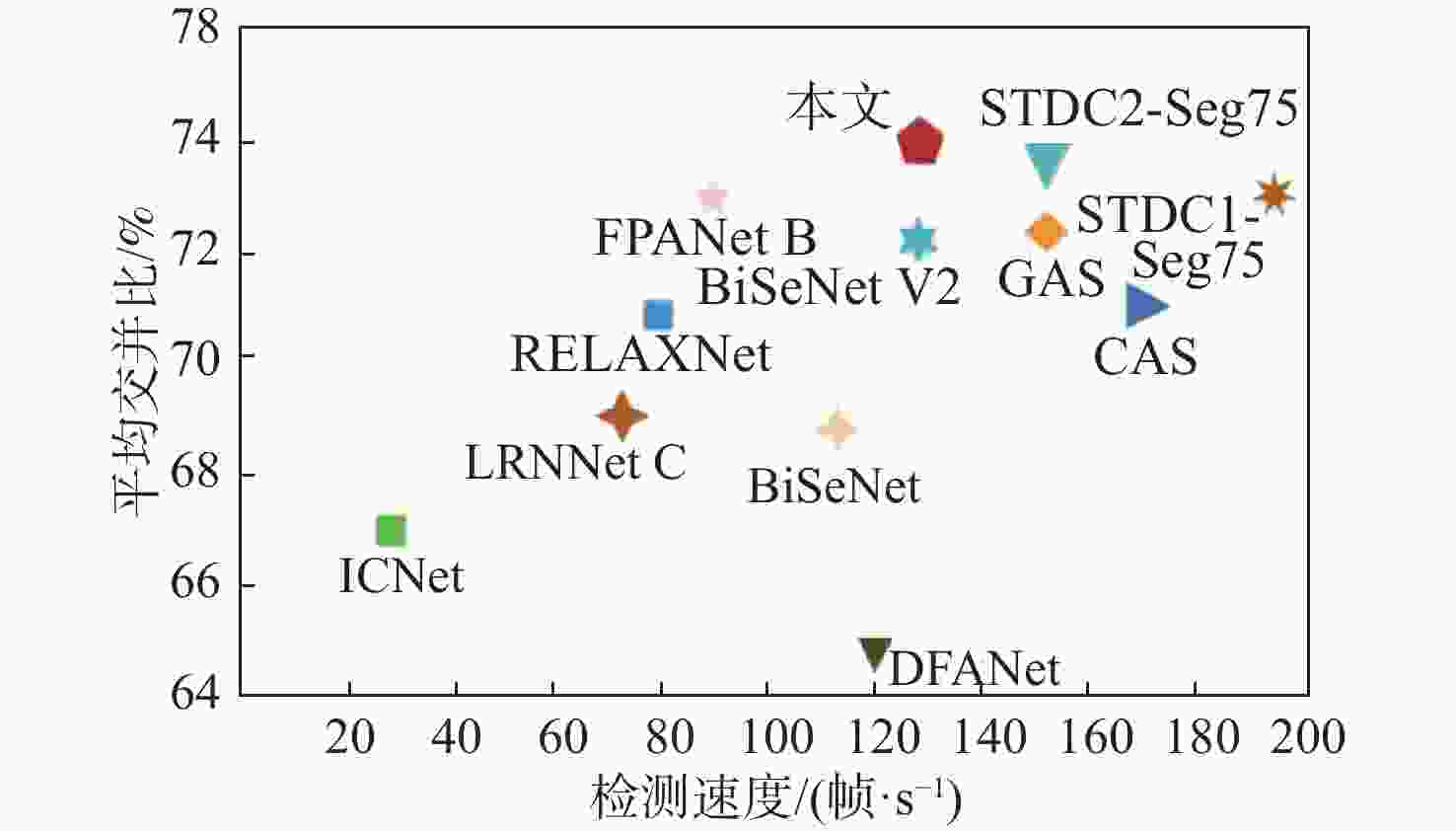

图 7 CamVid数据集上的准确性-速度参数比较

Figure 7. Comparison of accuracy-speed parameters on CamVid dataset

下载: 全尺寸图片幻灯片

表 1 空间引导模块的消融实验结果

Table 1. Comparision ablation experiment of SGM

Baseline	SGM(1)	SGM(2)	SGM(3)	平均交并比/%	检测速度/(帧·s⁻¹)
√				75.8	47.3
√	√			76.3	48.5
√	√	√		76.6	50.6
√	√	√	√	76.9	51.0

下载: 导出CSV

表 2 池化特征增强模块的消融实验结果

Table 2. Comparision ablation experiment of PFEM

Baseline	PFEM	平均交并比/%	检测速度/(帧·s⁻¹)
√		75.8	47.3
√	√	76.8	48.2

下载: 导出CSV

表 3 不同池化操作的对比实验结果

Table 3. Comparision experiment of different pooling operations

Pool1	Pool2	Pool3	Pool4	平均交并比/%	检测速度/(帧·s⁻¹)
Avg	Avg	Avg	Avg	76.77	47.3
Max	Max	Max	Max	76.43	49.5
Avg	Avg	Max	Max	76.54	49.1
Max	Max	Avg	Avg	76.84	48.2

下载: 导出CSV

表 4 不同模块的消融实验结果

Table 4. Results of ablation experiments for different modules

Baseline	SGM	PFEM	平均交并比/%	检测速度/(帧·s⁻¹)	参数量
√			75.8	47.3	3.40×10⁶
√	√		76.9	51.0	3.43×10⁶
√		√	76.8	48.2	3.21×10⁶
√	√	√	77.4	49.1	3.24×10⁶

下载: 导出CSV

表 5 不同算法在Cityscapes验证集中的对比

Table 5. Comparison of different algorithms on Cityscapes validation set

算法	Basenet	分辨率	平均交并比/%	检测速度/ (帧·s⁻¹)
ENet^[3]		512×1024	58.3	76.9
ESPNet^[9]	ESPNet	512×1024	60.3	112.9
ERFNet^[18]		512×1024	70.0	41.7
ICNet^[4]	PSPNet50	1024×2048	69.5	30.3
BiSeNet^[7]	ResNet18	768×1536	74.8	65.05
Fast-SCNN^[19]		512×1024	68.6	123.5
DABNet^[20]		1024×2048	70.1	27.7
DFANet A′^[5]	XceptionA	1024×2048	71.3	100
BiSeNet V2^[11]		512×1024	75.8	47.3
STDC1-Seg75^[24]	STDC1	768×1536	74.5	126.7
STDC2-Seg75^[24]	STDC2	768×1536	77.0	97.0
FBSNet^[12]		512×1024	70.9	90
HyperSeg-M^[21]	EfficientNet-B1	512×1024	76.2	36.9
RELAXNet^[22]		512×1024	74.8	64
FPANet C^[23]	ResNet18	512×1024	75.9	31
本文		512×1024	77.4	49.1

下载: 导出CSV

表 6 不同模型在CamVid测试集中的对比

Table 6. Comparison of different models on CamVid test set

算法	Basenet	分辨率	平均交并比/%	检测速度/ (帧·s⁻¹)
ENet^[3]		960×720	51.3	61.2
ICNet^[4]	PSPNet50	960×720	67.1	27.8
BiSeNet^[7]	ResNet18	960×720	68.7	116.3
DFANet A′^[5]	XceptionA	960×720	64.7	120
CAS^[25]		960×720	71.2	169
GAS^[26]		960×720	72.8	153
LRNNet C^[27]		960×720	69.2	76.5
BiSeNet V2^[11]		960×720	72.4	124.5
STDC1-Seg75^[24]		960×720	73.0	197.6
STDC2-Seg75^[24]		960×720	73.9	152.2
RELAXNet^[22]		960×720	71.2	79
FPANet B^[23]		960×720	72.9	88
本文		960×720	74.0	124.5

下载: 导出CSV
