摘要:
关于辐射源射频指纹识别(RFFI)研究通常被视为一个典型的闭集分类问题，但在非合作空间中，辐射源都是事先未知的，所以闭集分类算法很难适用。针对这一问题，本文提出一种面向非合作空间辐射源专家模型自扩展的开集识别方法，可自扩展识别非合作空间中的未知辐射源。首先利用开集方法对已知/未知辐射源样本进行识别，通过样本库构建形成若干独立辐射源识别专家模型；其次提出一种模型解耦式联邦策略，用于辐射源识别专家模型自扩展，使得专家模型能够在线持续学习(CL)空间中的辐射源样本，有效克服了传统辐射源识别模型设计中出现的无法自动学习识别新辐射源样本和易发生灾难性遗忘等问题；最后，采用样本均衡和交织技术提升专家模型对辐射源指纹特征的特异性，从而确保各专家模型快速收敛和保持对特定辐射源识别高泛化能力。实验表明：所提方法在5 dB信噪比(SNR)环境下对辐射源设备的分类准确率达到97.8%以上，27 dB信噪比环境下可达到100%的准确率。
Abstract:The research on radio frequency fingerprint identification (RFFI) of radiation sources is usually regarded as a typical closed-set classification problem. However, in the non-cooperative space, the radiation sources are unknown, so the closed-set classification algorithm is inapplicable. To solve this problem, this paper proposed an open set recognition (OSR) method for the expert model self-extension of non-cooperative space radiation sources, which can self-expand to identify unknown radiation sources in non-cooperative space. Firstly, the open set method was used to identify the known/unknown radiation source samples, and several independent radiation source identification expert models were formed through the sample library construction. Secondly, a model decoupling federation strategy was proposed for the expert model self-expansion of radiation source identification, which ensured the online continual learning (CL) of the expert model on the radiation source samples in space, effectively overcoming the problems in the traditional radiation source identification model design, such as the inability to automatically learn and identify new radiation source samples and the vulnerability to catastrophic forgetting. Finally, the sample balance and interleaving techniques were used to enhance the specificity of expert models for fingerprint features of radiation sources to ensure the rapid convergence of expert models and maintain the high-generalization ability for specific radiation source identification. The experimental results show that the classification accuracy of the proposed method on the radiation source equipment is more than 97.8% in the signal-to-noise (SNR) environment of 5 dB and 100% in the signal-to-noise environment of 27 dB.
-

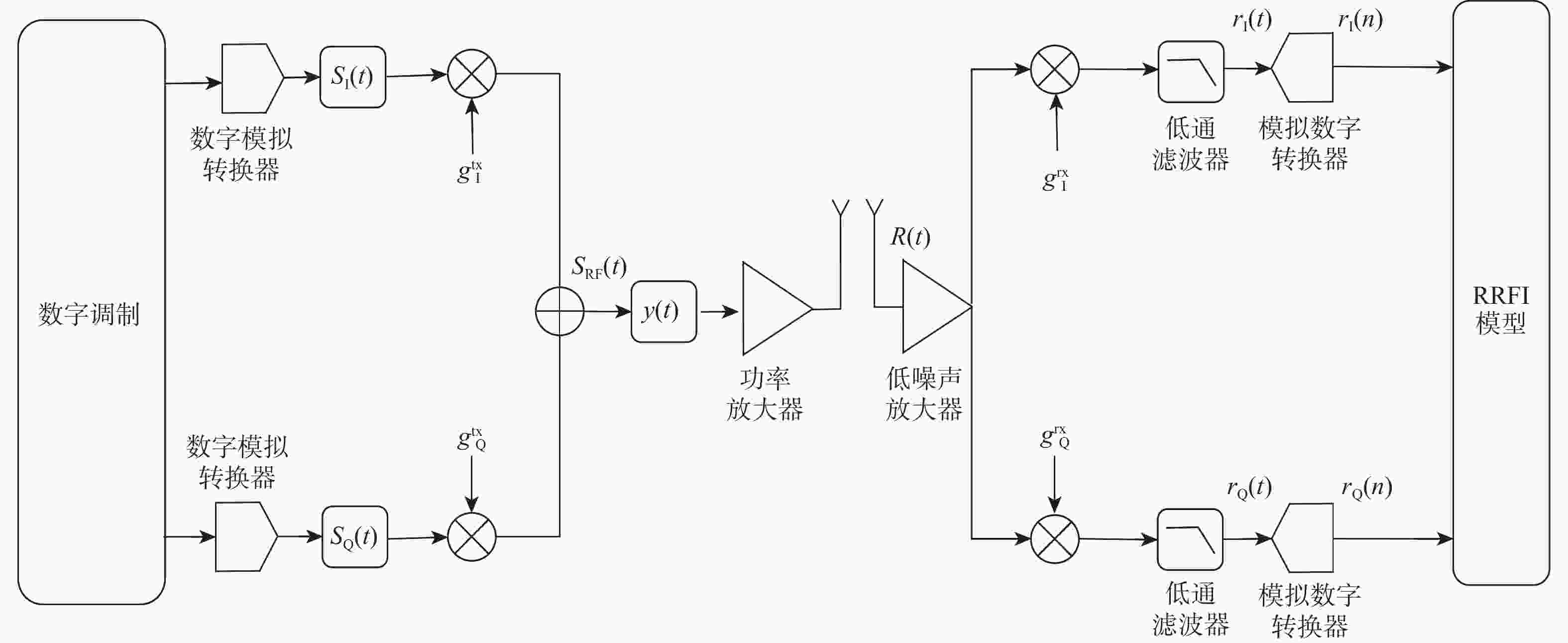

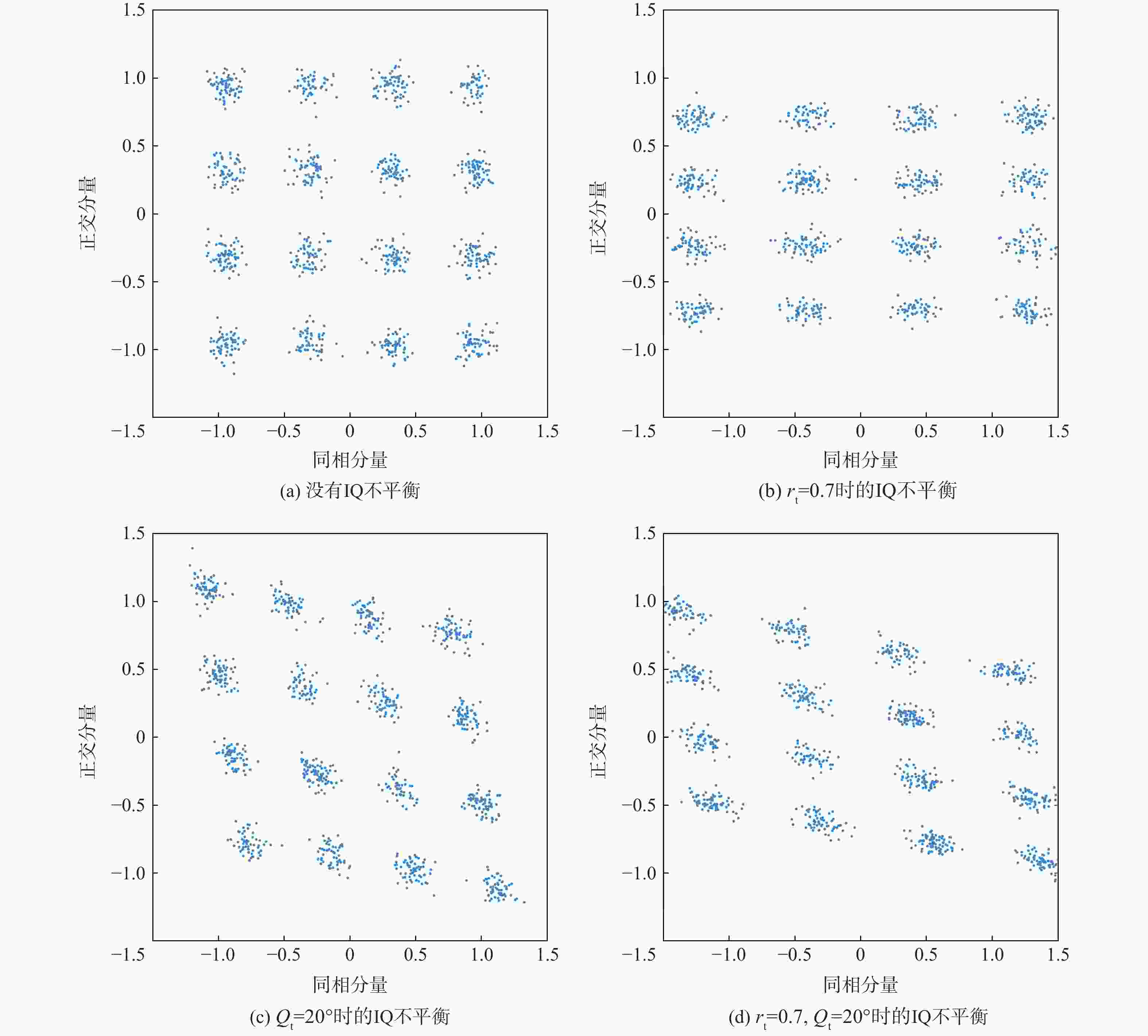

图 2 16QAM信号经过信噪比为20 dB的高斯白噪声信道的IQ不平衡星座图
Figure 2. IQ imbalance constellation of 16QAM signal passing through Gaussian white noise channel with SNR of 20 dB

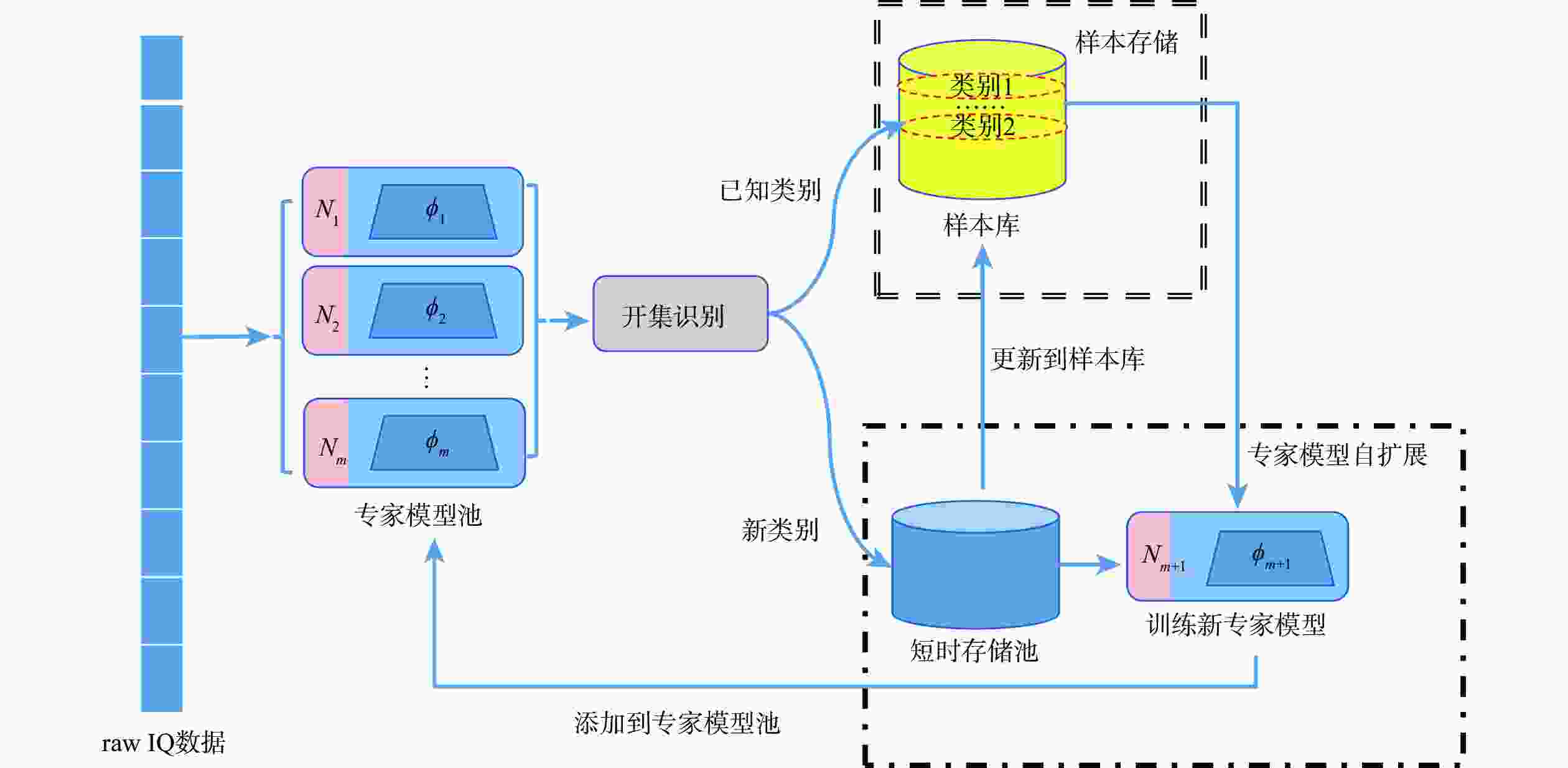

图 3 基于专家模型自扩展的开集辐射源识别架构
Figure 3. Open set radiation sources identification architecture based on expert model self-expansion

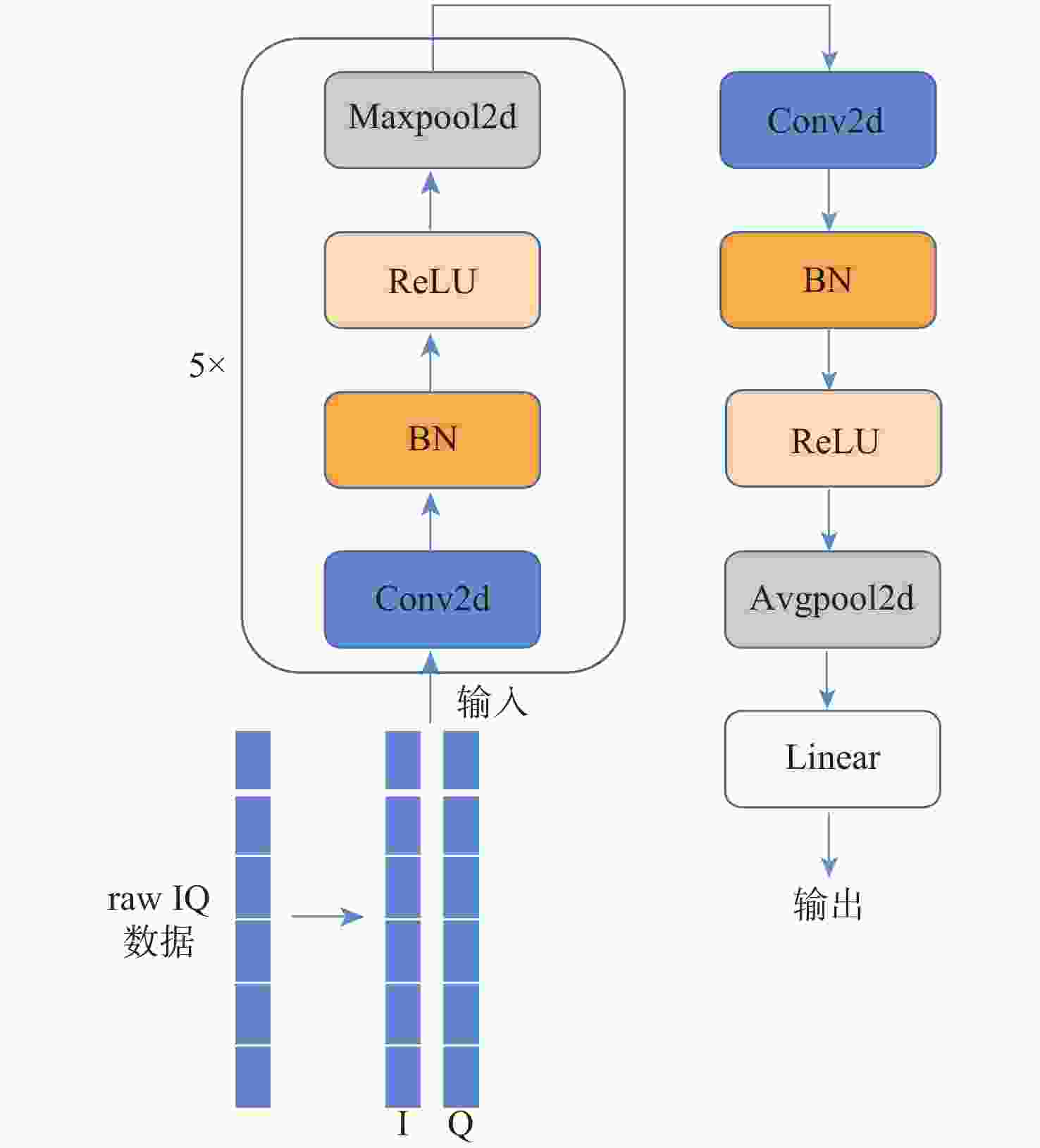

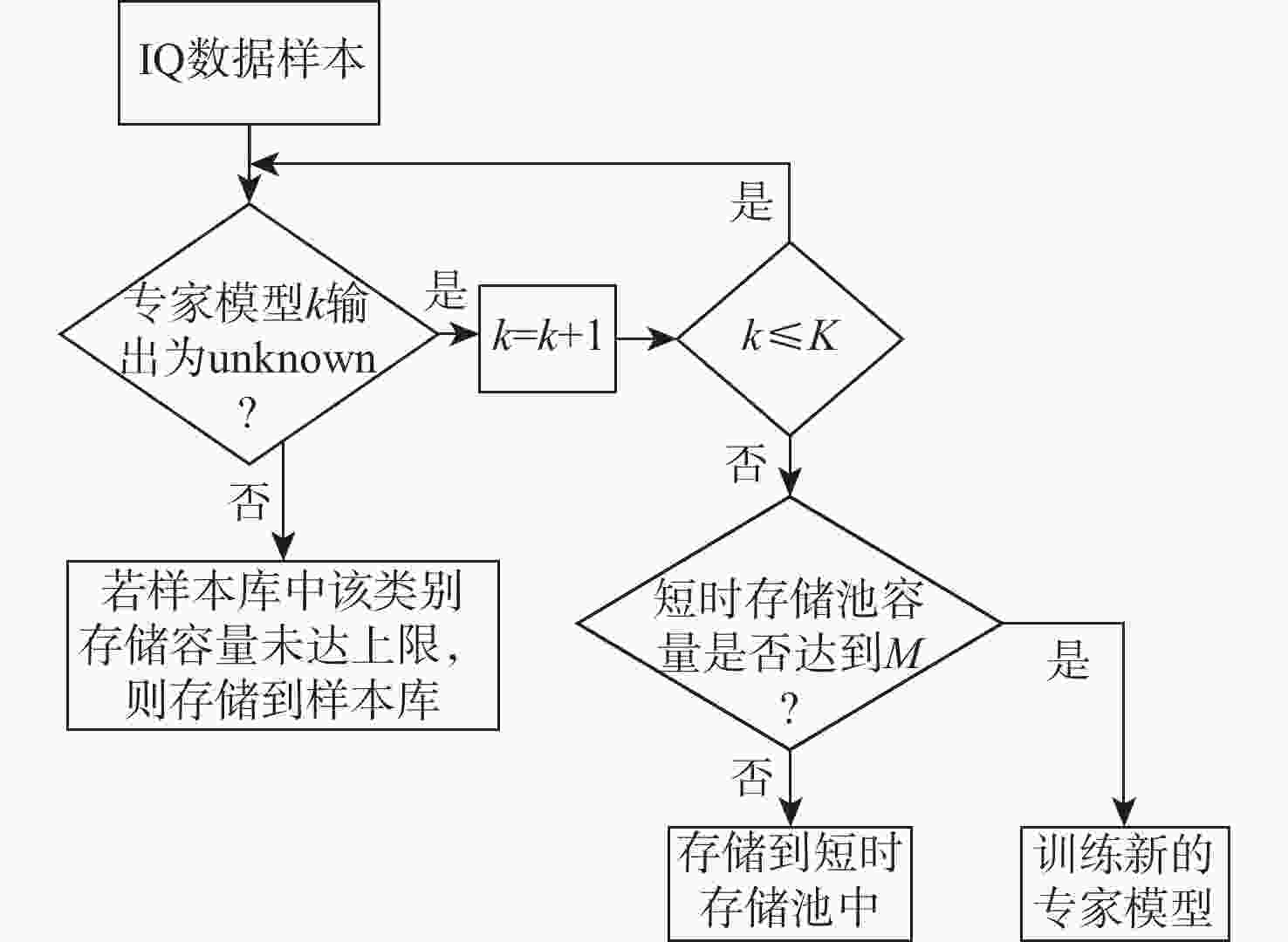

图 6

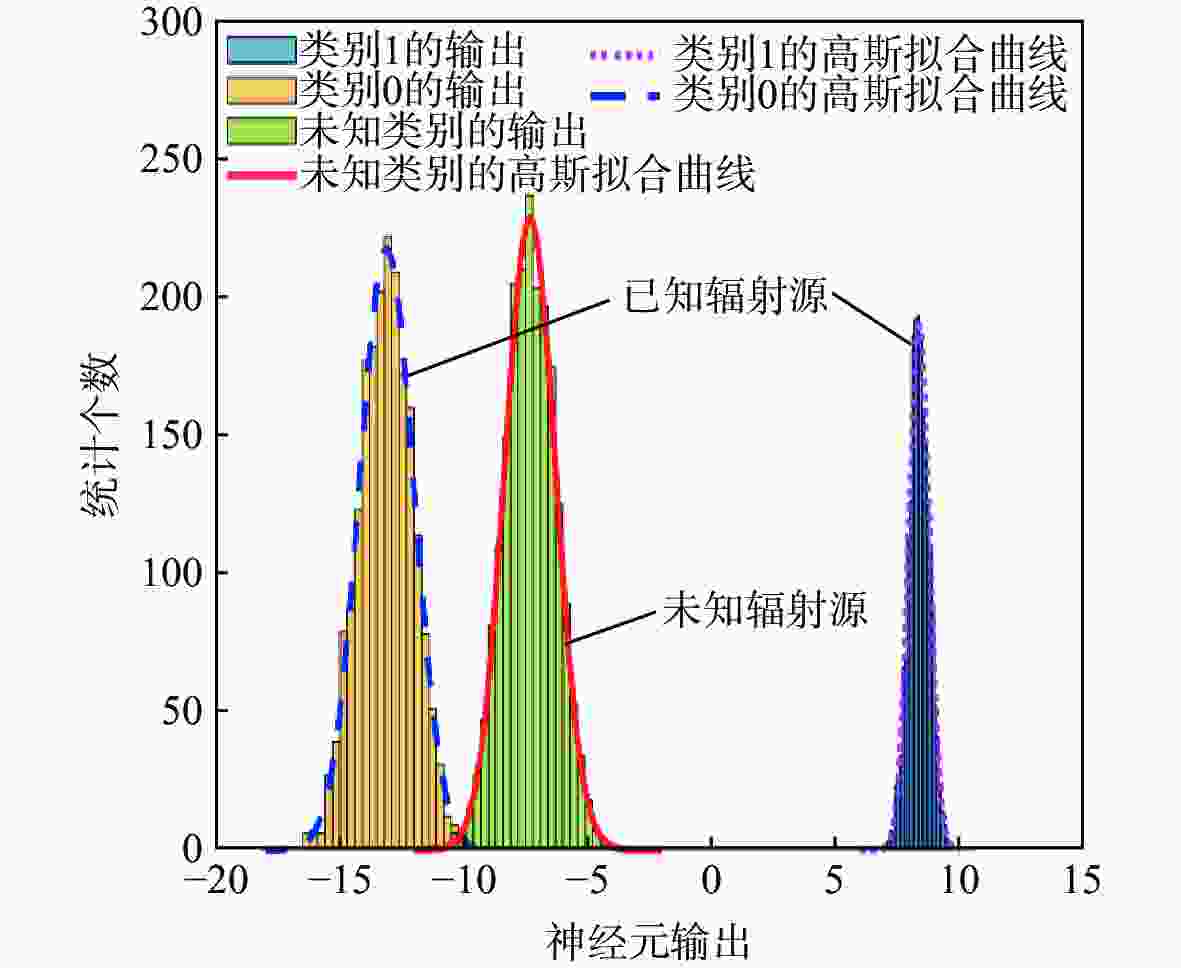

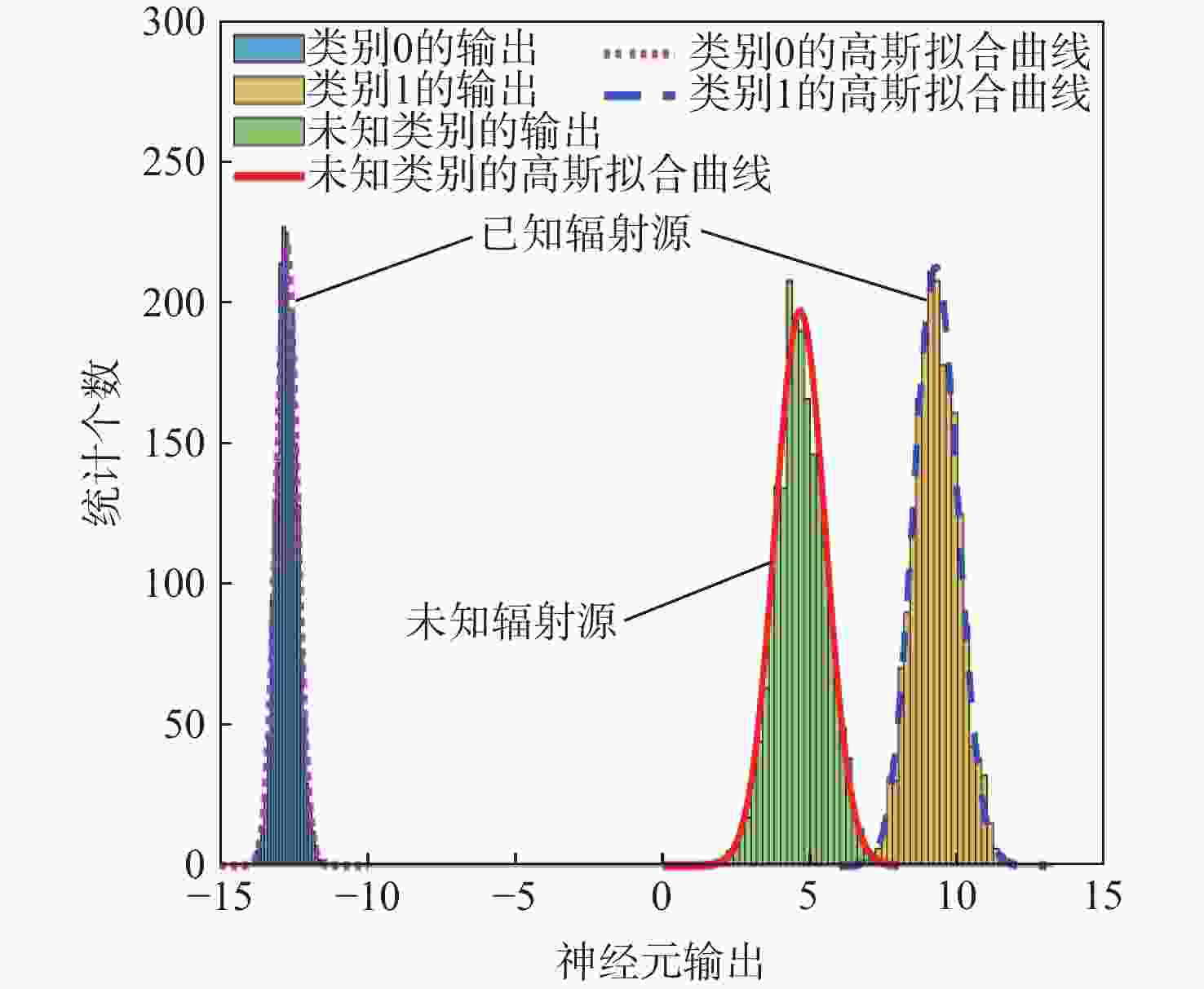

2000 个已知和未知辐射源样本输入$ {\phi _1} $对应的输出值Figure 6. Output values corresponding to 2 000 known and unknown radiation source samples with $ {\phi _1} $ input
图 7 2 000个已知和未知辐射源样本输入$ {\phi _2} $对应的输出值
Figure 7. Output values corresponding to 2 000 known and unknown radiation source samples with $ {\phi _2} $ input

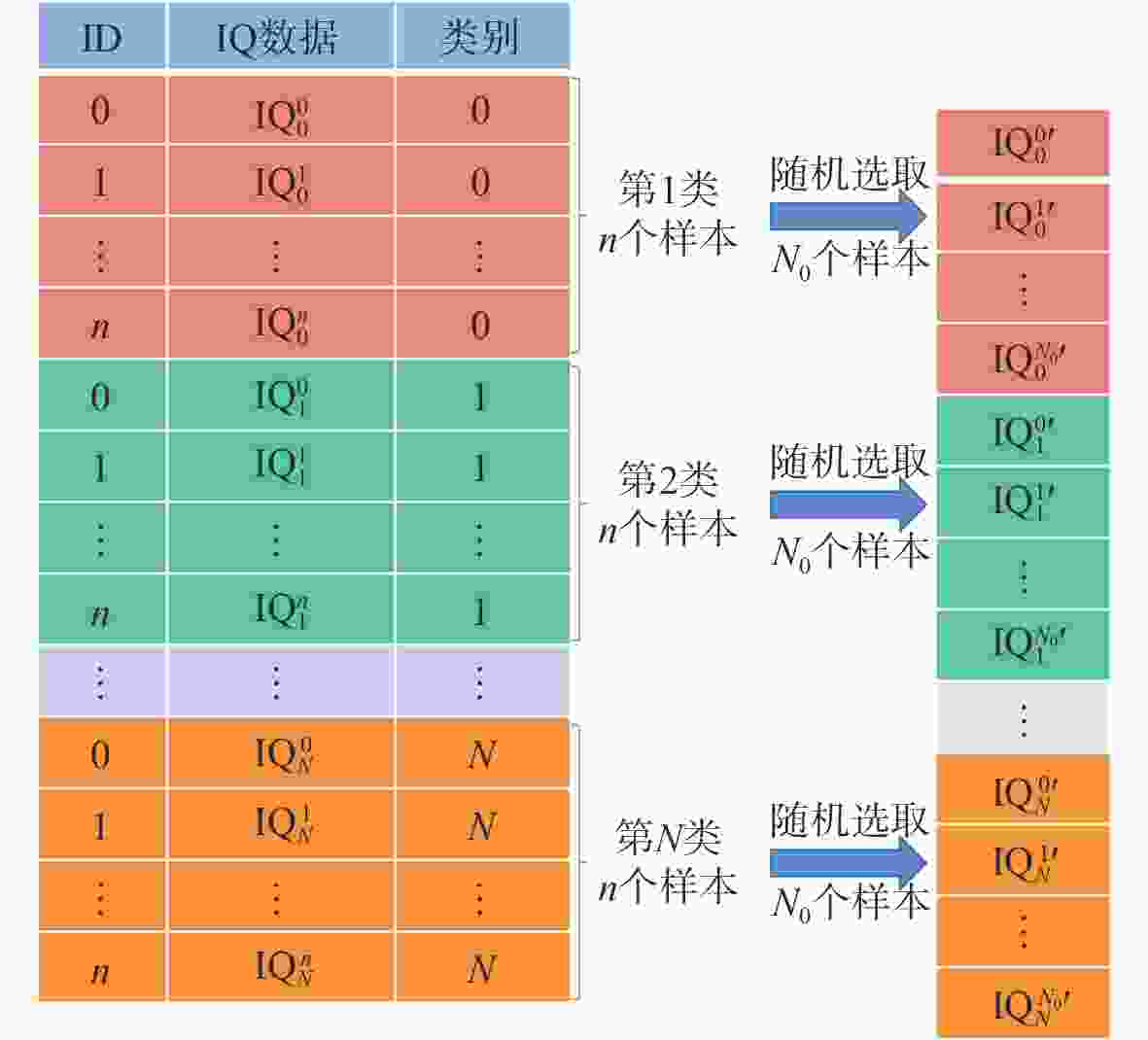

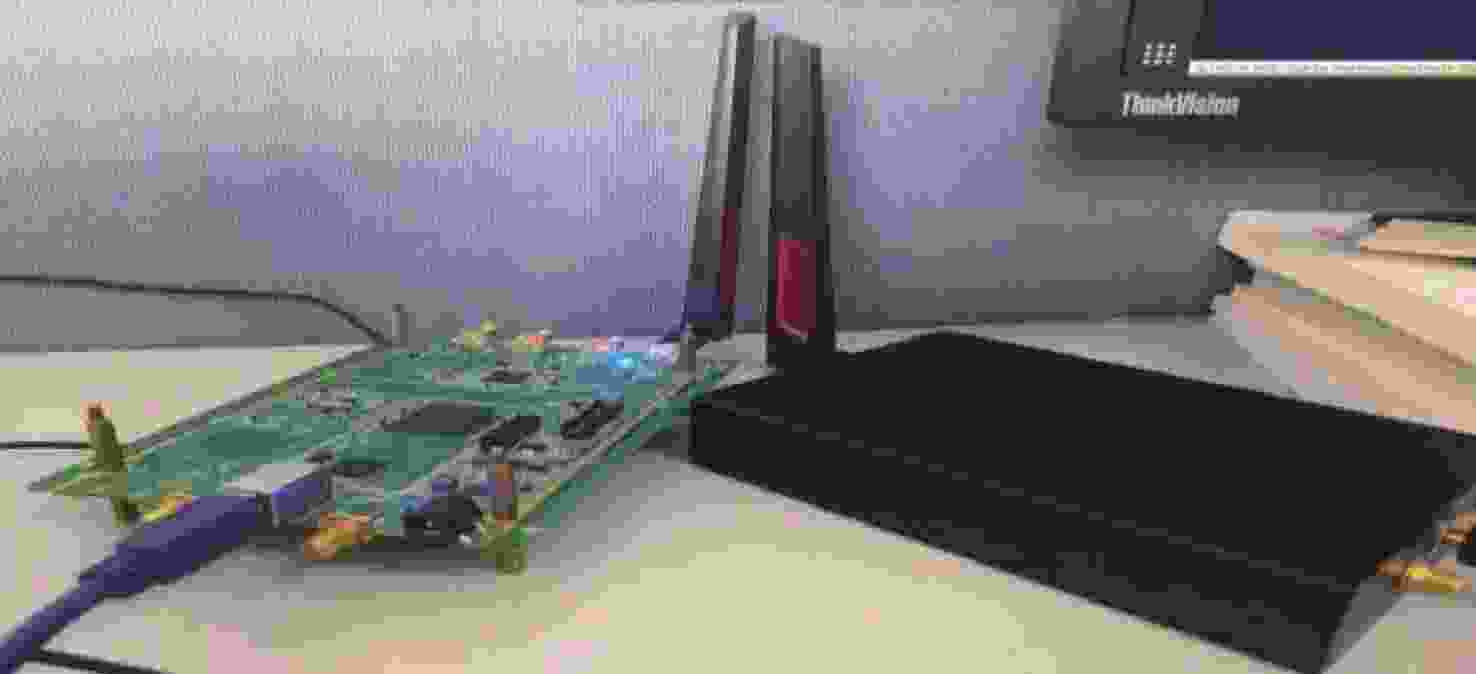

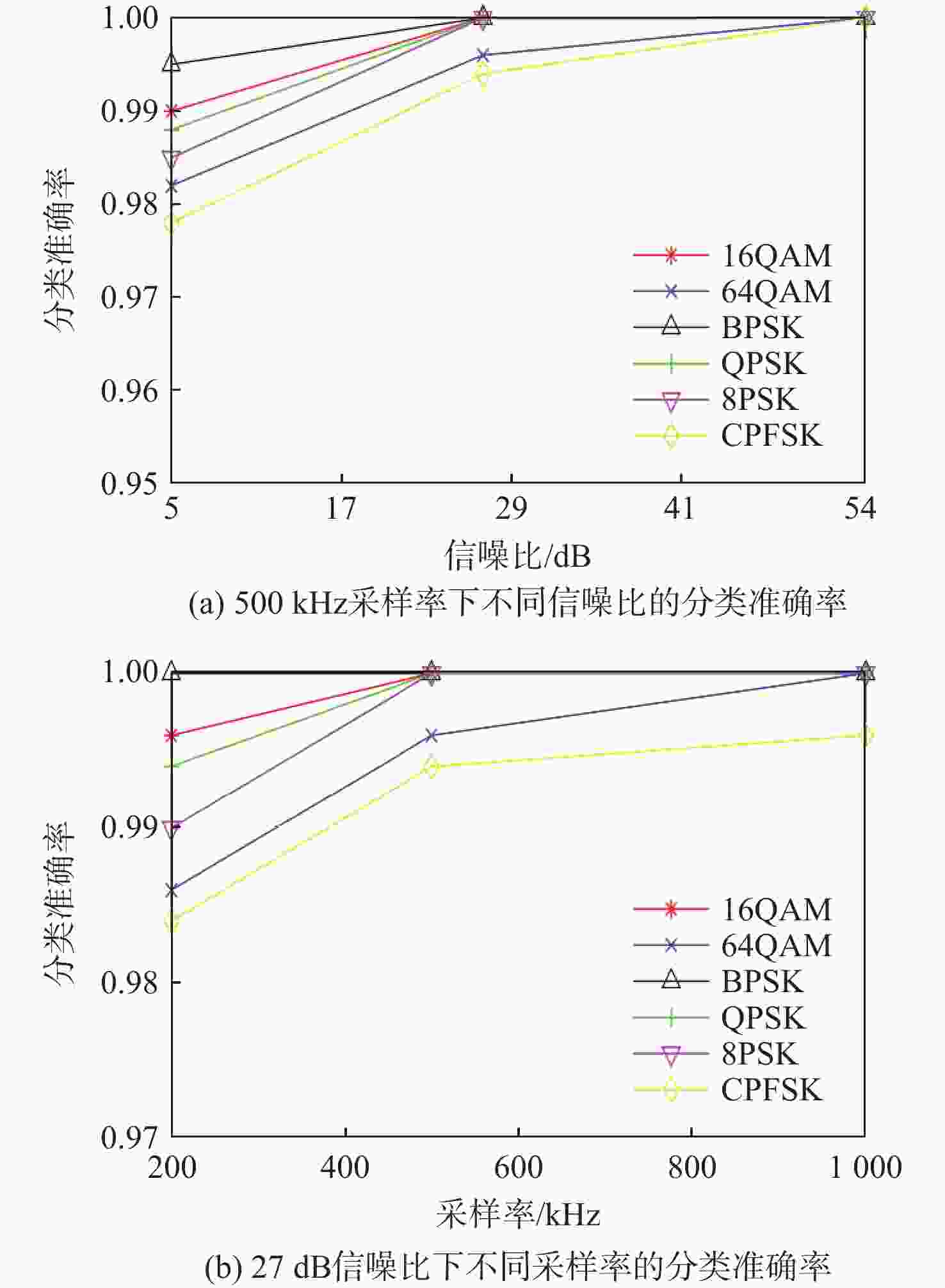

图 10 4个辐射源在不同信噪比和采样率下的分类准确率
Figure 10. Classification accuracy of four radiation sources under different SNRs and sampling rates

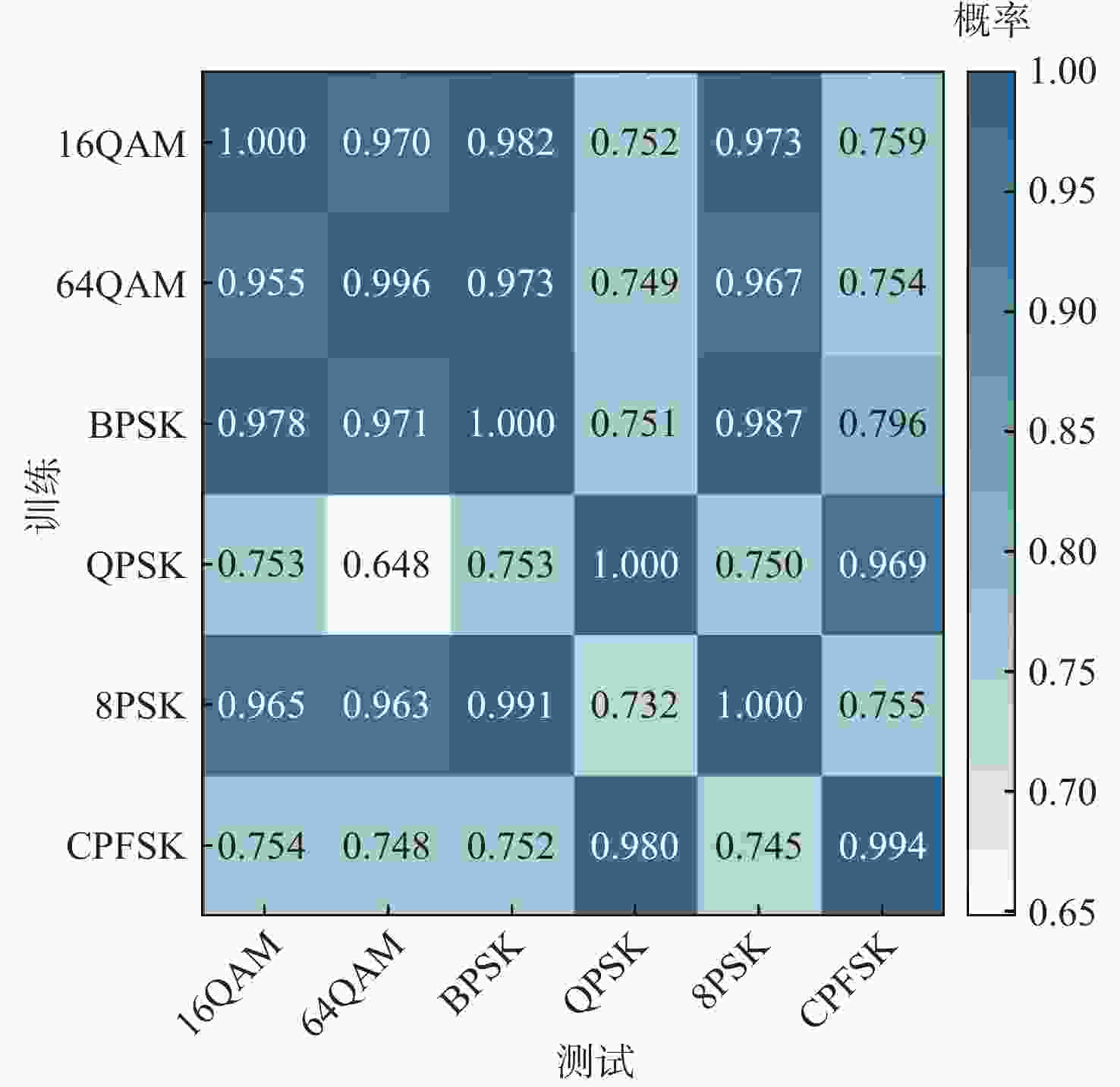

图 11 辐射源的某一种调制信号训练及其他调制信号测试矩阵图
Figure 11. Matrix of training of a certain modulation signal of a radiation source and test of other modulation signals
表 1 5种调制信号闭集和开集测试
Table 1. Closed set and open set tests of five modulation signals
方法 16QAM 64QAM BPSK 8PSK CPFSK 闭集 1 1 1 1 1 Softmax+
Threshold0.654 0.632 0.672 0.667 0.583 Openmax 0.786 0.762 0.774 0.756 0.732 本文方法 0.992 0.984 0.991 0.982 0.979
下载: 导出CSV
-
