摘要:
以柔性动作评价(SAC)为代表的强化学习算法在机器人复现高等动物的运动技能中已取得成功，该框架将策略搜索和状态动作价值函数相结合。但智能体使用策略探索是贪婪的，评价网络估算的

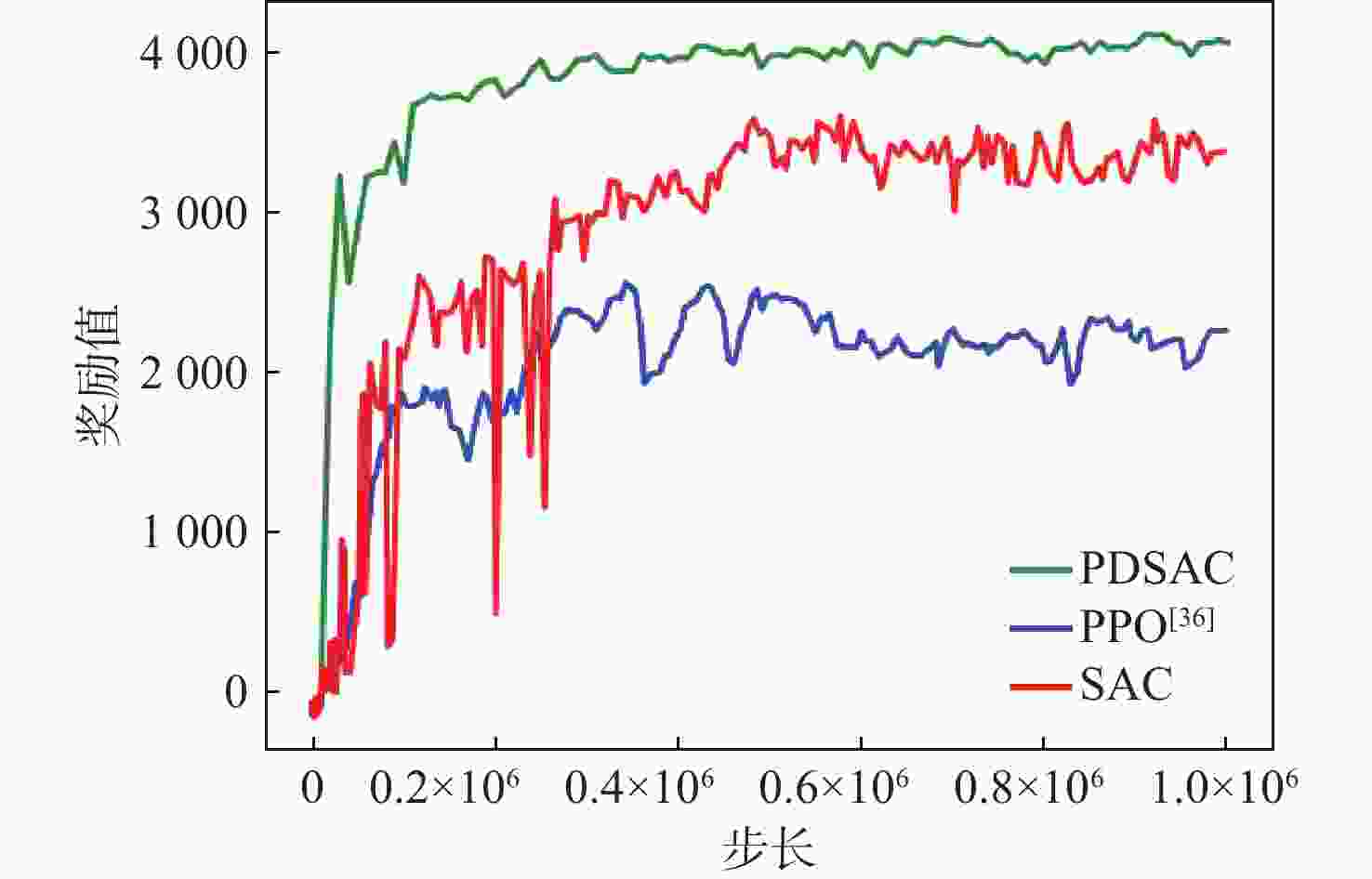

Q 值函数却使用低估值。为使智能体采取更好的策略，将策略蒸馏(PD)与SAC算法相融合，提出一种PD柔性动作评价(PDSAC)算法，该算法让智能体使用混合策略进行探索，使强化学习得到的奖励函数收敛速度加快。为验证PDSAC算法的有效性，理论证明该算法能提升策略的探索效率，并在四足机器人步态学习任务中进行了验证。仿真实验结果表明：相比SAC算法，PDSAC算法在步态学习任务中可以使奖励函数值提高26.7%，同时收敛速度提升40%。Abstract:Reinforcement learning algorithm represented by flexible action evaluation (SAC) has been successful in reproducing the motor skills of higher animals. This framework combines strategy search and state action value function. However, the agent use strategy exploration is greedy, and the Q value function of evaluation network estimation uses low valuation. This paper proposes a policy distillation (PD) soft actor-critic (PDSAC) algorithm that integrates PD and SAC algorithms to enable agents to adopt better policies. This algorithm allows the agent to explore using hybrid policies and speeds up the convergence of the reward function from reinforcement learning. To validate the proposed algorithm, Theoretical proof that the PDSAC algorithm improves the efficiency of policy exploration and validation in quadruped robot gait learning tasks. According to simulation results, the PDSAC outperforms the SAC in the gait learning task, achieving a 40% increase in convergence speed and a 26.7% improvement in the reward value function.
-
图 10 机器人在前期、中期、后期的运动步态
Figure 10. Gait of the robot in the early, middle and late stages of its movement
表 1 SAC算法参数
Table 1. SAC algorithm parameters
动作网络
学习率评价网络
学习率SAC熵值
正则化
系数$\alpha $奖励折扣
因子$\gamma $每回合Q值
衰减系数$\varepsilon $0.0003 0.0003 0.2 0.99 0.99
下载: 导出CSV
-
[1] LEVINE S, FINN C, DARRELL T, et al. End-to-end training of deep visuomotor policies[EB/OL]. (2015-04-02)[2023-02-02]. http://arxiv.org/abs/1504.00702. [2] KOHL N, STONE P. Policy gradient reinforcement learning for fast quadrupedal locomotion[C]//Proceeding of the IEEE International Conference on Robotics and Automation. Piscataway: IEEE Press, 2004: 2619-2624. [3] LEE J, HWANGBO J, WELLHAUSEN L, et al. Learning quadrupedal locomotion over challenging terrain[J]. Science Robotics, 2020, 5(47): eabc5986. doi: 10.1126/scirobotics.abc5986 [4] HWANGBO J, LEE J, DOSOVITSKIY A, et al. Learning agile and dynamic motor skills for legged robots[J]. Science Robotics, 2019, 4(26): eaau5872. doi: 10.1126/scirobotics.aau5872 [5] HAARNOJA T, HA S, ZHOU A, et al. Learning to walk via deep reinforcement learning[EB/OL]. (2018-12-26)[2023-02-02]. http://arxiv.org/abs/1812.11103. [6] CZARNECKI W M, PASCANU R, OSINDERO S, et al. Distilling policy distillation[C]//Proceedings of the 22nd International Conference on Artificial Intelligence and Statistics. Okinawa: PMLR, 2019: 1331-1340. [7] HONG Z W, NAGARAJAN P, MAEDA G. Periodic intra-ensemble knowledge distillation for reinforcement learning[C]//Proceedings of the Lecture Notes in Computer Science. Berlin: Springer, 2021: 87-103. [8] AMIK F R, TASIN A I, AHMED S, et al. Dynamic rectification knowledge distillation[EB/OL]. (2022-01-27)[2023-02-04]. http://arxiv.org/abs/2201.11319. [9] RUSU A A, COLMENAREJO S G, GULCEHRE C, et al. Policy distillation[EB/OL]. (2015-11-19)[2023-02-04]. http://arxiv.org/abs/1511.06295. [10] LAI K H, ZHA D C, LI Y N, et al. Dual policy distillation[EB/OL]. (2020-06-07)[2023-02-04]. http://arxiv.org/abs/2006.04061. [11] ZHAO C Y, HOSPEDALES T. Robust domain randomised reinforcement learning through peer-to-peer distillation[EB/OL]. (2020-12-09)[2023-02-04]. http://arxiv.org/abs/2012.04839. [12] 徐平安, 刘全. 基于相似度约束的双策略蒸馏深度强化学习方法[J] 计算机科学, 2022, 11(12): 1-13.XU P A, LIU Q. A dual-policy distillation deep reinforcement learning method based on similarity constraint[J]. Computer Science , 2022, 11(12): 1-13(in Chinese). [13] LEE Y H, LEE Y H, LEE H, et al. Development of a quadruped robot system with torque-controllable modular actuator unit[J]. IEEE Transactions on Industrial Electronics, 2021, 68(8): 7263-7273. doi: 10.1109/TIE.2020.3007084 [14] BURDA Y, EDWARDS H, STORKEY A, et al. Exploration by random network distillation[EB/OL]. (2018-10-30)[2023-02-04]. http://arxiv.org/abs/1810.12894. [15] LIU I J, PENG J, SCHWING A G. Knowledge flow: Improve upon your teachers[EB/OL]. (2019-04-11)[2023-02-05]. http://arxiv.org/abs/1904.05878. [16] LIU D, HAN H Z, SHEN F Y. Dialogue policy optimization based on KL-GAN-A2C model[C]//Proceedings of the 16th International Computer Conference on Wavelet Active Media Technology and Information Processing. Piscataway: IEEE Press, 2019: 417-420. [17] LILLICRAP T P, HUNT J J, PRITZEL A, et al. Continuous control with deep reinforcement learning[EB/OL]. (2019-07-15)[2023-02-05]. http://arxiv.org/abs/1509.02971. [18] YANG C Y, YUAN K, ZHU Q G, et al. Multi-expert learning of adaptive legged locomotion[J]. Science Robotics, 2020, 5(49): eabb2174. doi: 10.1126/scirobotics.abb2174 [19] WILLIAMS R J. Simple statistical gradient-following algorithms for connectionist reinforcement learning[J]. Machine Learning, 1992, 8(3): 229-256. [20] HAARNOJA T, ZHOU A, ABBEEL P, et al. Soft actor-critic: Off-policy maximum entropy deep reinforcement learning with a stochastic actor[EB/OL]. (2018-08-08)[2023-02-05]. http://arxiv.org/abs/1801.01290. [21] HAARNOJA T, TANG H R, ABBEEL P, et al. Reinforcement learning with deep energy-based policies[EB/OL]. (2017-07-21)[2023-02-05]. http://arxiv.org/abs/1702.08165. [22] HAARNOJA T, ZHOU A, HARTIKAINEN K, et al. Soft actor-critic algorithms and applications[EB/OL]. (2019-01-29)[2023-02-05]. http://arxiv.org/abs/1812.05905. [23] FUJIMOTO S, VAN HOOF H, MEGER D. Addressing function approximation error in actor-critic methods[EB/OL]. (2018-10-22)[2023-02-05]. http://arxiv.org/abs/1802.09477. [24] 王君逸, 王志, 李华雄, 等. 基于自适应噪声的最大熵进化强化学习方法[J]. 自动化学报, 2023, 49(1): 54-66.WANG J Y, WANG Z, LI H X, et al. Adaptive noise-based evolutionary reinforcement learning with maximum entropy[J]. Acta Automatica Sinica, 2023, 49(1): 54-66(in Chinese). [25] MNIH V, BADIA A P, MIRZA M, et al. Asynchronous methods for deep reinforcement learning[EB/OL]. (2016-06-16)[2023-02-05]. http://arxiv.org/abs/1602.01783. [26] SHI H J, ZHOU B, ZENG H S, et al. Reinforcement learning with evolutionary trajectory generator: A general approach for quadrupedal locomotion[J]. IEEE Robotics and Automation Letters, 2022, 7(2): 3085-3092. doi: 10.1109/LRA.2022.3145495 [27] AGARWAL R, LIANG C, SCHUURMANS D, et al. Learning to generalize from sparse and underspecified rewards[EB/OL]. (2019-03-31)[2023-02-06]. http://arxiv.org/abs/1902.07198. [28] LI X S, ZHANG X H, NIU J K, et al. A stable walking strategy of quadruped robot based on ZMP in trotting gait[C]//Proceedings of the IEEE International Conference on Mechatronics and Automation. Piscataway: IEEE Press, 2022: 858-863. [29] HINTON G, VINYALS O, DEAN J. Distilling the knowledge in a neural network[EB/OL]. (2015-03-09)[2023-02-06]. http://arxiv.org/abs/1503.02531. [30] CUI J, KINGSBURY B, RAMABHADRAN B, et al. Knowledge distillation across ensembles of multilingual models for low-resource languages[C]//Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing. Piscataway: IEEE Press, 2017: 4825-4829. [31] ZHANG Y, XIANG T, HOSPEDALES T M, et al. Deep mutual learning[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE Press, 2018: 4320-4328. [32] WANG J Y, HU C X, ZHU Y. CPG-based hierarchical locomotion control for modular quadrupedal robots using deep reinforcement learning[J]. IEEE Robotics and Automation Letters, 2021, 6(4): 7193-7200. doi: 10.1109/LRA.2021.3092647 [33] JOHNSON R W. An introduction to the bootstrap[J]. Teaching Statistics, 2001, 23(2): 49-54. doi: 10.1111/1467-9639.00050 [34] GIRI R, RAO B D. Bootstrapped sparse Bayesian learning for sparse signal recovery[C]//Proceedings of the 48th Asilomar Conference on Signals, Systems and Computers. Piscataway: IEEE Press, 2014: 1657-1661. [35] ZHANG Z, YAN J Q, KONG X, et al. Efficient motion planning based on kinodynamic model for quadruped robots following persons in confined spaces[J]. IEEE/ASME Transactions on Mechatronics, 2021, 26(4): 1997-2006. doi: 10.1109/TMECH.2021.3083594 [36] SCHULMAN J, WOLSKI F, DHARIWAL P, et al. Proximal policy optimization algorithms[C]//Proceedings of the 34th International Conference on Machine Learning. Sydney: PLMR, 2017: 3379-3387. -
