面向卫星星座的多地面站系统链路分配策略

姜逸飞; 何婉霞; 刘文正; 吴树范; 魏骁; 莫乾坤

doi:10.13700/j.bh.1001-5965.2023.0177

面向卫星星座的多地面站系统链路分配策略

doi: 10.13700/j.bh.1001-5965.2023.0177

1.
上海交通大学航空航天学院，上海 200240
2.
上海航天计算机技术研究所，上海 201101
3.
上海航天系统工程研究所，上海 201101

基金项目: 大规模卫星星座传输策略研究(23GFH-HT01-082)

详细信息

通讯作者:
E-mail：shufan.wu@sjtu.edu.cn

中图分类号: V221⁺.3；TB553
计量
- 文章访问数: 193
- HTML全文浏览量: 78
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2023-04-13
- 录用日期: 2023-08-04
- 网络出版日期: 2023-08-30
- 整期出版日期: 2025-04-30

Multi-ground station system-based link allocation strategy for satellite constellation

1.
School of Aeronautics and Astronautics，Shanghai Jiao Tong University，Shanghai 200240，China
2.
Shanghai Aerospace Computer Technology Institute，Shanghai 201101，China
3.
Shanghai Aerospace Systems Engineering Institute，Shanghai 201101，China

Funds: The Research on Networking Transmission Strategy for Large-Scale Satellite Constellation (23GFH-HT01-082)

More Information

Corresponding author: E-mail：shufan.wu@sjtu.edu.cn

摘要

摘要:
针对大规模卫星星座开展通信资源的研究，随着多个低轨星座的成功构建，标志着大规模卫星星座的商用化已经开始。这类大规模卫星星座可以同时兼顾低时延、广覆盖和大流量的优点。高效利用地面站资源成为大规模卫星星座研究的技术瓶颈，针对该问题，提出多星及多站拓扑结构，并结合链路时间资源，提出星地链路时间模型。同时，提出时隙插入策略，以多地面站的整体链路效能作为优化目标，得到多星及多站链路时间表。通过与随机策略和贪婪策略的性能对比，验证了所提策略的可行性和优越性。
- 卫星星座 /
- 地面站 /
- 资源分配 /
- 网络拓扑 /
- 通信链路
Abstract:
Aiming at the research of large-scale satellite constellation, the research content of communication resources is put forward. With the successful construction of several low-orbit constellations, the commercialization of large-scale satellite constellations has begun. This kind of large-scale satellite constellation can simultaneously take into account the advantages of low delay, wide coverage and large traffic. In order to make efficient use of earth station resources, it has become the technical bottleneck of large-scale satellite constellation research. The multi-star and multi-station topology is proposed to better focus on this problem. Combined with the link time resources, a satellite-earth link time model is proposed. On this basis, the time-slot insertion strategy is proposed, and the multi-star and multi-station link schedules are obtained by taking the overall link efficiency of multi-ground stations as the optimization objective. The feasibility and superiority of the proposed strategy are verified by comparing the performance with random strategy and greedy strategy.
- satellite constellation /
- ground station /
- resource allocation /
- network topology /
- communication link

HTML全文

图 1 Walker-delta星座拓扑

Figure 1. Topology of Walker-delta constellation

下载: 全尺寸图片幻灯片

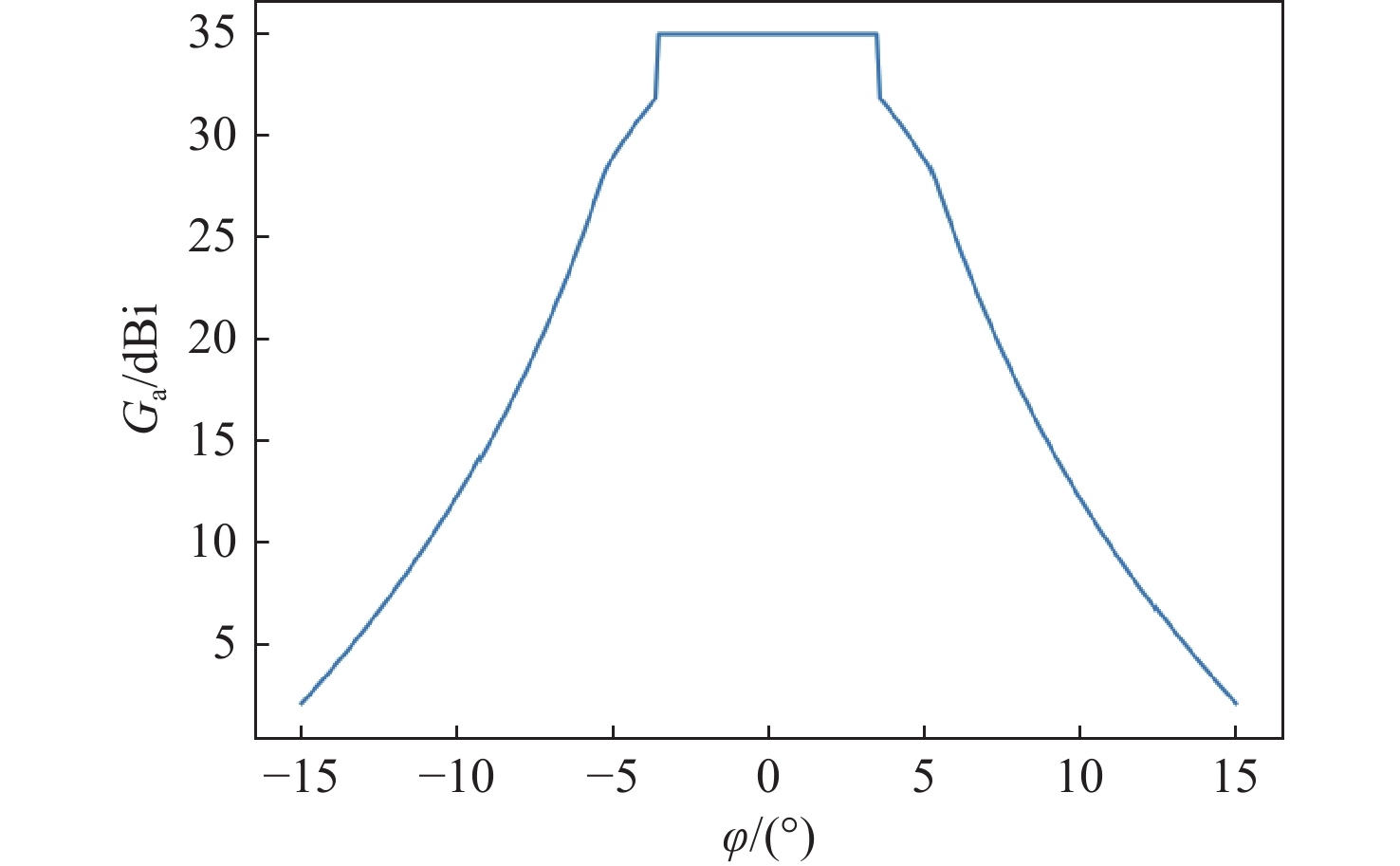

图 2 天线辐射方向

Figure 2. Antenna radiation direction

下载: 全尺寸图片幻灯片

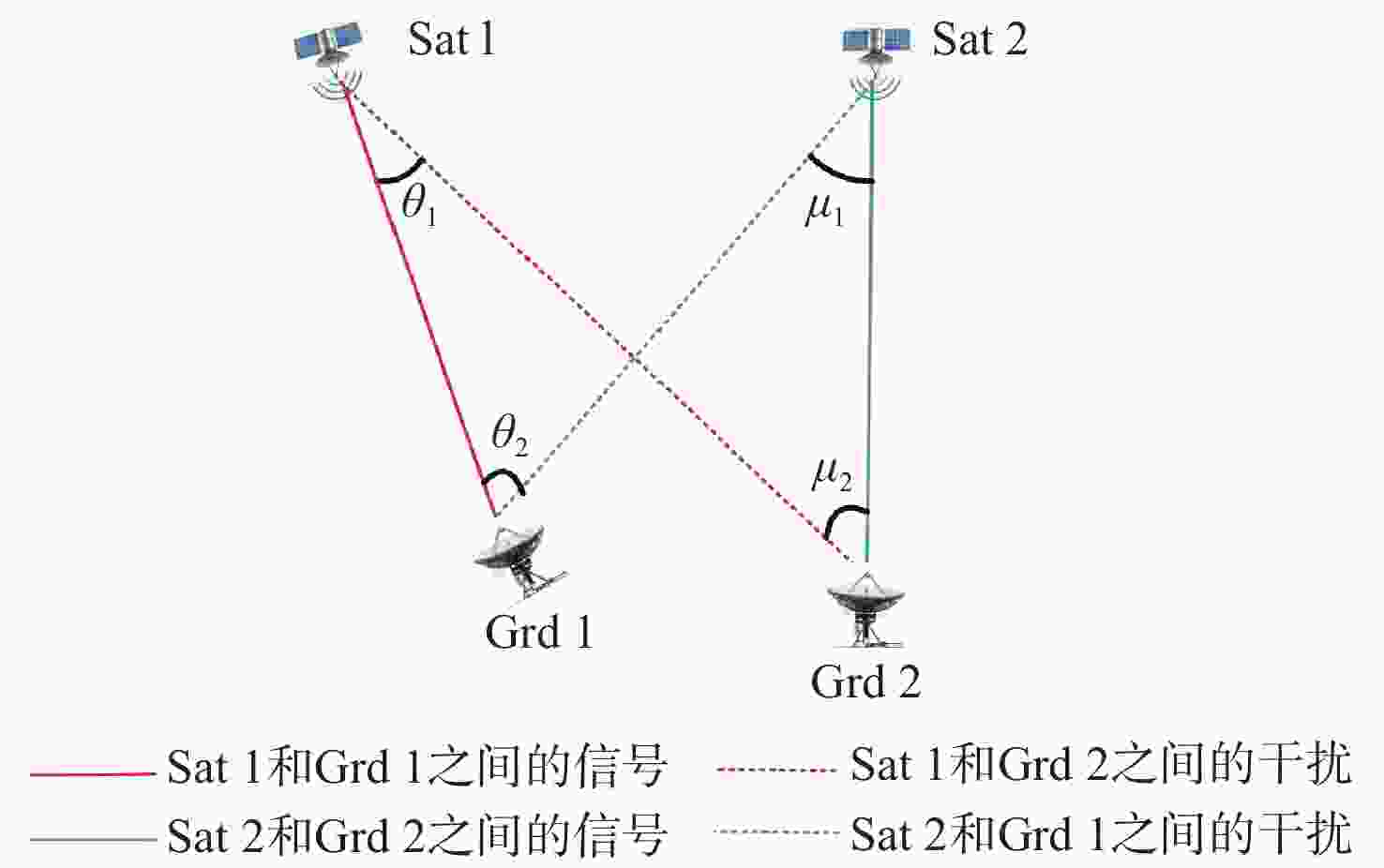

图 3 Sat2和Grd1之间的干扰模型

Figure 3. Multi-satellite and multi-station interference models

下载: 全尺寸图片幻灯片

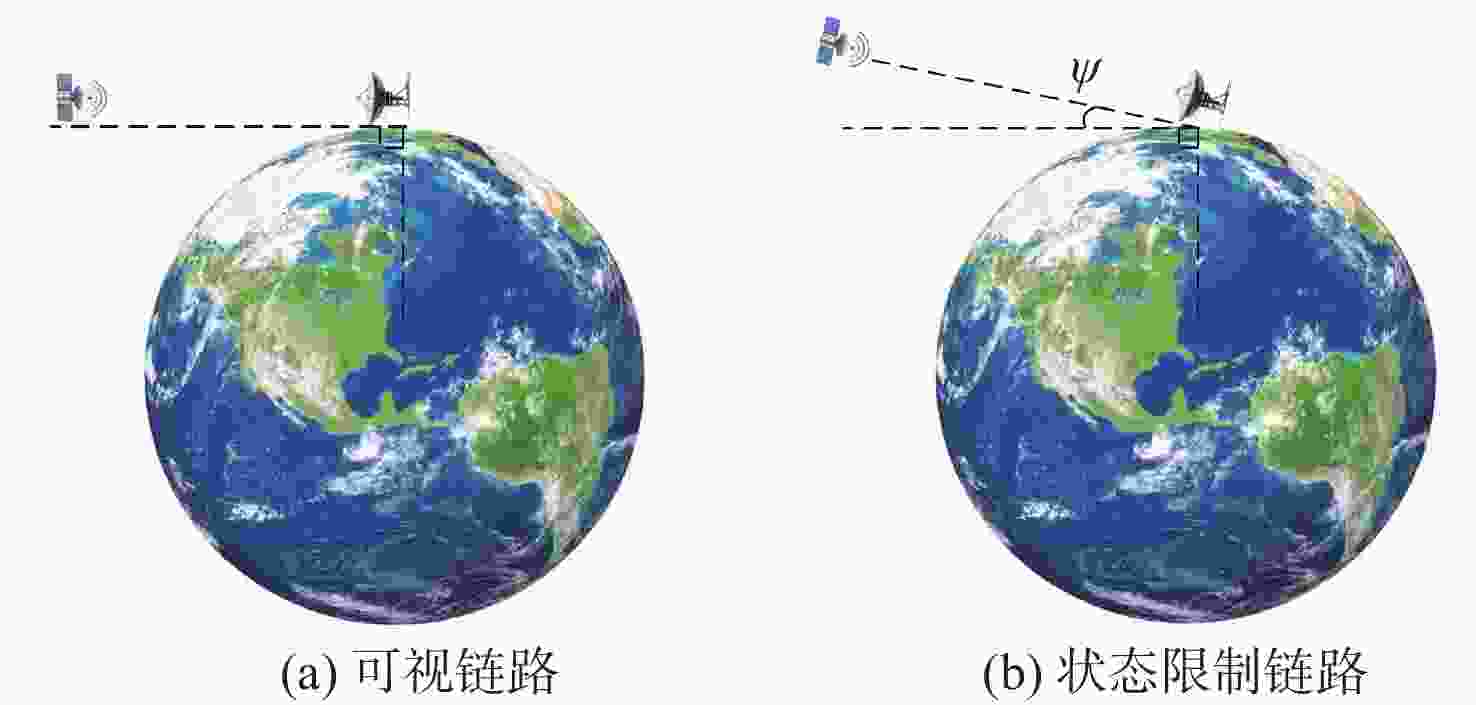

图 4 星地链路

Figure 4. Satellite-ground link

下载: 全尺寸图片幻灯片

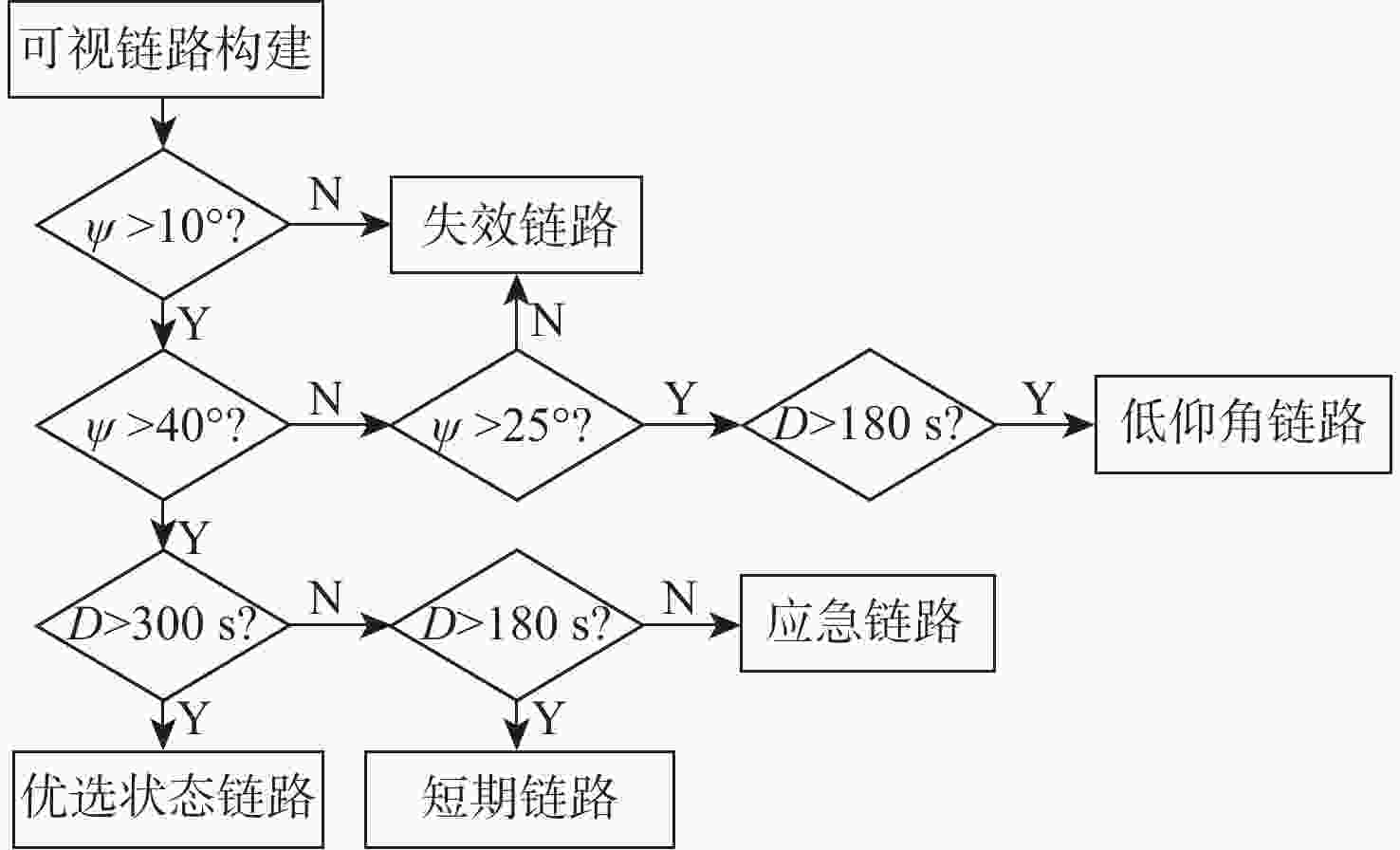

图 5 状态限制链路判断流程

Figure 5. State limit link judgment process

下载: 全尺寸图片幻灯片

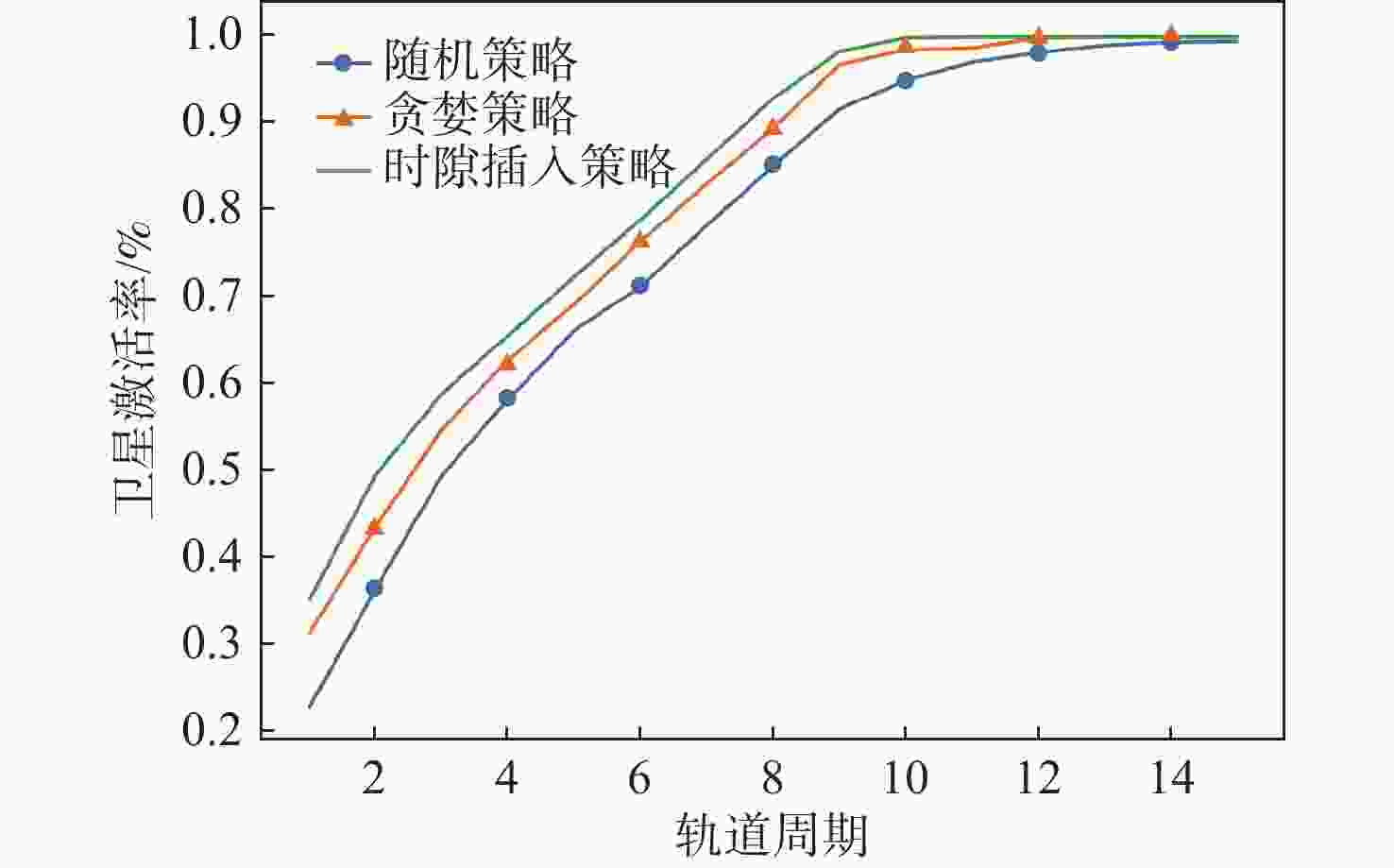

图 6 卫星激活率

Figure 6. Satellite enabl rate

下载: 全尺寸图片幻灯片

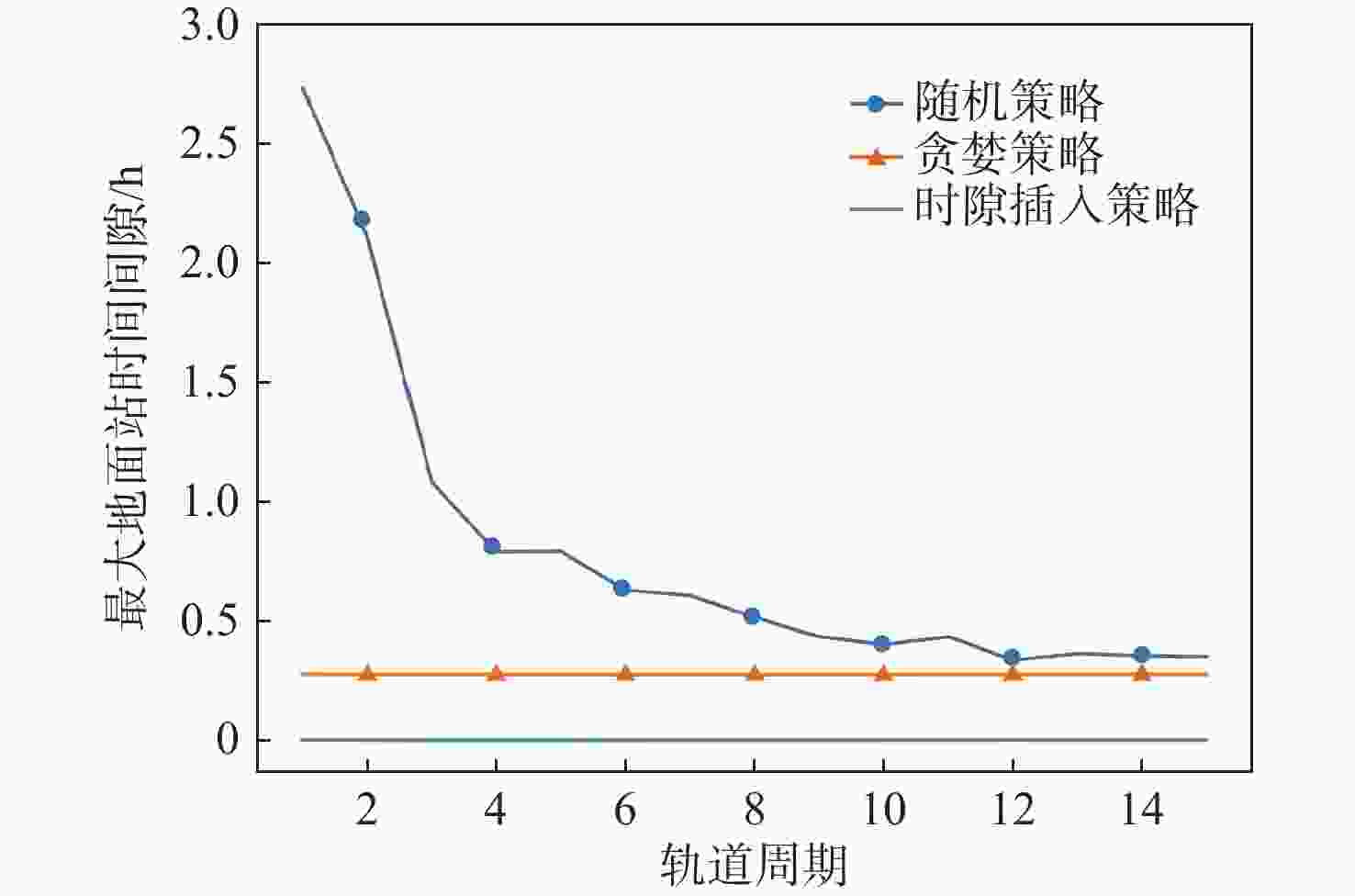

图 7 最大地面站时间间隙

Figure 7. Maximum gap of ground station

下载: 全尺寸图片幻灯片

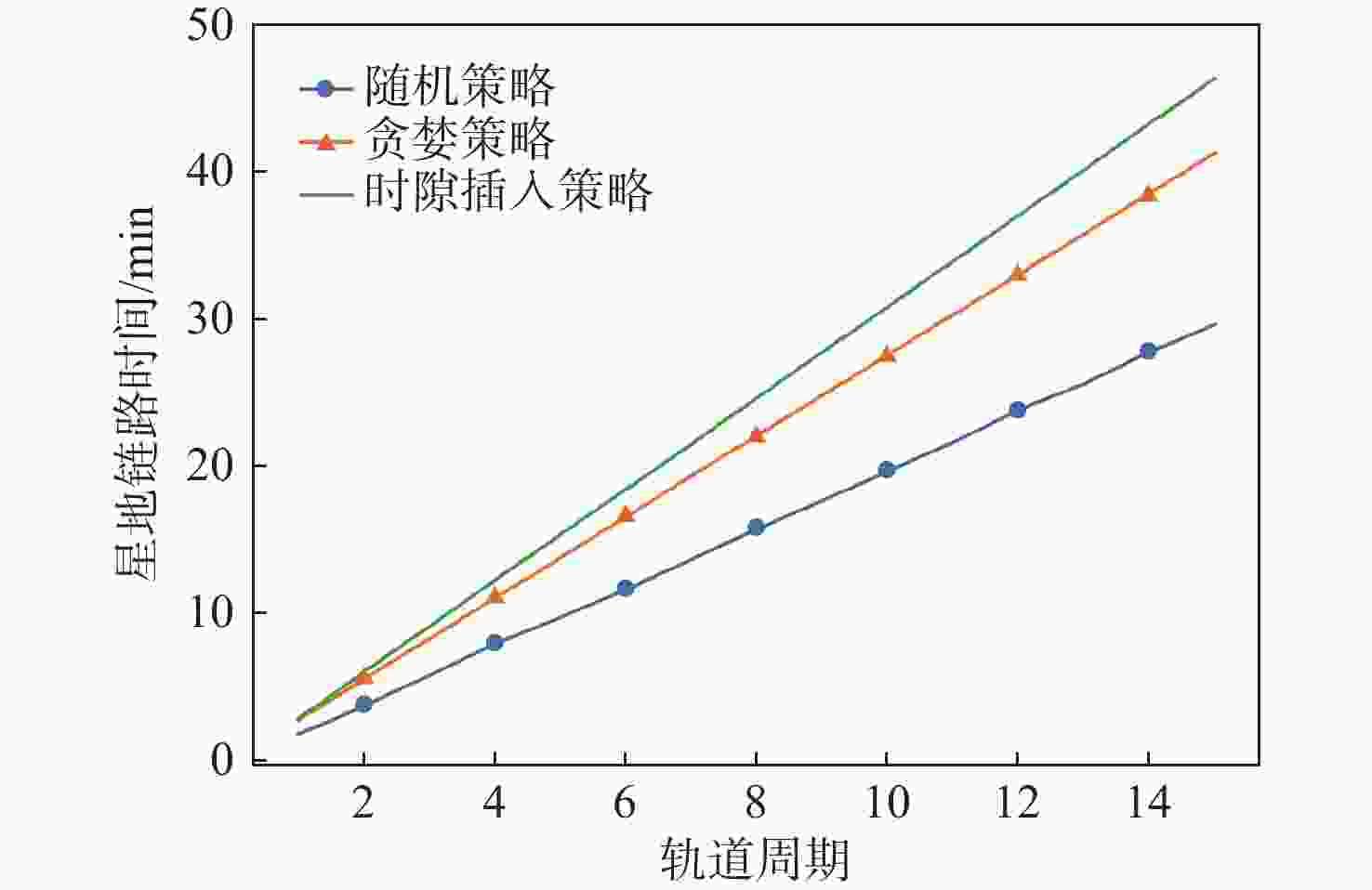

图 8 星地链路时间

Figure 8. Satellite link to ground time

下载: 全尺寸图片幻灯片

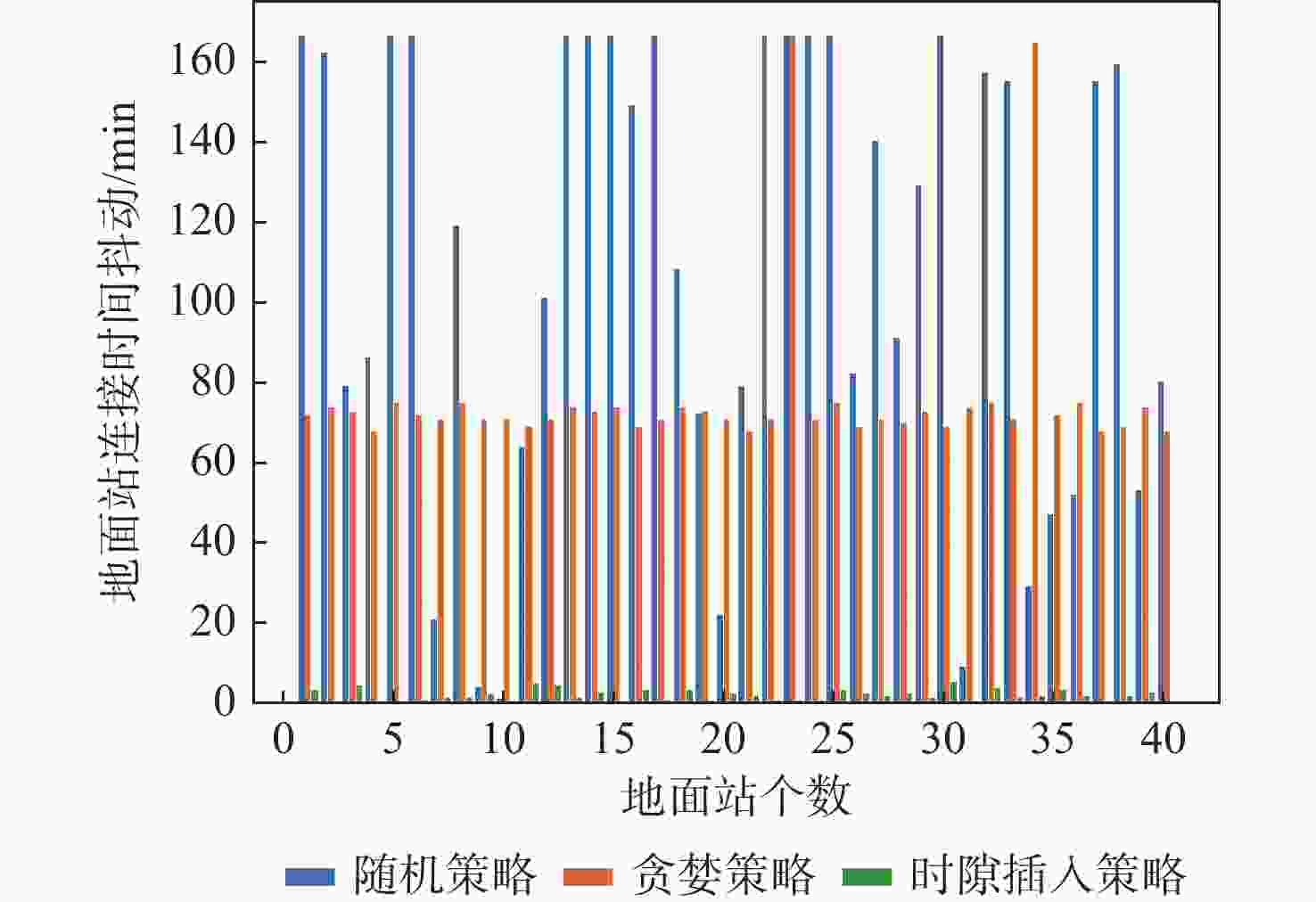

图 9 地面站连接时间抖动

Figure 9. Ground station link duration jitter

下载: 全尺寸图片幻灯片

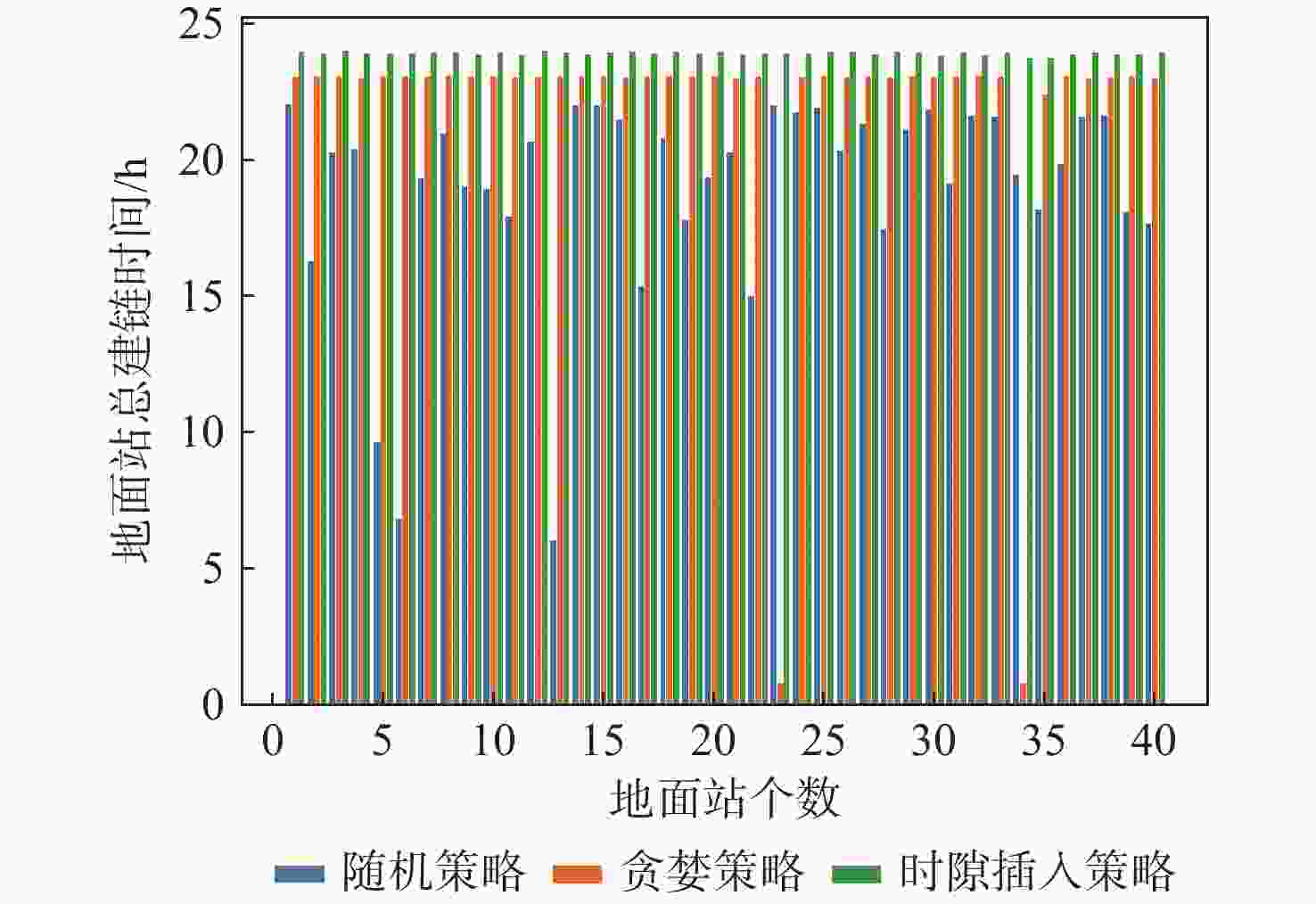

图 10 地面站总建链时间

Figure 10. Total link duration of ground station

下载: 全尺寸图片幻灯片

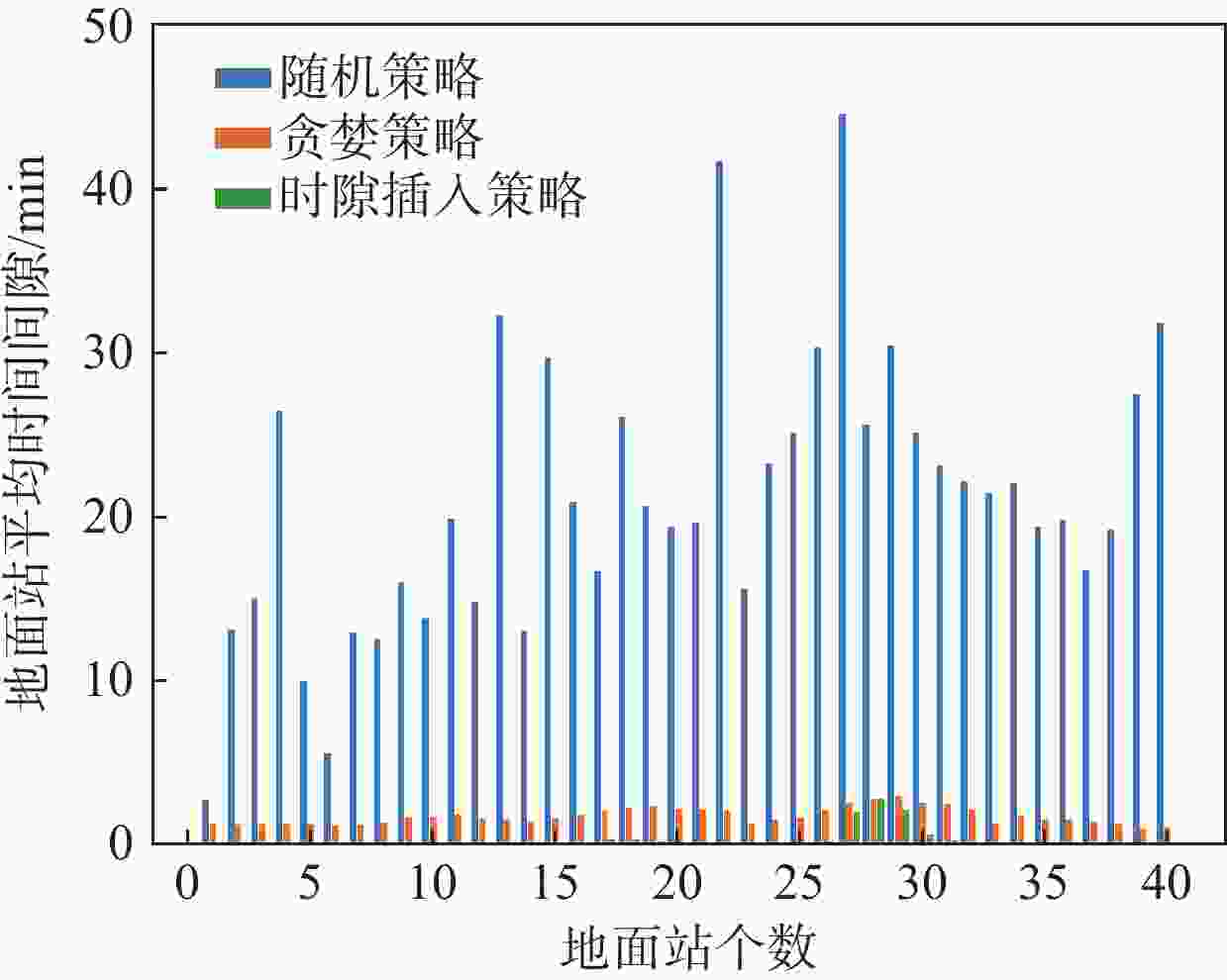

图 11 地面站平均时间间隙

Figure 11. Ground station average gap

下载: 全尺寸图片幻灯片

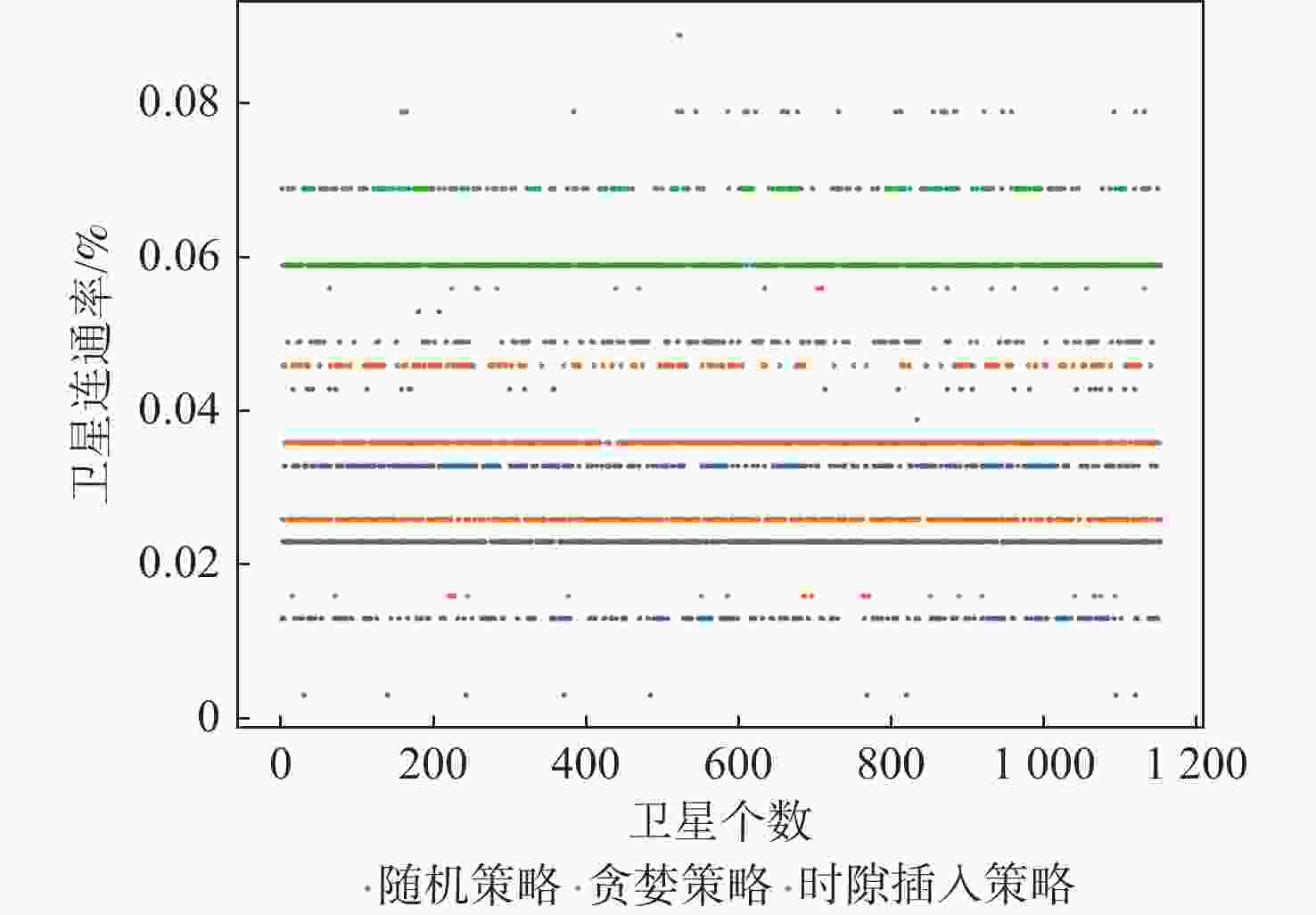

图 12 卫星连通率

Figure 12. Satellite link rate

下载: 全尺寸图片幻灯片

表 1 两大星座轨道拓扑

Table 1. Orbit topology of two constellations

星座	组号	轨道高度/km	轨道数量	卫星总数	轨道倾角/（°）
Starlink	S.1	550	22	1584	53
	S.2	570	20	720	70
	S.3	540	22	1584	53.2
	S.4	560	58	348	97.6
	S.5	560	42	172	97.6
Oneweb	O.1	1200	12	576	87.8

下载: 导出CSV

表 2 多地面站部署分布

Table 2. Deployment of multiple ground stations

编号	纬度/（°）	经度/（°）	编号	纬度/（°）	经度/（°）
1	20	110	21	35	120
2	25	100	22	40	70
3	25	105	23	40	75
4	25	115	24	40	80
5	30	85	25	40	85
6	30	90	26	40	90
7	30	95	27	40	95
8	30	100	28	40	100
9	30	105	29	40	105
10	30	110	30	40	110
11	30	115	31	40	115
12	30	120	32	40	120
13	35	80	33	45	85
14	35	85	34	45	90
15	35	90	35	45	115
16	35	95	36	45	120
17	35	100	37	45	125
18	35	105	38	45	130
19	35	110	39	50	120
20	35	115	40	50	125

下载: 导出CSV
