直驱泵阀协同式线控制动单元压力串级控制

谭草; 于鹏; 李波; 陆佳瑜; 任云云

doi:10.13700/j.bh.1001-5965.2023.0216

直驱泵阀协同式线控制动单元压力串级控制

doi: 10.13700/j.bh.1001-5965.2023.0216

谭草¹,
于鹏¹,
李波^1, ,,
陆佳瑜¹,
任云云²

1.
山东理工大学交通与车辆工程学院，淄博 255000
2.
舜泰汽车有限公司，淄博 255000

基金项目: 国家自然科学基金(51975341)；山东省优秀青年人才基金(ZR2022YQ51)；山东省的重大科技创新工程项目(2021CXGC010703)；山东省高等学校“青创科技计划”团队项目(2019KJB027,2022KJ232)；山东省青年科技人才托举工程项目(SDAST2021qt20)

详细信息

通讯作者:
E-mail：libo@sdut.edu.cn

中图分类号: U463.5；U469.72
计量
- 文章访问数: 151
- HTML全文浏览量: 85
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2023-04-27
- 录用日期: 2023-06-06
- 网络出版日期: 2023-06-15
- 整期出版日期: 2025-04-30

Pressure cascade control of brake-by-wire unit based on direct drive pump-valve cooperative

TAN Cao¹,
YU Peng¹,
LI Bo^{1
, ,},
LU Jiayu¹,
REN Yunyun²

1.
School of Transportation and Vehicle Engineering，Shandong University of Technology，Zibo 255000，China
2.
Shuntai Automobile Co.，Ltd.，Zibo 255000，China

Funds: National Natural Science Foundation of China (51975341); Outstanding Young Talents Foundation of Shandong Province (ZR2022YQ51); Major Scientific and Technological Innovation Project of Shandong Province (2021CXGC010703); Innovation Team Project of “Qing-Chuang Science and Technology Plan” of Colleges and Universities in Shandong Province (2019KJB027,2022KJ232); Young Technology Talent Supporting Project of Shandong Province (SDAST2021qt20)

More Information

Corresponding author: E-mail：libo@sdut.edu.cn

摘要

摘要:
针对分布式制动及高级别自动驾驶的需求，设计一种直驱泵阀协同式线控制动单元，通过电磁直线执行器直接驱动的液压泵与主动阀协调实现轮缸压力调节。为实现压力的精确控制，建立面向控制的系统动力学模型，提出一种基于外环轮缸压力控制和内环直驱泵活塞位置控制的串级控制方法。外环设计了滑模控制器提高响应速度，内环设计了自适应积分鲁棒控制器以减小参数不确定性和时变干扰的影响，证明了所提方法李雅普诺夫稳定。结果表明：直驱泵阀协同式线控制动单元为分布式制动提供一种可行的新方案，所提方法可以进一步提高制动压力的调节速度与控制精度。
- 线控制动 /
- 液压力控制 /
- 串级控制 /
- 滑模控制 /
- 自适应积分鲁棒控制
Abstract:
Aiming at the requirements of distributed braking and high-level automatic driving, a brake-by-wire unit based on a direct drive pump-valve cooperative is designed, to realize the wheel cylinder pressure regulation, the hydraulic pump directly driven by the electromagnetic linear actuator coordinates with the active valve. A control-oriented system dynamics model is established to realize the precise control of pressure, and a cascade control method is proposed, which includes an outer loop to control the cylinder pressure and an inner loop to control the plunger position in the pump. An adaptive integral robust controller is created for the inner loop to lessen the impact of time-varying interference and parameter uncertainty, while a sliding mode controller is designed for the outer loop to increase reaction speed. It is proved that the algorithm is Lyapunov stable. The results suggest that the developed brake unit is a possible novel scheme for distributed braking, and the proposed method mechanism can increase braking pressure speed and control accuracy even further.
- brake-by-wire /
- hydraulic pressure control /
- cascade control /
- sliding mode control /
- adaptive integral robust control

HTML全文

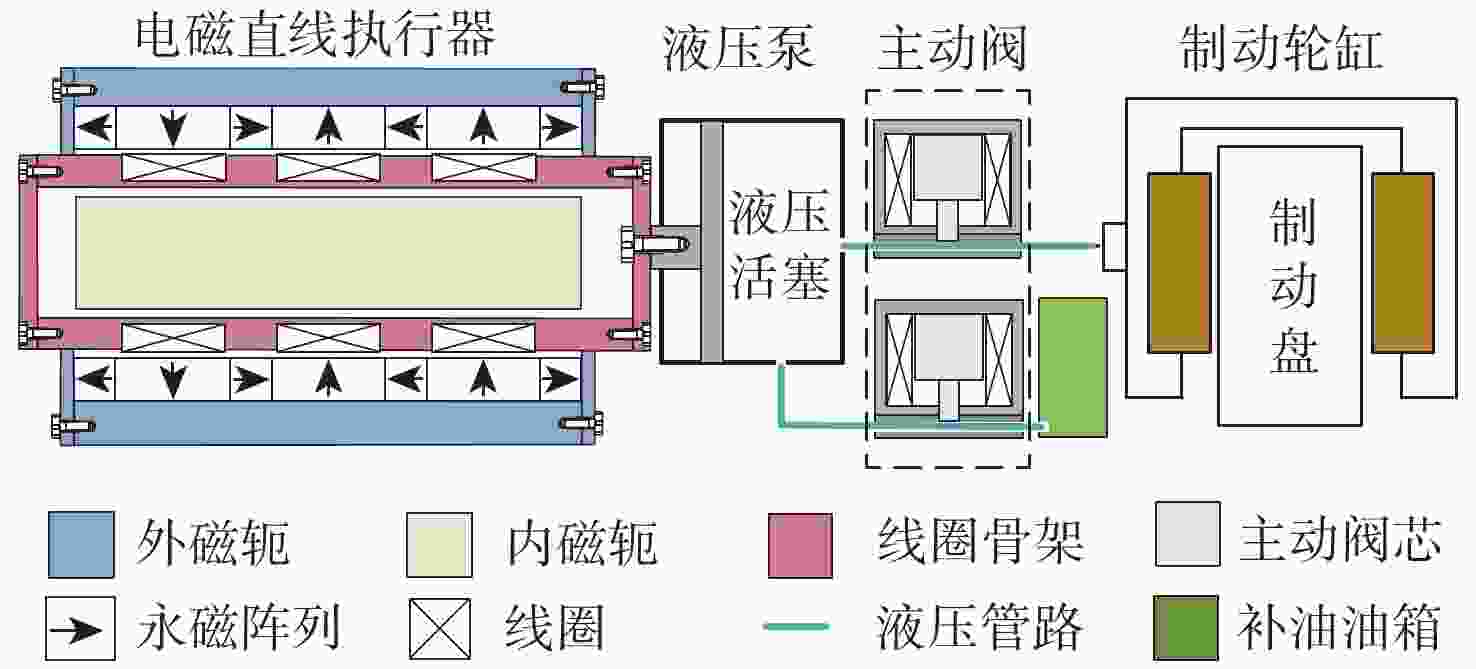

图 1 直驱泵阀协同式线控制动单元原理图

Figure 1. Principle diagram of brake-by-wire unit based on direct drive pump-valve cooperative

下载: 全尺寸图片幻灯片

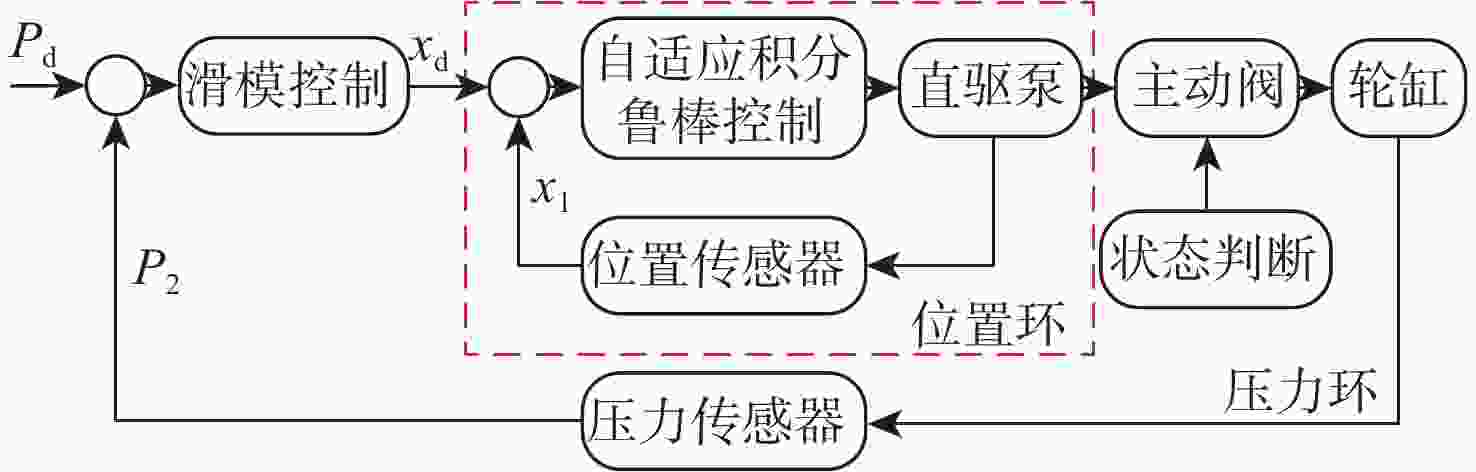

图 2 控制系统总体框图

Figure 2. Overall block diagram of control system

下载: 全尺寸图片幻灯片

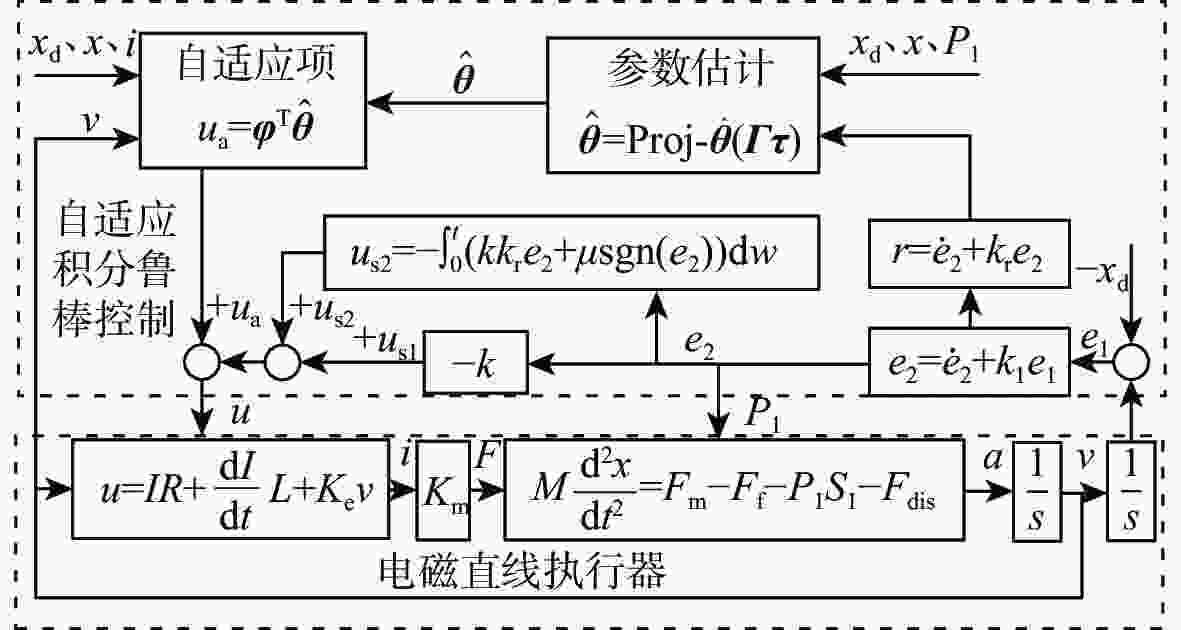

图 3 自适应积分鲁棒控制框图

Figure 3. Adaptive integral robust control block diagram

下载: 全尺寸图片幻灯片

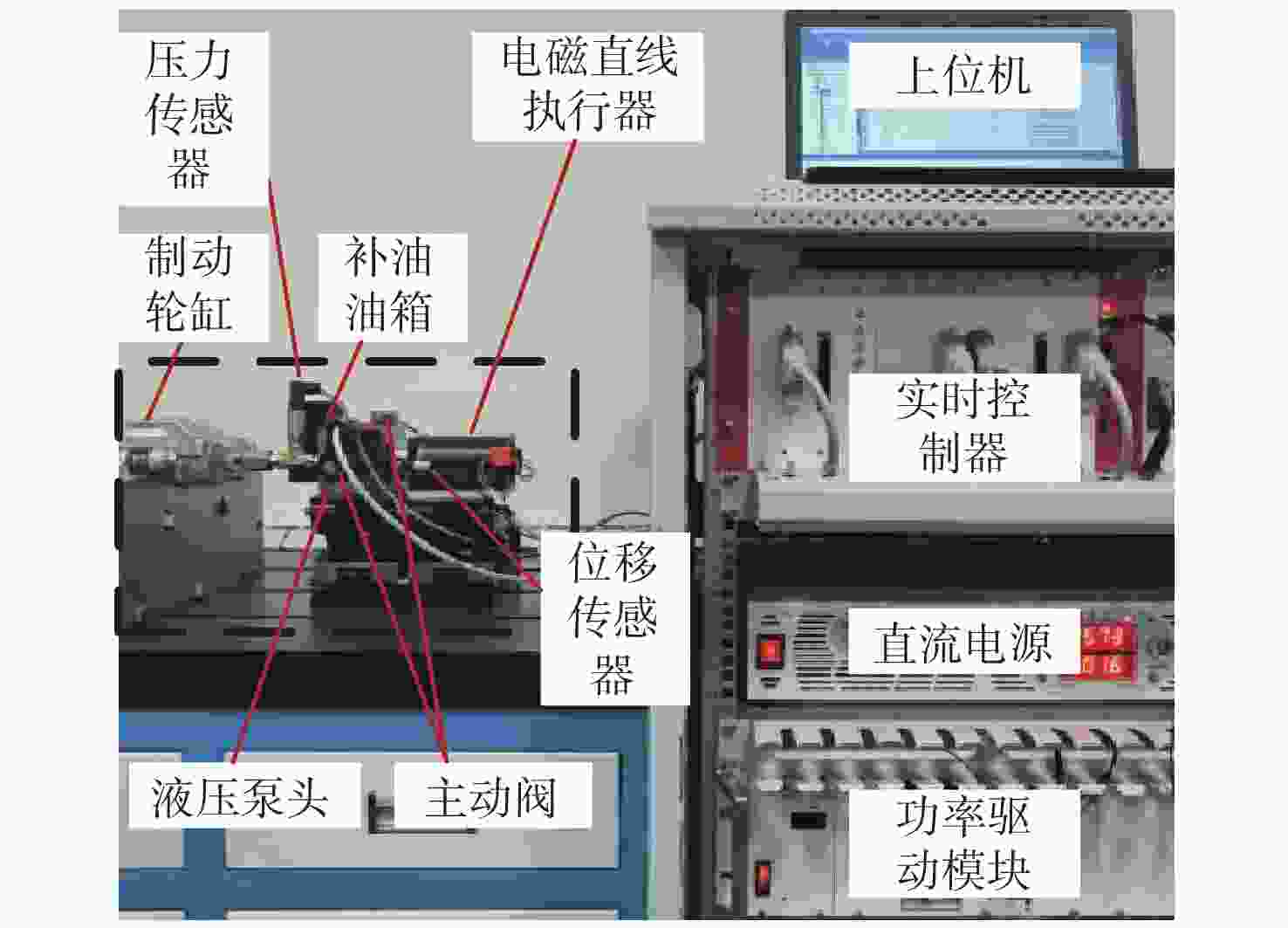

图 4 测试平台

Figure 4. Experimental platform

下载: 全尺寸图片幻灯片

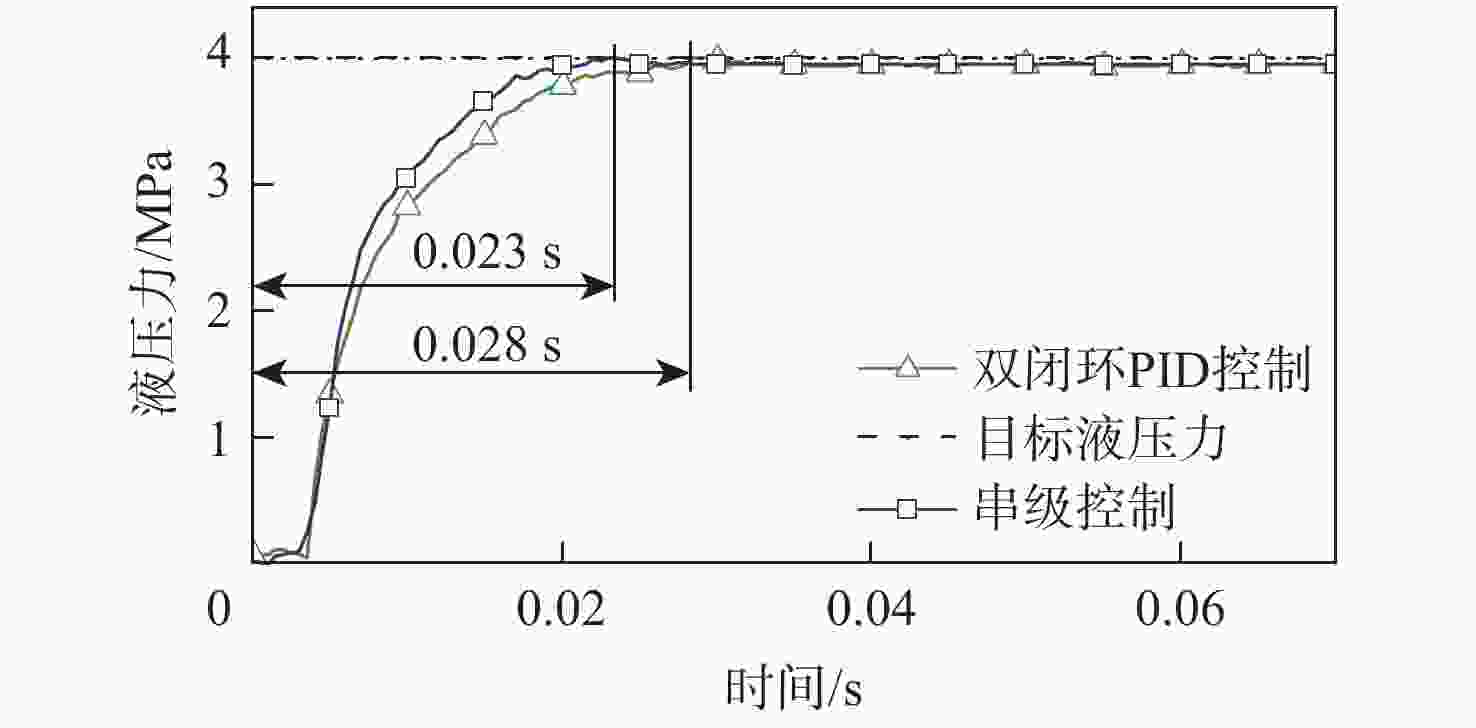

图 5 阶跃响应测试结果

Figure 5. Experimental results of step response

下载: 全尺寸图片幻灯片

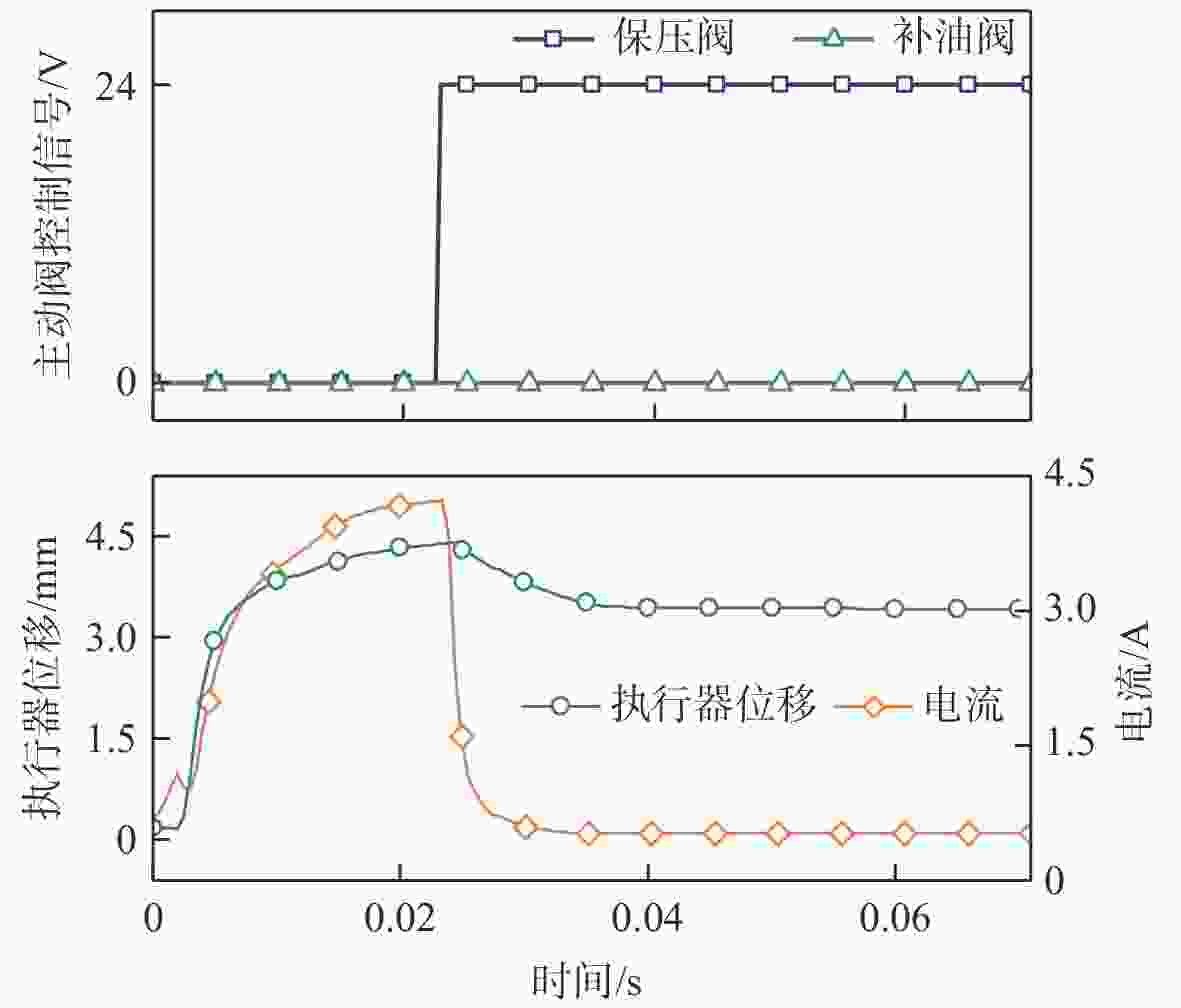

图 6 串级控制器时阶跃响应测试中直驱泵相关信号

Figure 6. Relevant signals of direct-drive pump in step response experiment with cascade controller

下载: 全尺寸图片幻灯片

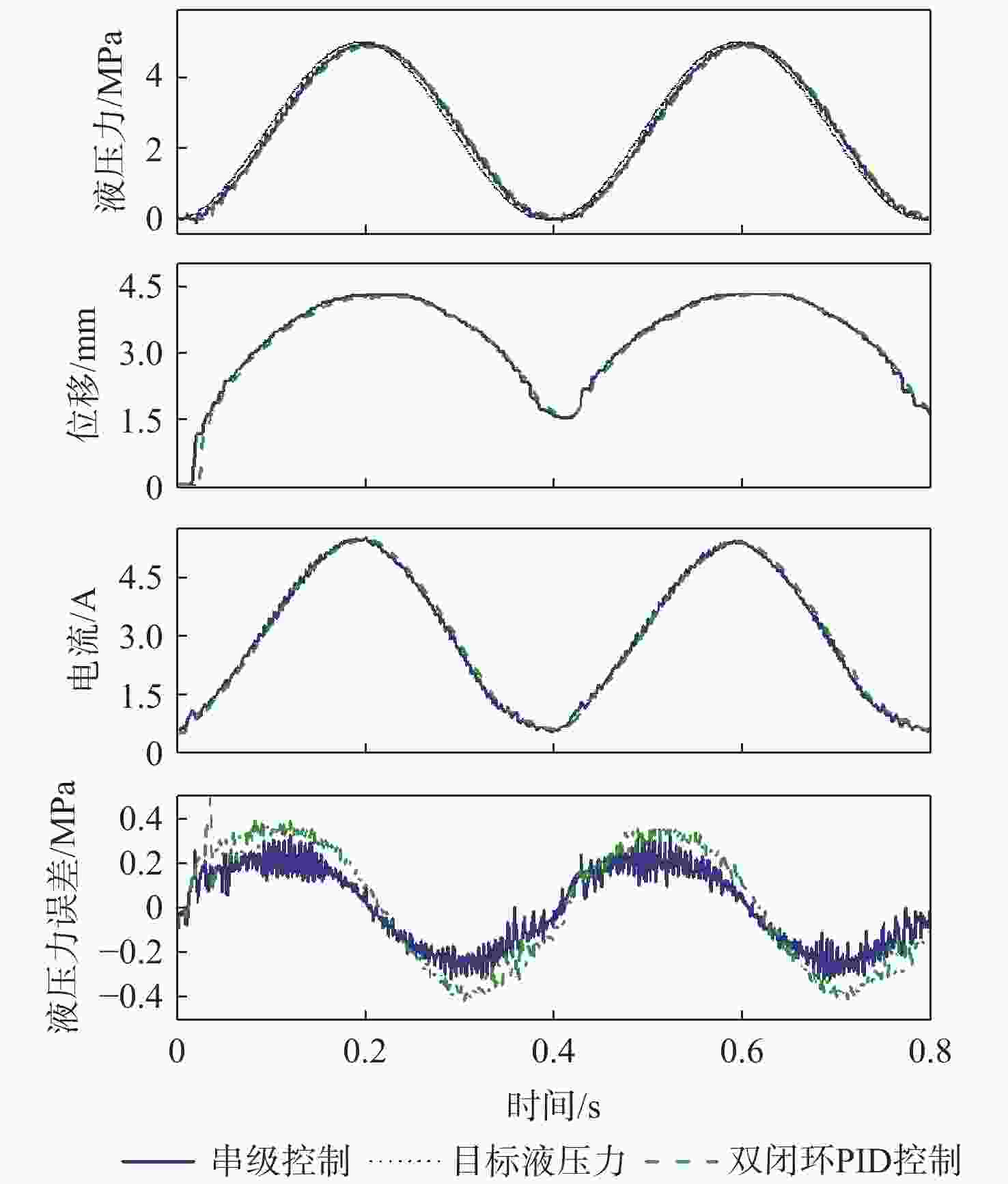

图 7 正弦压力目标信号试验结果

Figure 7. Experimental results of sinusoidal pressure target signal

下载: 全尺寸图片幻灯片

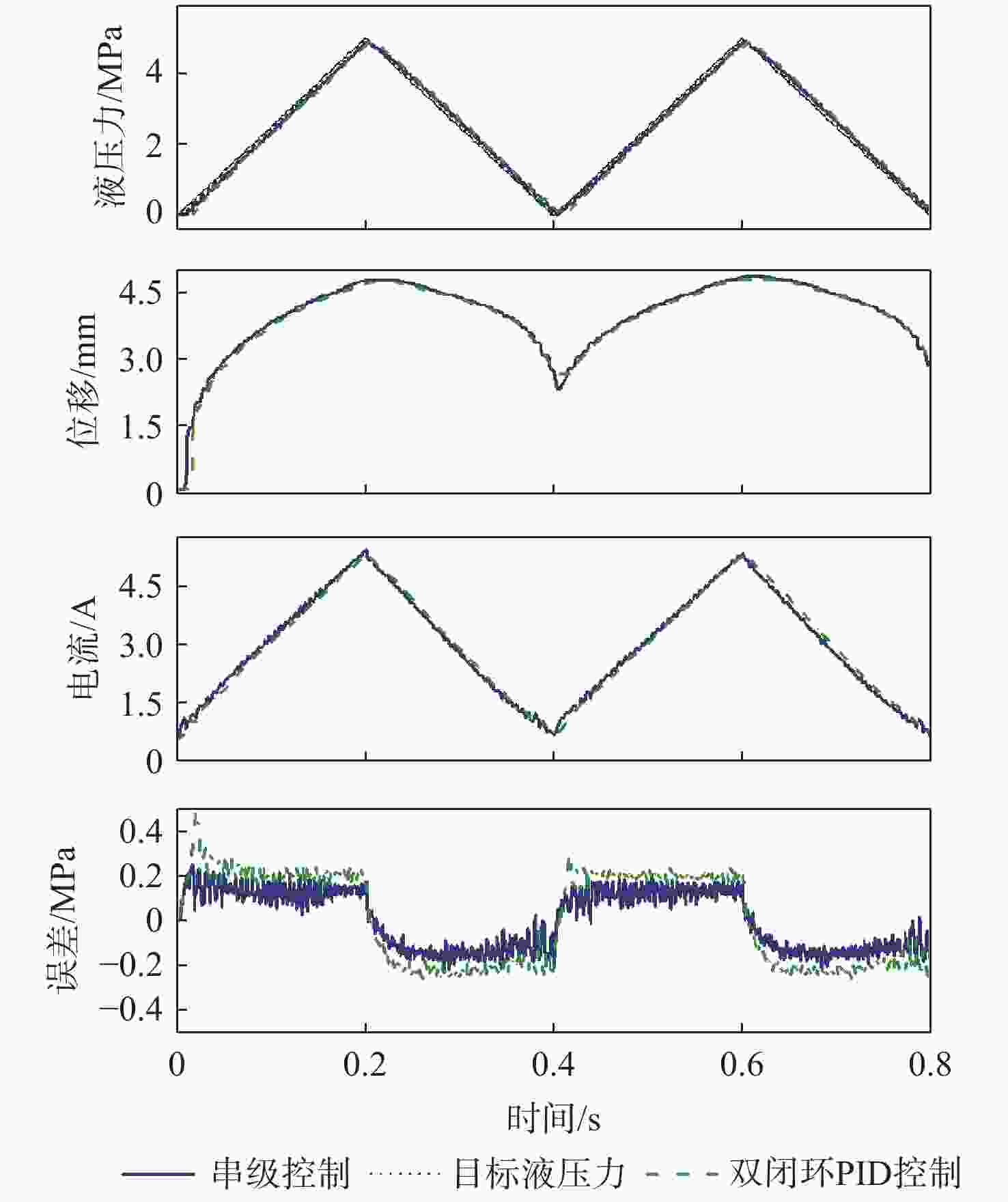

图 8 三角波压力信号试验结果

Figure 8. Experimental results of triangular wave pressure signal

下载: 全尺寸图片幻灯片

表 1 直驱泵阀协同式线控制动单元参数

Table 1. Parameters of brake-by-wire unit based on direct drive pump-valve cooperative

结构	参数	数值
电磁直线执行器	线圈电阻R/Ω	1.40
	线圈等效电感L/mH	0.91
	反电势系数K_e/（Vs·m⁻¹）	24.61
	电磁力系数K_m/(N·A⁻¹)	24.61
直驱泵	泵腔长度l/mm	16
直驱泵	活塞面积S₁/mm²	27.5
主动阀	阀芯直径/mm	8
主动阀	阀座直径/mm	4
制动液	弹性模量β_e/MPa	1700
制动液	密度ρ/（kg·m⁻³）	1046

下载: 导出CSV
