基于多注意力与双模板更新的视觉跟踪算法

马素刚; 孙思维; 侯志强; 余旺盛; 蒲磊

doi:10.13700/j.bh.1001-5965.2023.0334

基于多注意力与双模板更新的视觉跟踪算法

doi: 10.13700/j.bh.1001-5965.2023.0334

马素刚^{1, 2, ,},
孙思维¹,
侯志强¹,
余旺盛³,
蒲磊⁴

1.
西安邮电大学计算机学院，西安 710121
2.
西安邮电大学陕西省网络数据分析与智能处理重点实验室，西安 710121
3.
空军工程大学信息与导航学院，西安 710077
4.
火箭军工程大学作战保障学院，西安 710025

基金项目:

国家自然科学基金(62072370)；陕西省自然科学基金(2023-JC-YB-598)；西安市科技计划(22GXFW0125)

详细信息

通讯作者:
E-mail：msg@xupt.edu.cn

中图分类号: TP391.4
计量
- 文章访问数: 259
- HTML全文浏览量: 64
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2023-06-09
- 录用日期: 2023-07-21
- 网络出版日期: 2023-08-25
- 整期出版日期: 2025-06-30

Visual tracking algorithm based on multi-attention and dual-template update

MA Sugang^{1, 2
, ,},
SUN Siwei¹,
HOU Zhiqiang¹,
YU Wangsheng³,
PU Lei⁴

1.
School of Computer Science & Technology，Xi’an University of Posts and Telecommunications，Xi’an 710121，China
2.
Shaanxi Key Laboratory of Network Data Analysis and Intelligent Processing，Xi’an University of Posts and Telecommunications，Xi’an 710121，China
3.
School of Information and Navigation，Air Force Engineering University，Xi’an 710077，China
4.
School of Operational Support，Rocket Force Engineering University，Xi’an 710025，China

Funds:

National Natural Science Foundation of China (62072370); Natural Science Foundation of Shaanxi Province (2023-JC-YB-598); Science and Technology Project of Xi’an (22GXFW0125)

More Information

Corresponding author: E-mail：msg@xupt.edu.cn

摘要

摘要:
针对全卷积孪生网络(SiamFC)跟踪器在复杂场景下表征能力不足且缺乏在线更新问题，提出一种基于多注意力与双模板更新的视觉跟踪算法。使用VGG16网络替换AlexNet，用SoftPool代替最大池化层，构建特征提取网络；在骨干网络后添加多注意力模块(MAM)，增强网络对目标特征的提取能力；设计双模板进行特征融合和响应图融合，使用平均峰值相关能量(APCE)判断是否更新动态模板，有效提高跟踪鲁棒性。在GOT-10k数据集上对所提算法进行训练，并分别在OTB2015、VOT2018和UAV123数据集上进行测试，实验结果表明：相较于基准SiamFC算法，所提算法在OTB2015和UAV123数据集上，跟踪成功率分别提高了0.085和0.037，精确度分别提升了0.118和0.058；在VOT2018数据集上，跟踪准确率、鲁棒性和期望平均重叠率(EAO)分别提升了0.030、0.295和0.139。所提算法在复杂场景下取得了较高的跟踪准确度，并且运行速度达到33.9帧/s，满足实时跟踪要求。
- 视觉目标跟踪 /
- 孪生网络 /
- SoftPool /
- 注意力机制 /
- 特征融合
Abstract:
To address the problem of insufficient representational capability and lack of online update of the fully-convolutional Siamese network (SiamFC) tracker in complex scenes, this paper proposed a visual tracking algorithm based on multi-attention and dual-template update. First, the feature extraction network was constructed by replacing AlexNet with the VGG16 network, and SoftPool was used to replace the maximum pooling layer. Secondly, the multi-attention module (MAM) was added after the backbone network to enhance the network’s ability to extract object features. Finally, a dual template was designed for feature fusion and response map fusion, and average peak-to-correlation energy (APCE) was used to determine whether to update the dynamic templates, which effectively improved the tracking robustness. The proposed algorithm was trained on the GOT-10k dataset and tested on the OTB2015, VOT2018, and UAV123 datasets. The experimental results show that, compared with the benchmark algorithm SiamFC, the tracking success rate of the proposed algorithm is increased by 0.085 and 0.037, and the accuracy is increased by 0.118 and 0.058 on the OTB2015 and UAV123 datasets, respectively. On the VOT2018 dataset, the tracking accuracy, robustness, and expected average overlap (EAO) are improved respectively by 0.030, 0.295 and 0.139. The proposed algorithm achieves high tracking accuracy in complex scenes, and the tracking speed reaches 33.9 frame/s, which meets the real-time tracking requirements.
- visual object tracking /
- Siamese network /
- SoftPool /
- attention mechanism /
- feature fusion

HTML全文

图 1 本文算法总框架

Figure 1. Overall framework of the proposed algorithm

下载: 全尺寸图片幻灯片

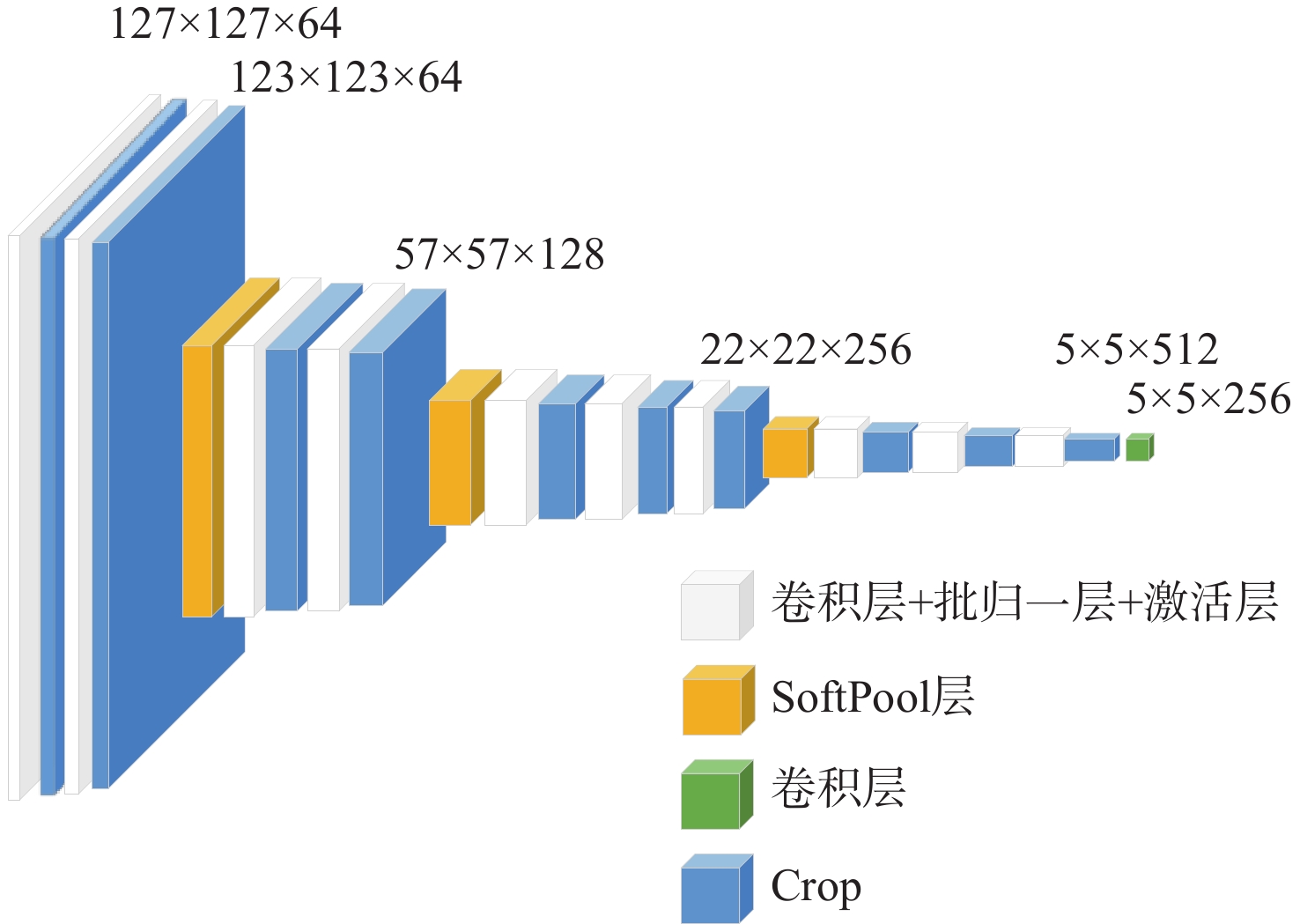

图 2 骨干网络

Figure 2. Backbone network

下载: 全尺寸图片幻灯片

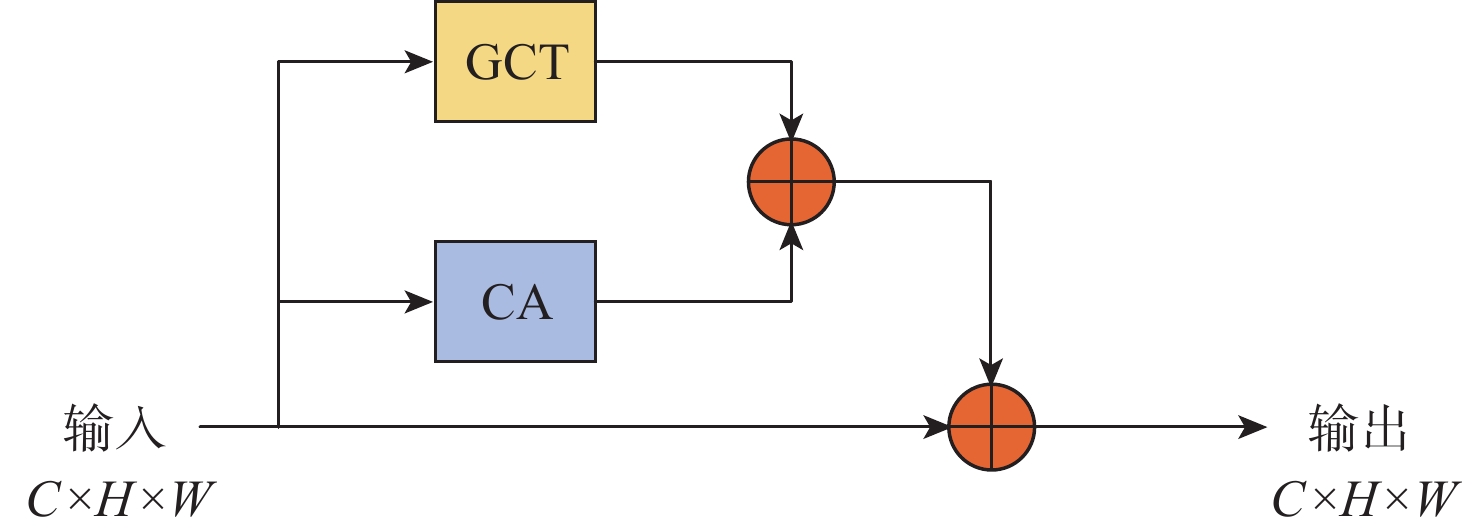

图 3 MAM

Figure 3. MAM

下载: 全尺寸图片幻灯片

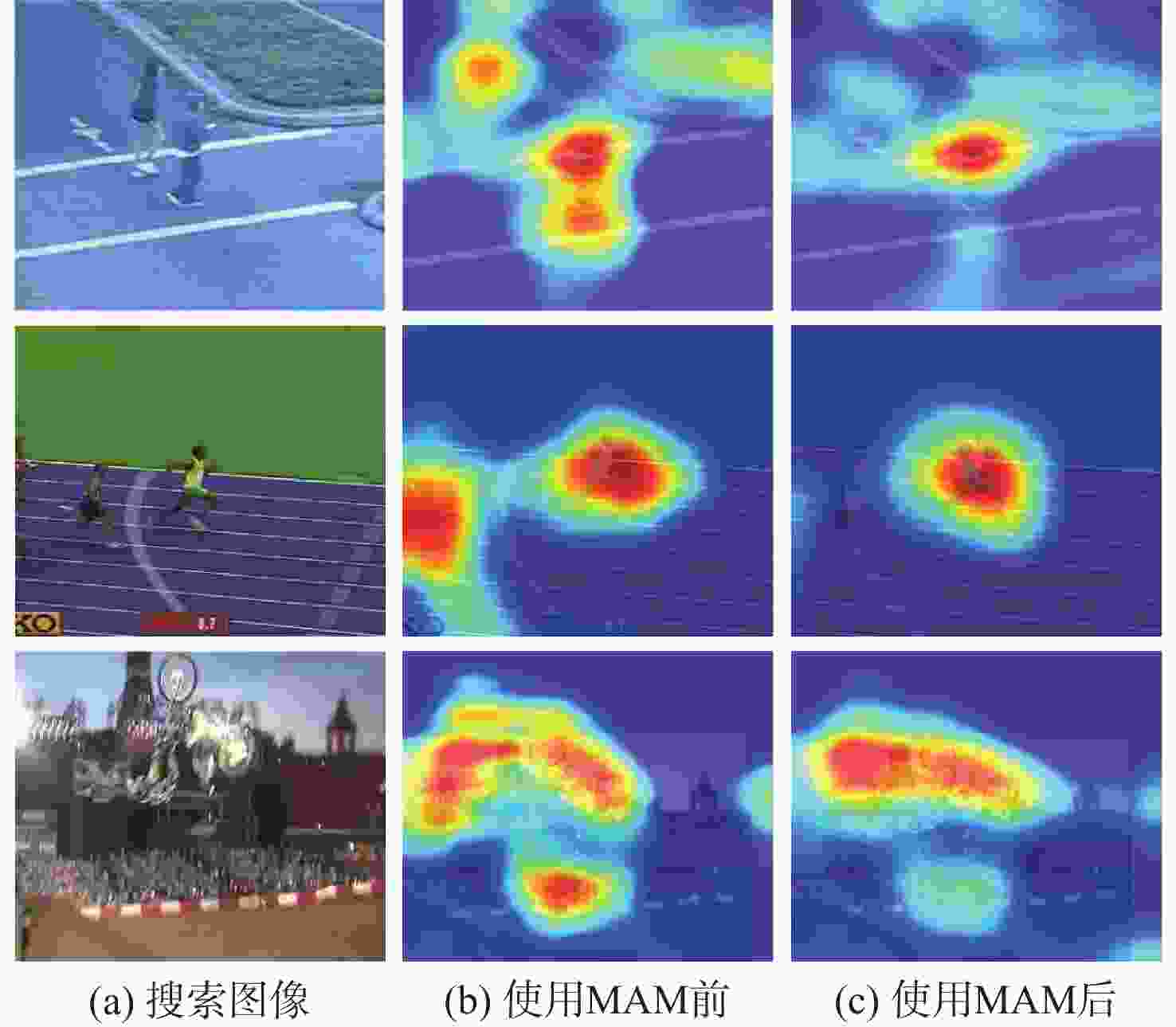

图 4 注意力可视化

Figure 4. Visualization of attention

下载: 全尺寸图片幻灯片

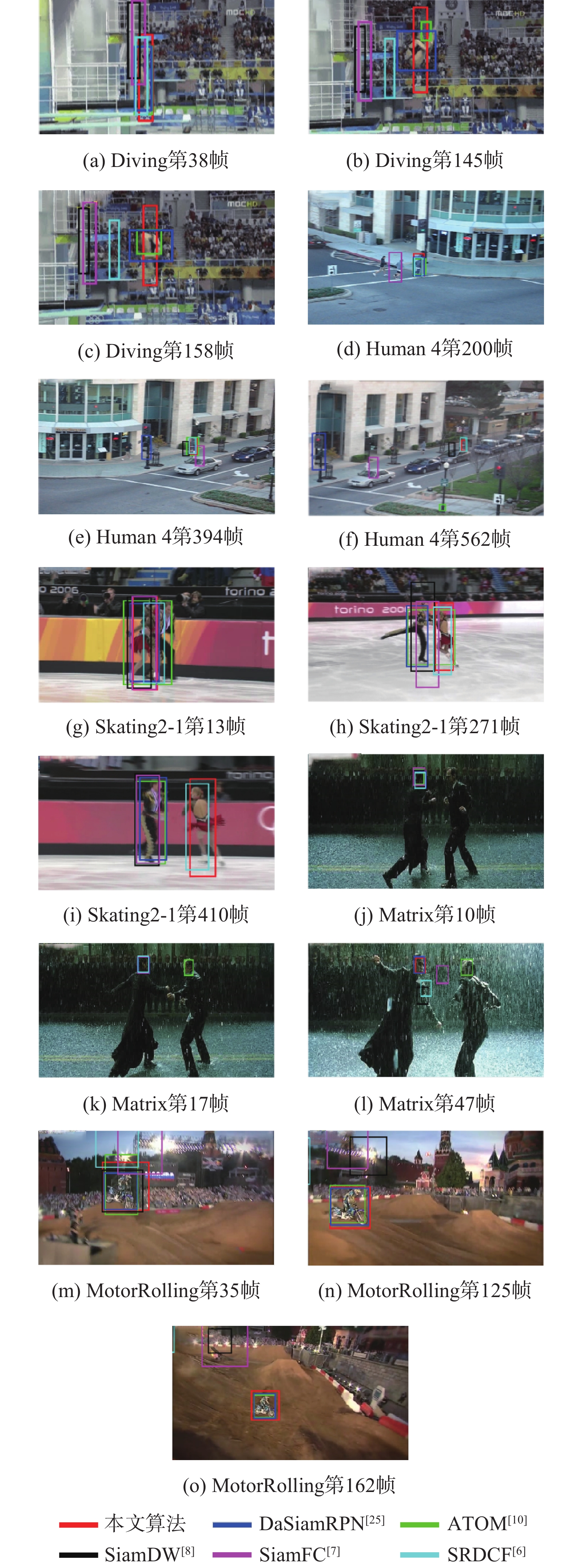

图 5 5组视频序列的跟踪效果对比

Figure 5. Comparison of tracking effect of five groups of video sequences

下载: 全尺寸图片幻灯片

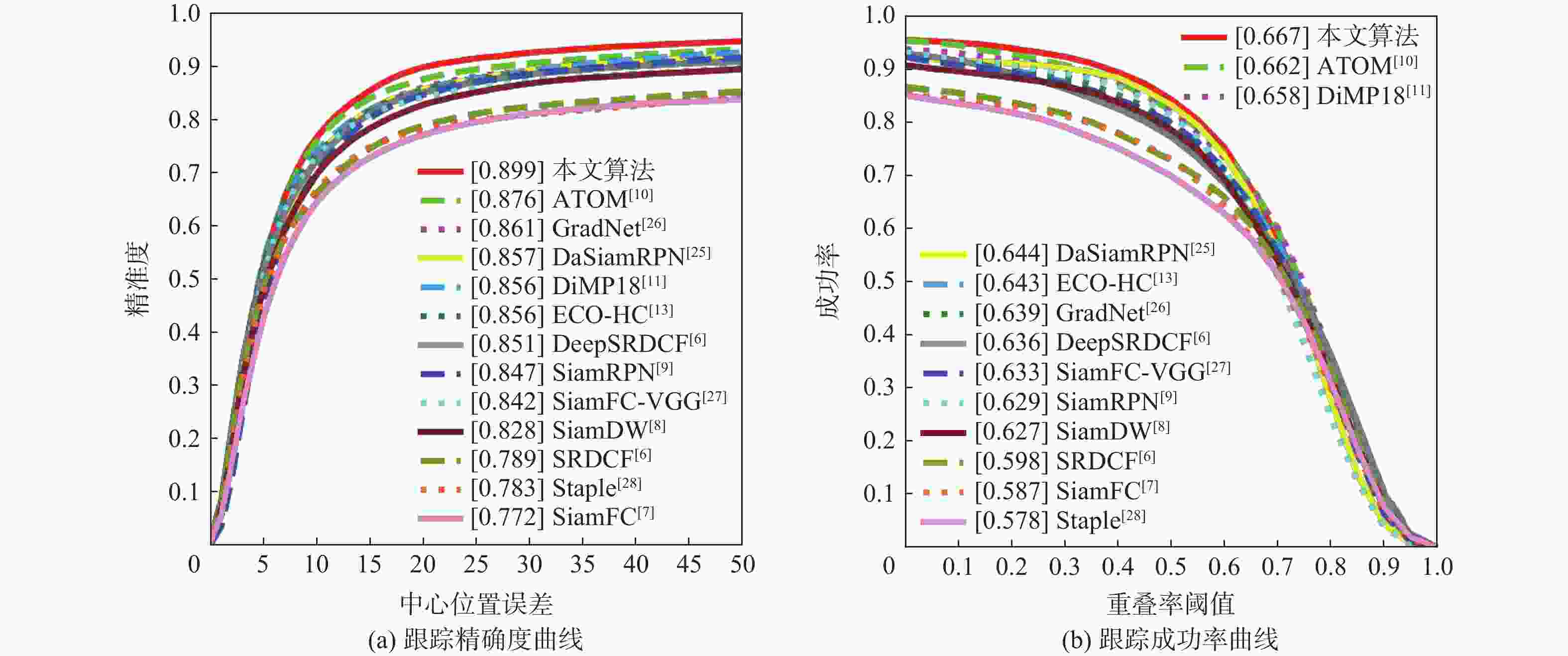

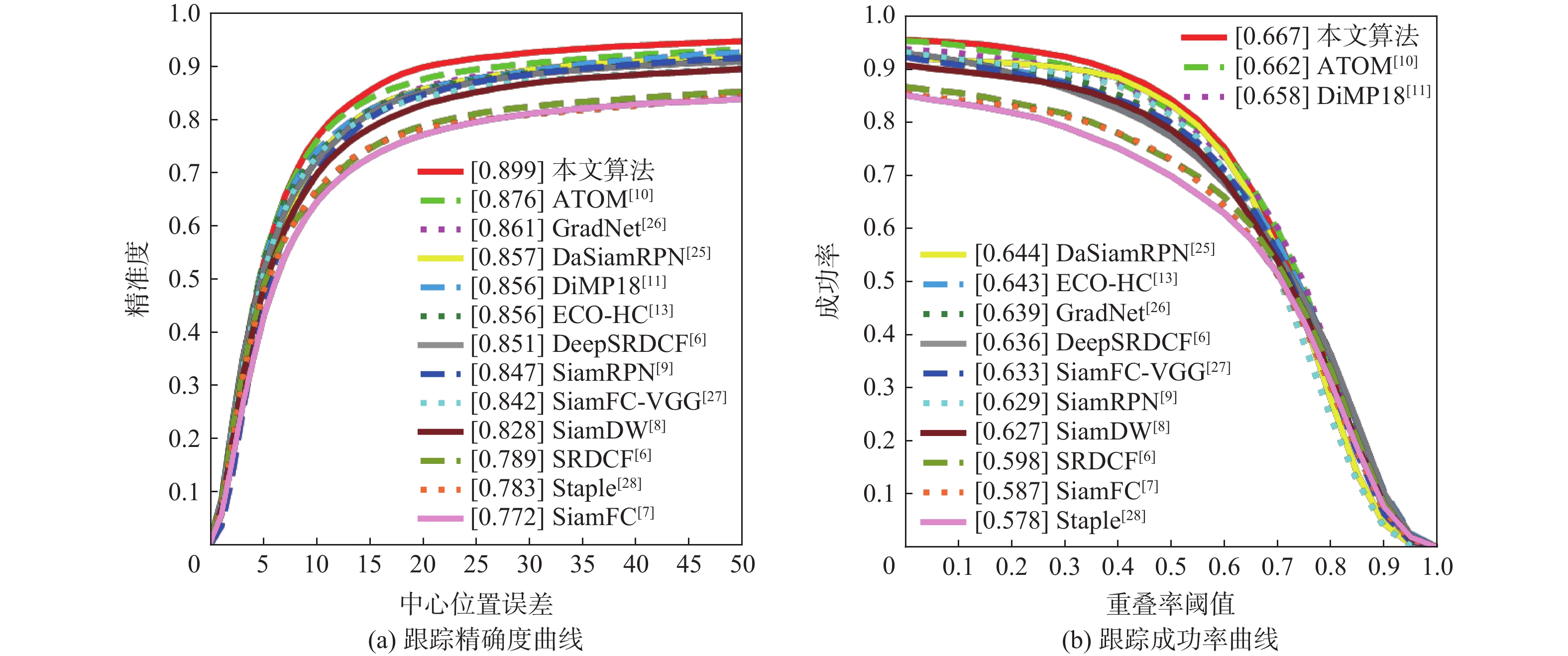

图 6 不同算法在OTB2015数据集上的精确度和成功率曲线

Figure 6. Curves of precision rate and success rate of different algorithms on OTB2015 dataset

下载: 全尺寸图片幻灯片

表 1 不同取值在OTB2015数据集上的实验结果

Table 1. Experimental results of different values on OTB2015 dataset

$\mu $	成功率	精确度
0.6	0.657	0.884
0.65	0.664	0.892
0.7	0.651	0.875
0.75	0.658	0.882
0.8	0.659	0.884
0.85	0.667	0.899
0.9	0.661	0.885
0.95	0.657	0.880
1.0	0.655	0.881

下载: 导出CSV

表 2 不同属性在OTB2015数据集上的成功率

Table 2. Success rate of different attributes on OTB2015 dataset

算法	背景干扰	形变	快速运动	光照变化	平面内旋转	低分辨率	运动模糊	遮挡	平面外旋转	出视野	尺度变化
本文	0.663	0.624	0.664	0.690	0.655	0.678	0.691	0.636	0.647	0.621	0.644
ATOM^[10]	0.619	0.631	0.642	0.655	0.635	0.705	0.659	0.637	0.629	0.609	0.671
DiMP18^[11]	0.616	0.617	0.674	0.654	0.650	0.611	0.679	0.636	0.635	0.628	0.675
DaSiamRPN^[25]	0.625	0.599	0.655	0.670	0.669	0.594	0.651	0.577	0.636	0.605	0.652
ECO-HC^[13]	0.636	0.595	0.634	0.640	0.582	0.533	0.627	0.629	0.608	0.594	0.611
GradNet^[26]	0.611	0.572	0.625	0.643	0.627	0.673	0.647	0.617	0.629	0.585	0.614
DeepSRDCF^[6]	0.627	0.566	0.628	0.621	0.589	0.564	0.643	0.602	0.607	0.555	0.606
SiamFC-VGG^[27]	0.591	0.603	0.600	0.631	0.623	0.689	0.630	0.576	0.614	0.533	0.619
SiamRPN^[9]	0.591	0.617	0.600	0.649	0.628	0.642	0.623	0.586	0.625	0.544	0.615
SiamDW^[8]	0.574	0.560	0.630	0.622	0.606	0.598	0.654	0.602	0.612	0.592	0.614
SRDCF^[6]	0.583	0.544	0.597	0.613	0.544	0.514	0.541	0.559	0.550	0.474	0.561
SiamFC^[7]	0.527	0.512	0.571	0.572	0.559	0.621	0.555	0.550	0.561	0.511	0.557
Staple^[28]	0.560	0.551	0.540	0.592	0.548	0.394	0.594	0.543	0.533	0.460	0.521

下载: 导出CSV

表 3 不同属性在OTB2015数据集上的精确度

Table 3. Precision of different attributes on OTB2015 dataset

算法	背景干扰	形变	快速运动	光照变化	平面内旋转	低分辨率	运动模糊	遮挡	平面外旋转	出视野	尺度变化
本文	0.895	0.870	0.890	0.914	0.912	0.983	0.912	0.859	0.903	0.845	0.884
ATOM^[10]	0.806	0.856	0.828	0.866	0.869	0.993	0.855	0.835	0.851	0.808	0.877
DiMP18^[11]	0.801	0.823	0.857	0.849	0.866	0.856	0.850	0.835	0.843	0.820	0.872
DaSiamRPN^[25]	0.843	0.814	0.858	0.895	0.913	0.922	0.856	0.764	0.867	0.787	0.868
ECO-HC^[13]	0.850	0.806	0.829	0.820	0.800	0.888	0.802	0.848	0.834	0.818	0.822
GradNet^[26]	0.822	0.795	0.838	0.844	0.860	0.999	0.855	0.838	0.872	0.789	0.841
DeepSRDCF^[6]	0.841	0.783	0.814	0.791	0.818	0.847	0.823	0.825	0.835	0.781	0.819
SiamFC-VGG^[27]	0.761	0.828	0.777	0.817	0.845	0.997	0.817	0.764	0.833	0.706	0.834
SiamRPN^[9]	0.799	0.825	0.789	0.859	0.854	0.978	0.816	0.780	0.851	0.726	0.838
SiamDW^[8]	0.762	0.763	0.808	0.794	0.824	0.901	0.841	0.798	0.829	0.781	0.819
SRDCF^[6]	0.775	0.734	0.768	0.792	0.745	0.760	0.765	0.734	0.741	0.594	0.745
SiamFC^[7]	0.692	0.691	0.744	0.736	0.743	0.900	0.707	0.723	0.758	0.673	0.736
Staple^[28]	0.749	0.752	0.708	0.783	0.768	0.690	0.698	0.726	0.737	0.664	0.726

下载: 导出CSV

表 4 本文算法在OTB2015数据集上的消融实验

Table 4. Ablation experiment of the proposed algorithm on OTB2015 dataset

SiamFC^[7]	VGG16^[15]	SoftPool^[16]	CA^[24]	GCT^[23]	MAM	Update-A	Update-B	成功率	精确度
√								0.582	0.781
√	√							0.632	0.848
√	√	√						0.643	0.855
√	√	√	√					0.648	0.866
√	√	√		√				0.655	0.875
√	√	√			√			0.660	0.888
√	√	√			√		√	0.663	0.892
√	√	√			√	√	√	0.667	0.899

下载: 导出CSV

表 5 不同算法在VOT2018数据集上的性能比较

Table 5. Comparisons of performance among different algorithms on VOT2018 dataset

算法	准确率	鲁棒性	EAO
ECO-HC^[13]	0.484	0.276	0.280
SiamRPN^[9]	0.490	0.460	0.244
CCOT^[29]	0.494	0.318	0.267
SiamFC^[7]	0.503	0.585	0.188
DSiam^[30]	0.512	0.646	0.196
UpdateNet^[14]	0.518	0.454	0.244
SiamFC-VGG^[27]	0.531	0.318	0.286
本文算法	0.533	0.290	0.327

下载: 导出CSV

表 6 不同算法在UAV123数据集上的性能比较

Table 6. Comparisons of performance among different algorithms on UAV123 dataset

算法	成功率	精确度
MCCT^[31]	0.453	0.656
SRDCF^[6]	0.464	0,676
ARCF^[32]	0.465	0.669
AutoTrack^[33]	0.467	0.686
STRCF^[34]	0.478	0.678
ECO-HC^[13]	0.493	0.707
CCOT^[29]	0.502	0.729
SiamFC^[7]	0.505	0.706
SiamRPN^[9]	0.535	0.751
本文算法	0.542	0.764

下载: 导出CSV
