Artificial gorilla troops optimizer based on double random disturbance and its application of engineering problem
-
摘要:

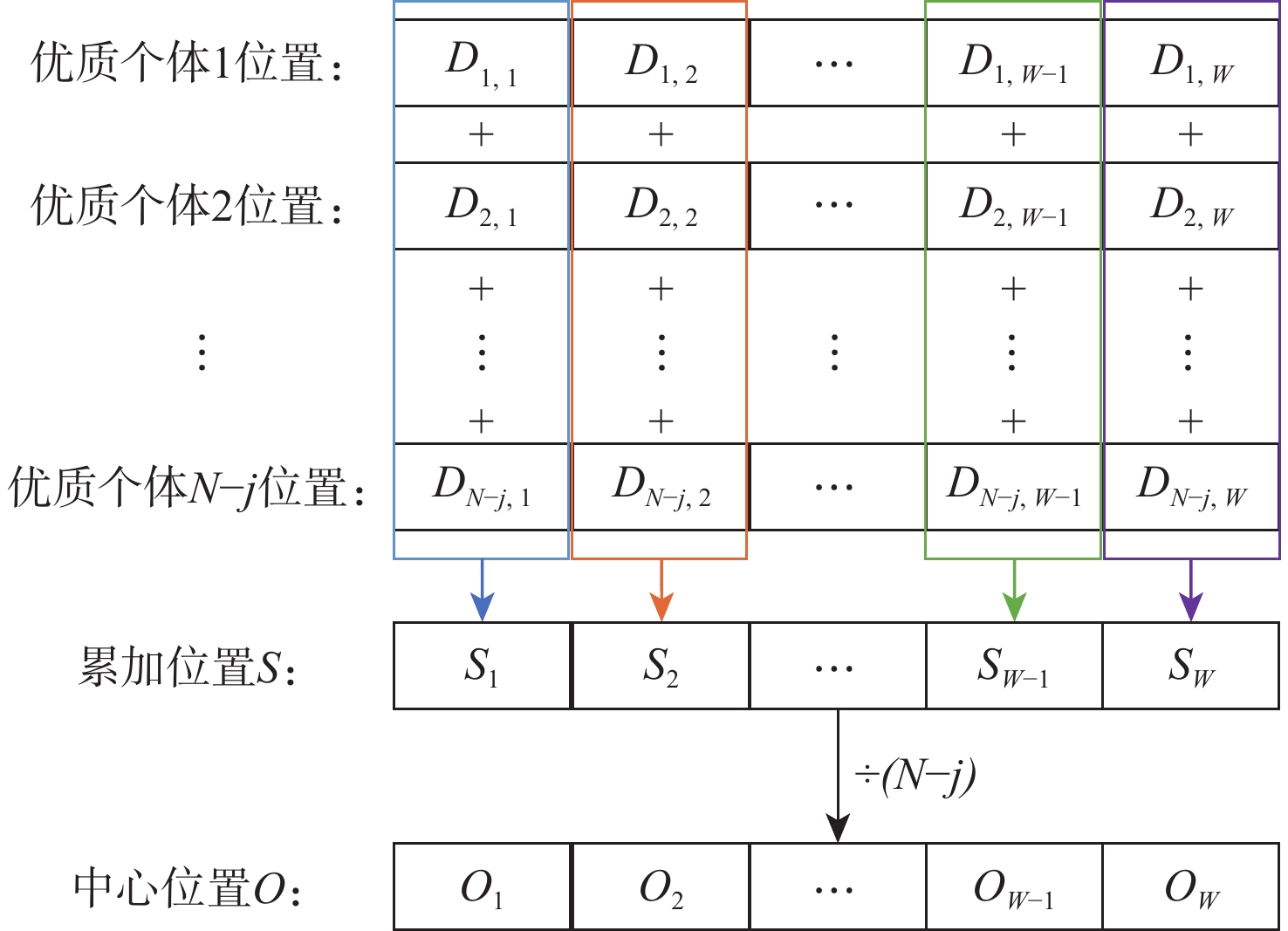

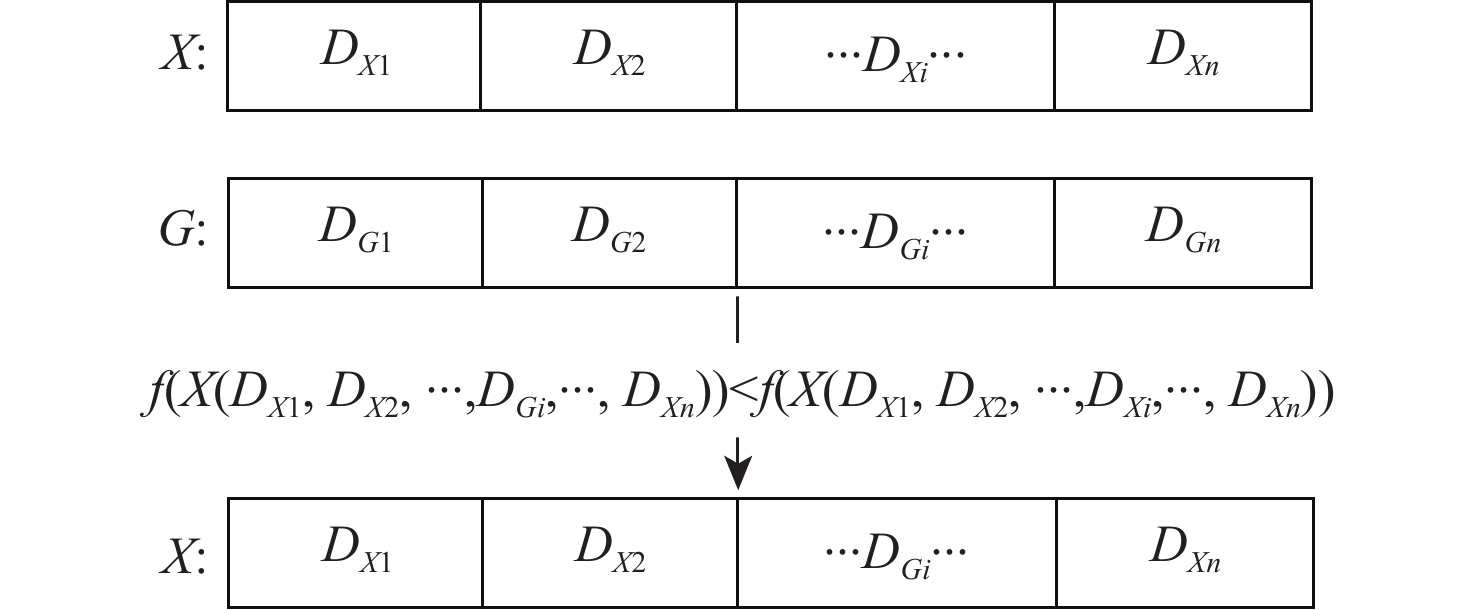

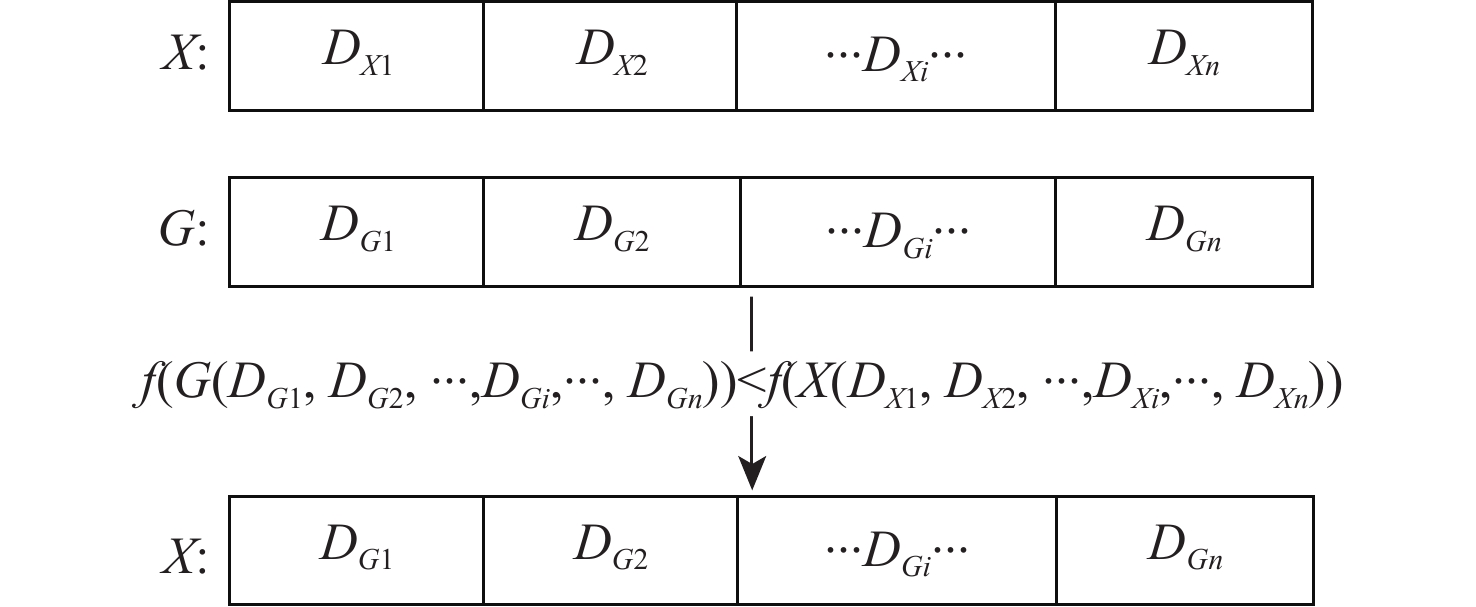

针对人工大猩猩部队优化算法(GTO)存在易陷入局部最优、收敛速度慢、寻优精度低等问题,提出了基于双重随机扰动策略的人工大猩猩部队优化算法(DGTO)。引入Halton序列初始化种群,增加种群的多样性;在算法寻优阶段使用多维随机数策略,并在探索阶段提出自适应位置搜索机制,提高算法的收敛速度;提出双重随机扰动策略,解决大猩猩的群居效应,增强算法跳出局部最优的能力;采用逐维更新策略更新个体位置,提升算法的收敛精度。通过10个基准测试函数寻优结果及Wilcoxon秩和检验对比可知,改进算法在寻优精度、收敛速度上有较大提升。同时,通过工程优化问题的实验对比分析,进一步验证了改进算法在处理现实工程问题上的优越性。
-
关键词:
- 人工大猩猩部队优化算法 /
- Halton序列 /
- 自适应位置搜索 /
- 双重随机扰动策略 /
- 逐维更新
Abstract:Traditional artificial gorilla troops optimizer (GTO) has the drawbacks of easily falling into local optimum, slow convergence speed, and low optimization accuracy. Aiming at these problems, an artificial gorilla troops optimizer based on a double random disturbance strategy (DGTO) was proposed. Firstly, the Halton sequence was introduced to initialize the population to increase the diversity of the population. Secondly, the method’s convergence speed was increased by using the multi-dimensional random number technique during the algorithm optimization stage and proposing an adaptive position exploration mechanism. Thirdly, a double random disturbance strategy was proposed, which solved the group effect of gorillas and enhanced the ability of the algorithm to jump out of the local optimum. Finally, the individual position was updated by a dimension-by-dimension update strategy, which improved the convergence accuracy of the algorithm. It is evident that the enhanced technique has a greater improvement in optimization accuracy and convergence speed when comparing the Wilcoxon rank sum test results with the optimization results of ten benchmark test functions. In addition, through the experimental comparative analysis of one practical engineering optimization problem, the superiority of the proposed algorithm in dealing with practical engineering problems is further verified.
-
表 1 元学习与其他学习方法的潜在关联
Table 1. Potential correlation between meta-learning and other learning methods
学习方法 与元学习关联 对比学习 对比学习的核心是将正样本和负样本在特征空间进行对比,使得模型能够学习到样本的重要内在特征。而元学习在学习特征表示时,有时也会通过正样本和负样本比对的方式实现 迁移学习 迁移学习的核心是找到已有知识和新知识之间的相似性,通过这种相似性的迁移达到迁移学习的目的。元学习基于任务展开学习,然而生物体及其一生,学习的永远不止一个任务,因而迁移学习可以将元学习在某一任务的学习方式迁移到相似任务中 表 2 参数设置
Table 2. Parameters setting
算法 主要参数 GTO s=0.03,w=0.8,$\beta $=3 GWO DE F=0.5,RC=0.3 WOA b=1 DGTO s=0.03,w=0.8,$\beta $=3 表 3 基准测试函数
Table 3. Benchmark test functions
编号 函数名 定义域 维度 最优值 f1 Sphere [−100,100] 10/30 0 f2 Schwefel’ problem 2.22 [−10,10] 10/30 0 f3 Schwefel’ problem 1.2 [−100,100] 10/30 0 f4 Schwefel’ problem 2.21 [−100,100] 10/30 0 f5 Generalized Rosenbrock’s function [−30,30] 10/30 0 f6 Step function [−100,100] 10/30 0 f7 Generalized Schwefel’s problem 2.26 [−500,500] 10/30 −418.98×维度 f8 Generalized penalized function 2 [−50,50] 10/30 0 f9 Kowalik’s function [−5,5] 4 0.000 3 f10 Hatman’s function 2 [0,1] 6 −3.32 表 4 DGTO算法与其他改进GTO算法寻优结果对比

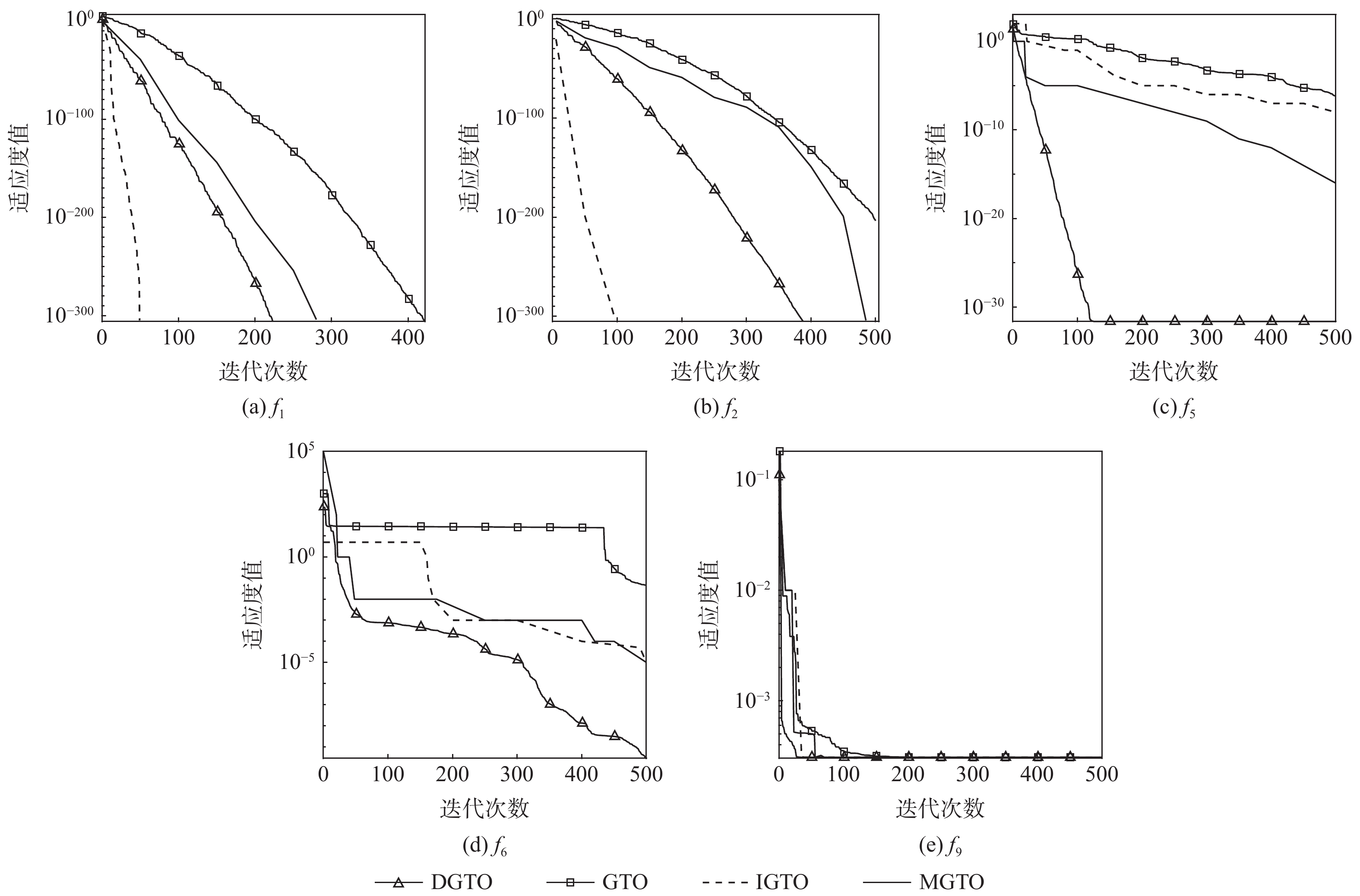

Table 4. Comparison of optimization results of DGTO and other improved GTO algorithms
参数 算法 平均值 标准差 f1 GTO 0 0 IGTO 0 0 MGTO 0 0 DGTO 0 0 f2 GTO 6.67×10−195 0 IGTO 0 0 MGTO 0 0 DGTO 0 0 f3 GTO 0 0 IGTO 0 0 MGTO 0 0 DGTO 0 0 f4 GTO 1.01×10−192 0 IGTO 0 0 MGTO 0 0 DGTO 0 0 f5 GTO 3.17×100 8.22×100 IGTO 7.46×10−5 8.57×10−5 MGTO 2.54×10−5 3.94×10−5 DGTO 7.42×10−6 3.39×10−5 f6 GTO 2.56×10−7 4.19×10−7 IGTO 1.01×10−7 1.15×10−7 MGTO 3.37×10−14 3.76×10−14 DGTO 2.03×10−32 1.66×10−32 f7 GTO −1.26×104 3.05×10−5 IGTO −1.26×104 3.02×10−5 MGTO −1.26×104 1.03×10−6 DGTO −1.26×104 4.64×10−12 f8 GTO 3.30×10−3 5.12×10−3 IGTO 1.14×10−7 3.34×10−7 MGTO 1.00×10−7 1.43×10−7 DGTO 7.24×10−32 2.30×10−31 f9 GTO 4.17×10−4 3.01×10−4 IGTO 3.07×10−4 4.06×10−19 MGTO 3.07×10−4 3.29×10−19 DGTO 3.07×10−4 1.74×10−19 f10 GTO −3.29×100 5.39×10−2 IGTO −3.31×100 3.63×10−2 MGTO −3.30×100 4.51×10−2 DGTO −3.32×100 0 表 5 各算法寻优结果对比
Table 5. Comparison of optimization results of each algorithm
函数 算法 最优值 最差值 平均值 标准差 f1 DGTO 0 0 0 0 GTO 0 0 0 0 GWO 2.62×10−69 6.96×10−63 3.93×10−64 1.28×10−63 DE 6.09×10−20 1.86×10−18 5.05×10−19 4.44×10−19 WOA 2.04×10−94 5.80×10−81 1.23×10−82 8.19×10−82 f2 DGTO 0 0 0 0 GTO 7.39×10−217 3.67×10−197 7.69×10−199 0 GWO 3.25×10−39 8.12×10−36 5.90×10−37 1.30×10−36 DE 1.91×10−12 2.93×10−11 9.68×10−12 4.55×10−12 WOA 1.10×10−61 5.26×10−52 1.12×10−53 7.43×10−53 f3 DGTO 0 0 0 0 GTO 0 0 0 0 GWO 3.82×10−37 3.02×10−27 8.81×10−29 4.33×10−28 DE 2.63×100 2.74×101 8.17×100 5.41×100 WOA 2.73×10−8 6.89×102 1.16×102 1.46×102 f4 DGTO 0 0 0 0 GTO 2.01×10−218 4.03×10−200 1.18×10−201 0 GWO 9.71×10−24 2.86×10−19 1.79×10−20 4.48×10−20 DE 2.60×10−5 1.31×10−4 6.72×10−5 2.38×10−5 WOA 2.21×10−5 2.20×101 1.35×100 4.37×100 f5 DGTO 7.46×10−30 2.25×10−11 6.34×10−13 3.28×10−12 GTO 4.91×10−15 1.41×100 1.07×10−1 3.06×10−1 GWO 5.32×100 9.54×100 6.70×100 7.69×10−1 DE 1.74×100 1.75×101 7.58×100 2.78×100 WOA 3.49×100 8.95×100 6.58×100 6.38×10−1 f6 DGTO 0 1.23×10−32 5.55×10−34 1.94×10−33 GTO 9.24×10−32 9.98×10−23 2.18×10−24 1.14×10−23 GWO 1.11×10−6 6.33×10−6 2.97×10−6 1.13×10−6 DE 5.02×10−20 2.93×10−18 4.00×10−19 4.42×10−19 WOA 2.62×10−5 1.17×10−3 3.12×10−4 2.70×10−4 f7 DGTO −4.19×103 −4.19×103 −4.19×103 2.13×10−12 GTO −4.19×103 −4.19×103 −4.19×103 5.29×10−12 GWO −3.56×103 −2.08×103 −2.84×103 3.65×102 DE −7.94×107 −8.23×1014 −2.09×1013 1.20×1014 WOA −4.19×103 −2.49×103 −3.46×103 5.61×102 f8 DGTO 1.35×10−32 1.35×10−32 1.35×10−32 1.11×10−47 GTO 7.26×10−30 7.46×10−2 5.34×10−3 1.25×10−2 GWO 1.15×10−6 1.04×10−1 1.00×10−2 3.04×10−2 DE 4.37×10−21 4.46×10−19 8.94×10−20 8.94×10−20 WOA 2.57×10−4 1.10×10−1 1.44×10−2 2.57×10−2 f9 DGTO 3.07×10−4 3.07×10−4 3.07×10−4 1.74×10−19 GTO 3.07×10−4 1.22×10−3 4.17×10−4 3.01×10−4 GWO 3.07×10−4 2.04×10−2 2.78×10−3 6.56×10−3 DE 5.16×10−4 1.30×10−3 8.97×10−4 1.48×10−4 WOA 3.08×10−4 2.17×10−3 6.93×10−4 4.89×10−4 f10 DGTO −3.32×100 −3.32×100 −3.32×100 0 GTO −3.32×100 −3.20×100 −3.29×100 5.39×10−2 GWO −3.32×100 −3.09×100 −3.27×100 7.57×10−2 DE −3.32×100 −3.20×100 −3.31×100 3.17×10−2 WOA −3.32×100 −2.43×100 −3.22×100 1.45×10−1 表 6 不同算法的平均绝对值误差
Table 6. Mean absolute error of different algorithms
算法 平均绝对值误差 DGTO 3.09×10−3 GTO 1.73×10−2 GWO 1.36×102 DE 2.09×1012 WOA 8.54×101 表 7 Wilcoxon秩和检验结果
Table 7. Wilcoxon rank sum test results
函数 p值 GTO GWO DE WOA f1 NAN 3.31×10−20 3.31×10−20 3.31×10−20 f2 3.31×10−20 3.31×10−20 3.31×10−20 3.31×10−20 f3 NAN 3.31×10−20 3.31×10−20 3.31×10−20 f4 3.31×10−20 3.31×10−20 3.31×10−20 3.31×10−20 f5 7.97×10−18 7.07×10−18 7.07×10−18 7.07×10−18 f6 6.35×10−19 6.35×10−19 6.35×10−19 6.35×10−19 f7 4.32×10−12 3.43×10−19 3.43×10−19 3.43×10−19 f8 1.30×10−18 1.30×10−18 1.30×10−18 1.30×10−18 f9 2.79×10−16 5.92×10−18 5.92×10−18 5.92×10−18 f10 2.71×10−7 4.73×10−20 6.69×10−11 4.73×10−20 注:参数p小于5×10−2表示DGTO与对比算法有显著差异,NAN表示无法进行显著性判断。 表 8 弹簧设计问题各算法最优解

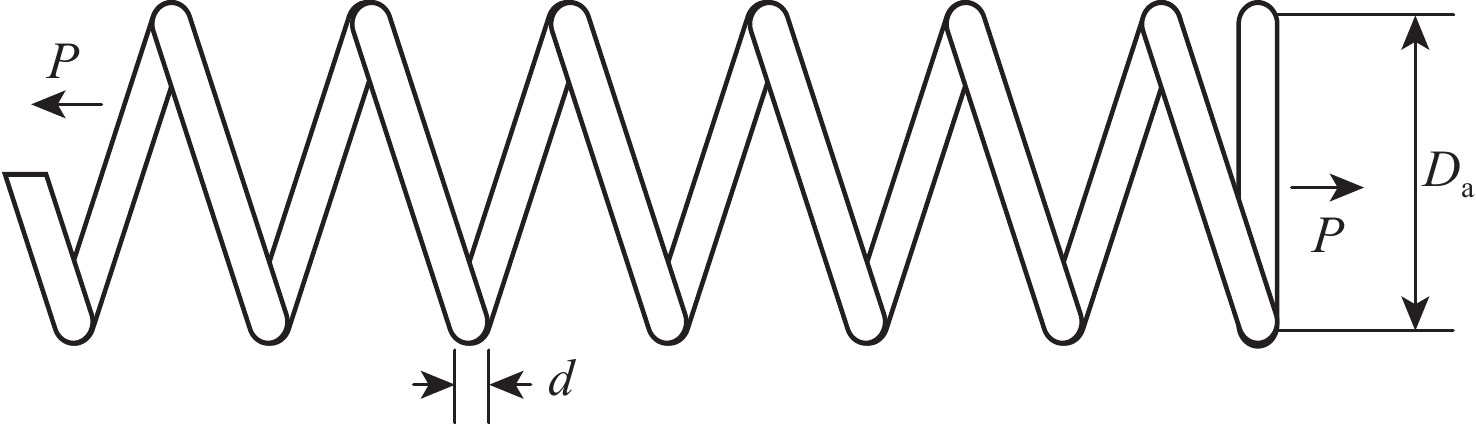

Table 8. Optimal solution of each algorithm for spring design problem
算法 d Da P 最优解 DGTO 0.05172 0.35750 11.24294 0.012665252 GTO 0.05162 0.35504 11.38775 0.012665321 GWO 0.05120 0.34507 12.00899 0.012672677 DE 0.05161 0.35479 11.40314 0.012665876 WOA 0.05148 0.35182 11.58231 0.012666117 SHO[30] 0.05114 0.34375 12.09550 0.012674000 MVO[30] 0.05000 0.31596 14.22623 0.012816930 SCA[30] 0.05078 0.33478 12.72269 0.012709667 GSA[30] 0.05000 0.31731 14.22867 0.012873881 -
