Numerical simulation research on opposing jet interaction characteristics of rocket inverse flight
-
摘要:
有动力垂直回收是实现运载火箭可重复使用的关键技术之一。垂直回收过程中，火箭倒飞产生的大分离非规则流动，以及发动机逆向喷流与主流相互作用导致的复杂气动干扰，对数值模拟方法提出了严峻挑战。基于NNW-FlowStar软件和非结构混合网格技术，采用球头逆向喷流标模，以及自主开展的火箭倒飞逆向喷流风洞试验标模，对数值模拟方法进行了验证，研究不同双喷喷流状态对火箭倒飞逆向喷流干扰特性的影响。结果表明：NNW-FlowStar软件可以较好模拟火箭倒飞逆向喷流干扰特性，数值模拟结果与试验结果吻合较好，计算得到的流场结构与风洞试验一致；不同组合喷流形式呈现出不同的喷流干扰特性和流场结构，不同喷流方案轴向力差异明显，对力矩特性影响也较大，甚至会导致全箭本体的纵向静稳定性发生变化，在超声速来流状态采用双喷状态2即2个水平喷管的方案减速效果较好。
-
关键词:
- 火箭倒飞 /
- 逆向喷流 /
- 干扰特性 /
- NNW-FlowStar /
- 数值模拟
Abstract:Powered vertical recovery is one of the key technologies to realize the reusable launch vehicles. The rocket's backward flight will create a huge separation irregular flow throughout the vertical recovery process, and complicated aerodynamic interference will result from the engine's reverse jet interacting with the mainstream. These pose serious challenges to numerical simulation methods. Based on NNW-FlowStar software and unstructured hybrid grid technology, the numerical method was validated using the ball head opposing jet model and the self-developed rocket opposing jet wind tunnel test model. The interference characteristics of different double jet states on the opposing jet flow of the rocket are studied. The study demonstrates that the NNW-FlowStar is more capable of simulating the interference features of a rocket's reverse flight, and the findings of the numerical simulations correlate well with the test results. Different combined jet forms show different jet interference characteristics and flow field structures. The axial force of different jet schemes varies significantly, which also has a great impact on torque characteristics and even leads to changes in the longitudinal static stability of the whole rocket body. In the supersonic flow state, the deceleration effect is best in the second double injection state.
-

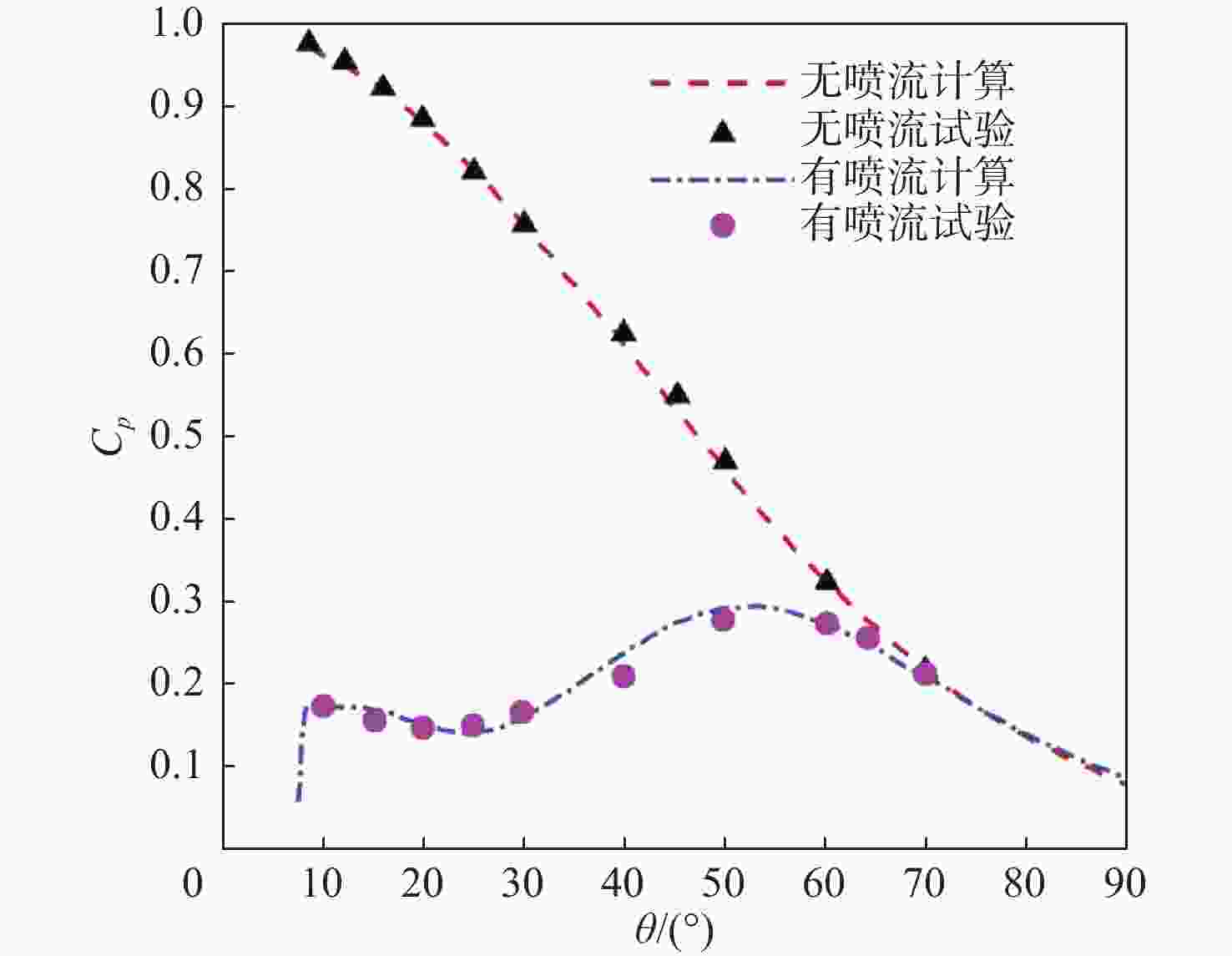

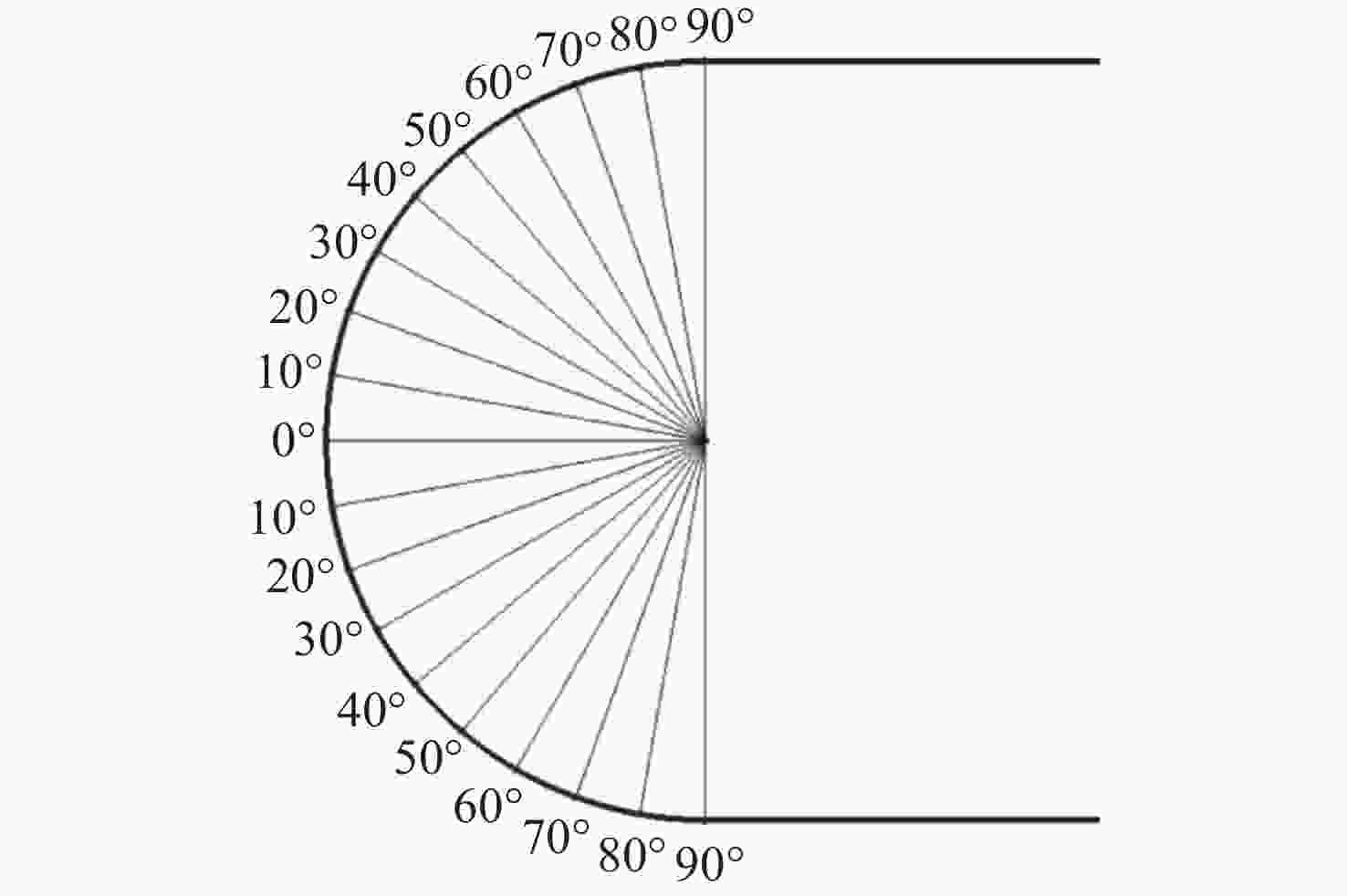

图 2 球头表面压力分布计算与风洞试验对比
Figure 2. Comparison between calculation and experimental pressure distribution on surface of ball head and wind tunnel tests

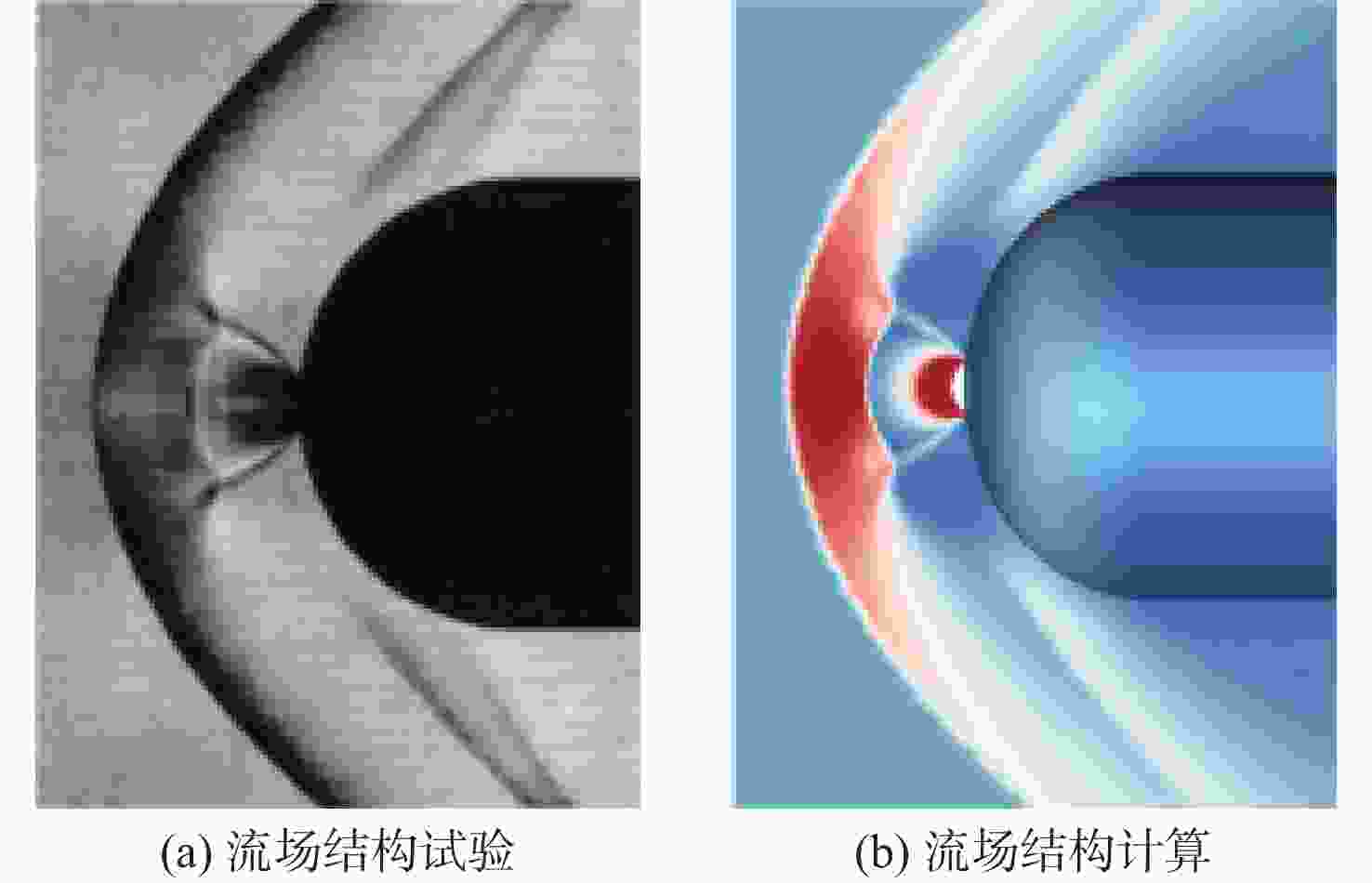

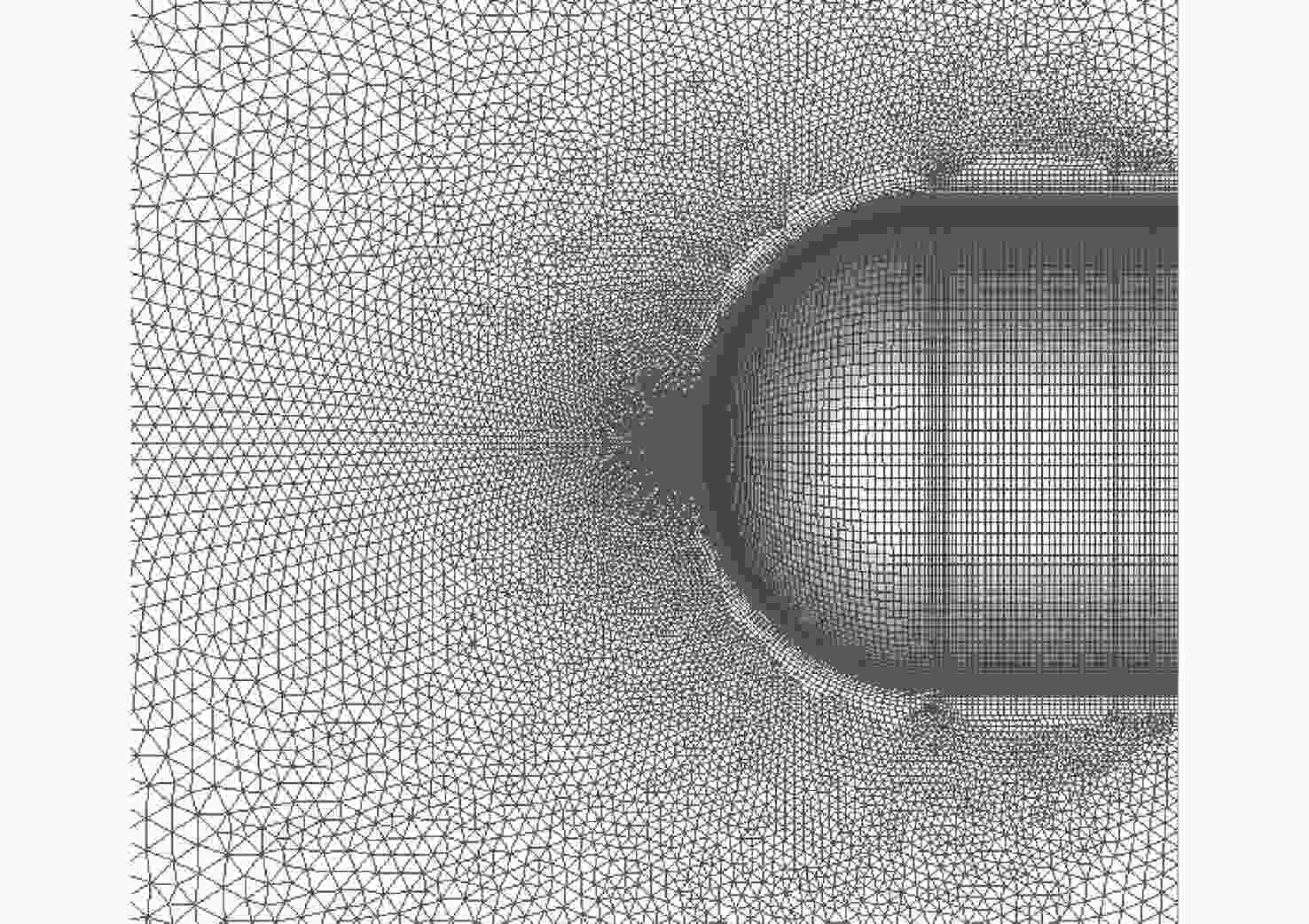

图 4 计算与试验流场结构对比
Figure 4. Comparison between computational and experimental flow field structure

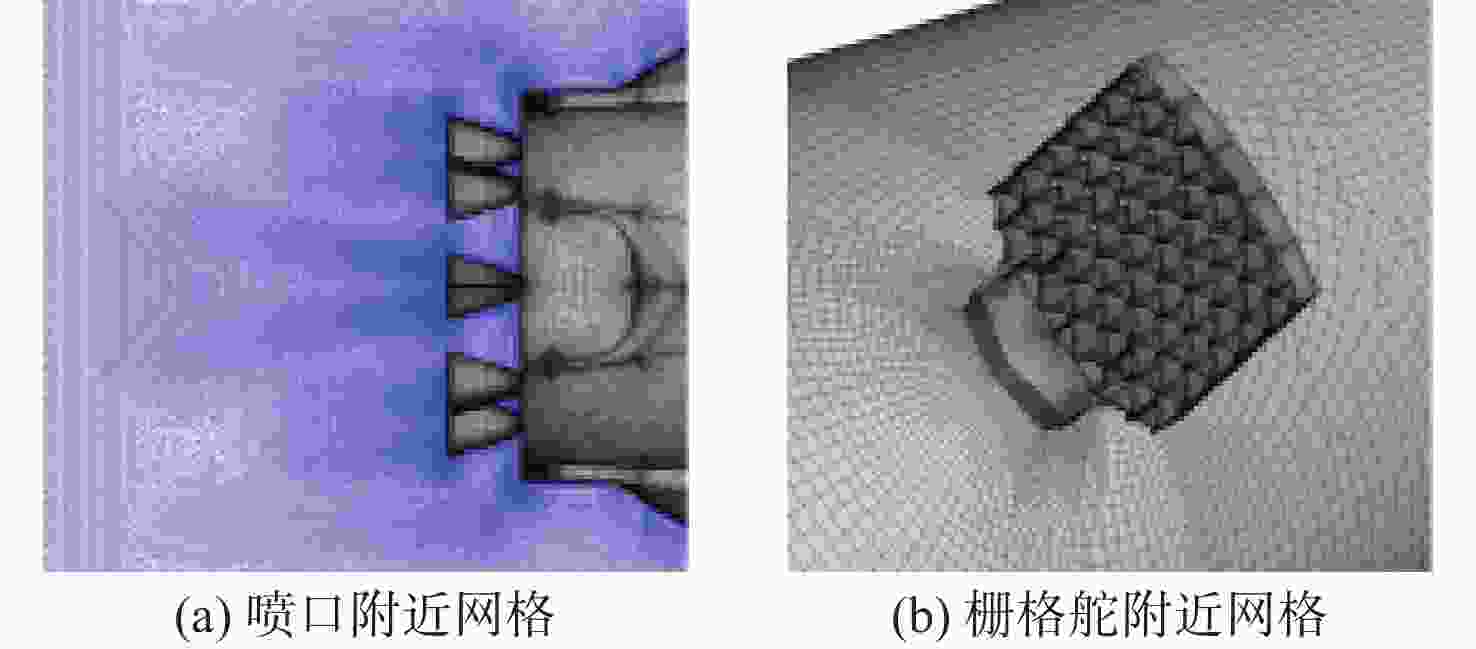

图 7 火箭子级垂直回收构型网格分布
Figure 7. Grid distribution of rocket vertical recovery configuration

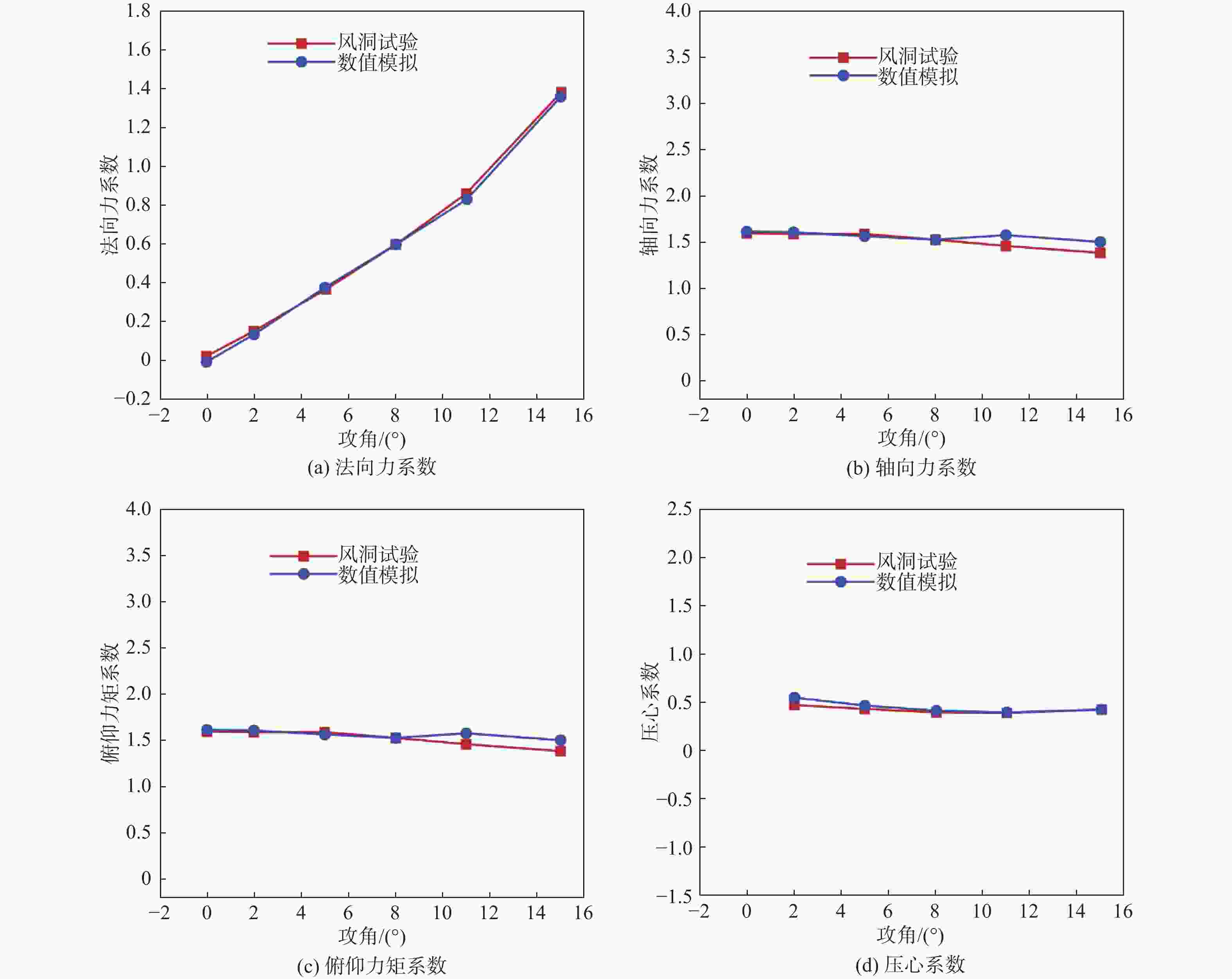

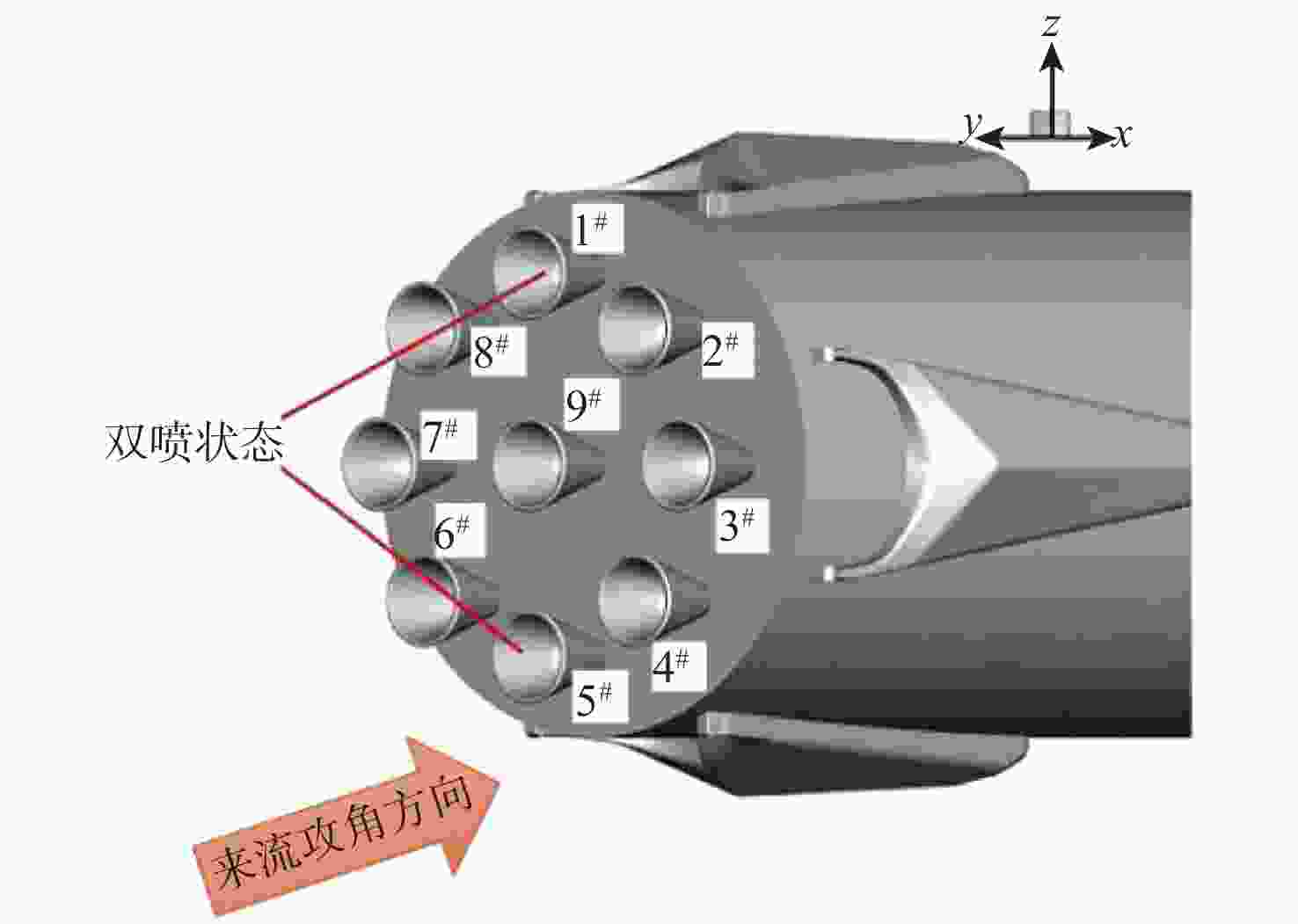

图 8 Ma=2.0，双喷状态计算与试验结果对比
Figure 8. Comparison between numerical and experimental for double jet state of Ma=2.0

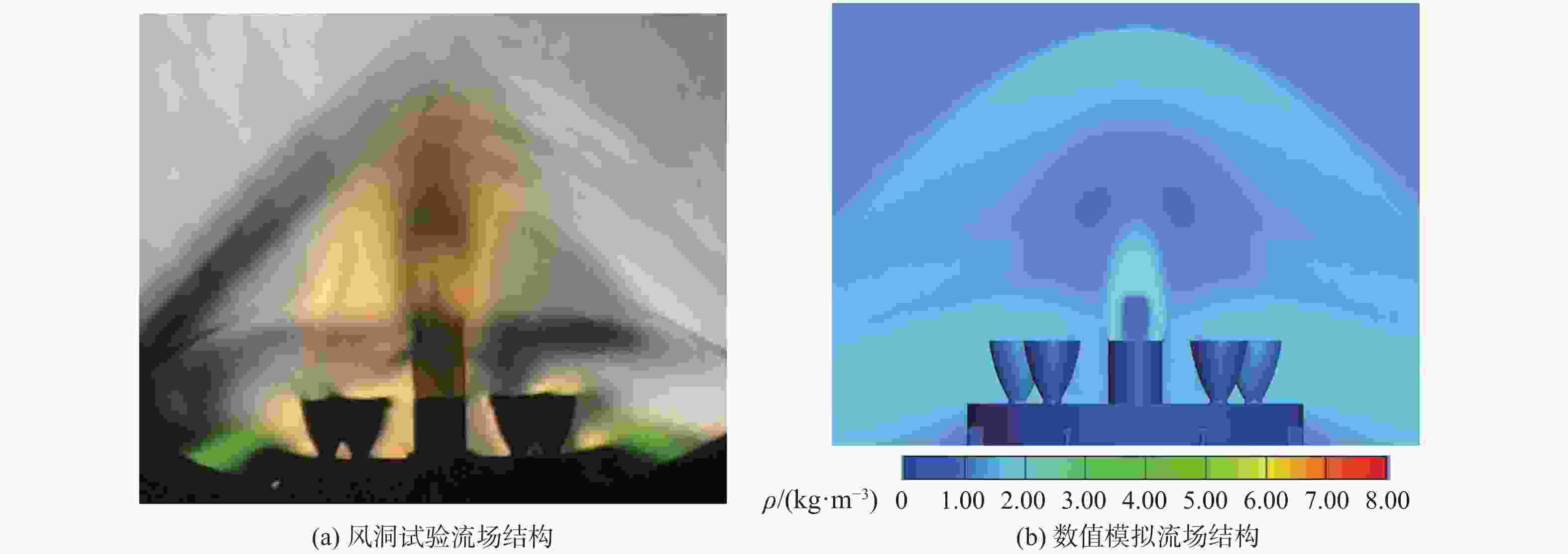

图 9 α=0°时，计算得到的流场结构与风洞试验比较
Figure 9. Comparison between numerical and experimental when α=0° with wind tunnel tests

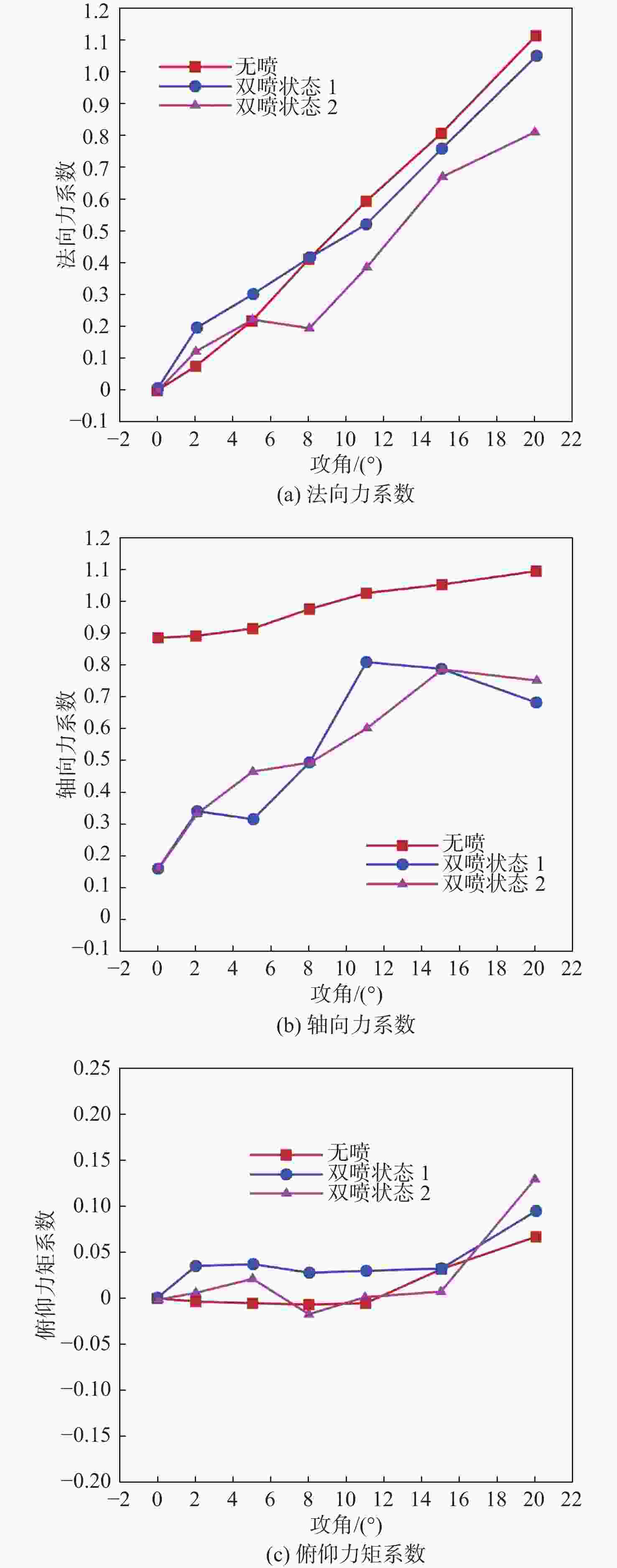

图 10 Ma=0.4，双喷状态喷流对气动特性影响
Figure 10. Influence of double jet state on aerodynamic characteristics of Ma=0.4

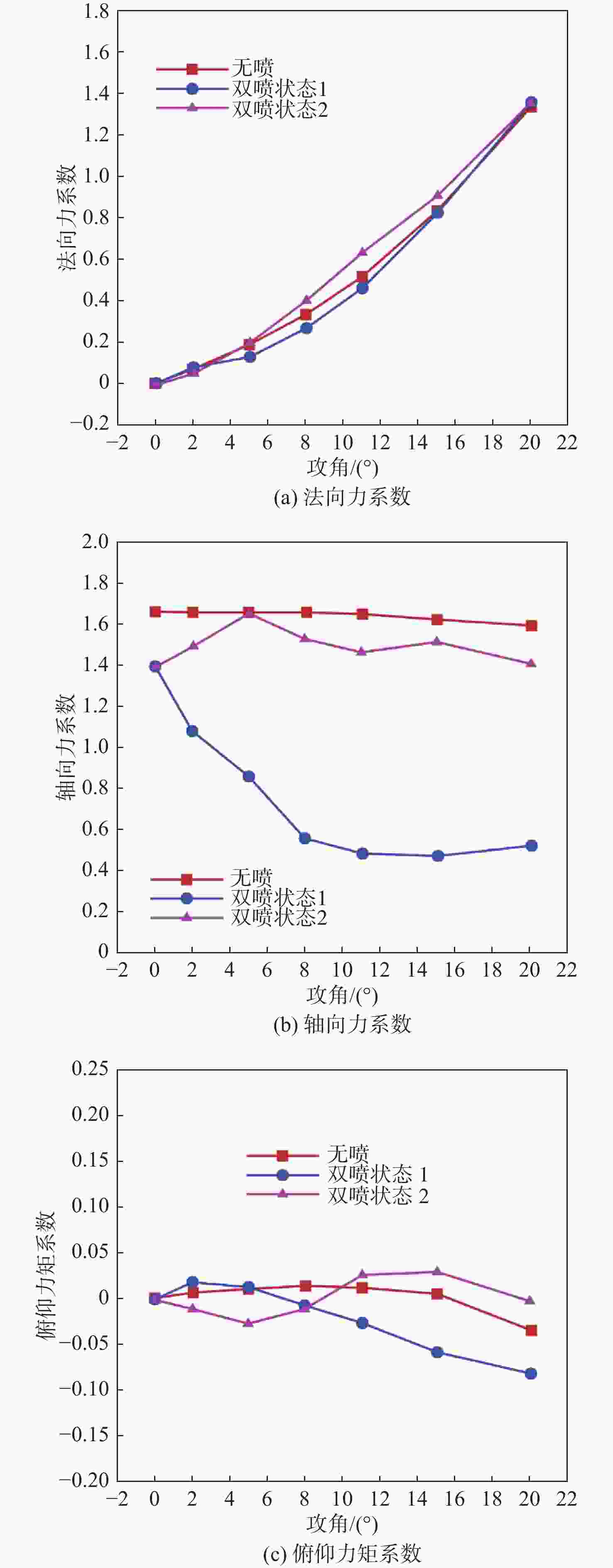

图 11 Ma=4.0，双喷状态喷流对气动特性影响
Figure 11. Influence of double jet state on aerodynamic characteristics of Ma=4.0

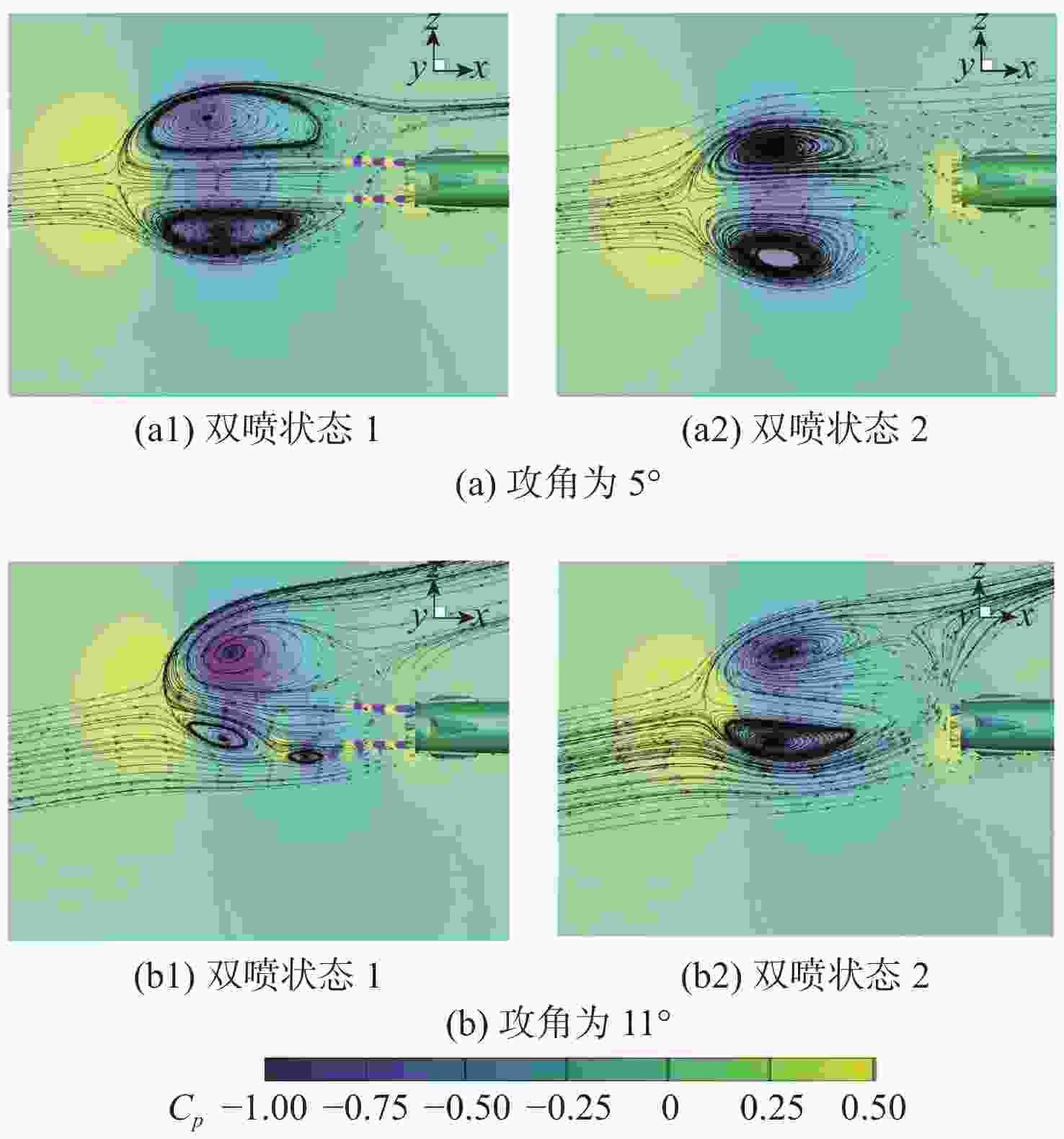

图 12 Ma=0.4，双喷状态喷流对流动结构影响
Figure 12. Influence of double jet state on flow structure of Ma=0.4

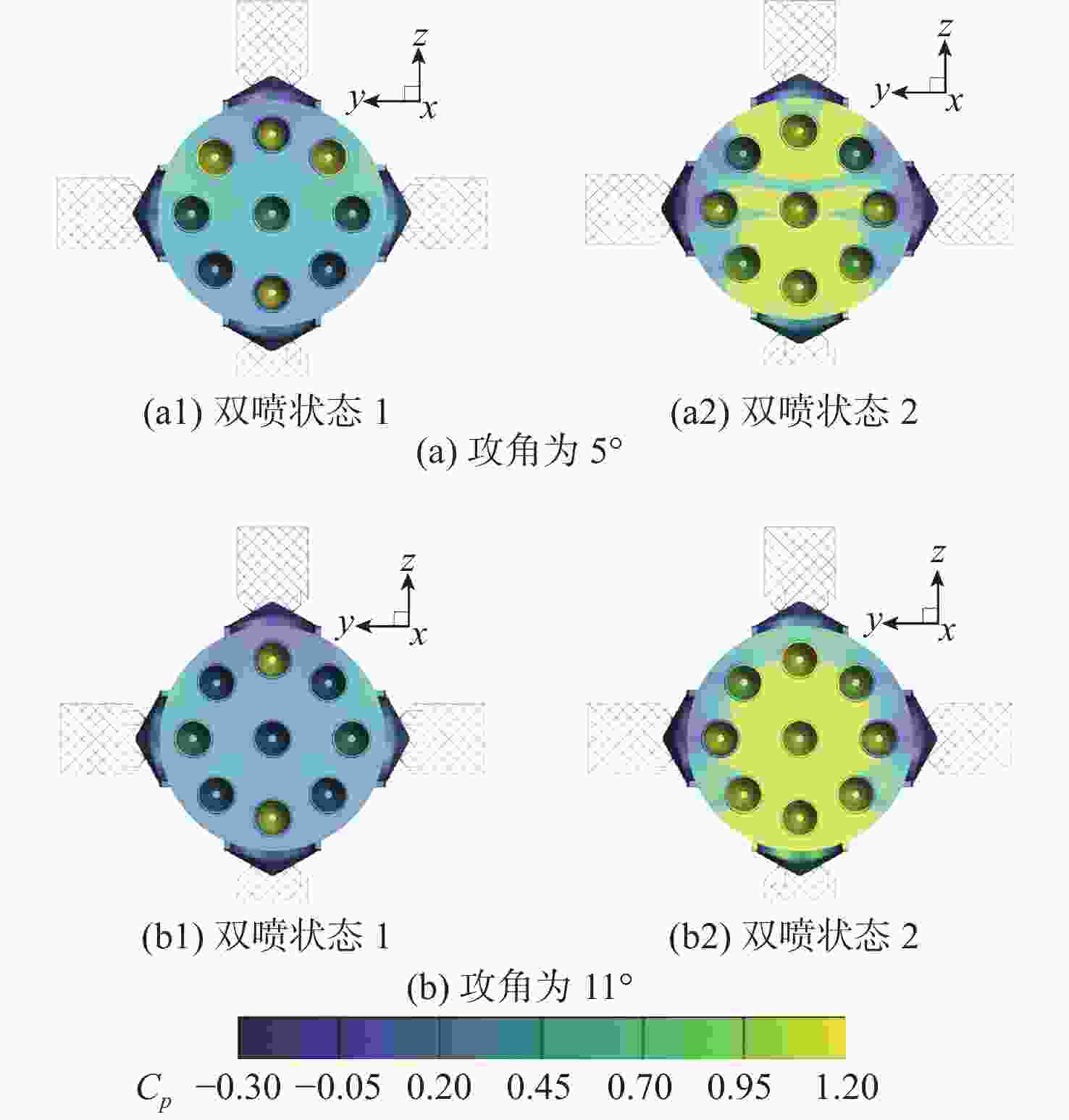

图 13 Ma=0.4，双喷状态喷流对迎风端面压力分布影响
Figure 13. Influence of double jet state on pressure distribution for windward surface of Ma=0.4

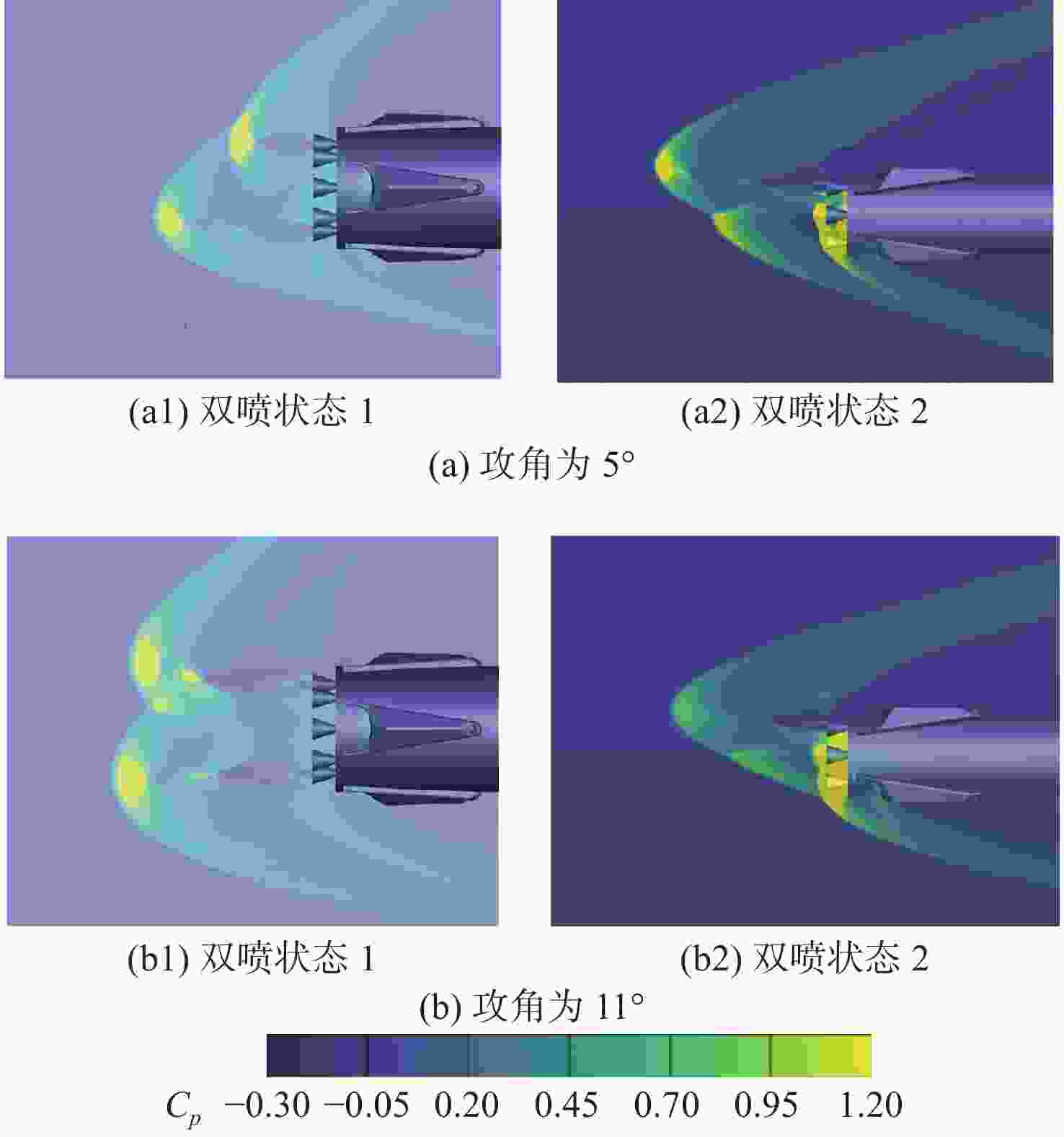

图 14 Ma=4.0，双喷状态喷流对流动结构影响
Figure 14. Influence of double jet state on flow structure of Ma=4.0

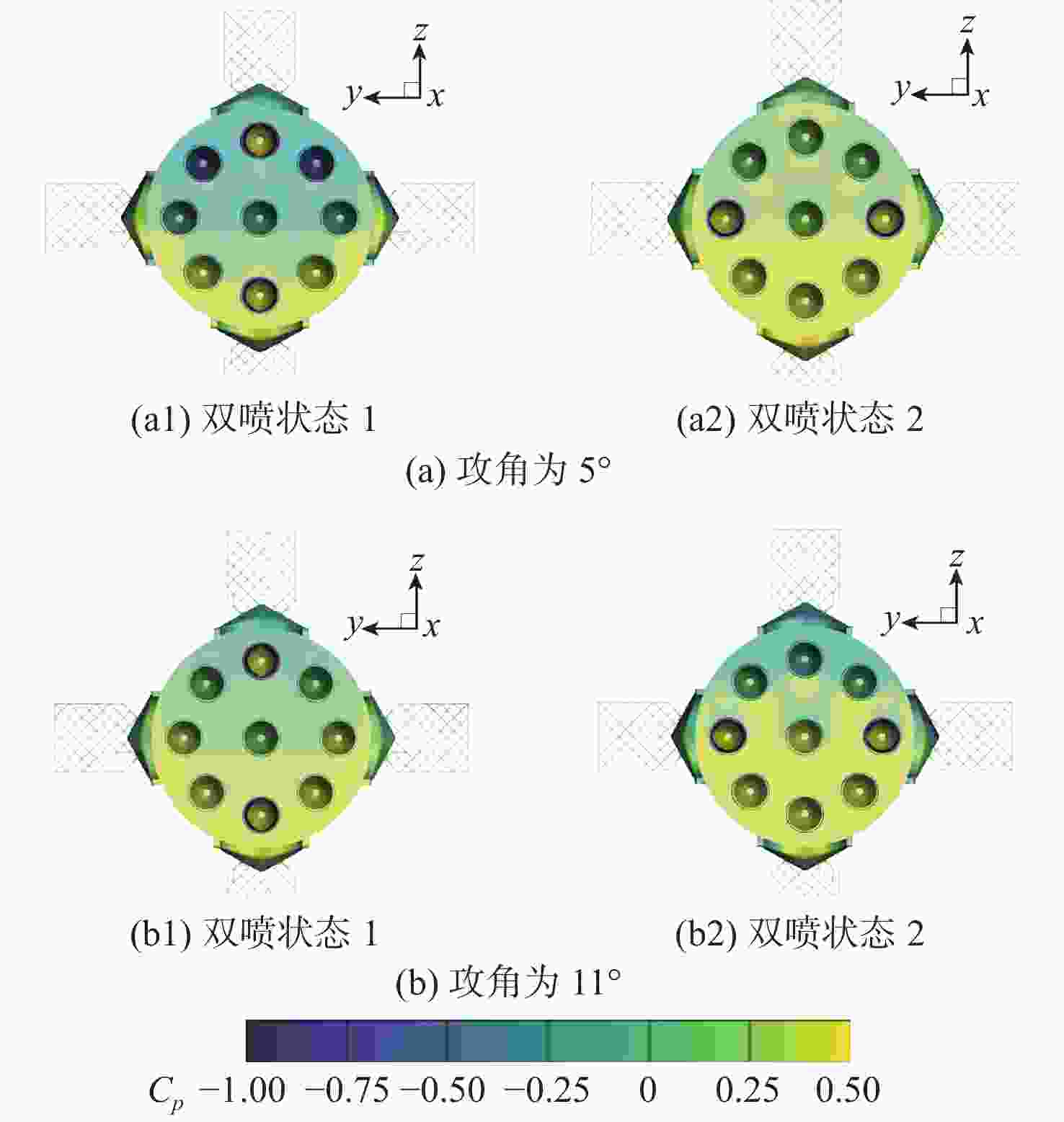

图 15 Ma=4.0，双喷状态喷流对迎风端面压力分布影响
Figure 15. Influence of double jet state on pressure distribution for windward surface of Ma=4.0
表 1 计算状态参数
Table 1. Parameters of simulation conditions
参数 数值 来流马赫数 2.5 来流总温/K 294.4 来流总压/kPa 275.8 喷流马赫数 1.0 喷流总压比 6.54 喷流总温/K 294.4
下载: 导出CSV
-
[1] RICHARDSON M P, HARDY D W F. Economic benefits of reusable launch vehicles for space debris removal[C]//Proceedings of the 68th International Astronautical Congress. Paris: International Astronautical Federation, 2017. [2] 汪小卫, 张普卓, 吴胜宝, 等. 运载火箭子级回收技术研究[J]. 航天返回与遥感, 2016, 37(3): 19-28.WANG X W, ZHANG P Z, WU S B, et al. Recovery technology of launch vehicle stage[J]. Spacecraft Recovery & Remote Sensing, 2016, 37(3): 19-28(in Chinese). [3] 宋征宇, 黄兵, 汪小卫, 等. 重复使用运载器回收技术现状与挑战[J]. 深空探测学报(中英文), 2022, 9(5): 457-469.SONG Z Y, HUANG B, WANG X W, et al. Status and challenges of reusable launch vehicle recovery technology[J]. Journal of Deep Space Exploration, 2022, 9(5): 457-469(in Chinese). [4] 高朝辉, 张普卓, 刘宇, 等. 垂直返回重复使用运载火箭技术分析[J]. 宇航学报, 2016, 37(2): 145-152.GAO Z H, ZHANG P Z, LIU Y, et al. Analysis of vertical landing technique in reusable launch vehicle[J]. Journal of Astronautics, 2016, 37(2): 145-152(in Chinese). [5] SEALANDER J. FALCON heavy finally flies again[J]. Spaceflight, 2023, 65(1): 26-27. [6] MALIK T. Success! SpaceX launches Falcon Heavy rocket on historic maiden voyage[EB/OL]. (2018-02-06)[2023-07-25]. https://www.space.com/39607-spacexfalcon-heavy-first-test-flight-launch.html. [7] JARED L. SpaceX doubling down on Boca Chica; New permit shows future Starship launch site plans[EB/OL]. (2021-03-09) [2023-07-26]. https://spaceexplored.com/2021/03/09/spacex-doubling-down-on-boca-new-permit-shows-future-starship-launch-site-plans/. [8] 贾洪印, 张培红, 赵炜, 等. 火箭子级垂直回收布局气动特性及发动机喷管影响[J]. 航空学报, 2021, 42(2): 623995.JIA H Y, ZHANG P H, ZHAO W, et al. Aerodynamic characteristics of vertical recovery of rocket sub-stage and influence of engine nozzle[J]. Acta Aeronautica et Astronautica Sinica, 2021, 42(2): 623995(in Chinese). [9] VENKATACHARI B S, ITO Y, CHENG G, et al. Numerical investigation of the interaction of counterflowing jets and supersonic capsule flows[C]//Proceedings of the 42nd AIAA Thermophysics Conference. Reston: AIAA, 2011. [10] KEYES J W, HEFNER J N. Effect of forward-facing jets on aerodynamic characteristics of blunt configurations at Mach 6[J]. Journal of Spacecraft and Rockets, 1967, 4(4): 533-534. [11] ASO S, HAYASHI K, MIZOGUCHI M. A study on aerodynamic heating reduction due to opposing jet in hypersonic flow[C]//Proceedings of the 40th AIAA Aerospace Sciences Meeting & Exhibit. Reston: AIAA, 2002. [12] DASO E O, BEAULIEU W, HAGER J O, et al. Prediction of drag reduction in supersonic and hypersonic flows with cunterflow jets [C]//Proceedings of the 11th AIAA/AAAF International Space Planes and Hypersonic Systems and Technologies Conference. Reston: AIAA, 2002. [13] SUN X W, GUO Z Y, HUANG W, et al. Drag and heat reduction mechanism induced by a combinational novel cavity and counterflowing jet concept in hypersonic flows[J]. Acta Astronautica, 2016, 126: 109-119. [14] FINLEY P J. The flow of a jet from a body opposing a supersonic free stream[J]. Journal of Fluid Mechanics, 1966, 26: 337-368. [15] HUANG W, JIANG Y P, YAN L, et al. Heat flux reduction mechanism induced by a combinational opposing jet and cavity concept in supersonic flows[J]. Acta Astronautica, 2016, 121: 164-171. [16] DASO E O, PRITCHETT V E, WANG T S, et al. Dynamics of shock dispersion and interactions in supersonic freestreams with counterflowing jets[J]. AIAA Journal, 2009, 47(6): 1313-1326. [17] HAYASHI K, ASO S, TANI Y. Experimental study on thermal protection system by opposing jet in supersonic flow[J]. Journal of Spacecraft and Rockets, 2006, 43(1): 233-235. [18] MEYER B, NELSON H F, RIGGINS D W. Hypersonic drag and heat-transfer reduction using a forward-facing jet[J]. Journal of Aircraft, 2001, 38(4): 680-686. [19] LI S B, WANG Z G, BARAKOS G N, et al. Research on the drag reduction performance induced by the counterflowing jet for waverider with variable blunt radii[J]. Acta Astronautica, 2016, 127: 120-130. [20] BIBI A, MAQSOOD A, SHERBAZ S, et al. Drag reduction of supersonic blunt bodies using opposing jet and nozzle geometric variations[J]. Aerospace Science and Technology, 2017, 69: 244-256. [21] HUANG W, YAN L, LIU J, et al. Drag and heat reduction mechanism in the combinational opposing jet and acoustic cavity concept for hypersonic vehicles[J]. Aerospace Science and Technology, 2015, 42: 407-414. [22] 王立强, 钱勤建. 钝体逆向喷流减阻降温数值模拟[J]. 弹箭与制导学报, 2019, 39(1): 55-59.WANG L Q, QIAN Q J. Numerical investigation on counter-flow jets on drag and heat-transfer reduction[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2019, 39(1): 55-59(in Chinese). [23] 黄喜元, 李小艳, 杨勇, 等. 高超声速单/多喷管逆向喷流降热特性研究[J]. 导弹与航天运载技术, 2021(4): 45-49.HUANG X Y, LI X Y, YANG Y, et al. Counter flowing jet/jets on heat flux reduction for hypersonic vehicles[J]. Missiles and Space Vehicles, 2021(4): 45-49(in Chinese). [24] 邓帆, 谢峰, 黄伟, 等. 逆向喷流技术在高超声速飞行器上的应用[J]. 空气动力学学报, 2017, 35(4): 485-495.DENG F, XIE F, HUANG W, et al. Applications of counterflowing jet technology in hypersonic vehicle[J]. Acta Aerodynamica Sinica, 2017, 35(4): 485-495(in Chinese). [25] 戎宜生, 刘伟强. 再入飞行器鼻锥逆向喷流对流场及气动热的影响[J]. 航空学报, 2010, 31(8): 1552-1557.RONG Y S, LIU W Q. Influence of opposing jet on flow field and aerodynamic heating at nose of a reentry vehicle[J]. Acta Aeronautica et Astronautica Sinica, 2010, 31(8): 1552-1557(in Chinese). [26] 王泽江, 李杰, 曾学军, 等. 逆向喷流对双锥导弹外形减阻特性的影响[J]. 航空学报, 2020, 41(12): 124116.WANG Z J, LI J, ZENG X J, et al. Effect of opposing jet on drag reduction characteristics of double-cone missile shape[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(12): 124116(in Chinese). [27] 程川, 刘阳, 王吉飞, 等. 反向喷流对运载火箭返回段气动特性影响研究[J]. 宇航学报, 2023, 44(3): 379-388.CHENG C, LIU Y, WANG J F, et al. Investigation of reverse jet effects on aerodynamic characteristics of returned launch vehicle[J]. Journal of Astronautics, 2023, 44(3): 379-388(in Chinese). [28] 陈坚强, 吴晓军, 张健, 等. FlowStar: 国家数值风洞(NNW)工程非结构通用CFD软件[J]. 航空学报, 2021, 42(9): 625739.CHEN J Q, WU X J, ZHANG J, et al. FlowStar: general unstructured-grid CFD software for national numerical windtunnel(NNW) project[J]. Acta Aeronautica et Astronautica Sinica, 2021, 42(9): 625739(in Chinese). [29] ZHOU C Y, JI W Y. A three-dimensional numerical investigation on drag reduction of a supersonic spherical body with an opposing jet[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2014, 228(2): 163-177. -
