噪声环境下告警冗余设计对装甲车乘员响应绩效的影响

周孙夏; 刘双; 完颜笑如; 冯传宴; 王一行; 解芳

doi:10.13700/j.bh.1001-5965.2023.0712

噪声环境下告警冗余设计对装甲车乘员响应绩效的影响

doi: 10.13700/j.bh.1001-5965.2023.0712

1.
北京航空航天大学航空科学与工程学院，北京 100191
2.
中国北方车辆研究所，北京 100072

基金项目:

国家自然科学基金委员会与中国民用航空局联合基金(U1733118)；国家自然科学基金(71301005)

详细信息

通讯作者:
E-mail：wanyanxiaoru@buaa.edu.cn

中图分类号: TJ810.2
计量
- 文章访问数: 529
- HTML全文浏览量: 224
- PDF下载量: 43
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-01
- 录用日期: 2023-12-20
- 网络出版日期: 2023-12-27
- 整期出版日期: 2026-01-31

Influences of multimodal redundant alarm design on reaction performance of armored vehicle crew under noise environment

1.
School of Aeronautic Science and Engineering，Beihang University，Beijing 100191，China
2.
China North Vehicle Research Institute，Beijing 100072，China

Funds:

National Natural Science Foundation of China and the Civil Aviation Administration of China (U1733118); National Natural Science Foundation of China (71301005)

More Information

Corresponding author: E-mail：wanyanxiaoru@buaa.edu.cn

摘要

摘要:
为探究不同噪声环境下多模态告警冗余设计对装甲车乘员响应绩效的影响，招募24名被试，开展了基于某新型高保真装甲车半实物仿真平台的模拟驾驶实验。采用2种噪声环境（高噪声、低噪声）×3种告警冗余设计（视觉通道冗余设计、听觉通道冗余设计、视听双通道冗余设计）条件下的双因素被试内设计，测量了被试的告警响应操作绩效、眼动指标及NASA-TLX量表得分。实验结果显示，在听觉通道冗余设计和视听双通道冗余设计条件下，乘员对于告警信息的响应错误率和反应时均显著低于视觉通道冗余设计条件；在不同告警冗余设计下，低噪声环境下乘员对于告警信息的响应错误率显著低于高噪声环境条件，但二者反应时之间并无明显差异；对于告警响应操作绩效、眼动指标和NASA-TLX量表得分，噪声条件和告警设计模式之间的交互效应均不显著。研究表明：对于装甲车告警信息设计，与采用视觉通道冗余设计模式相比，采用增加了听觉通道冗余提示的多模态告警模式（包括听觉通道冗余设计模式和视听双通道冗余设计模式），可以显著提高乘员对于告警信息的响应操作绩效；而在听觉通道冗余设计条件下继续叠加视觉通道冗余设计，即采用视听双通道冗余设计模式，却未带来进一步的响应操作绩效增益；低噪声作业环境对于改善乘员的响应操作绩效具有积极作用。
- 装甲车辆 /
- 多模态告警 /
- 噪声环境 /
- 任务绩效 /
- 乘员 /
- 人机工效
Abstract:
In order to investigate the effect of different multimodal redundant alarm design on the reaction performance of armored vehicle occupants under a noisy environment, 24 participants were recruited and subjected to simulation driving experiments utilizing a new type of high-fidelity armored vehicle semi physical simulation platform. Three alarm redundancies were tested: visual channel, auditory channel, and audio-visual dual channel designs, across high and low noise conditions. The findings demonstrate that, in comparison to the visual channel redundancies, drivers' response error rate and reaction time to warnings are substantially reduced in the auditory channel redundancies and audio-visual dual channel redundancies. The response error is generally lower in low noise environments than in high noise environments, although response time remains consistent across noise conditions. The interaction between noise conditions and alarm design does not significantly affect alarm response performance, eye movement indicators, or subjective workload scores. Comparing the multimodal alarm with redundant auditory prompts to the visual-only redundancy, the study finds that the former significantly enhances drivers' reaction to warning information. However, the combination of auditory and visual redundancy does not yield further performance improvements. A low noise environment positively influences response performance enhancement.
- armored vehicle /
- multimodal warning /
- noise environment /
- task performance /
- occupant /
- ergonomics

HTML全文

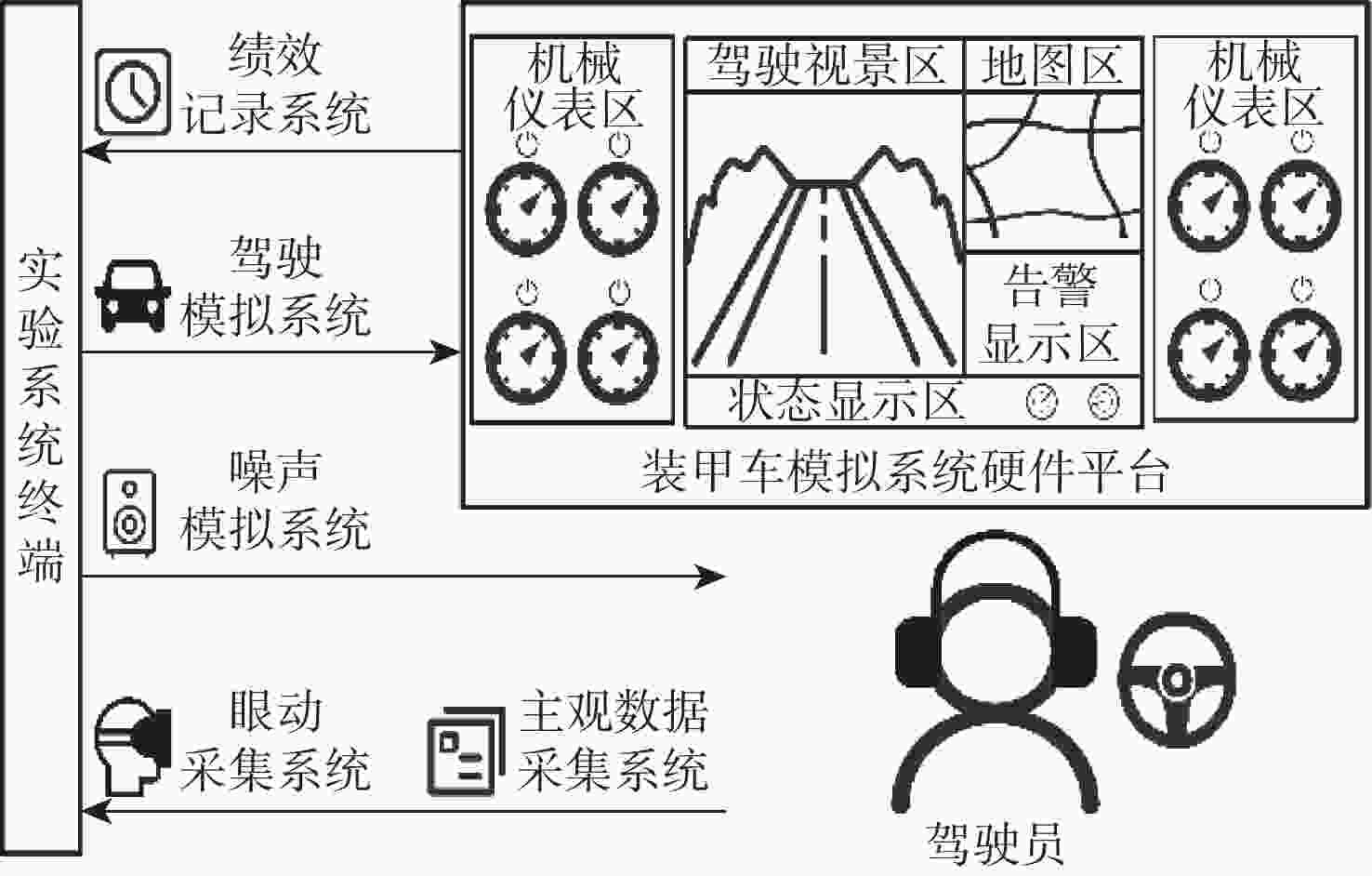

图 1 装甲车半实物仿真平台与人机交互数据采集系统

Figure 1. Armored vehicle semi-physical simulation platform and human-machine interactive data acquisition system

下载: 全尺寸图片幻灯片

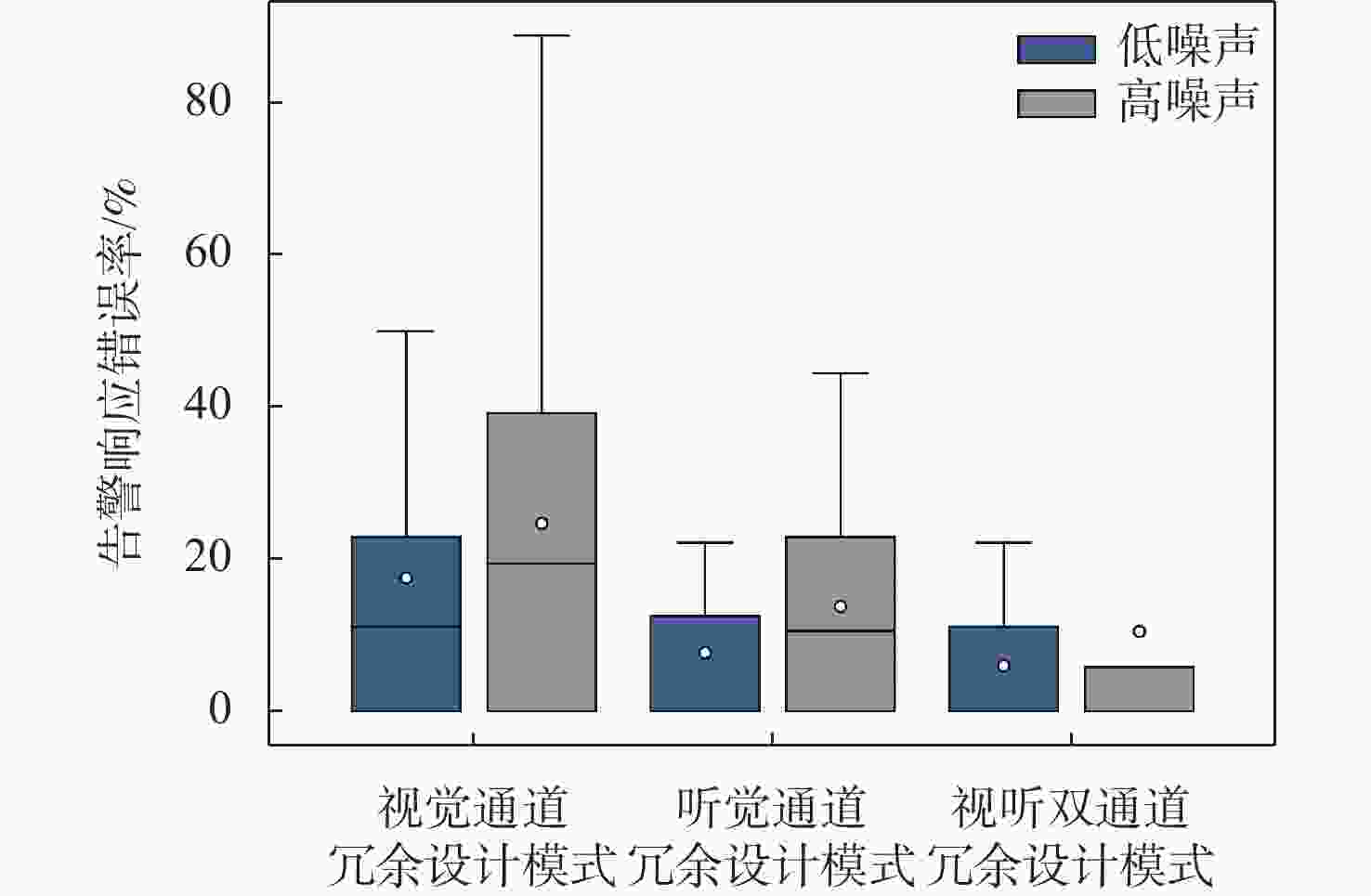

图 2 不同实验条件下告警响应错误率结果

Figure 2. Results of reaction error rate under different experiment conditions

下载: 全尺寸图片幻灯片

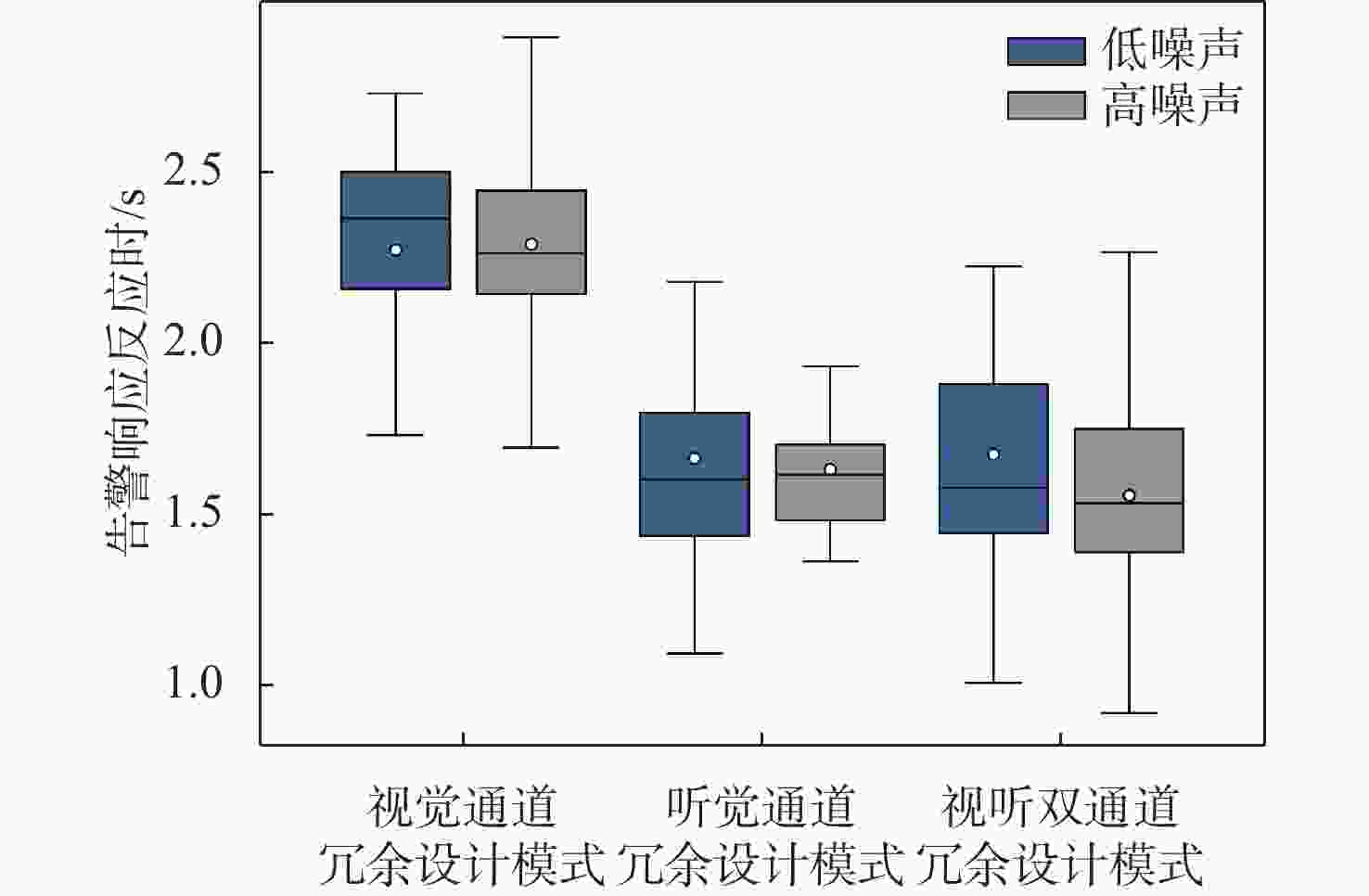

图 3 不同实验条件下的告警响应反应时结果

Figure 3. Results of reaction time under different experiment conditions

下载: 全尺寸图片幻灯片

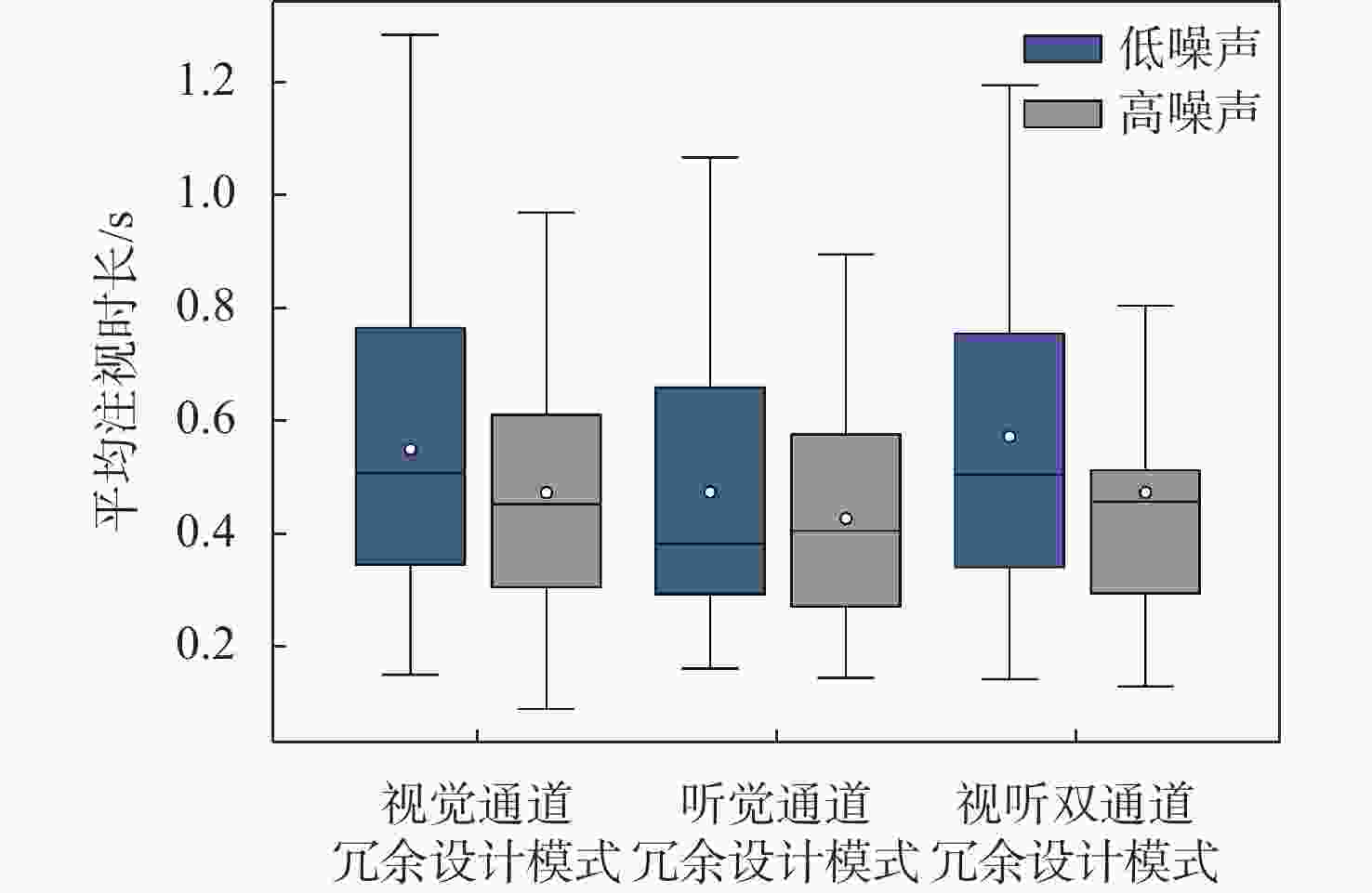

图 4 不同实验条件下平均注视时长结果

Figure 4. Average duration of fixations under different experiment conditions

下载: 全尺寸图片幻灯片

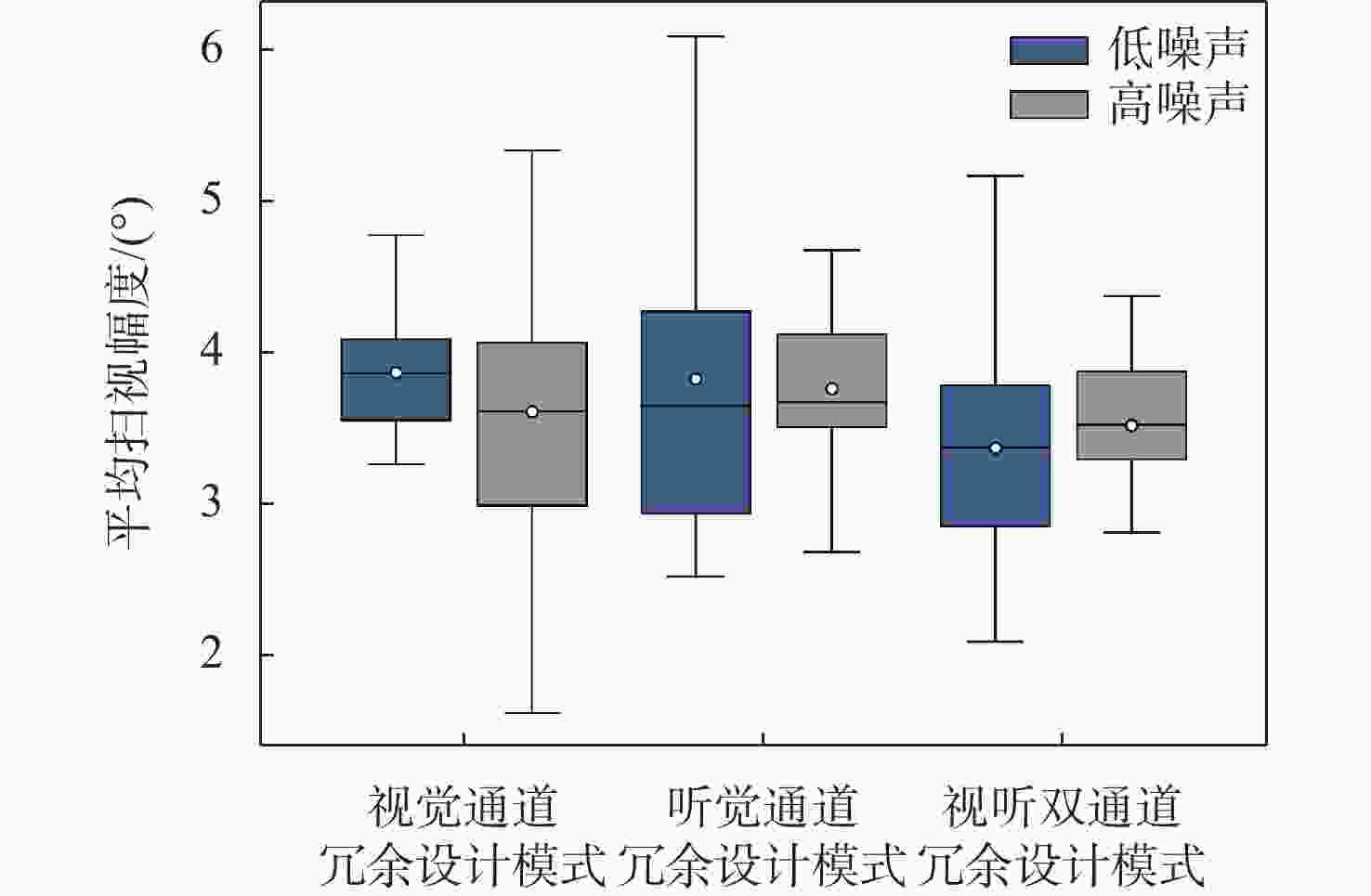

图 5 不同实验条件下平均扫视幅度结果

Figure 5. Average amplitude of saccades under different experiment conditions

下载: 全尺寸图片幻灯片

表 1 实验变量及拉丁方设计

Table 1. Experimental variables and Latin square design

被试编号	噪声条件	告警模式
1	高	视觉	听觉	视听
1	低	听觉	视听	视觉
2	低	视听	视觉	听觉
2	高	视觉	听觉	视听
3	高	听觉	视听	视觉
3	低	视听	视觉	听觉
4	低	视觉	听觉	视听
4	高	听觉	视听	视觉
5	高	视听	视觉	听觉
5	低	视觉	听觉	视听
6	低	听觉	视听	视觉
6	高	视听	视觉	听觉

下载: 导出CSV

表 2 不同实验条件下的NASA-TLX量表结果

Table 2. Results of NASA-TLX subscale ratings under different experiment conditions

实验条件	总得分	脑力需求	体力需求	时间需求	工作绩效	努力程度	挫败感
视觉通道冗余-低噪声	40.38(±18.59)	9.04(±4.40)	7.29(±3.84)	8.25(±4.26)	7.79(±4.56)	9.92(±5.09)	6.88(±3.98)
听觉通道冗余-低噪声	39.35(±18.05)	8.08(±3.99)	7.42(±3.40)	8.25(±4.32)	8.04(±4.29)	9.67(±4.72)	6.38(±4.75)
视听双通道冗余-低噪声	40.55(±17.16)	8.38(±3.66)	7.13(±3.80)	7.92(±3.74)	8.29(±4.30)	9.58(±4.47)	7.38(±4.73)
视觉通道冗余-高噪声	40.33(±19.09)	8.58(±4.62)	8.38(±4.83)	8.58(±4.61)	7.08(±3.87)	10.46(±5.42)	6.83(±4.59)
听觉通道冗余-高噪声	40.04(±16.94)	8.33(±4.23)	7.17(±3.81)	9.29(±4.80)	6.88(±4.88)	10.71(±5.20)	6.13(±3.66)
视听双通道冗余-高噪声	40.16(±17.36)	8.67(±4.70)	8.04(±4.26)	8.63(±4.21)	6.96(±4.51)	10.21(±4.55)	6.83(±4.79)
注：表中数值形式为均值（均方差）。

下载: 导出CSV
