Nonlinear region of attraction of angular motion for a controlled projectile with self-rotating wraparound fins
-
摘要:
针对有控自旋卷弧翼弹箭在鸭舵控制力与非线性气动力作用下的稳定性问题，开展非线性角运动特性研究。根据该类弹箭的弹道和结构特点，建立七自由度刚体运动模型，据此推导状态空间形式的非线性角运动方程；选取弹道特征点，利用数值仿真和多项式拟合方法得到对应的非线性气动力系数，采用基于平方和规划的吸引域估计方法，定量分析鸭舵控制和非线性气动力系数对该类弹箭稳定域的影响。理论分析及仿真结果表明：鸭舵控制力大小对弹箭角运动的稳定吸引域影响较大，对于给定算例，当舵偏角为20°时，与无控状态相比，吸引域边界减小约16.9%，而控制力方位对其影响却很小；升力系数导数、静力矩系数导数和前、后体马格努斯力矩系数导数的非线性项是影响该类弹箭角运动稳定吸引域的主要因素，且后体非线性马格努斯力矩对吸引域的影响明显大于前体。
Abstract:A study on the nonlinear angular motion characteristics has been conducted with the goal of addressing the stability issue of a controlled projectile with self-rotating wraparound fins under the influence of nonlinear aerodynamic force and duck rudder control force. According to the ballistic and structural characteristics of this type of sling and arrows, a seven-degree-of-freedom rigid-body motion model is established, according to which the nonlinear angular equations of motion in the state-space form are deduced. The characteristic points of the ballistic trajectory are selected, and the corresponding nonlinear aerodynamic coefficients are obtained by using the numerical simulation and polynomial fitting methods, and the estimation of the domain of attraction based on the sum-of-squares planning is adopted to analyse the effects of the duck rudder control and nonlinear aerodynamic coefficients on the stability domain of this type of slings and arrows in a quantitative manner. Based on the results of the simulation and theoretical analysis, the size of the duck rudder control force has a significant impact on the stable attraction domain of the angular motion of the projectile and arrow. For example, in the paper, the attraction domain boundary decreases by approximately 16.9% when the rudder deflection angle
δ c is 20° compared to the uncontrolled state, while the control force azimuth has barely any effect. The lift coefficient derivative, the static moment coefficient derivative, and the nonlinear terms of the forebody and aft body Magnus moment coefficient derivative are the main factors affecting the stable attraction domain of the projectile and arrow in this type of motion. The nonlinear Magnus moment of the rear body has a significantly larger effect on the region of attraction of the angular motion of the projectile than that of the front body. -

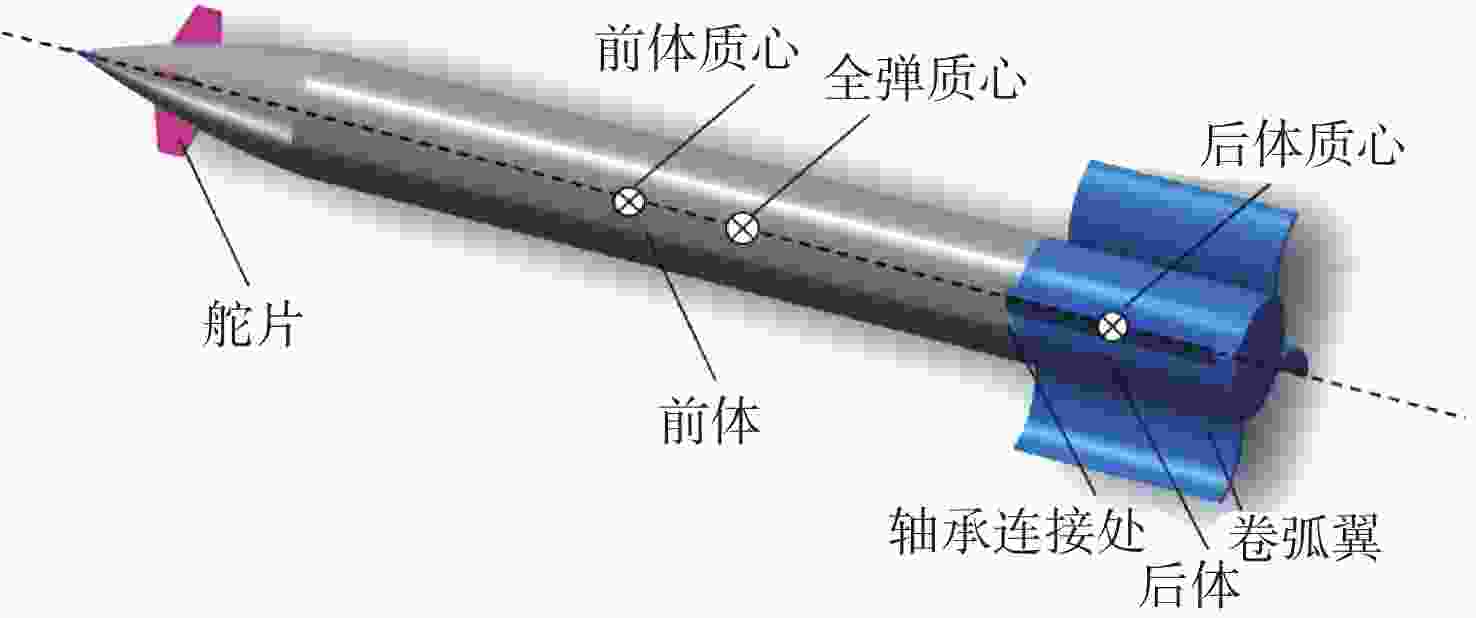

图 1 有控自旋卷弧翼弹箭模型示意图
Figure 1. The model diagram of controlled projectile with self-rotating wraparound fins

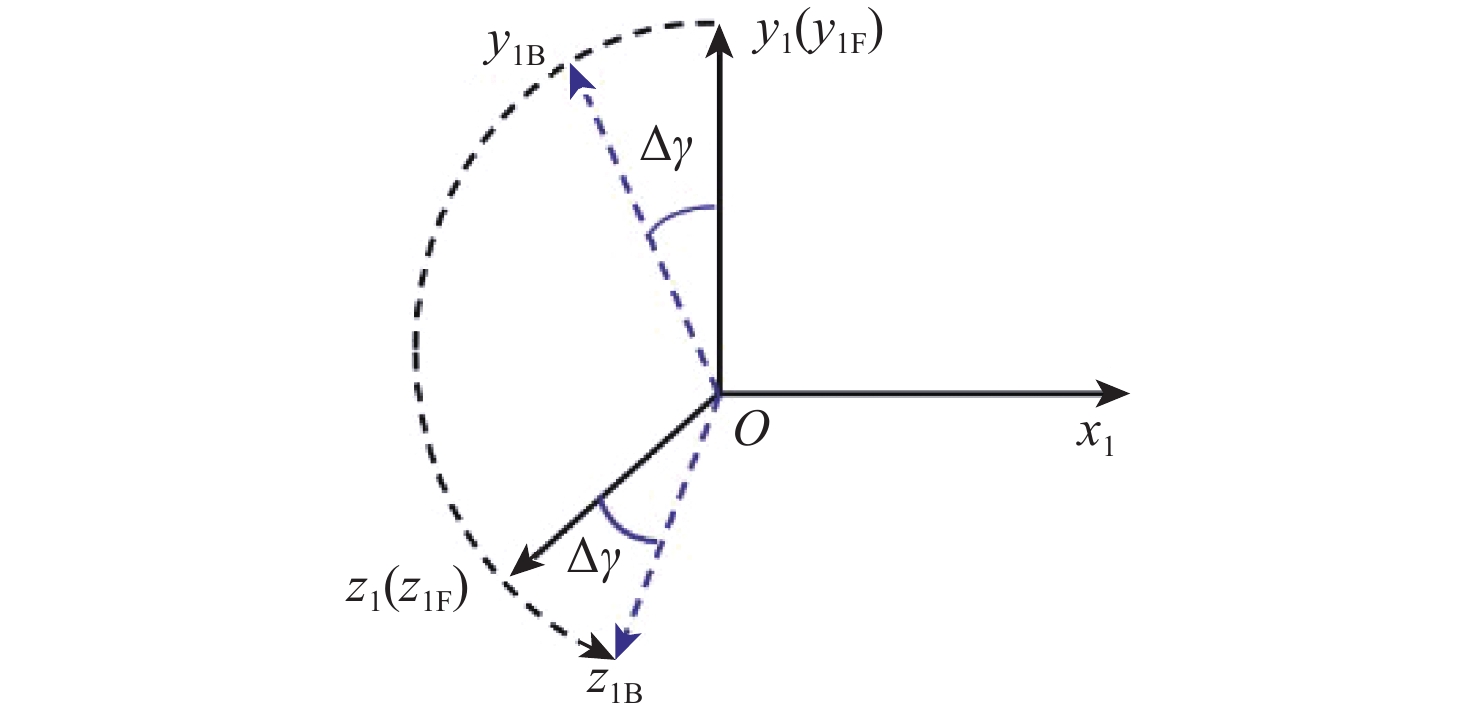

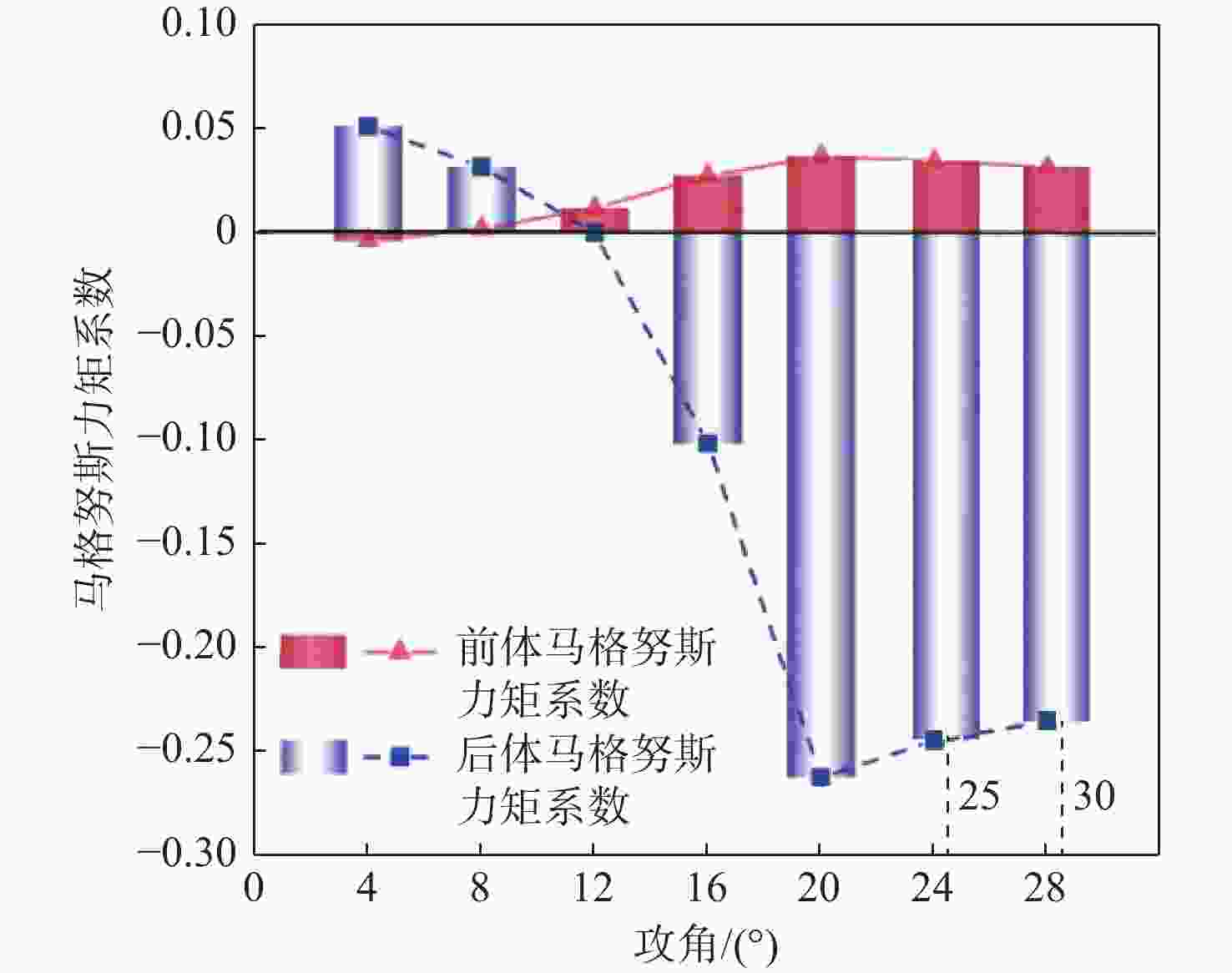

图 4 前、后体马格努斯力矩系数随攻角变化
Figure 4. The Magnus moment coefficient of front and rear bodies varies with the angle of attack

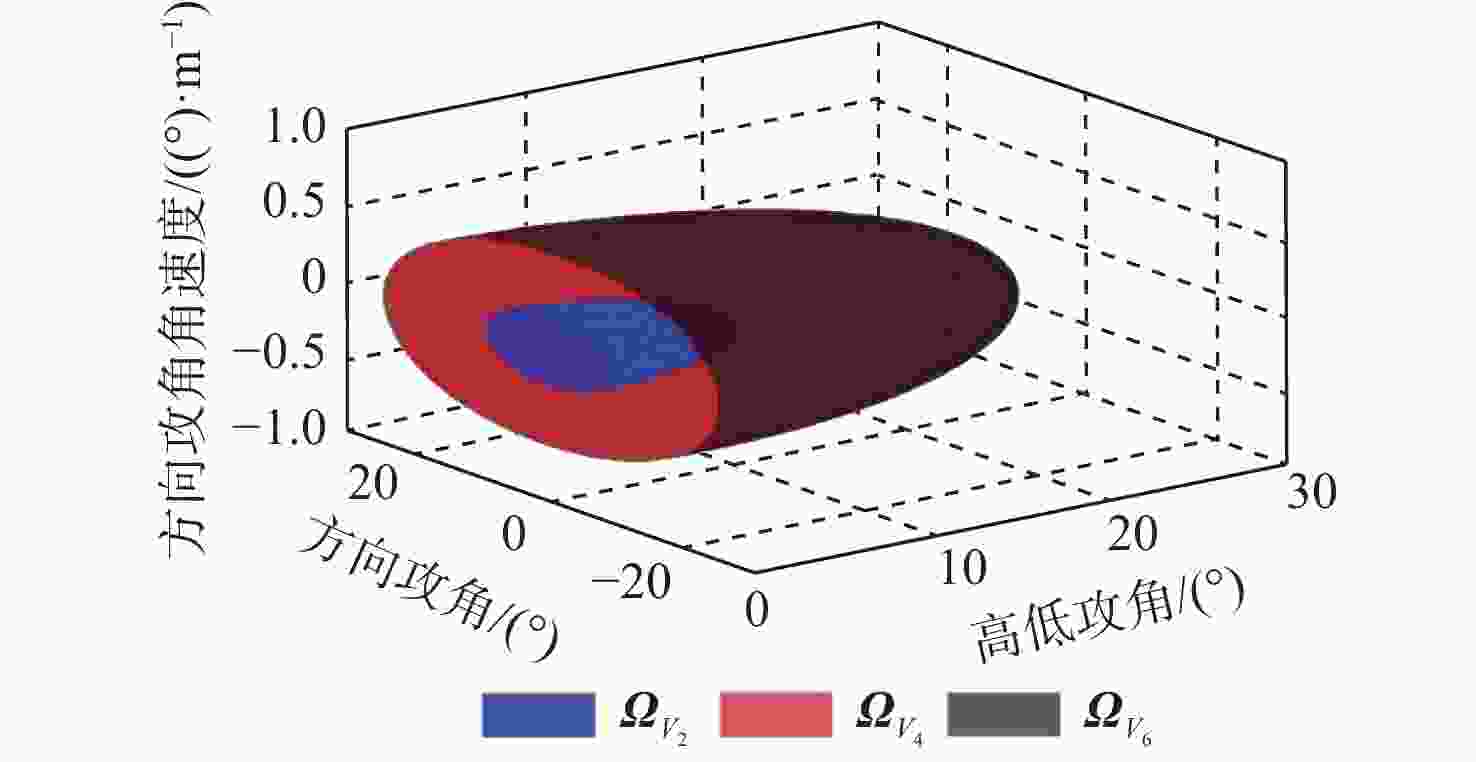

图 5 吸引域估计结果的空间轨迹
Figure 5. The spatial trajectory of the estimated result of the region of attraction

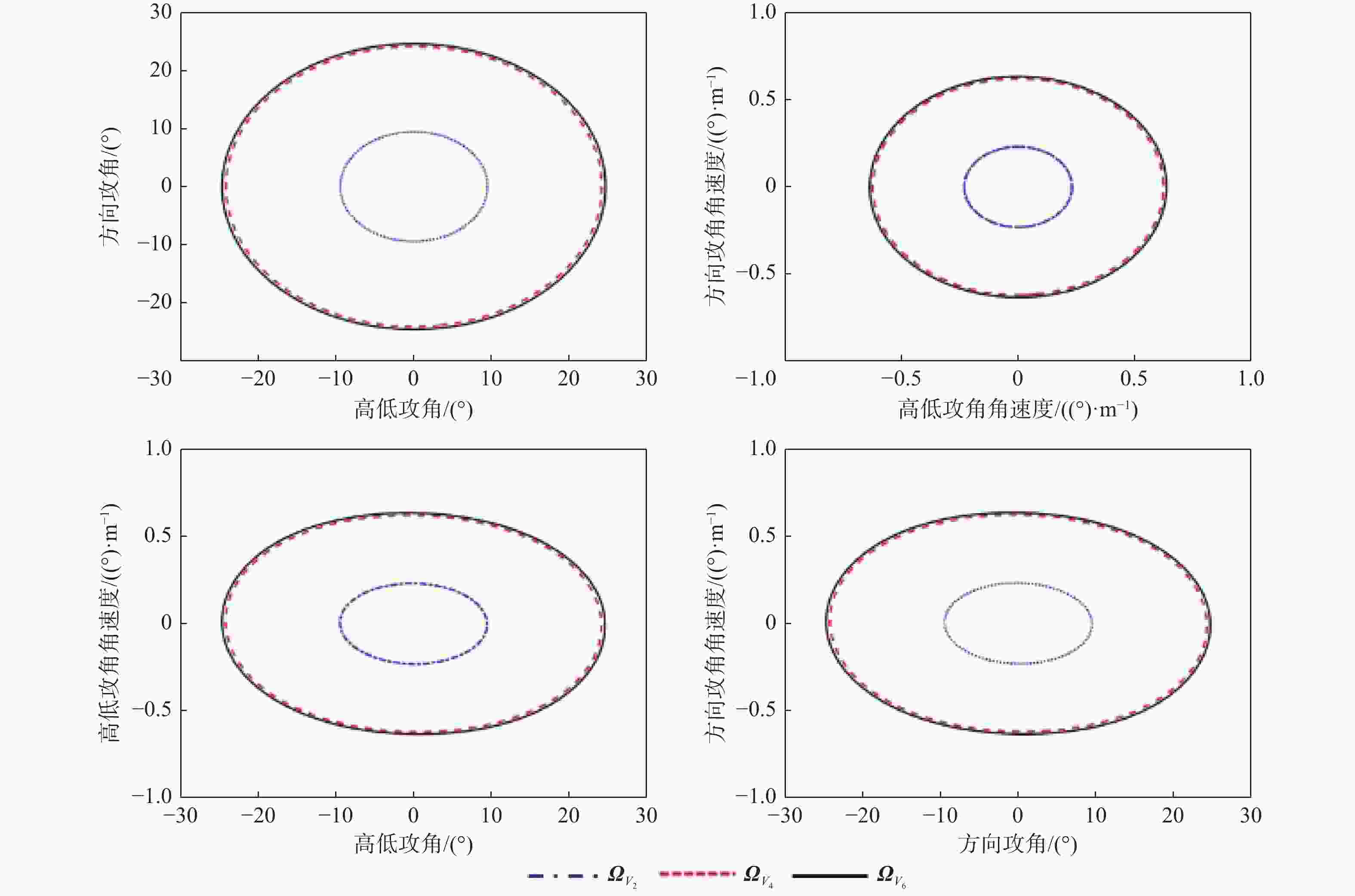

图 6 吸引域估计结果的相平面轨迹
Figure 6. The phase plane trajectory of the estimated result of the region of attraction

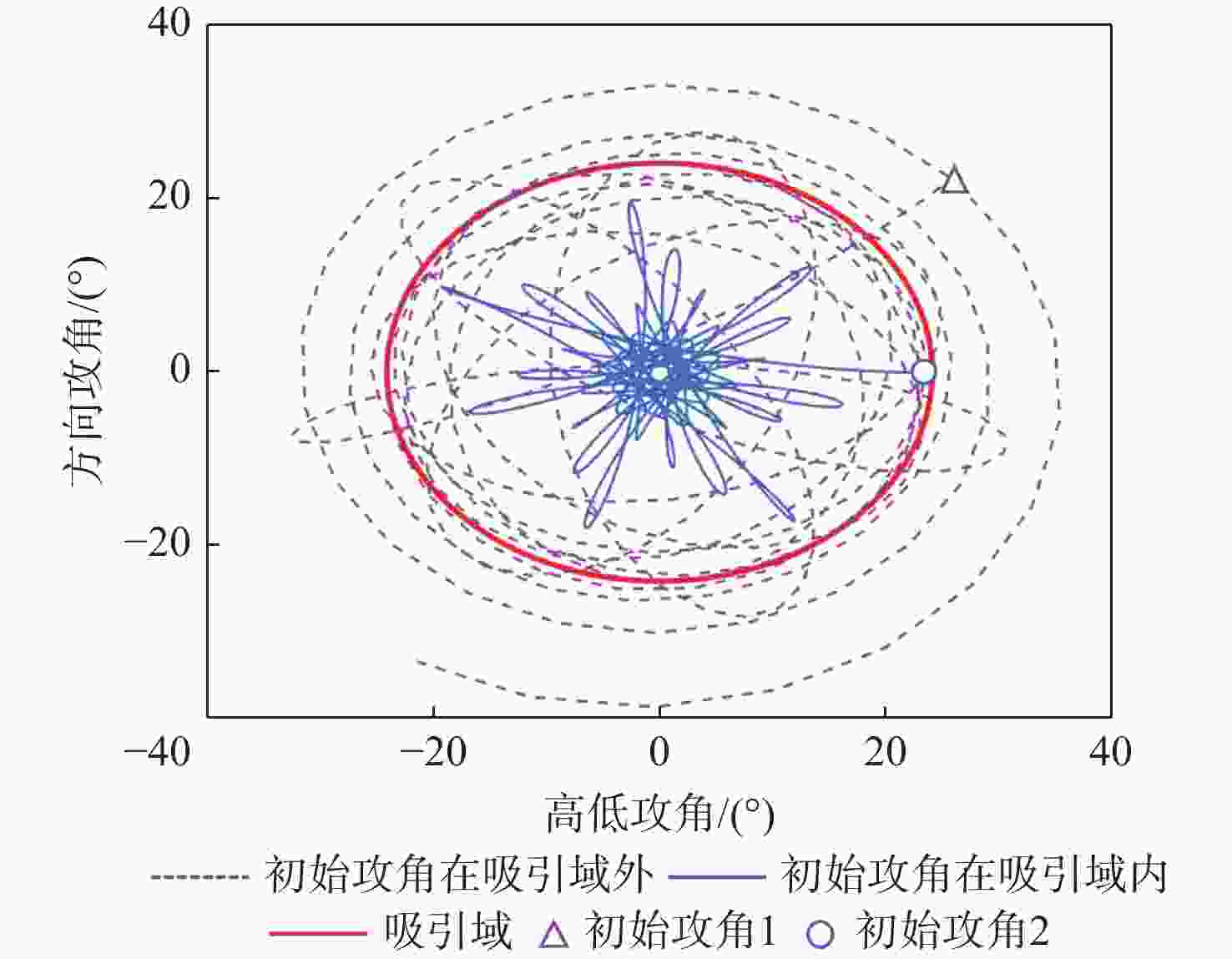

图 7 不同初始攻角下的攻角运动轨迹
Figure 7. Angle of attack motion trajectories at different initial angles of attack
图 8 不同控制方位角下的吸引域估计结果
Figure 8. The estimation results of region of attraction under different control azimuth
图 9 不同舵偏角对应的吸引域估计结果
Figure 9. The estimation results of region of attraction corresponding to different rudder angles
图 10 吸引域边界随$ {\kappa _1} $和$ {\kappa _4} $变化
Figure 10. Region of attraction boundaries vary with $ {\kappa _1} $and $ {\kappa _4} $
图 11 吸引域边界随$ {\kappa _2} $和$ {\kappa _3} $变化
Figure 11. Region of attraction boundaries vary with $ {\kappa _2} $ and $ {\kappa _3} $
图 12 吸引域边界随$ {\tau _1} $和$ {\tau _2} $变化
Figure 12. Region of attraction boundaries vary with $ {\tau _1} $ and $ {\tau _2} $
图 13 吸引域边界随$ {\kappa _5} $和$ {\kappa _6} $变化
Figure 13. Region of attraction boundaries vary with $ {\kappa _5} $ and $ {\kappa _6} $

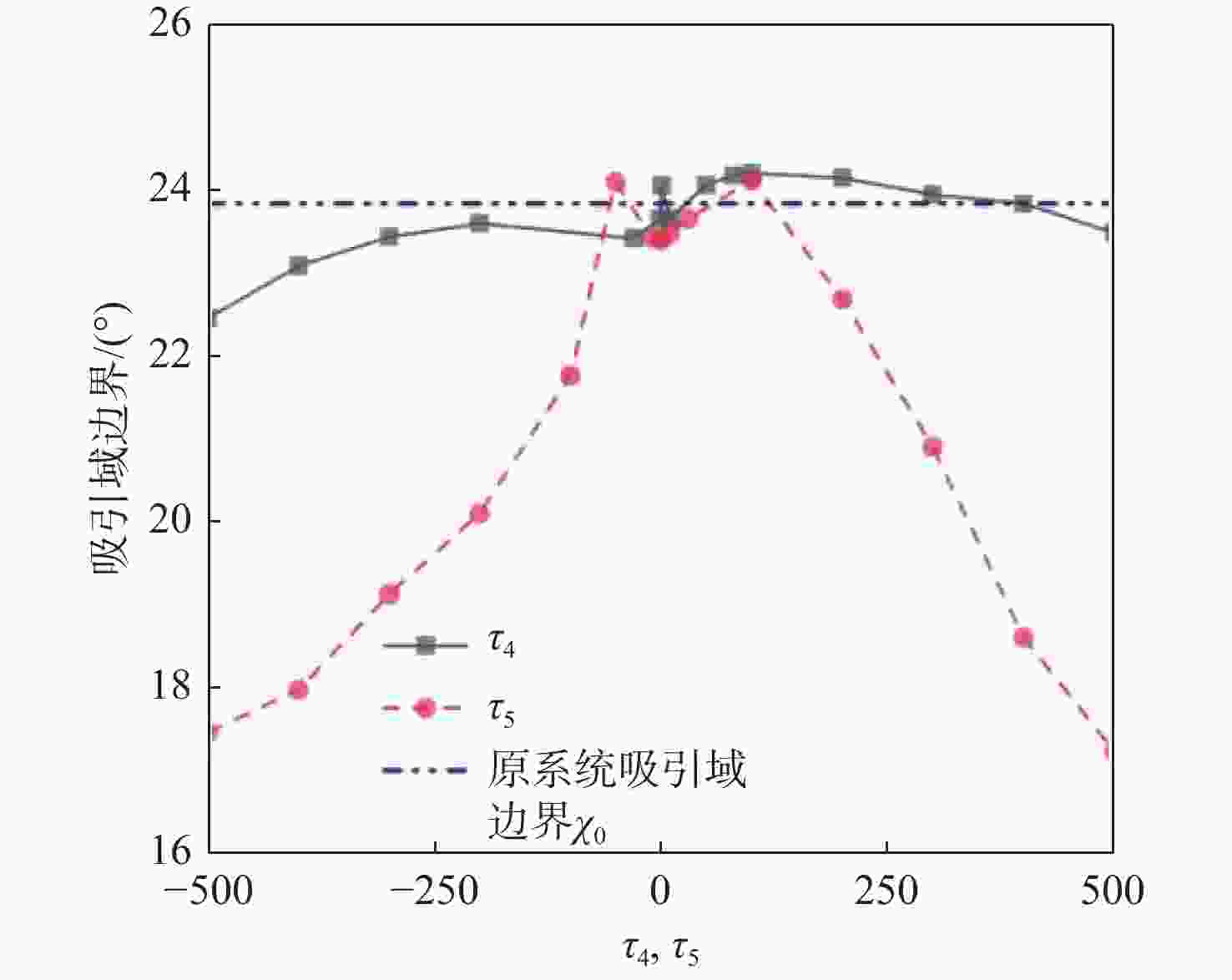

图 14 吸引域边界随$ {\tau _4} $和$ {\tau _5} $变化
Figure 14. Region of attraction boundaries vary with $ {\tau _4} $ and $ {\tau _5} $
表 1 弹箭物理参数
Table 1. Physical parameters of projectile
$ {m_{\text{F}}} $/kg $ {m_{\text{B}}} $/kg $ {r_{\text{F}}} $/m $ {r_{\text{B}}} $/m $ {A_{\text{F}}} $/(kg·m2) $ {A_{\rm B} } $/(kg·m2) $ {C_{\text{F}}} $/(kg·m2) $ {C_{\rm B} } $/(kg·m2) $ r $/m d/m l/m $ {\delta _{\rm c}} $/(°) 15.10 24.90 0.152 4 0.307 3 1.265 5.767 0.023 0.094 0.619 8 0.101 6 0.101 6 5
下载: 导出CSV

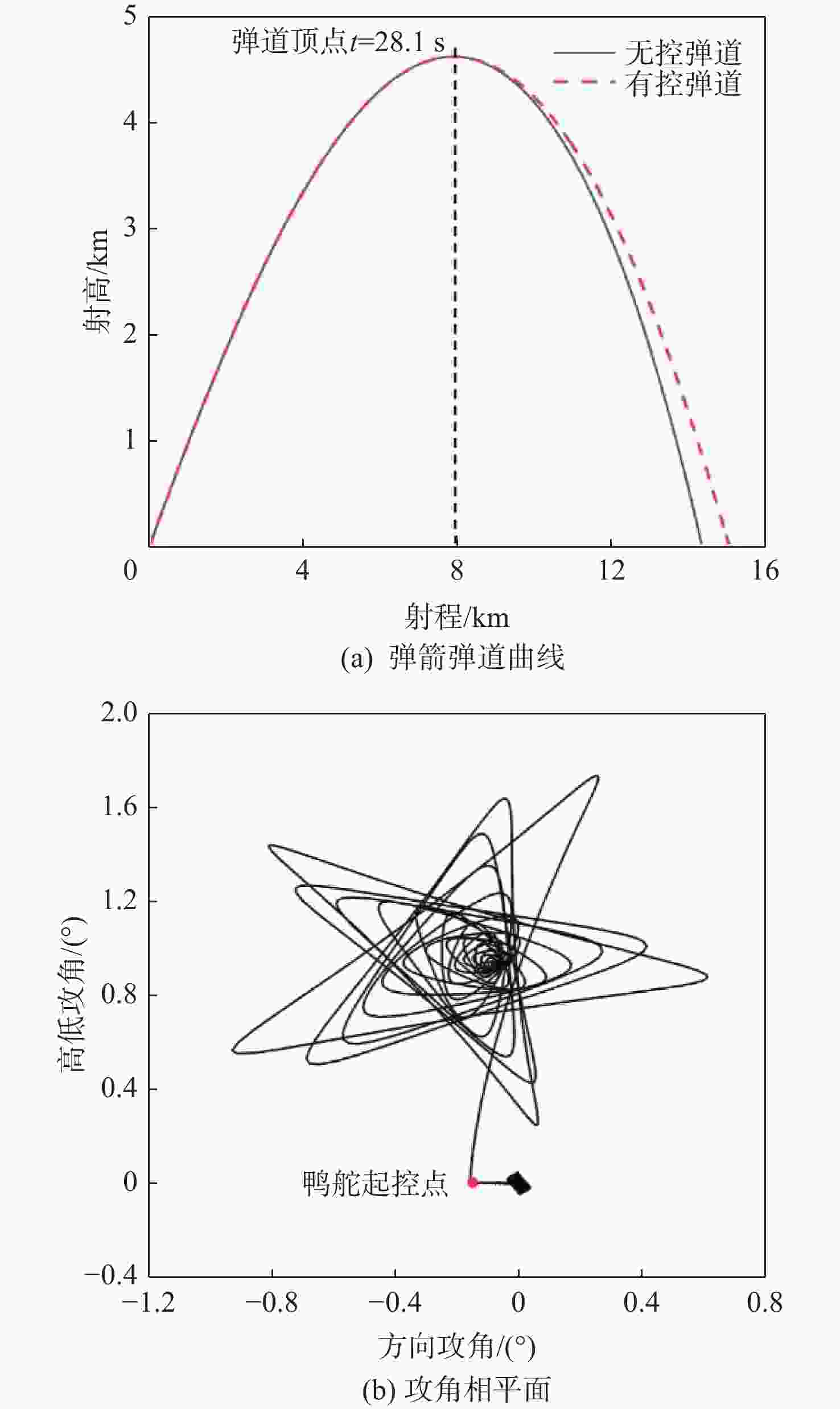

表 2 弹道顶点处的状态参数
Table 2. State parameters at the apex of the trajectory
t/s v/(m·s−1) Ma $ {\dot \gamma _{\rm F}} $/(rad·s−1) $ {\dot \gamma _{\rm B}} $/(rad·s−1) $ {\theta _{\mathrm{a}}} $/(°) 28.10 230.67 0.714 13.13 182.89 0
下载: 导出CSV
表 3 各气动系数拟合决定系数
Table 3. The coefficient of determination of each aerodynamic coefficient parameter
参数 $ {R^2} $ $ {c_x} $ 0.999 $ c_y^\prime $ 0.995 $ m_{\textit{z}}^\prime $ 0.994 $ m_{{\textit{zz}}}^\prime $ 0.998 $ {m}_{\text{F},y}^{\prime \prime} $ 0.983 $ m_{{\rm B},y}^\prime $ 0.976
下载: 导出CSV
表 4 不同阶次下Lyapunov函数所对应的水平集
Table 4. The level sets corresponding to Lyapunov functions of different orders
V的阶次 水平集 2 1.000 1 4 1.000 2 6 1.001 2
下载: 导出CSV
-
[1] 孙化东, 于剑桥, 梅跃松. 卷弧翼滚转导弹Lipschitz自适应轨迹线性化控制[J]. 系统工程与电子技术, 2017, 39(1): 162-167.SUN H D, YU J Q, MEI Y S. Control of wrap-around fin rolling missiles based on Lipschitz adaptive trajectory linearization[J]. Systems Engineering and Electronics, 2017, 39(1): 162-167(in Chinese). [2] MOROTE J, LIANO G. Flight dynamics of unguided rockets with free-rolling wrap around tail fins[J]. Journal of Spacecraft and Rockets, 2006, 43(6): 1422-1423. [3] EASTMAN D, WENNDT D. Aerodynamics of maneuvering missiles with wrap-around fins[C]//Proceedings of the 3rd Applied Aerodynamics Conference. Reston: AIAA, 1985: 4083. [4] EDGE H L. Computation of the roll moment for a projectile with warp-around fins[J]. Journal of Spacecraft and Rockets, 1994, 31(4): 615-620. [5] TILMANN C P, BUTER T A, BOWERSOX R D W. Characterization of the flowfield near a wrap-around fin at Mach 2.8[J]. Journal of Aircraft, 1998, 35(6): 868-875. [6] 赵良玉, 杨树兴, 焦清介. 提高卷弧翼火箭弹圆锥运动渐近稳定性的几个方法[J]. 固体火箭技术, 2010, 33(4): 369-372.ZHAO L Y, YANG S X, JIAO Q J. Several methods for improving asymptotic stability of coning motion of wrap-around-fin rockets[J]. Journal of Solid Rocket Technology, 2010, 33(4): 369-372(in Chinese). [7] MOROTE J. Lateral motion of free-rolling tail rockets in free flight[J]. Journal of Spacecraft and Rockets, 2005, 42(5): 873-882. [8] MURPHY C H. Free flight motion of symmetric missiles: AD Report No. 1216[R]. [s.l.]: Ballistic Research Laboratory, 1963. [9] MURPHY C H. Instability of controlled projectiles in ascending or descending flight[J]. Journal of Guidance and Control, 1981, 4(1): 66-69. [10] MOROTE J, MOROTE P. Catastrophic yaw of triform and cruciform-tailed missiles[J]. Journal of Spacecraft and Rockets, 2018, 55(1): 247-250. [11] MOROTE J. Resonant lock-in of unguided rockets having nonlinear aerodynamic properties[C]//Proceedings of the 44th AIAA Aerospace Sciences Meeting and Exhibit. Reston: AIAA, 2006: 830. [12] MOROTE J, LIAÑO G, JIMÉNEZ J. Nonlinear rolling motion of triform finned missiles[J]. Journal of Spacecraft and Rockets, 2017, 54(2): 459-470. [13] MURPHY C H. Nonlinear motion of a missile with slight configurational asymmetries[J]. Journal of Spacecraft and Rockets, 1971, 8(3): 259-263. [14] MCCOY R L. Modern exterior ballistics: the launch andflight dynamics of symmetric projectiles[M]. Atglen: Schiffer Military History, 1999. [15] 蒋增辉, 宋威, 陈农. 小迎角高超声速非旋转钝锥非线性运动分析[J]. 航空学报, 2016, 37(5): 1454-1461.JIANG Z H, SONG W, CHEN N. Analysis of nonlinear motion for hypersonic non-spinning blunt cones at small angle of attack[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(5): 1454-1461(in Chinese). [16] 钱龙, 常思江, 杨文龙, 等. 固定鸭舵修正弹非线性与非定常气动数值模拟[J]. 弹道学报, 2020, 32(1): 31-37.QIAN L, CHANG S J, YANG W L, et al. Simulation on nonlinear and unsteady aerodynamic characteristics of fixed-canard correction projectile[J]. Journal of Ballistics, 2020, 32(1): 31-37(in Chinese). [17] 韩子鹏, 常思江, 史金光. 弹箭非线性运动理论[M]. 北京: 北京理工大学出版社, 2016.HAN Z P, CHANG S J, SHI J G. Nonlinear motion theory of projectile and rocket[M]. Beijing: Beijing Insititute of Technology Press, 2016(in Chinese). [18] CHANG S J, LI D Y. Homotopy-analysis-method-based solutions of quintic nonlinear angular motion for projectiles[J]. Journal of Spacecraft and Rockets, 2018, 55(3): 669-680. [19] 李东阳, 常思江, 王中原, 等. 正规形法在弹箭非线性运动分析中的应用[J]. 国防科技大学学报, 2022, 44 (2): 44-54.LI D Y, CHANG S J, WANG Z Y , et al. Applying the method of normal forms to projectile nonlinear motion analysis[J]. Journal of National University of Defense Technology, 2022, 44(2): 44-54(in Chinese). [20] 杨树兴, 赵良玉, 闫晓勇. 旋转弹动态稳定性理论[M]. 北京: 国防工业出版社, 2014.YANG S X, ZHAO L Y, YAN X Y. Dynamic stability of spinning missiles[M]. Beijing: National Defense Industry Press, 2014(in Chinese). [21] 钟扬威, 王良明, 傅健, 等. 弹箭非线性角运动稳定性 Hopf 分岔分析[J]. 兵工学报, 2015, 36(7): 1195-1202.ZHONG Y W, WANG L M, FU J, et al. Hopf bifurcation analysis of nonlinear angular motion stability of projectile[J]. Acta Armamentarii, 2015, 36(7): 1195-1202(in Chinese). [22] 杨杰, 常思江, 魏伟. 带扰流片旋转稳定弹动态稳定性[J]. 兵工学报, 2021, 42(8): 1613-1623.YANG J, CHANG S J, WEI W. Dynamic stability of spin-stabilized projectile with spoiler[J]. Acta Armamentarii, 2021, 42(8): 1613-1623(in Chinese). [23] 赵新新, 史金光, 王中原, 等. 鸭舵式双旋弹非线性角运动及其分岔特性[J]. 兵工学报, 2023, 44(10): 3067-3078.ZHAO X X, SHI J G, WANG Z Y, et al. Nonlinear angular motion and bifurcation characteristics of canard dual-spin projectiles[J]. Acta Armamentarii, 2023, 44(10): 3067-3078(in Chinese). [24] KHODADADI L, SAMADI B, KHALOOZADEH H. Estimation of region of attraction for polynomial nonlinear systems: a numerical method[J]. ISA Transactions, 2014, 53(1): 25-32. [25] GENESIO R, TARTAGLIA M, VICINO A. On the estimation of asymptotic stability regions: state of the art and new proposals[J]. IEEE Transactions on Automatic Control, 1985, 30(8): 747-755. [26] CHIANG H D, THORP J S. Stability regions of nonlinear dynamical systems: a constructive methodology[J]. IEEE Transactions on Automatic Control, 1989, 34(12): 1229-1241. [27] SIDOROV E, ZACKSENHOUSE M. Lyapunov based estimation of the basin of attraction of Poincare maps with applications to limit cycle walking[J]. Nonlinear Analysis: Hybrid Systems, 2019, 33: 179-194. [28] CUNIS T, CONDOMINES J P, BURLION L. Sum-of-squares flight control synthesis for deep-stall recovery[J]. Journal of Guidance, Control, and Dynamics, 2020, 43(8): 1498-1511. [29] 伍强, 徐浩军, 裴彬彬, 等. 基于吸引域与二元极值理论的结冰飞机飞行风险量化评估[J]. 航空学报, 2022, 43(5): 125137.WU Q, XU H J, PEI B B, et al. Quantitative evaluation of flight risk of icing aircraft based on theory of region of attraction and binary extreme value[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(5): 125137(in Chinese). [30] 李东阳, 常思江, 王中原. 弹箭角运动的非线性吸引域估计[J]. 兵工学报, 2023, 44(8): 2329-2341.LI D Y, CHANG S J, WANG Z Y. Nonlinear region of attraction estimation for projectile’s angular motion[J]. Acta Armamentarii, 2023, 44(8): 2329-2341(in Chinese). [31] 韩子鹏, 常思江. 弹箭外弹道学[M]. 2版. 北京: 北京理工大学出版社, 2022.HAN Z P, CHANG S J. Exterior ballistics of projectiles and rockets[M]. 2nd ed. Beijing: Beijing Insititute of Technology Press, 2022(in Chinese). [32] TAN W. Nonlinear control analysis and synthesis using sum-of-squares programming[D]. Berkeley: University of California, Berkeley, 2006. -
