摘要:
斯坦顿数是评价飞行器气动热性能的重要指标，但其求解方法尚有分歧，主要体现在对流换热驱动温度的确定方式上。当前常用的2种方法均基于解析公式获得驱动温度，统称为“解析法”：第1种方法选取来流总温作为驱动温度，第2种方法选取高速流动外掠平板时的壁面恢复温度作为驱动温度。鉴于此，以驱动温度等于绝热壁温的方法为基准，通过数值仿真对比了上述2种解析法与新引入的双壁温法(即由2组等温壁面算例的结果作差获得对流换热系数)在求解钝体壁面斯坦顿数时的准确性。结果表明：双壁温法所得斯坦顿数与基准方法的吻合度远高于2种解析法，其壁面平均斯坦顿数与基准方法的相对偏差在5%以内，而2种解析法的相对偏差均大于15%。此外，双壁温法所得驱动温度沿钝体圆周角的变化趋势与绝热壁温一致，而2种解析法所得驱动温度在各圆周角下均为定值，不符合物理规律。
Abstract:The Stanton number is an important barometer in evaluating the aerodynamic thermal performance of a vehicle, but its determination is still subject to controversy, particularly because the method for obtaining the driving temperature during the convective heat transfer process is arguable. The two approaches that are frequently used in the open literature are referred to as "analytical methods" because they both use analytical formulas to determine the driving temperature. One considers the driving temperature to be the total temperature of the incoming flow, while the other compares it to the recovery temperature for high-speed flow over a flat plate. To resolve this dispute, this paper conducted numerical simulations to compare the accuracy of the two analytical methods, as well as the newly introduced two-point method (whose convective heat transfer coefficient is obtained by subtracting the results of two isothermal cases with different wall temperatures), in solving the Stanton number on the blunt body. The baseline for comparison is the method where the driving temperature is the adiabatic wall temperature. Numerical results show that the Stanton number calculated by the two-point method provides a much better agreement with the baseline method than the two analytic methods. The difference between the two-point method's area-averaged Stanton number and the baseline method is less than 5%, whereas the difference between the two analytical approaches and the baseline method is more than 15%. Moreover, the driving temperature derived by the two-point method varies along the circumferential angle of the blunt body with the same trend as the adiabatic wall temperature. In contrast, the driving temperature calculated by either of the two analytic methods remains a constant value at different circumferential angles, which does not comply with our physical consensus.
-
Key words:
- supersonic /
- blunt bodies /
- aerodynamic heating /
- Stanton number /
- driving temperature /
- two-point method
-

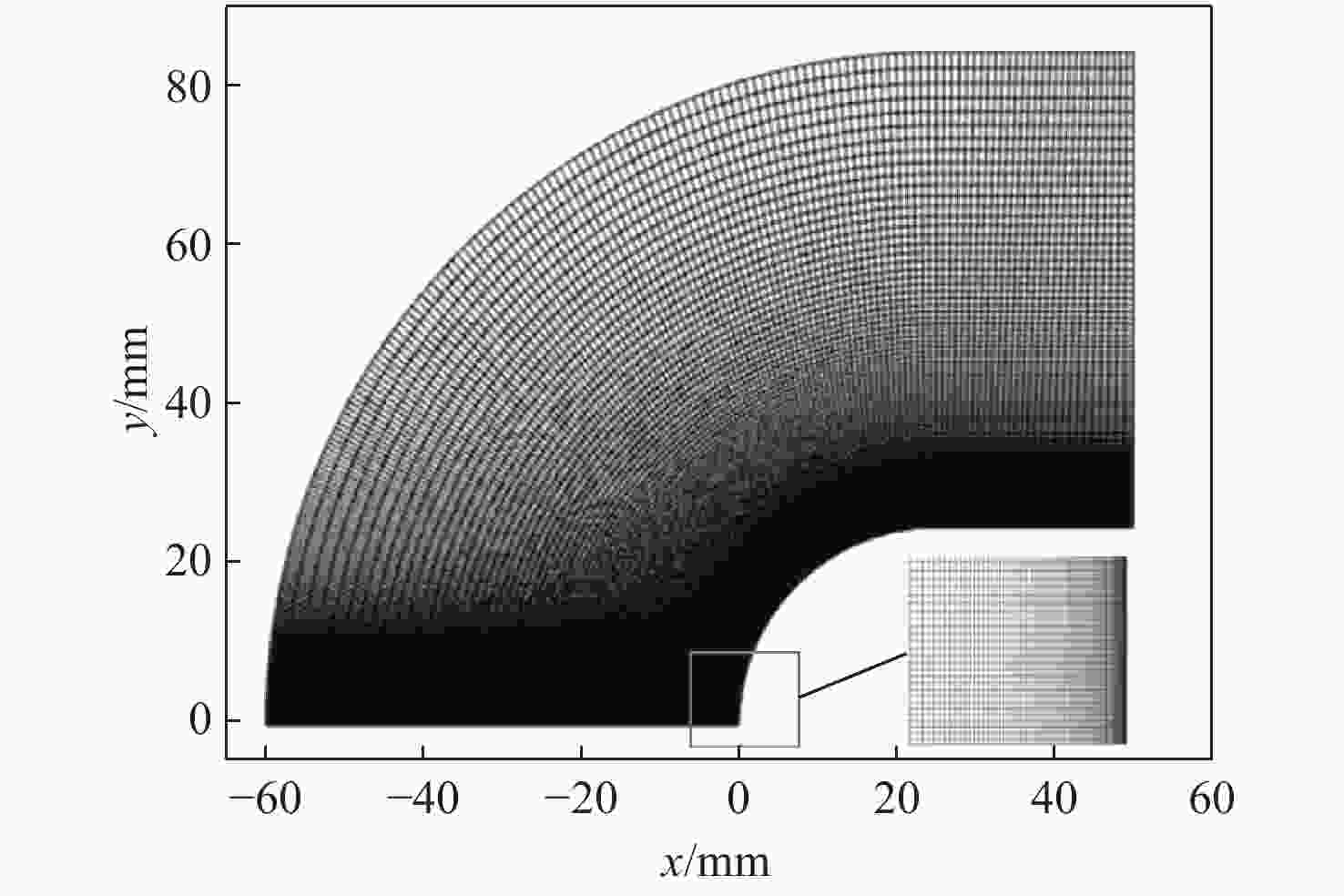

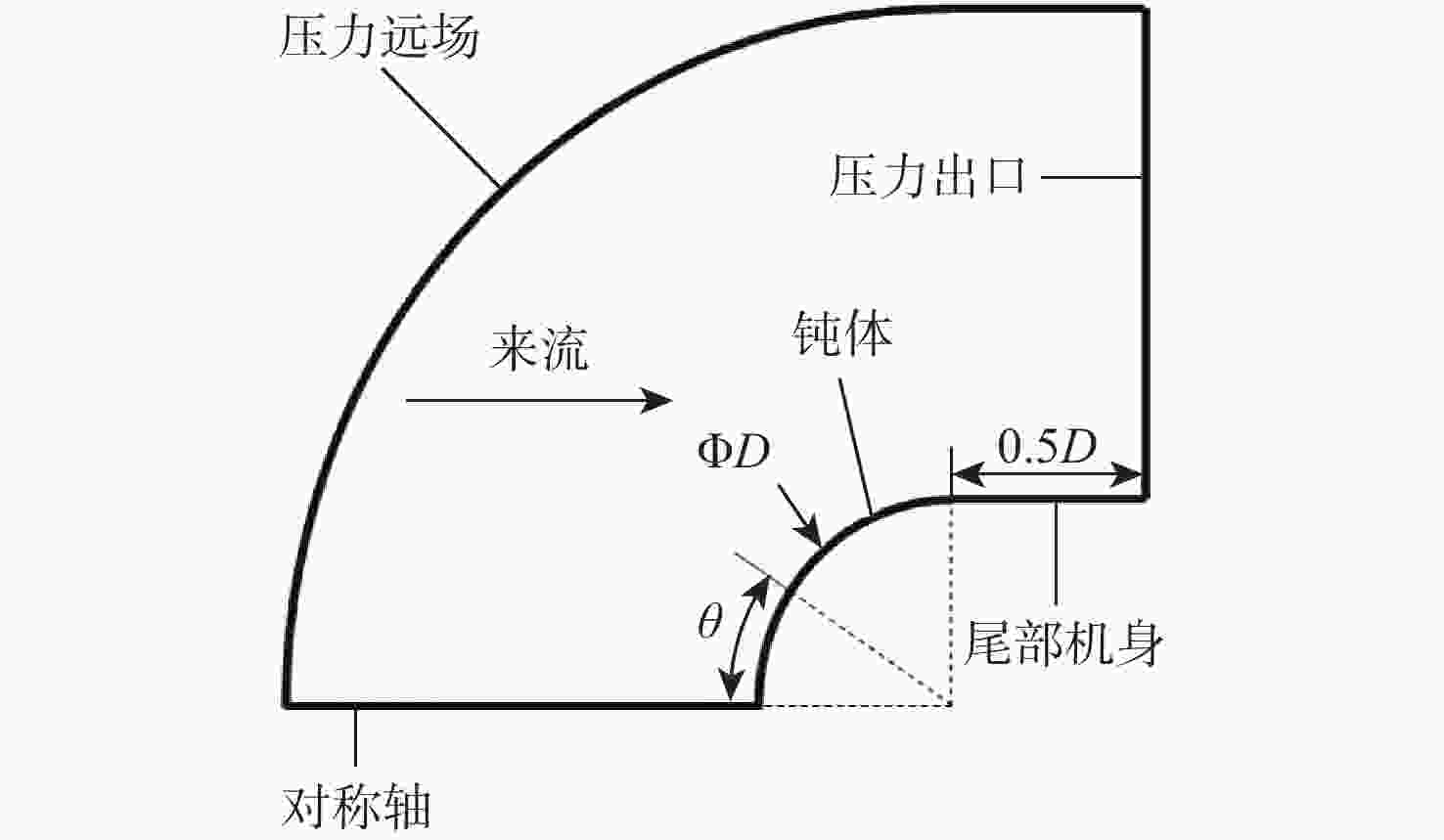

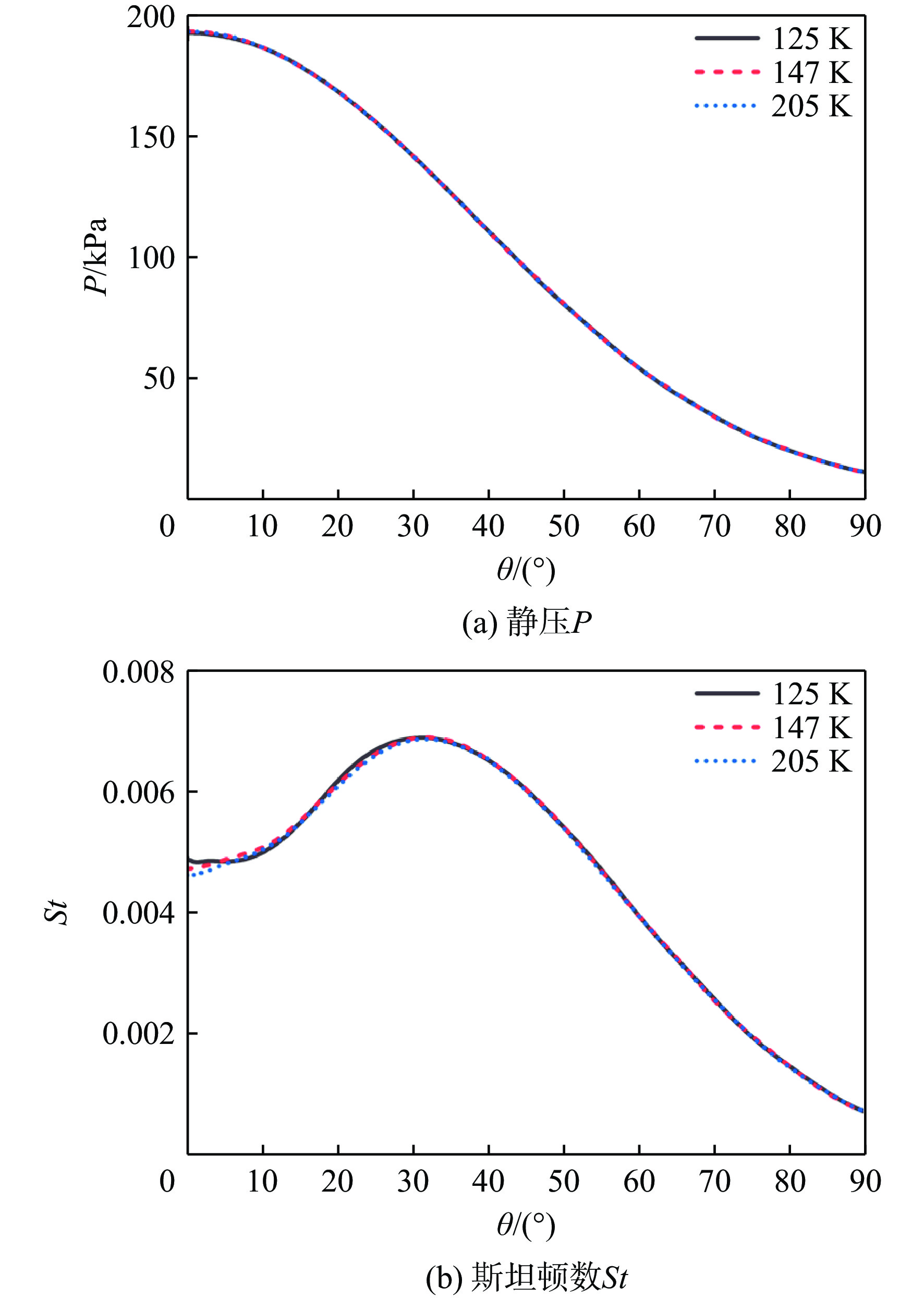

图 3 不同网格数下钝体静压与斯坦顿数沿圆周角分布
Figure 3. Distribution of static pressure and Stanton number along the circumferential angle on the blunt body for different grid sizes

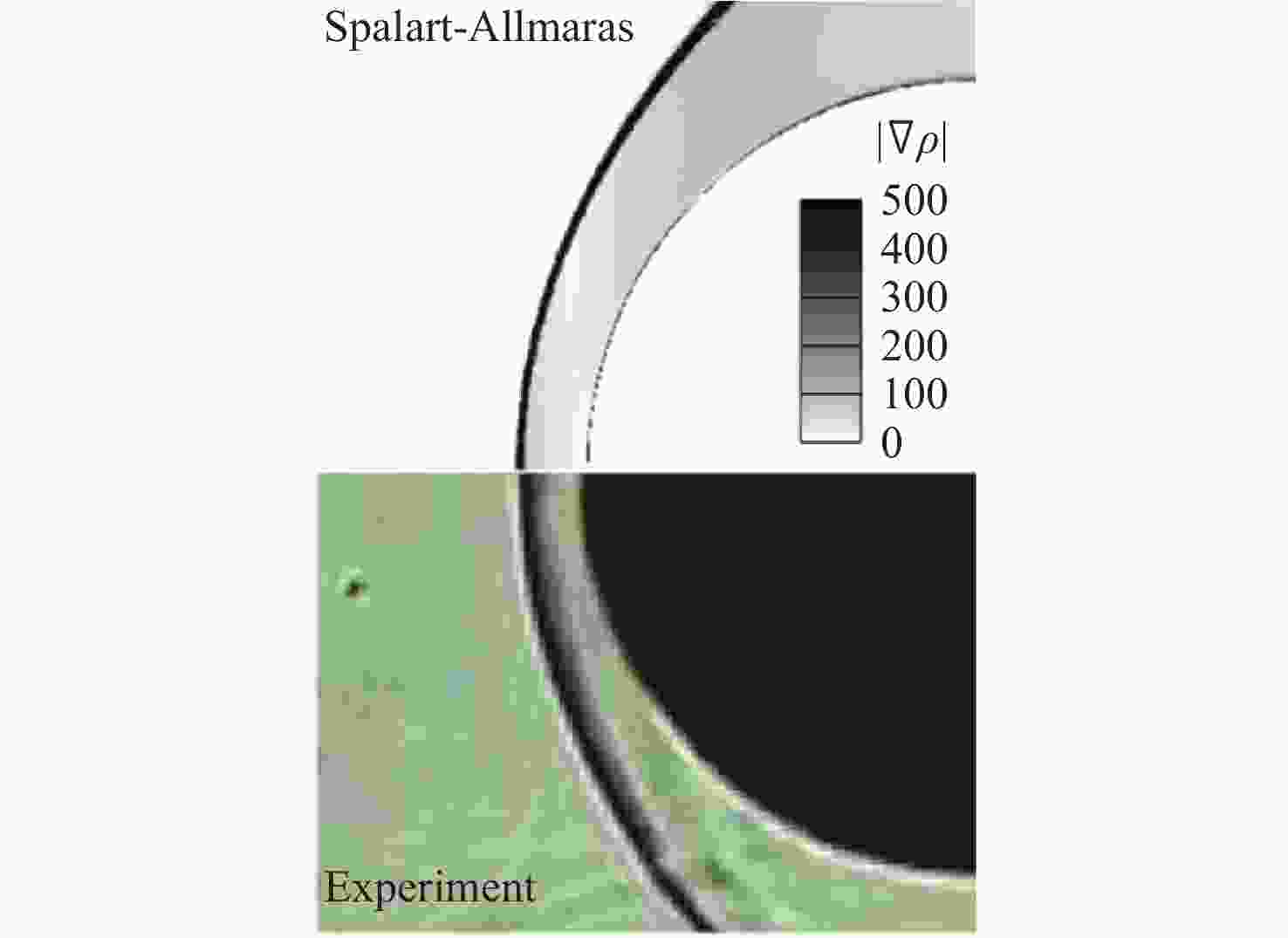

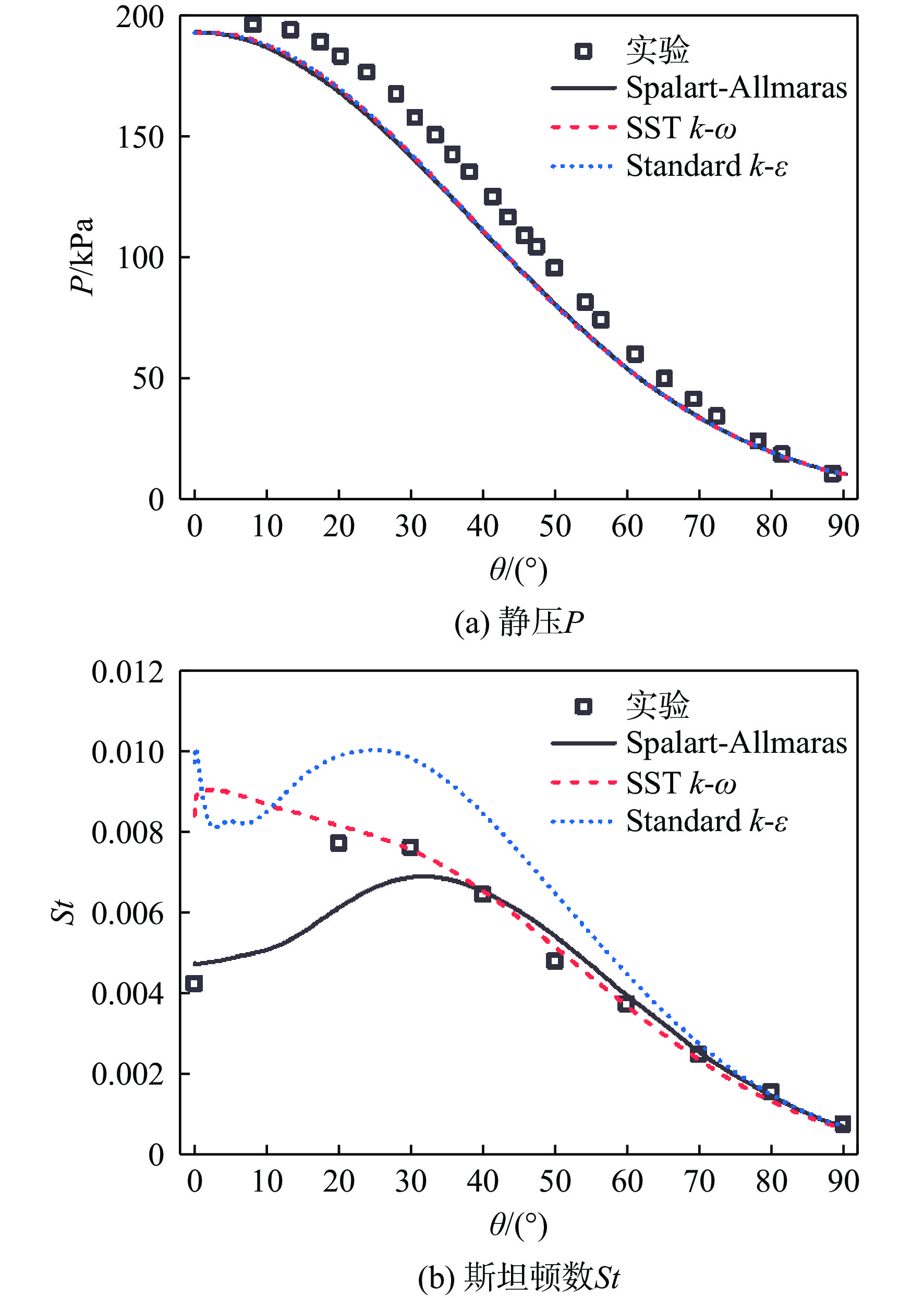

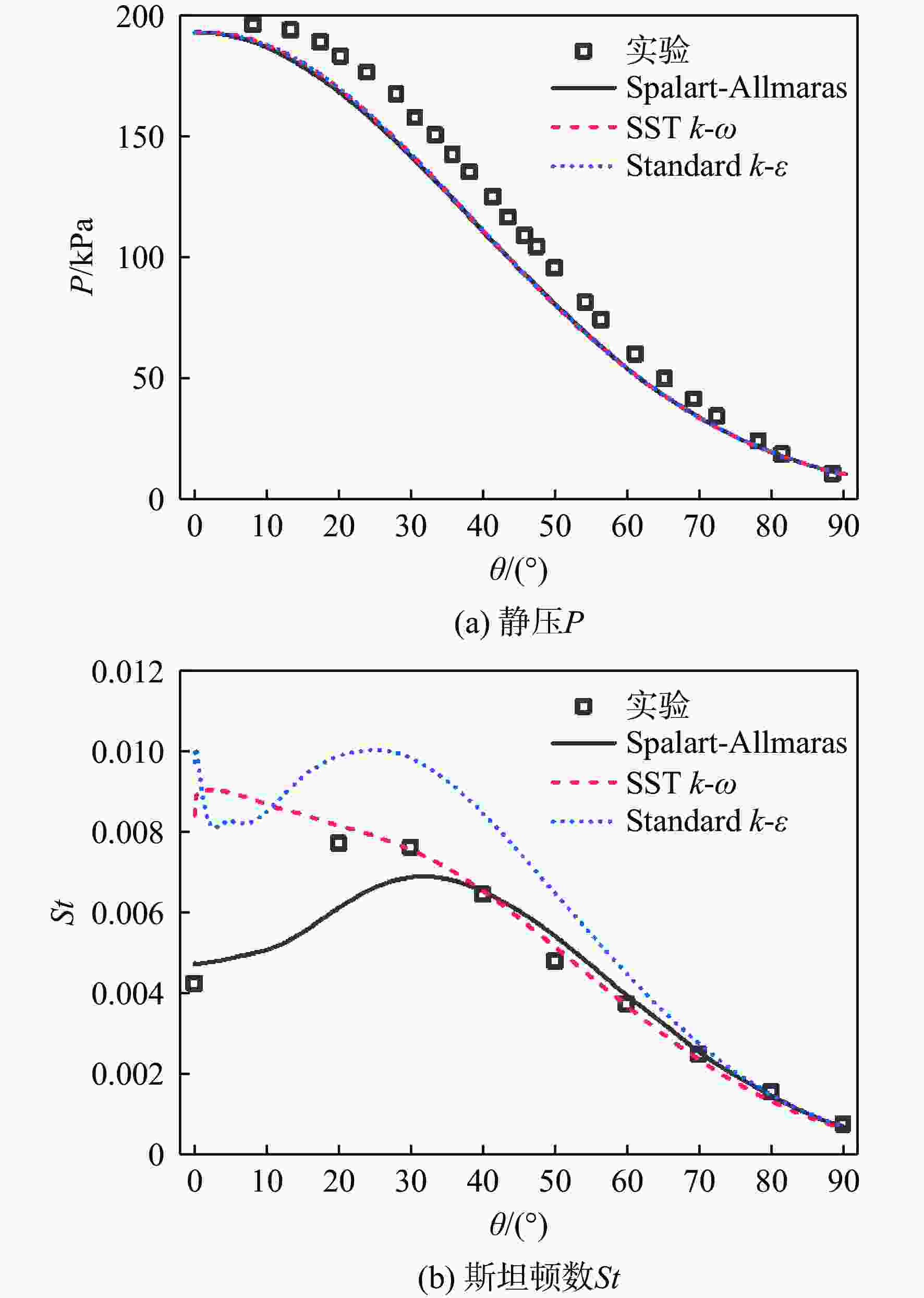

图 4 RANS模型与实验钝体静压与斯坦顿数沿圆周角分布
Figure 4. Distribution of static pressure and Stanton number along the circumferential angle on the blunt body, obtained from RANS models and experiment

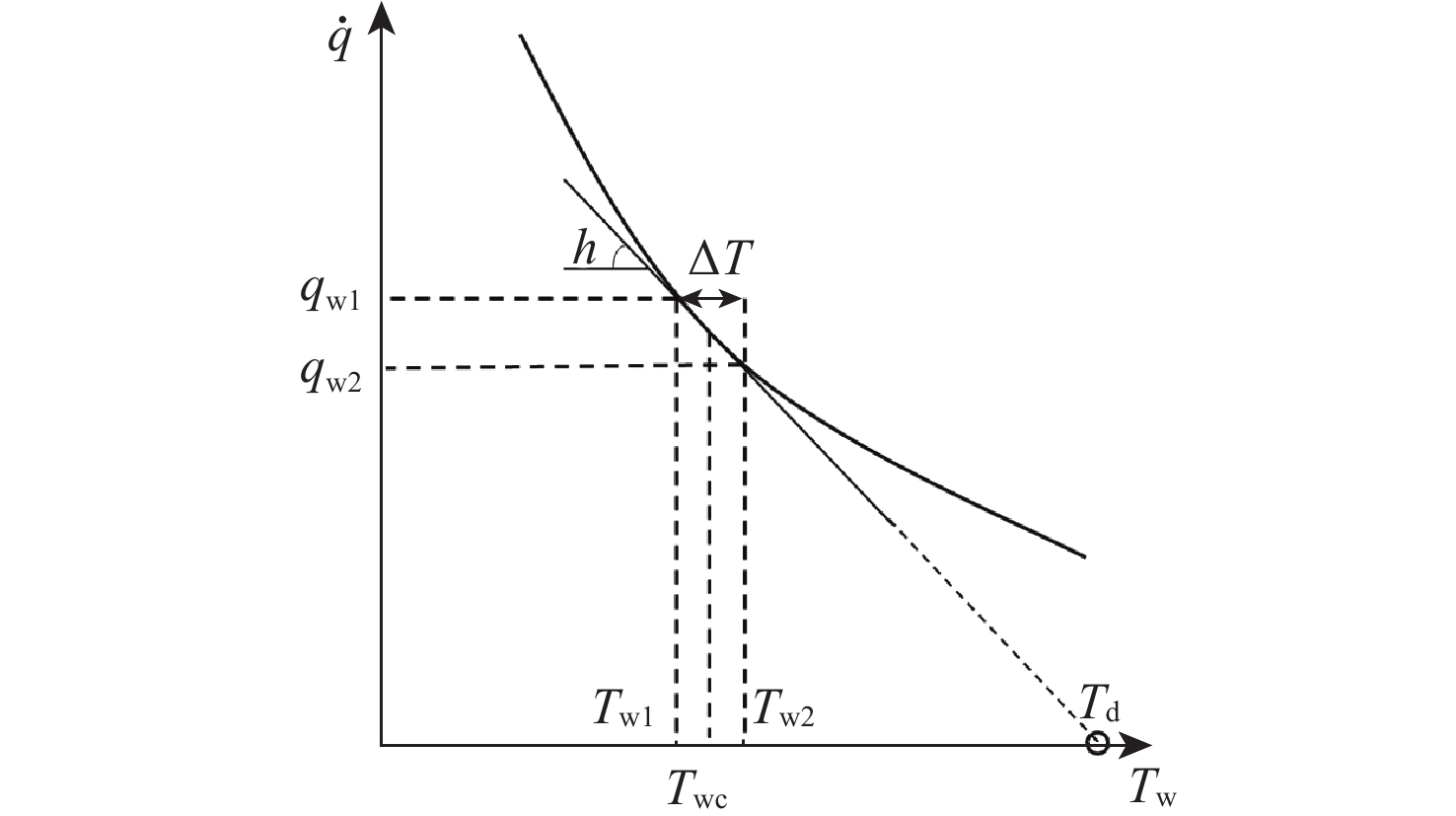

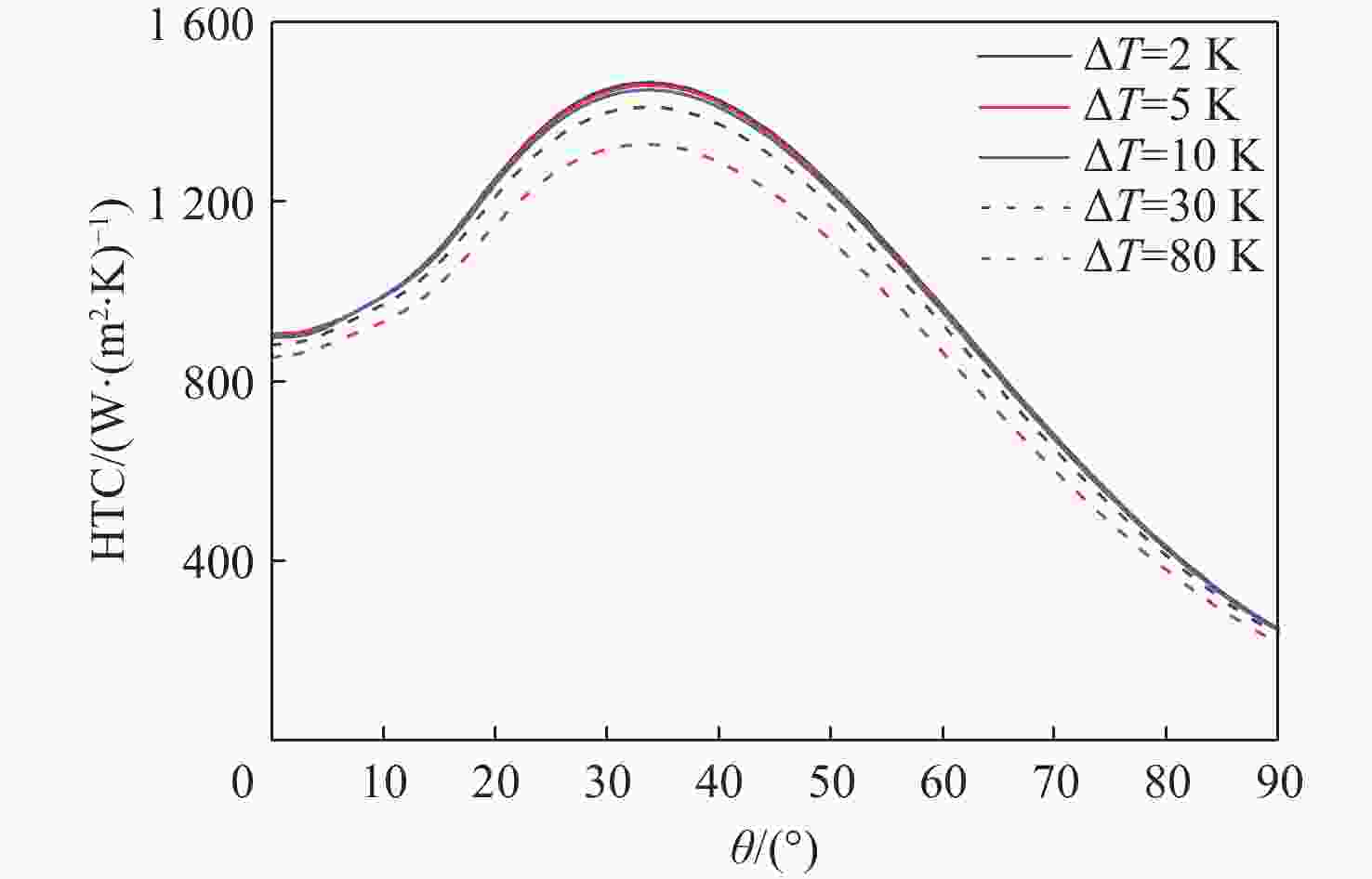

图 7 温差为2 K、5 K、10 K、30 K与80 K时，钝体换热系数沿圆周角分布
Figure 7. Distribution of heat transfer coefficient along the circumferential angle on the blunt body, for ΔT of2 K, 5 K, 10 K, 30 K and 80 K

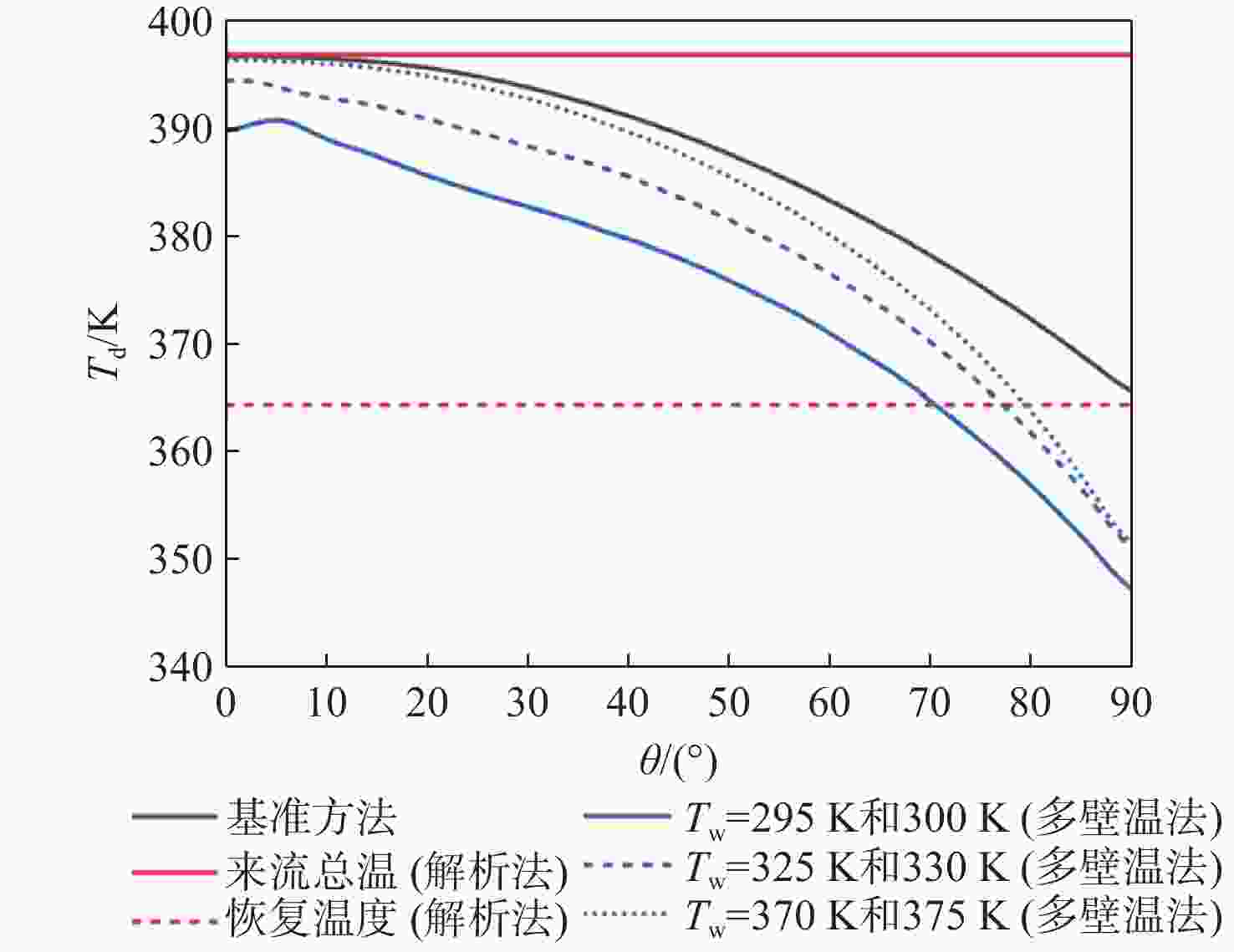

图 8 不同壁面温度下，不同方法所得驱动温度沿圆周角分布
Figure 8. Distribution of driving temperature along the circumferential angle on the blunt body, obtained from different methods at different wall temperatures

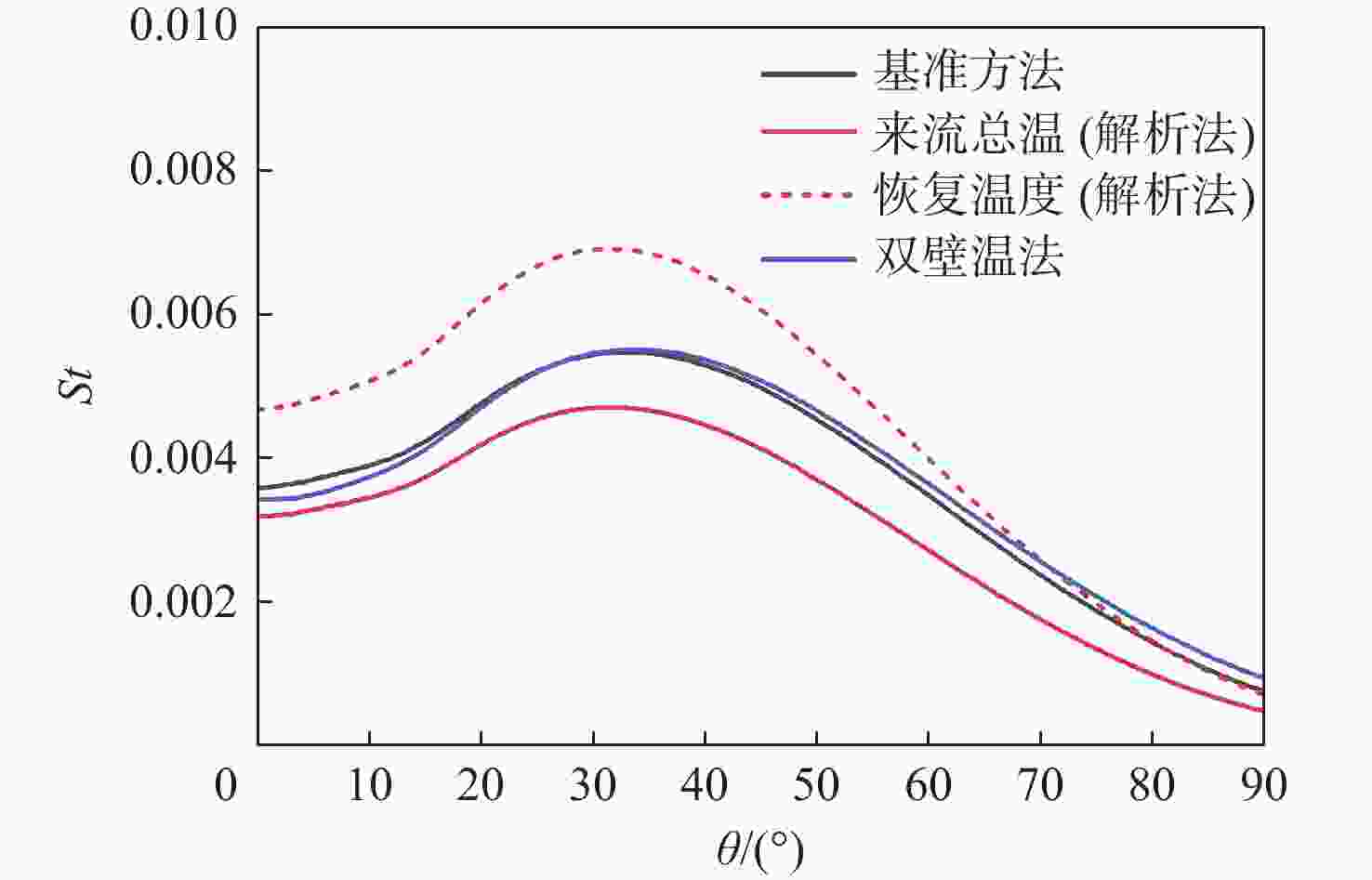

图 9 恒温壁Tw =295 K时，不同方法所得壁面斯坦顿数沿圆周角分布
Figure 9. Distribution of Stanton number along the circumferential angle on the blunt body, obtained from different methods at an isothermal wall of Tw=295 K

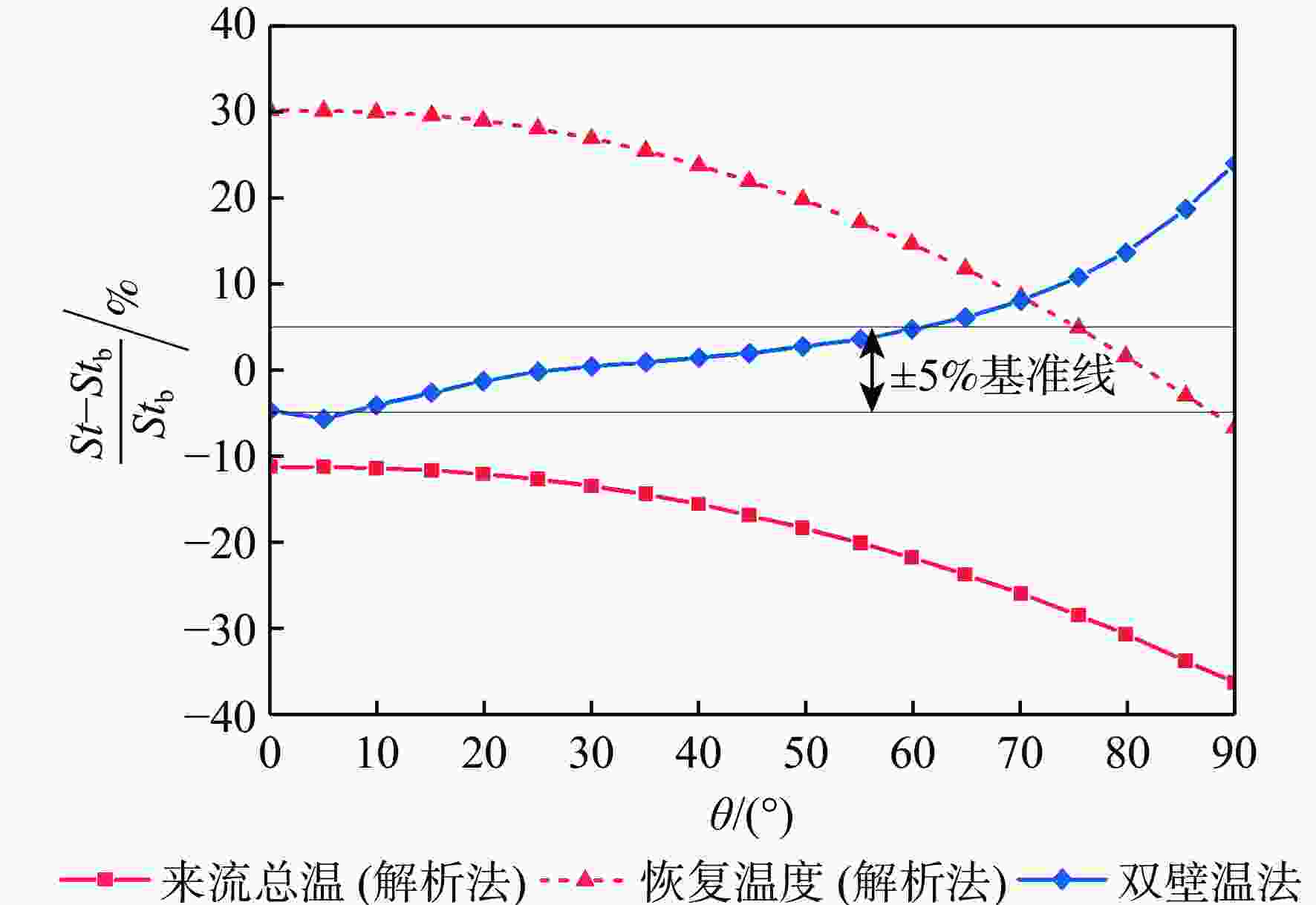

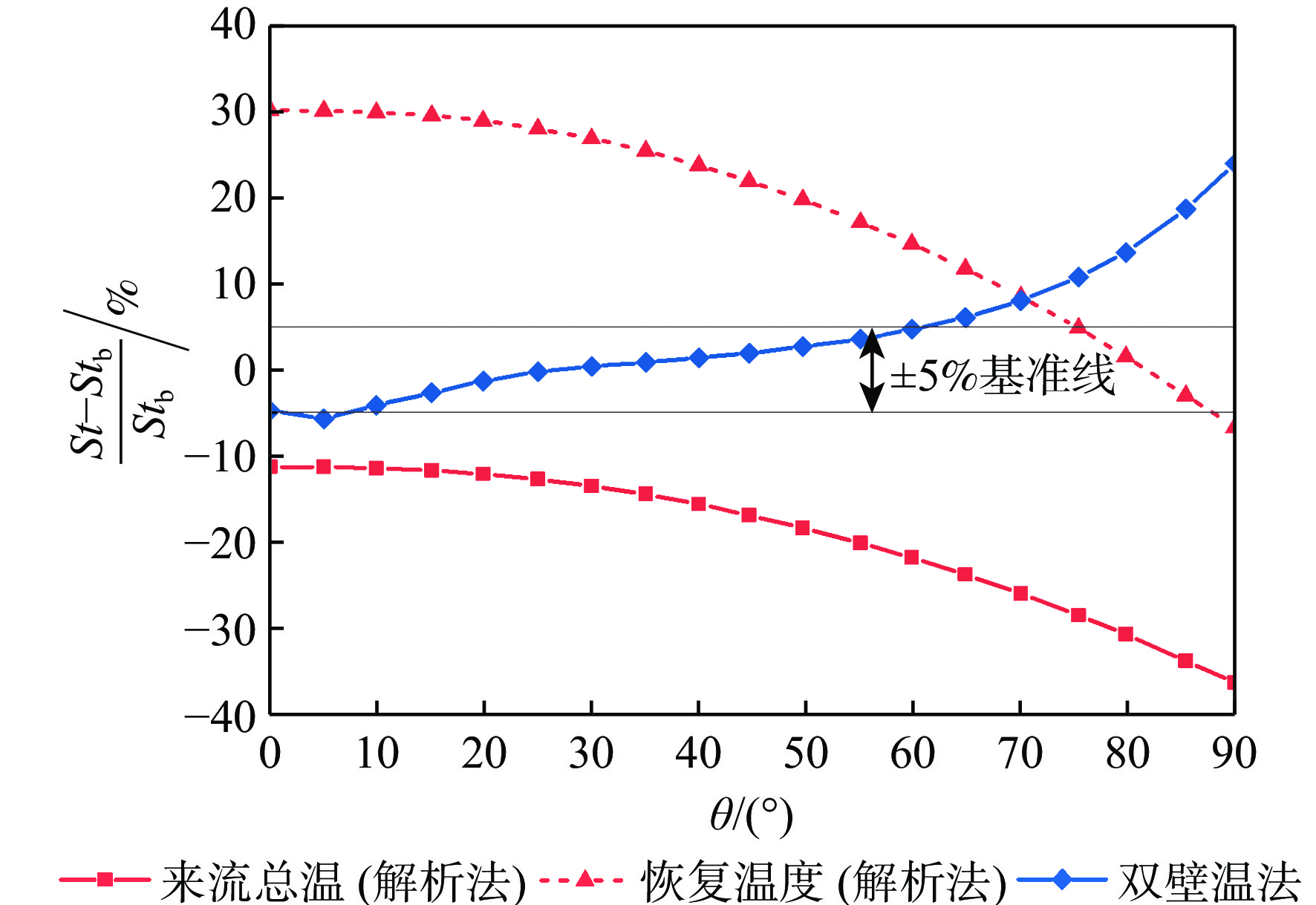

图 10 恒温壁${T_{\text{w}}}$=295 K时，解析法与双壁温法所得斯坦顿数与基准方法之间的差值百分数
Figure 10. Percentage difference of Stanton number obtained by analytical method and two-point method compared to the baseline method, for the isothermal wall of Tw=295 K

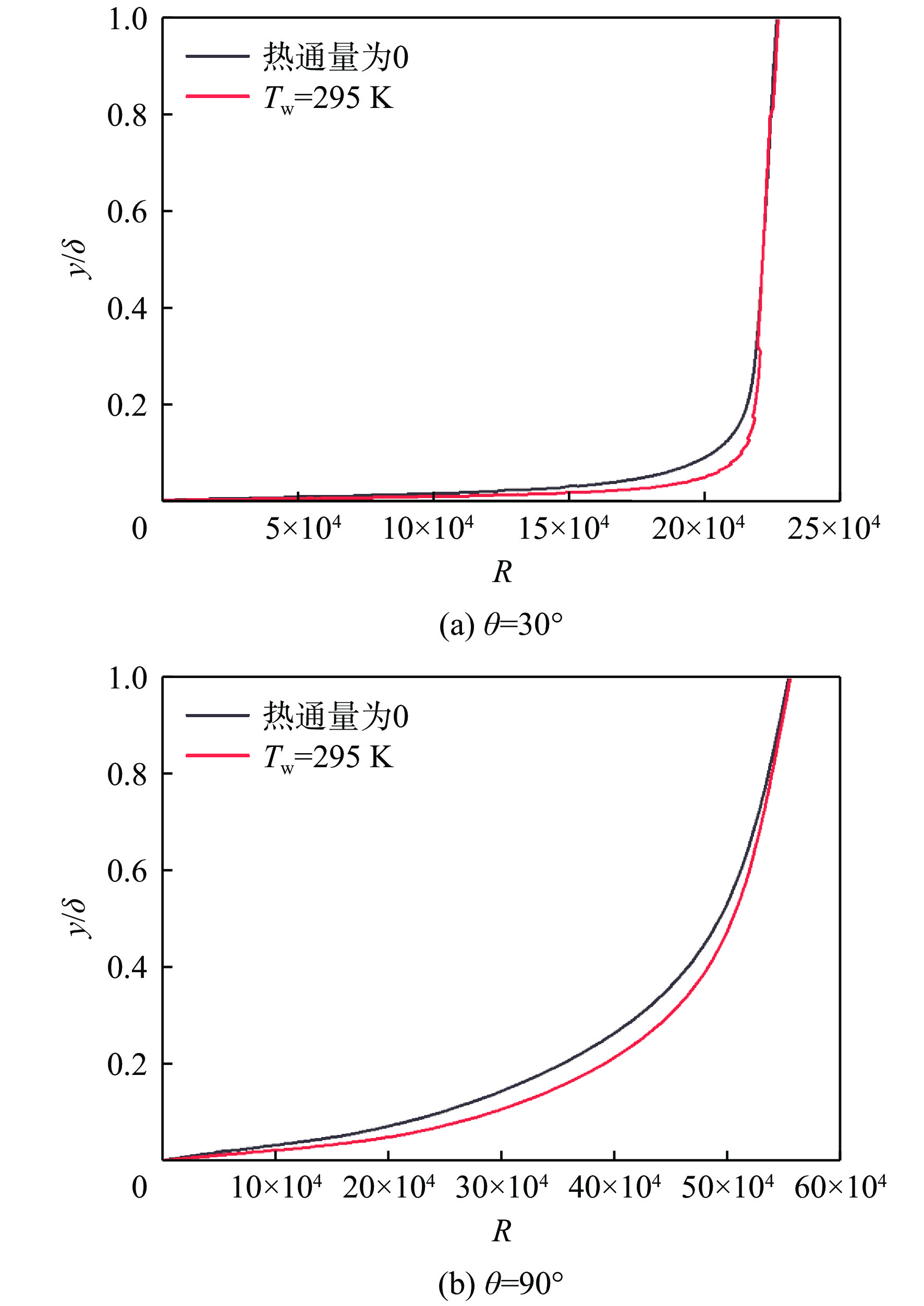

图 11 绝热壁面与等温壁面2个工况下，无量纲气动热参数沿2个圆周角边界层的分布
Figure 11. Distribution of the non-dimensional aerothermal parameter across the boundary layer at two circumferential angles, calculated by the case with adiabatic wall and isothermal wall, respectively

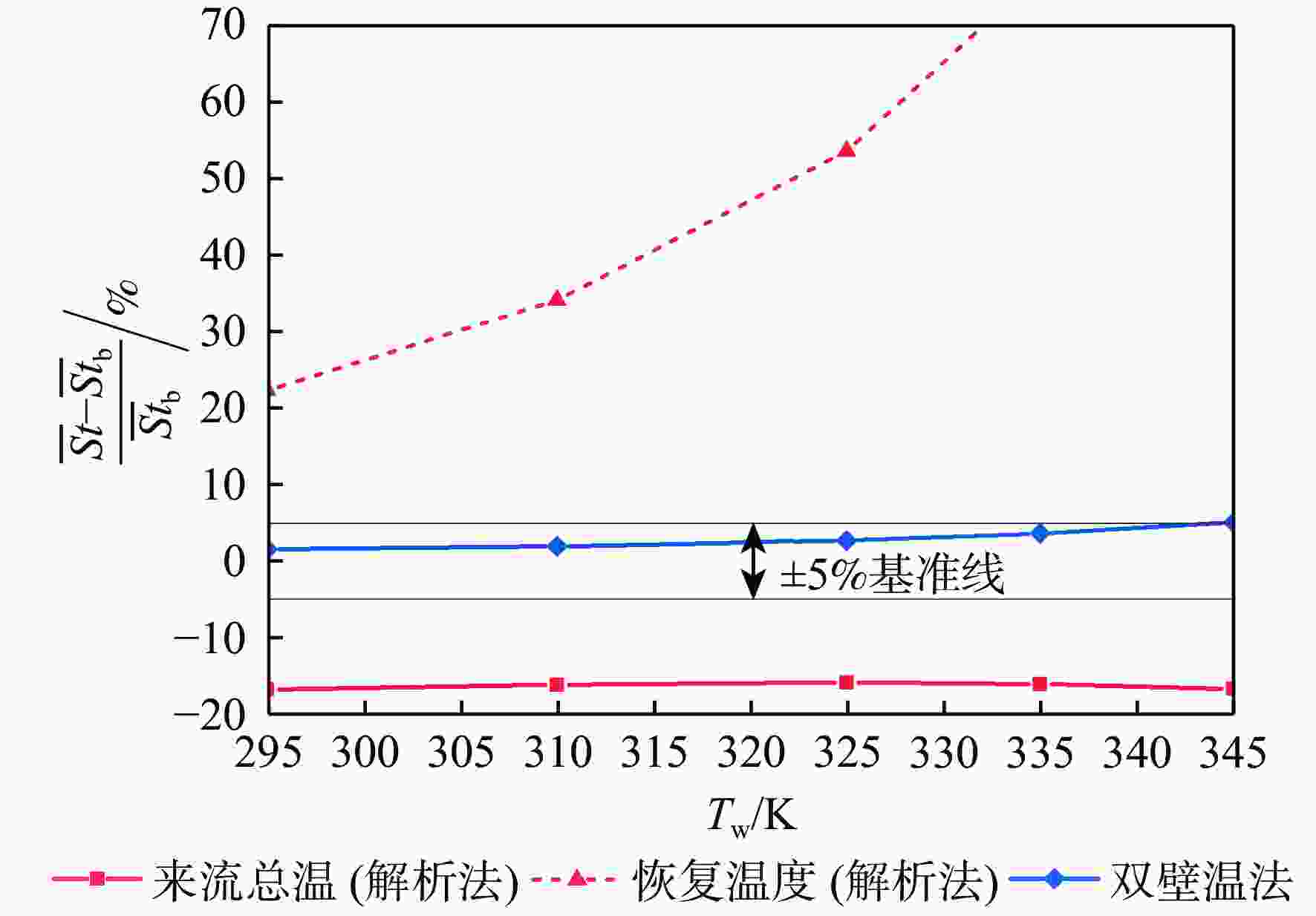

图 12 不同壁面温度下，解析法与双壁温法所得平均斯坦顿数与基准方法之间的差值百分比
Figure 12. Percentage difference of average Stanton number obtained by analytical method and two-point method compared to the baseline method, at different isothermal wall temperatures

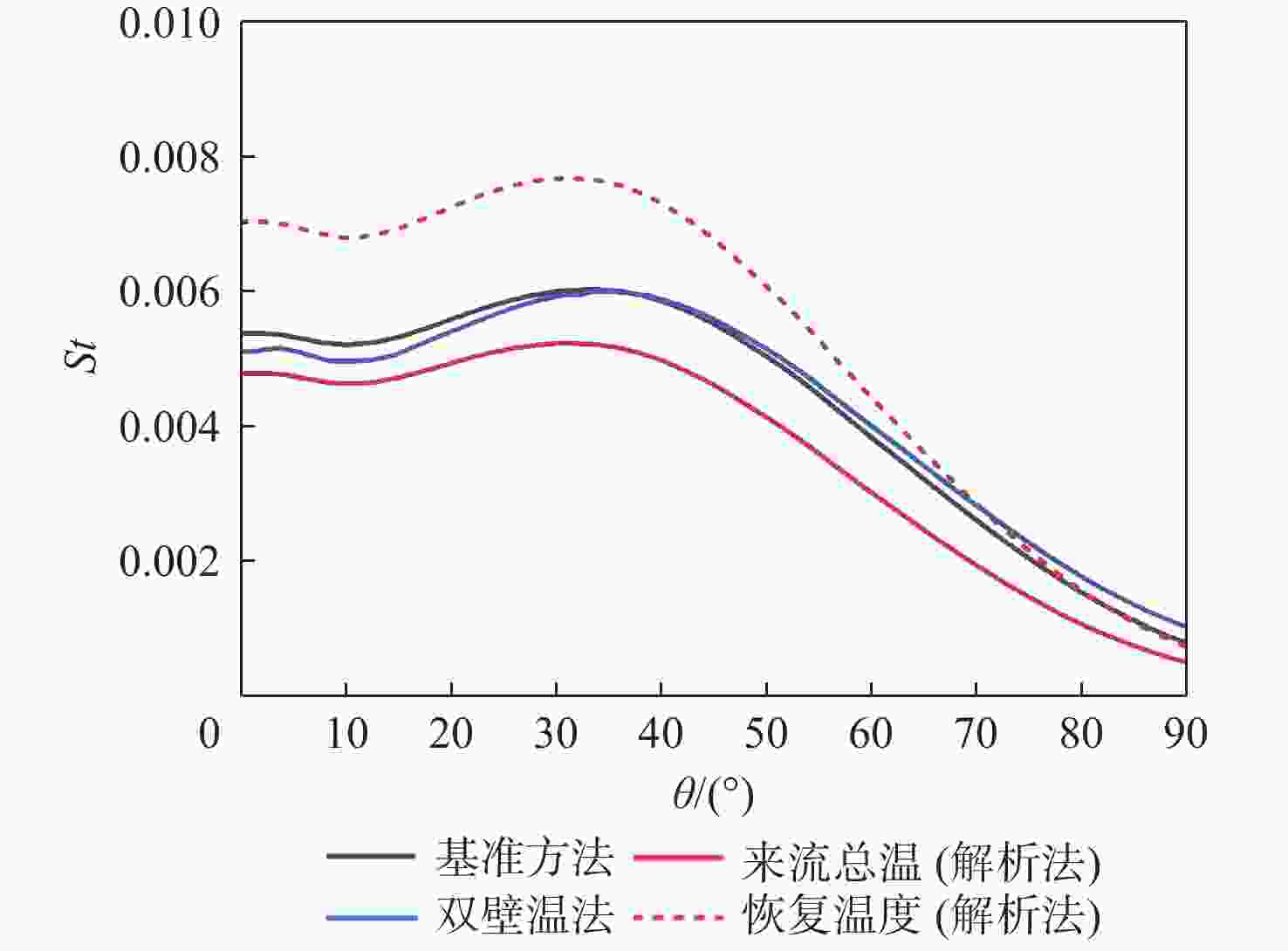

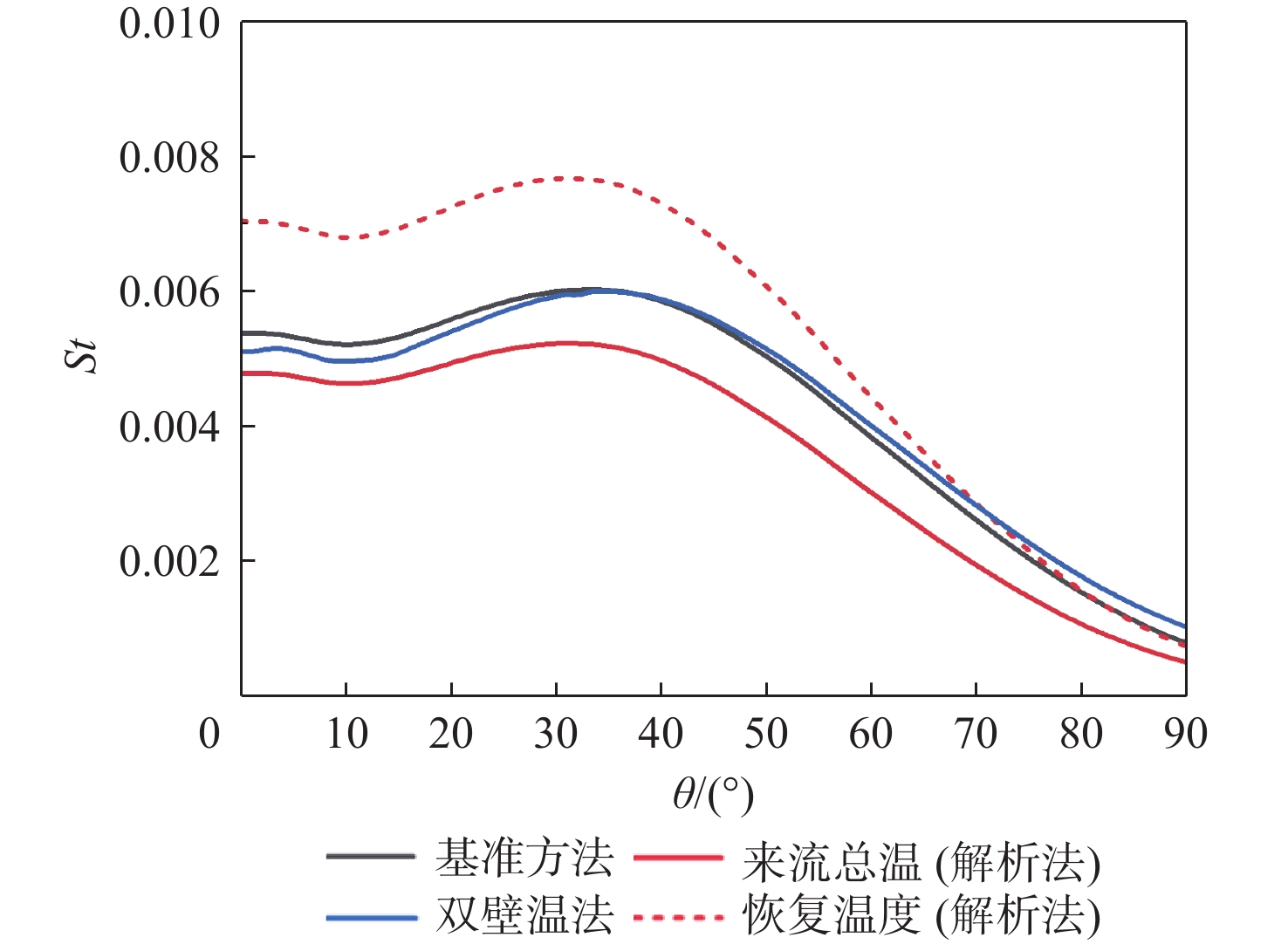

图 13 D=25 mm, Tw =295 K时，不同方法所得壁面斯坦顿数沿圆周角分布
Figure 13. Distribution of Stanton number along the circumferential angle on the blunt body, obtained from different methods at D=25 mm and Tw=295 K

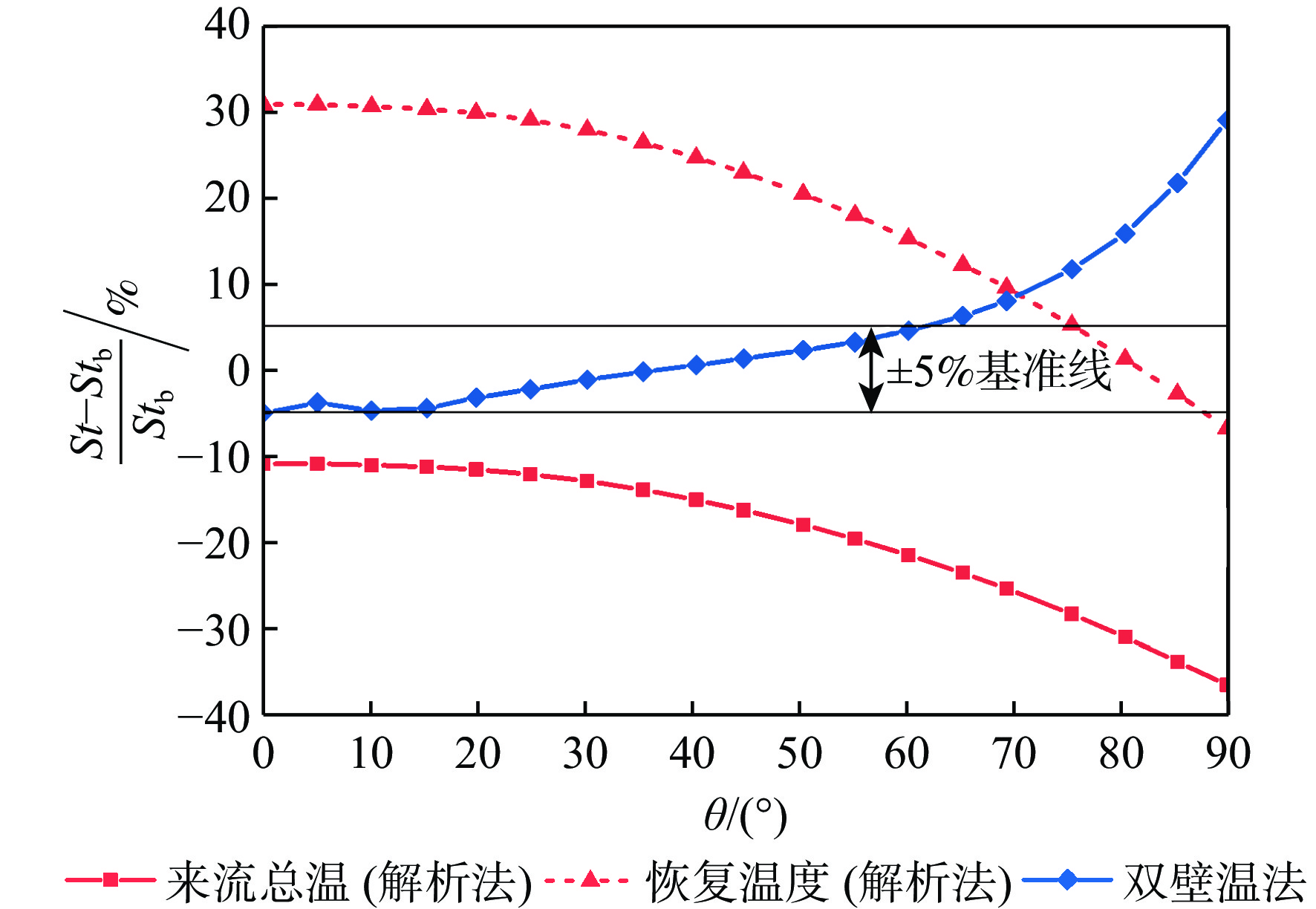

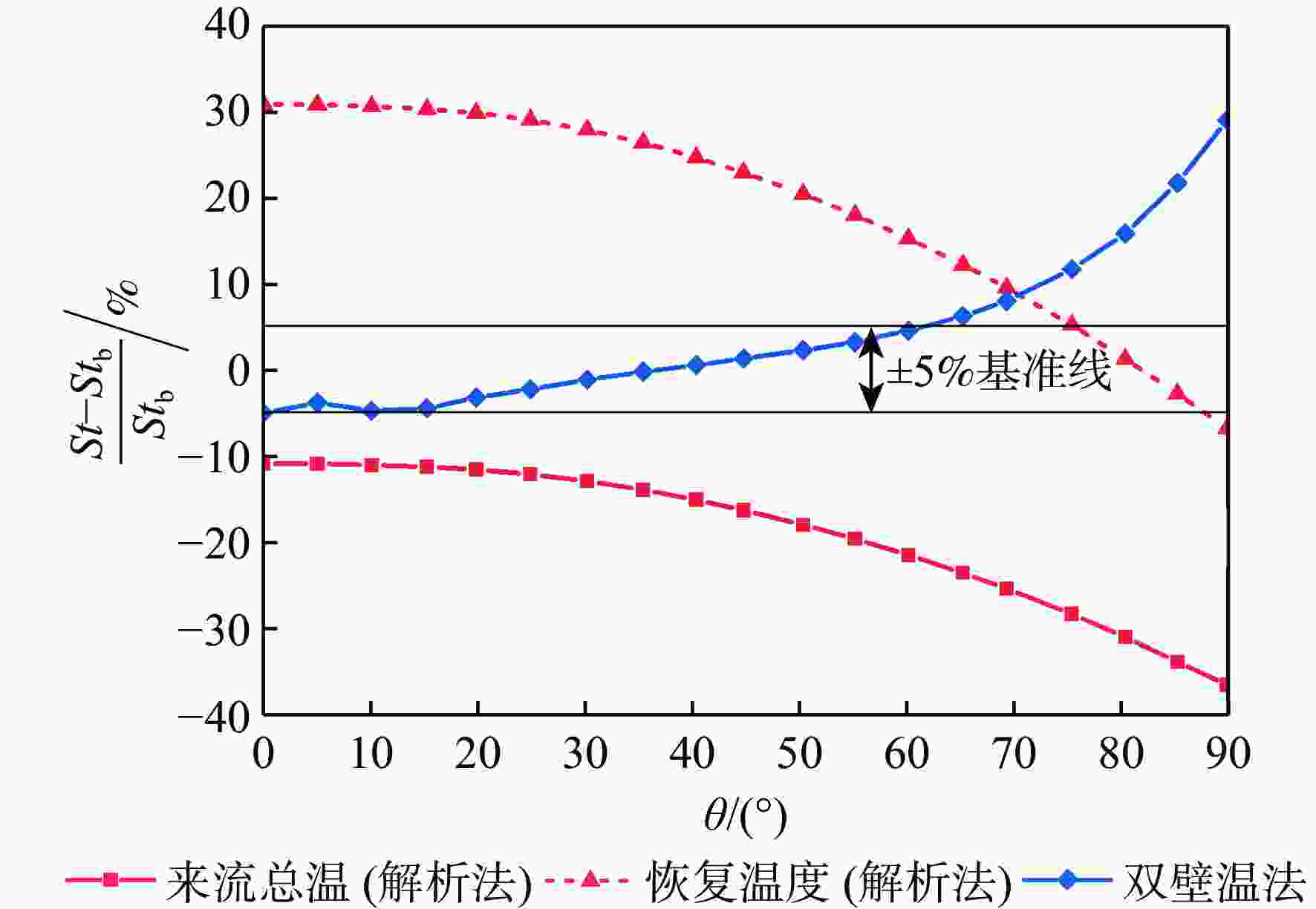

图 14 D=25 mm, ${T_{\text{w}}}$=295 K时，解析法与双壁温法所得斯坦顿数与基准方法之间的差值百分数
Figure 14. Percentage difference of Stanton number obtained by analytical method and two-point method compared to the baseline method, when D=25 mm and Tw=295 K
表 1 流动条件
Table 1. Flow conditions
参数 数值 马赫数 3.98 来流总压/MPa 1.37 来流总温/K 397 壁面温度/K 295/300 单位雷诺数/m−1 4.2×107
下载: 导出CSV
表 2 网格独立性研究参数
Table 2. Parameters of mesh independence study
网格数 首层网格高度/m 增长率 网格雷诺数 平均斯坦顿数 125 000 4×10−7 1.2 16 0.00 429 147 000 2×10−7 1.1 8 0.00 442 205 000 1×10−7 1.1 4 0.00 441
下载: 导出CSV
-
