城市环境改进点云配准的LiDAR辅助GNSS/IMU定位算法

黄明明; 孙蕊

doi:10.13700/j.bh.1001-5965.2023.0837

城市环境改进点云配准的LiDAR辅助GNSS/IMU定位算法

doi: 10.13700/j.bh.1001-5965.2023.0837

黄明明,
孙蕊^,

南京航空航天大学民航学院，南京 211106

基金项目:

国家自然科学基金(42222401,42174025,41974033)；工信部专项科研项目(TC220A04A-79)；江苏省“六大人才高峰”项目(KTHY-014)；江苏省自然科学基金(BK20211569)；中央高校基本科研业务费专项资金(xcxjh20230720)

详细信息

通讯作者:
E-mail：rui.sun@nuaa.edu.cn

中图分类号: V221⁺.3；TB553
计量
- 文章访问数: 313
- HTML全文浏览量: 84
- PDF下载量: 120
- 被引次数: 0
出版历程
- 收稿日期: 2023-12-29
- 录用日期: 2024-04-05
- 网络出版日期: 2024-10-21
- 整期出版日期: 2026-03-31

LiDAR aided GNSS/IMU positioning algorithm based on improved point cloud registration in urban environment

HUANG Mingming,
SUN Rui^,

College of Civil Aviation，Nanjing University of Aeronautics and Astronautics，Nanjing 211106，China

Funds:

National Natural Science Foundation of China (42222401,42174025,41974033); Ministry of Industry and Information Technology Special Project of China (TC220A04A-79); Jiangsu Provincial Six Talent Peaks Project (KTHY-014); Natural Science Foundation of Jiangsu Province (BK20211569); the Fundamental Research Funds for the Central Universities (xcxjh20230720)

More Information

Corresponding author: E-mail：rui.sun@nuaa.edu.cn

摘要

摘要:
自动驾驶技术飞速发展，对城市环境定位精度的需求不断提升，但由于城市环境的复杂性，单纯的全球卫星导航系统(GNSS)和惯性测量单元(IMU)组合无法满足该需求。激光雷达(LiDAR)可实时感知周围环境，近年来成本不断降低，由于GNSS和LiDAR良好的互补特性，GNSS/IMU/LiDAR组合被广泛地研究。针对目前GNSS/IMV/LiDAR组合定位精度无法满足需求的问题，提出一种改进点云配准的LiDAR辅助GNSS/IMU定位方法。其中，算法构建了LiDAR配准时新增误差项和局部点云来实现GNSS质量控制，设计双差特征量综合判断卫星信号，实现不同信号质量的GNSS信号定权。实测实验表明，在城市环境中，所提算法对比传统GNSS/IMU紧组合算法，水平位置精度提高49.33%，三维位置精度提高48.31%，对比传统GNSS/IMU/LiDAR组合算法，水平、三维位置精度分别提高40.33%、37.60%。
- GNSS/IMU/LiDAR组合导航 /
- 改进点云配准 /
- 局部点云地图 /
- 双差特征量
Abstract:
Due to the complexity of urban environments, simple global navigation satellite system/inertial measurement unit (GNSS/IMU) cannot meet the positioning demand in urban environments. Light detection and ranging(LiDAR) can perceive the surrounding environment in real-time, and its cost has been continuously decreasing in recent years. Due to the good complementary characteristics, GNSS/IMU/LiDAR has been widely studied. An improved point cloud registration LiDAR assisted GNSS/IMU integrated navigation method is proposed. GNSS quality control is done by the algorithm by adding error terms in LiDAR registration, creating local point clouds, developing double difference feature quantities to evaluate satellite signals thoroughly, and achieving GNSS signal weighting for various signal qualities. Experimental results show that in urban environments, the proposed algorithm achieves a 49.33% improvement in horizontal position accuracy and a 48.31% improvement in 3D position accuracy compared to traditional GNSS/IMU algorithms. Compared to traditional GNSS/IMU/LiDAR algorithms, the horizontal 3D position accuracy has been improved by 40.33% and 37.60%, respectively.
- GNSS/IMU/LiDAR integrated navigation /
- improved point cloud registration /
- local point cloud map /
- double difference feature quantity

HTML全文

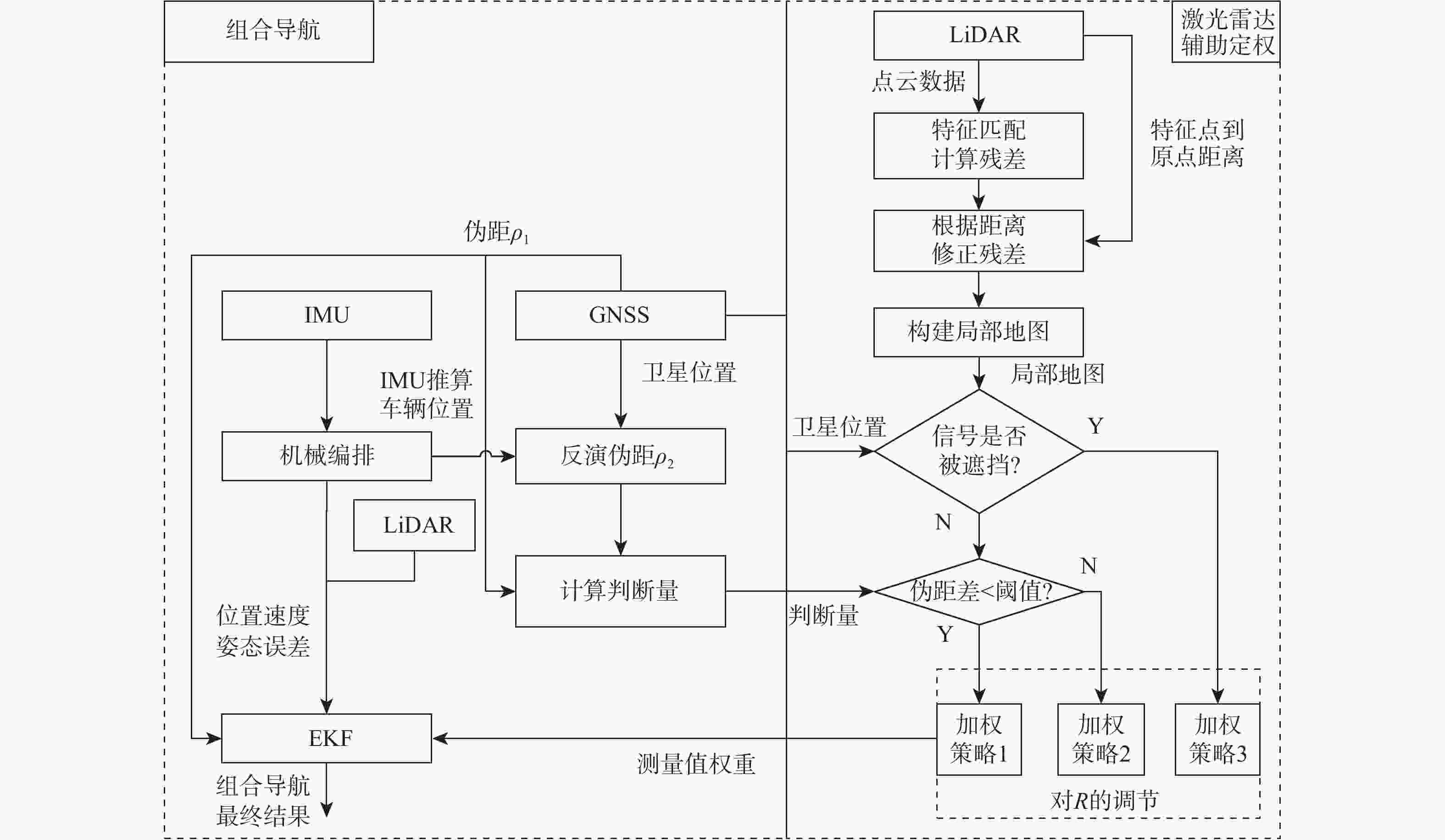

图 1 算法框图

Figure 1. Scheme of the proposed algorithm

下载: 全尺寸图片幻灯片

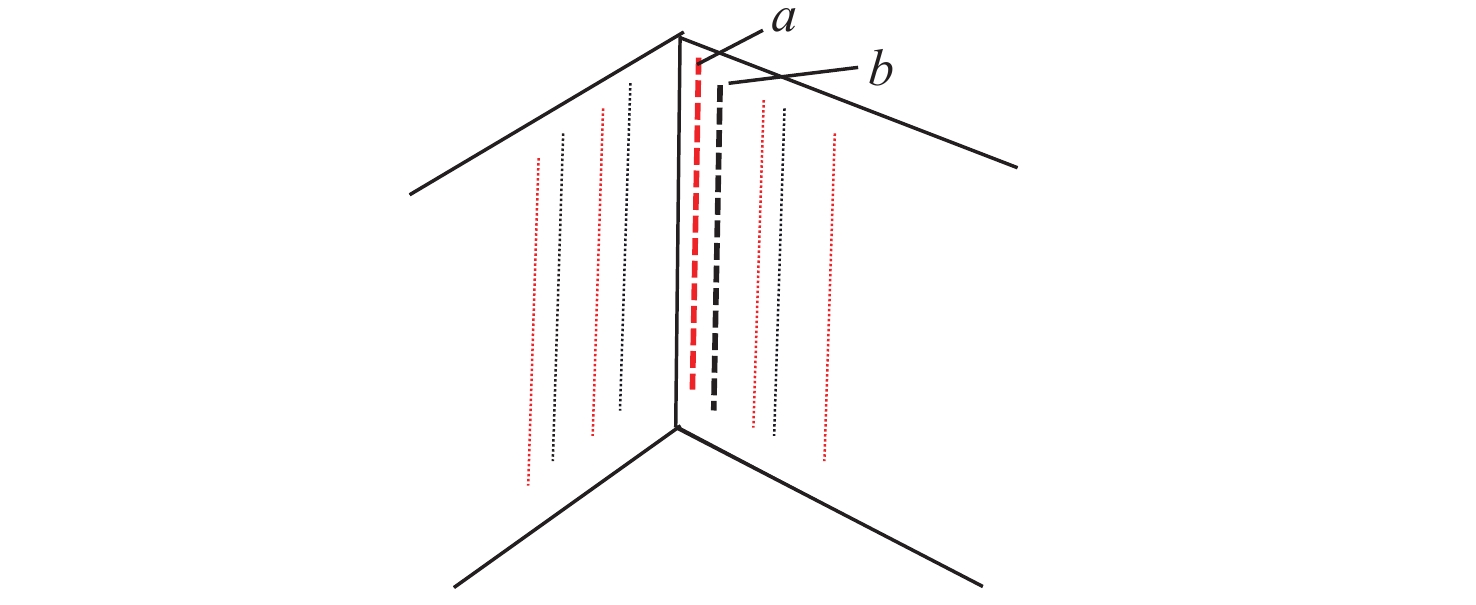

图 2 2帧特征线不完全重合示意图

Figure 2. Schematic diagram showing incomplete overlap of two feature lines

下载: 全尺寸图片幻灯片

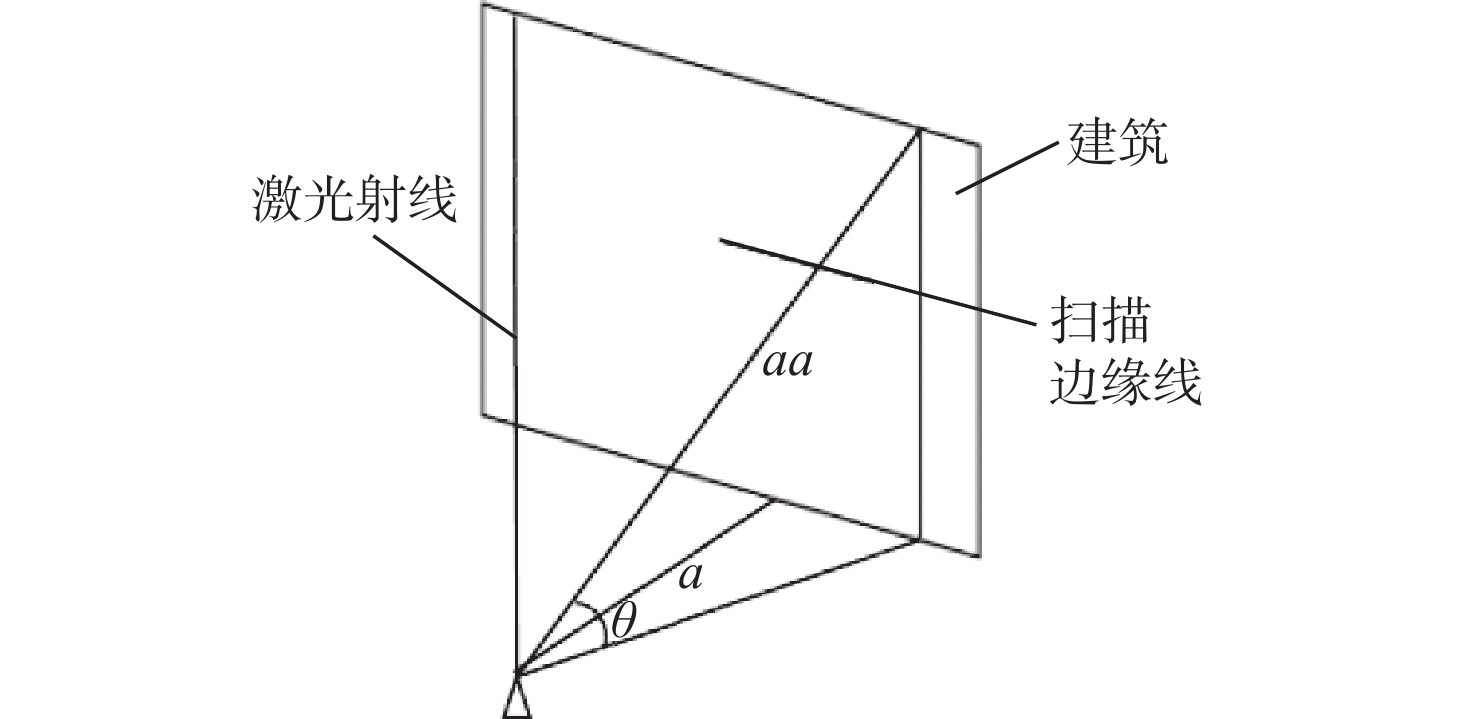

图 3 LiDAR射线扫描墙壁示意图

Figure 3. Diagram of LiDAR ray scan wall

下载: 全尺寸图片幻灯片

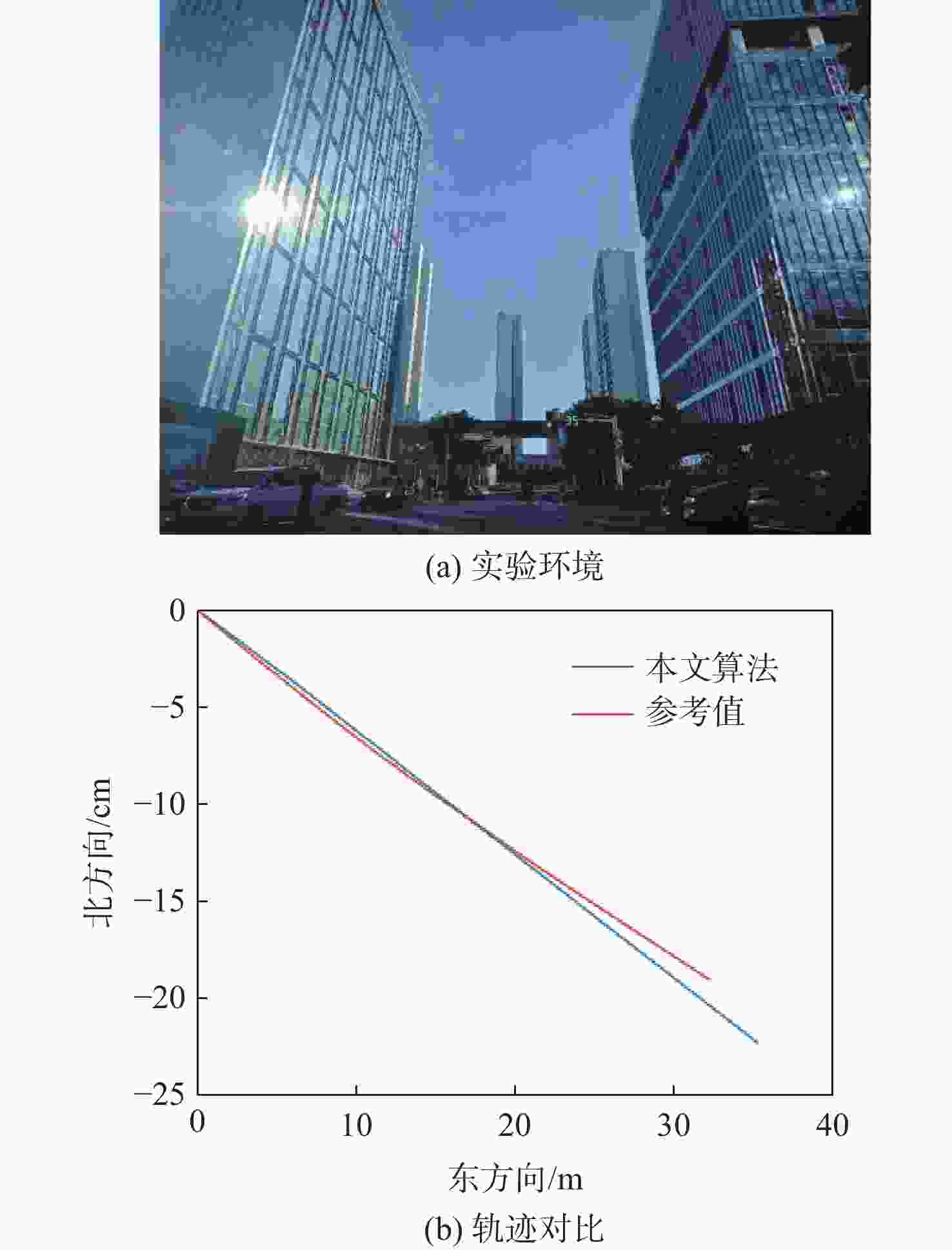

图 4 实验环境与轨迹对比

Figure 4. Experimental environment and trajectory comparison

下载: 全尺寸图片幻灯片

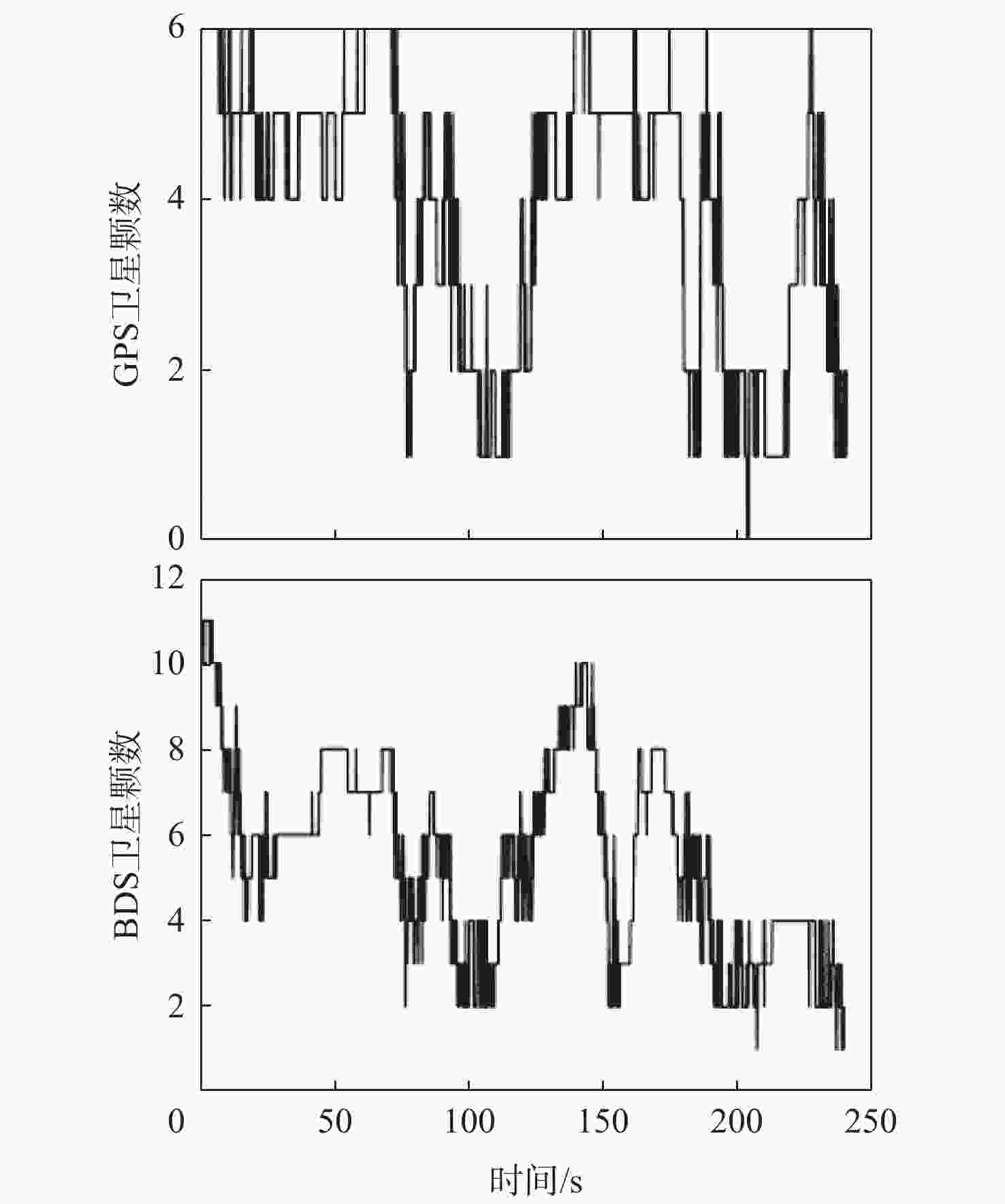

图 5 场景1卫星数量

Figure 5. Number of satellites of scenario 1

下载: 全尺寸图片幻灯片

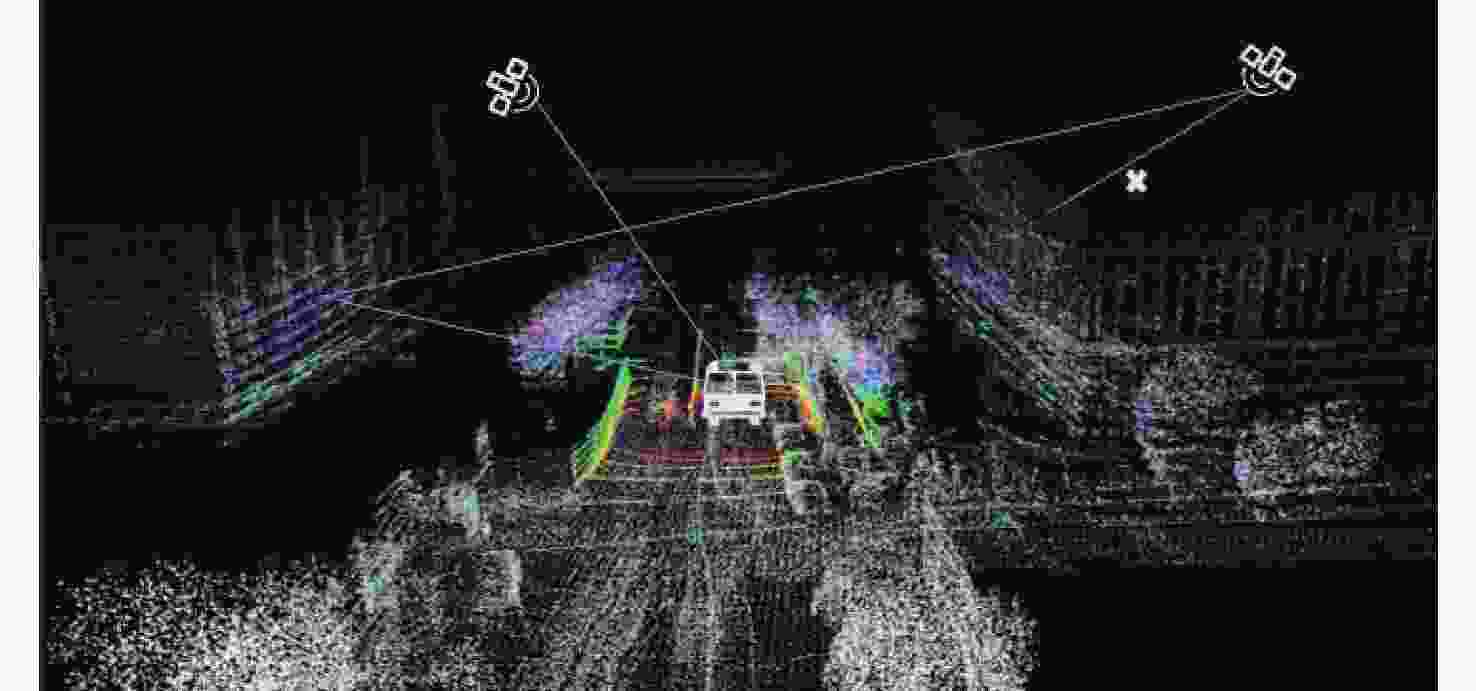

图 6 局部地图判断卫星类型示意图

Figure 6. Local map with determining satellite type

下载: 全尺寸图片幻灯片

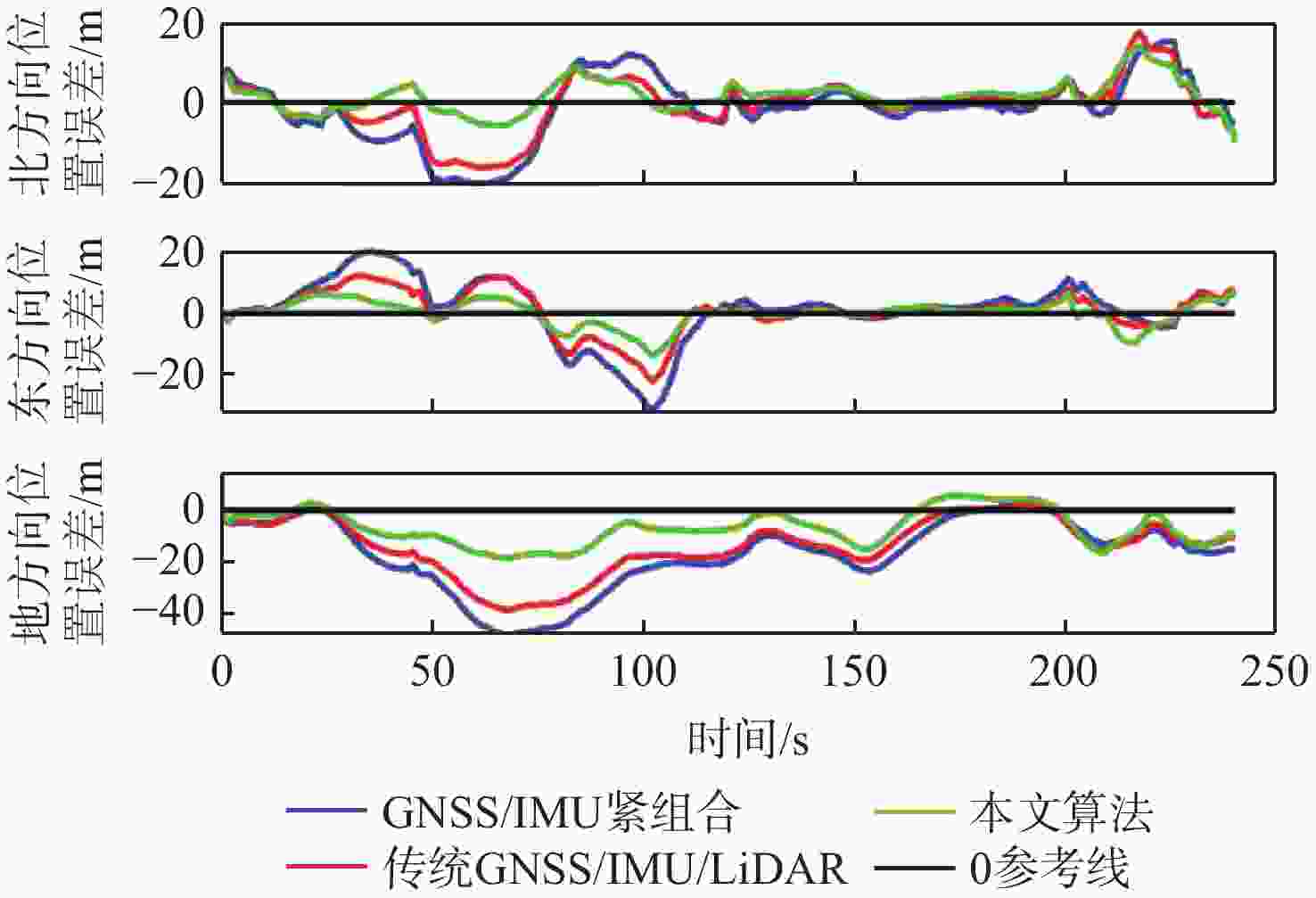

图 7 位置误差对比

Figure 7. Position error comparison

下载: 全尺寸图片幻灯片

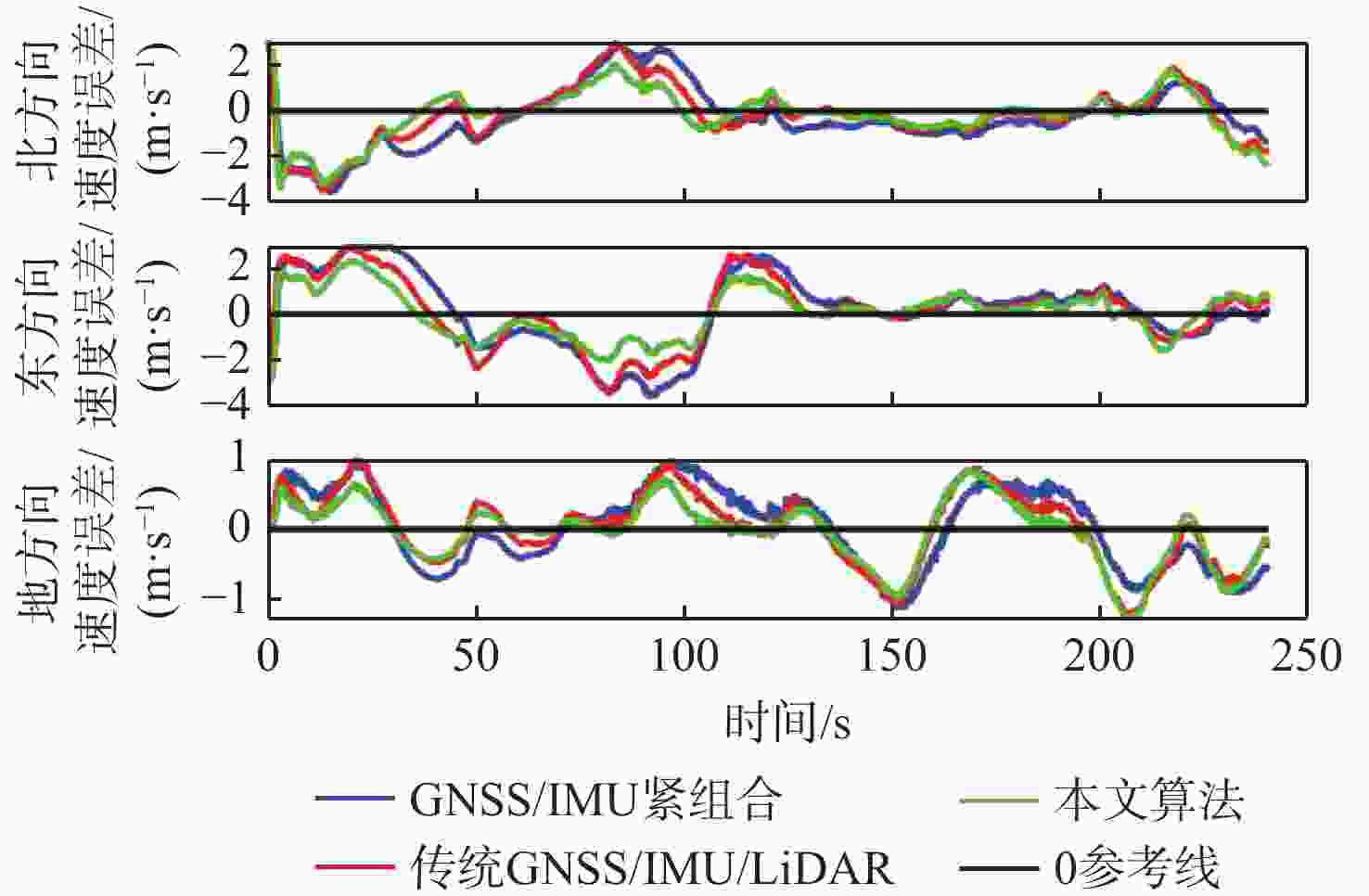

图 8 速度误差对比

Figure 8. Velocity error comparison

下载: 全尺寸图片幻灯片

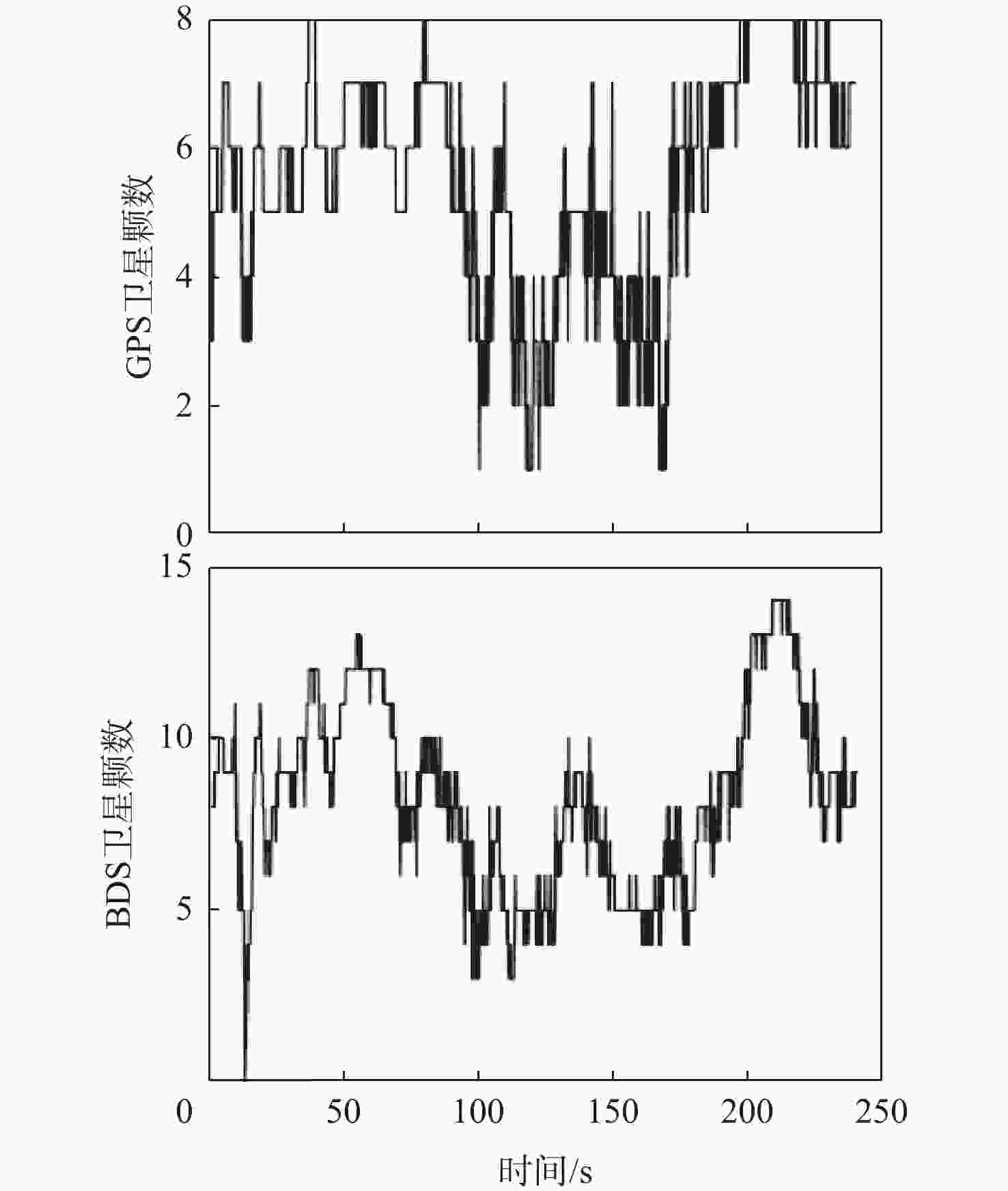

图 9 场景2卫星数量

Figure 9. Number of satellites of scenario 2

下载: 全尺寸图片幻灯片

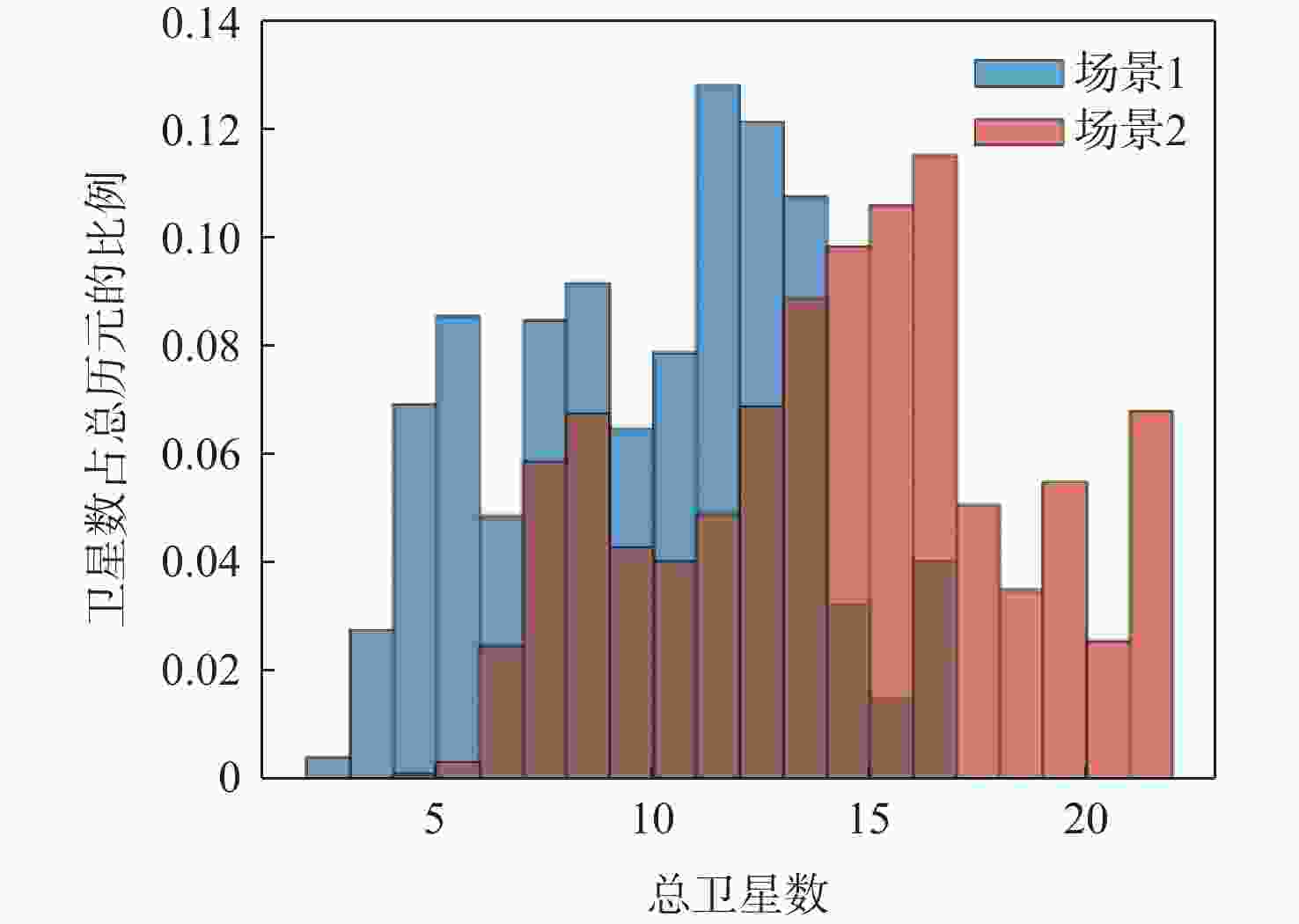

图 10 场景1和场景2卫星数分布对比直方图

Figure 10. Comparison of histograms of satellite number distribution in scenario 1 and scenario 2

下载: 全尺寸图片幻灯片

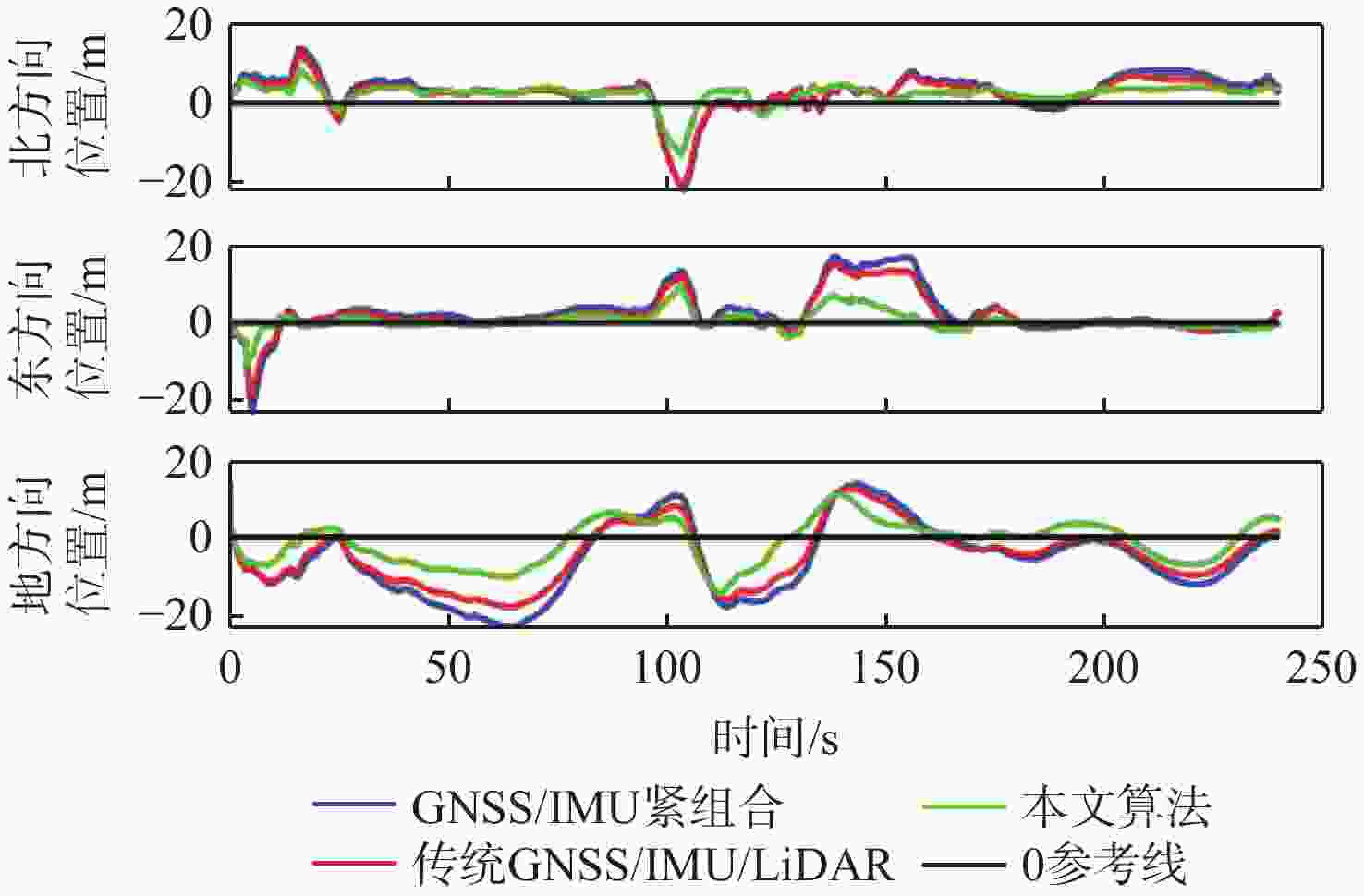

图 11 场景2位置误差对比

Figure 11. Position error comparison in scenario 2

下载: 全尺寸图片幻灯片

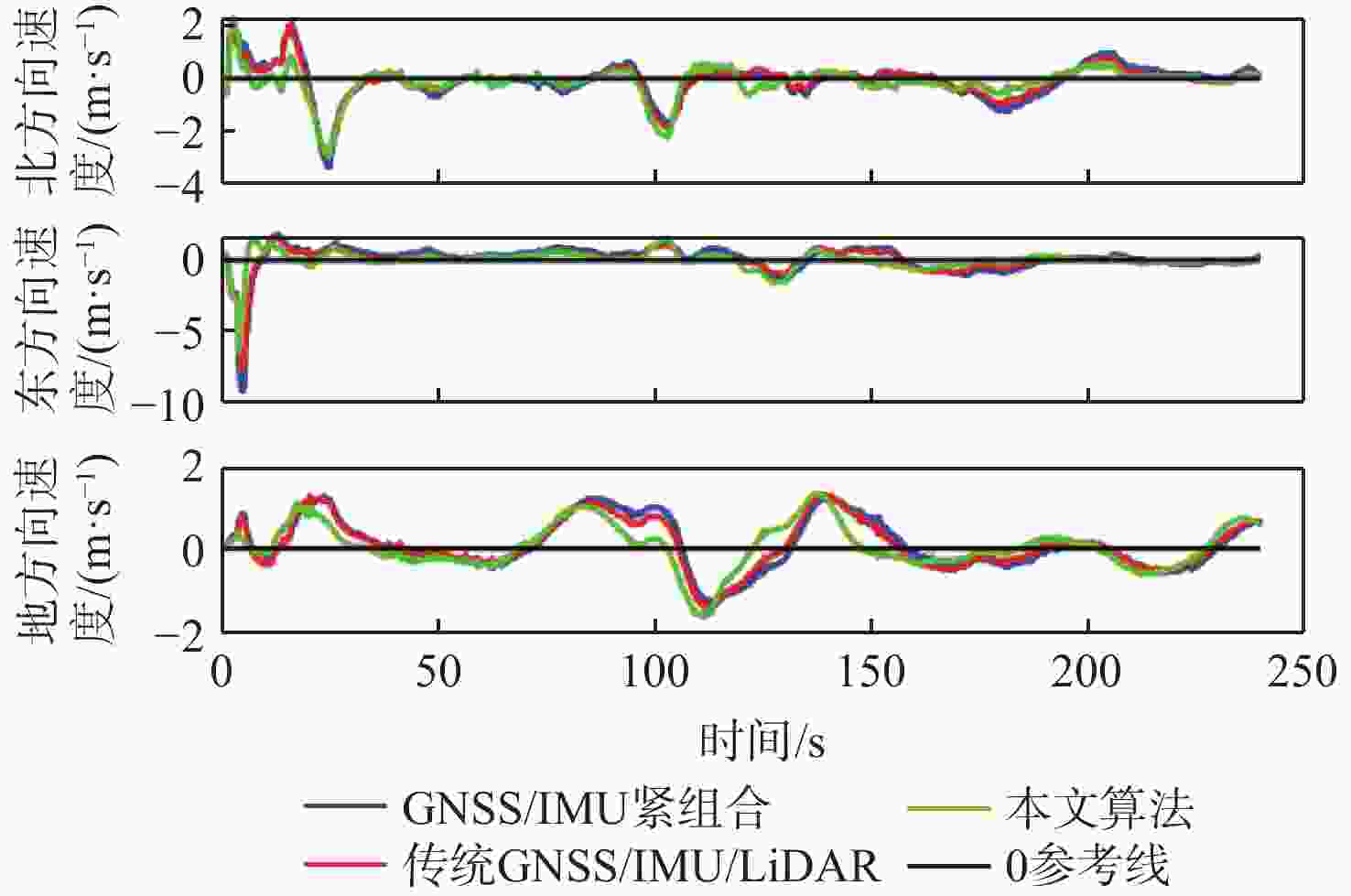

图 12 场景2速度误差对比

Figure 12. Velocity error comparison in scenario 2

下载: 全尺寸图片幻灯片

表 1 使用的参数

Table 1. Parameter values used

$ {w}_{0} $	$ T $	$ b $	$ A $	$ F $
0.6	10	30	32	10

下载: 导出CSV

表 2 改进匹配残差算法与原算法的运动估计误差对比

Table 2. Comparison of motion estimation errors between the improved residual matching algorithm and the original algorithm

算法	东向位移/m	北向位移/m	天向位移/m	总距离/m	误差/m
参考轨迹	−0.4804	36.8161	0.0258	36.97
原始匹配残差算法	−0.1102	42.2444	0.0342	42.24	5.27
改进匹配残差算法	−0.1065	41.3828	0.0405	41.38	4.41

下载: 导出CSV

表 3 场景1位置误差

Table 3. Scenario 1 analysis of position error

算法	北方向位置误差/m	东方向位置误差/m	地方向位置误差/m	水平位置误差/m	三维位置误差/m
GNSS/IMU紧组合（算法1）	8.31	10.39	21.44	13.31	25.23
传统GNSS/IMU/LiDAR（算法2）	6.67	7.06	17.20	9.72	19.76
本文算法	4.20	4.21	9.26	5.94	11.00

下载: 导出CSV

表 4 场景1速度误差

Table 4. Scenario 1 analysis of velocity error

算法	北方向速度误差/(m·s⁻¹)	东方向速度误差/(m·s⁻¹)	地方向速度误差/(m·s⁻¹)	水平速度误差/(m·s⁻¹)	三维速度误差/(m·s⁻¹)
GNSS/IMU紧组合（算法1）	1.64	1.35	0.54	2.12	2.19
传统GNSS/IMU/LiDAR（算法2）	1.44	1.24	0.50	1.91	1.97
本文算法	1.06	1.03	0.43	1.48	1.54

下载: 导出CSV

表 5 场景2位置误差

Table 5. Scenario 2 analysis of position error

算法	北方向位置误差/m	东方向位置误差/m	地方向位置误差/m	水平位置误差/m	三维位置误差/m
GNSS/IMU紧组合（算法1）	5.56	6.21	10.89	8.39	13.75
传统GNSS/IMU/LiDAR（算法2）	4.98	5.10	8.89	7.13	11.39
本文算法	3.53	2.70	5.69	4.25	7.11

下载: 导出CSV

表 6 场景2速度误差

Table 6. Scenario 2 analysis of velocity error

算法	北方向速度误差/(m·s⁻¹)	东方向速度误差/(m·s⁻¹)	地方向速度误差/(m·s⁻¹)	水平速度误差/(m·s⁻¹)	三维速度误差/(m·s⁻¹)
GNSS/IMU紧组合（算法1）	1.02	0.68	0.60	1.22	1.36
传统GNSS/IMU/LiDAR（算法2）	0.84	0.61	0.58	1.04	1.20
本文算法	0.63	0.58	0.53	0.86	1.01

下载: 导出CSV
