Remaining useful life prediction of variable-operating turbofan engine based on VMD-CNN-BiLSTM
-
摘要:
为解决传统预测方法变工况涡扇发动机剩余寿命预测精度较低的问题，提出一种变工况涡扇发动机剩余使用寿命(RUL)预测模型。采用归一化处理和变分模态分解(VMD)将数据分解为预定个数的特定区间内的子数据，充分挖掘多维数据中的隐藏时序特征，消除奇异样本和不同量纲的影响；构建基于VMD-CNN-BiLSTM的变工况涡扇发动机RUL预测模型，卷积神经网络(CNN)用于特征提取和融合生成若干映射，将数据映射输入双向长短时神经网络(BiLSTM)进行训练，捕捉时序数据的时间依赖性，输出RUL预测结果；采用麻雀搜索算法(SSA)选取超参数优解，提升模型的预测性能。涡扇发动机RUL预测实验结果表明：VMD-CNN-BiLSTM在变工况涡扇发动机RUL预测中，均方根误差(RMSE)和平均绝对误差(MAE)分别达到13.74±0.51和11.24±0.49，且在噪声环境下仍具有较高的精度和泛化性能。
Abstract:In order to address the issue of low prediction accuracy in traditional forecasting methods for residual life of turbofan engines under variable working conditions, a variational mode decomposition convolutional neural network bidirectional long short term memory (VMD-CNN-BiLSTM) model is proposed. Firstly, variational mode decomposition (VMD) is used to normalize the data and split it into sub-data at predetermined intervals. This allows for the thorough extraction of hidden temporal features in multidimensional data as well as the removal of singular samples and dimensional variations. Secondly, a VMD-CNN-BiLSTM model is constructed for predicting the residual life of turbofan engines under variable working conditions. The convolutional neural network (CNN) is employed for feature extraction and fusion to generate multiple mappings. These mappings are then input into the BiLSTM network to capture time dependencies in the time series data and produce accurate predictions of remaining engine life. Finally, hyperparameter optimization using the Sparrow algorithm enhances the prediction performance of the model. As shown by root mean squared error (RMSE) values of 13.74±0.51 and mean absolute error (MAE) values of 11.24±0.49 when predicting remaining engine life under variable operating conditions, experimental results on the commercial modular aero-propulsion system simulation (C-MAPSS) dataset show that VMD-CNN-BiLSTM achieves high accuracy and generalization performance even with noisy data.
-

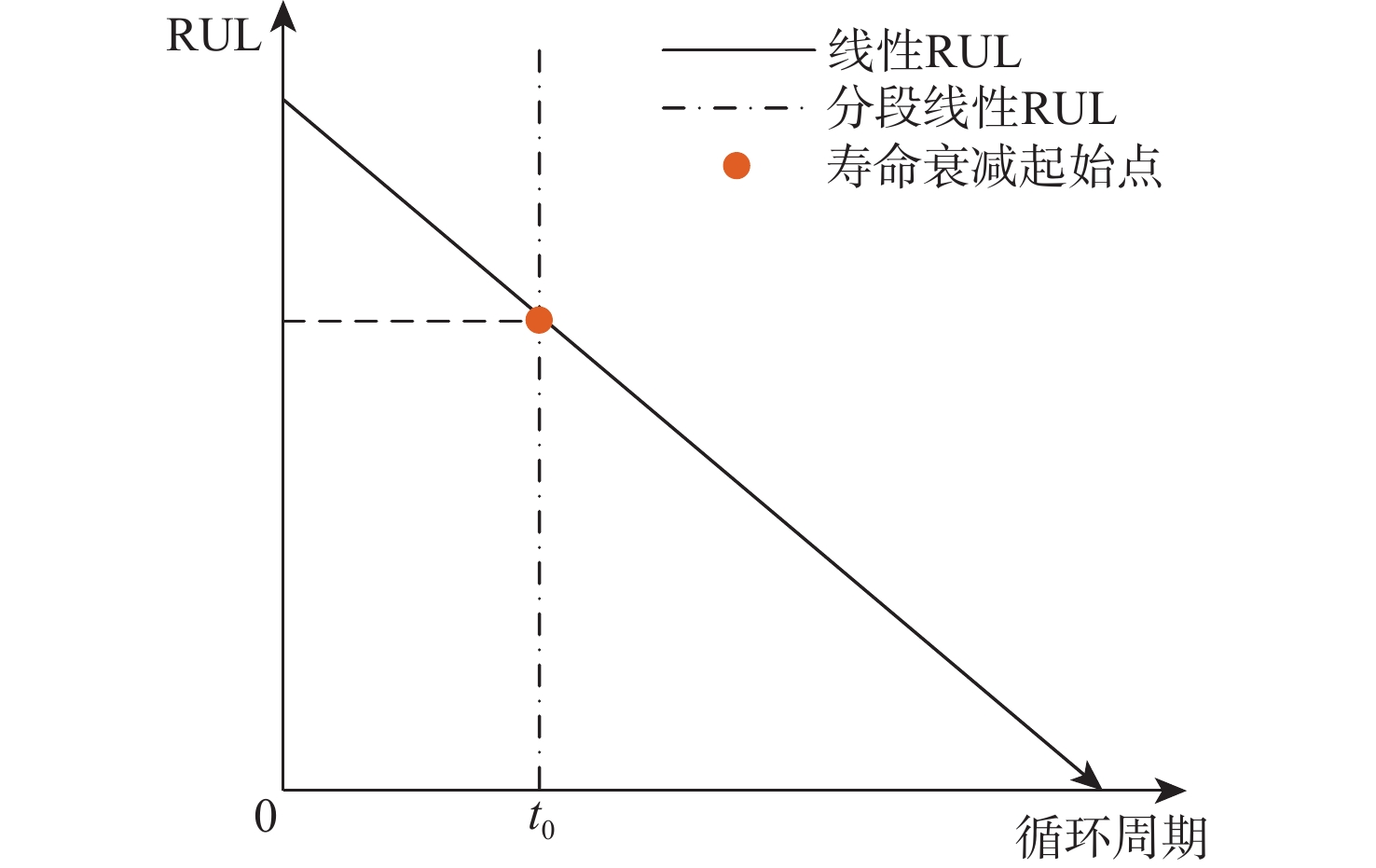

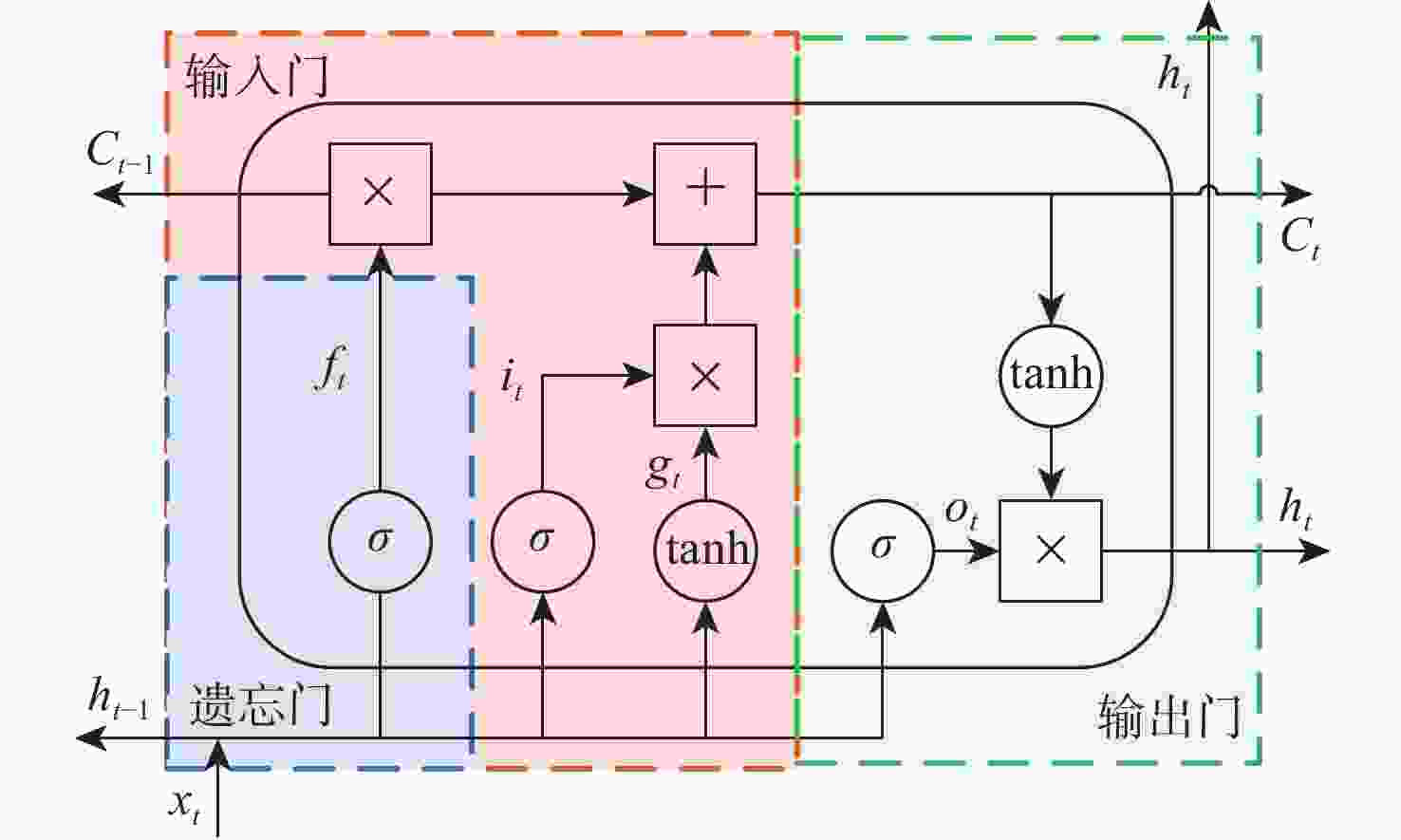

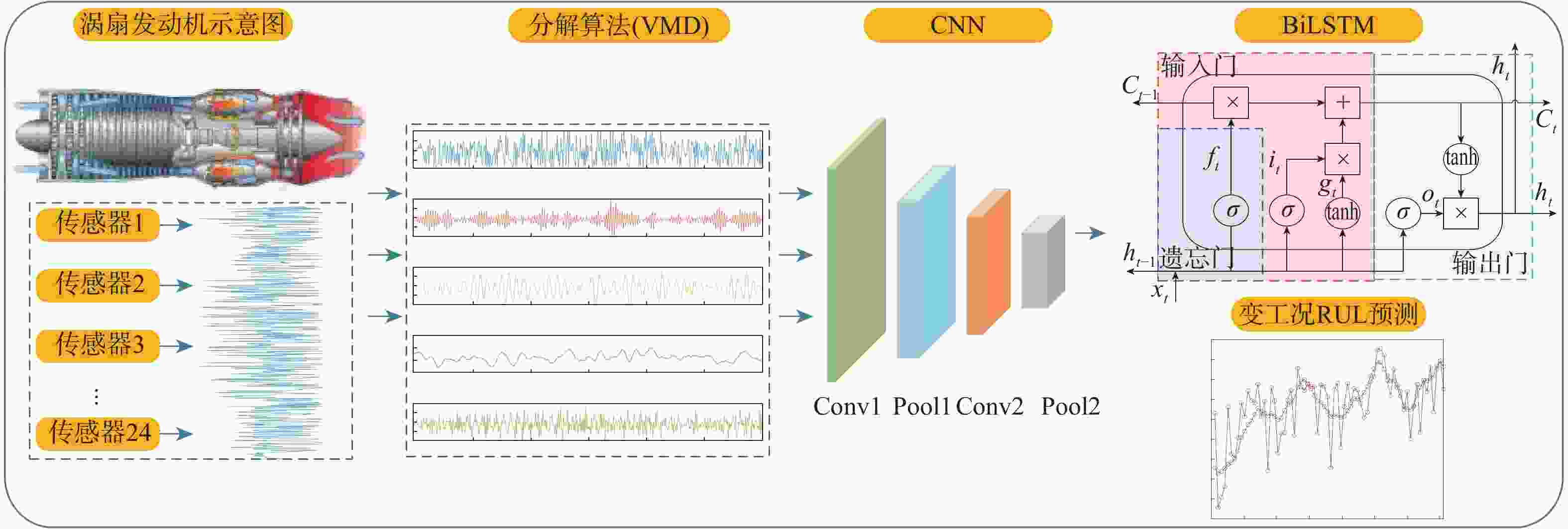

图 3 基于VMD-CNN-BiLSTM的航空发动机剩余使用寿命预测模型
Figure 3. RUL prediction model of aero engine based on VMD-CNN-BiLSTM

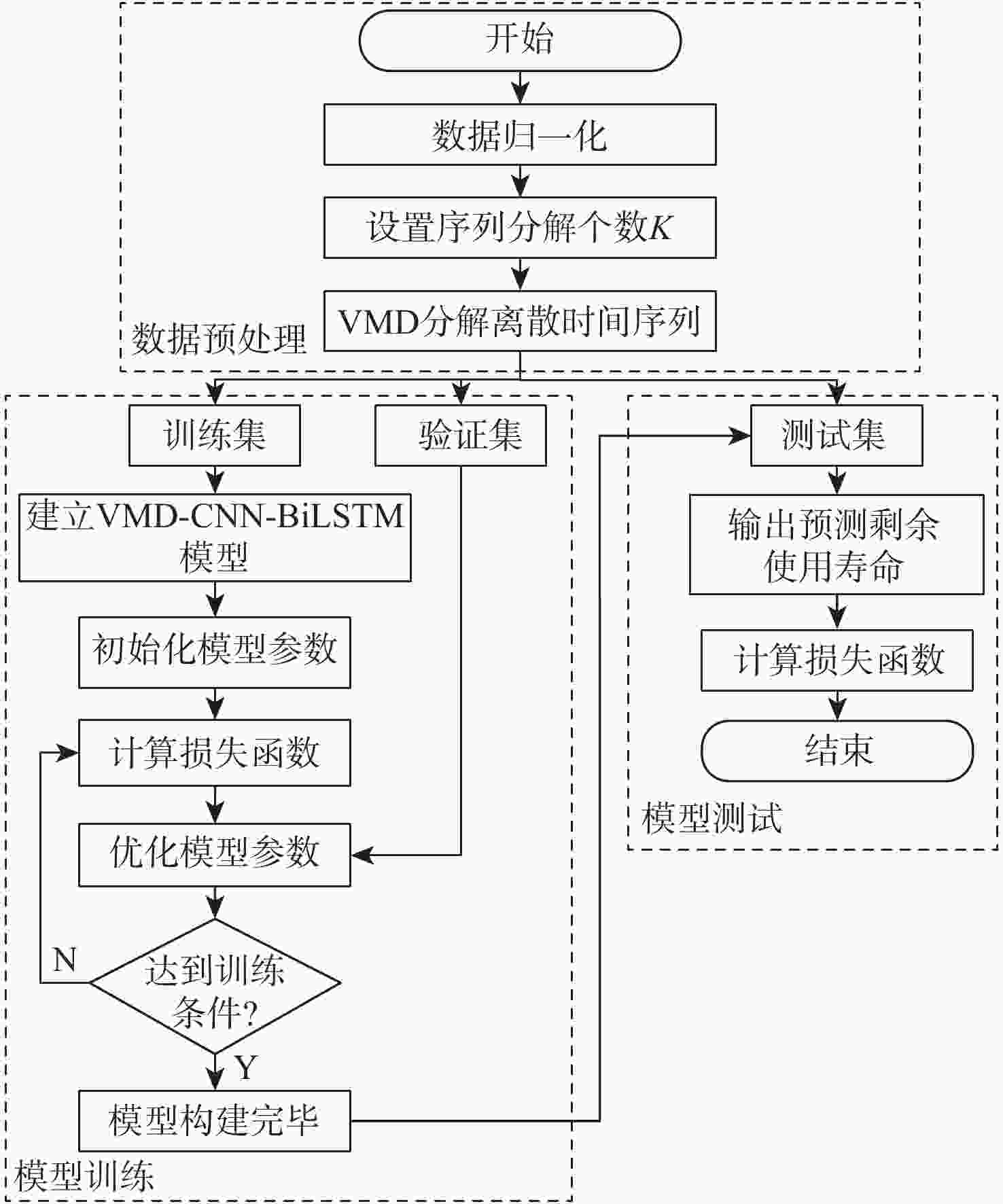

图 4 基于VMD-CNN-BiLSTM的航空发动机剩余使用寿命预测流程
Figure 4. Prediction process of aeroengine remaining useful life based on VMD-CNN-BiLSTM

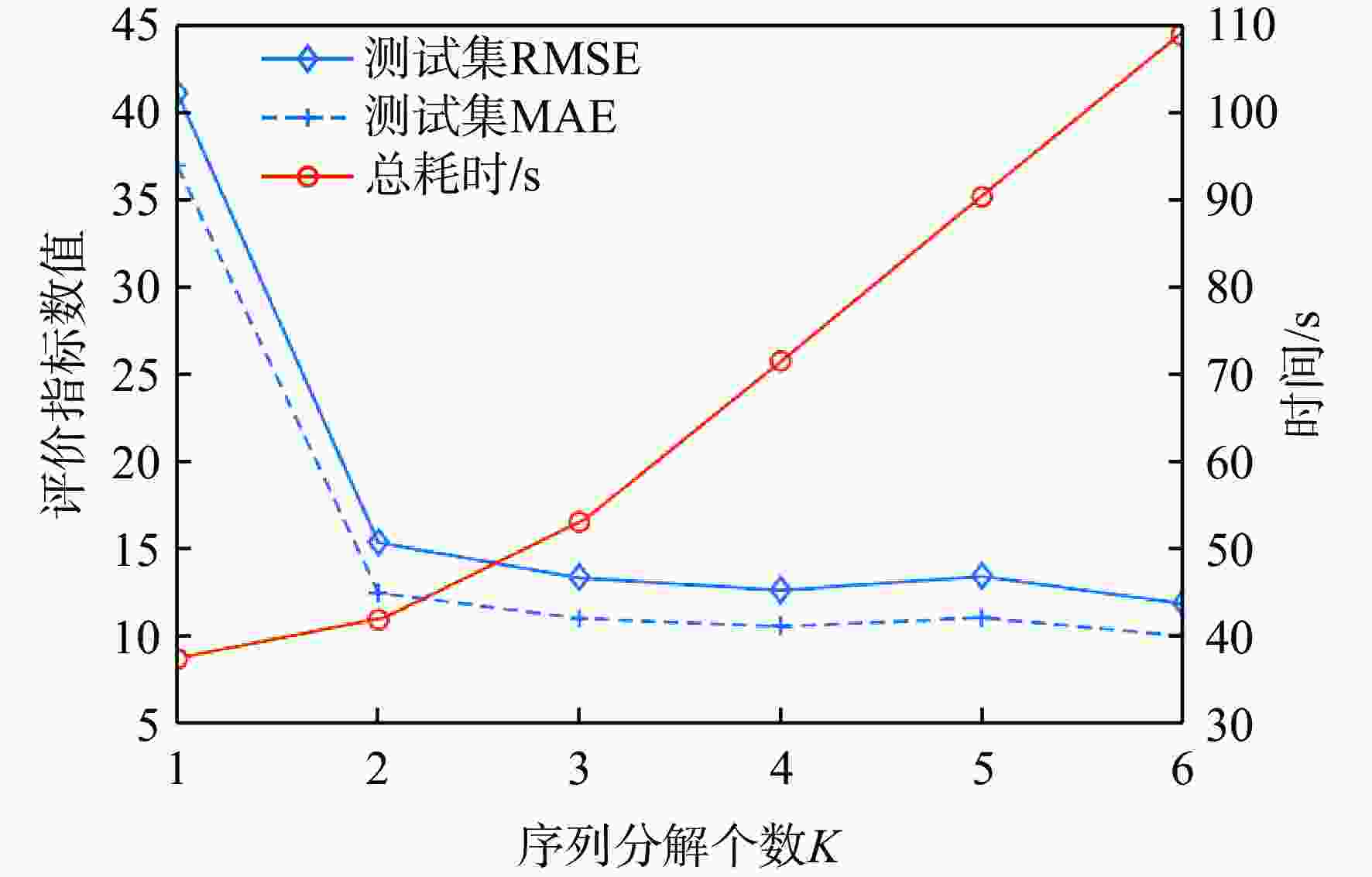

图 5 不同序列分解个数K下的RMSE、MAE和总耗时
Figure 5. RMSE, MAE and total time spent under different sequence decomposition numbers K

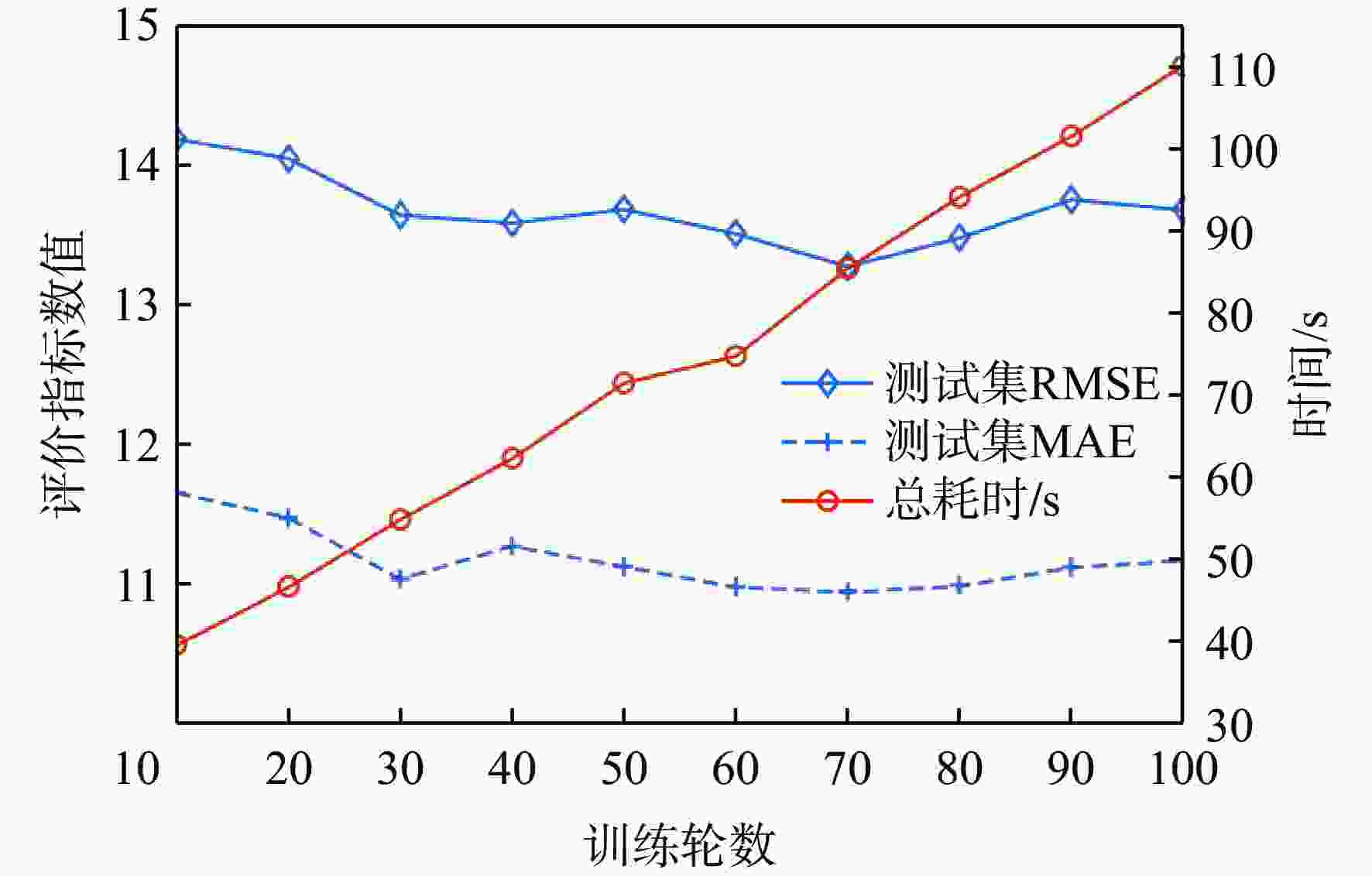

图 6 不同训练轮数下的RMSE、MAE和总耗时
Figure 6. RMSE, MAE and total time spent under different training rounds

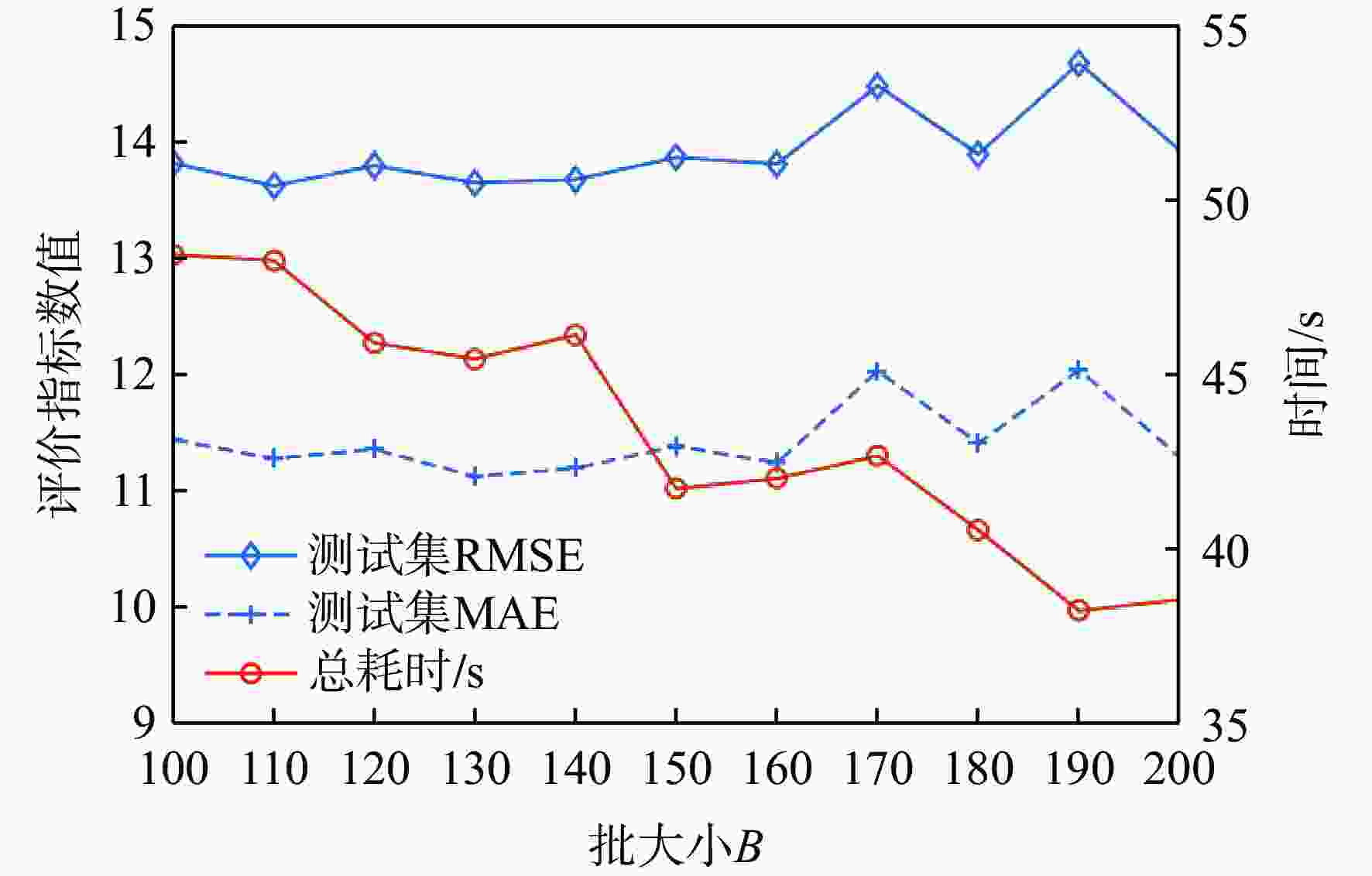

图 7 不同批大小B下的RMSE、MAE和总耗时
Figure 7. RMSE, MAE, and total time spent for different batch sizes B

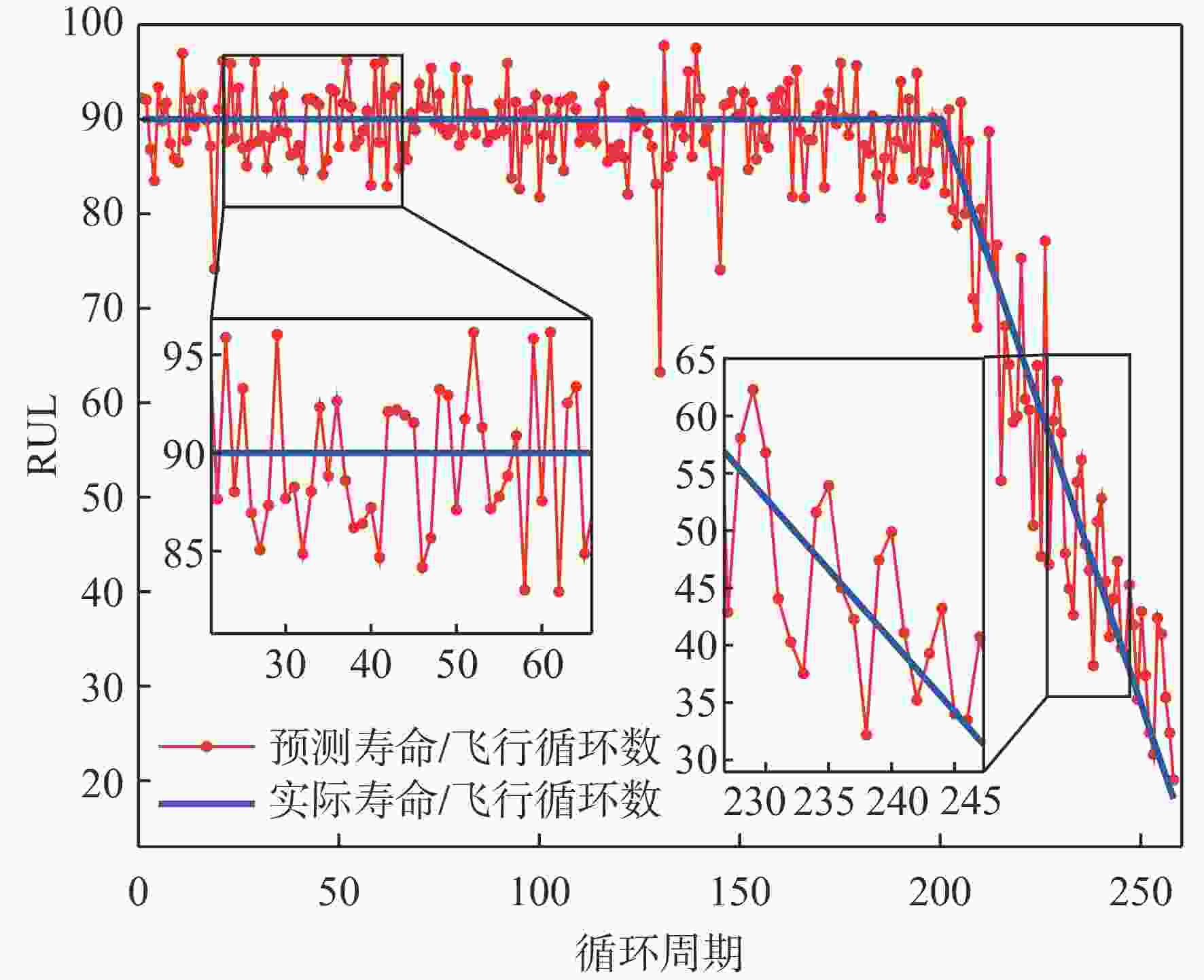

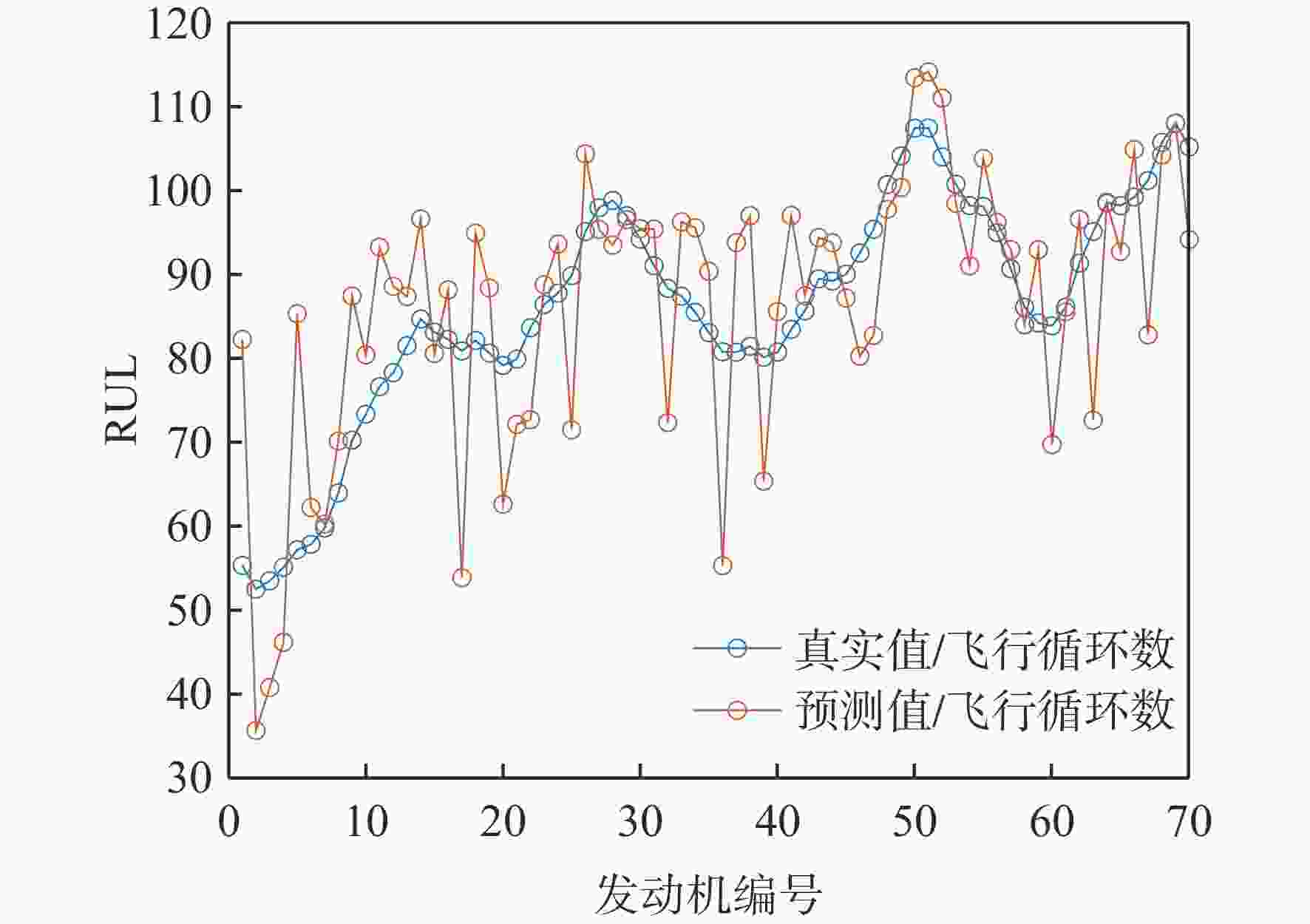

图 10 FD002中1号发动机的真实寿命和预测寿命
Figure 10. Real and predicted life of engine No. 1 in FD002
表 1 C-MAPSS数据集介绍
Table 1. Description of C-MAPSS datasets
数据集 发动机数量/个 工况种类/个 故障类型 FD001 100 1 1类 FD002 259 6 1类 FD003 100 1 2类 FD004 248 6 2类
下载: 导出CSV
表 2 涡扇发动机剩余使用寿命预测数据描述
Table 2. Description of remaining useful life prediction data of turbofan engine
特征序号 特征描述 符号 1 飞行高度/km H 2 油门杆角度/% θTRA 3 马赫数 Ma 4 风扇进气温度/℃ T2 5 低压压气机排气温度/℃ T24 6 高压压气机排气温度/℃ T30 7 低压涡轮排气温度/℃ T50 8 风扇入口气压/kPa P2 9 外涵道总压力/kPa P15 10 高压压气机出口总压/kPa P30 11 未修正的风扇转速/(r·min−1) NF 12 未修正的核心机转速/(r·min−1) NC 13 发动机压比 θEPR 14 高压压气机出口静压/kPa PS30 15 燃油流量和高压压气机出口总压比值 θPHI 16 风扇修正转速/(r·min−1) NRF 17 核心机修正转速/(r·min−1) NRC 18 涵道比 θBPR 19 燃烧室燃气比 θFARB 20 引气焓值/kg HT_BLEEd 21 风扇转速命令值/(r·min−1) NF_DMD 22 风扇修正量转速命令值/(r·min−1) θPCNFR_DMD 23 高压涡轮冷却空气流量/(kg·s−1) W31 24 低压涡轮冷却空气流量/(kg·s−1) W32
下载: 导出CSV
表 3 VMD-CNN-BiLSTM模型参数
Table 3. VMD-CNN-BiLSTM model parameters
输入层
尺寸卷积
层数BiLSTM
层数卷积核尺寸 卷积核数量 卷积步长 最大池化层尺寸 池化
步长BiLSTM
隐藏
单元数随机
丢弃
比例序列
分解
个数训练
轮数批大小 第1层 第2层 第1层 第2层 第1层 第2层 第1层 第2层 24 2 1 [2, 1] [2, 1] 27 22 [1, 1] [1, 1] [2, 1] [2, 1] [2, 2] 61 0.3 3 30 160
下载: 导出CSV
表 5 集成模型与个体学习器预测对比
Table 5. Comparison of integrated model and individual learner prediction
预测方法 RMSE MAE CNN 22.56±1.67 19.61±1.70 BiLSTM 22.94±1.87 20.11±1.94 CNN-BiLSTM 21.09±1.92 19.74±1.51 VMD-CNN-BiLSTM 13.74±0.51 11.24±0.49 注：加粗数值表示最优结果。
下载: 导出CSV
-
