摘要:
为平衡基于航迹运行模式下的整体空域态势，提出一种基于空中交通复杂度的大规模航迹优化方法，并利用真实运行数据仿真验证其有效性与优化效果。基于航班间潜在交互关系构建空中交通复杂度计算模型；基于空中交通复杂度计算模型，构建符合空管运行要求的多目标大规模航迹优化模型，并提出优质基因遗传求解算法；利用2019年6月的全国航班运行数据进行基于空中交通复杂度的航迹优化仿真模拟，并将其与无冲突航迹优化进行了对比分析。仿真结果表明：所提方法可以解决93.74%的潜在冲突；与无冲突航迹优化相比，所提方法在面对航路点等待和区域禁行的环境扰动时，表现出较少的空中交通复杂度波动。通过调整21.11%航班，可使各时段平均复杂度平均下降24.98%，全天总体平均复杂度从120.52降低到72.82。
Abstract:This work provides a large-scale trajectory optimization approach based on air traffic complexity to balance the overall airspace situation under the trajectory-based operation mode. It uses real operation data simulation to verify its effectiveness and optimization effect. Firstly, an air traffic complexity calculation model is constructed based on the potential interaction relationship between flights. Secondly, a multi-objective large-scale trajectory optimization model that meets the operational requirements of air traffic control is constructed based on the air traffic complexity calculation model, and a high-quality genetic solution algorithm is proposed. Finally, using the national flight operation data from June 2019, a simulation simulation of air traffic complexity-based trajectory optimization is performed, and a comparison between conflict-free trajectory optimization and air traffic complexity-based trajectory optimization is conducted. Conflict trajectory optimization is compared and analyzed. The simulation results show that the proposed method can resolve 93.74% of potential conflicts. Compared with conflict-free trajectory optimization, its optimization scheme exhibits less air traffic complexity fluctuations when facing environmental perturbations such as waypoint waiting and area bans. By adjusting 21.11% of the flights, it can reduce the average complexity of each time period by 24.98% on average, and the overall average complexity of the whole day is reduced from 120.52 to 72.82.
-

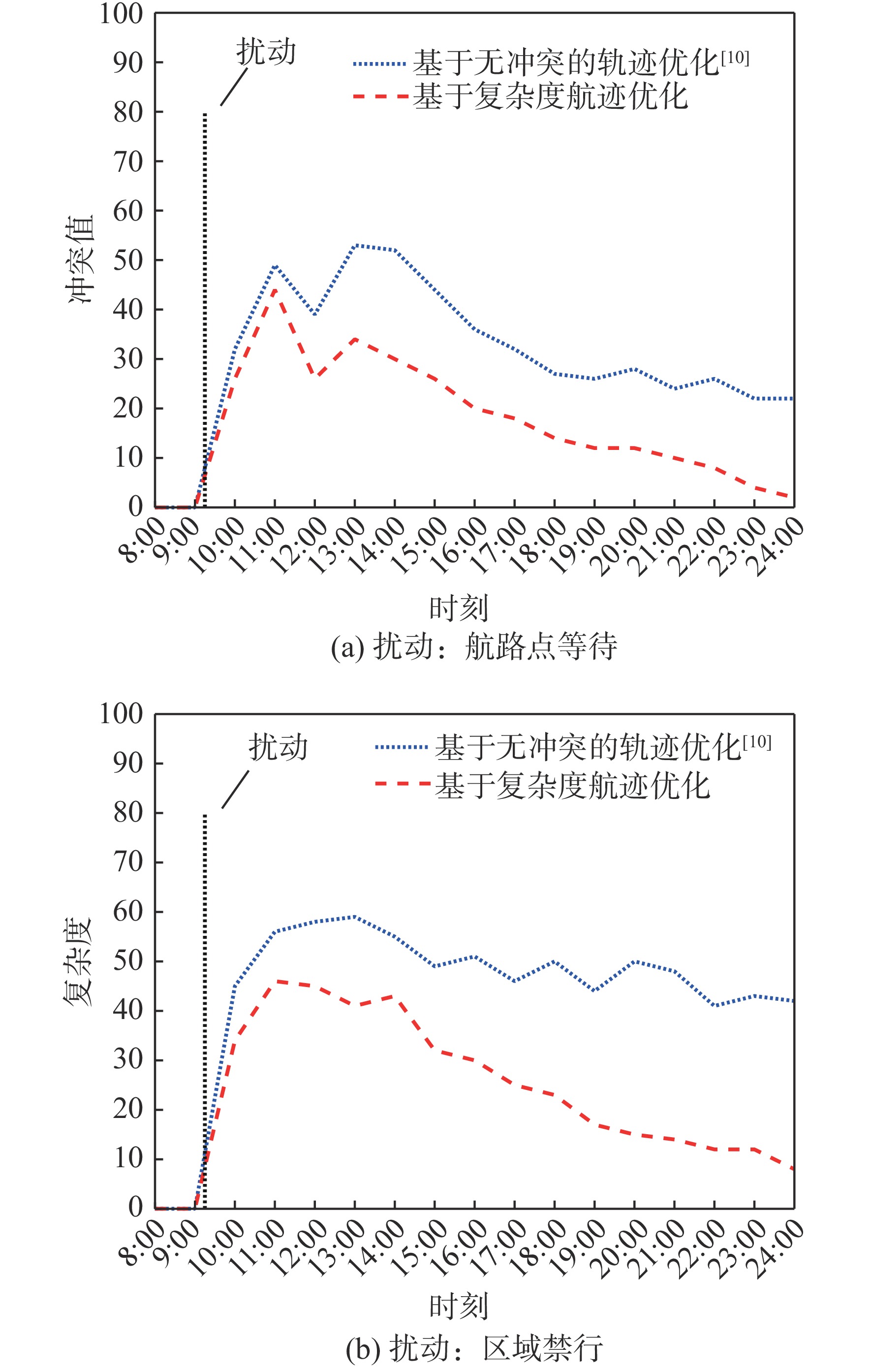

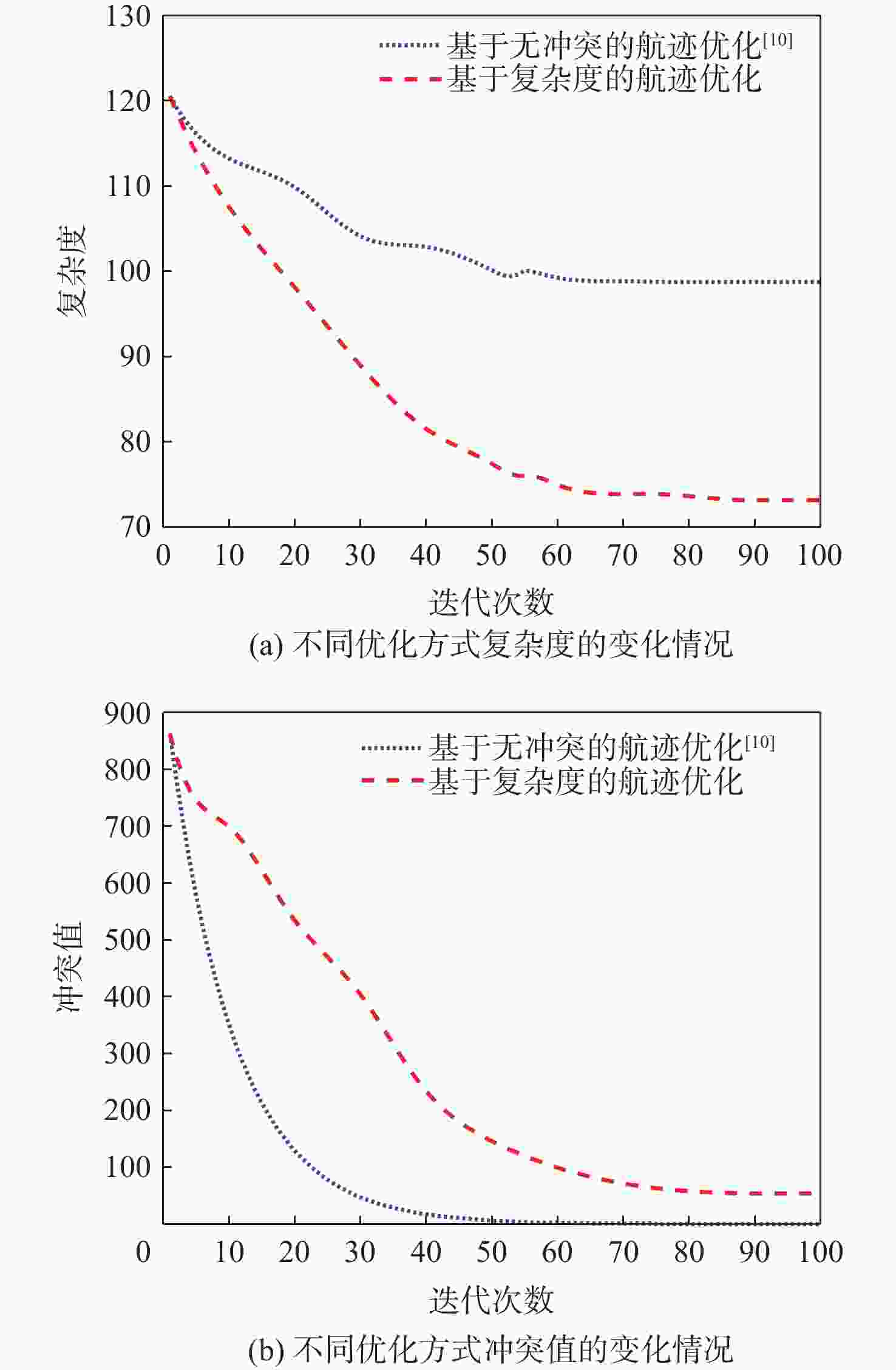

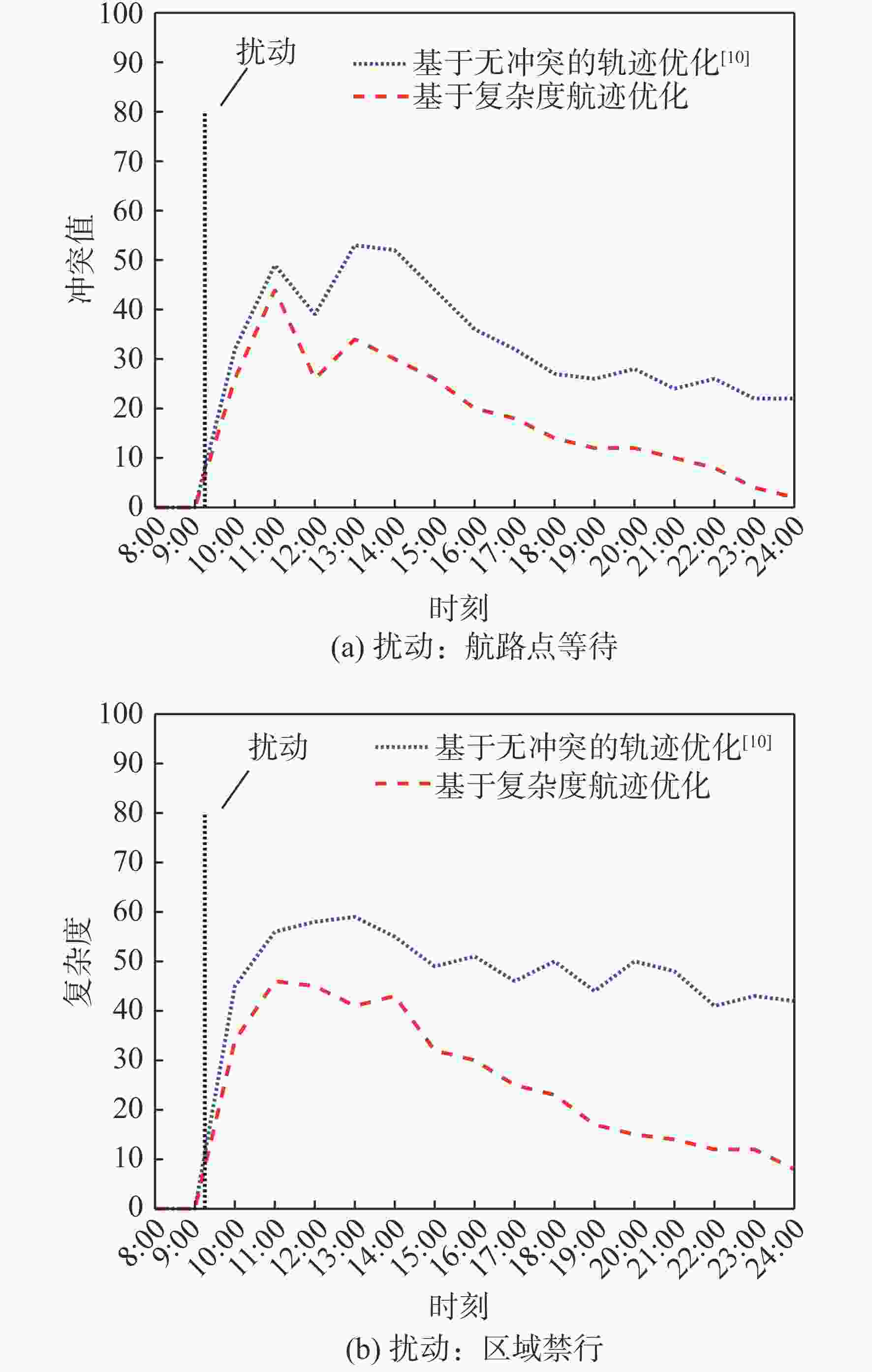

图 9 受到扰动后不同优化方式冲突值变化
Figure 9. Conflict value variations of different optimization methods after perturbation

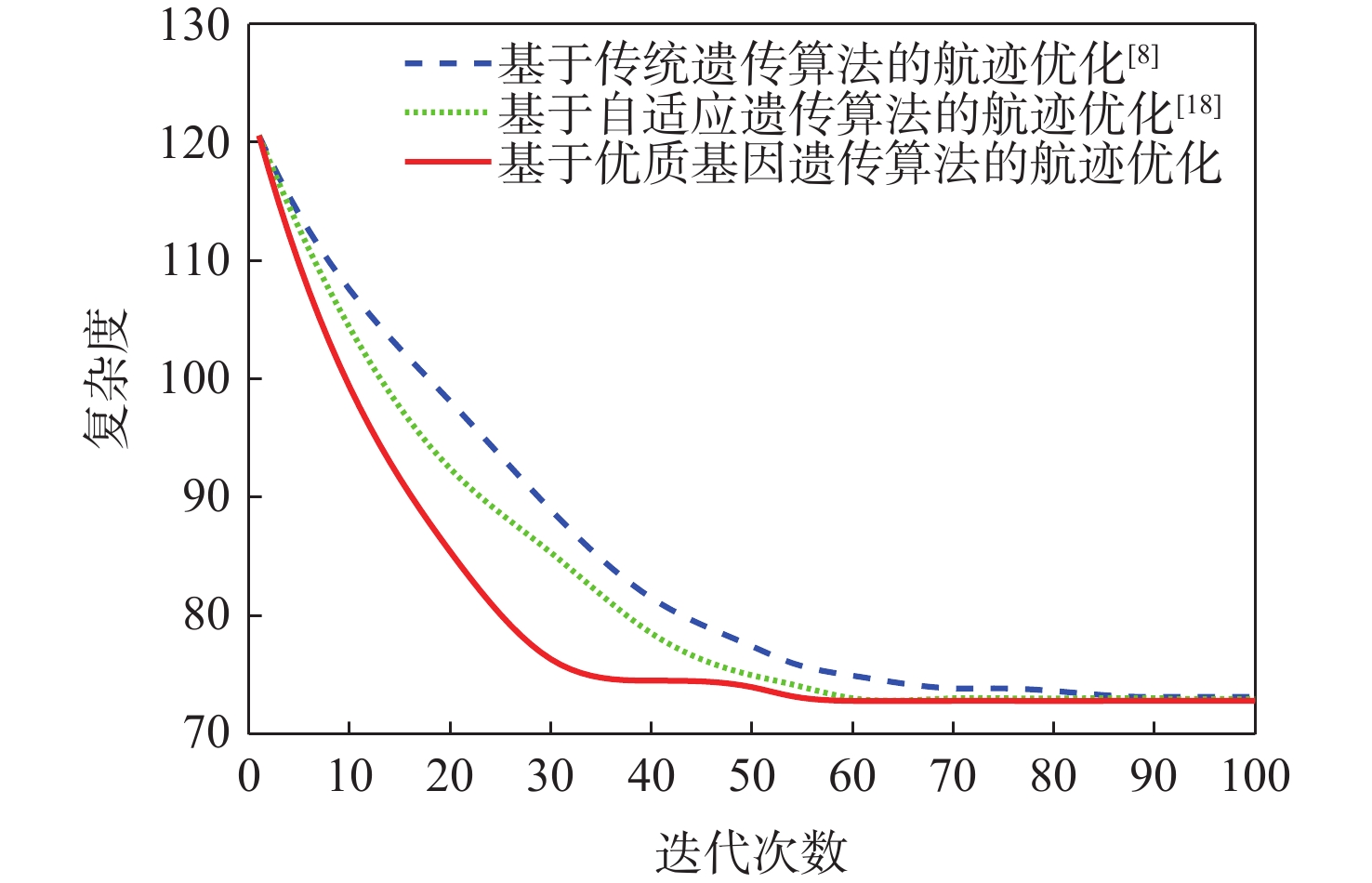

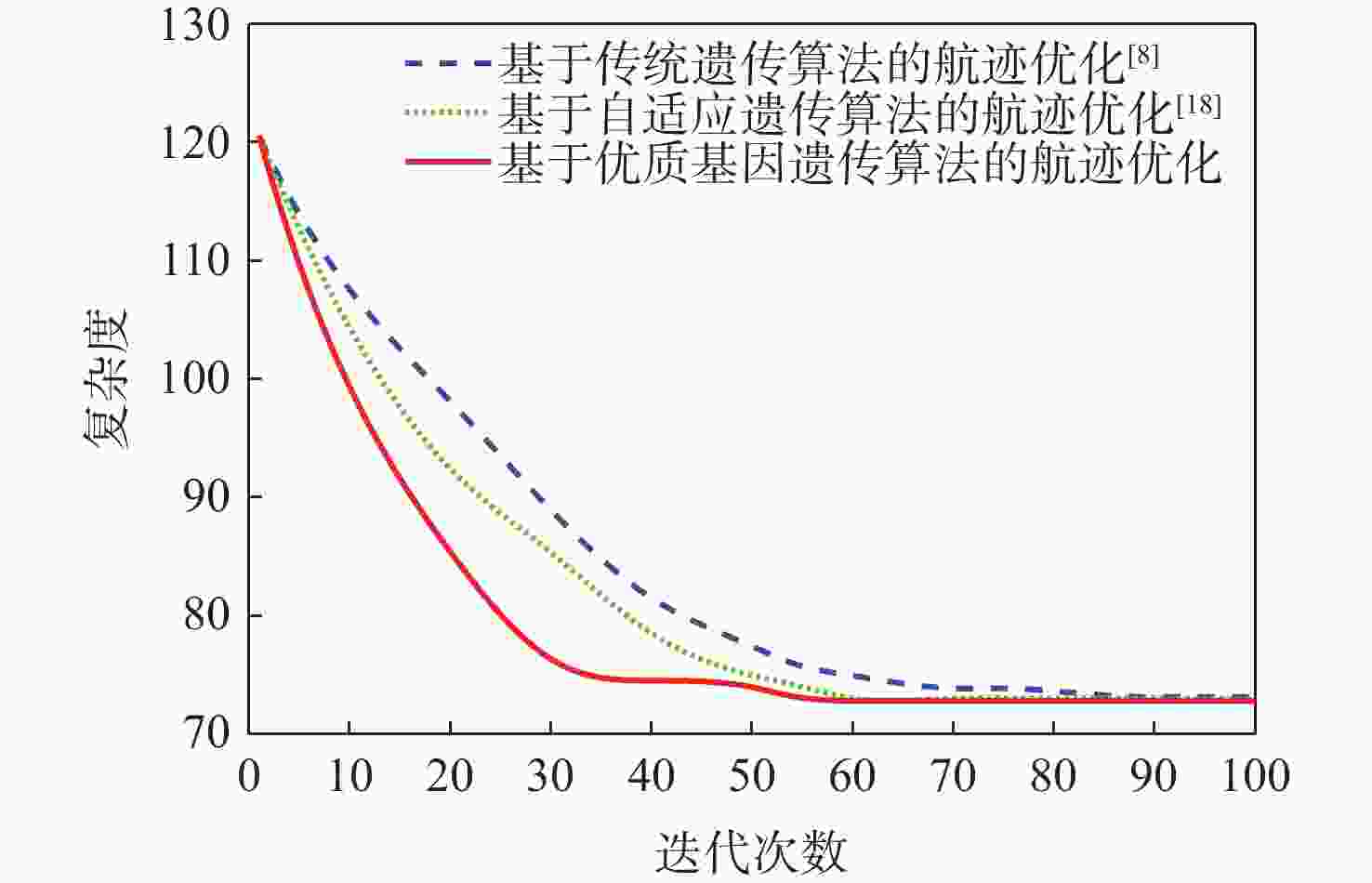

图 10 不同优化算法的航迹优化迭代
Figure 10. Iterative plot of trajectory optimization with different optimization algorithms

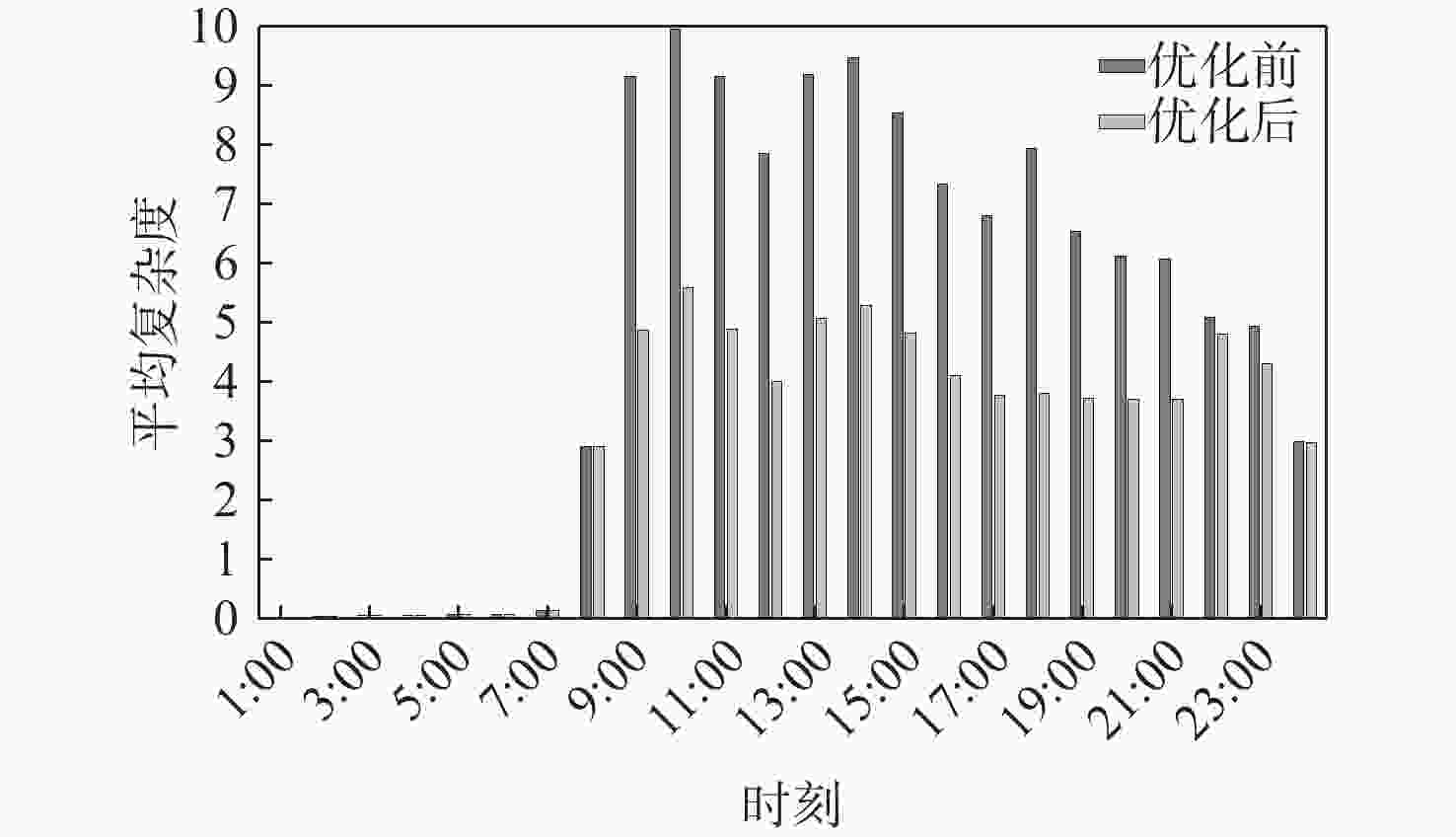

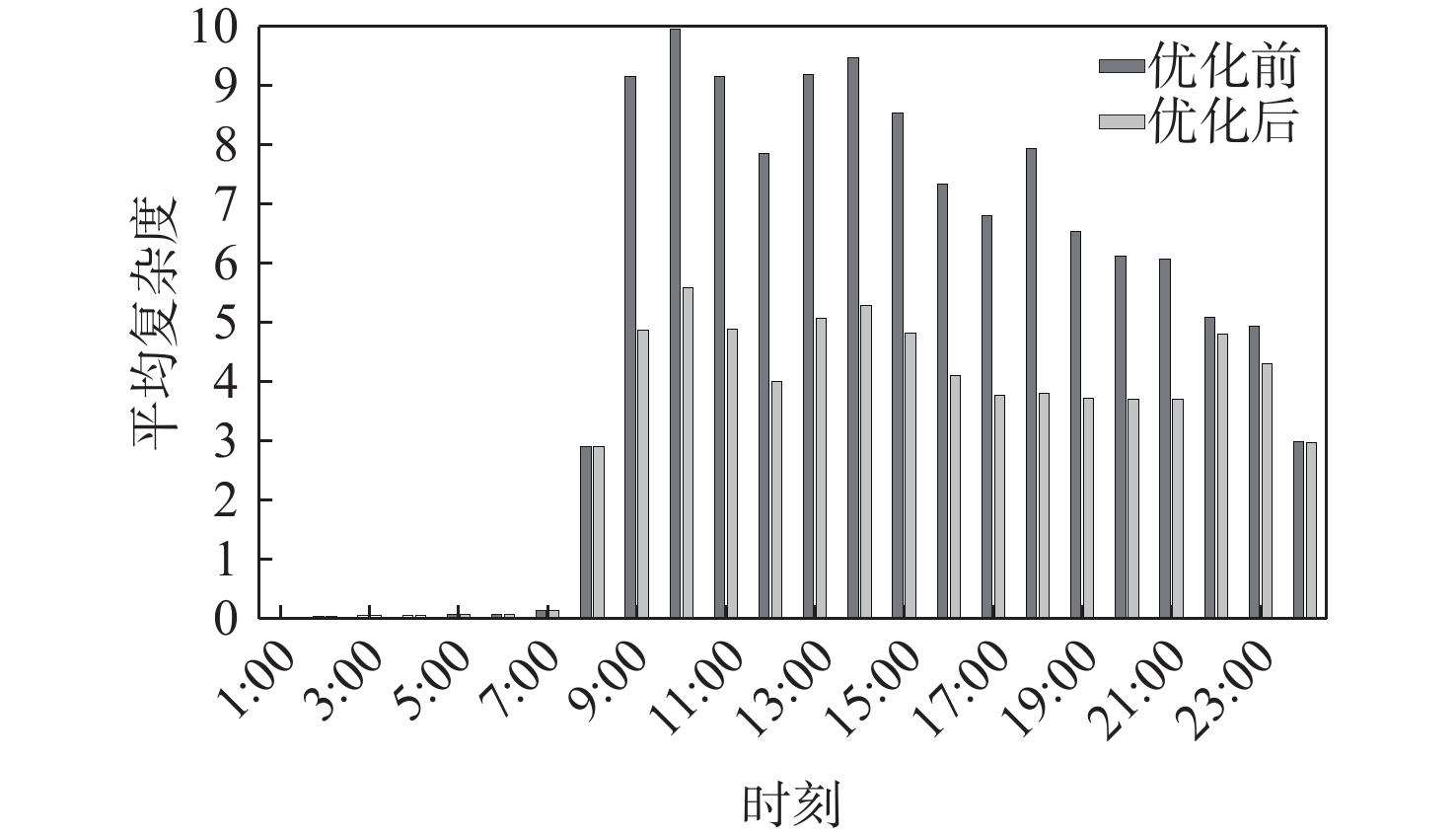

图 11 优化前后平均复杂度对比
Figure 11. Comparison of average complexity before and after optimization

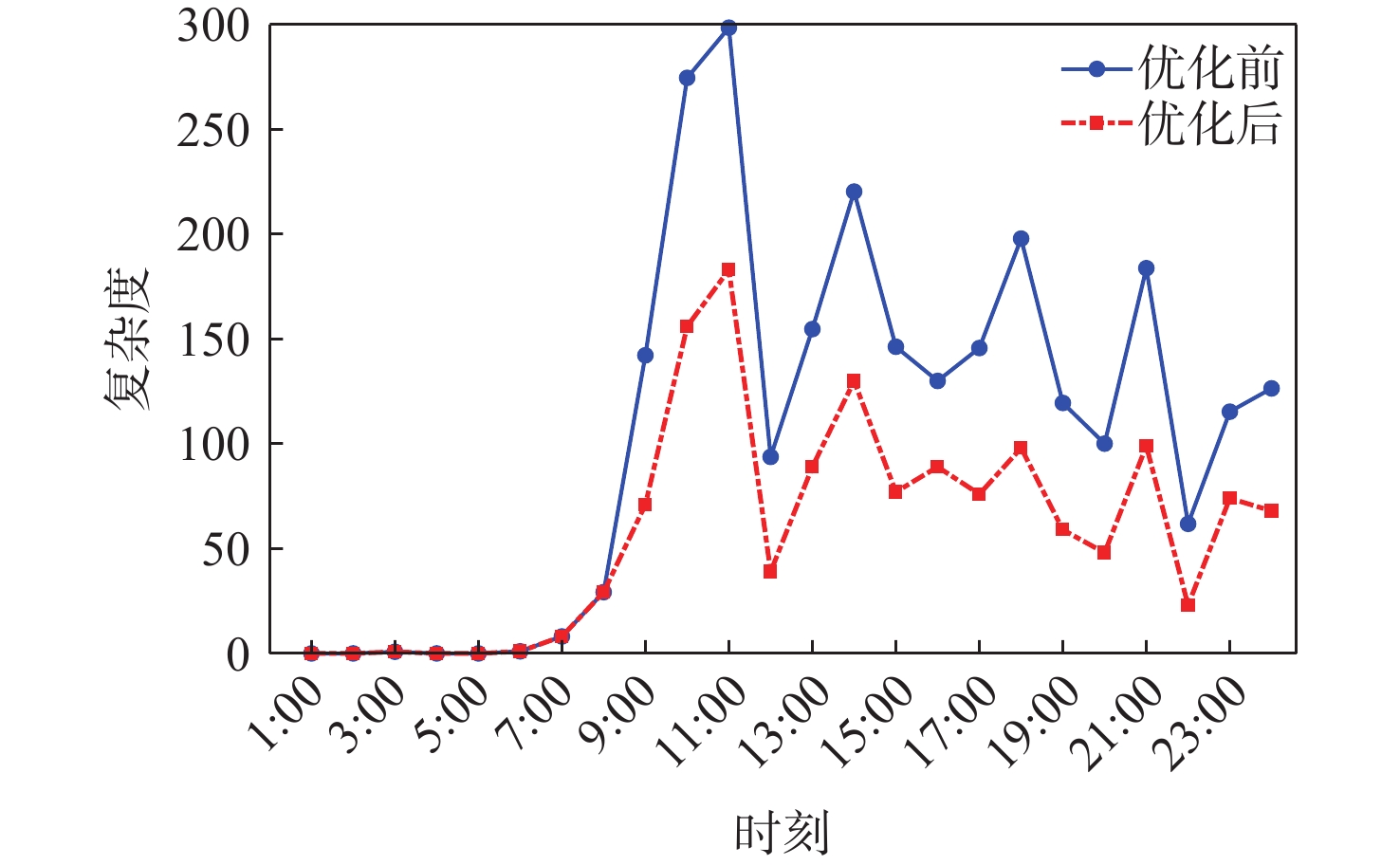

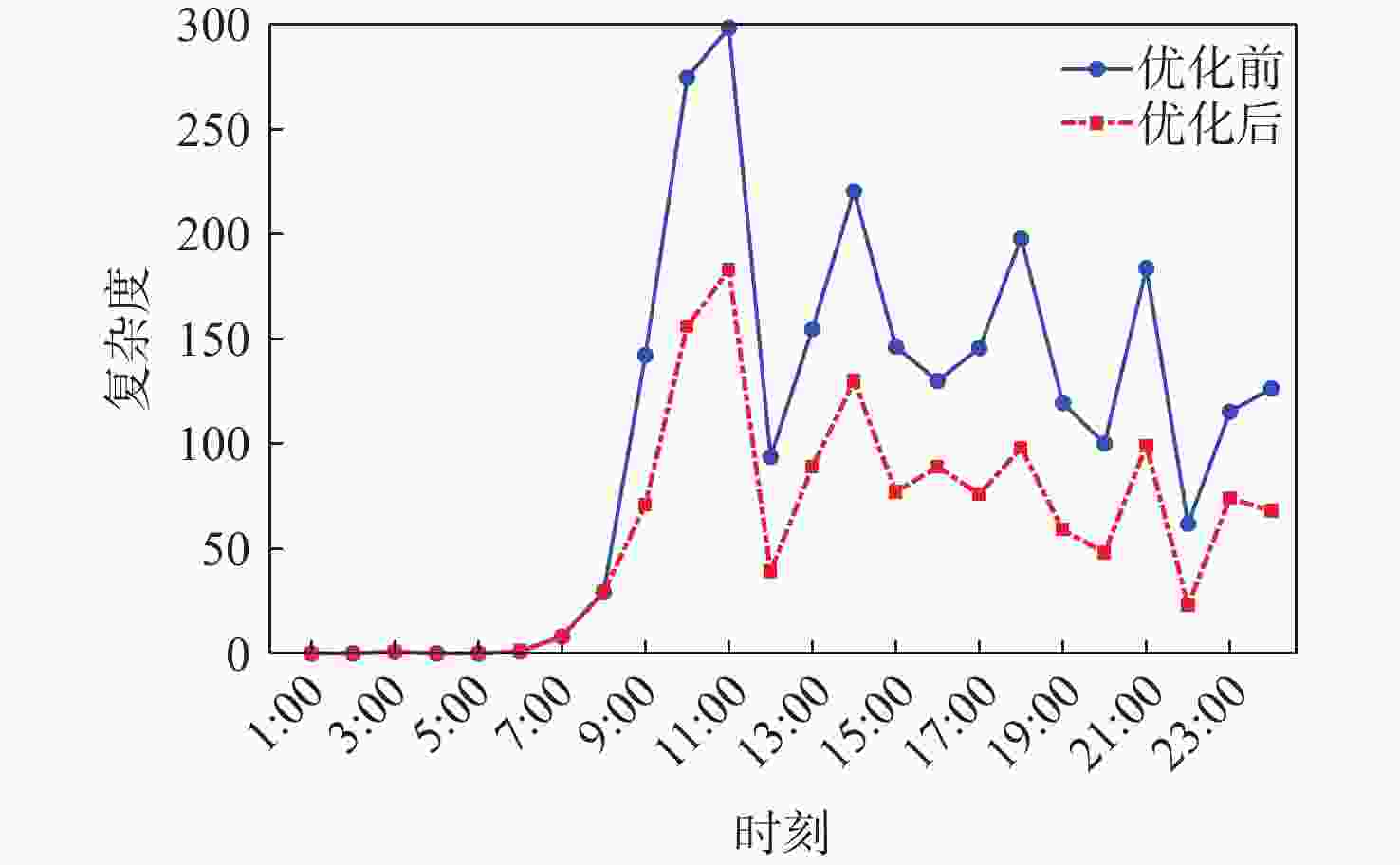

图 12 优化前后PAVTU复杂度变化图
Figure 12. Plot of PAVTU complexity change before and after optimization
-
[1] CAI K Q, TANG Y W, WANG W. An evolutionary multi-objective approach for network-wide conflict-free flight trajectories planning[C]//Proceedings of the IEEE/AIAA 34th Digital Avionics Systems Conference. Piscataway: IEEE Press, 2015: 1D2-1-1D2-10. [2] TOEBBEN H, LE TALLEC C, JOULIA A, et al. Innovative future air transport system: simulation of a fully automated air transport system[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2021, 225: 45-55. [3] ISLAMI A, CHAIMATANAN S, DELAHAYE D. Large-scale 4D trajectory planning[M]//Air Traffic Management and Systems II. Berlin: Springer, 2017: 27-47. [4] YAN S, CAI K Q. A multi-objective multi-memetic algorithm for network-wide conflict-free 4D flight trajectories planning[J]. Chinese Journal of Aeronautics, 2017, 30(3): 1161-1173. [5] CALVO-FERNÁNDEZ E, PEREZ-SANZ L, CORDERO-GARCÍA J M, et al. Conflict-free trajectory planning based on a data-driven conflict-resolution model[J]. Journal of Guidance, Control, and Dynamics, 2017, 40(3): 615-627. [6] XU M, HU M H, ZHOU Y, et al. Multi-aircraft cooperative strategic trajectory-planning method considering wind forecast uncertainty[J]. Sustainability, 2022, 14(17): 10811. [7] 谢华, 黎子弘, 杨磊, 等. 容量受限下城市对航班四维航迹优化[J]. 航空学报, 2022, 43(8): 325581.XIE H, LI Z H, YANG L, et al. Optimization of four-dimensional trajectory of city pair with limited capacity[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(8): 325581(in Chinese). [8] 李萌, 初建宇, 李印凤, 等. 基于航迹运行模式的航空器航迹优化模型[J]. 铁道科学与工程学报, 2022, 19(9): 2583-2591.LI M, CHU J Y, LI Y F, et al. Aircraft trajectory optimization model under trajectory based on operation[J]. Journal of Railway Science and Engineering, 2022, 19(9): 2583-2591(in Chinese). [9] 彭娅婷, 温祥西, 吴明功, 等. TBO 模式下基于复杂网络的空中交通复杂性分析[J]. 北京航空航天大学学报, 2025, 51(4): 1234-1244.PENG Y T, WEN X X, WU M G, et al. Complex network-based air traffic complexity analysis in TBO[J]. Journal of Beijing University of Aeronautics and Astronautics, 2025, 51(4): 1234-1244(in Chinese). [10] 周逸, 胡明华, 张颖. 固定航路飞行条件下的无冲突航迹规划[J]. 哈尔滨商业大学学报(自然科学版), 2021, 37(5): 550-556.ZHOU Y, HU M H, ZHANG Y. Conflict-free trajectory planning in fixed route[J]. Journal of Harbin University of Commerce (Natural Sciences Edition), 2021, 37(5): 550-556(in Chinese). [11] 常哲宁, 胡明华, 张颖, 等. 风影响下航空器多目标最优控制航迹优化方法[J]. 北京航空航天大学学报, 2024, 50(11): 3521-3531.CHANG Z N, HU M H, ZHANG Y, et al. A multi-objective optimal control trajectory optimization method for aircraft under wind influence[J]. Journal of Beijing University of Aeronautics and Astronautics, 2024, 50(11): 3521-3531(in Chinese). [12] 张盈斐, 袁莉燕, 周航, 等. 基于涟漪扩散算法的航空器自主航迹规划方法 [J/OL]. 北京航空航天大学学报, (2023-09-25)[2024-04-25]. https://link.cnki.net/urlid/11.2625.V.20230922.1426.001.ZHANG Y F, YUAN L Y , ZHOU H, et al. FAutonomous trajectory planning method of aircraft based on ripple spreading algorithm[J/OL]. Journal of Beijing University of Aeronautics and Astronautics, (2023-09-25)[2024-04-25]. https://link.cnki.net/urlid/11.2625.V.20230922.1426.001(in Chinese). [13] 雷刚, 李云舒, 张宏强, 等. 改进麻雀搜索算法的飞行器航迹规划[J]. 电光与控制, 2024, 31(3): 41-47.LEI G, LI Y S, ZHANG H Q, et al. An improved sparrow search algorithm for aircraft path planning[J]. Electronics Optics & Control, 2024, 31(3): 41-47(in Chinese). [14] PAIELLI R A. Evaluation of tactical conflict resolution algorithms for enroute airspace[J]. Journal of Aircraft, 2011, 48(1): 324-330. [15] WANG H Y, HUANG J W, DENG T T, et al. Evaluation and optimization of air traffic complexity based on resilience metrics[J]. Journal of Advanced Transportation, 2023, 2023: 5692934. [16] COOK A J, TANNER G. European airline delay cost reference values[EB/OL]. (2015-12-24)[2024-04-25]. https://www.eurocontrol.int/sites/default/files/publication/files/european-airline-delay-cost-reference-values-final-report-4-1.pdf. [17] 王永, 王明月, 龚建. 基于多目标遗传算法的8×8 S盒的优化设计方法[J]. 西南交通大学学报, 2024, 59(3): 519-527.WANG Y, WANG M Y, GONG J. Optimal design method of 8 × 8 S-box based on multi-objective genetic algorithm[J]. Journal of Southwest Jiaotong University, 2024, 59(3): 519-527(in Chinese). [18] 张劼, 李宁洲, 张晓娟, 等. 基于自适应变异遗传算法的多无人机航迹协同[J]. 火力与指挥控制, 2022, 47(11): 18-23.ZHANG J, LI N Z, ZHANG X J, et al. Multi-UAV track coordination based on adaptive mutation genetic algorithm[J]. Fire Control & Command Control, 2022, 47(11): 18-23(in Chinese). -
