摘要:
空间太阳能电池是航天能源系统的关键主件，其所受应变主要由太阳能基板通过黏接层传递，准确表征基板到电池的应变传递规律，可为空间太阳能电池的抗力学性能研究提供技术支撑。基于此，根据剪滞理论建立了空间太阳能电池的应变传递理论计算模型，从理论上分析了空间太阳能电池的应变传递规律，推导了均匀应变场和典型非均匀应变场下的结果，并利用ANSYS有限元模型和实物实验进行了验证，结果表明理论模型的正确性。同时，还具体分析了空间太阳能电池几何参数和物理参数对应变传递率的影响，为空间太阳能电池的设计提供了理论依据。
-
关键词:
- 空间太阳能电池 /
- 应变传递 /
- 黏接层 /
- ANSYS有限元模型 /
- 剪滞理论
Abstract:Space solar cells are critical components of aerospace energy systems. The strain they experience is primarily transmitted from the solar array substrate through the adhesive layer. Accurately characterizing the strain transfer from the substrate to the cell is crucial for understanding the mechanical resistance performance of space solar cells. This paper establishes a theoretical model for strain transfer in space solar cells based on shear-lag theory. It provides data for both uniform and typical non-uniform strain fields and theoretically examines the strain transmission mechanism in space solar cells. The model’s validity was confirmed through ANSYS finite element analysis and physical experiments, demonstrating the correctness of the theoretical model. The study also investigates how the physical and geometric characteristics of space solar cells impact the strain transfer rate, offering a theoretical basis for their design.
-
Key words:
- space solar cells /
- strain transfer /
- adhesive layer /
- ANSYS finite element model /
- shear lag theory
-

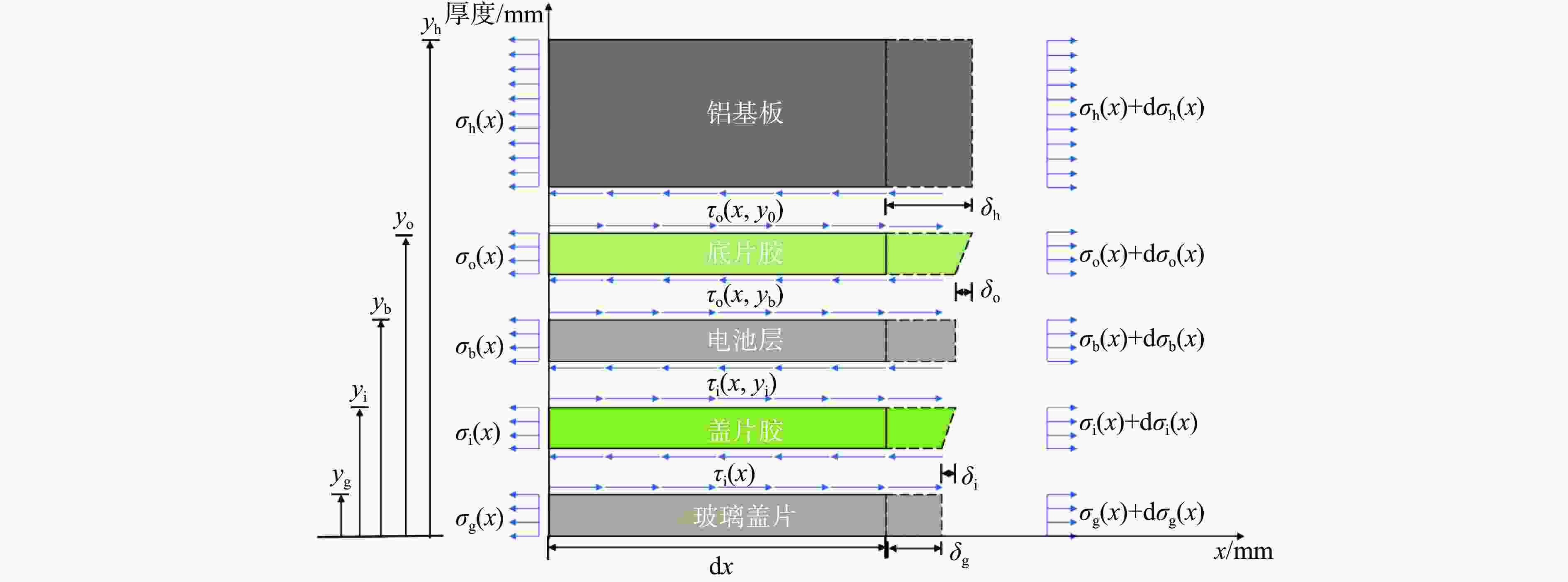

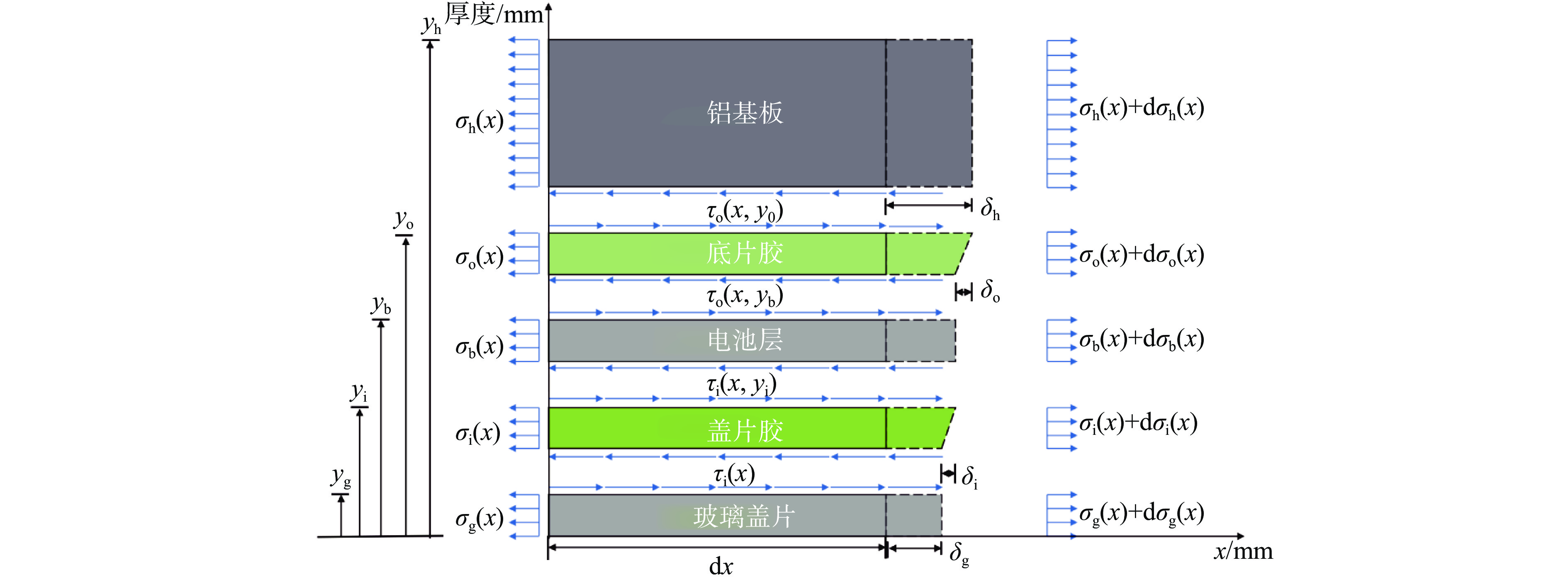

图 2 黏贴在基板上的空间太阳能电池应力传递图
Figure 2. Stress transmission diagram of space solar cells attached to the substrate

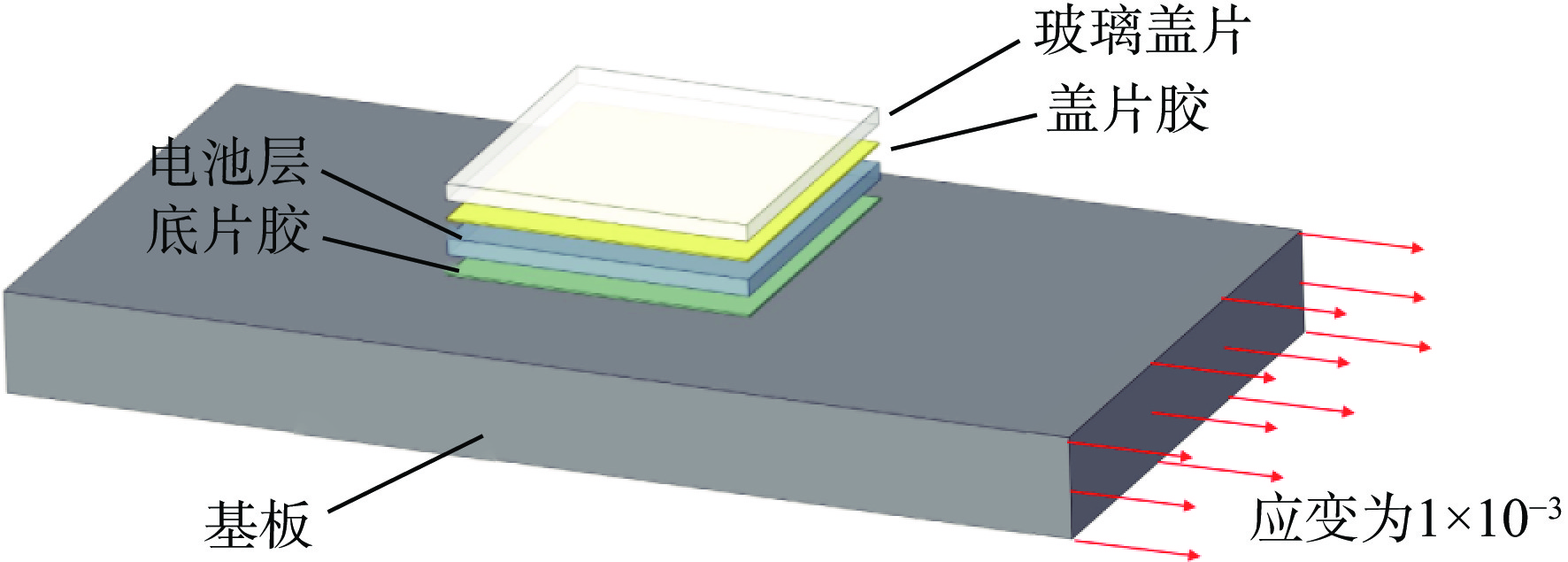

图 3 在基板均匀应变场下的空间太阳能电池
Figure 3. Space solar cells under uniform strain field on the substrate

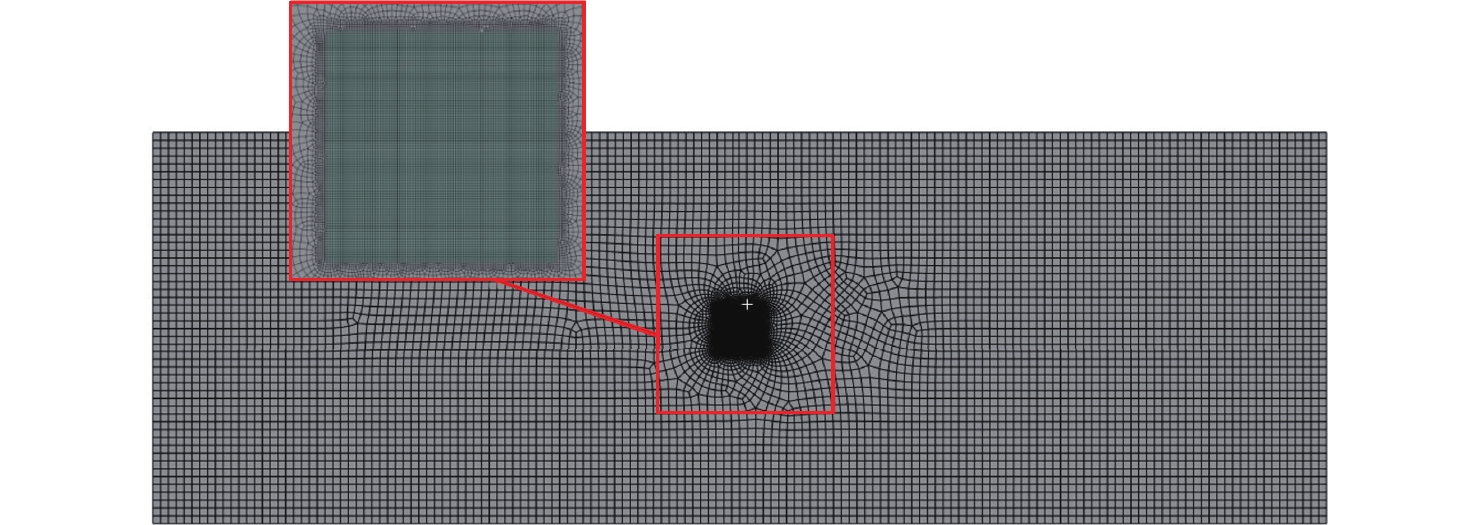

图 4 黏贴在基板上的空间太阳能电池三维有限元模型
Figure 4. Three-dimensional finite element model of space solar cells attached to the substrate

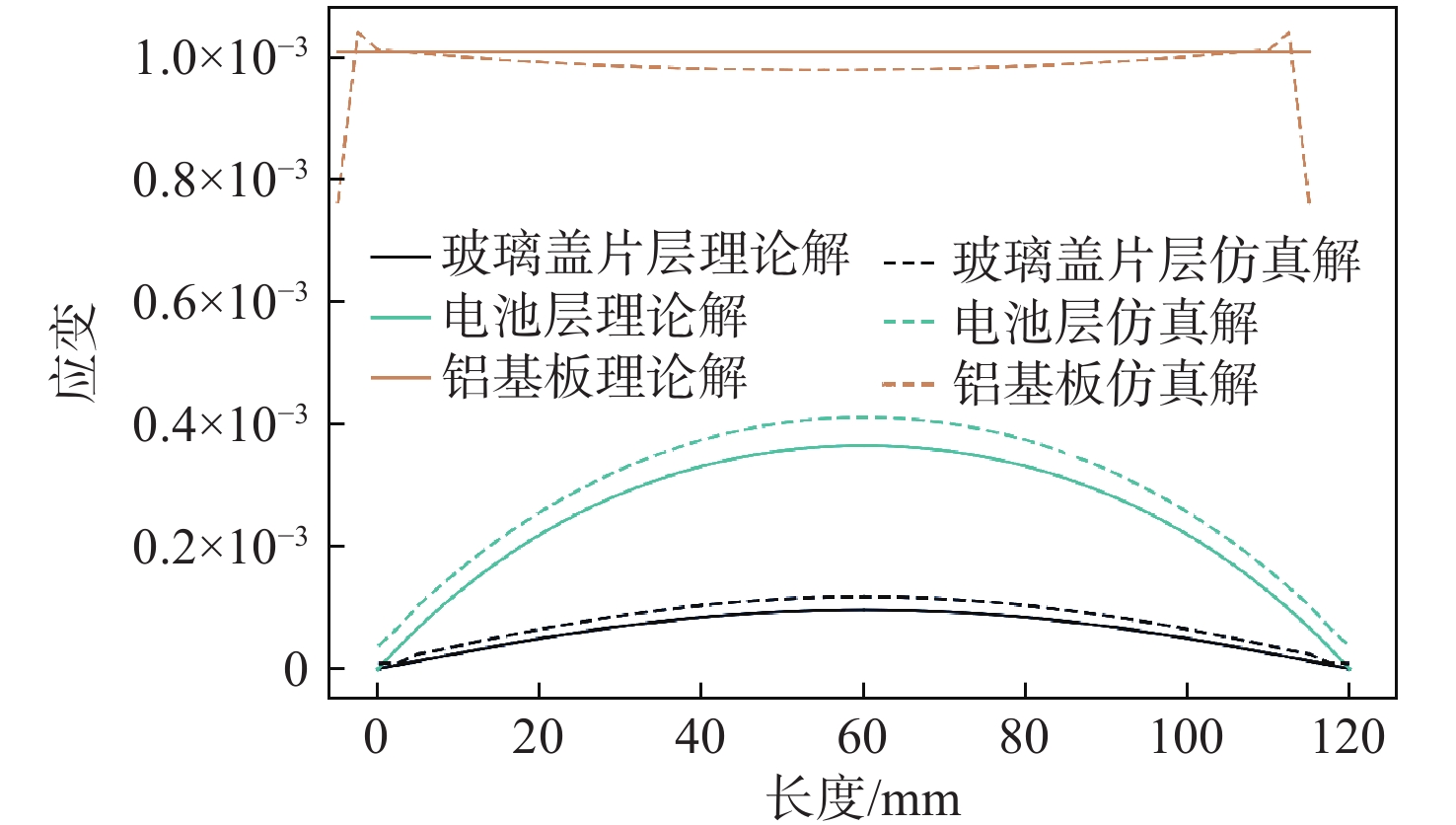

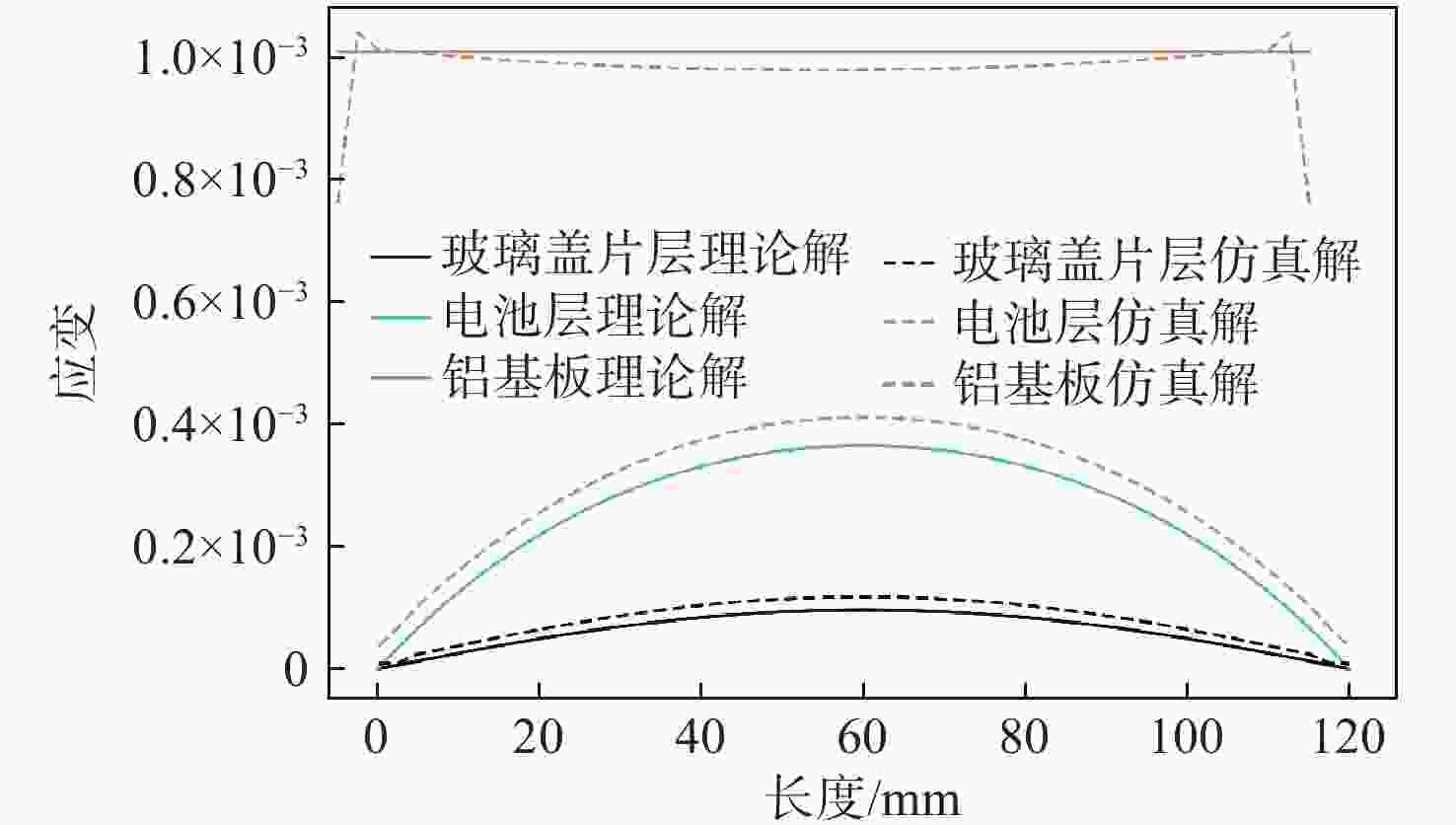

图 5 均匀应变条件下基板、电池层和玻璃盖片沿轴向的应变分布
Figure 5. Axial strain distribution of the substrate, battery layer, and glass cover under uniform strain condition

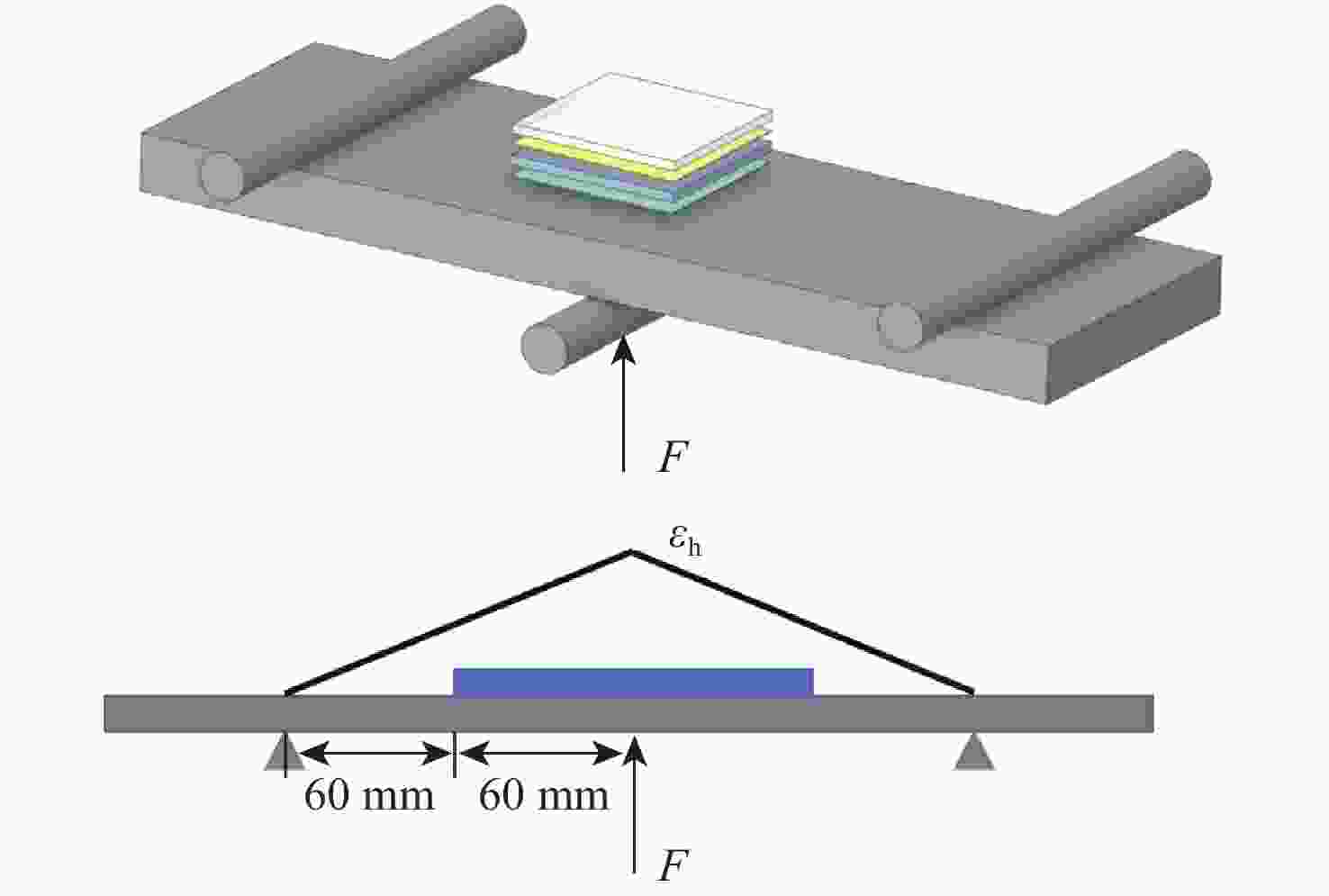

图 6 三点弯条件下黏贴在基板上的空间太阳能电池
Figure 6. Space solar cells attached to the substrate under three-point bending conditions

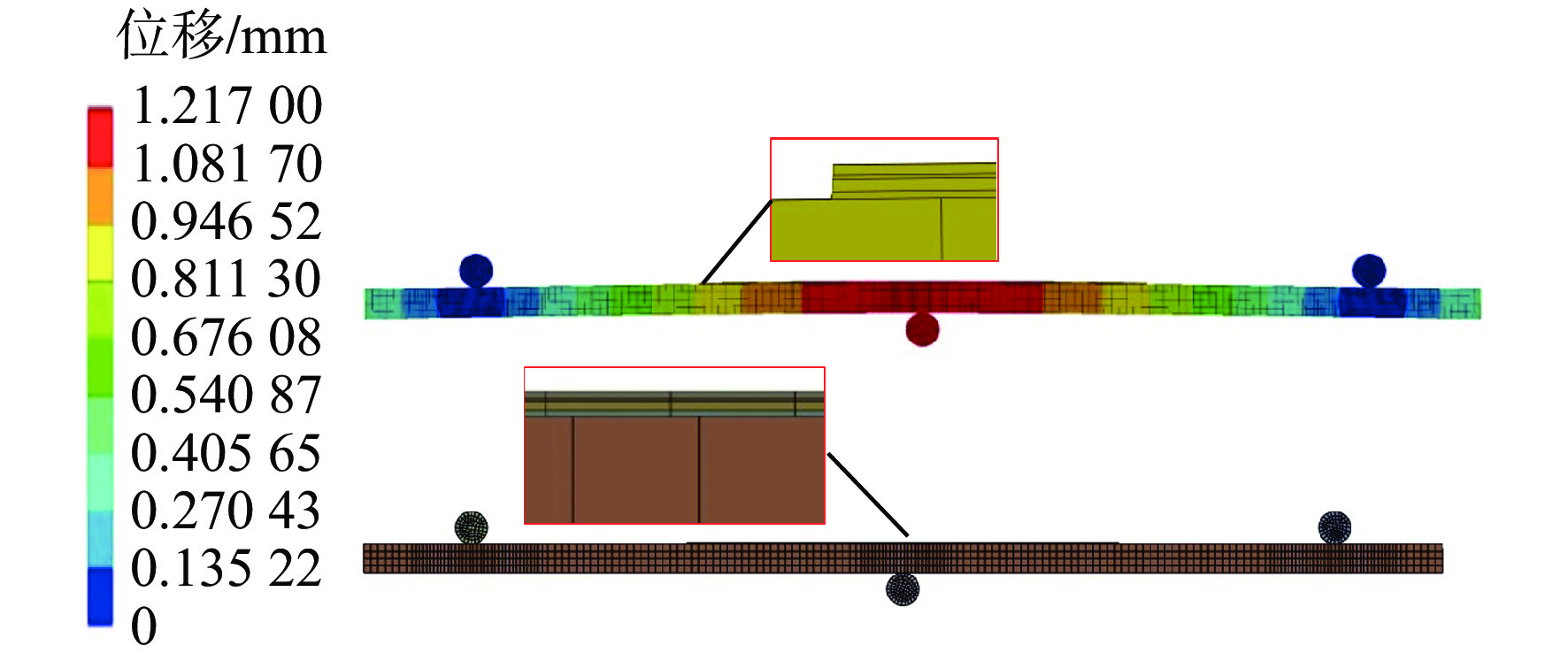

图 7 三点弯条件下黏贴在基板上的空间太阳能电池有限元模型
Figure 7. Finite element model of space solar cells attached to the substrate under three-point bending conditions

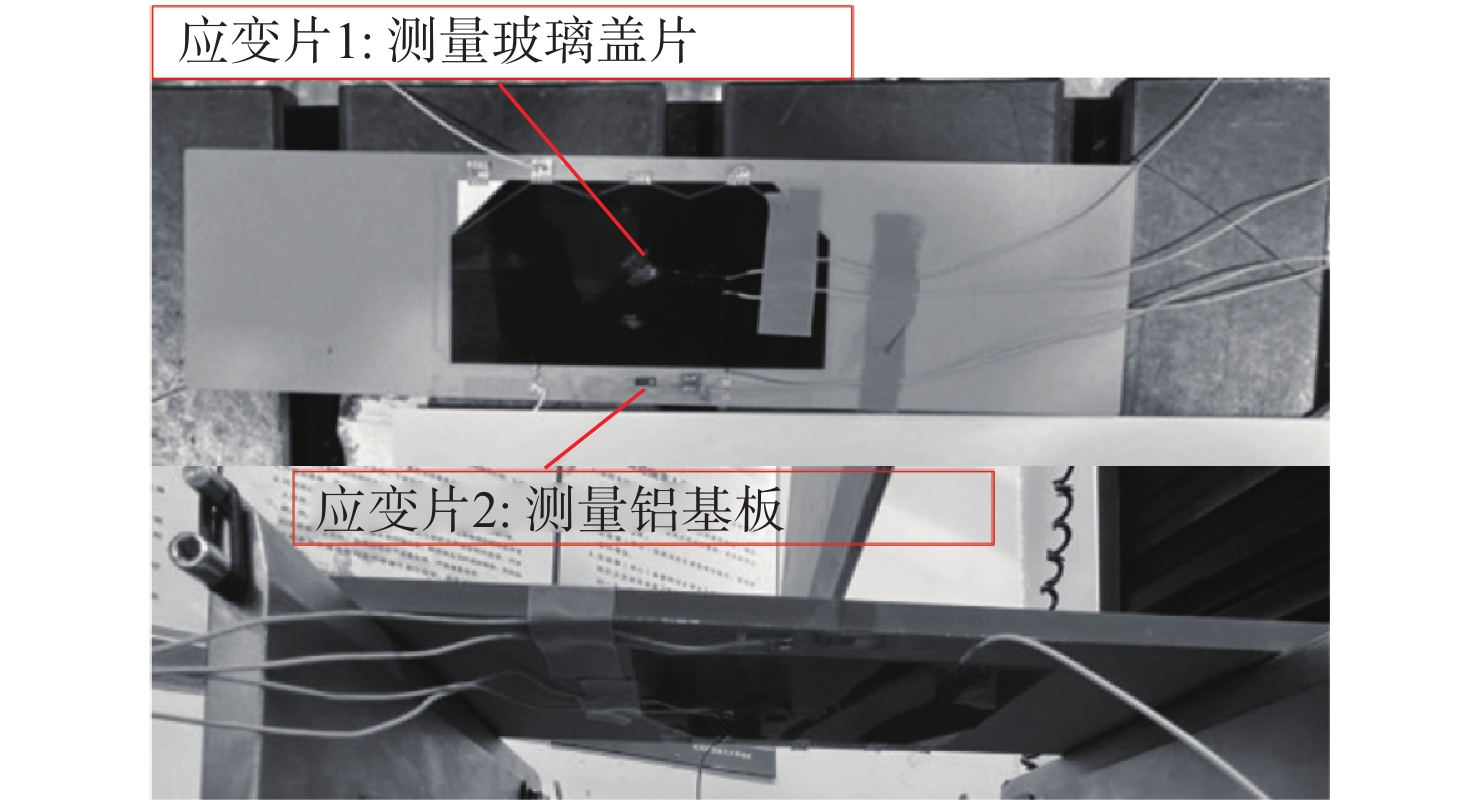

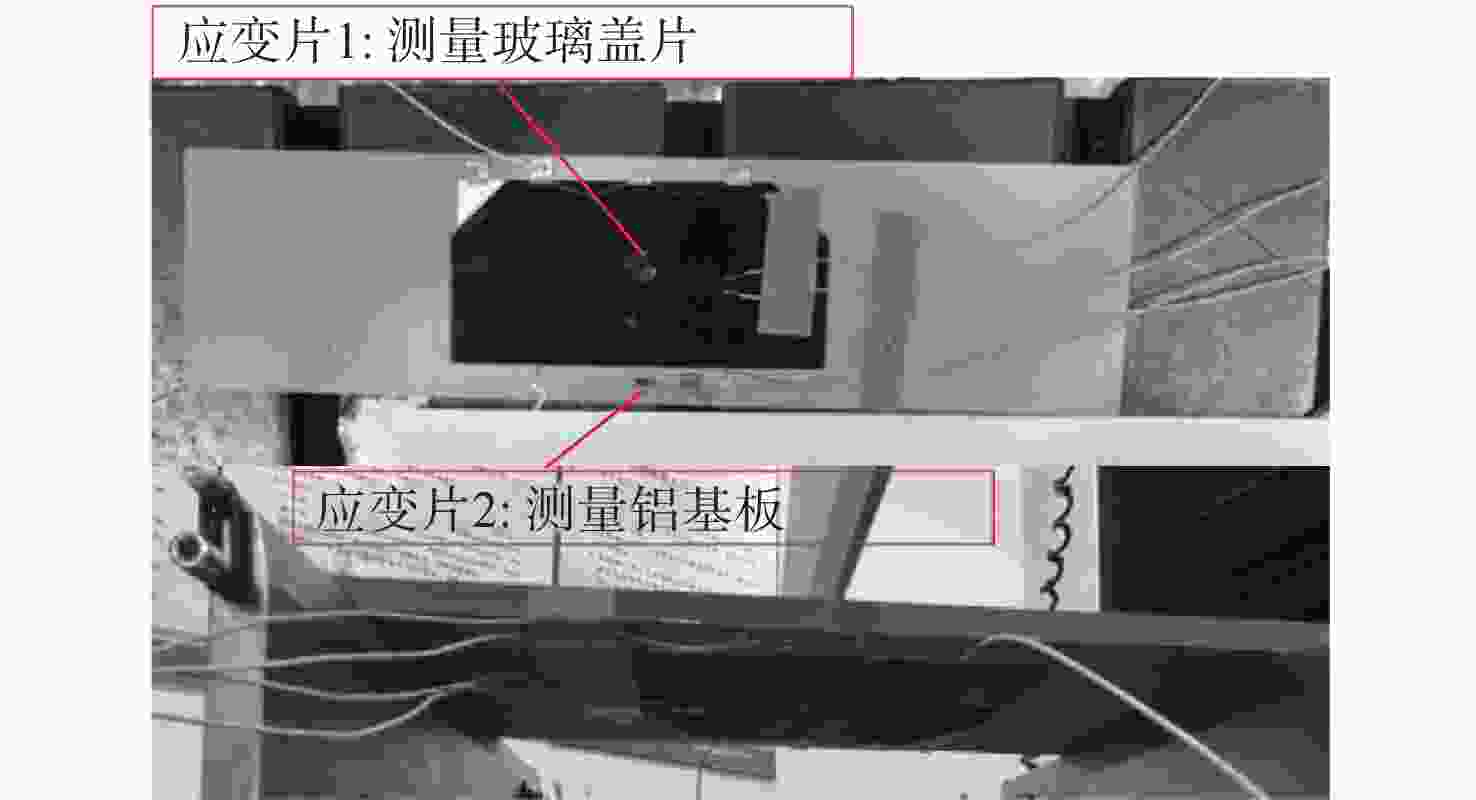

图 8 黏贴在铝基板上的空间太阳电池三点弯曲试验示意图
Figure 8. Schematic diagram of three-point bending test of space solar cells attached to aluminum substrate

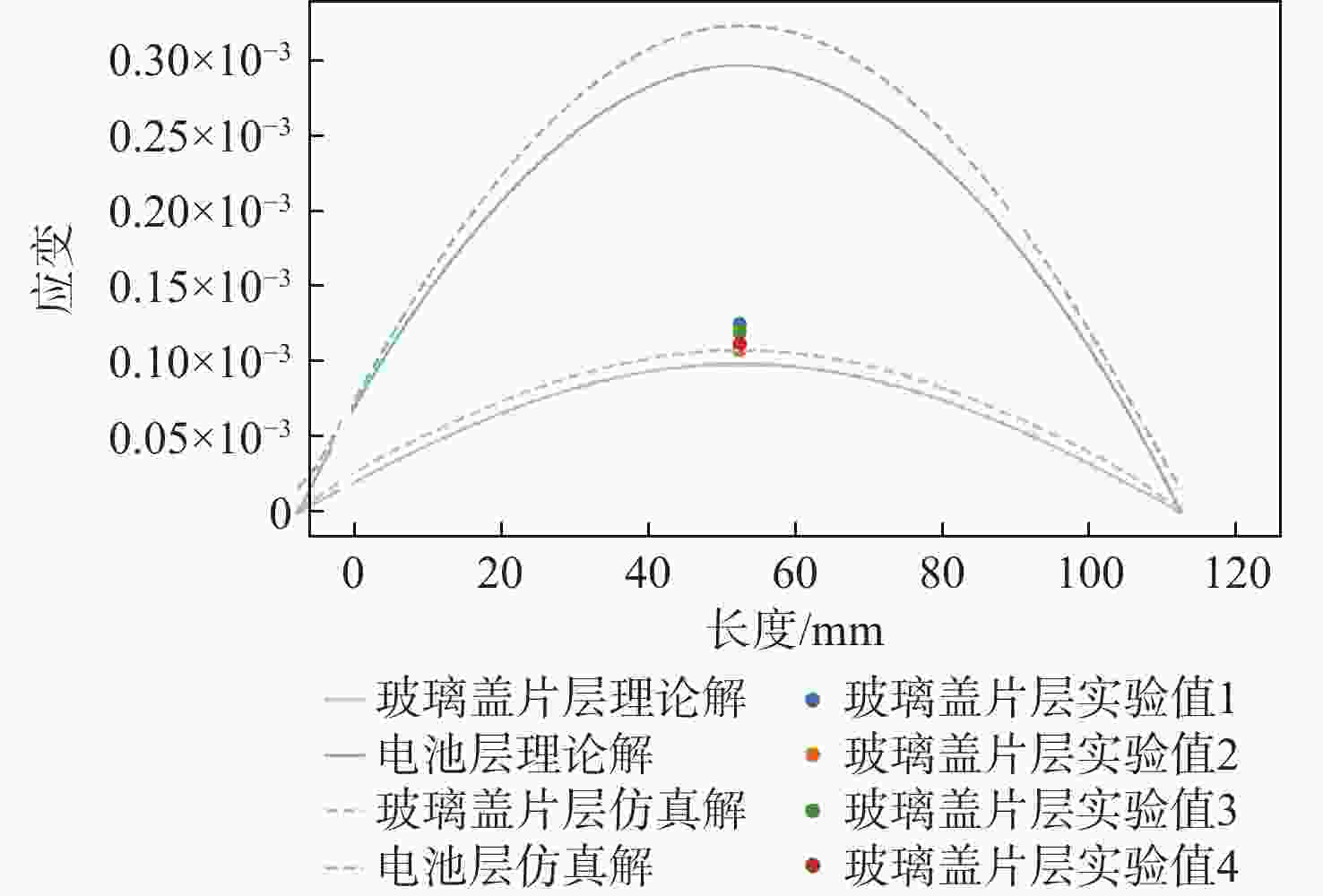

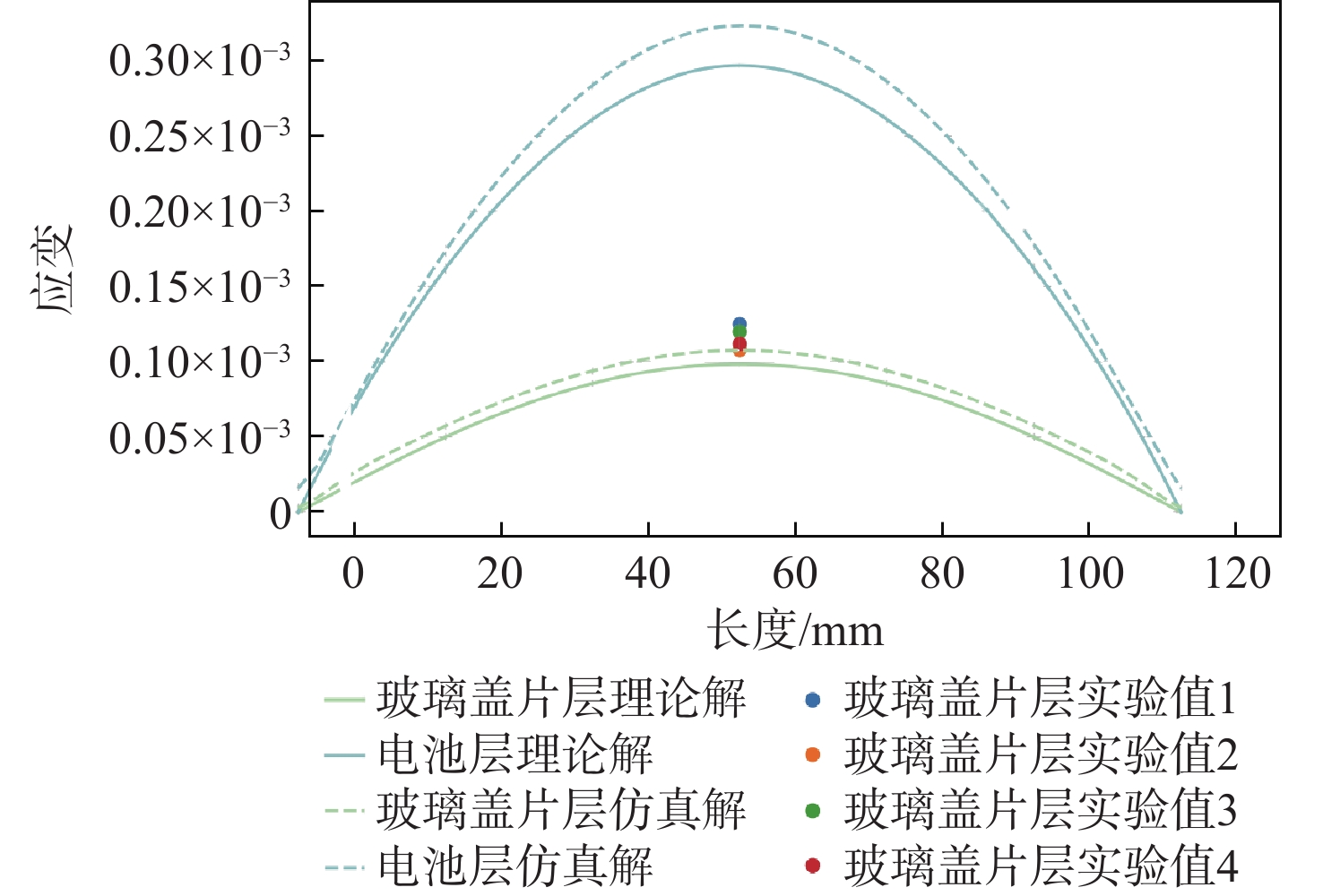

图 9 三点弯条件下空间太阳电池玻璃盖片和电池层沿轴向应变的理论解、仿真解和实验测量值
Figure 9. Theoretical solutions, simulation results, and experimental measurements of the axial strain in the glass cover and battery layer of a space solar cell under three-point bending conditions

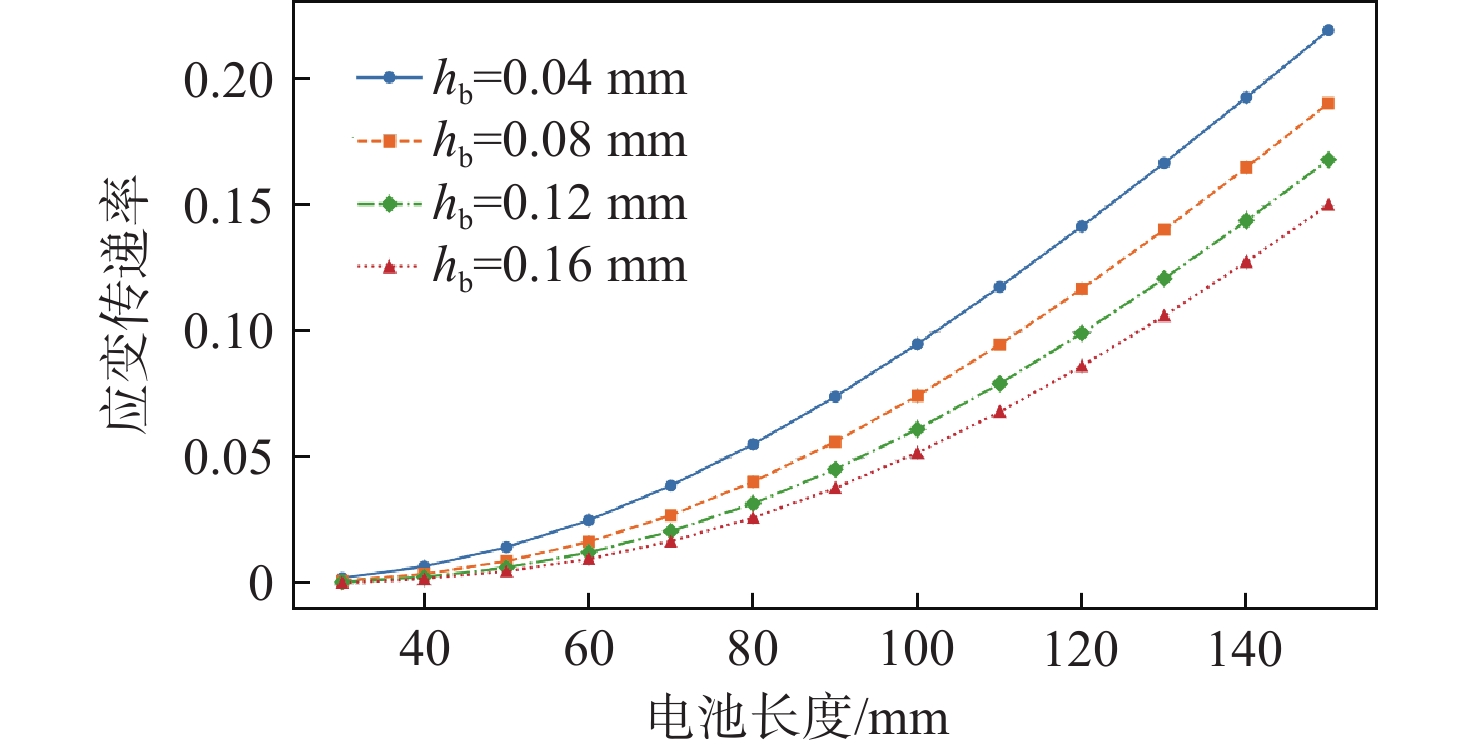

图 10 空间太阳能电池长度及电池层厚度对应变传递率的影响
Figure 10. The impact of the length of space solar cells and the thickness of the battery layer on the strain transfer rate

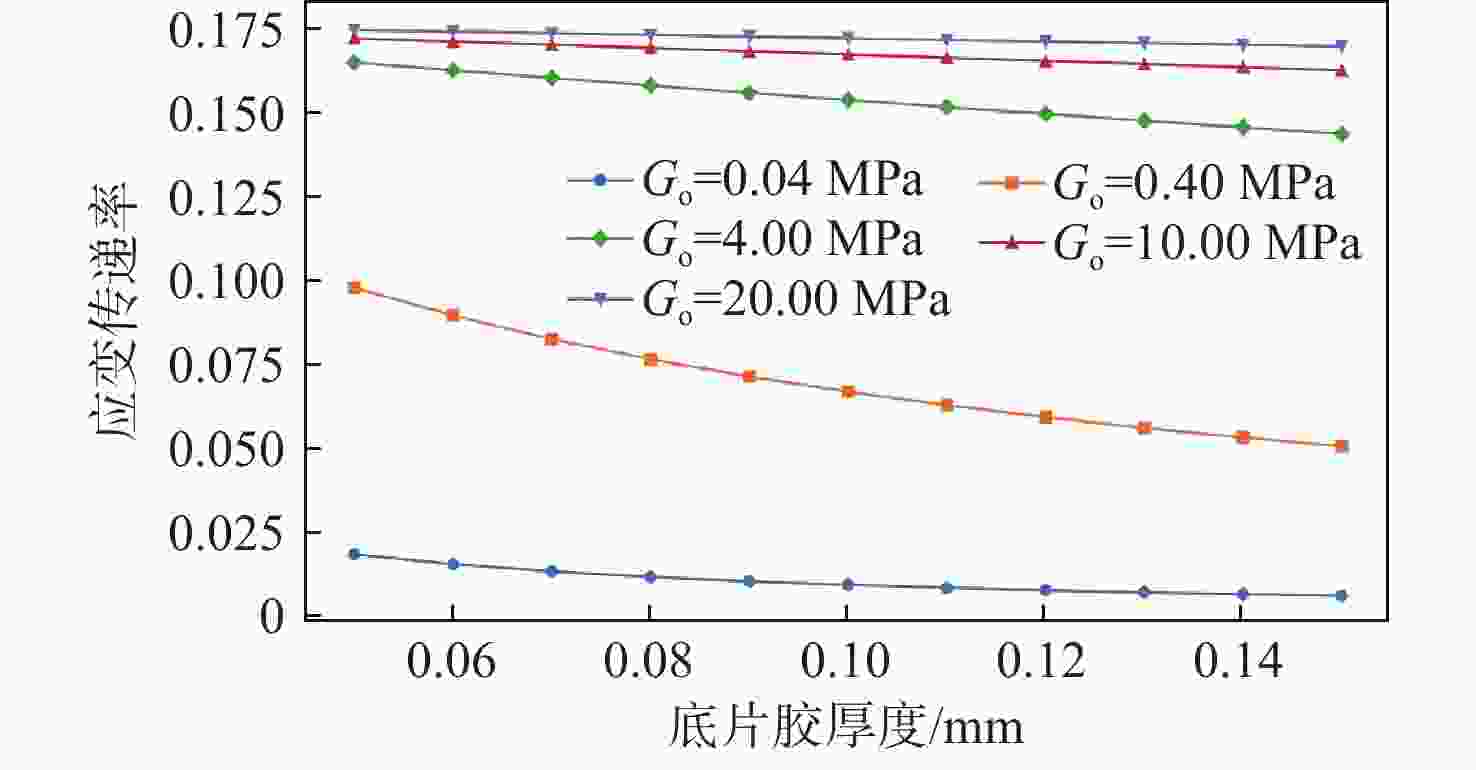

图 11 底片胶剪切模量及厚度对应变传递率的影响
Figure 11. The effect of the shear modulus and thickness of the adhesive film on the strain transfer rate
表 1 基板和空间太阳能电池的尺寸和力学性能参数
Table 1. Dimensions and mechanical performance parameters of substrate and space solar cells
材料 弹性模量/MPa 泊松比 长度/mm 厚度/mm 基板 71 0.33 3000 8 底片胶 0.002 0.47 120 0.1 电池层 120 0.26 120 0.145 盖片胶 0.00025 0.49 120 0.04 玻璃盖片 75.56 0.209 120 0.12
下载: 导出CSV
-
[1] 王凯, 王训春, 钱斌, 等. 高效太阳电池及其阵列技术的空间应用研究进展[J]. 硅酸盐学报, 2022, 50(5): 1436-1446.WANG K, WANG X C, QIAN B, et al. Recent development on space application for high-efficiency solar cells and array technology[J]. Journal of the Chinese Ceramic Society, 2022, 50(5): 1436-1446(in Chinese). [2] 殷茂淑, 杨广, 王训春, 等. 空间太阳电池阵应变规律研究[J]. 物理学报, 2021, 70(19): 337-343.YIN M S, YANG G, WANG X C, et al. Strain-testing research of space solar cell array[J]. Acta Physica Sinica, 2021, 70(19): 337-343(in Chinese). [3] SHIN G H, KIM D G, KWON S J, et al. Simulation and ground test for the solar array using GaInP/GaAs/Ge cells for space verification[J]. Journal of the Korean Physical Society, 2019, 74(11): 1079-1084. [4] ALMUBARAK H O, MASUI H, CHO M. Environment test campaign of triple junction photovoltaic on aluminium substrate solar panel for lean-satellite[J]. Transactions of the Japan Society for Aeronautical and Space Sciences, 2016, 14(30): 9-14. [5] 金海雯, 于辉, 赵颖, 等. 半刚性太阳电池阵抗力学环境设计与分析[J]. 电源技术, 2012, 36(6): 813-815.JIN H W, YU H, ZHAO Y, et al. Against mechanical environmental design and analysis of semi-rigid solar array[J]. Chinese Journal of Power Sources, 2012, 36(6): 813-815(in Chinese). [6] WILT D M, BEAUCHEMIN R, MCPHEETERS C, et al. Bend testing of IMM and triple junction solar cells[C]//Proceedings of the 2018 IEEE 7th World Conference on Photovoltaic Energy Conversion. Piscataway: IEEE Press, 2018: 3773-3776. [7] YAMAGUCHI H, IJICHI R, SUZUKI Y, et al. Development of space solar sheet with inverted triple-junction cells[C]//Proceedings of the 2015 IEEE 42nd Photovoltaic Specialist Conference. Piscataway: IEEE Press, 2015: 1-5. [8] 王晓燕, 何世禹, 郑双. 太阳电池板结构应力-应变状态分析[J]. 太阳能学报, 2005, 26(5): 631-634.WANG X Y, HE S Y, ZHENG S. Stress-strain analysis of photovolaic panel structure[J]. Acta Energiae Solaris Sinica, 2005, 26(5): 631-634(in Chinese). [9] WANG X Y, GENG H B, HE S Y, et al. Effect of thermal expansion coefficient on the stress distribution in solar panel[J]. International Journal of Adhesion and Adhesives, 2007, 27(4): 288-297. [10] JONES P A, SPENCE B R. Spacecraft solar array technology trends[C]//Proceedings of the 1998 IEEE Aerospace Conference. Piscataway: IEEE Press, 1998: 141-152. [11] BERMUDEZ-GARCIA A, VOARINO P, RACCURT O. Environments, needs and opportunities for future space photovoltaic power generation: a review[J]. Applied Energy, 2021, 290: 116757. [12] 张伟, 兰志成, 吴致丞. 卫星卷绕式柔性太阳电池阵关键技术研究[J]. 电子技术应用, 2022, 48(6): 10-13.ZHANG W, LAN Z C, WU Z C. The key technical analysis of the roll-out solar array[J]. Application of Electronic Technique, 2022, 48(6): 10-13(in Chinese). [13] 于辉, 张伟, 崔新宇, 等. 空间太阳电池阵技术现状及发展趋势[J]. 电源技术, 2020, 44(10): 1552-1557.YU H, ZHANG W, CUI X Y, et al. Recent research and developing trend of space solar cell array technology[J]. Chinese Journal of Power Sources, 2020, 44(10): 1552-1557(in Chinese). [14] 黎之奇. 晶体硅太阳电池应力的理论分析[J]. 湖南大学学报(自然科学版), 2020, 47(9): 137-143.LI Z Q. Theoretical analysis of stresses for crystalline cells in PV modules[J]. Journal of Hunan University (Natural Sciences), 2020, 47(9): 137-143(in Chinese). [15] TAN X, BAO Y, ZHANG Q H, et al. Strain transfer effect in distributed fiber optic sensors under an arbitrary field[J]. Automation in Construction, 2021, 124: 103597. -
