基于超级块嵌套的动态二进制翻译性能优化方法

金帅; 柴志雷; 周浩杰

doi:10.13700/j.bh.1001-5965.2024.0298

基于超级块嵌套的动态二进制翻译性能优化方法

doi: 10.13700/j.bh.1001-5965.2024.0298

江南大学人工智能与计算机学院，无锡 214122

基金项目:

国家自然科学基金(61972180)

详细信息

通讯作者:
E-mail：zlchai@jiangnan.edu.cn

中图分类号: TP314
计量
- 文章访问数: 261
- HTML全文浏览量: 99
- PDF下载量: 9
- 被引次数: 0
出版历程
- 收稿日期: 2024-05-08
- 录用日期: 2024-09-23
- 网络出版日期: 2024-10-08
- 整期出版日期: 2026-06-30

Superblock nesting based on performance optimization for dynamic binary translation

School of Artificial Intelligence and Computer Science，Jiangnan University，Wuxi 214122，China

Funds:

National Natural Science Foundation of China (61972180)

More Information

Corresponding author: E-mail：zlchai@jiangnan.edu.cn

摘要

摘要:
直接块链接方法可以在动态二进制翻译过程中降低翻译器介入频率、提升目标程序运行性能，单纯的直接块链接只关注逻辑层面的连接，并未关注物理存储位置的连续。针对该问题，提出了一种基于超级块嵌套的动态二进制翻译性能优化方法。基于二进制翻译器预翻译目标代码生成的中间表示(IR)指令，通过构建嵌套结构的超级块使代码实现物理存储位置的连续，从而增加指令cache命中率。实验结果表明：以动态二进制翻译领域最经典的且最常用的SPEC2006作为测试基准，以主流的开源二进制翻译器QEMU6.0为实验框架时，相比未采用超级块嵌套的版本，所提方法可将cache命中率平均提升53.28%，最大可提升90%。目标程序运行性能平均提升3.07%，最高可提升4.58%。
- 动态二进制翻译 /
- 超级块 /
- 中间码嵌套 /
- 翻译器QEMU /
- 指令cache
Abstract:
Simple direct block linking only considers the connection at the logical level and ignores the continuity of the physical storage location, despite the fact that the "direct block linking" method can decrease the frequency of translator intervention and enhance the target program's performance during the dynamic binary translation process. Aiming at this problem, a dynamic binary translation performance optimization method based on superblock nesting is proposed, which is based on the IR instructions generated by the binary translator pre-translating the target code, and increases the instruction cache hit rate by constructing superblocks with a nested structure so that the code achieves the continuity of physical storage locations. The experimental results show that: SPEC2006, the most classic and commonly used in the field of dynamic binary translation, is used as the test benchmark, and QEMU6.0, a mainstream open-source binary translator, is used as the experimental framework. Compared with the version without superblock nesting, the proposed method can improve the cache hit rate by 53.28% on average, and the maximum increase can be 90%. The running performance of the target program can be improved by 3.07% on average and 4.58% at maximum.
- dynamic binary translation /
- superblock /
- intermediate code nesting /
- QEMU /
- cache

HTML全文

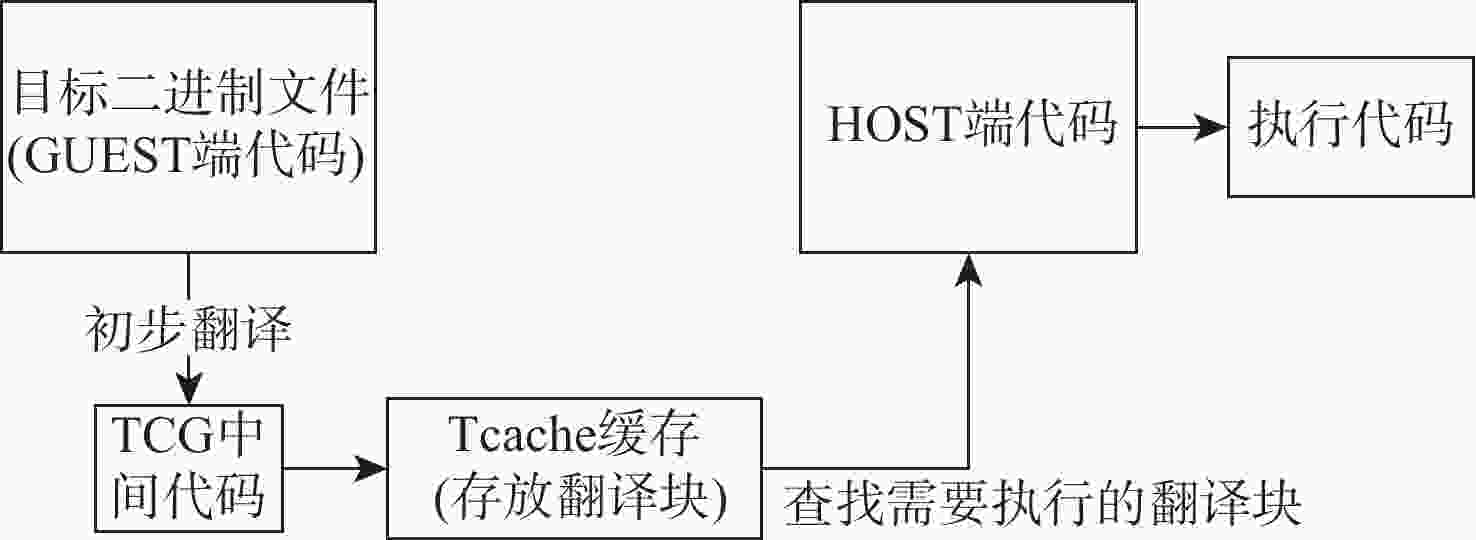

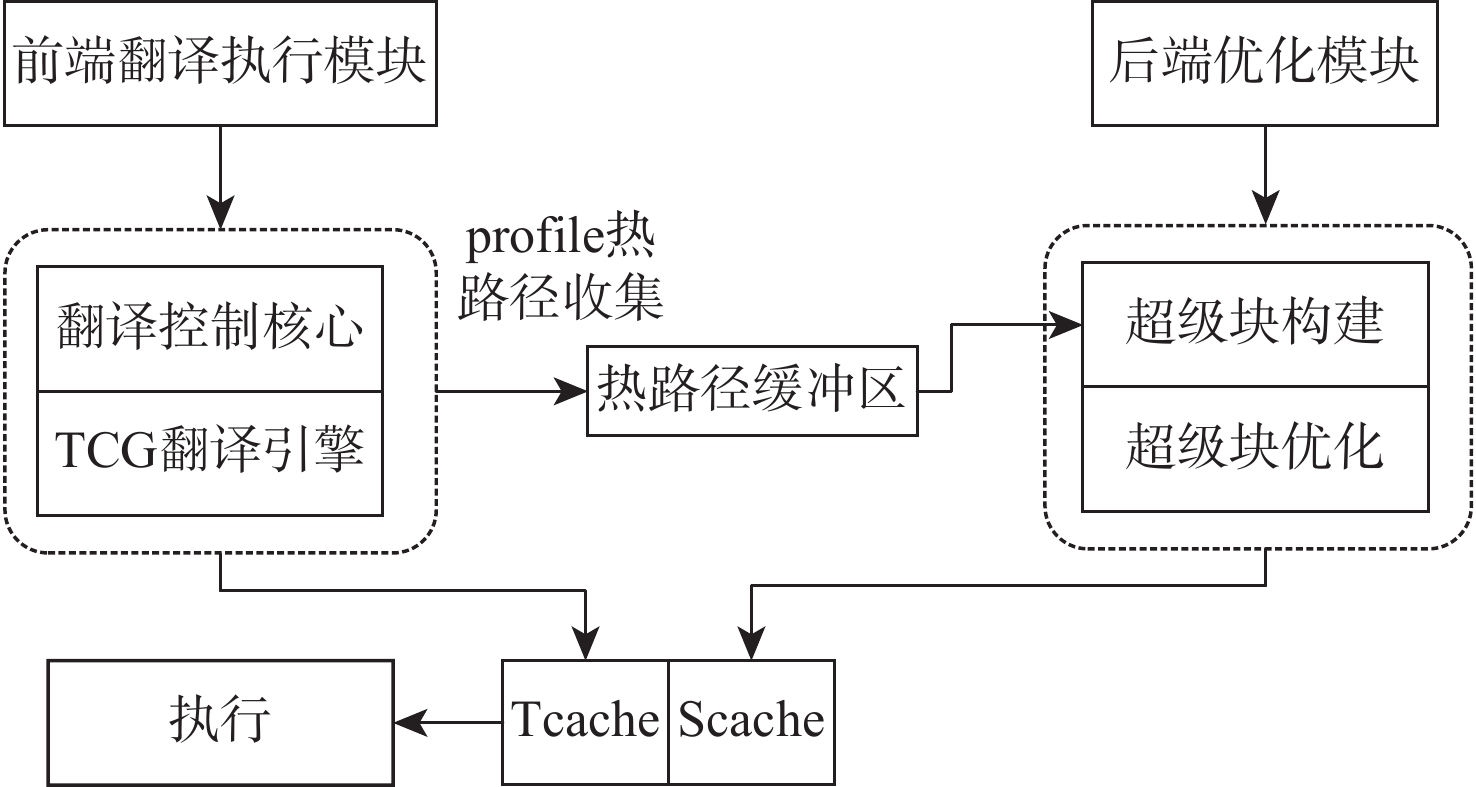

图 1 QEMU工作流程

Figure 1. QEMU workflow

下载: 全尺寸图片幻灯片

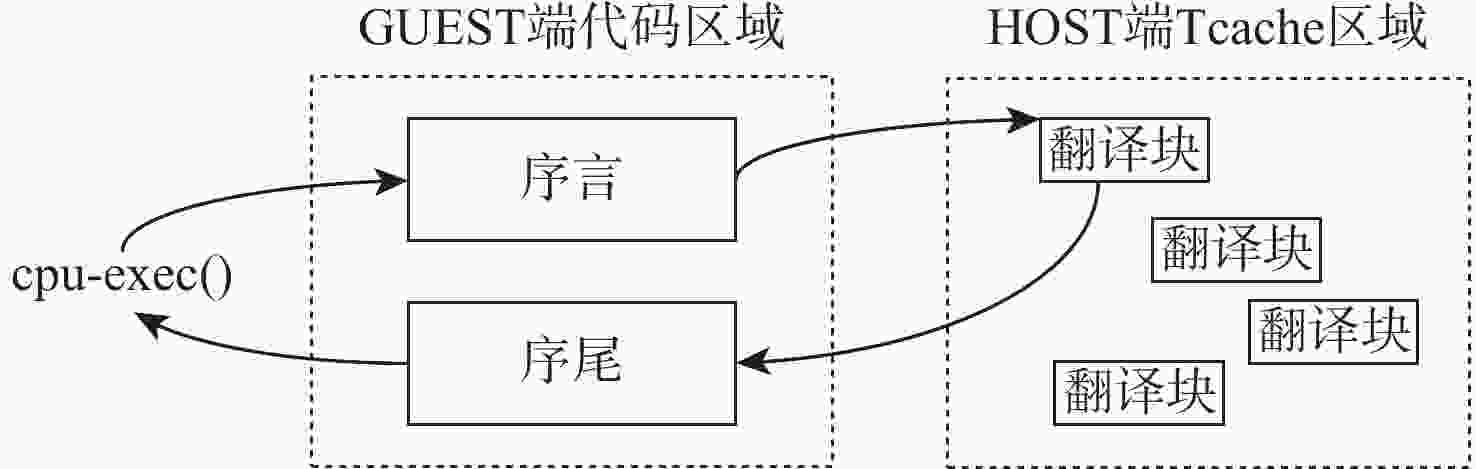

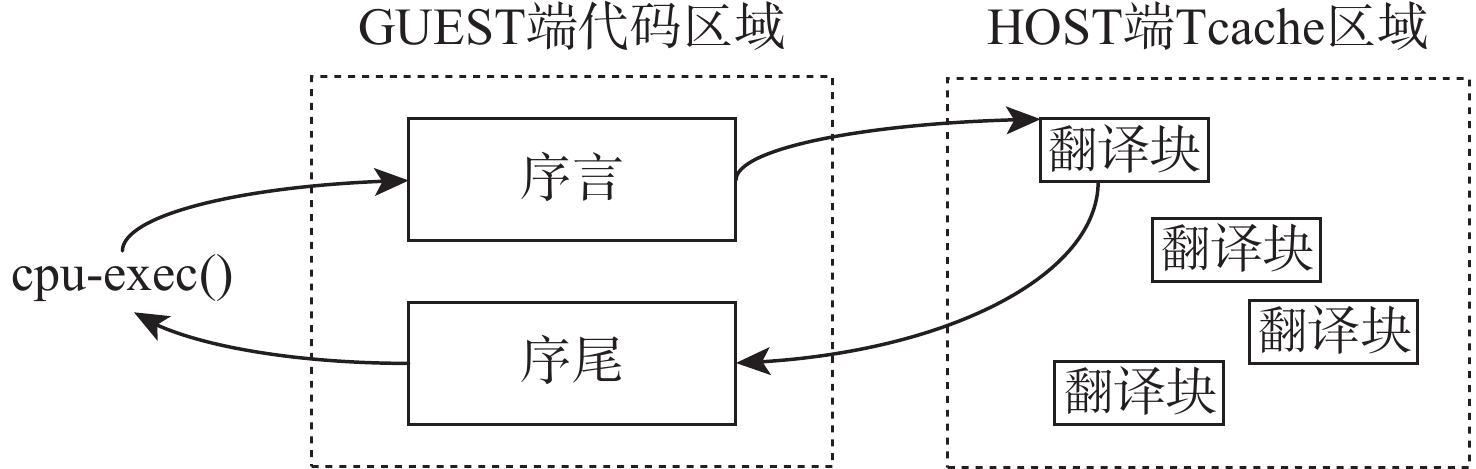

图 2 翻译块执行流程

Figure 2. Translation block execution process

下载: 全尺寸图片幻灯片

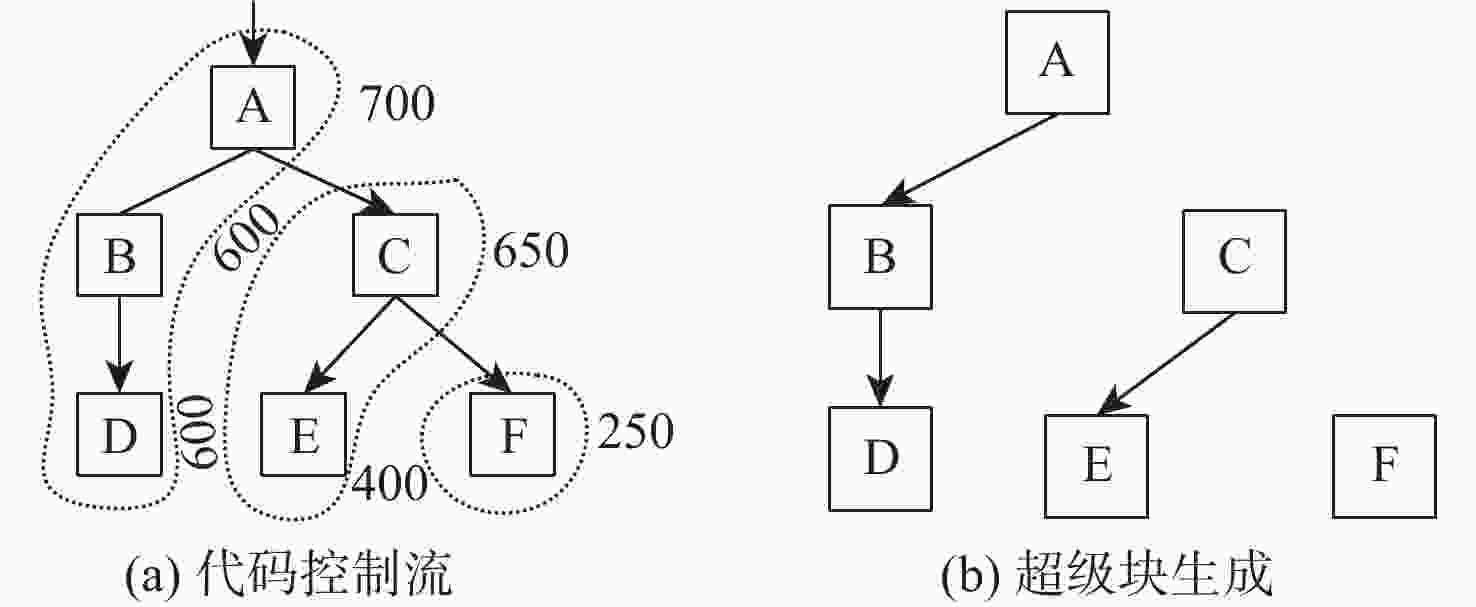

图 3 超级块构建

Figure 3. Superblock construction

下载: 全尺寸图片幻灯片

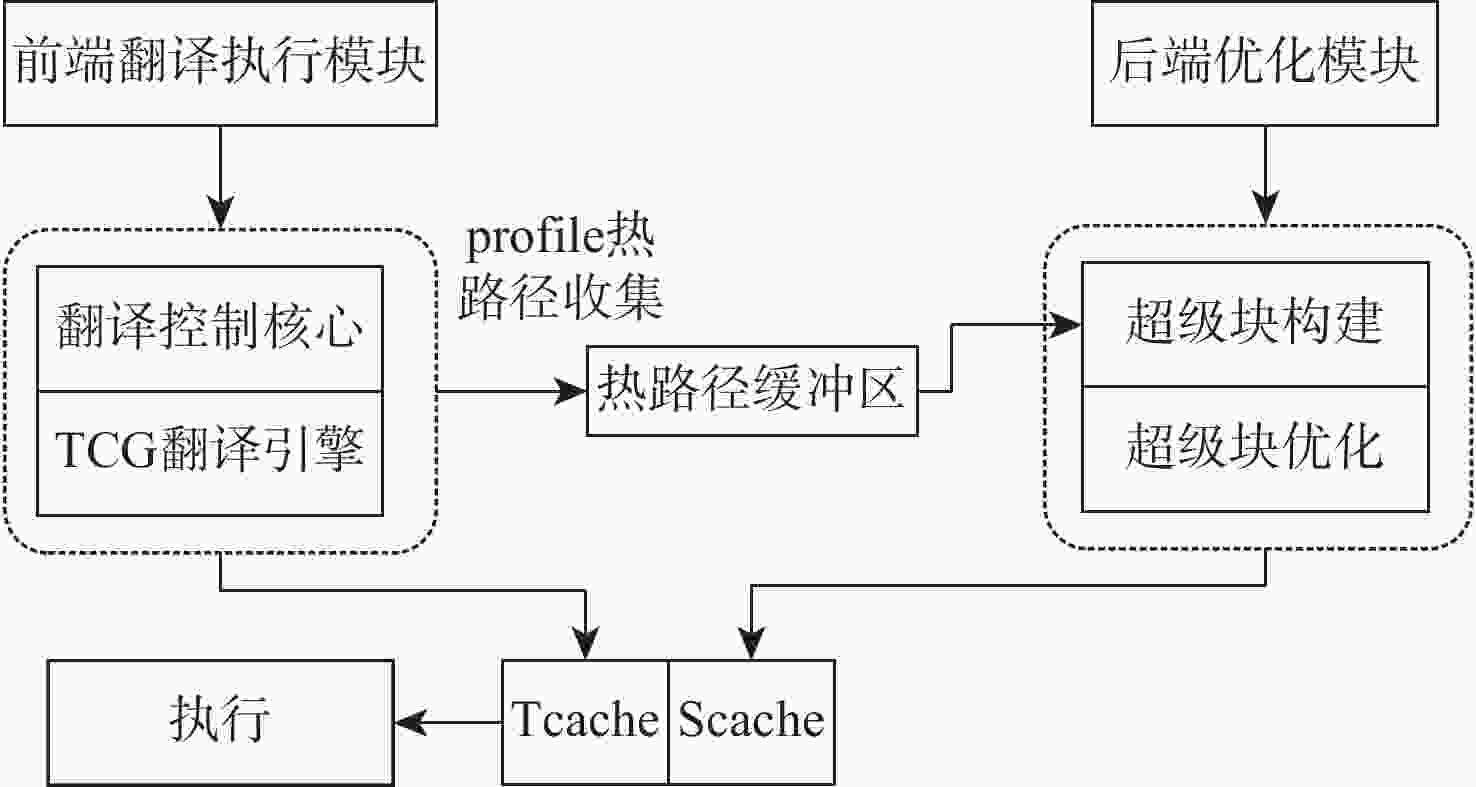

图 4 SN-QEMU方法

Figure 4. SN-QEMU approach

下载: 全尺寸图片幻灯片

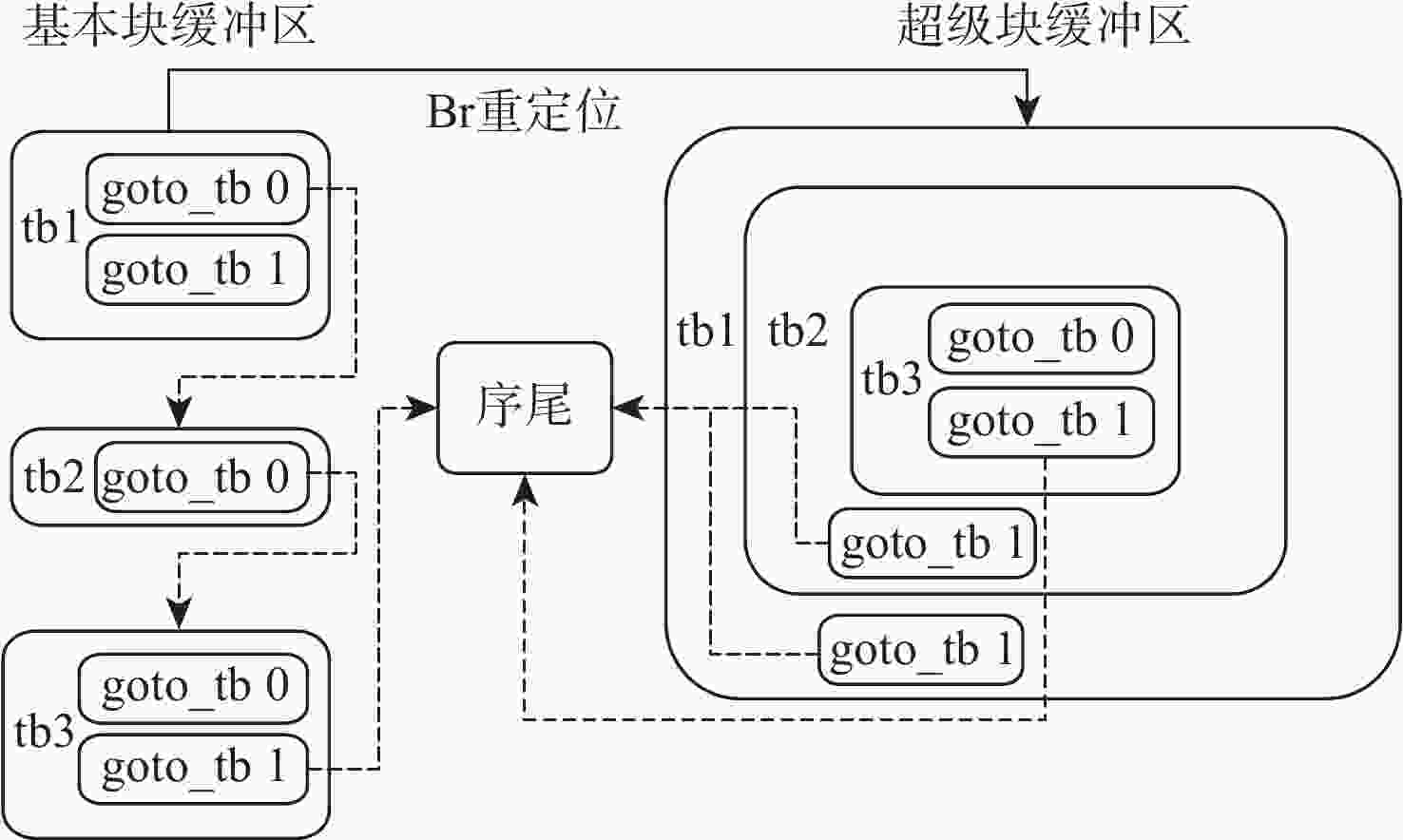

图 5 超级块嵌套结构

Figure 5. Superblock nested architecture

下载: 全尺寸图片幻灯片

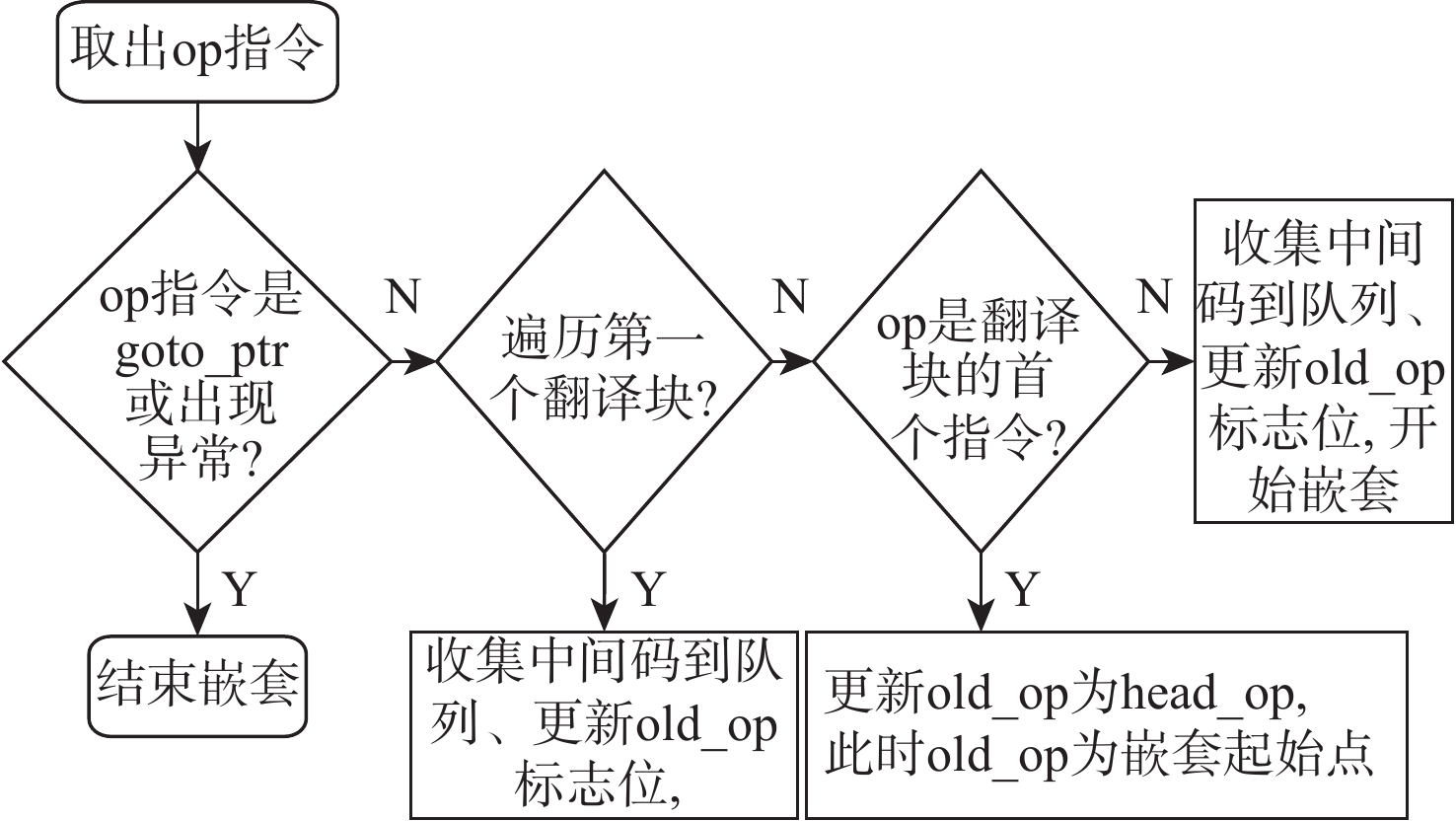

图 6 超级块嵌套流程

Figure 6. Superblock nesting flowchart

下载: 全尺寸图片幻灯片

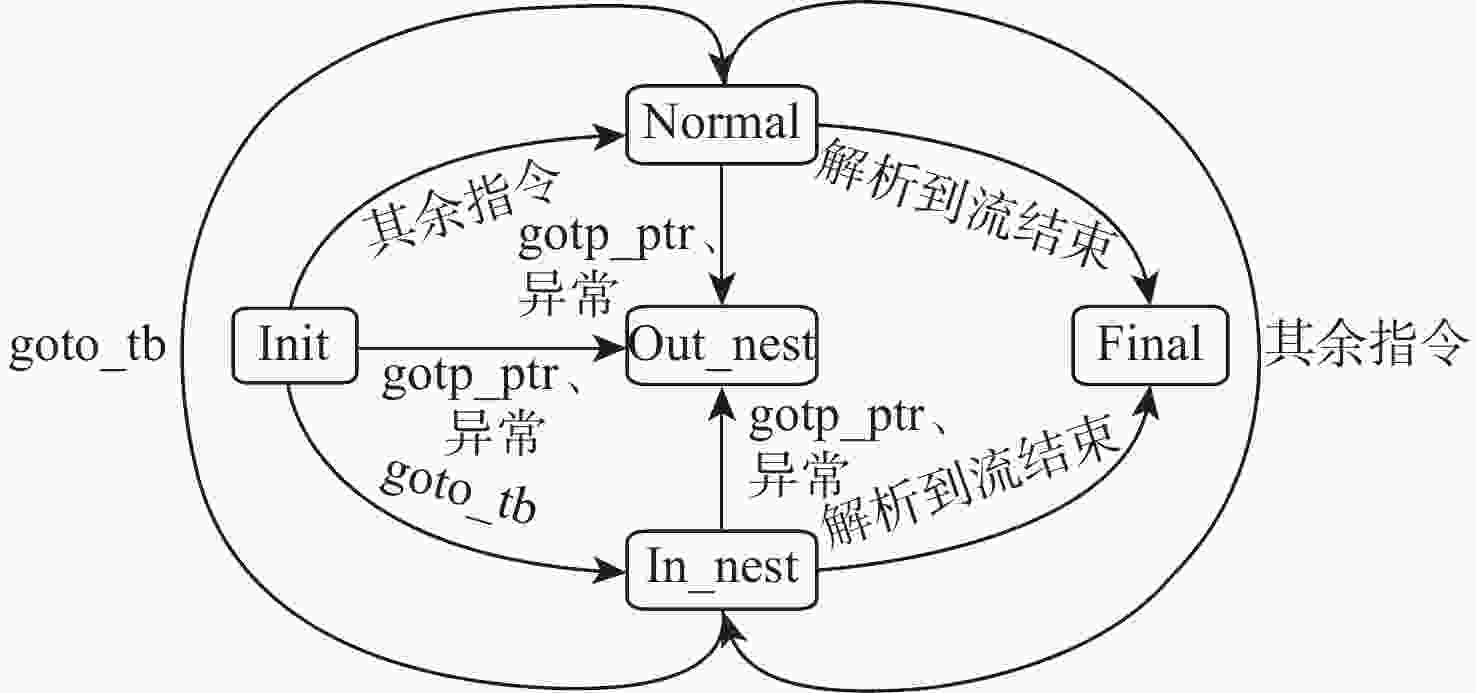

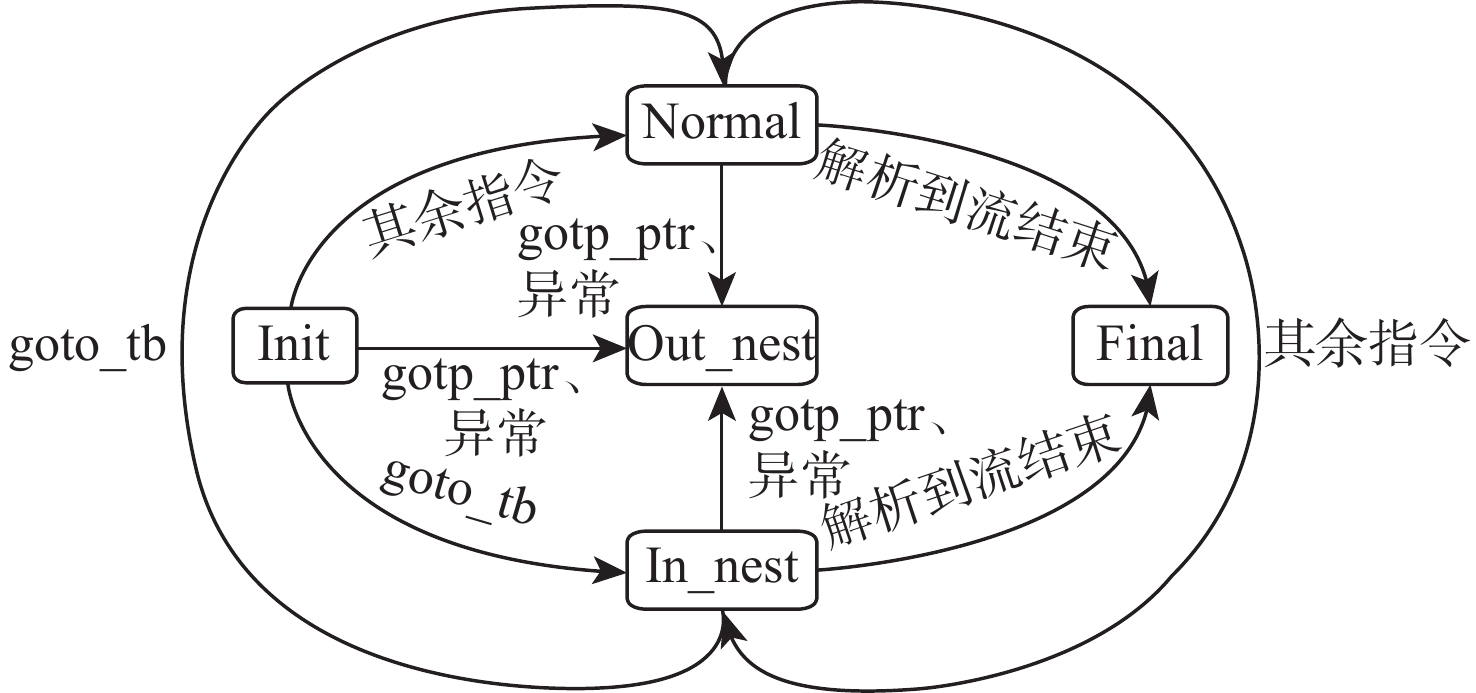

图 7 超级块嵌套状态机

Figure 7. Superblock nested state machine diagram

下载: 全尺寸图片幻灯片

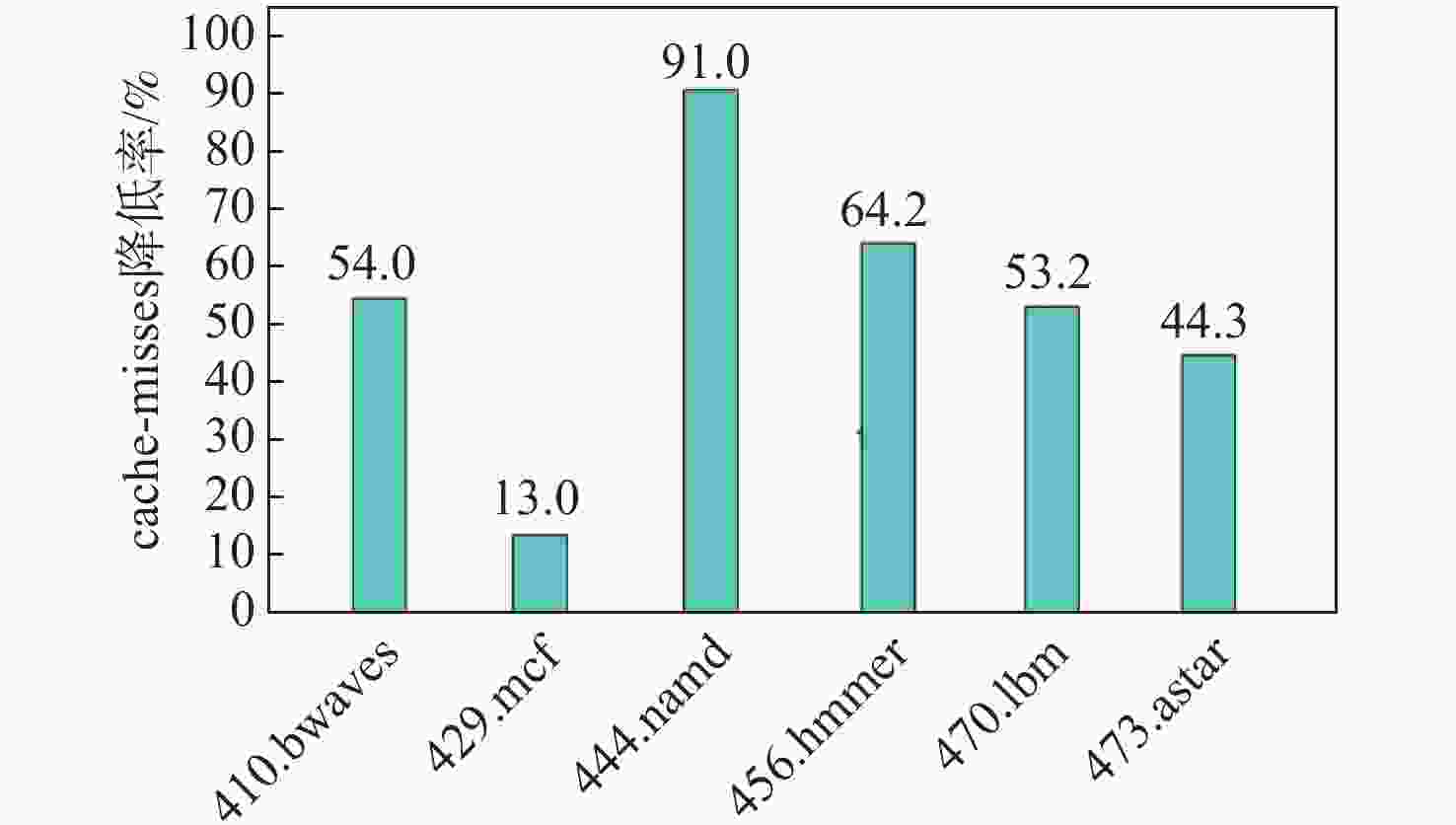

图 8 cache-misses降低率

Figure 8. cache-misses reduction rate

下载: 全尺寸图片幻灯片

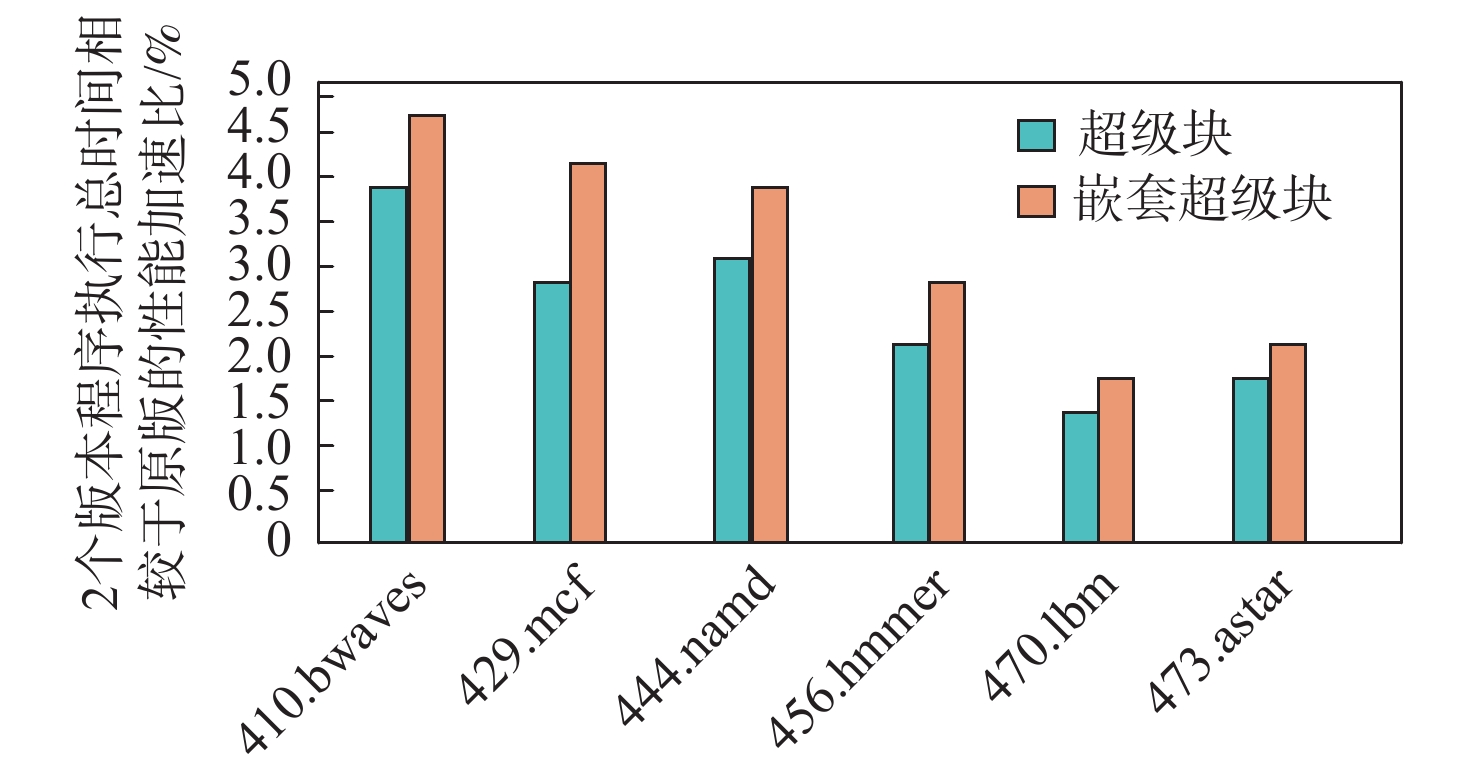

图 9 性能加速比

Figure 9. Performance acceleration ratio

下载: 全尺寸图片幻灯片

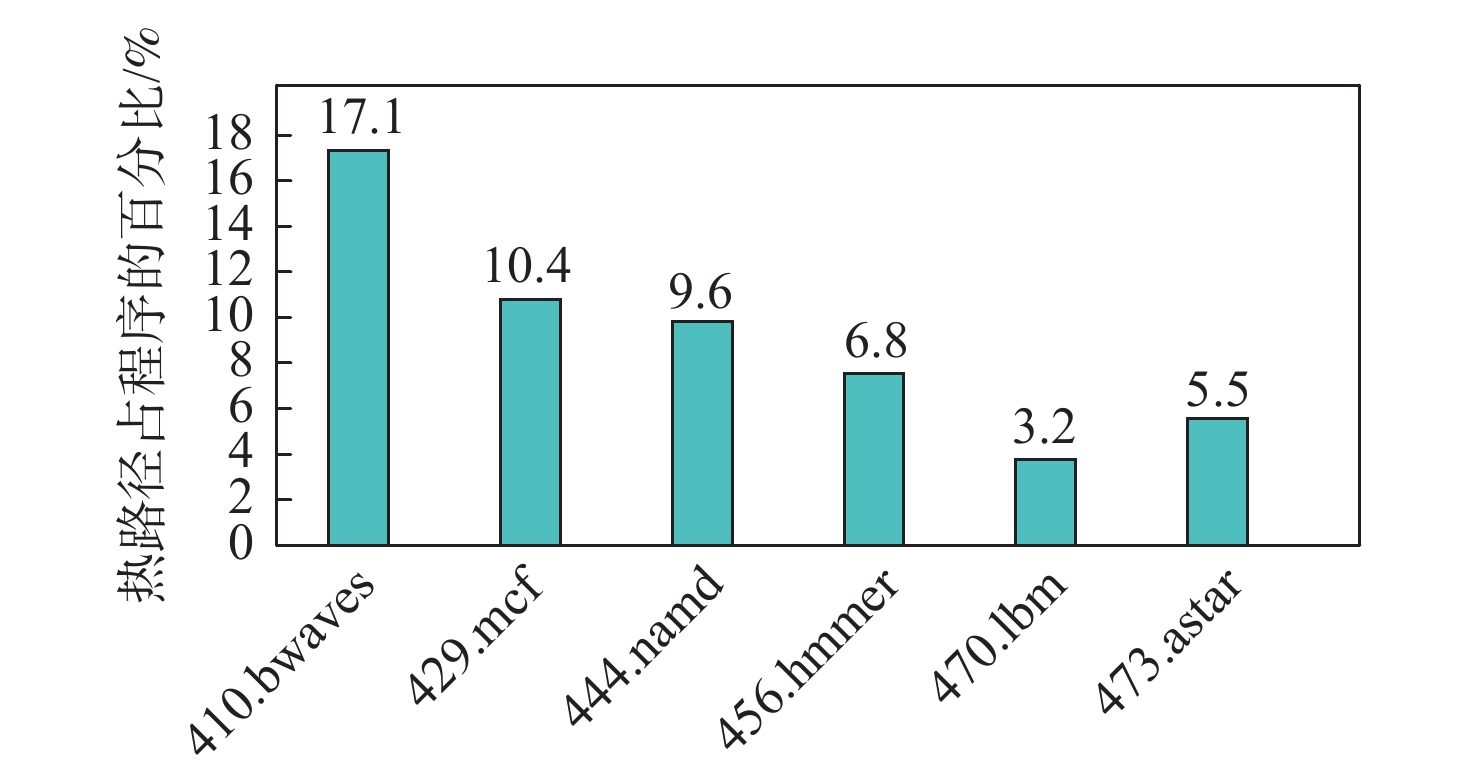

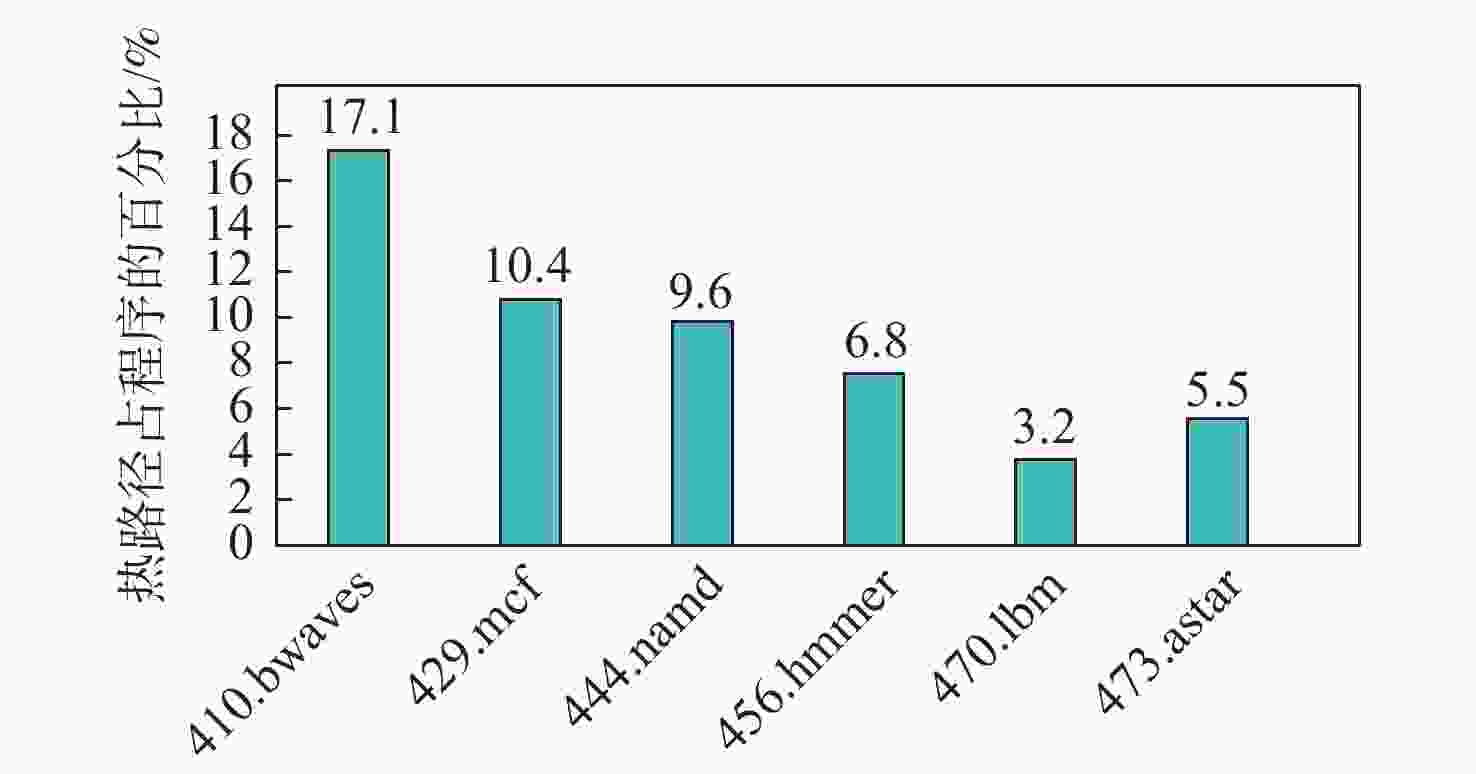

图 10 热路径占程序的百分比

Figure 10. Percentage of hot routes to programmes

下载: 全尺寸图片幻灯片

表 1 SPEC2006超级块构造相关统计数据

Table 1. SPEC2006 Superblock construction related statistics

测试程序	基本块数量/个	超级块数量/个	基本块大小/KB	超级块大小/KB
410.bwaves	1 899	633	383	345
429.mcf	3 024	1 008	478	442
444.namd	10 962	3 654	5 043	4 640
456.hmmer	16 092	5 343	8 754	8 090
470.lbm	600	151	401	370
473.astar	1 400	423	656	604

下载: 导出CSV

表 2 410.bwaves课题相关统计数据

Table 2. 410.bwaves subject-related statistics

调用函数名称	调用次数/次	运行时间/s	函数单次循环次数/次
mat_times_vec_	604	21.62	3 380 000
bi_cgstab_block_	20	3.88	0
shell_	1	2.8	0
jacobian_	60	0.77	0
flux	20	0.34	0
MAIN_	1	0.01	0
main	1	0.01	2 041 520 000

下载: 导出CSV

表 3 470.lbm课题相关统计数据

Table 3. 470.lbm subject-related statistics

调用函数名称	调用次数/次	运行时间/s	函数单次循环次数/次
LBM_performStreamCollide	300	11.70	0
LBM_initializeGrid	2	1.70	0
LBM_handleInOutFlow_	300	0.23	0
LBM_showGridStatistics_	6	0.10	0
LBM_initializeSpecialCellsForChannel	2	0.01	1 300 000
LBM_swapGrids	300	0.01	0
LBM_allocateGrid	2	0.01	0
LBM_freeGrid	2	0.01	0
LBM_loadObstacleFile	2	0.01	1 300 000
MAIN_finalize	1	0.01	0
MAIN_initialize	1	0.01	0
MAIN_parseCommandLine	1	0.01	0
MAIN_printInfo	1	0.01	0
main	1	0.01	5 200 000

下载: 导出CSV
