基于AHRS的无人机集群协同导航方法

史晨发; 熊智; 蒋旭; 李其杰; 王钲淳

doi:10.13700/j.bh.1001-5965.2024.0343

基于AHRS的无人机集群协同导航方法

doi: 10.13700/j.bh.1001-5965.2024.0343

1.
南京航空航天大学自动化学院，南京 211106
2.
江苏海洋大学电子工程学院，连云港 222005

基金项目:

国家自然科学基金(62073163,62103285,62203228)；航空科学基金(202055052003)；基础加强计划技术173领域基金(2021-JCJQ-JJ-0308)

详细信息

通讯作者:
E-mail：xiongzhi@nuaa.edu.cn

中图分类号: V249.3；TN961
计量
- 文章访问数: 385
- HTML全文浏览量: 102
- PDF下载量: 22
- 被引次数: 0
出版历程
- 收稿日期: 2022-05-23
- 录用日期: 2024-07-05
- 网络出版日期: 2024-09-19
- 整期出版日期: 2026-02-28

Cooperative navigation method for UAV swarm based on AHRS

1.
College of Automation Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 211106，China
2.
School of Electronic Engineering，Jiangsu Ocean University，Lianyungang 222005，China

Funds:

National Natural Science Foundation of China (62073163,62103285,62203228); Aeronautical Science Foundation of China (202055052003); Foundation Strengthening Program Technology 173 Field Fund (2021-JCJQ-JJ-0308)

More Information

Corresponding author: E-mail：xiongzhi@nuaa.edu.cn

摘要

摘要:
为有效解决无人机集群在卫星部分拒止下的低成本导航定位问题，提出一种基于航姿参考系统(AHRS)的无人机集群协同导航方法。以AHRS作为基础完成三维位置状态递推模型设计；设计一种基于机间测距的分布式协同导航滤波器，利用构建的协同精度因子(CDOP)完成最优节点筛选，降低导航系统的计算负担；通过故障识别与隔离算法完成对受扰协同量测信息的诊断与系统重构；利用分布式协同导航算法完成位置解算。仿真与实验表明：协同导航方法能有效解决集群过度依赖卫星导航、大规模导航信息处理慢等难题，相较于传统多源融合算法有效降低了系统硬件成本，符合大规模无人机集群低成本下的高精度定位需求。
- 无人机集群 /
- 航姿参考系统 /
- 相对测距 /
- 协同导航 /
- 故障诊断
Abstract:
In order to effectively solve the problem of low-cost navigation and localization of UAV swarm under the satellite partial denial environment, a cooperative navigation method for UAV swarm based on the attitude heading reference system (AHRS) is proposed. Firstly, the design of the 3D position estimation model is completed using the AHRS as the basis. Secondly, the cooperative dilution of precision (CDOP) is used to finish the optimal node selection in a distributed cooperative navigation filter based on inter-aircraft range, which lessens the navigation system's computational load. Algorithms for fault identification and isolation are then used to diagnose the disrupted cooperative measurement data and reconfigure the system. Finally, the solution of the absolute position is accomplished using the distributed cooperative navigation algorithm. Simulation and experiments demonstrate that this algorithm effectively resolves problems such as excessive reliance on satellite navigation and slow processing of large-scale navigation data. Compared with traditional multi-source fusion algorithms, this approach significantly reduces hardware costs while meeting high-precision positioning requirements for a large-scale UAV swarm at a lower cost.
- UAV swarm /
- attitude heading reference system /
- relative ranging /
- cooperative navigation /
- fault diagnosis

HTML全文

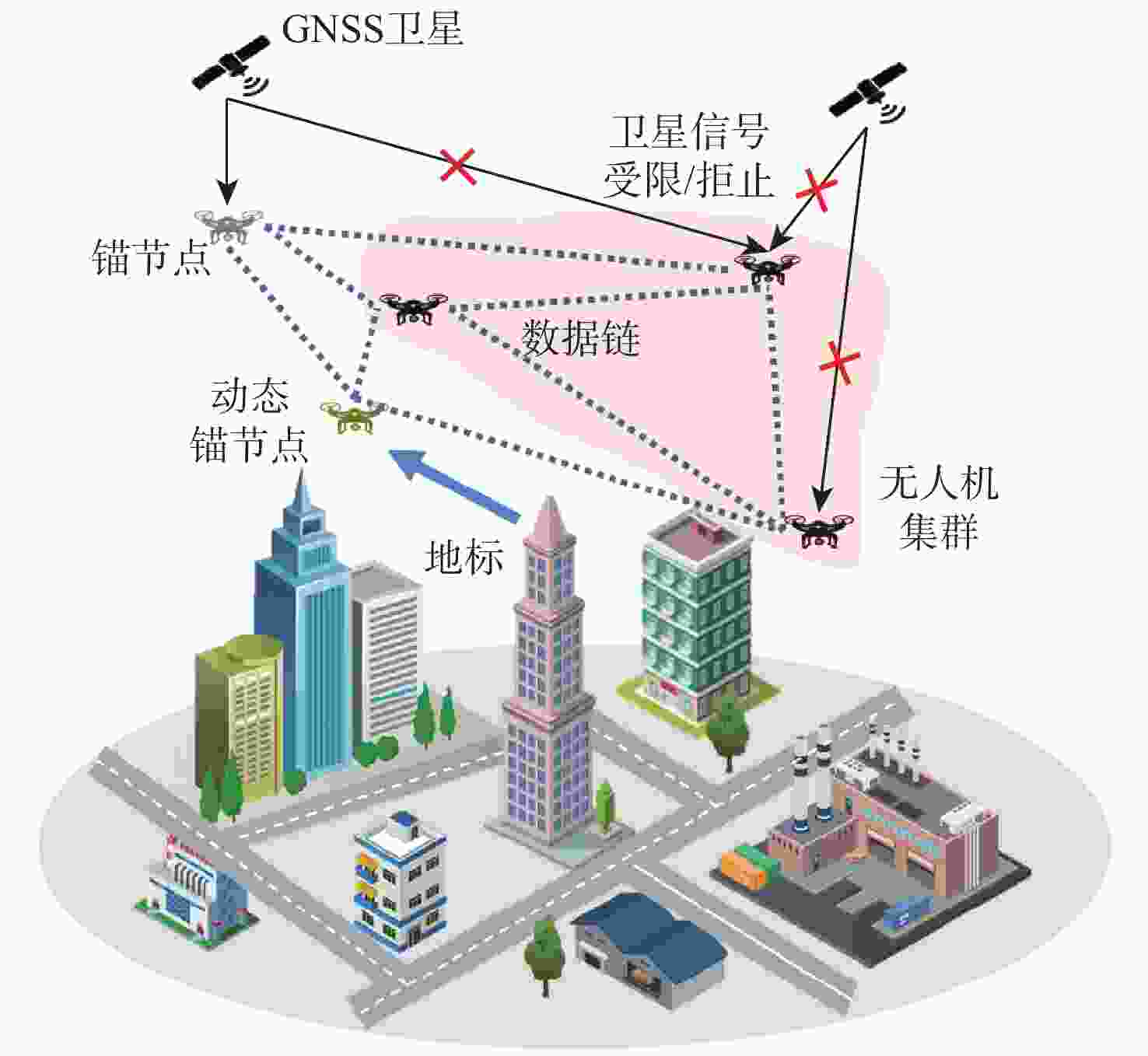

图 1 无人机集群协同导航场景

Figure 1. UAV swarm cooperative navigation scenario

下载: 全尺寸图片幻灯片

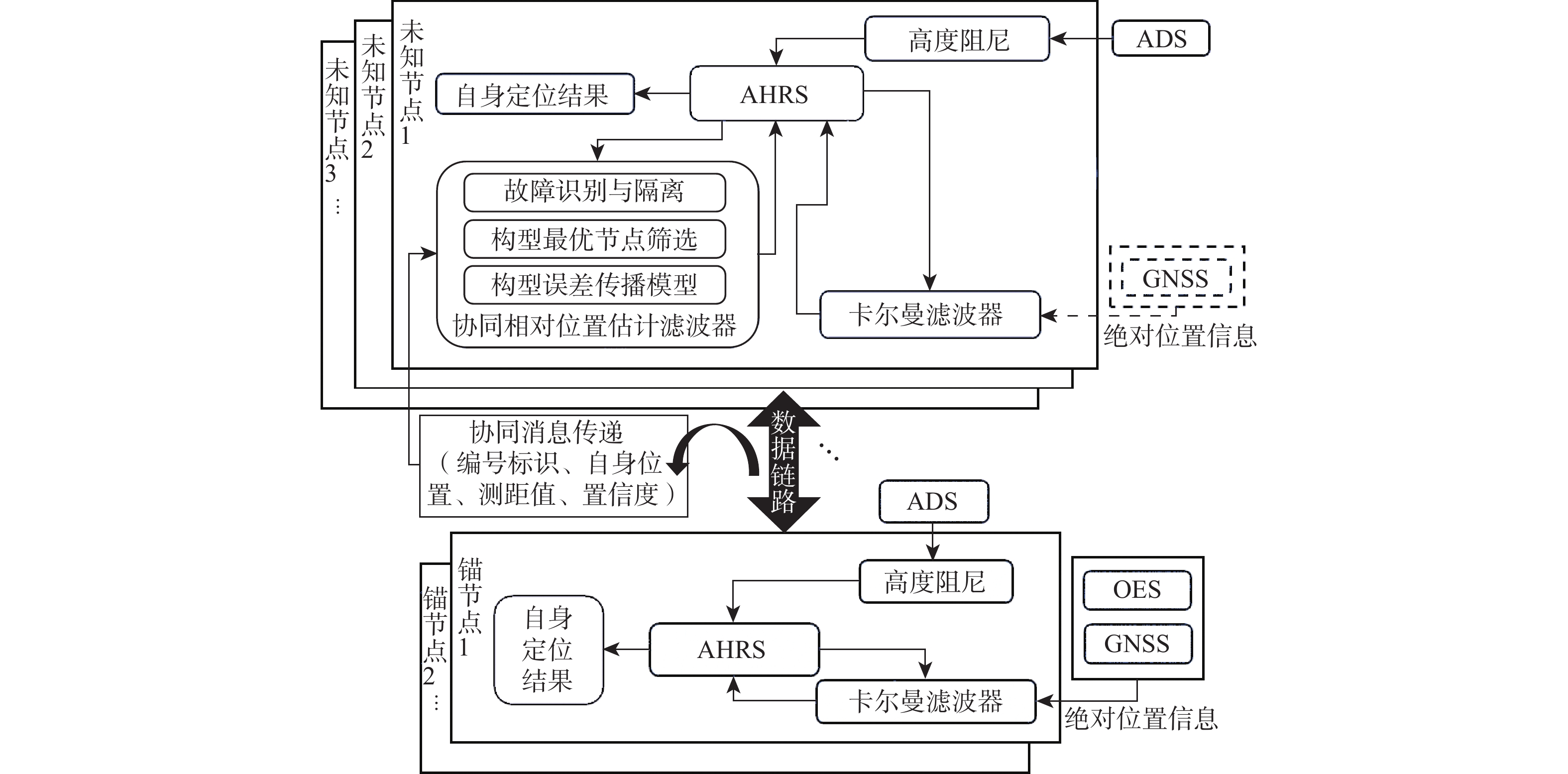

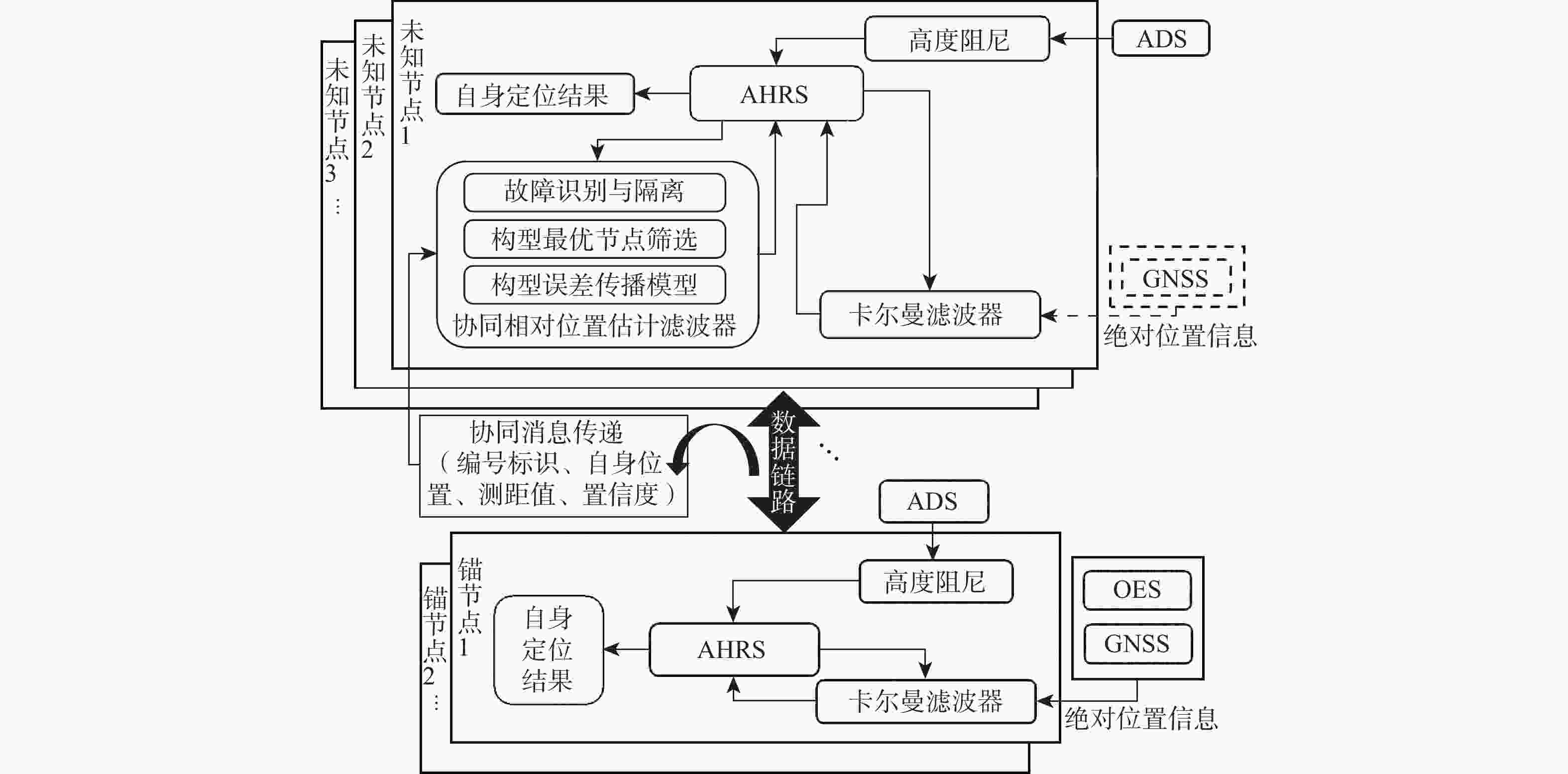

图 2 基于AHRS的协同导航原理示意图

Figure 2. Schematic diagram of AHRS-based cooperative navigation principle

下载: 全尺寸图片幻灯片

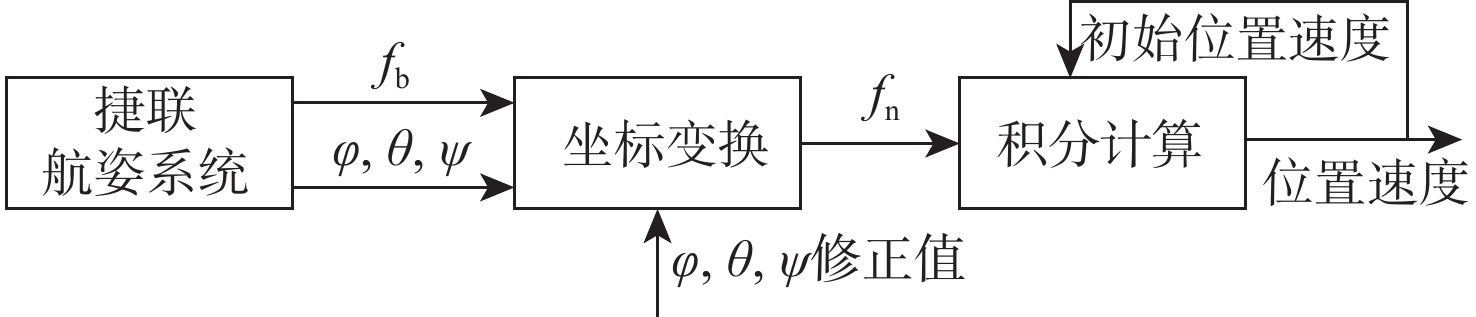

图 3 AHRS航位推算原理

Figure 3. Principle of AHRS position estimation

下载: 全尺寸图片幻灯片

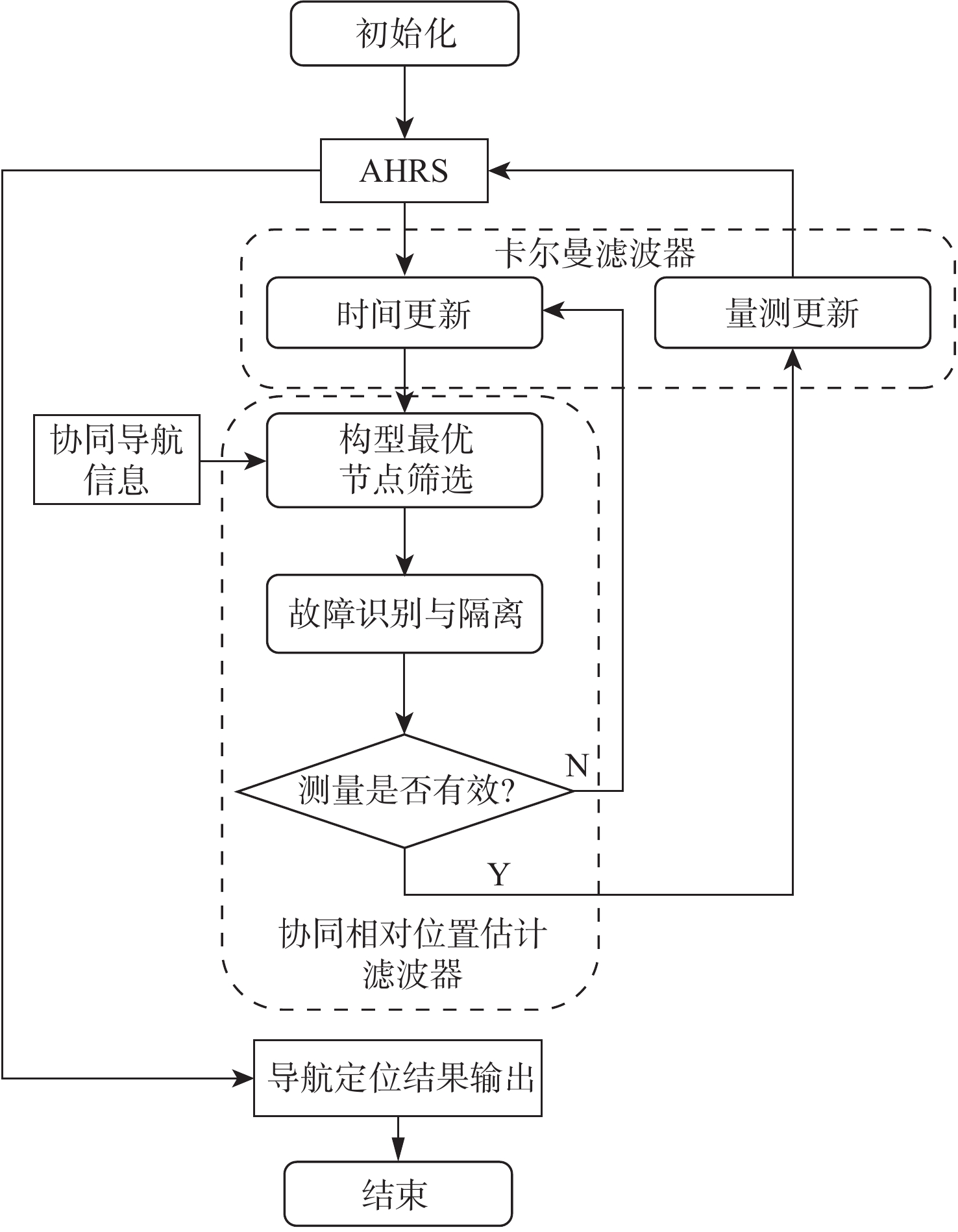

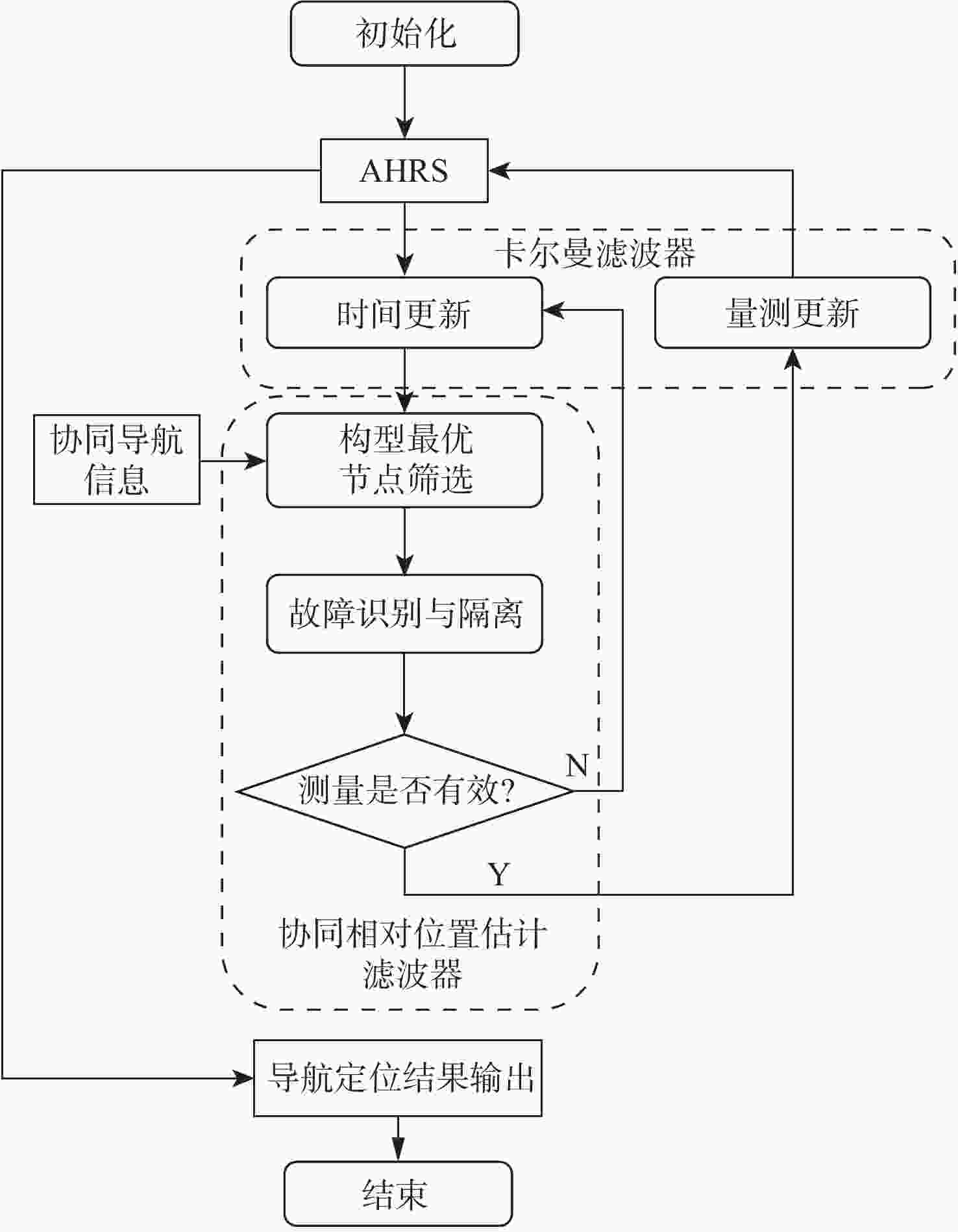

图 4 协同导航方法流程

Figure 4. Flow of cooperative navigation algorithm

下载: 全尺寸图片幻灯片

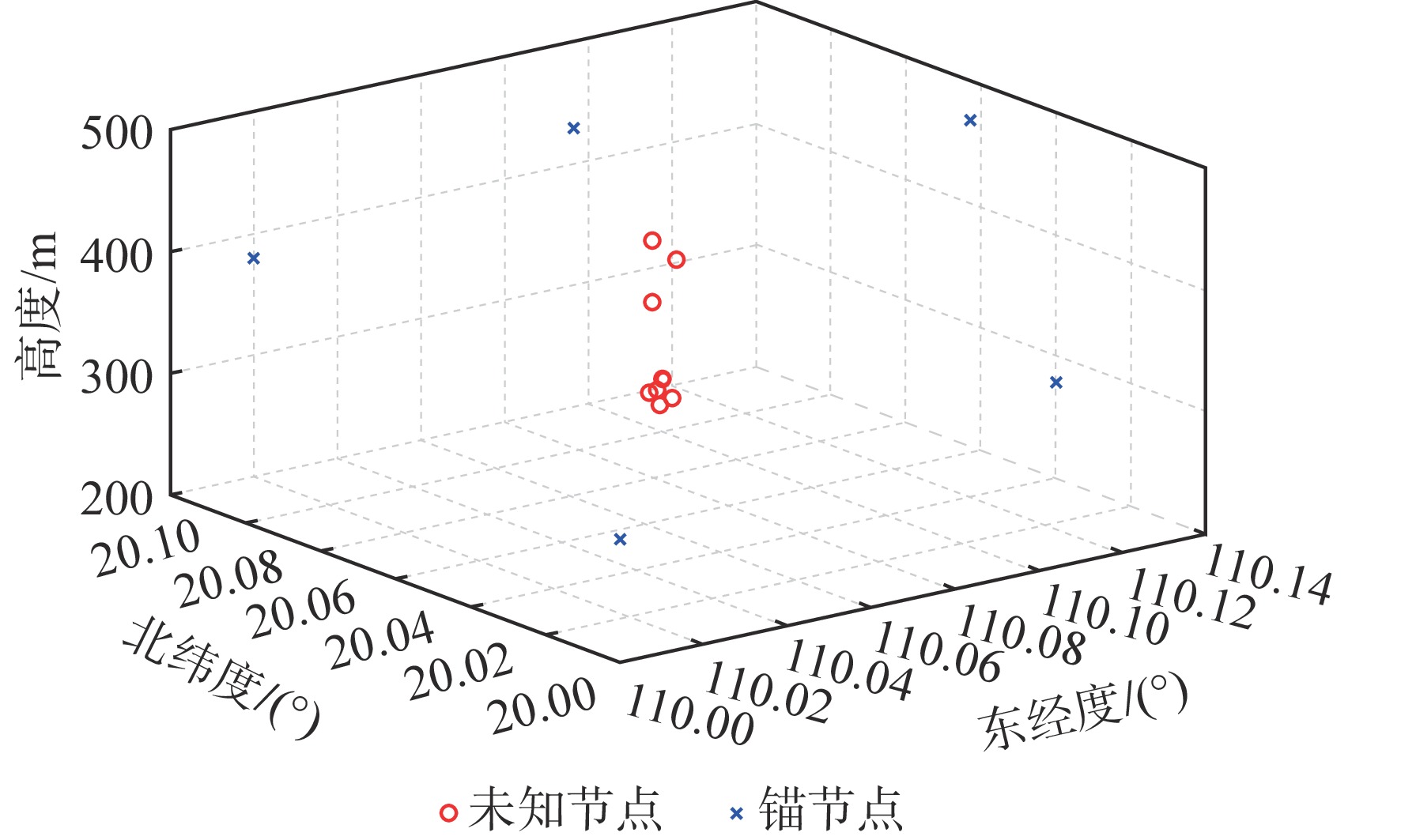

图 5 无人机集群初始位置分布

Figure 5. Initial position distribution of UAV swarm

下载: 全尺寸图片幻灯片

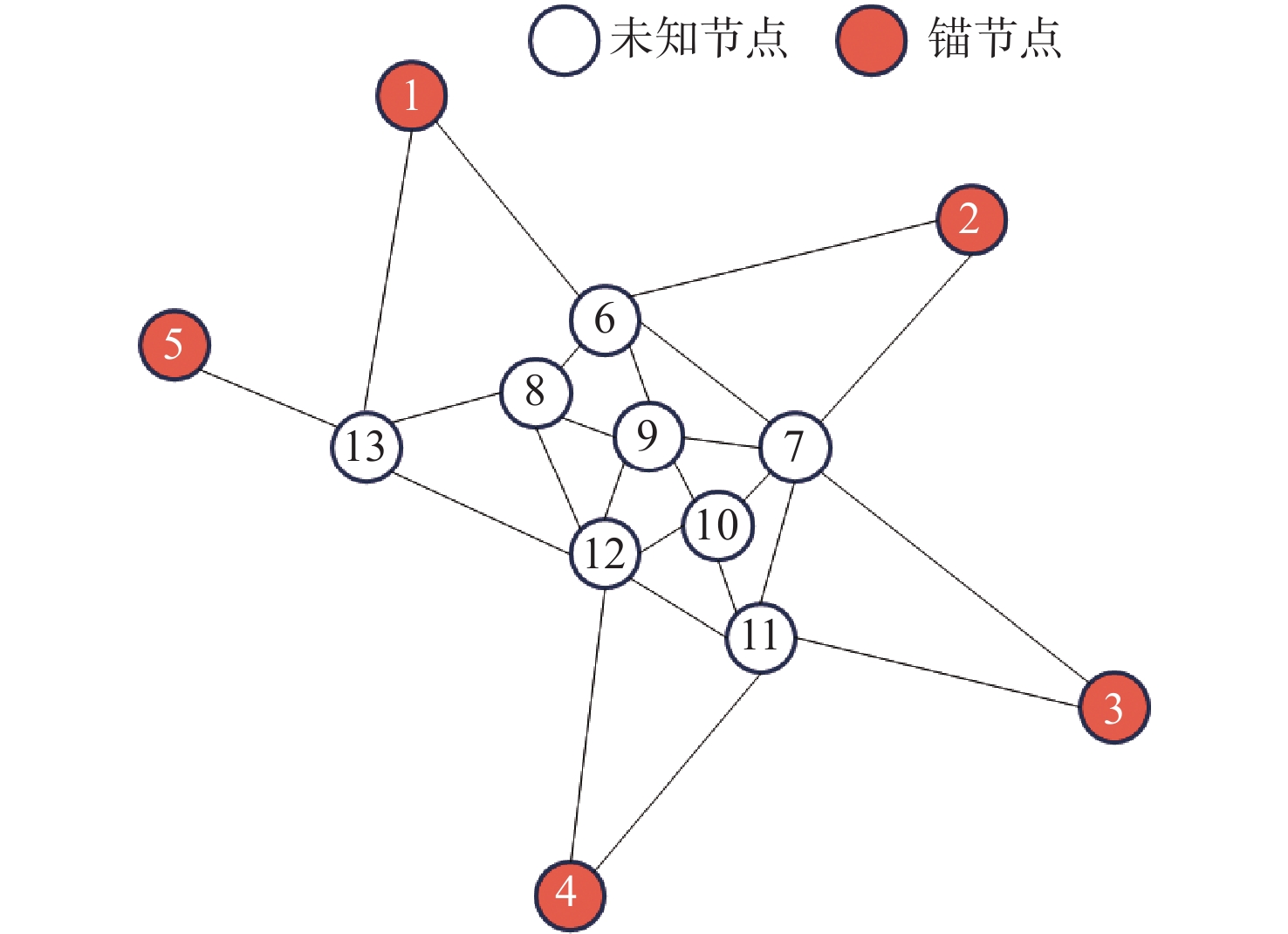

图 6 无人机集群节点拓扑

Figure 6. Node topology of UAV swarm

下载: 全尺寸图片幻灯片

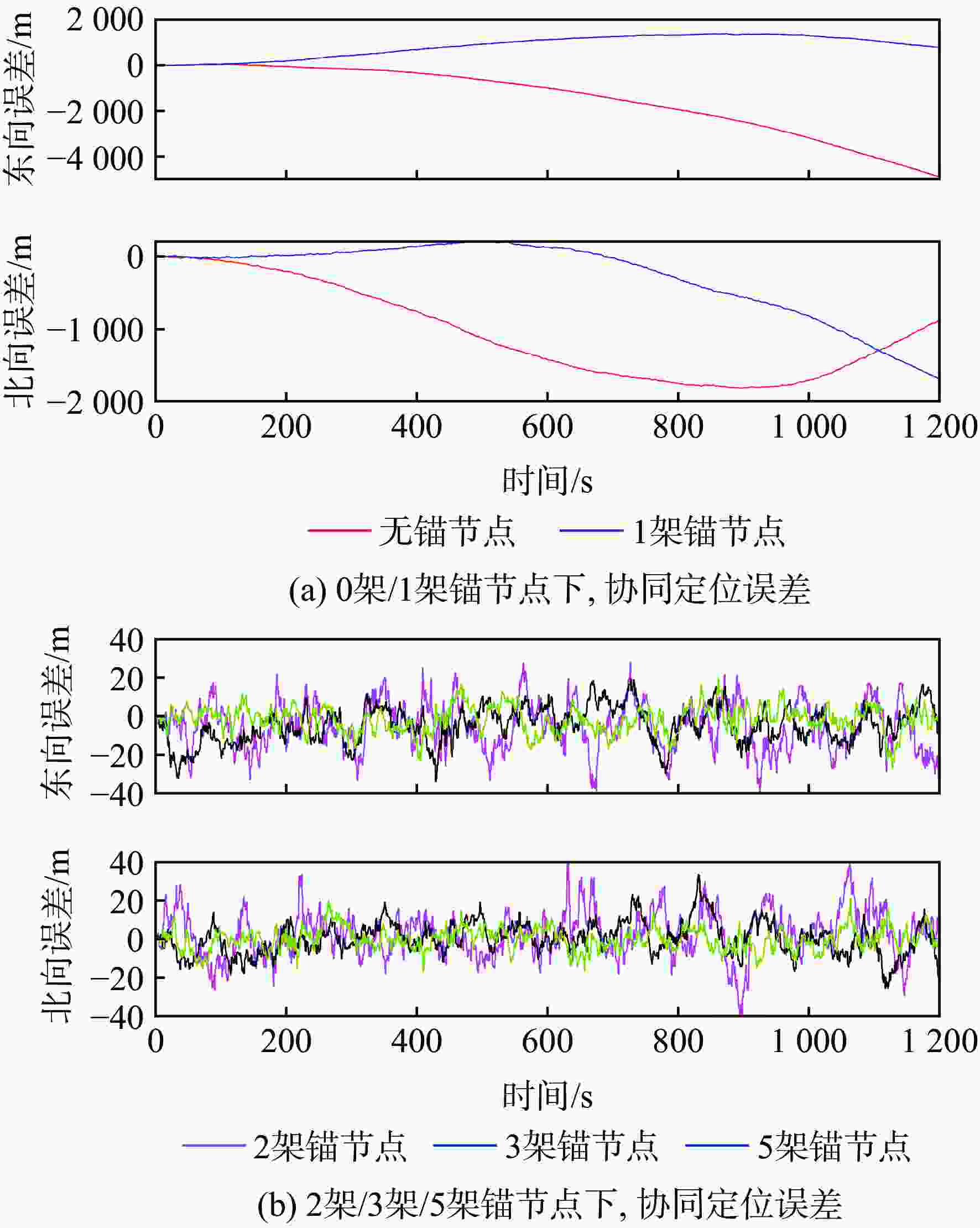

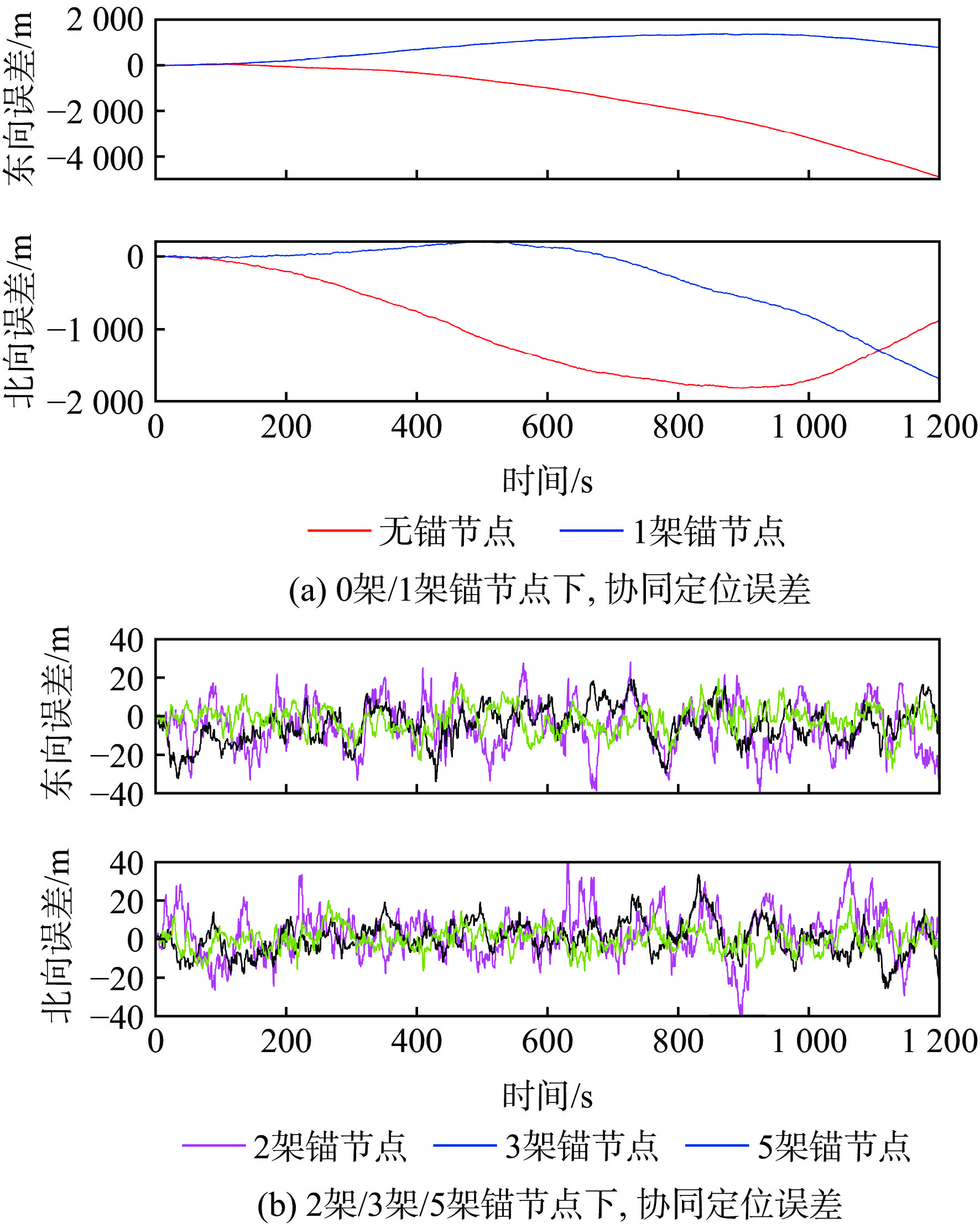

图 7 不同锚节点数量下定位误差曲线

Figure 7. Positioning error curves for different number of anchor nodes

下载: 全尺寸图片幻灯片

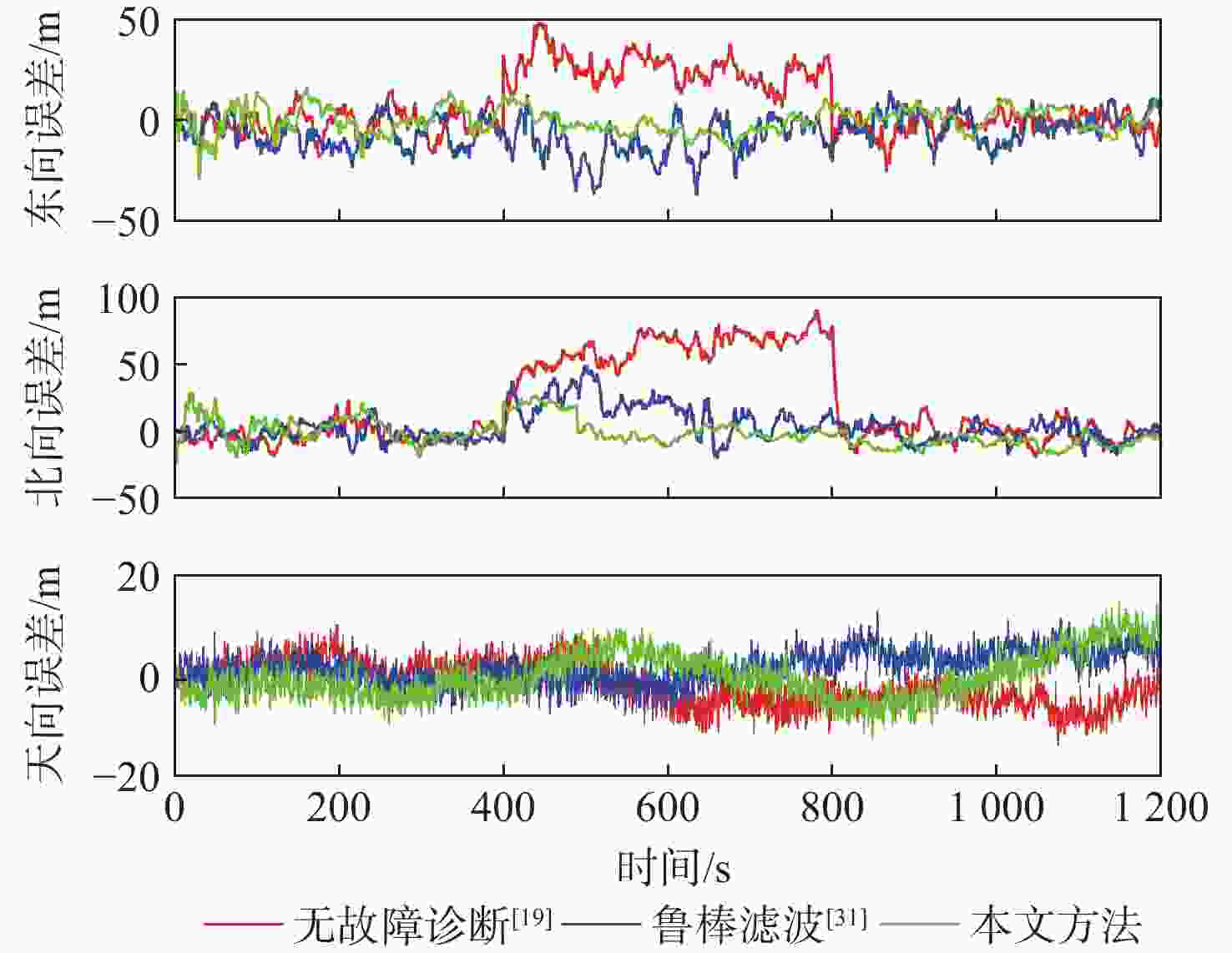

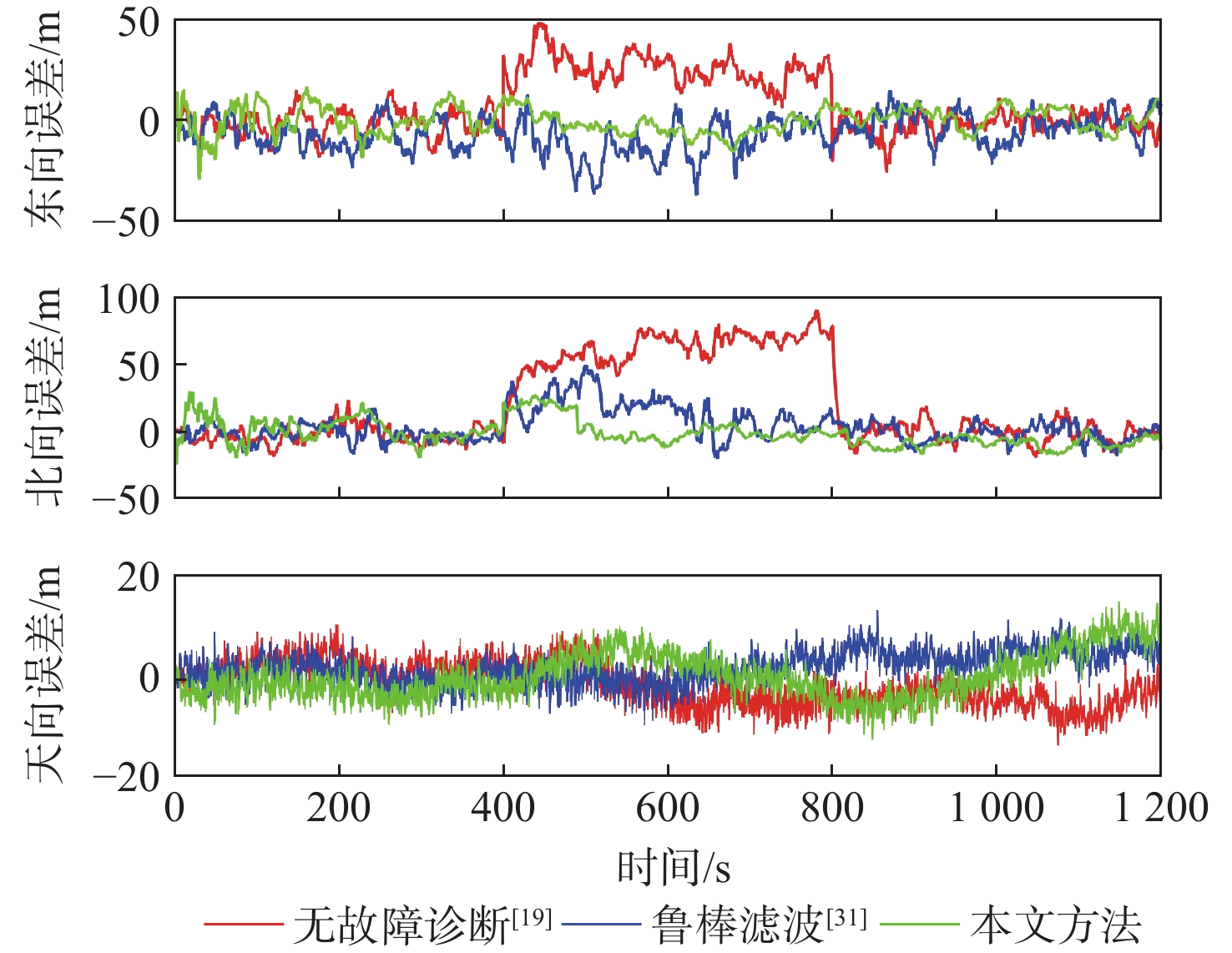

图 8 测距故障下协同定位误差曲线

Figure 8. Cooperative localization error curves with ranging fault

下载: 全尺寸图片幻灯片

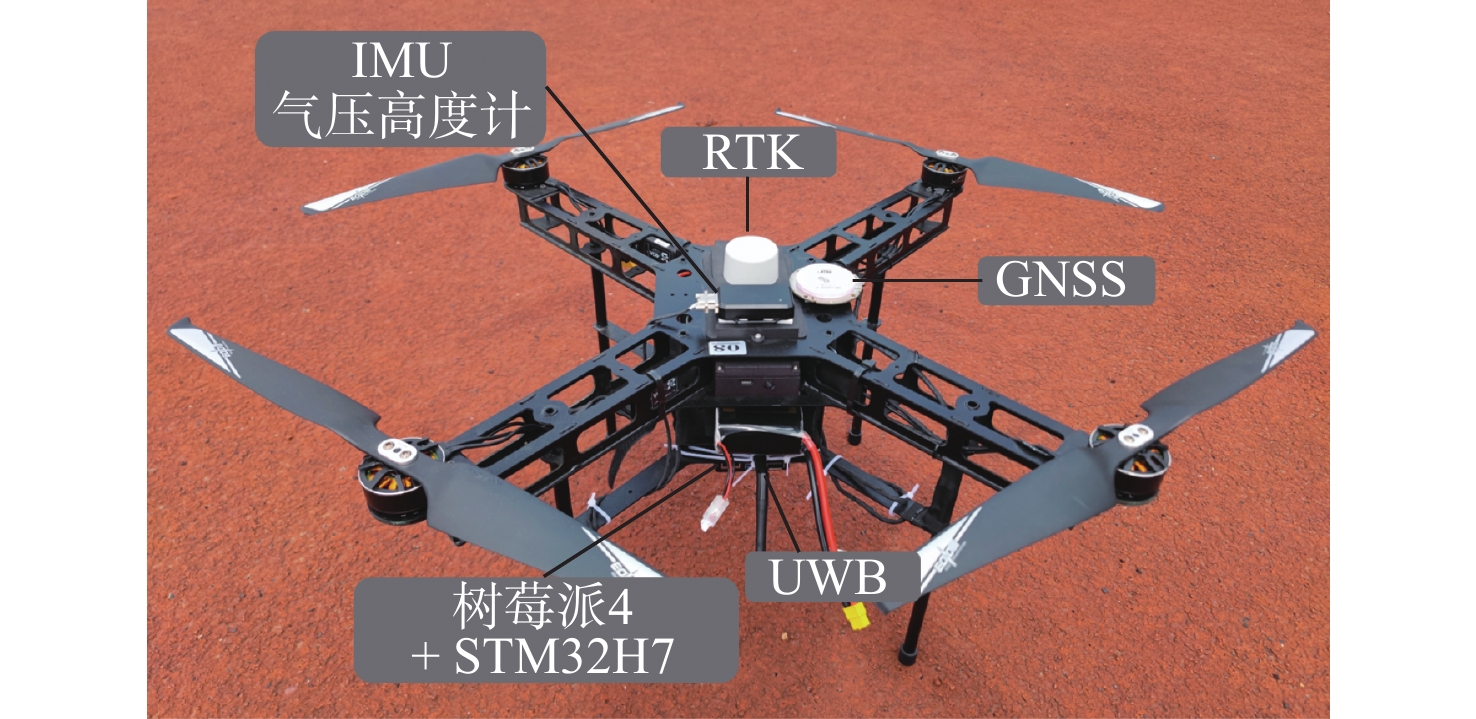

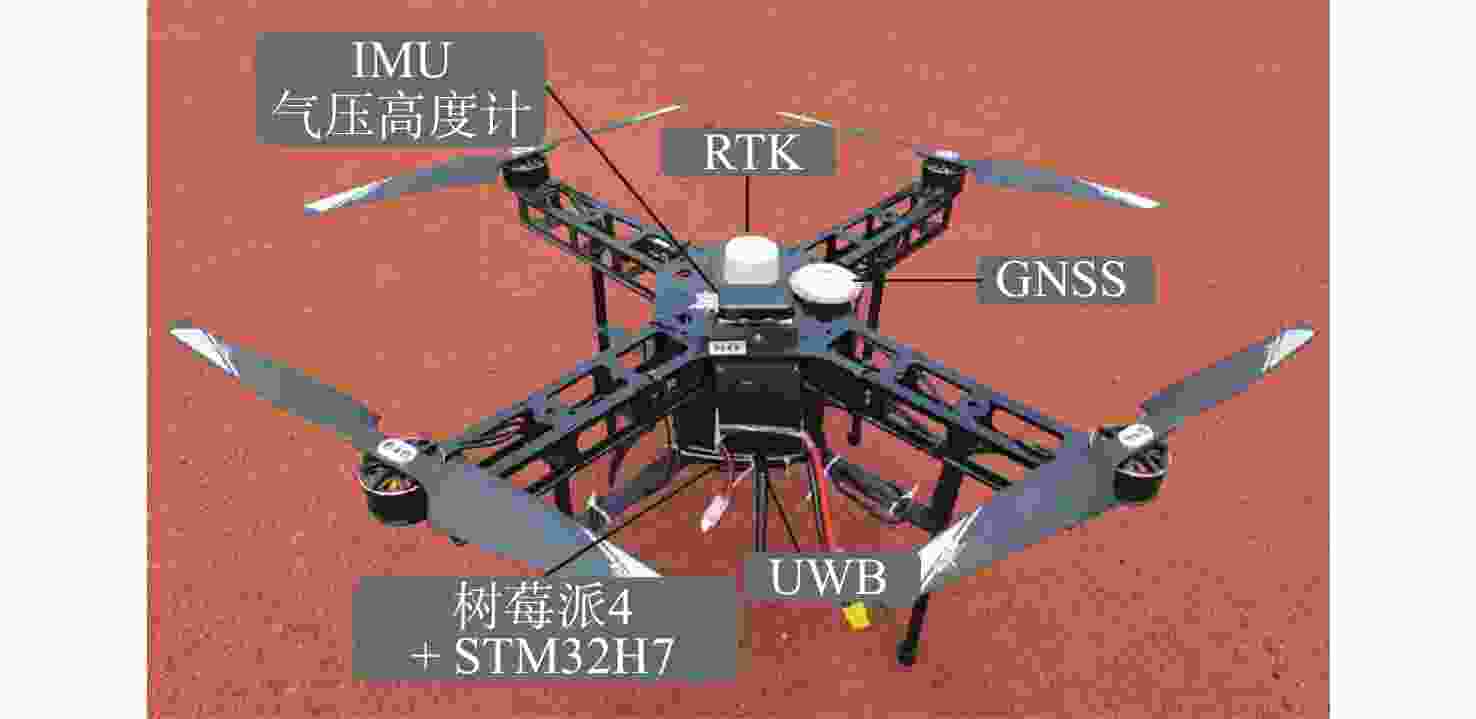

图 9 协同导航物理验证平台

Figure 9. Cooperative navigation physical verification platform

下载: 全尺寸图片幻灯片

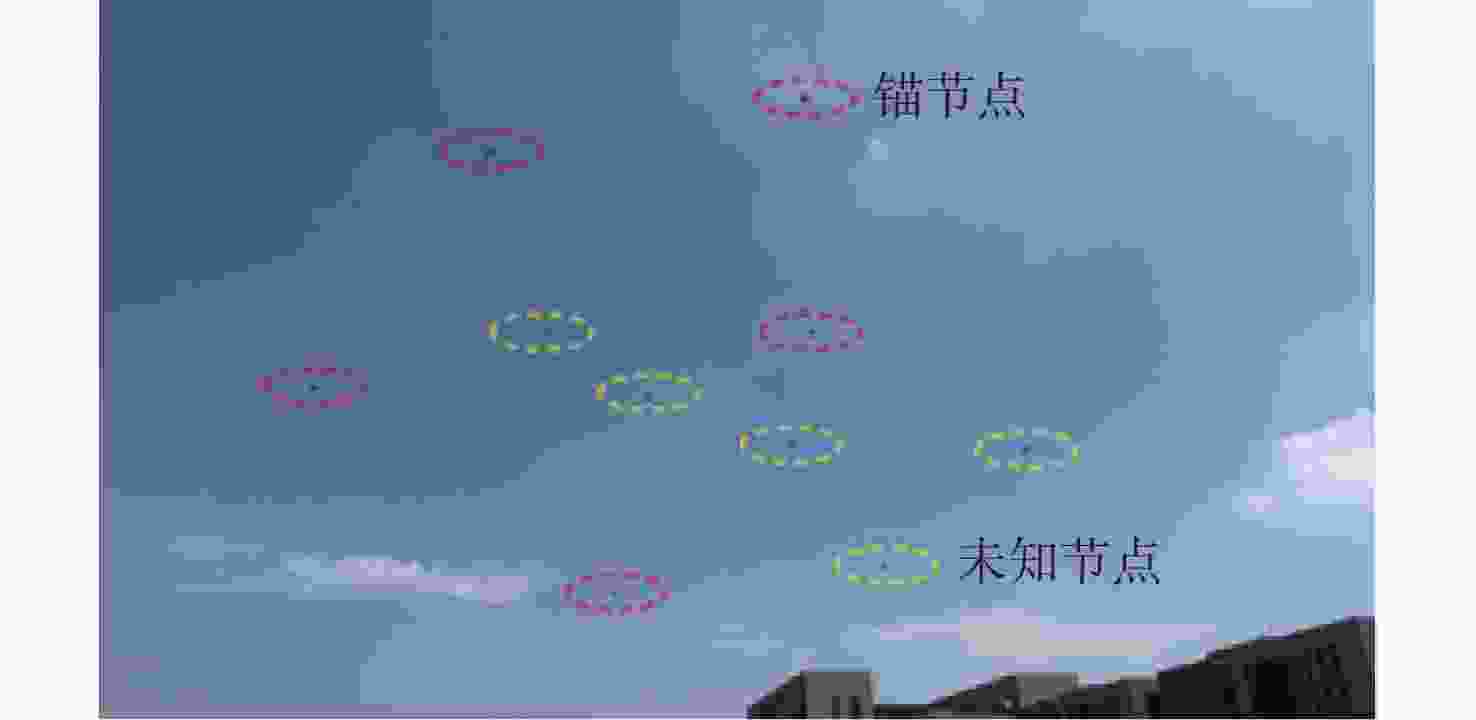

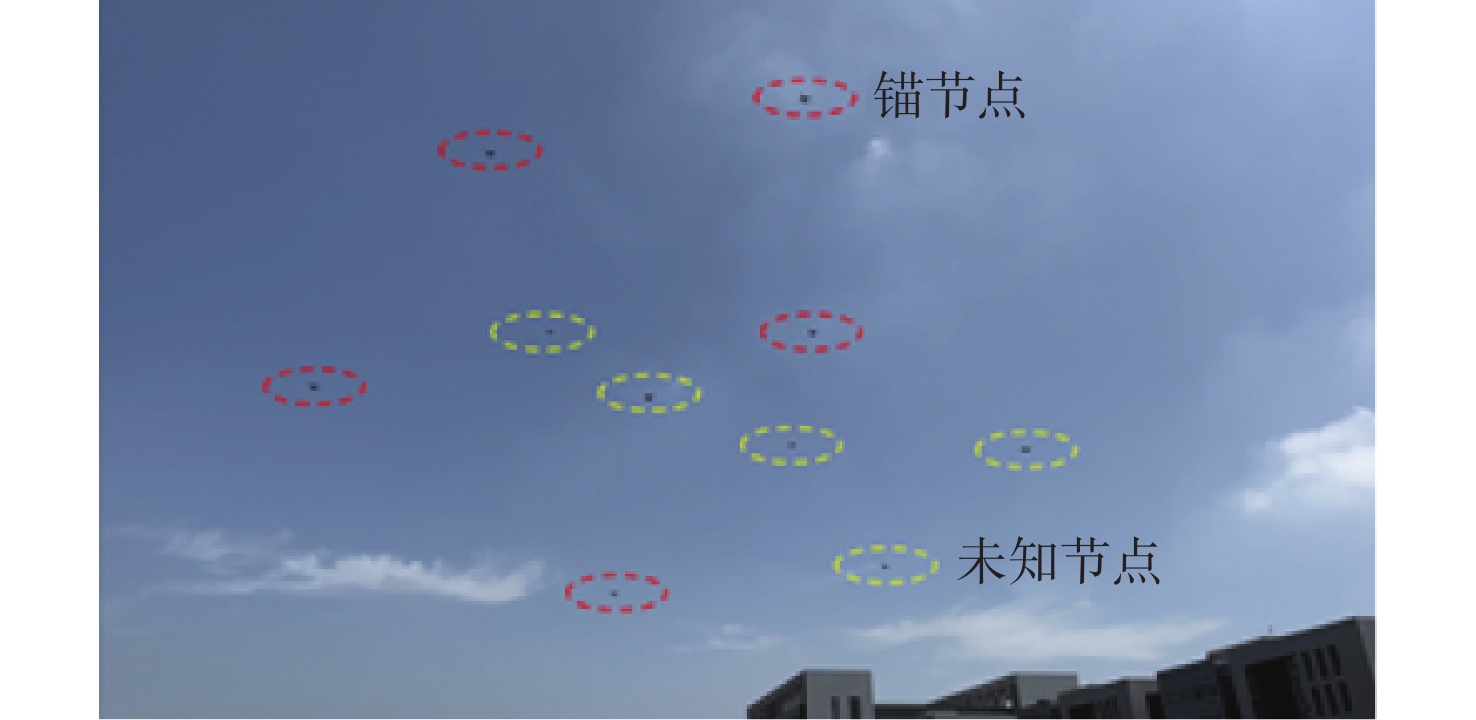

图 10 无人机集群飞行实验场景

Figure 10. Flight experiment scenario for UAV swarm

下载: 全尺寸图片幻灯片

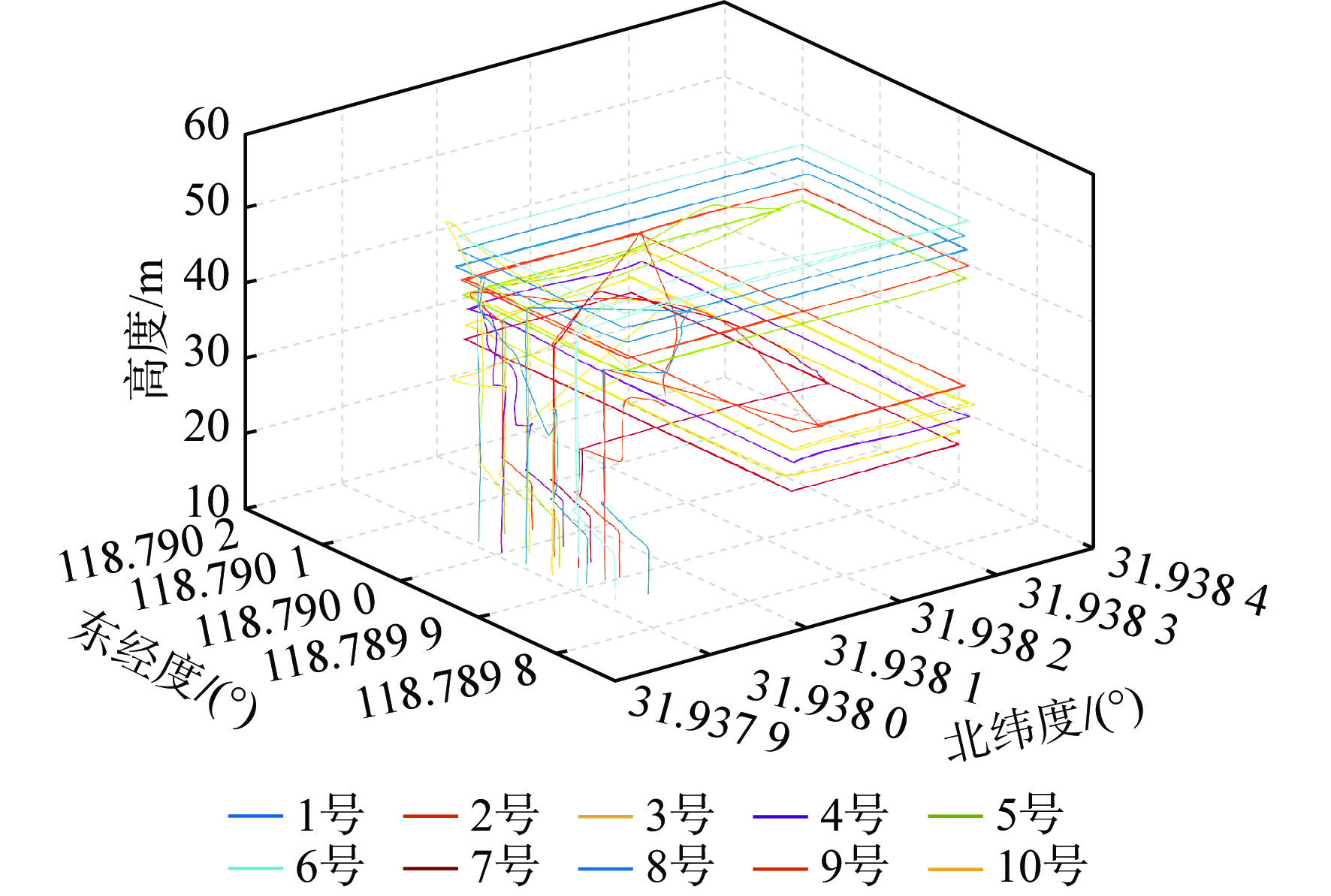

图 11 无人机集群实际飞行轨迹

Figure 11. Physical flight trajectories of UAV swarm

下载: 全尺寸图片幻灯片

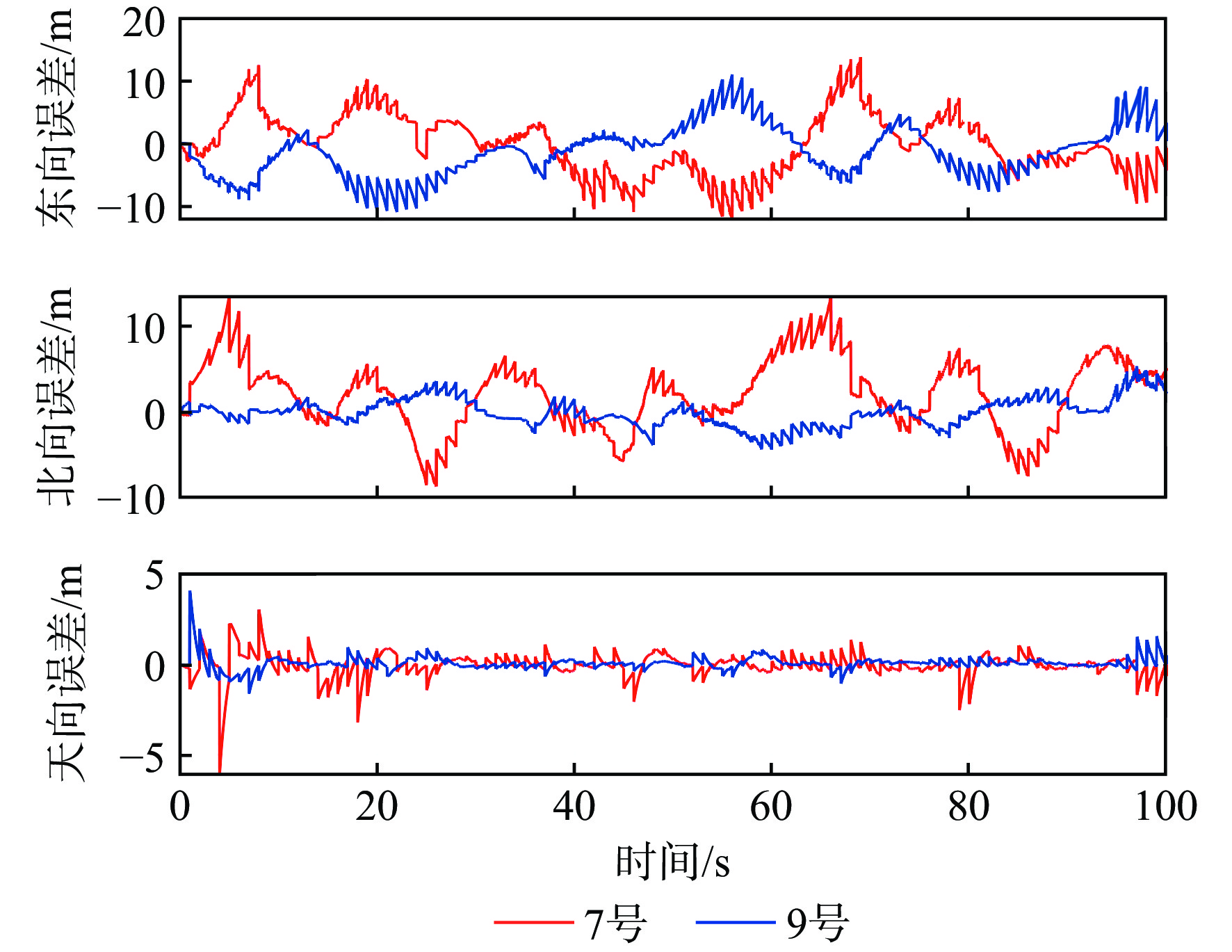

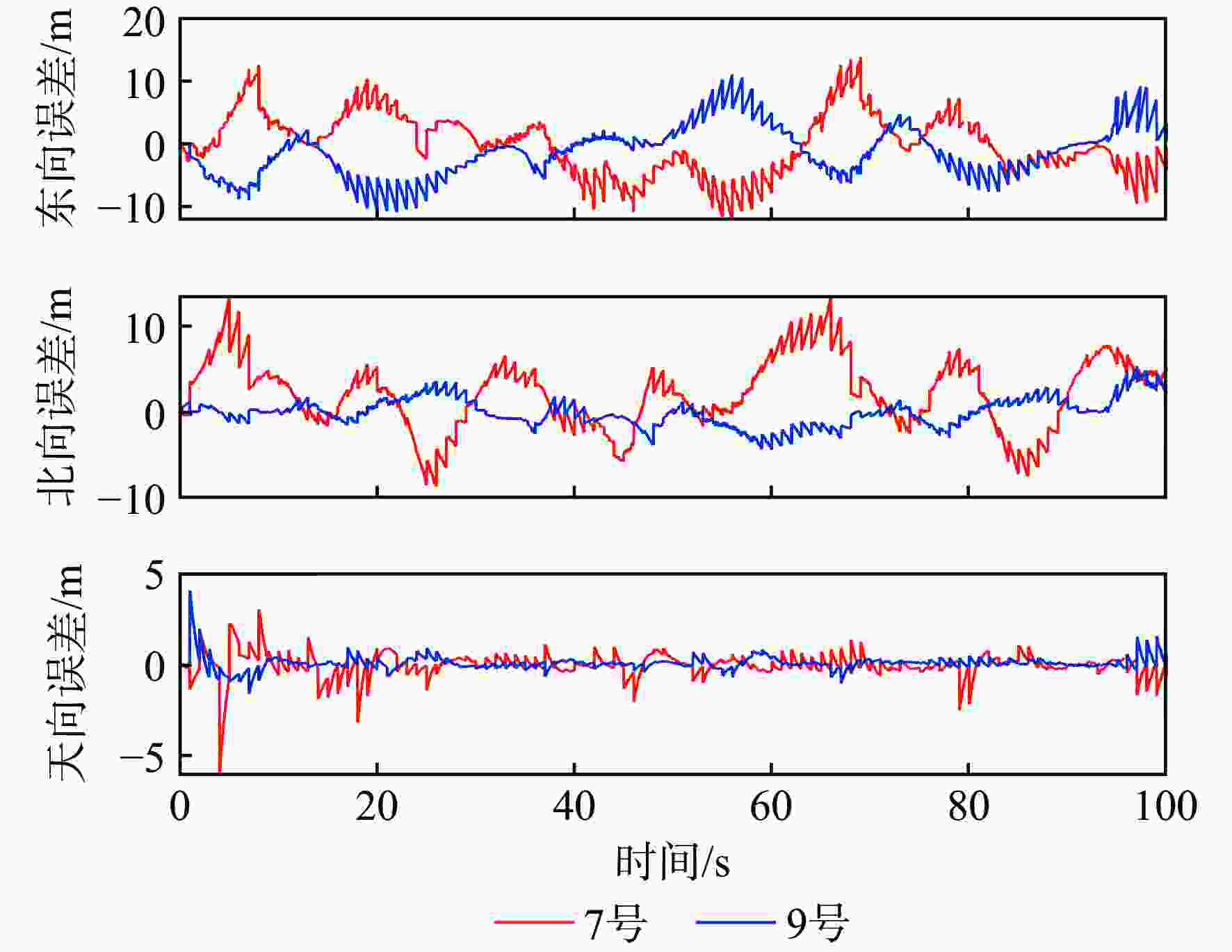

图 12 基于实采数据的定位性能分析

Figure 12. Positioning performance analysis based on physical data

下载: 全尺寸图片幻灯片

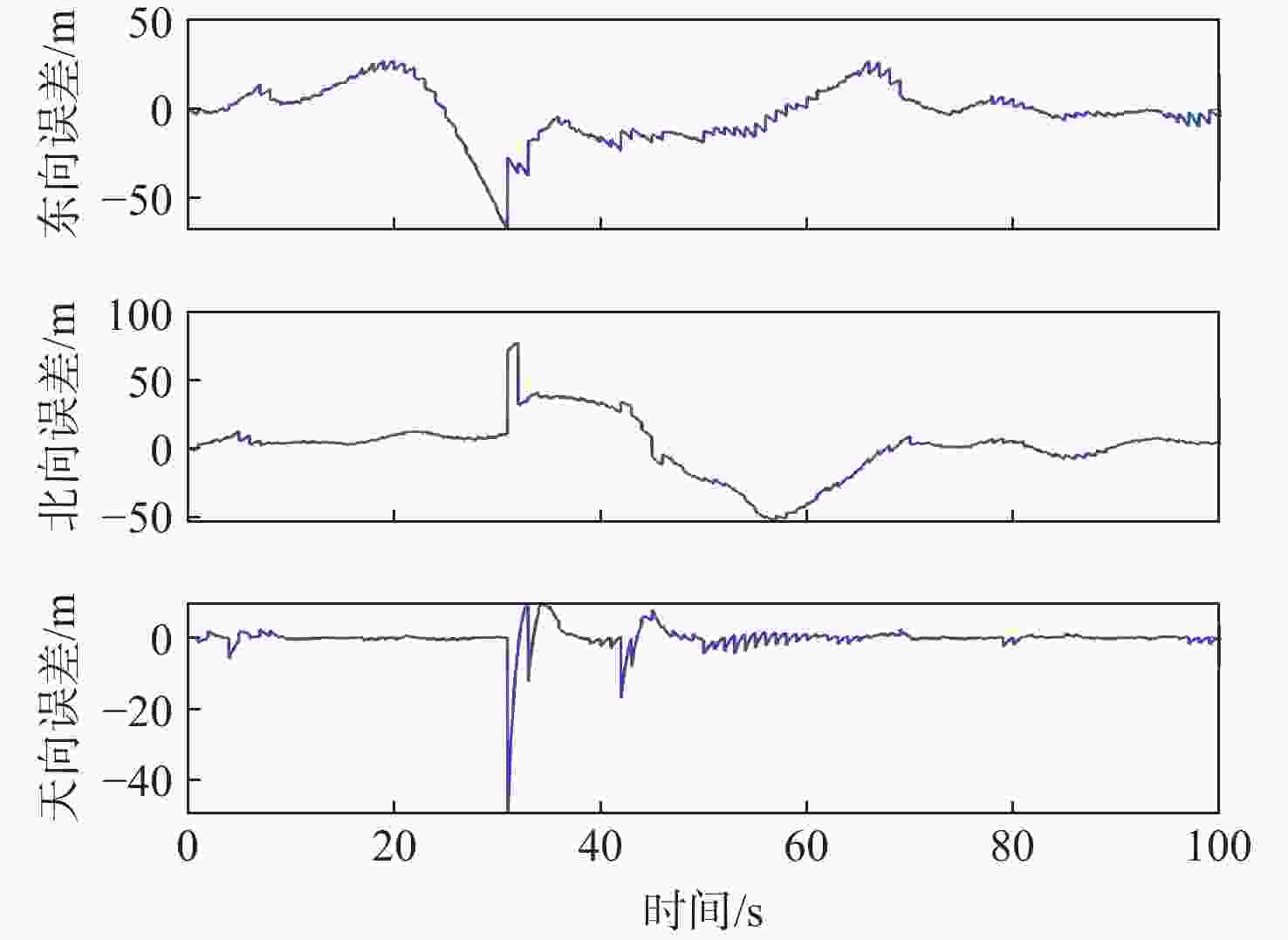

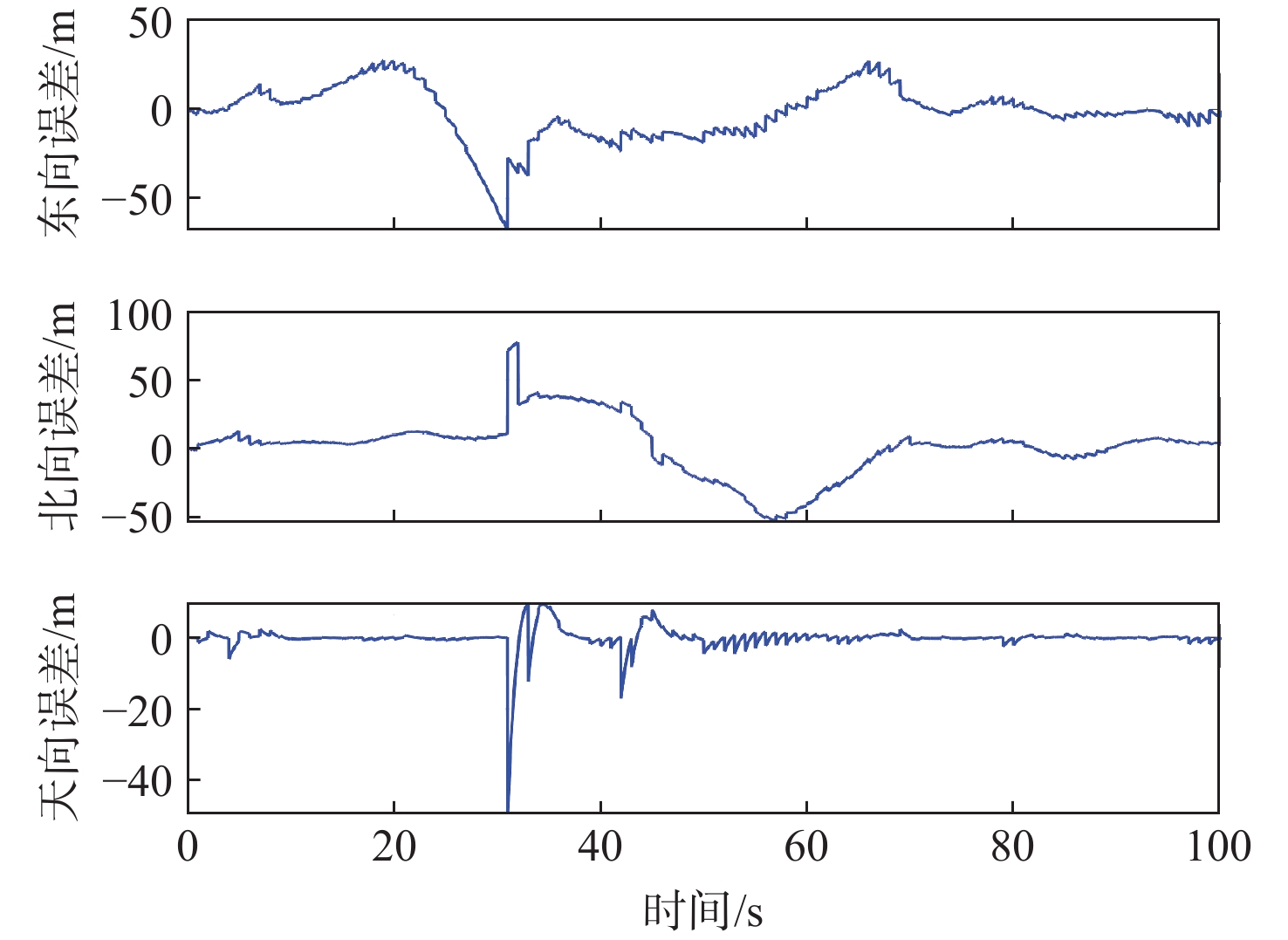

图 13 量测失效下协同定位误差

Figure 13. Cooperative localization errors under measurement failure

下载: 全尺寸图片幻灯片

表 1 仿真传感器性能配置

Table 1. Simulated sensor performance configuration

参数	数值
AHRS航姿漂移误差/（°）	(0.2,0.2,0.3)
AHRS航姿相关时间/s	60
AHRS加速度计偏置误差/（m·s⁻²）	0.00038g
AHRS加速度计相关时间/s	3600
GNSS位置误差/m	5
GNSS速度误差/（m·s⁻¹）	0.2
OES测距误差/m	3
OES测角误差/（°）	0.01
大气传感器高度白噪声/m	10
数据链路测距误差/m	10

下载: 导出CSV

表 2 定位均方根误差统计结果

Table 2. Statistics of position root mean square error

锚节点数量	定位RMSE绝对误差/m	定位RMSE相对误差/%
0	2871.5	265.7
1	1049.5	53.8
2	21.3	23.6
3	18.7	19.8
5	15.5	17.9

下载: 导出CSV

表 3 未知节点定位均方根误差

Table 3. Root mean square error of unknown node localisation

节点编号	融合机制	定位RMSE/m
节点编号	融合机制	经度	纬度	高度
6	所有互连节点	10.1	9.4	7.3
6	3个最优节点	13.8	10.9	7.9
11	所有互连节点	11.5	9.8	7.6
11	3个最优节点	13.4	11.2	8.0

下载: 导出CSV
