摘要:
在诸多基于深度学习的目标检测算法中，YOLO系列算法因具有检测速度快、检测精度高、适应性强等优点，成为无人机(UAV)航拍图像目标检测的优先选择。UAV航拍图像与视频复杂多变的特点使该视角下YOLO系列目标检测算法成为一个具有挑战性的难题，因此，有必要将近期UAV视角下目标检测的YOLO系列算法研究与应用成果进行全面总结与分析。归纳10种YOLO基础版本的发展、联系、优化特点，重新绘制YOLO系列结构图，指出各种YOLO版本优化策略的作用与特点。综述在UAV目标检测应用领域中YOLO的优化方法数据训练前的预处理、训练与推理优化、注意力模块的应用、卷积优化、检测头及损失函数的优化；梳理UAV视角下的应用数据集及数据扩展方法。通过实验对UAV视角下数据集上YOLO系列算法的性能及卷积块注意力模块(CBAM)对YOLO不同改进的作用进行评估。指出了UAV视角下目标检测YOLO系列算法的研究还存在的一些问题与可能发展趋势。
Abstract:The you only look once (YOLO) series of deep learning-based object identification algorithms has several advantages, including great adaptability, high detection accuracy, and quick detection speed. Make it the preferred choice for object detection in drone aerial images. Due to the complex and ever-changing nature of aerial images and videos captured by drones, the YOLO series object detection algorithms from the UAV vision have become a challenging problem. Therefore, it is necessary to comprehensively summarize and analyze the recent research and application achievements of YOLO series algorithms for object detection from the UAV vision. Firstly, the YOLO structural diagram is redrawn and the development, connection, and optimization features of the 10 fundamental versions of YOLO are summarized. The roles and objectives of various YOLO optimization strategies are pointed out, indicating the direction for further theoretical research. Secondly, the optimization methods of YOLO in the application field of drone object detection are summarized. This includes preprocessing before data training, optimization of training and inference, application of attention modules, convolutional optimization, detection heads, and optimization of loss functions. At the same time, some application datasets and data expansion methods from the UAV vision are sorted out. Through studies, the effectiveness of YOLO series algorithms on the UAV vision dataset and the influence of convolutional block attention module (CBAM) on various YOLO improvements are assessed. Finally, it is pointed out that there are still some problems and challenges in the research of YOLO series algorithms for object detection from the UAV vision. This article looks forward to possible development trends and research directions in this field.
-
Key words:
- UAV system /
- object detection /
- deep learning /
- YOLO series algorithms /
- datasets /
- performance comparison
-
表 1 YOLO不同的优化方案
Table 1. YOLO different optimization schemes
YOLO 锚框机制 正负样本分配 检测头 激活函数 损失函数 Cls_Loss Obj_Loss Bbox_Loss YOLO 无锚框 Max IOU 耦合头 Leaky ReLU 均方差 均方差 IOU YOLOv2 锚框 Max IOU 耦合头 Leaky ReLU 均方差 均方差 IOU YOLOv3 锚框 Max IOU 耦合头 Leaky ReLU 2元交叉熵 2元交叉熵 IOU YOLOv4 锚框 Max IOU 耦合头 Leaky ReLU、Mish 2元交叉熵 2元交叉熵 DIOU YOLOv5 锚框 跨网格搜索 耦合头 Leaky ReLU 2元交叉熵 2元交叉熵 CIOU YOLOX 无锚框 SimOTA 解耦头 SiLU 2元交叉熵 2元交叉熵 CIOU YOLOv6 无锚框 TOOD 解耦头 SiLU 2元交叉熵 2元交叉熵 CIOU YOLOv7 无锚框 跨网格搜索 解耦头 SiLU 2元交叉熵 2元交叉熵 CIOU YOLOv8 无锚框 TOOD 解耦头 SiLU 2元交叉熵 VFL CIOU YOLOv9 无锚框 TOOD 解耦头 SiLU 2元交叉熵 VFL CIOU 注：DIOU和CIOU分别为距离交并比和完全交并比。
下载: 导出CSV
表 2 YOLO性能评价指标
Table 2. Performance evaluation indicators of YOLO
类别 指标 公式 准确性 召回率R nTP/(nTP+nFP) 精确率P nTP/(nTP+nFN) 平均精度Pk $ \displaystyle\int P(R)\text{d}R $ 平均精度均值 $ \dfrac{1}{K}\displaystyle\sum\limits_{k=1}^{K}{P}_{k} $ 速度 帧率
下载: 导出CSV
版本 框架 数据集 图像尺寸/像素 骨干网络 mAP/% 帧率/(帧·s−1) 参数量 浮点运算量/次 YOLO Darknet VOC 448 GoogLeNet 63.4 45 2.629×108 3.37×1010 YOLOv2 Darknet VOC 416 Darknet24 76.8 67 4.87×107 3.06×1010 YOLOv3 Darknet COCO 608 Darknet53 33.0 78 6.3×107 1.18×1011 YOLOv4 Darknet COCO 608 CSPDarknet53 43.5 65 2.76×107 5.20×1010 YOLOv5s Pytorch COCO 640 CSPDarknet 37.4 95 7.2×106 1.65×1010 YOLOXs Pytorch COCO 640 CSPDarknet 40.5 156 9.0×106 2.68×1010 YOLOv6 Pytorch COCO 640 EfficientRep 43.1 109 1.72×107 4.42×1010 YOLOv7s Pytorch COCO 640 ELANblock 51.4 161 6.03×106 1.32×1010 YOLOv8s Pytorch COCO 640 CSPDarknet 53.0 101 1.12×107 2.86×1010 YOLOv9 Pytorch COCO 640 ELANblock 56.0 7.1×106 2.64×1010 SSD Pytorch COCO ResNet101+FPN 33.2 35.5 ConterNet Pytorch COCO Hourglass104+FPN 45.1 1.42 RetinaNet Pytorch COCO ResNet101+FPN 39.1 5.4 FCOS Pytorch COCO ResNet101+FPN 43.2 60
下载: 导出CSV
表 4 常用公共数据集
Table 4. Common public datasets
类别 大小/（像素×像素） 类别 数量 拍摄视角 VOC 300×500 20 33000 自然视角 COCO 600×800 80 330000 自然视角 DIOR 800×800 20 23463 航空视角 DOTA 800× 4000 15 11268 航空视角 VisDrone 2000 ×1500 12 10209 UAV视角 UAVDT 1080 ×5408 83000 UAV视角 UAV123 1280 ×72012 110000 UAV视角 UA-DETRAC 960×540 4 140000 UAV视角 Staford Drone 1417 ×2019 10 19000 UAV视角 AU-AIR 1920 ×1080 9 32000 UAV视角
下载: 导出CSV
表 5 YOLO检测模型在UAV视角下的实验性能
Table 5. Experimental performance of the YOLO detection model under UAV vision
算法 数据集 mAP/% YOLOv5s VisDrone2019 34.5 YOLOv5s UA-DETRAC 40.3 YOLOv5s UAVDT 57.8 YOLOv7s VisDrone2019 38.9 YOLOv7s UA-DETRAC 45.9 YOLOv7s UAVDT 60.1 YOLOv8s VisDrone2019 39.8 YOLOv8s UA-DETRAC 45.1 YOLOv8s UAVDT 65.1 YOLOv9c VisDrone2019 45.3 YOLOv9c UA-DETRAC 54.6 YOLOv9c UAVDT 66.3
下载: 导出CSV
表 6 实验运行环境
Table 6. Experimental environment configuration
云服务器 GPU 内存/GB Python CUDA https://www.mistgpu.com/ RTX3080 Ti 12 GB 30 3.8 11.3
下载: 导出CSV
表 7 UAV视角下的应用数据集
Table 7. Application datasets of UAV vision

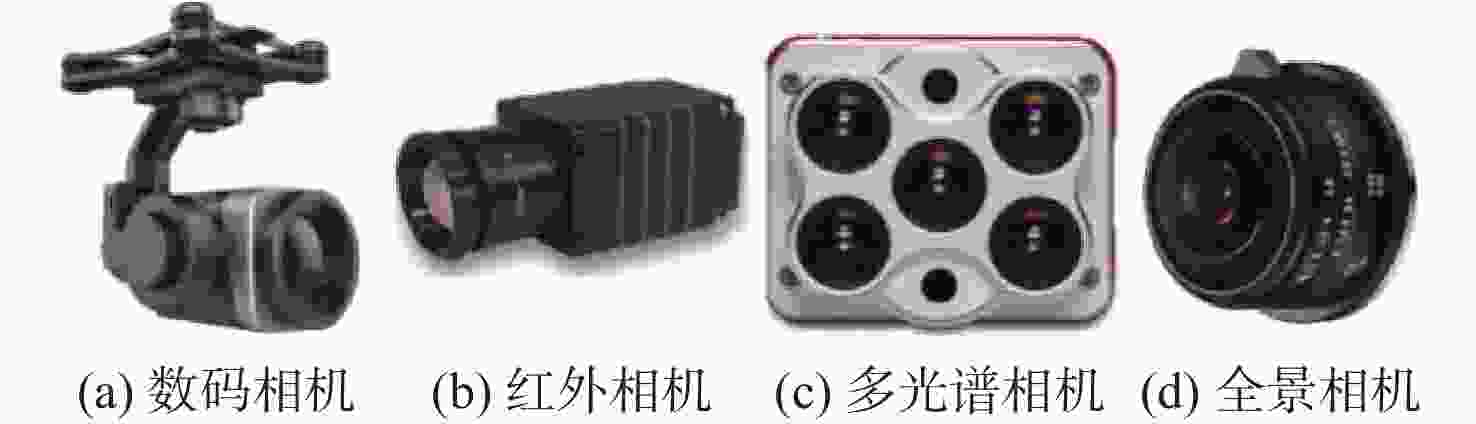

文献 图像大小/（像素×像素） 类别 数量 成像特点 UAV拍摄高度/m [41] 5472 ×3648 地面控制点 1745 可见光 40～220 [40] 5472 ×3078 钢结构裂纹 200 可见光 10～25 [42] 640×640 快速响应码 3260 可见光 <12 [42] 800×600 小麦 300 可见光 <3 [43] 4000 ×3000 输电线路 2600 可见光 50～260 [44] 1330 ×1000 枯死树 3084 可见光 75～100 [45] 500×500 松材线虫病 4208 可见光 <525 [46] 1152 ×864绝缘子 860 可见光 <100 [38] 640×512 行人、车辆 2898 红外热图 60～130 [47] 1920 ×1680 行人 8416 LED光源 15～65 [48] 960× 5184 松材线虫病 4500 多光谱图像 100～350 [49] 800×800 行人 7092 鱼眼摄像头 <6 [50] 2448 ×2048 伪装目标 2215 偏振成像 10
下载: 导出CSV
表 10 UAV视角下增加注意力机制的YOLO算法性能提升度
Table 10. Performance improvement of YOLO algorithm with an added attention mechanism from UAV vision
算法 数据集 AP提升量/% 注意力
机制位置 YOLOv4[76] 高压输电线数据集 2 DANet Backbone YOLOv4[82] 虫害数据集 3.4 SENet Backbone YOLOv5[78] VisDrone 11.5 PSAM Backbone YOLOv8[44] VisDrone 2.2 BiFormer Backbone YOLOv3[80] 幼苗数据集 0.1 SAM Neck YOLO3[89] 棕榈树数据集 1.06 CBAM Neck YOLOv5[82] 风叶缺陷 4 CBAM Neck YOLOX[36] VisDrone 5 ULSAM Neck YOLOv7[83] ODv2 7 PFAM Neck YOLOv7[84] VisDrone 9.5 CBAM Neck YOLOv5s[86] VisDrone 2 CBAM Backbone、Neck YOLOv5[87] VisDrone 7.9 SENet Backbone、Nec YOLOv5[78] VisDrone 4 SCAM Backbone、Neck YOLOv5[48] 松木数据集 5 CBAM Backbone、Neck YOLOv5[88] VisDrone 1.5 ACAM Backbone、Neck
下载: 导出CSV
表 11 CBAM对YOLO算法性能影响
Table 11. Impact of CBAM on the performance of YOLO algorithm
算法 位置 置入方式 mAP/% YOLOv5s Backbone+Neck 替换C3 31.6 YOLOv5s Backbone 替换C3 32.4 YOLOv5s Neck 替换C3 33.8 YOLOv5s Backbone 增加 37.6 YOLOv7s Backbone+Neck 替换ELAN 32.7 YOLOv7s Backbone 替换ELAN 37.9 YOLOv7s Neck 替换ELAN 39.0 YOLOv7s Backbone 增加 39.8 YOLOv8s Backbone+Neck 替换C2f 33.8 YOLOv8s Backbone 替换C2f 34.9 YOLOv8s Neck 替换C2f 38.6 YOLOv8s Backbone 增加 40.1
下载: 导出CSV
表 14 UAV视角下YOLO目标检测模型的实验性能
Table 14. Experimental performance of YOLO object detection model from UAV vision
模型 数据集 mAP/% mAP0.5/% 参数量 epoch 动量 WD ILR 设备 帧率/(帧·s−1) YOLOv4[38] COCO 48 66 500 0.9 0.0005 0.001 RTX2080Ti 19.4 YOLOv5[34] COCO 45 65 2.48×107 300 0.9 0.0005 0.01 TX1080Ti 82.2 YOLOX[95] COCO 43 61 1.45×106 300 0.9 0.0005 0.01 RTX3090 27.7 YOLOv3[103] VisDrone 27 6.15×107 300 0.9 0.0005 0.0025 GTX1080Ti 139.7 YOLOv4[94] VisDrone 32 65 6.17×106 300 0.9 0.0005 0.01 2070Super 18.0 YOLOv5[74] VisDrone 35 1.08×108 RTX3060 146.0 YOLOv7[78] VisDrone 36 53 7.97×107 400 0.9 0.0005 0.01 TESLA P100 YOLOv3[101] 行人 91 2.28×108 500 0.9 0.0005 0.001 GTX1660Ti 51.5 YOLOv3[36] 棕榈树 92 8.13×107 100 0.9 0.0005 0.001 GTX1060 26.9 YOLOv4[76] 输电线路 90 300 0.949 0.0005 0.001 RTX3090 50.0 YOLOv4[84] 松树病虫害 96 2.01×108 175 0.9 0.1 0.005 i7_10750H 4.2 YOLOv4[113] 钢裂纹 97 1.16×107 500 0.9 0.0005 0.001 RTX1080Ti 8.4 YOLOv5[82] 风电叶片 95 3.78×107 300 0.9 0.0005 0.0032 GTX1650 41.3 YOLOv5[49] 松线虫树 98 98 4.67×107 500 0.9 0.0005 0.01 RTX3060 67.0 YOLOv5[35] 枣椰树 92 90 300 0.9 0.0005 0.001 RTX2080Ti 11.3 YOLOv8[106] 烟雾 92 85 200 0.9 0.0005 0.001 GTX1080Ti 167.0
下载: 导出CSV
-
