On-orbit life re-evaluation technology and prospects for electromechanical products in response to demand for China Space Station lifespan extension
-
摘要:

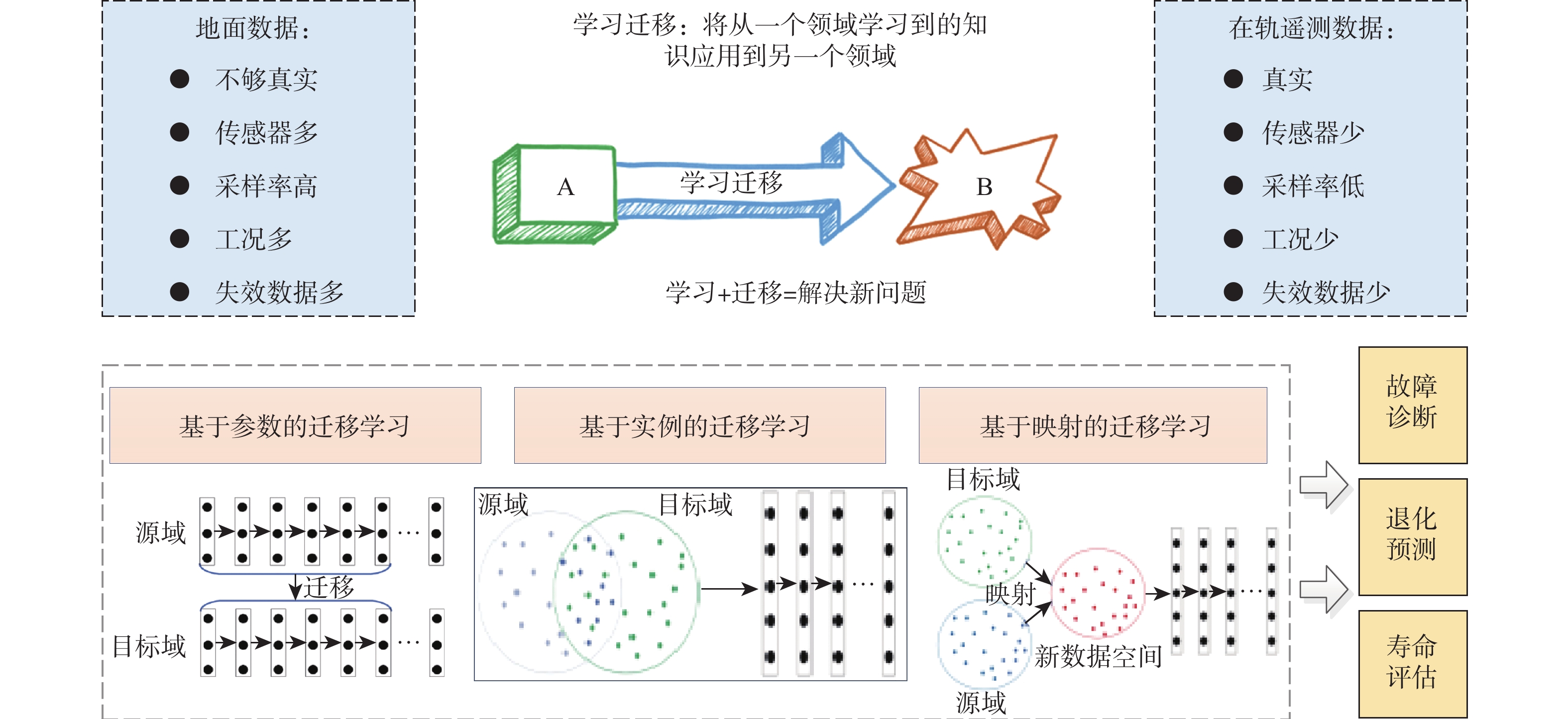

针对中国空间站延寿对准确定量开展机电产品在轨寿命再评估的迫切需求，在借鉴国际空间站寿命评估与延寿成功经验和中国空间站研制阶段寿命评估技术的基础上，较为系统地综述了空间站延寿需求下机电产品在轨寿命再评估技术，并给出了技术发展趋势和建议。该技术包括以地面试验数据为主和综合天地数据两类，涵盖寿命评估结果常规修正、综合动作和退化效应的寿命试验再评估、寿命试验复杂动态剖面再设计、多层级加速寿命试验与评估、综合辐照环境下寿命再评估、天地多源数据再筛选和寿命再评估、智能故障诊断和退化预测、基于天地数据迁移学习的寿命评估、基于在轨试验的寿命再评估9项具体技术。研究体现了中国空间站进入长期在轨运营阶段后，对机电产品寿命再评估工作的新思考和新理念，将服务中国空间站延寿这一长期的系统工程。
Abstract:This paper systematically reviews an on-orbit life re-evaluation technology specifically designed for electromechanical products in response to the urgent need for quantitatively re-evaluating the on-orbit life of electromechanical products amid the lifespan extension of China Space Station. It does this by drawing on successful experiences from International Space Station lifetime evaluations and extensions as well as methods used during the development phase of China Space Station. Furthermore, we present technical development trends and offer pertinent recommendations. The suggested technology falls into two main categories: those that combine on-orbit and ground telemetry data and those that are mostly based on ground test data. It encompasses 9 specific techniques, among which are the traditional correction of lifetime evaluation outcomes, the re-evaluation of lifetime tests factoring in both integrated operations and degradation effects, complex dynamic profile re-design for lifetime tests, multi-level accelerated lifetime testing and evaluation, the re-evaluation of lifetime in integrated irradiation environments, the re-screening and re-evaluation of multi-source data stemming from both ground and space, intelligent fault diagnosis and degradation prediction, lifetime evaluation leveraging transfer learning between ground and on-orbit telemetry data, and the re-evaluation of lifetime based on on-orbit testing. This technology embodies innovative considerations and concepts for the re-evaluation of electromechanical product lifetimes as the China Space Station embarks on its protracted on-orbit operational phase. It stands poised to bolster the long-term and systematic endeavor aimed at extending the operational lifespan of the China Space Station.
-

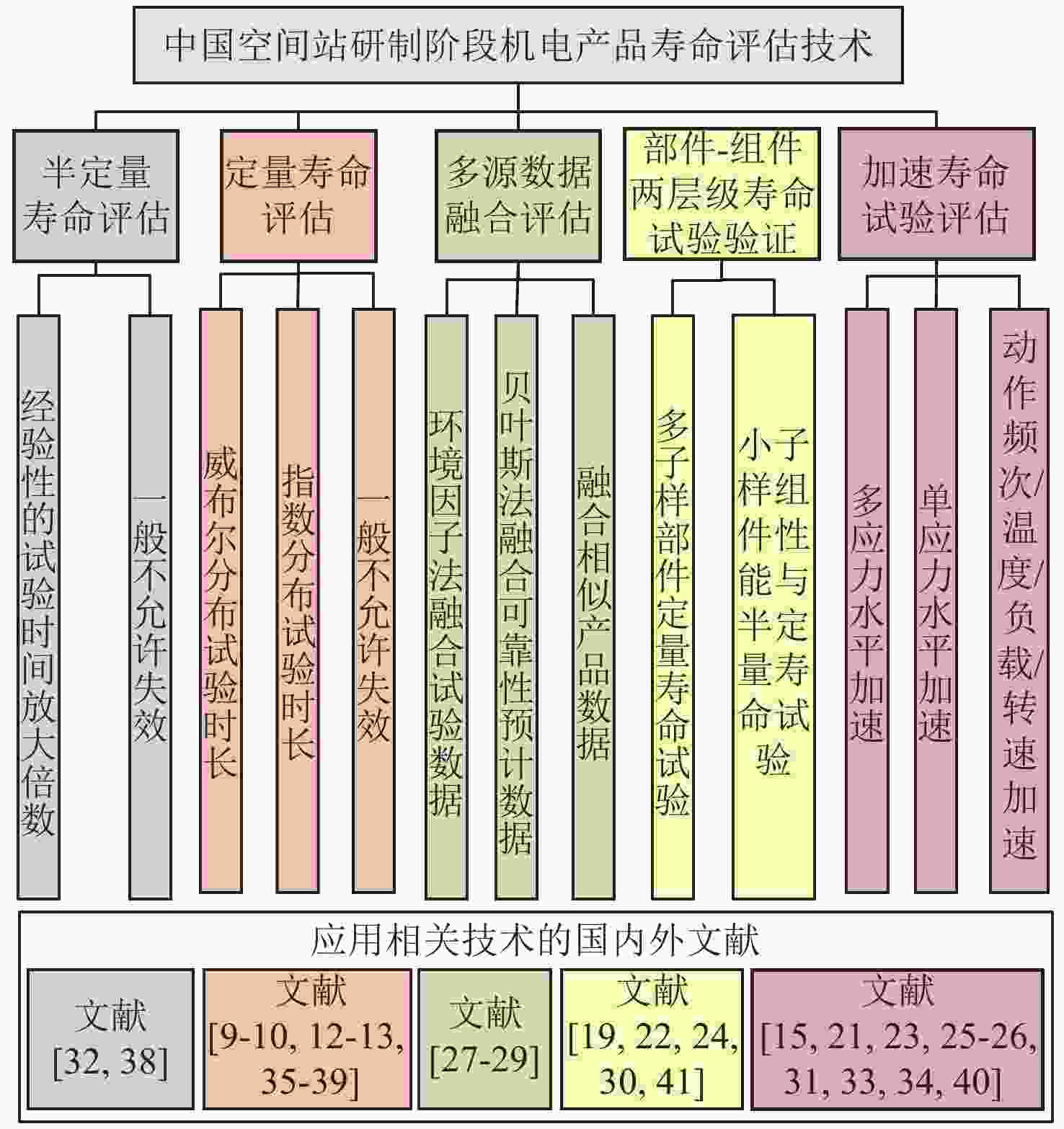

图 1 中国空间站研制阶段机电产品寿命评估技术
Figure 1. Life evaluation technology for electromechanical products during China Space Station development phase

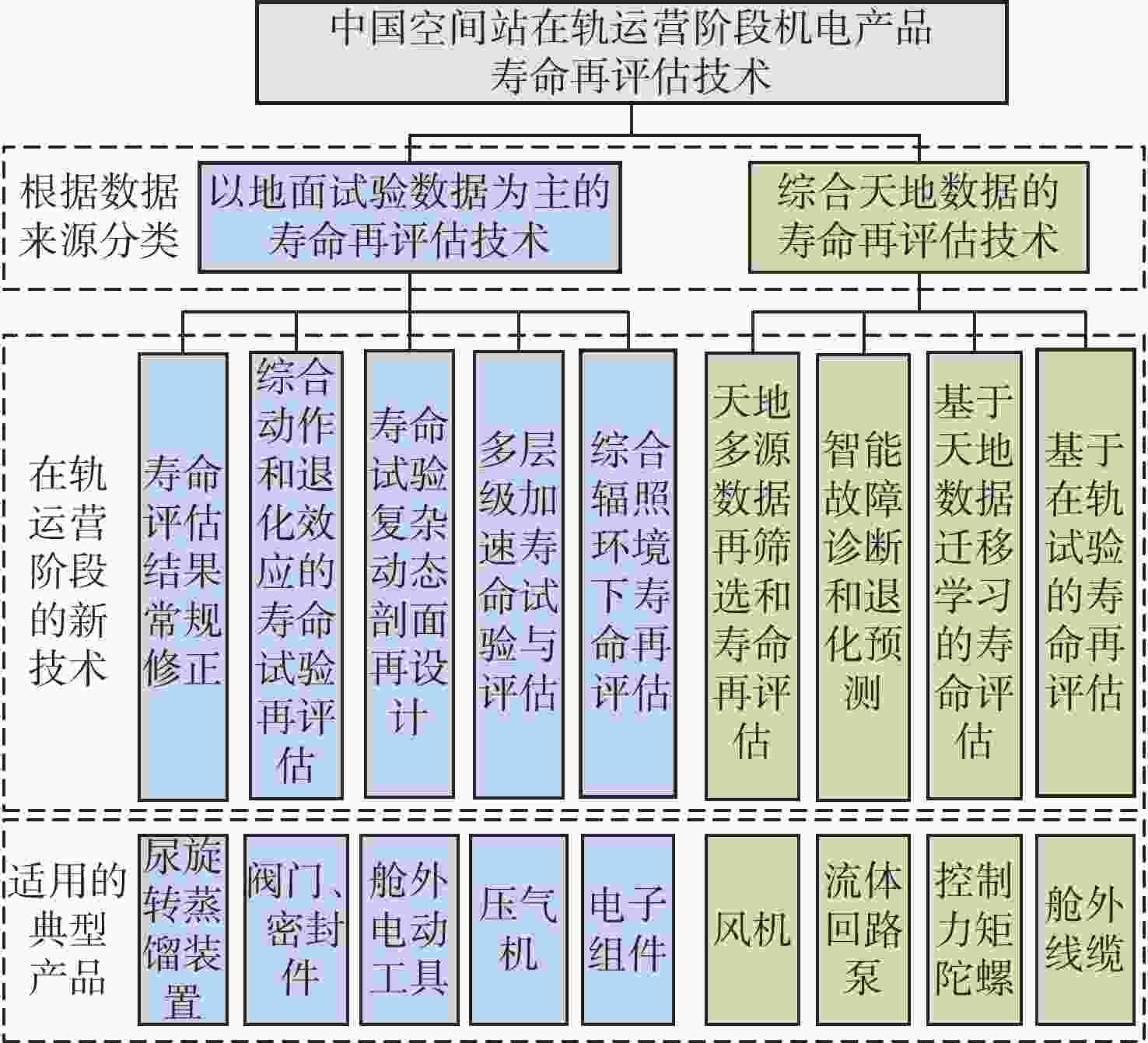

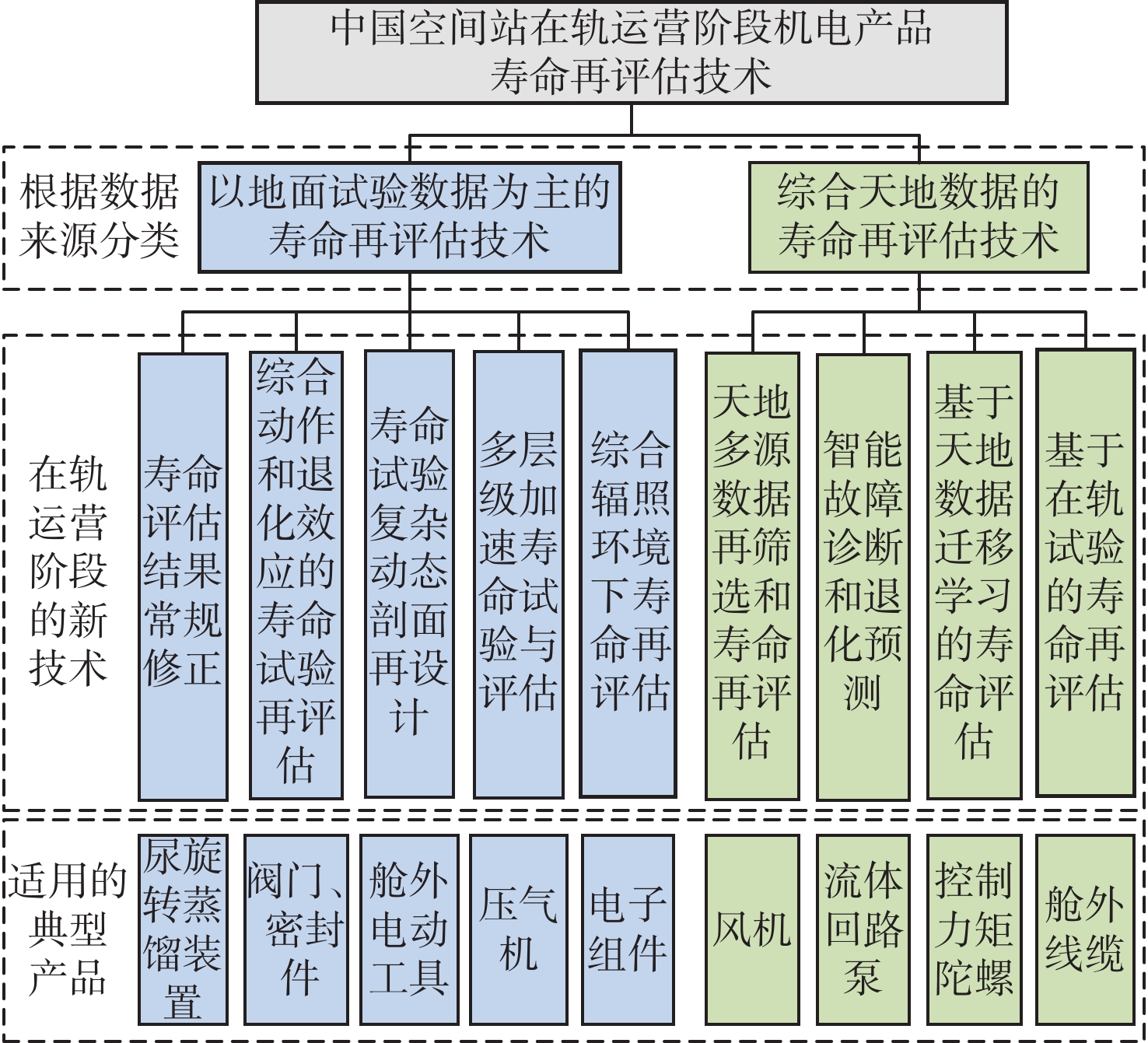

图 2 中国空间站在轨运营阶段机电产品寿命再评估技术
Figure 2. Life re-evaluation technology for electromechanical products during China Space Station on-orbit operation phase

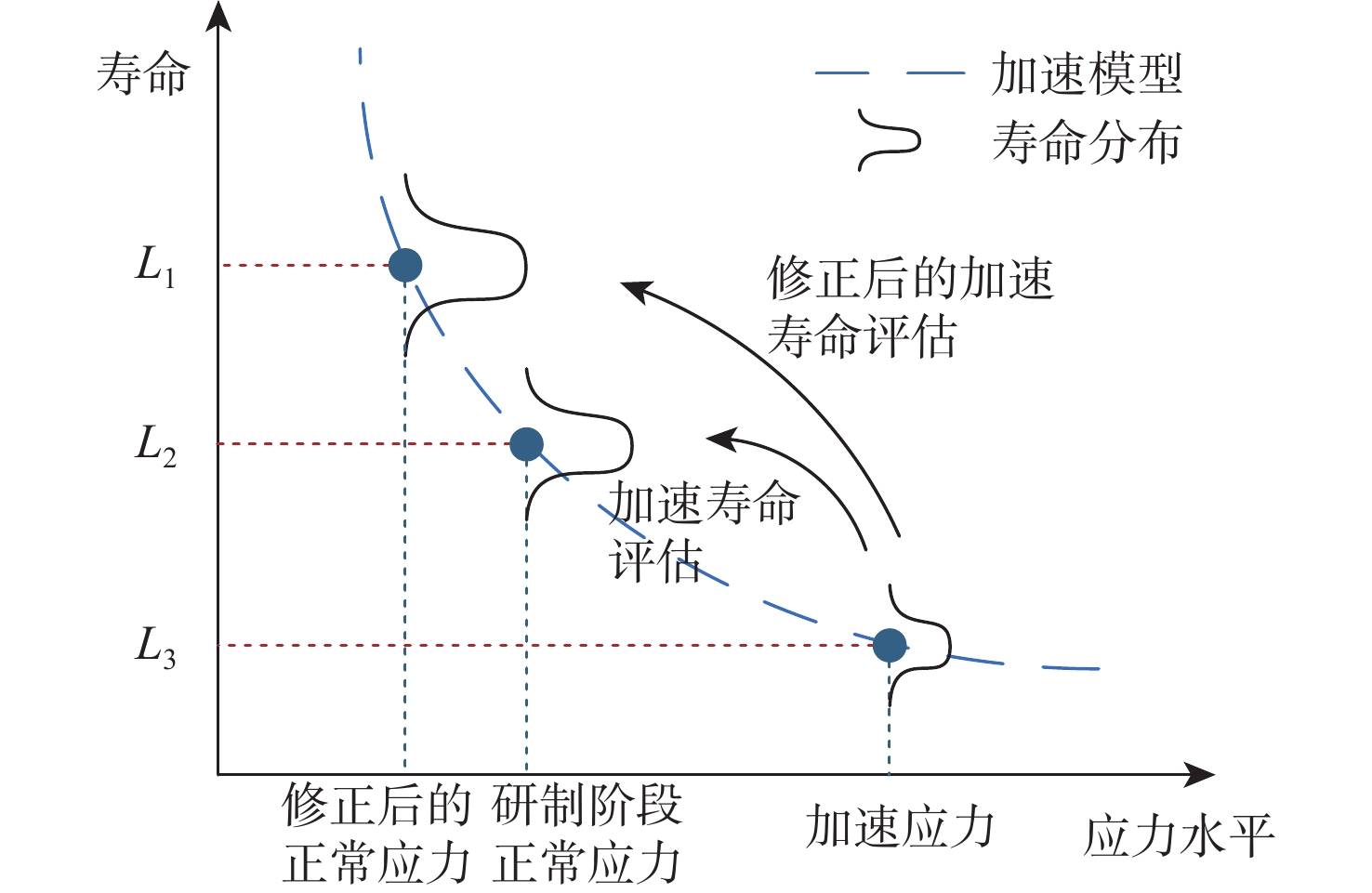

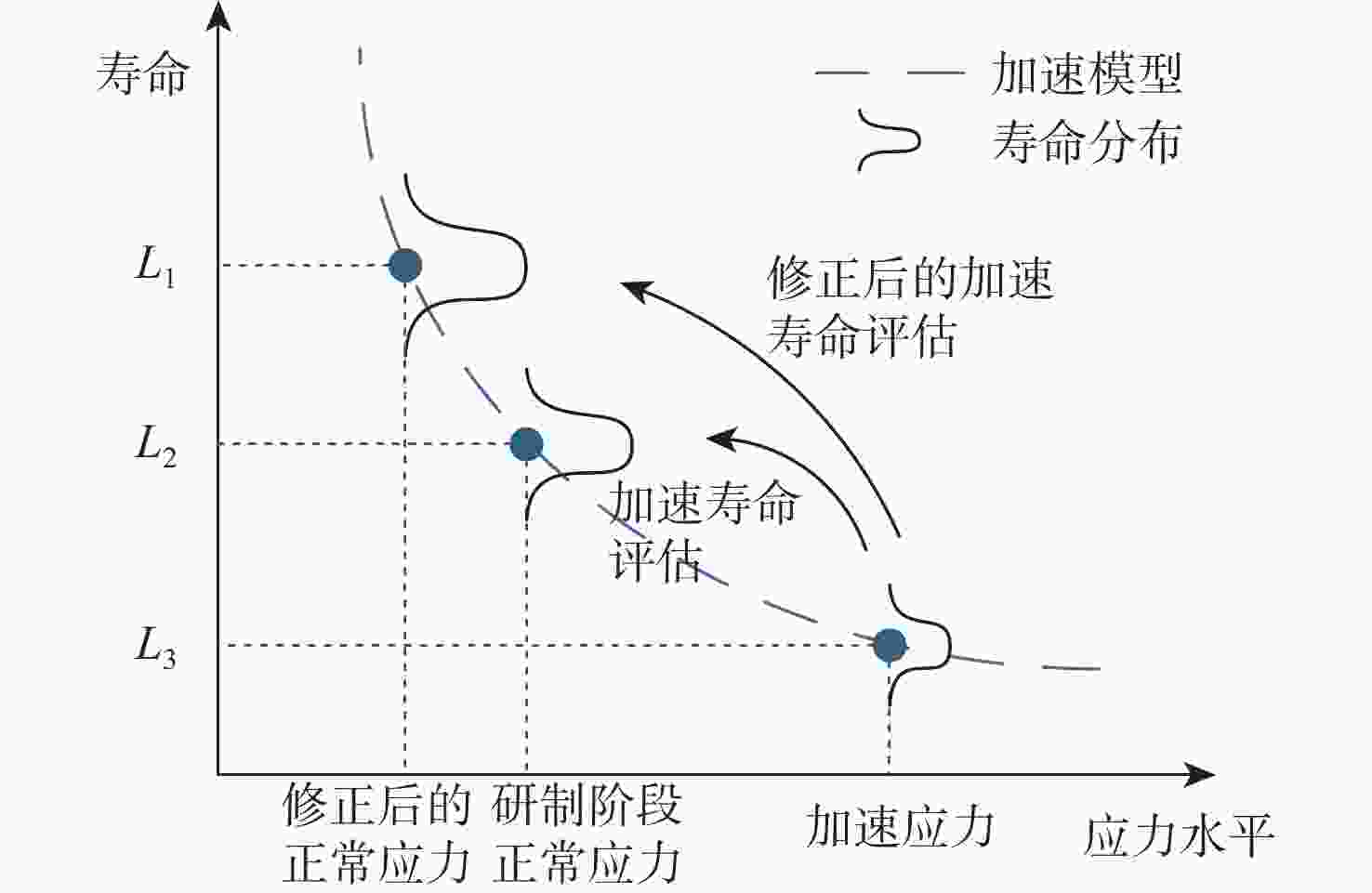

图 3 加速寿命评估结果常规修正示意图
Figure 3. Schematic diagram of routine corrections to accelerated life evaluation results

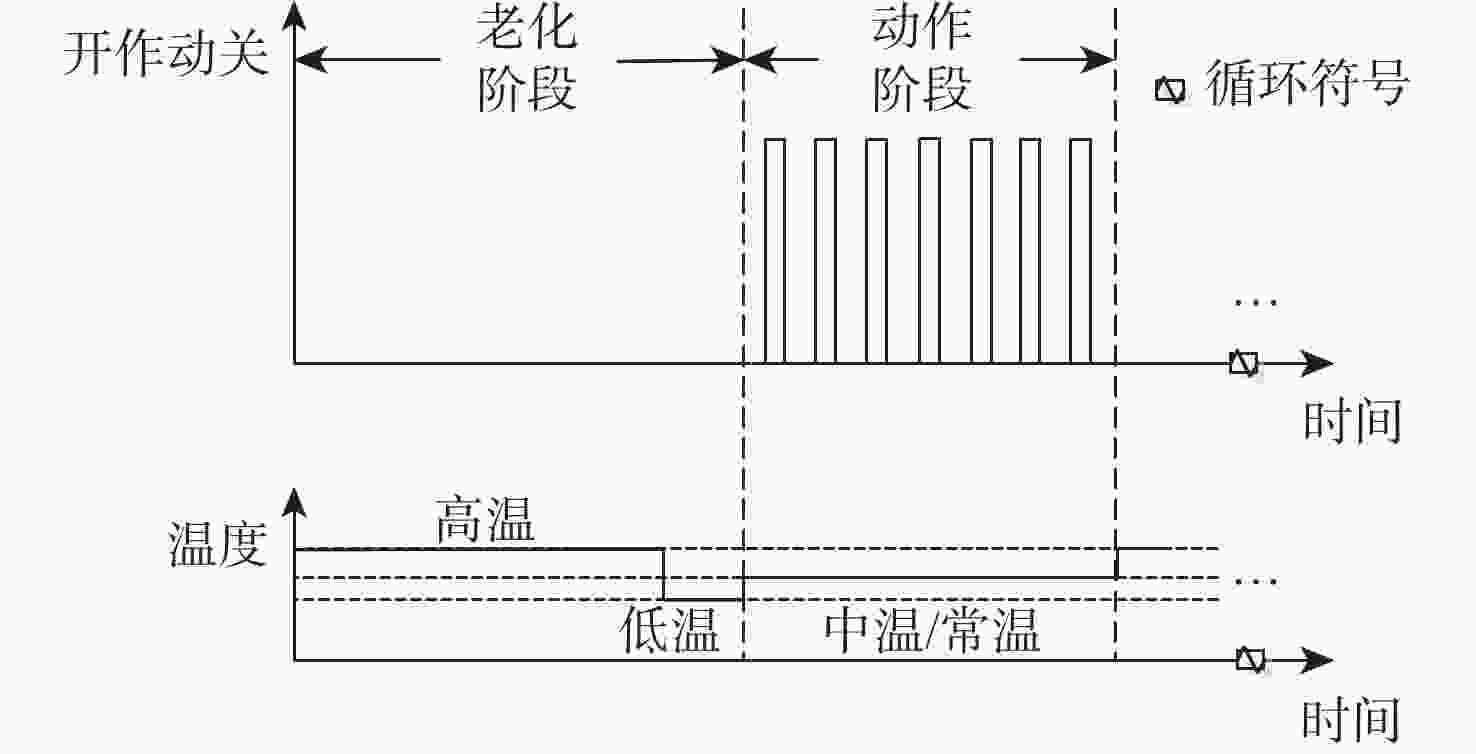

图 4 综合动作和退化效应的典型寿命试验剖面
Figure 4. Typical life test profile combining action and degradation effects

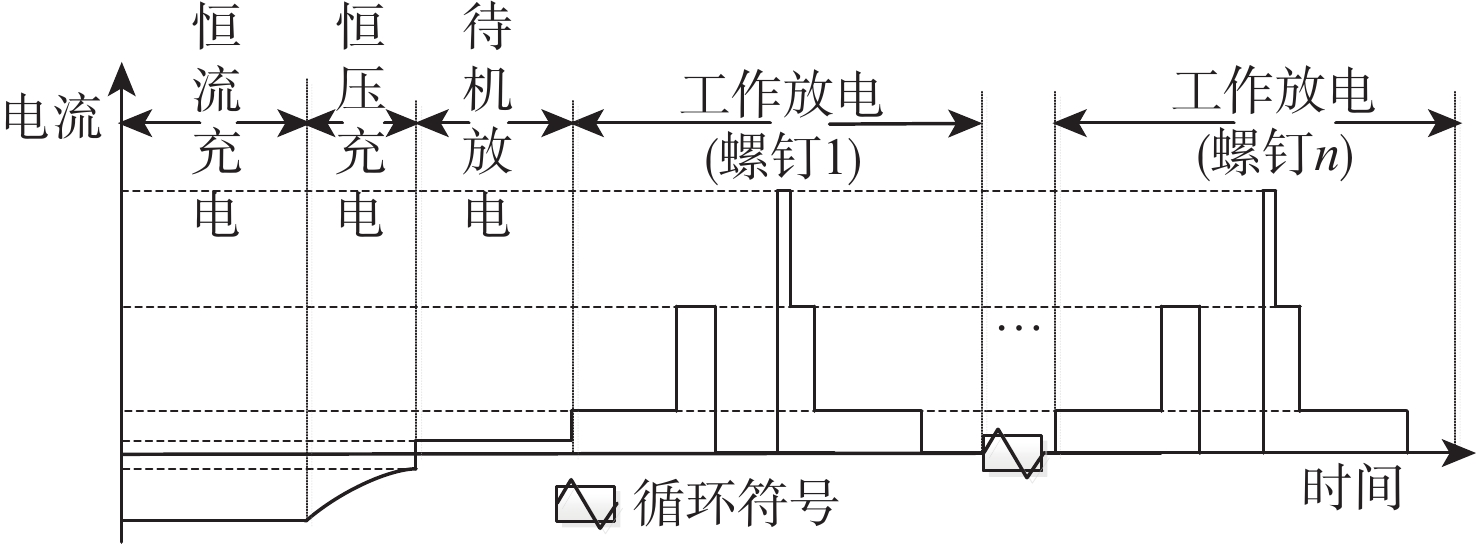

图 5 舱外电动工具锂电池典型的复杂动态寿命试验剖面
Figure 5. Typical complex dynamic life test profile for lithium-ion batteries of extravehicular power tools

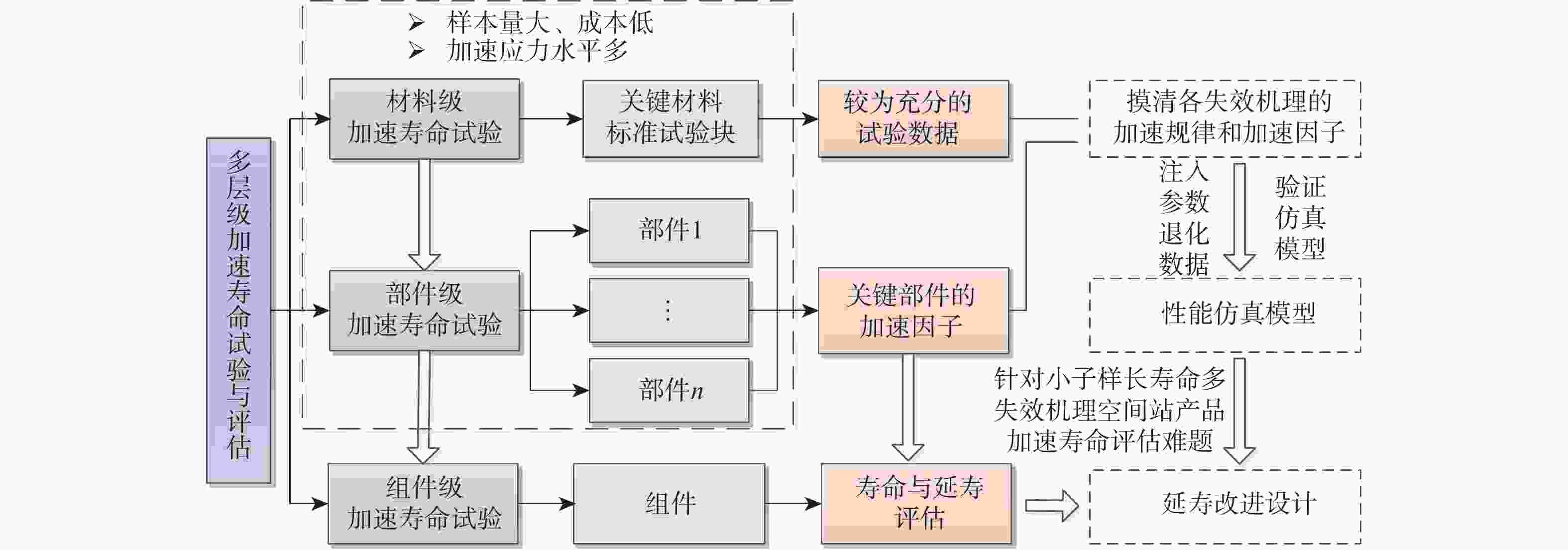

图 6 多层级加速寿命试验与评估示意图
Figure 6. Schematic diagram of multi-level accelerated life test and evaluation

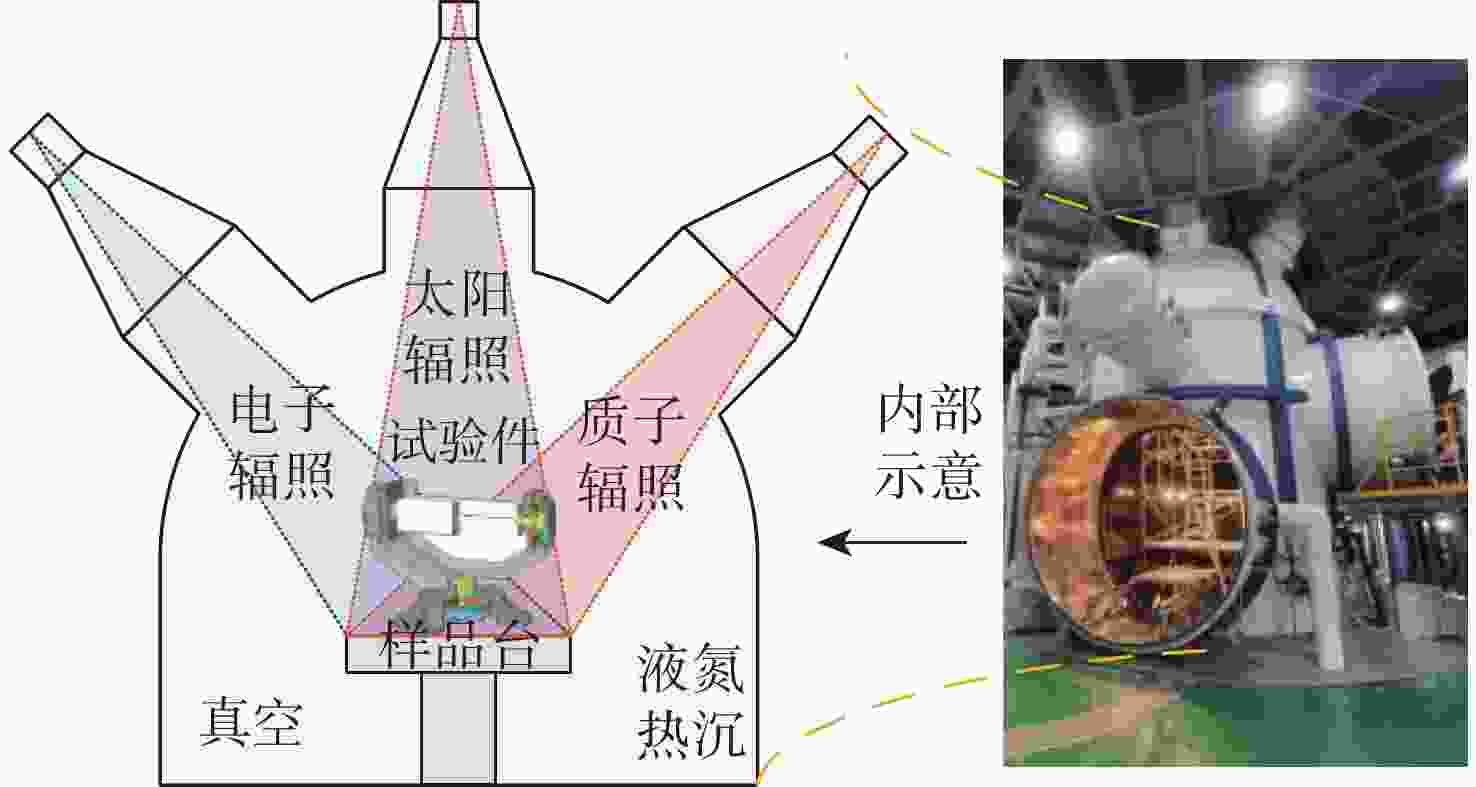

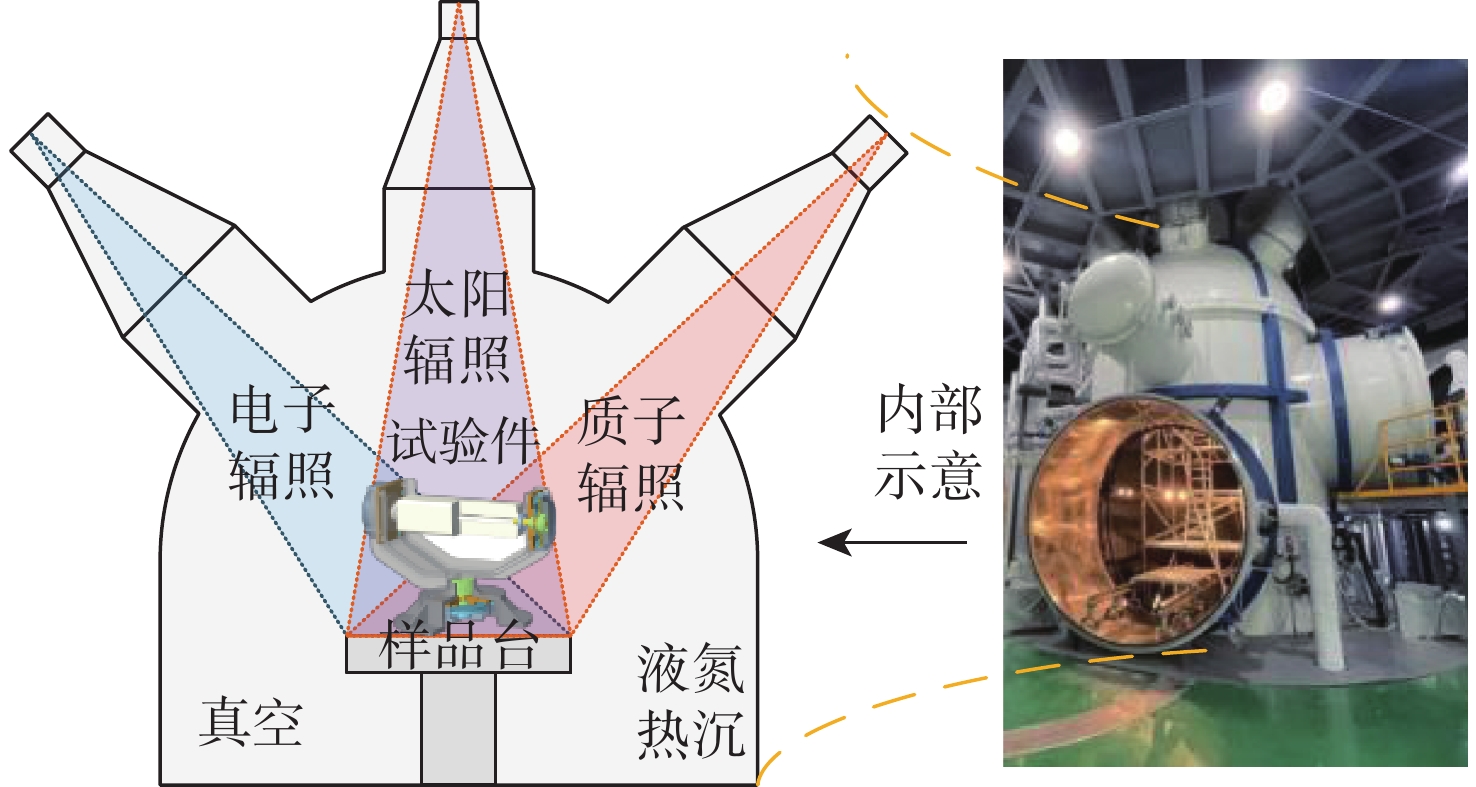

图 7 空间环境地面模拟装置综合辐照模拟舱
Figure 7. Integrated irradiation simulation chamber of the space environment simulation rescearch infrustructure

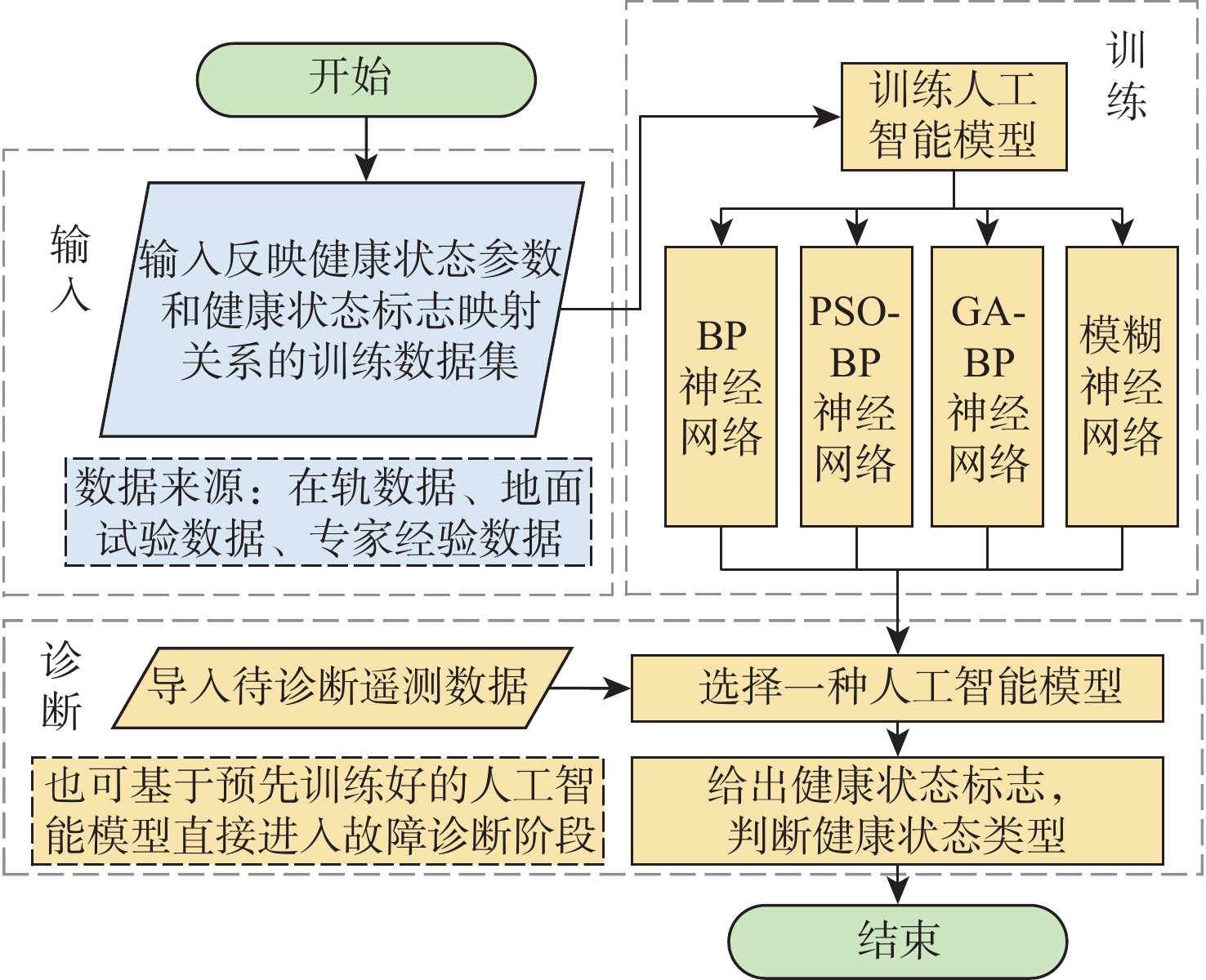

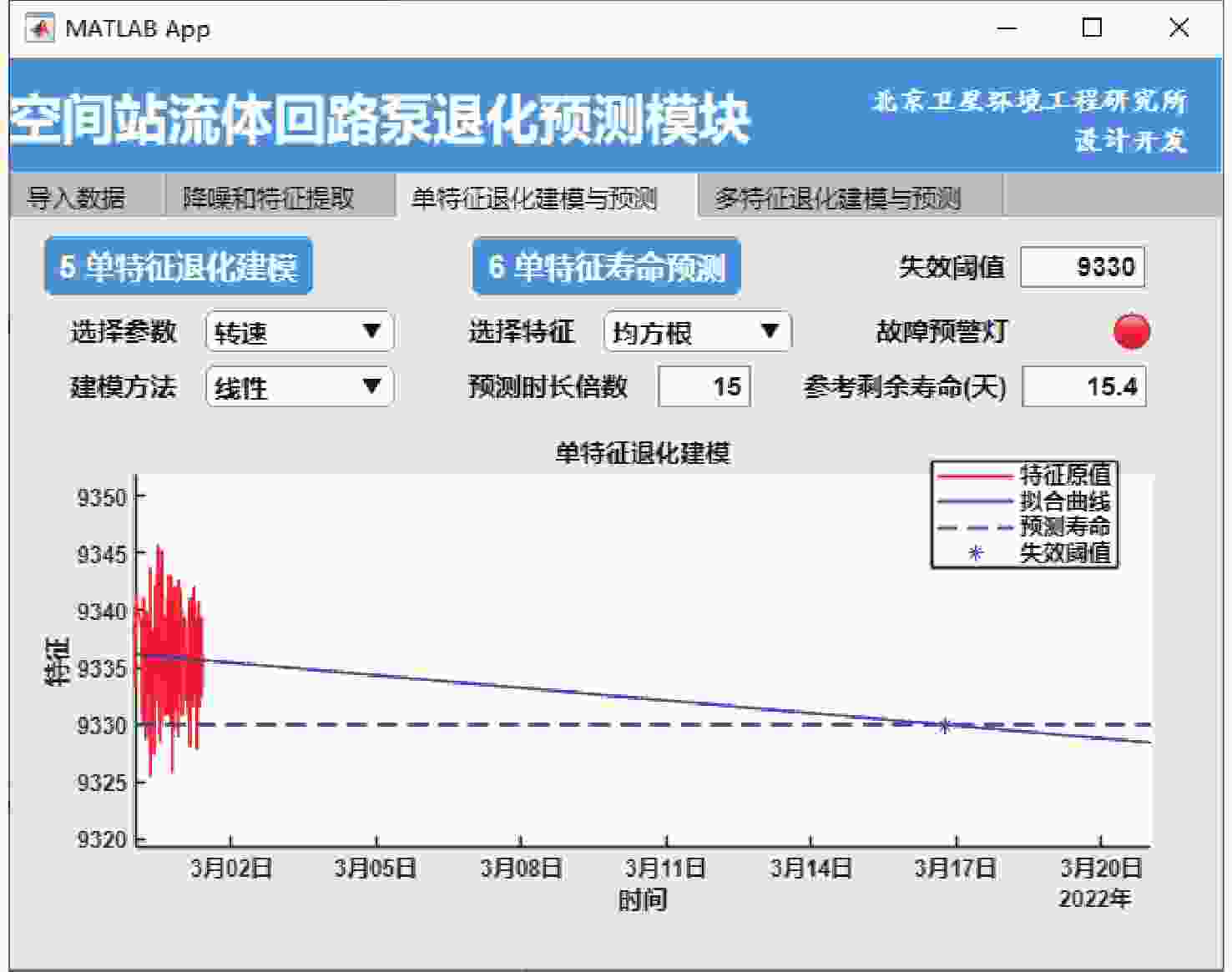

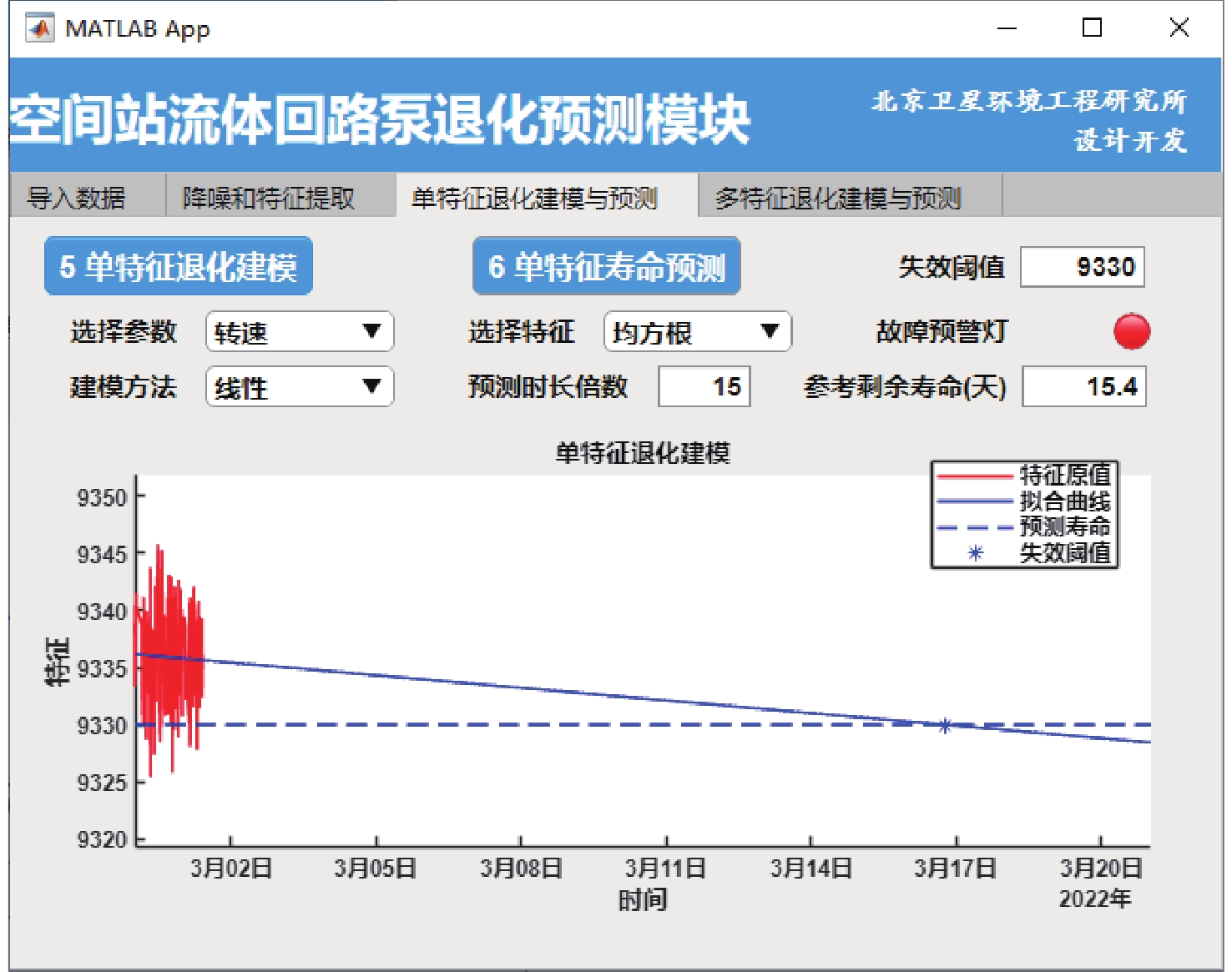

图 9 空间站流体回路泵退化预测软件界面
Figure 9. Space station fluid loop pump degradation prediction software interface
-
[1] 夏侨丽, 侯永青, 李伟. 载人航天器安全性、可靠性、维修性技术实践及发展展望[J]. 航天器工程, 2022(6): 86-93.Xia Q L, Hou Y Q, Li W. Practice and prospects of safety, reliability, maintainability technologies of manned spacecraft[J]. Spacecraft Engineering, 2022(6): 86-93(in Chinese). [2] 杨宏, 周昊澄. 空间实验室的风险识别与控制方法[J]. 宇航学报, 2019, 40(3): 295-301.Yang H, Zhou H C. Technology of space lab risk identification and control[J]. Journal of Astronautics, 2019, 40(3): 295-301(in Chinese). [3] Cecil A J, Robert L P, Raymond S, et al. Extending the international space station life and operability[C]//Proceedings of the Space Communications, Spacecraft Communications, Command and Tracking. Reston: AIAA, 2012. [4] 刁常堃, 王昊, 孟令子, 等. 航天员舱外维修操作时间的量化评估[J]. 北京航空航天大学学报, 2026, 52(5): 1487-1495.Diao C K, Wang H, Meng L Z, et al. Quantitative assessment of extravehicular maintenance operation time for astronauts[J]. Journal of Beijing University of Aeronautics and Astronautics, 2026, 52(5): 1487-1495(in Chinese). [5] 张伟, 侯永青, 夏侨丽, 等. 空间站维修设计与实践[J]. 中国科学: 技术科学, 2022, 52(9): 1332-1344.Zhang W, Hou Y Q, Xia Q L, et al. Maintenance design and practice for the China Space Station[J]. Scientia Sinica (Technologica), 2022, 52(9): 1332-1344(in Chinese). [6] Li W, Hou Y Q, An F J, et al. Safety design for the China space station[J]. Space: Science & Technology, 2023, 3: 89. [7] 肖武平, 王功波, 张蕊, 等. “国际空间站”延寿情况发展研究[J]. 中国航天, 2024(4): 13-16.Xiao W P, Wang G B, Zhang R, et al. Research on the development of the life extension of the international space station[J]. Aerospace China, 2024(4): 13-16(in Chinese). [8] 陈露, 张桅, 李孝鹏, 等. NASA国际空间站的安全性、可靠性、维修性及寿命评估[J]. 质量与可靠性, 2020(3): 40-44.Chen L, Zhang W, Li X P, et al. Safety, reliability, maintainability and life assessment of NASA international space station[J]. Quality and Reliability, 2020(3): 40-44(in Chinese). [9] Shen L, Mcveigh P, Ziglar M, et al. Extending ISS life beyond 2030[C]//Proceedings of the 75th International Astronautical Congress. Paris: International Astronautical Federation, 2024: 1-12. [10] Oakley S S, Warren J, Bivens A, et al. International Space Station (ISS) -ongoing assessments for life extension appear to be supported[EB/OL]. (2011-04-11)[2024-08-12]. https://www.gao.gov/products/gao-11-519r. [11] 陈云霞, 王聪. 产品高可靠长寿命设计与试验技术[J]. 强度与环境, 2023, 50(6): 90-96.Chen Y X, Wang C. High reliability and long lifetime design and test technology of products[J]. Structure & Environment Engineering, 2023, 50(6): 90-96(in Chinese). [12] 王莉娜, 史纪军, 李征, 等. 长服役期橡胶密封性能分析与寿命评估[J]. 航天器环境工程, 2022, 39(5): 475-481.Wang L N, Shi J J, Li Z, et al. Performance analysis and lifetime evaluation of rubber seal for long term service[J]. Spacecraft Environment Engineering, 2022, 39(5): 475-481(in Chinese). [13] 叶田园, 庞贺伟, 周元子, 等. 巡天任务复杂工况下超静平台作动器疲劳寿命评估[J]. 宇航学报, 2022, 43(10): 1378-1388.Ye T Y, Pang H W, Zhou Y Z, et al. Fatigue life evaluation of ultra-quiet platform actuator for complex astronomy survey missions[J]. Journal of Astronautics, 2022, 43(10): 1378-1388(in Chinese). [14] 孙远航, 余建波, 刘贤军, 等. 小子样下导电滑环磨损失效仿真的可靠性评估研究[J]. 宇航学报, 2020, 41(5): 624-632.Sun Y H, Yu J B, Liu X J, et al. Reliability evaluation of wear failure simulation of conductive slip ring under small sample[J]. Journal of Astronautics, 2020, 41(5): 624-632(in Chinese). [15] 张兆霖, 杨勇, 黄首清, 等. 空间站电动工具开关按钮性能退化特性加速寿命试验与可靠性评估[J]. 航天器环境工程, 2024, 41(2): 234-243.Zhang Z L, Yang Y, Huang S Q, et al. Accelerated life test and reliability assessment for degradation characteristics of power tool switch buttons onboard China’s Space Station[J]. Spacecraft Environment Engineering, 2024, 41(2): 234-243(in Chinese). [16] Steve K. Space radiation effects on spacecraft materials and avionics systems: no epic challenge here, but ignoring this can lead to loss of mission and spacecraft[EB/OL]. (2012-06-26)[2024-11-05]. https://ntrs.nasa.gov/api/citations/20120011865/downloads/20120011865.pdf. [17] Burt R R, Loffi R W. Failure analysis of International Space Station control moment gyro[C]//Proceedings of the 10th European Space Mechanisms and Tribology Symposium. Noordwijk: ESA Publications Division, 2003: 13-25. [18] Gurrisi C, Seidel R E, Dickerson S, et al. Space station control moment gyroscope lessons learned[C]//Proceedings of the 40th Aerospace Mechanisms Symposium. Washington, D. C. : NASA , 2010: 161-176. [19] Li X P, Huang H Z, Li F Q, et al. Remaining useful life prediction model of the space station[J]. Eksploatacja i Niezawodność-Maintenance and Reliability, 2019, 21(3): 501-510. [20] 余溢方, 黄首清, 刘庆海, 等. 航天器流体回路泵智能故障诊断方法[J]. 航天器工程, 2024, 33(3): 61-67.Yu Y F, Huang S Q, Liu Q H, et al. Intelligent fault diagnosis method for fluid loop pumps in spacecraft[J]. Spacecraft Engineering, 2024, 33(3): 61-67(in Chinese). [21] 刘凯, 吕从民, 党炜, 等. 可靠性高加速试验技术及其在我国空间站应用领域实施的总体思路[J]. 载人航天, 2017, 23(2): 222-227.Liu K, Lyu C M, Dang W, et al. Highly accelerated reliability testing and thoughts of its implementation on China manned space station[J]. Manned Spaceflight, 2017, 23(2): 222-227(in Chinese). [22] Zhang Z L, Huang S Q, Li F Y, et al. Experimental study on multi-stress failure characteristics of space station power tools motor[C]//Proceedings of the Global Reliability and Prognostics and Health Management Conference. Piscataway: IEEE Press, 2024: 1-5. [23] 黄首清, 代巍, 姚泽民, 等. 两种工程化的航天器用滚动轴承加速寿命试验方法[J]. 航天器环境工程, 2021, 38(4): 413-419.Huang S Q, Dai W, Yao Z M, et al. Two engineering methods for accelerated life test of aerospace rolling bearings[J]. Spacecraft Environment Engineering, 2021, 38(4): 413-419(in Chinese). [24] Kamath U, Kuznetsov S, Spencer V, et al. Service life extension of the propulsion system of long-term manned orbital stations[C]//Proceedings of the AIAA Propulsion and Energy Forum and Exposition. Reston: AIAA, 2014. [25] 叶田园, 刘鑫, 崔赪旻, 等. 空间挠性作动器的可靠性验证试验方法[J]. 中国空间科学技术(中英文), 2024, 44(2): 118-124.Ye T Y, Liu X, Cui C M, et al. Reliability verification test method of space flexible actuator[J]. Chinese Space Science and Technology, 2024, 44(2): 118-124(in Chinese). [26] 叶田园, 庞贺伟, 周元子, 等. 空间可重复锁紧装置可靠性评估[J]. 哈尔滨工业大学学报, 2023, 55(4): 115-121.Ye T Y, Pang H W, Zhou Y Z, et al. Reliability evaluation of space reusable locking device[J]. Journal of Harbin Institute of Technology, 2023, 55(4): 115-121(in Chinese). [27] Xu Y W, Kohtz S, Boakye J, et al. Physics-informed machine learning for reliability and systems safety applications: state of the art and challenges[J]. Reliability Engineering & System Safety, 2023, 230: 108900. [28] Hu Y W, Liu S J, Lu H T, et al. Remaining useful life model and assessment of mechanical products: a brief review and a note on the state space model method[J]. Chinese Journal of Mechanical Engineering, 2019, 32(1): 15. [29] Li H Q, Zhang Z X, Li T M, et al. A review on physics-informed data-driven remaining useful life prediction: challenges and opportunities[J]. Mechanical Systems and Signal Processing, 2024, 209: 111120. [30] 杜善亮, 禹志, 周艾玉, 等. 航天器寿命预测与评估方法在嫦娥五号上的应用[J]. 上海航天(中英文), 2022, 39(S1): 74-80.Du S L, Yu Z, Zhou A Y, et al. Application of a prediction and evaluation method for Chang’e-5[J]. Aerospace Shanghai (Chinese&English), 2022, 39(S1): 74-80(in Chinese). [31] 刘志全, 李新立, 遇今. 长寿命航天器机构的加速寿命试验方法[J]. 中国空间科学技术, 2008, 28(4): 65.Liu Z Q, Li X L, Yu J. Methods of accelerated life tests for long-life spacecraft mechanisms[J]. Chinese Space Science and Technology, 2008, 28(4): 65(in Chinese). [32] 朱炜, 张国斌, 陈凤熹, 等. 长寿命卫星寿命工作方案研究[J]. 质量与可靠性, 2017(1): 22-26.Zhu W, Zhang G B, Chen F X, et al. Research on long-life satellite life work scheme[J]. Quality and Reliability, 2017(1): 22-26(in Chinese). [33] 黄首清, 郭振伟, 刘庆海, 等. 加速寿命试验设计与评估软件ALT511及其应用(一)[J]. 航天器环境工程, 2023, 40(5): 541-549.Huang S Q, Guo Z W, Liu Q H, et al. Accelerated life test design and evaluation software ALT511and its application(Ⅰ)[J]. Spacecraft Environment Engineering, 2023, 40(5): 541-549(in Chinese). [34] 黄首清, 刘庆海, 李芳勇, 等. 加速寿命试验设计与评估软件ALT511及其应用(二)[J]. 航天器环境工程, 2023, 40(6): 641-649.Huang S Q, Liu Q H, Li F Y, et al. Accelerated life test design and evaluation software ALT511 and its application (Ⅱ)[J]. Spacecraft Environment Engineering, 2023, 40(6): 641-649(in Chinese). [35] Sankararaman S, Goebel K. Uncertainty quantification in remaining useful life of aerospace components using state space models and inverse FORM[C]//Proceedings of the 54th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference. Reston: AIAA, 2013. [36] Sharma G, Rai R N. Reliability modeling and analysis of environmental control and life support systems of space stations: a literature survey[J]. Acta Astronautica, 2019, 155: 238-246. [37] 皇甫素伟, 文明, 李毅, 等. 卫星在轨寿命与可靠性数据库体系建设及应用[J]. 质量与可靠性, 2018(3): 27-31.Huangfu S W, Wen M, Li Y, et al. Construction and applications of the lifetime and reliability database architecture for on-orbit satellites[J]. Quality and Reliability, 2018(3): 27-31(in Chinese). [38] 周正伐. 可靠性工程技术问答200例[M]. 北京: 中国宇航出版社, 2011.Zhou Z F. 200 questions and answers of reliability engineering technology[M]. Beijing: China Astronautic Publishing House, 2011(in Chinese). [39] 朱炜. 航天产品可靠性评估方法[M]. 北京: 中国宇航出版社, 2022.Zhu W. Reliability evaluation method of aerospace products[M]. Beijing: China Astronautic Publishing House, 2022(in Chinese). [40] 张兆霖. 舱外电动工具多应力失效边界域与寿命预测研究[D]. 北京: 中国空间技术研究院, 2024.Zhang Z L. Research on multi-stress failure envelope and life prediction of extravehicular power tools[D]. Beijing: China Academy of Space Technology, 2024(in Chinese). [41] Zhang L W, Zheng H M, Huang S Q, et al. A life test of ultrasonic motors under different torque loads and the analysis of the characteristics of wearing surfaces[J]. Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology, 2020, 234(5): 770-777. [42] 陈云霞, 金毅. 机械产品寿命设计与试验技术[M]. 北京: 国防工业出版社, 2022.Chen Y X, Jin Y. Life design and test technology of mechanical product[M]. Beijing: National Defense Industry Press, 2022(in Chinese). [43] 中国人民解放军总装备部电子信息基础部. 可靠性鉴定和验收试验: GJB 899A—2009[S]. 北京: 中国人民解放军总装备部, 2009: 118-243.Chinese People’s Liberation Army General Armament Department Electronic Information Basic Department. Reliability testing for qualification and production acceptance: GJB 899A—2009[S]. Beijing: Chinese People’s Liberation Army General Armament Department, 2009: 118-243(in Chinese). [44] 蒋海青, 何伟荣, 蔡锡明, 等. 钴源与加速器辐照效应及辐照加工试验综合平台[J]. 辐射研究与辐射工艺学报, 2022, 40(1): 106-111.Jiang H Q, He W R, Cai X M, et al. Integrated 60Co and electron accelerator platform for irradiation effect and irradiation processing tests[J]. Journal of Radiation Research and Radiation Processing, 2022, 40(1): 106-111(in Chinese). [45] Bansal N, Arora S. Exploring the impact of gamma rays and electron beam irradiation on physico-mechanical properties of polymers & polymer composites: a comprehensive review[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2024, 549: 165297. [46] Harbin Institute of Technology. SESRI: bringing space to earth[EB/OL]. (2022-10-15)[2024-11-05]. https://www.nature.com/articles/d42473-020-00198-6. [47] Xiang G, Tian K. Spacecraft intelligent fault diagnosis under variable working conditions via Wasserstein distance-based deep adversarial transfer learning[J]. International Journal of Aerospace Engineering, 2021, 2021(1): 6099818. [48] Baireddy S, Desai S R, Mathieson J L, et al. Spacecraft time-series anomaly detection using transfer learning[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops. Piscataway: IEEE Press, 2021: 1951-1960. [49] Chen A, Xie Y C, Wang Y, et al. Knowledge graph-based image recognition transfer learning method for on-orbit service manipulation[J]. Space: Science & Technology, 2021, 2021: 9807452. [50] 王正义, 尹钊, 杨金禄, 等. 载人空间站工程航天技术试验领域项目遴选程序初探[J]. 航天器环境工程, 2020, 37(5): 452-457.Wang Z Y, Yin Z, Yang J L, et al. Procedures of project selection of aerospace technology experiment for manned space station[J]. Spacecraft Environment Engineering, 2020, 37(5): 452-457(in Chinese). -
