面向低空起降场的FOD检测与识别

郑皓文; 胡海苗; 徐壮; 何壮; 胡昊鑫

doi:10.13700/j.bh.1001-5965.2025.0420

面向低空起降场的FOD检测与识别

doi: 10.13700/j.bh.1001-5965.2025.0420

郑皓文¹,
胡海苗^{1, 2},
徐壮^3, ,,
何壮²,
胡昊鑫²

1.
北京航空航天大学计算机学院，北京 100191
2.
北京航空航天大学杭州创新研究院，杭州 310000
3.
浙江省机场集团有限公司，杭州 311207

基金项目:

浙江省“尖兵”“领雁”研发攻关计划(2025C01037)

详细信息

通讯作者:
E-mail：frank0139@163.com

中图分类号: TP399
计量
- 文章访问数: 219
- HTML全文浏览量: 85
- PDF下载量: 21
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-01
- 录用日期: 2025-08-08
- 网络出版日期: 2025-08-20
- 整期出版日期: 2026-09-01

FOD detection and recognition for low-altitude takeoff and landing sites

ZHENG Haowen¹,
HU Haimiao^{1, 2},
XU Zhuang^{3
, ,},
HE Zhuang²,
HU Haoxin²

1.
School of Computer Science and Engineering，Beihang University，Beijing 100191，China
2.
Hangzhou Innovation Institute of Beihang University，Hangzhou 310000，China
3.
Zhejiang Provincial Airport Group Co.，Ltd.，Hangzhou 311207，China

Funds:

Zhejiang Provincial “Pioneer” and “Leading Goose” R&D Program (2025C01037)

More Information

Corresponding author: E-mail：frank0139@163.com

摘要

摘要:
低空起降场跑道外来物(FOD)的检测与识别对于飞机飞行性能与机场运行安全具有重要意义。针对FOD目标尺寸小、无表观特征的特点及公开数据少的问题，构建FOD数据集，并提出一种基于物理特性的FOD检测与识别方法。采集常见FOD材质的多光谱图像，构建FOD的多光谱数据集。基于该数据集，对常见FOD (包括金属的锈迹与强反射现象)进行属性分析。基于沥青背景反射率，得到材质相对沥青的伪反射率。通过多种统计量，初步验证了不同材质的可分性，进而提出了使用密集嵌套连接的编码器-解码器结构神经网络，将伪反射率作为输入进行材质识别，在所构建数据集的测试集中，准确率为0.9993，Macro-F1分数为0.7749，优于同模型大小等级的其他材质识别和分割模型。
- 材质识别 /
- 机场跑道外来物 /
- 自编码器 /
- 多光谱图像 /
- 伪反射率
Abstract:
The detection and recognition of foreign object debris (FOD) on low-altitude takeoff and landing runways are of critical importance to aircraft performance and airport operational safety. A FOD dataset was created and a physics-based FOD detection and identification approach was suggested in order to address the issues caused by the small size, lack of distinctive visual traits, and restricted availability of public data for FOD. Initially, multispectral images of common FOD materials were collected to establish a multispectral FOD dataset. Based on this dataset, attribute analysis was conducted on common FOD types, including metal rust and strong reflection phenomena. Utilizing the reflectivity of asphalt backgrounds, a pseudo-reflectivity metric relative to asphalt was derived for different materials. Through various statistical measures, the separability of different materials was preliminarily validated. Subsequently, a neural network with an encoder-decoder architecture featuring densely nested connections was proposed, using pseudo-reflectivity as input for material identification. The suggested approach outperformed existing material identification and segmentation models with similar parameter ranges on the test set of this dataset, achieving an accuracy of 0.9993 and a Macro-F1 score of 0.7749.
- material recognition /
- airport runway foreign object debris /
- autoencoder /
- multispectral image /
- pseudo-reflectivity

HTML全文

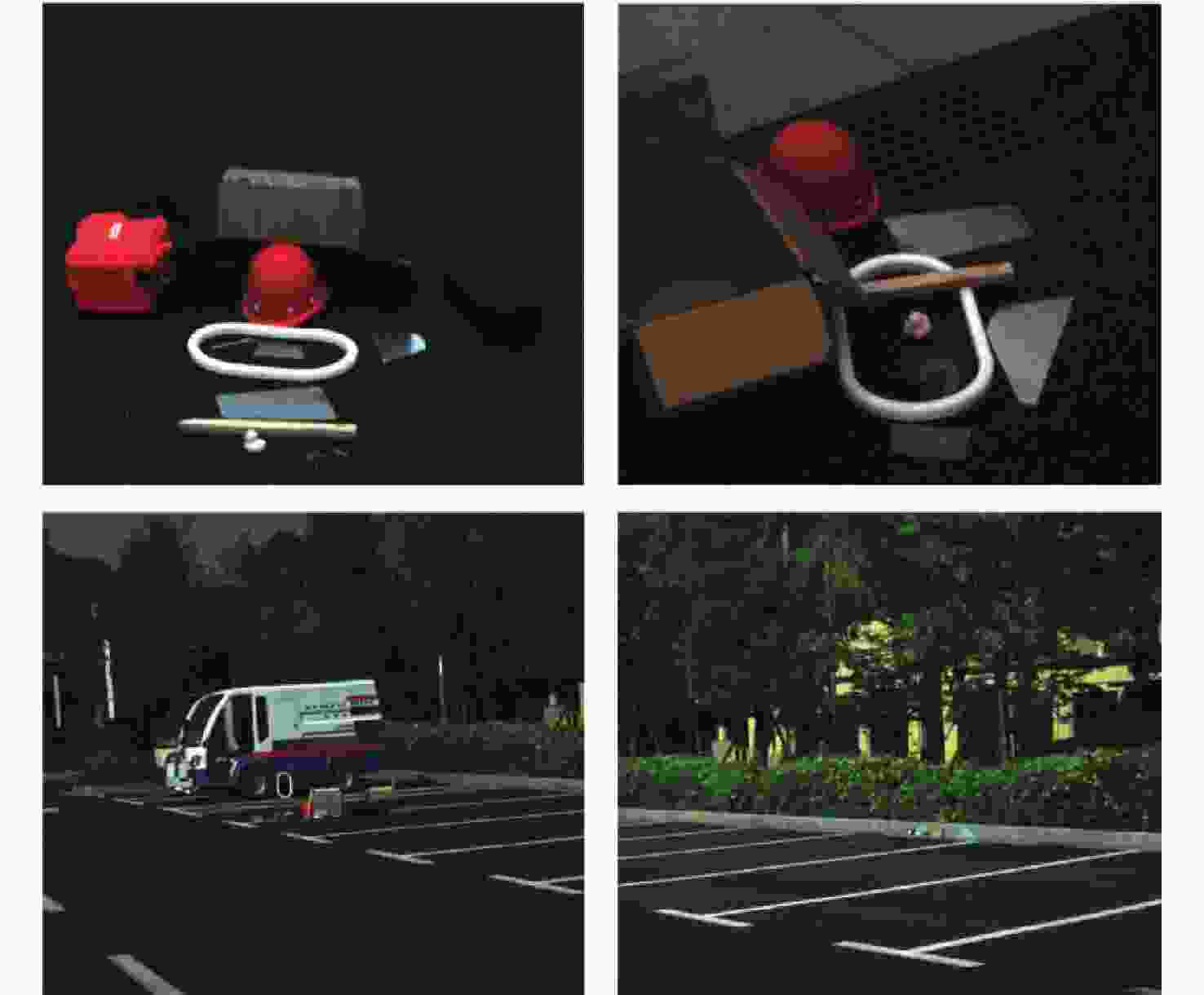

图 1 多光谱数据集中训练集示例（图片为使用红、绿、蓝3波段合成的伪RGB图像）

Figure 1. Training set examples in the multispectral dataset (images are pseudo-RGB images synthesized using red, green, and blue wavelengths)

下载: 全尺寸图片幻灯片

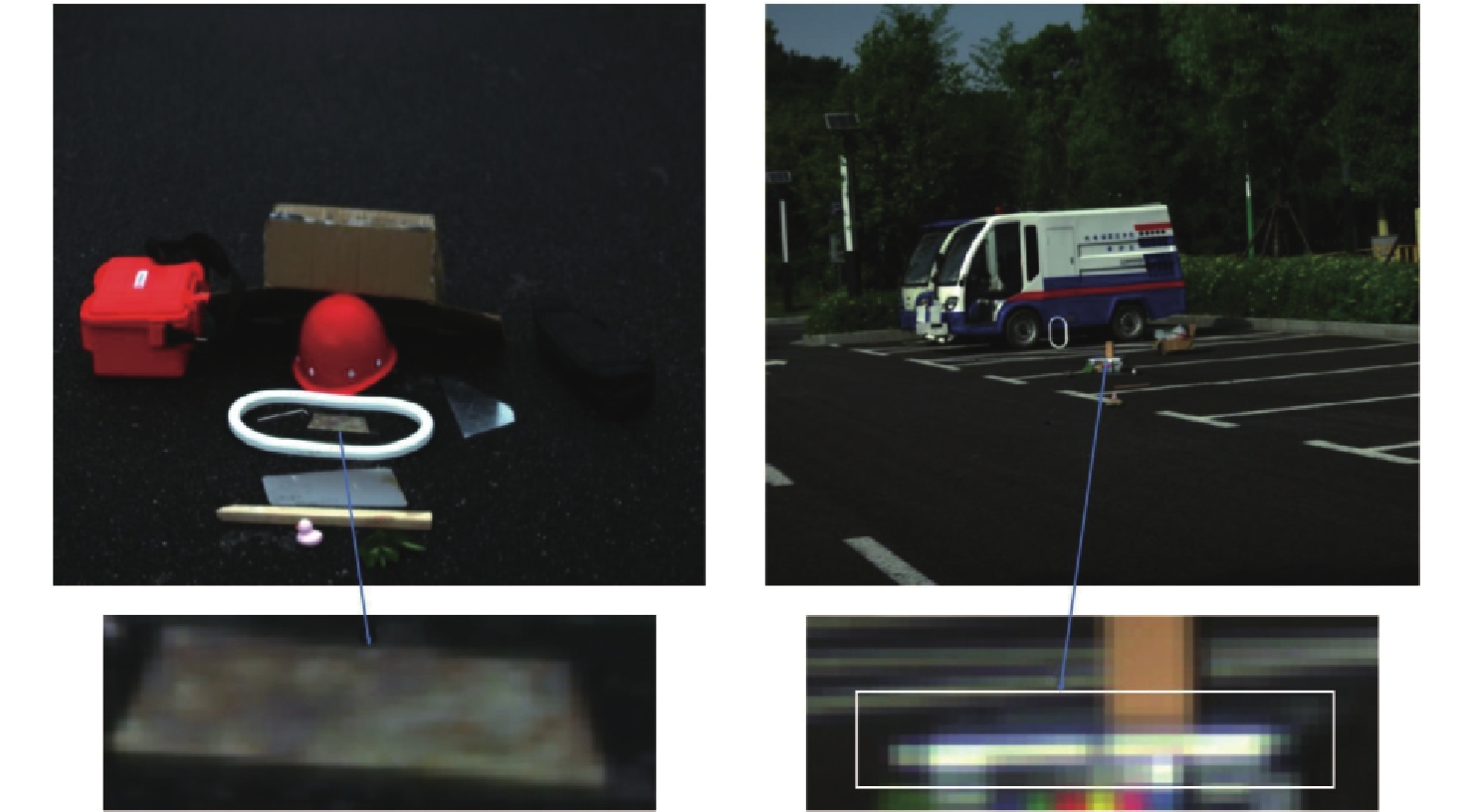

图 2 数据集中金属出现的锈迹与强反射现象

Figure 2. Rust stains and strong reflection phenomena appearing on metals in the dataset

下载: 全尺寸图片幻灯片

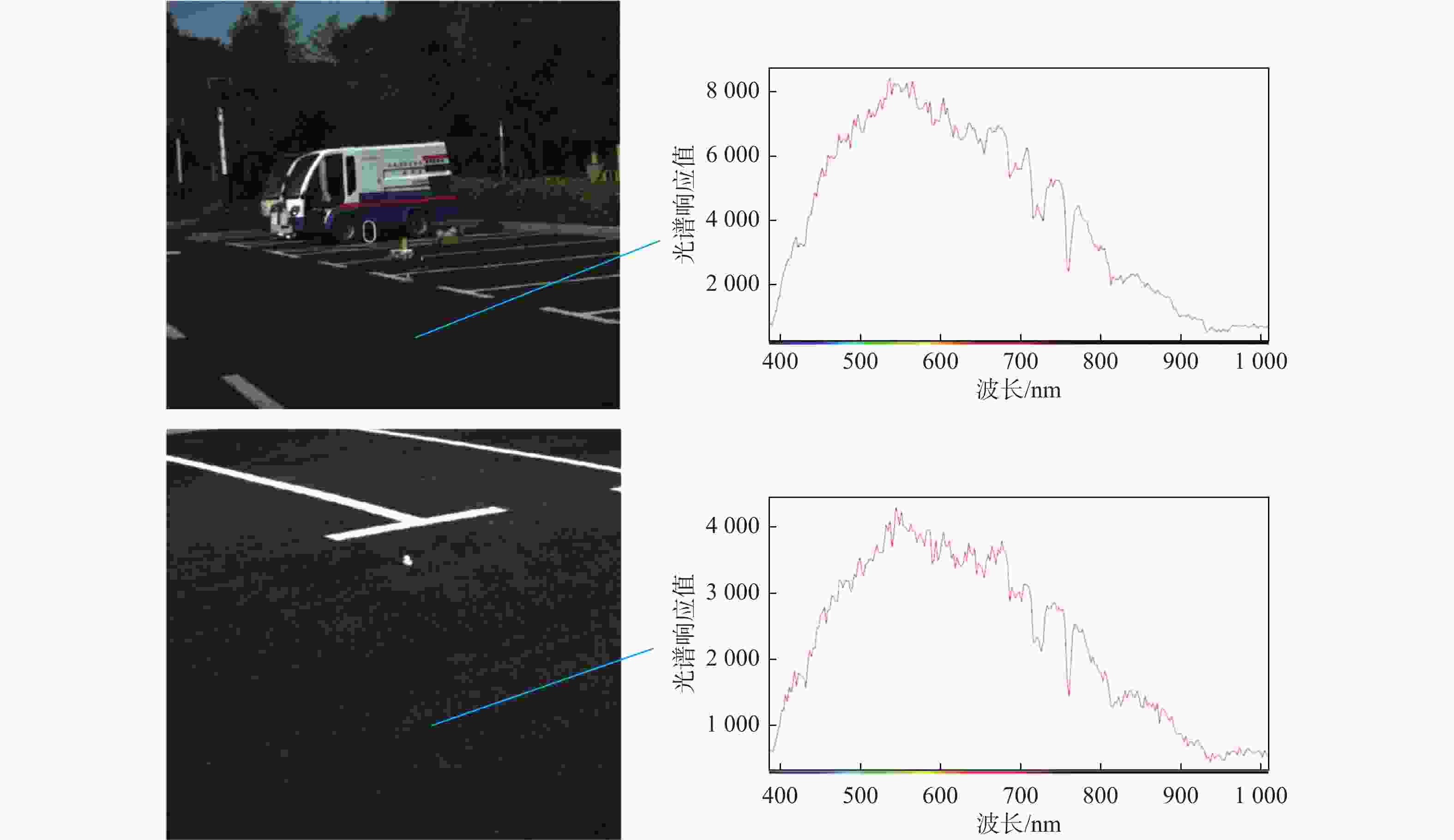

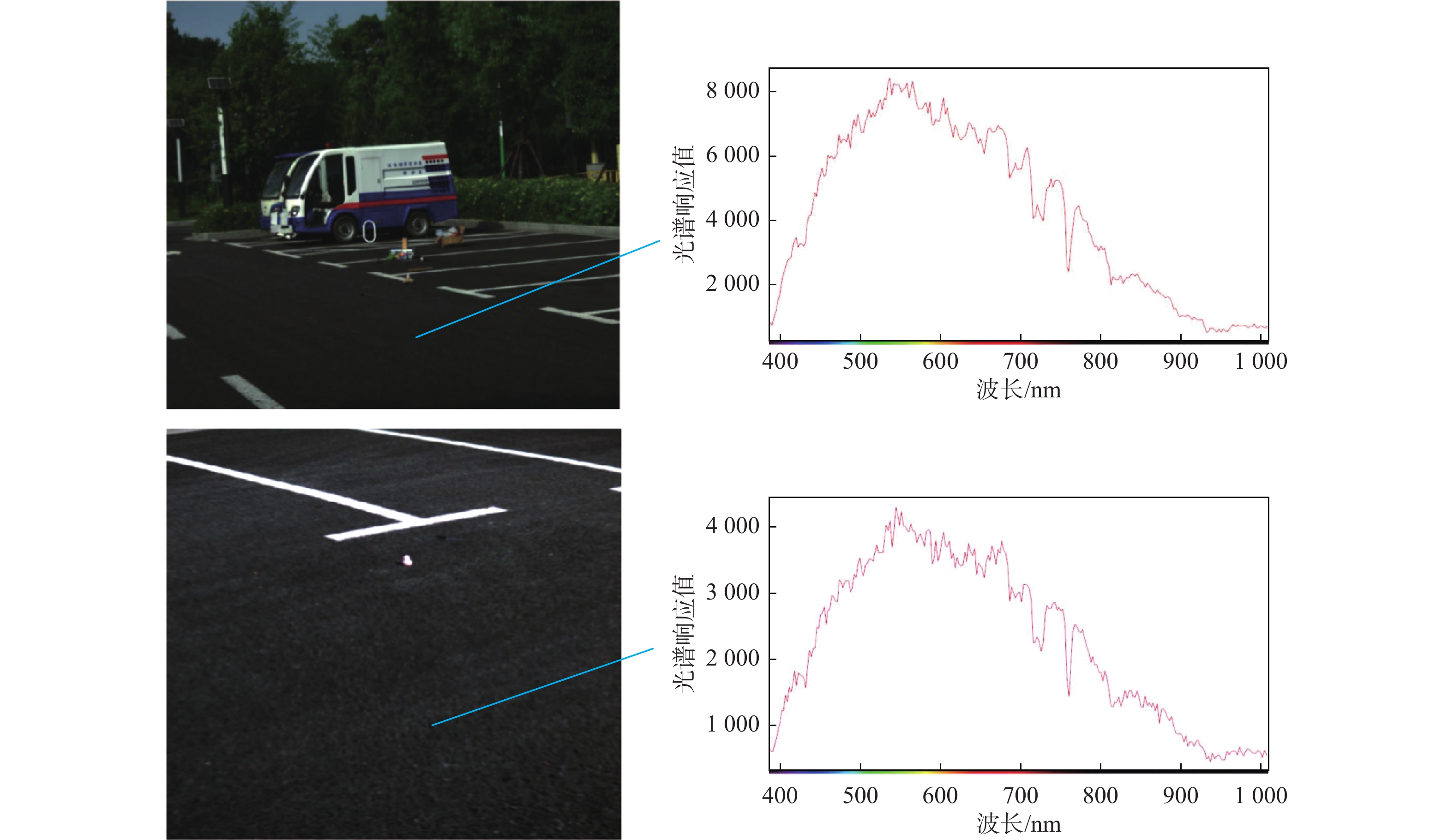

图 3 沥青地面光谱的稳定性

Figure 3. Stability of asphalt pavement spectra

下载: 全尺寸图片幻灯片

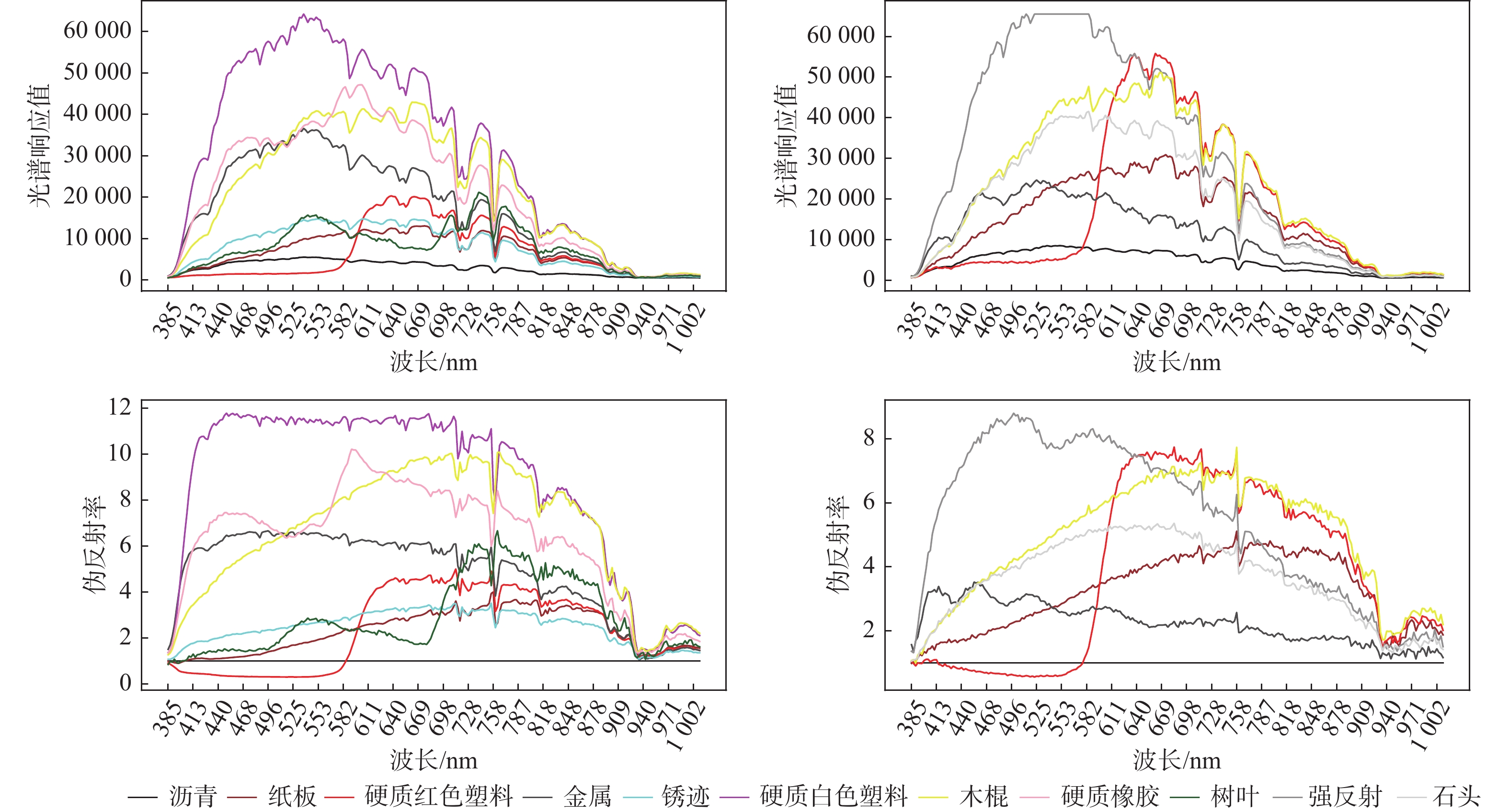

图 4 光谱响应值与伪反射率

Figure 4. Spectral response values and pseudo-reflectance

下载: 全尺寸图片幻灯片

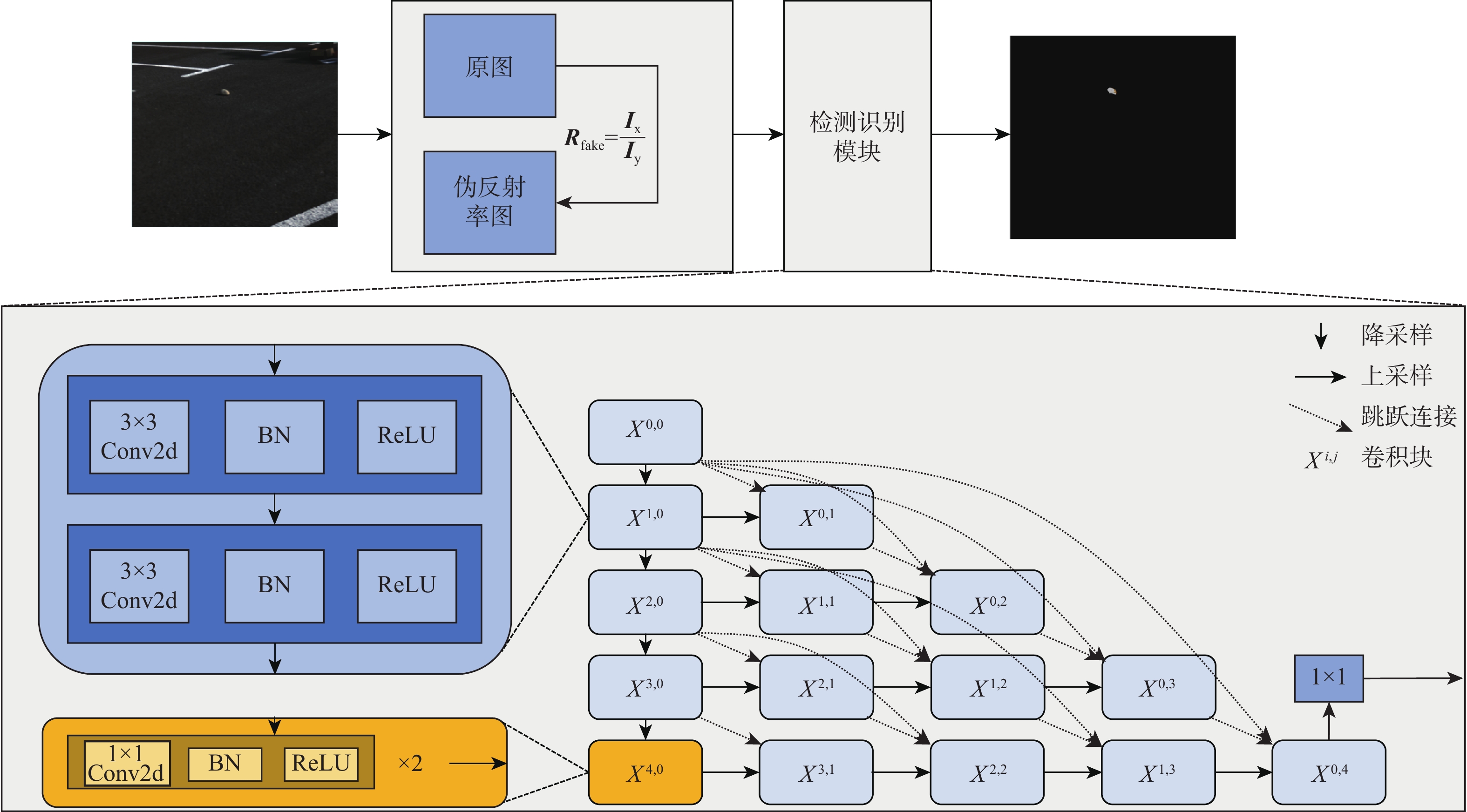

图 5 FOD检测与识别整体结构

Figure 5. Overall structure of FOD detection and identification

下载: 全尺寸图片幻灯片

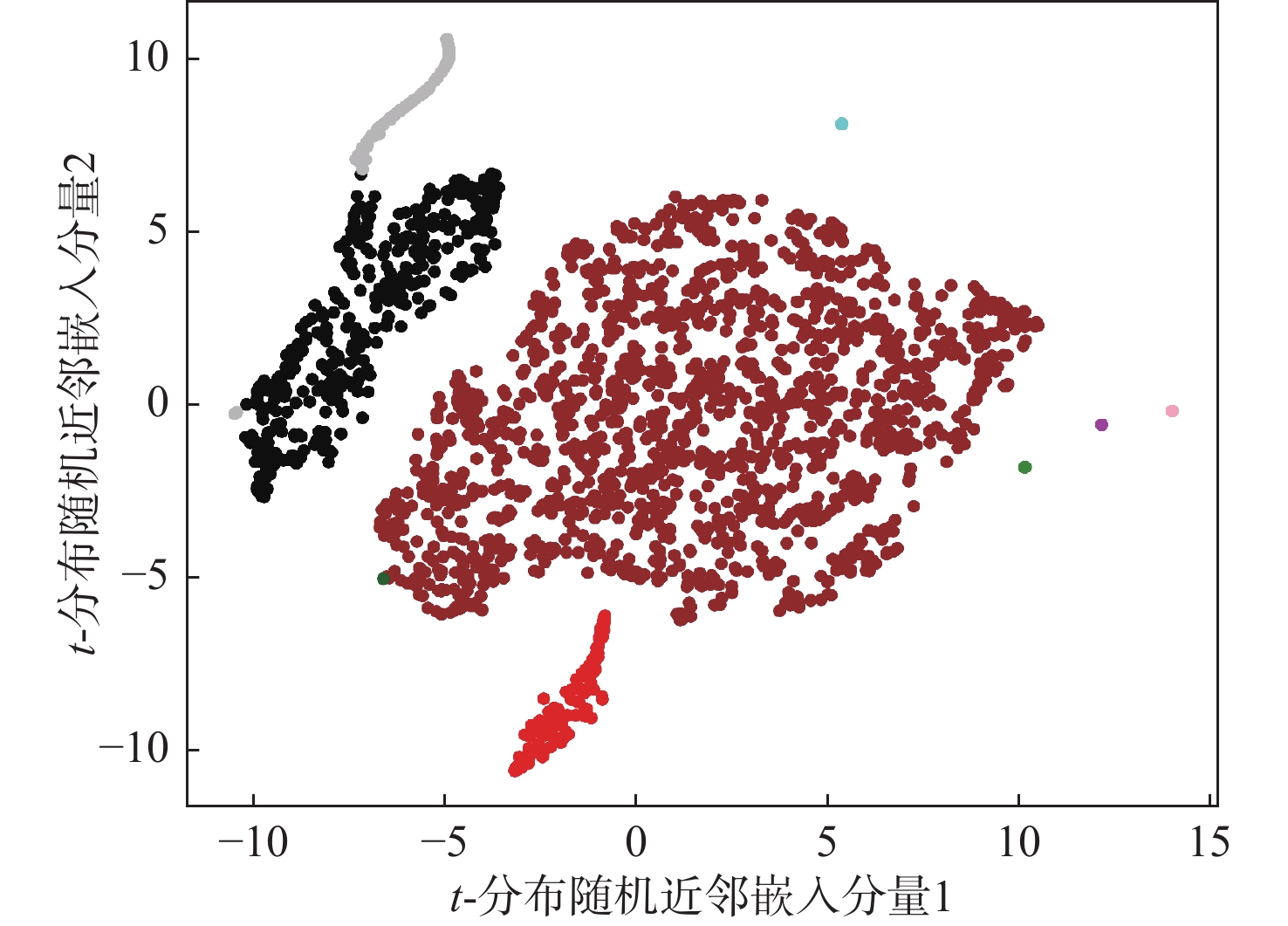

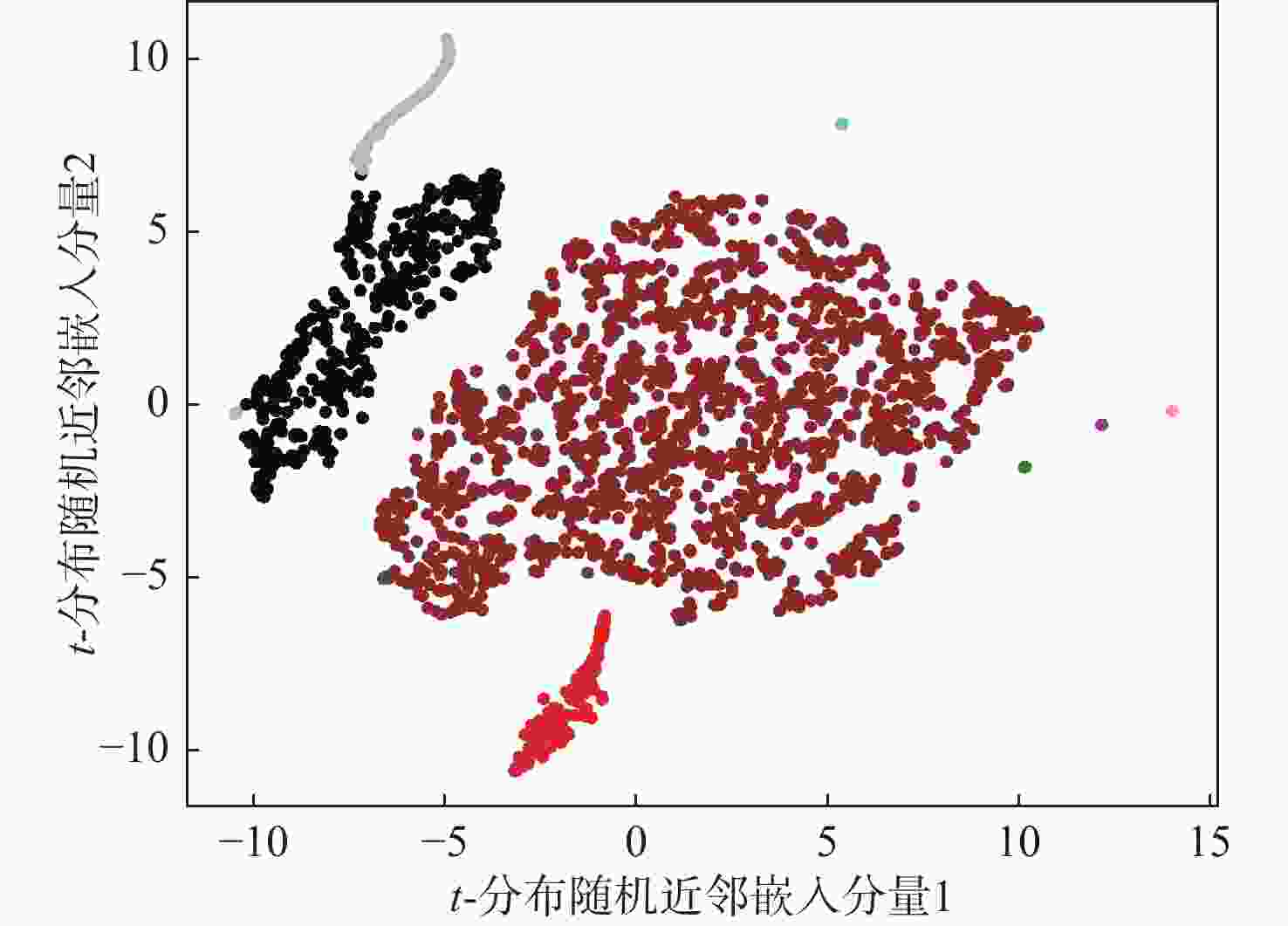

图 6 t-分布随机近邻嵌入可视化结果

Figure 6. t-distributed stochastic neighbor embedding visualization results

下载: 全尺寸图片幻灯片

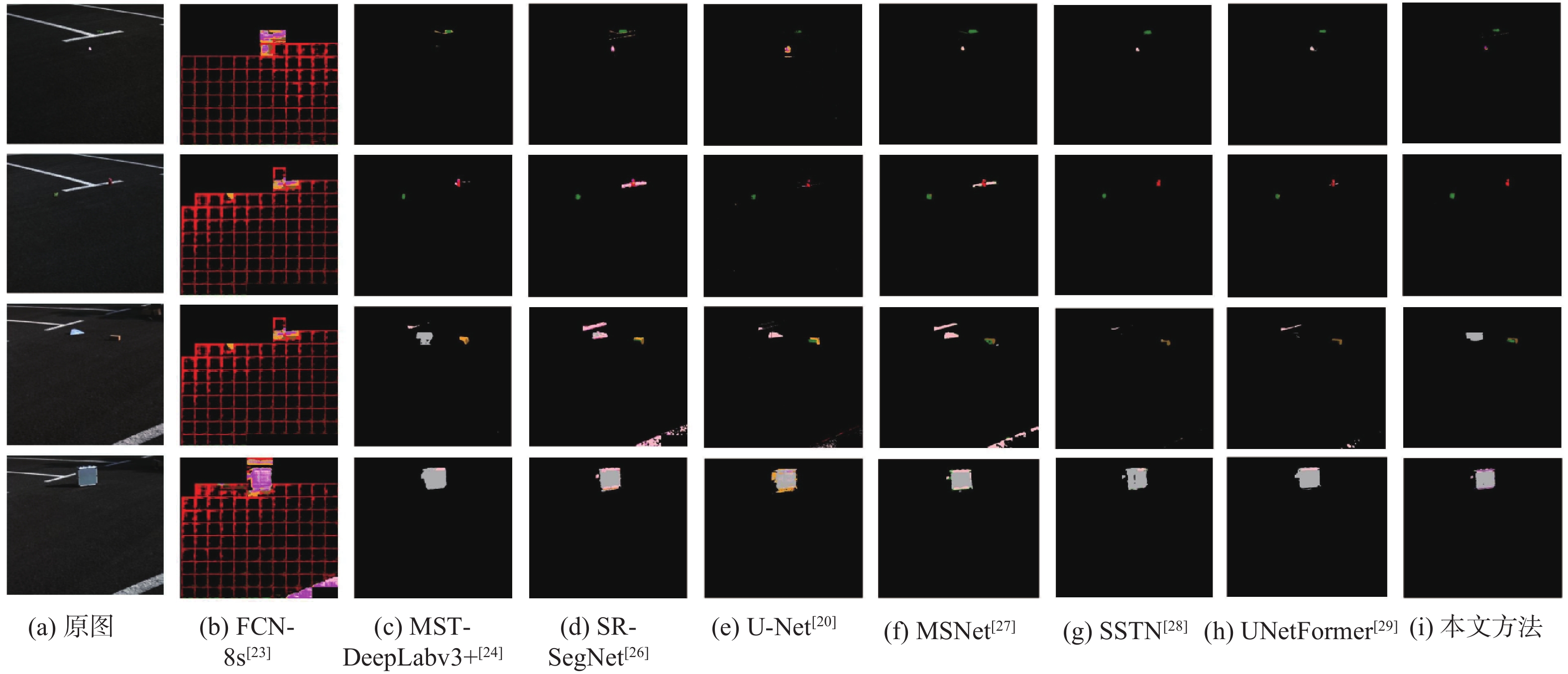

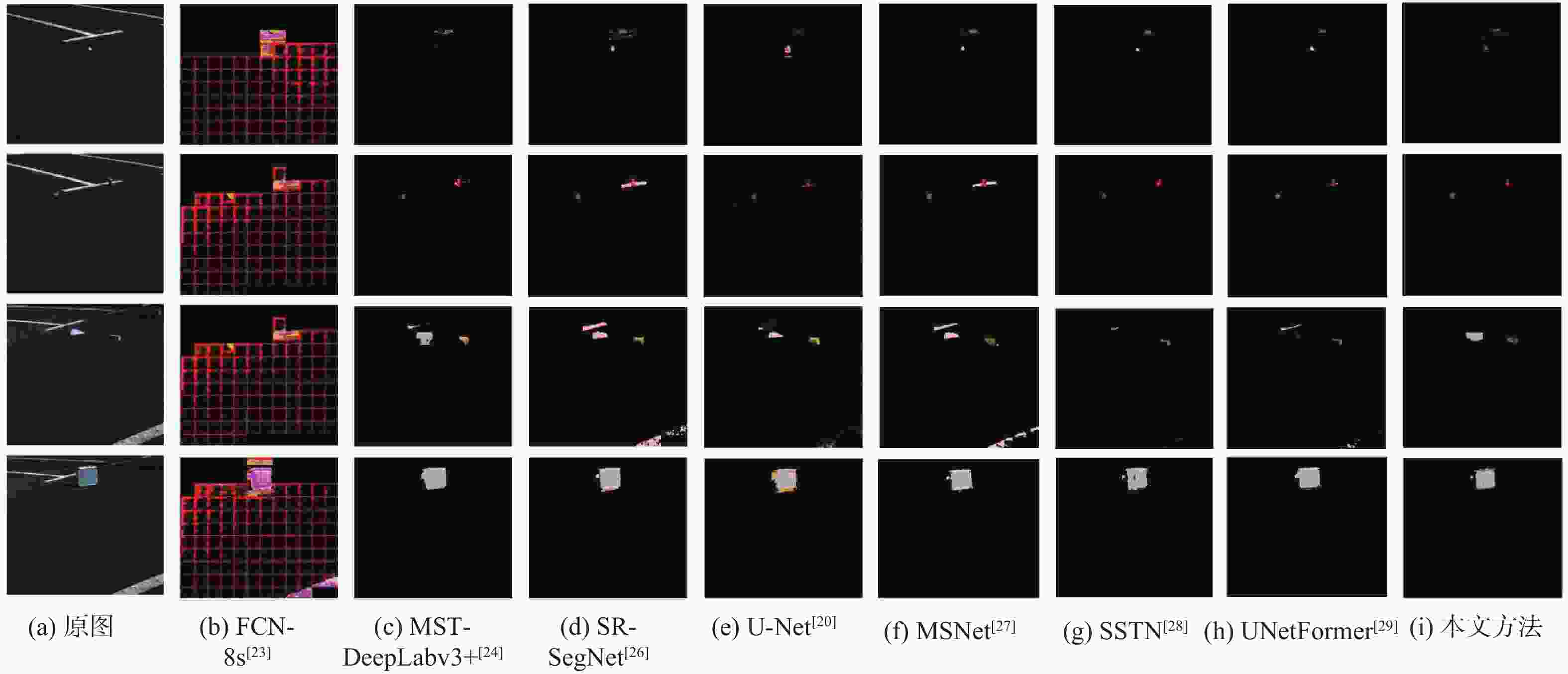

图 7 各方法的分割结果

Figure 7. Segmentation results for each method

下载: 全尺寸图片幻灯片

表 1 多种衡量尺度下FOD数据的可分性验证

Table 1. Verification of FOD data separability under multiple measurement scales

指标类别	指标	p值
衡量尺度	马氏距离	4.950
衡量尺度	离散度	4.983
MANOVA统计量	Wilks’ Lambda	0
	Pillai’s Trace	0
	Hotelling’s Trace	0
	Roy’s Largest Root	0

下载: 导出CSV

表 2 各方法的测试结果与模型大小

Table 2. Test results and model sizes for each method

方法	准确率	Macro-F1	模型大小/KB
FCN-8s^[23]	0.7877	0.1992	57877.19
MST-DeepLabv3+^[24]	0.9989	0.5453	104620.54
SR-SegNet^[26]	0.9990	0.5111	3090.85
U-Net^[20]	0.9989	0.6420	30391.00
MSNet^[27]	0.9989	0.6943	141193.00
SSTN^[28]	0.9993	0.7688	26776.00
UNetFormer^[29]	0.9991	0.7745	28980.00
本文	0.9993	0.7749	23151.00

下载: 导出CSV

表 3 6波段与RGB下模型的测试指标值

Table 3. Test values for 6-band and RGB sub-models

波段数	准确率	Macro-F1
3（RGB）	0.7877	0.4884
6	0.9993	0.7749

下载: 导出CSV

表 4 Tversky指数加入与否的测试指标值

Table 4. Test values with or without Tversky index

损失函数	准确率	Macro-F1
Focal Loss	0.9991	0.6160
本文	0.9993	0.7749

下载: 导出CSV

表 5 不同U-Net结构的测试结果与模型大小

Table 5. Test results and model sizes for different U-Net structures

方法	准确率	Macro-F1	模型大小/KB
U-Net^[20]	0.9989	0.6420	30391
UNet++	0.9992	0.8706	35347
本文	0.9993	0.7749	23151

下载: 导出CSV
