融合物理信息与参数动量的民机液压系统油液渗漏预测

冯蕴雯; 潘维煌; 贺延琛; 陈东; 路成

doi:10.13700/j.bh.1001-5965.2025.0537

融合物理信息与参数动量的民机液压系统油液渗漏预测

doi: 10.13700/j.bh.1001-5965.2025.0537

冯蕴雯^{1, 2, ,},
潘维煌^{1, 2},
贺延琛³,
陈东³,
路成^{1, 2}

1.
西北工业大学航空学院，西安 710072
2.
飞行器基础布局全国重点实验室，西安 710072
3.
陆军装备部航空军事代表局驻成都地区航空军事代表室，成都 610036

详细信息

通讯作者:
E-mail：fengyunwen@nwpu.edu.cn

中图分类号: V267
计量
- 文章访问数: 298
- HTML全文浏览量: 207
- PDF下载量: 12
- 被引次数: 0
出版历程
- 收稿日期: 2025-08-01
- 录用日期: 2025-09-12
- 网络出版日期: 2025-09-28
- 整期出版日期: 2026-08-31

Fluid leakage prediction for civil aircraft hydraulic systems by fusing physics-informed and parameter momentum

FENG Yunwen^{1, 2
, ,},
PAN Weihuang^{1, 2},
HE Yanchen³,
CHEN Dong³,
LU Cheng^{1, 2}

1.
School of Aeronautics，Northwestern Polytechnical University，Xi’an 710072，China
2.
National Key Laboratory of Aircraft Configuration Design，Xi’an 710072，China
3.
Chengdu Military Representative Office of the Army Aeronautical Department，Chengdu 610036，China

More Information

Corresponding author: E-mail：fengyunwen@nwpu.edu.cn

摘要

摘要:
民机液压系统油液渗漏存在高发性、隐蔽性及潜在的安全风险，需要通过故障预测技术实现视情维修，以达到早期识别和预防的目的。然而，油液渗漏故障预测面临监测参数有限、机载告警粒度粗、航前勤务工作导致油量数据不连续等难题。为此，提出一种融合物理信息与油量参数动量的时序模型，量化油液渗漏发生概率。该模型引入油液热膨胀系数与手册渗漏率作为物理信息约束；通过区分航班内与跨航班模式，构建油量参数动量指标以捕捉因勤务加油而中断的累积趋势；利用时序模型映射油量变化规律，实现对早期微小油液渗漏的预测。以国产民机运行数据开展油液渗漏预测分析，案例表明：所提方法能有效利用机载数据量化油液渗漏在未来一段时间内发生的概率，为液压系统的视情维修与健康管理提供决策支持。
- 液压油液渗漏 /
- 物理信息 /
- 参数动量变化 /
- 时序预测模型 /
- 故障预测
Abstract:
Due to its high frequency, sneaky nature, and possible safety hazards, hydraulic fluid leakage in civil aircraft systems necessitates fault prognostics technology to enable condition-based maintenance for early identification and avoidance. However, leakage fault prognostics faces challenges such as limited monitoring parameters, coarse granularity of onboard alerts, and discontinuity in fluid quantity data caused by pre-flight servicing. In order to estimate the likelihood of leakage occurring, this research suggests a time-series model that combines physics data with fluid amount momentum. The model first introduces physical constraints such as the fluid’s coefficient of thermal expansion and the manual-specified allowable leakage rate. Furthermore, by distinguishing between intra-flight and inter-flight modes, a parameter momentum indicator for fluid quantity is constructed to capture the cumulative trend interrupted by servicing and refueling. Finally, a time-series model is utilized to map the dynamics of the fluid quantity, enabling accurate prediction of early and minor leakages. Leveraging real-world operational data from a domestically produced commercial aircraft, this case study validates the proposed method’s capability to effectively predict the probability of incipient leakage. The approach offers valuable decision support for implementing condition-based maintenance and advancing the health management of the hydraulic system.
- hydraulic fluid leakage /
- physics-informed /
- parameter momentum change /
- time-series prediction model /
- fault prognostics

HTML全文

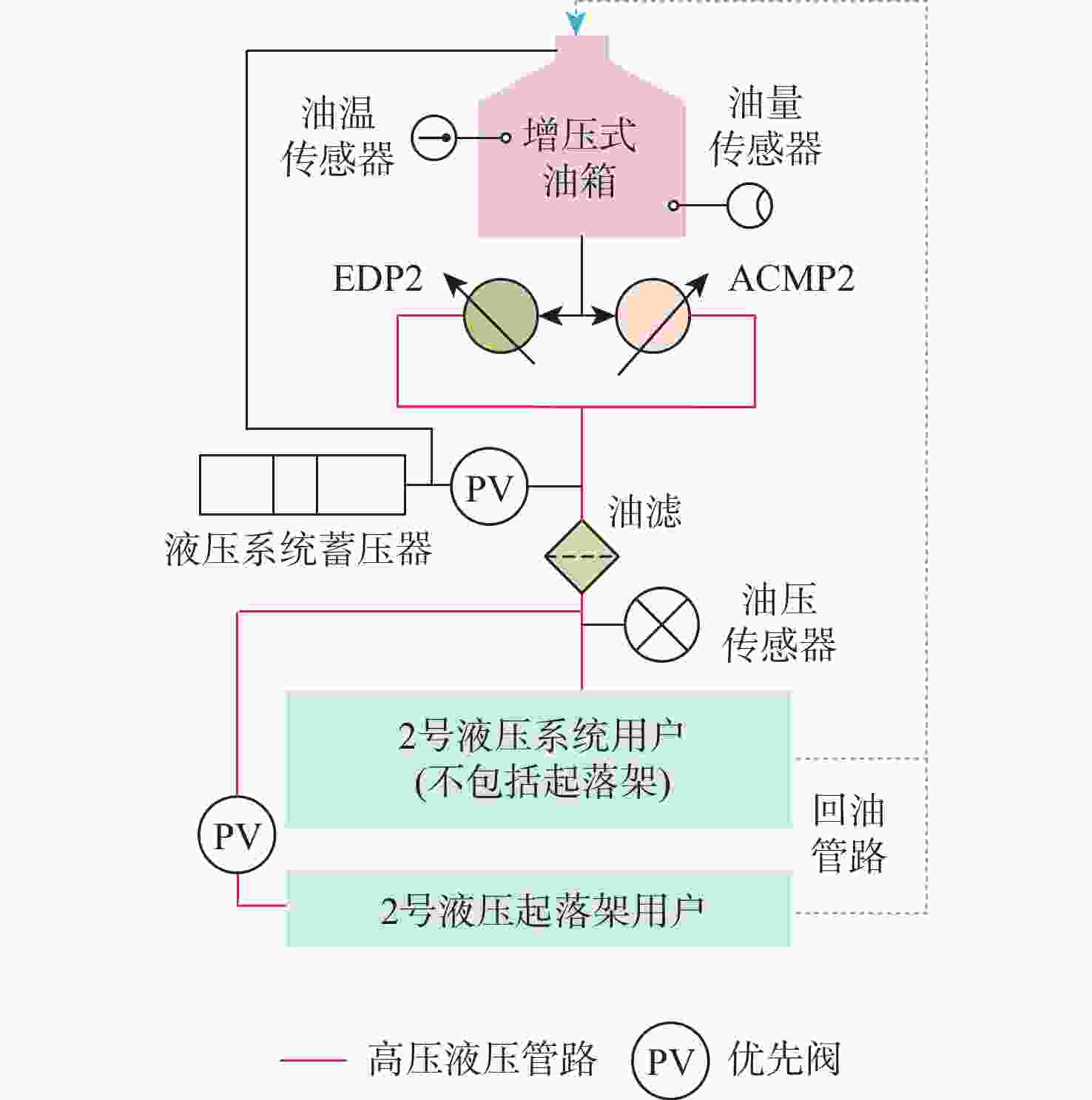

图 1 2号液压系统示意图

Figure 1. Schematic of hydraulic system 2

下载: 全尺寸图片幻灯片

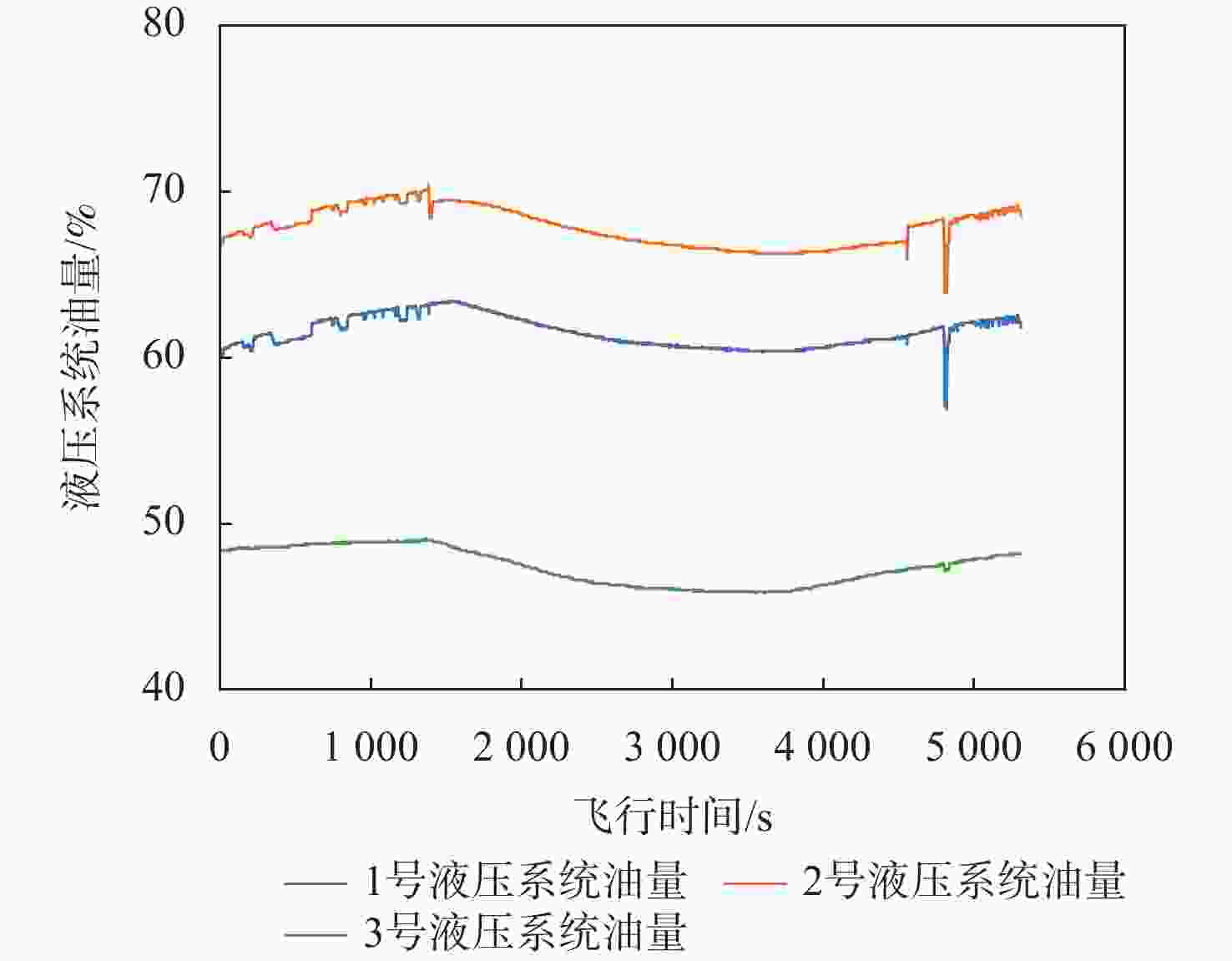

图 2 油量在飞行中的变化

Figure 2. Fuel quantity changes during flight

下载: 全尺寸图片幻灯片

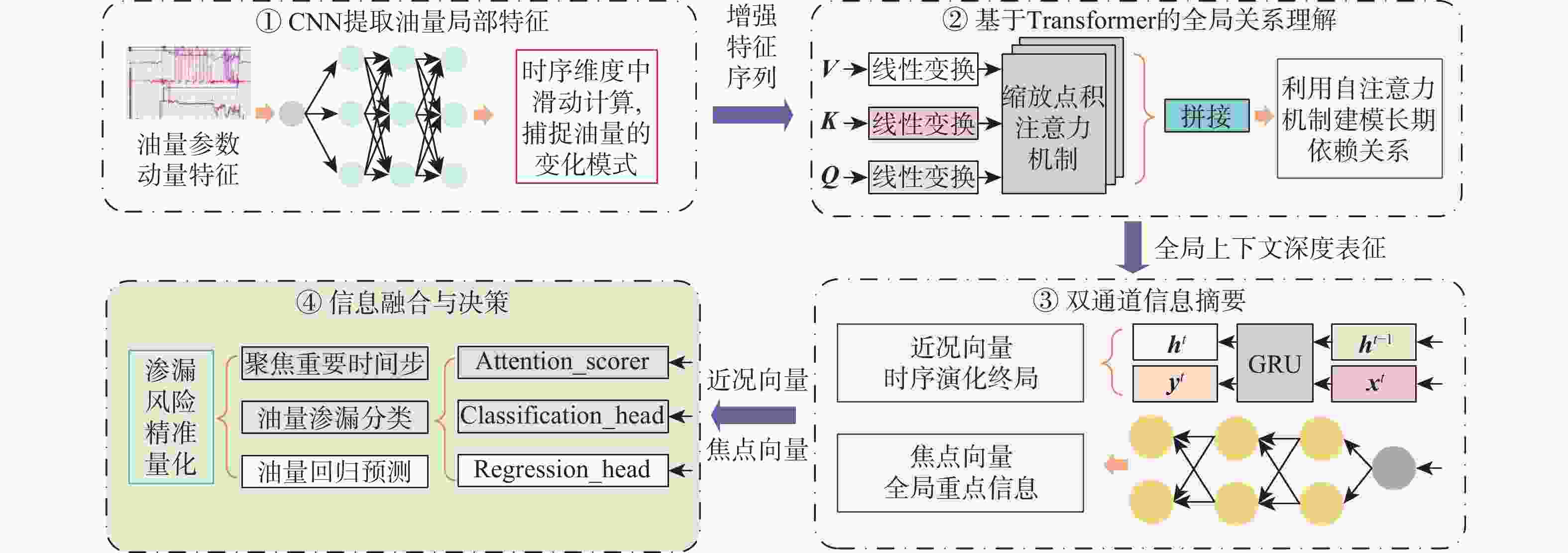

图 3 基于物理信息约束的时序注意力油液渗漏分析架构

Figure 3. Temporal attention fluid leakage analysis architecture based on physics-informed constrained

下载: 全尺寸图片幻灯片

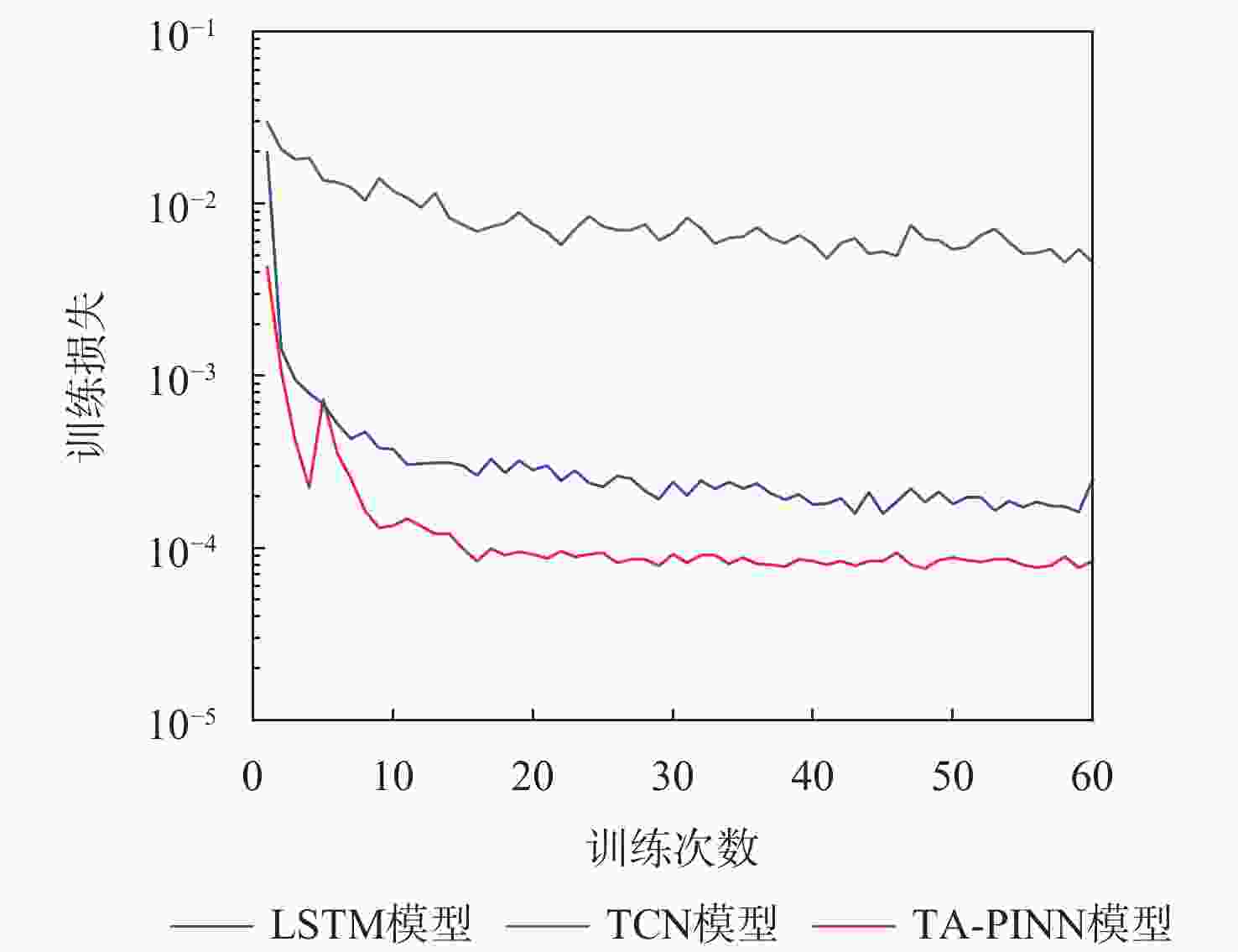

图 4 提前30 min渗漏预测的模型训练损失

Figure 4. Training loss of model for 30-minute early leakage prediction

下载: 全尺寸图片幻灯片

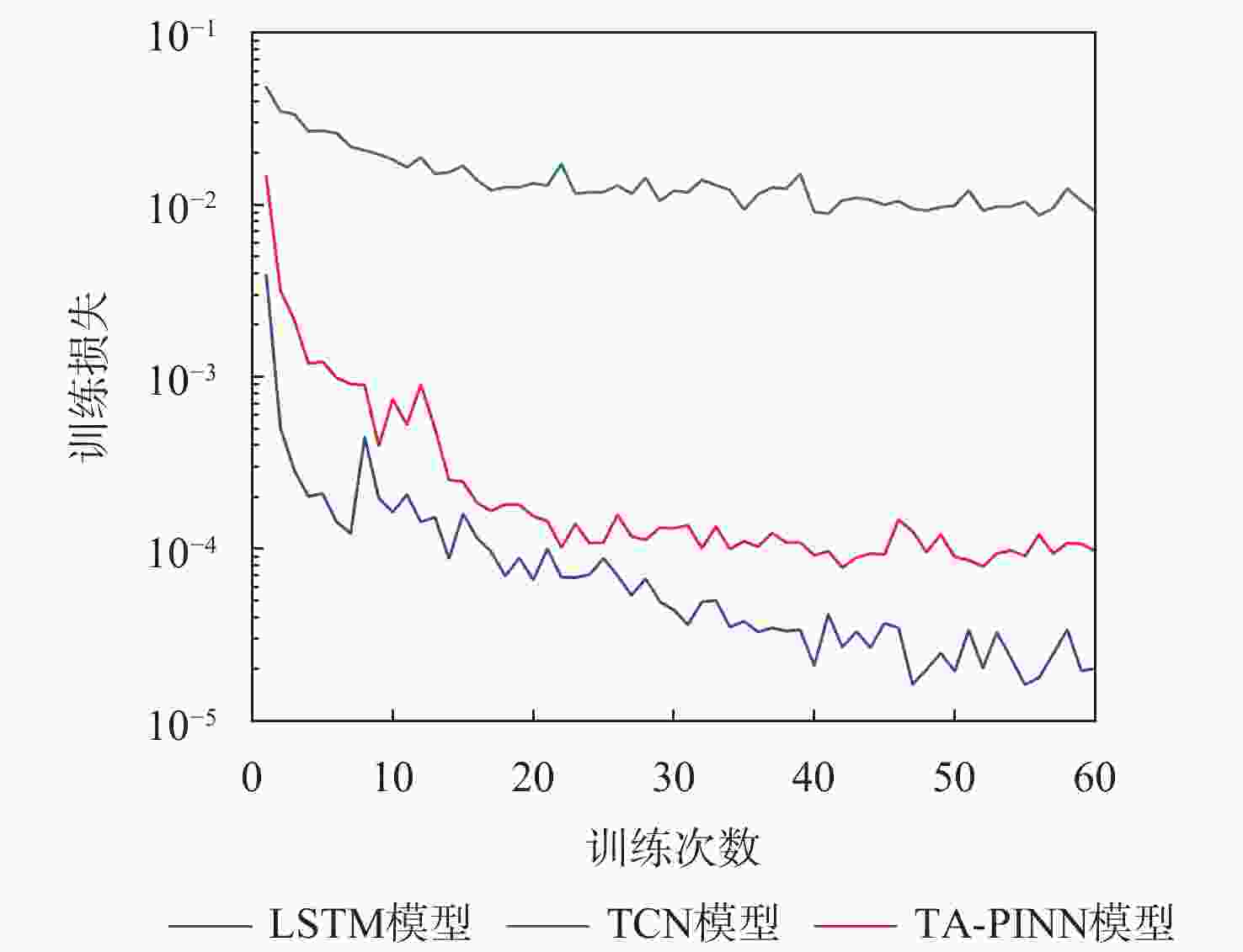

图 5 提前80 min渗漏预测的模型训练损失

Figure 5. Training loss of model for 80-minute early leakage prediction

下载: 全尺寸图片幻灯片

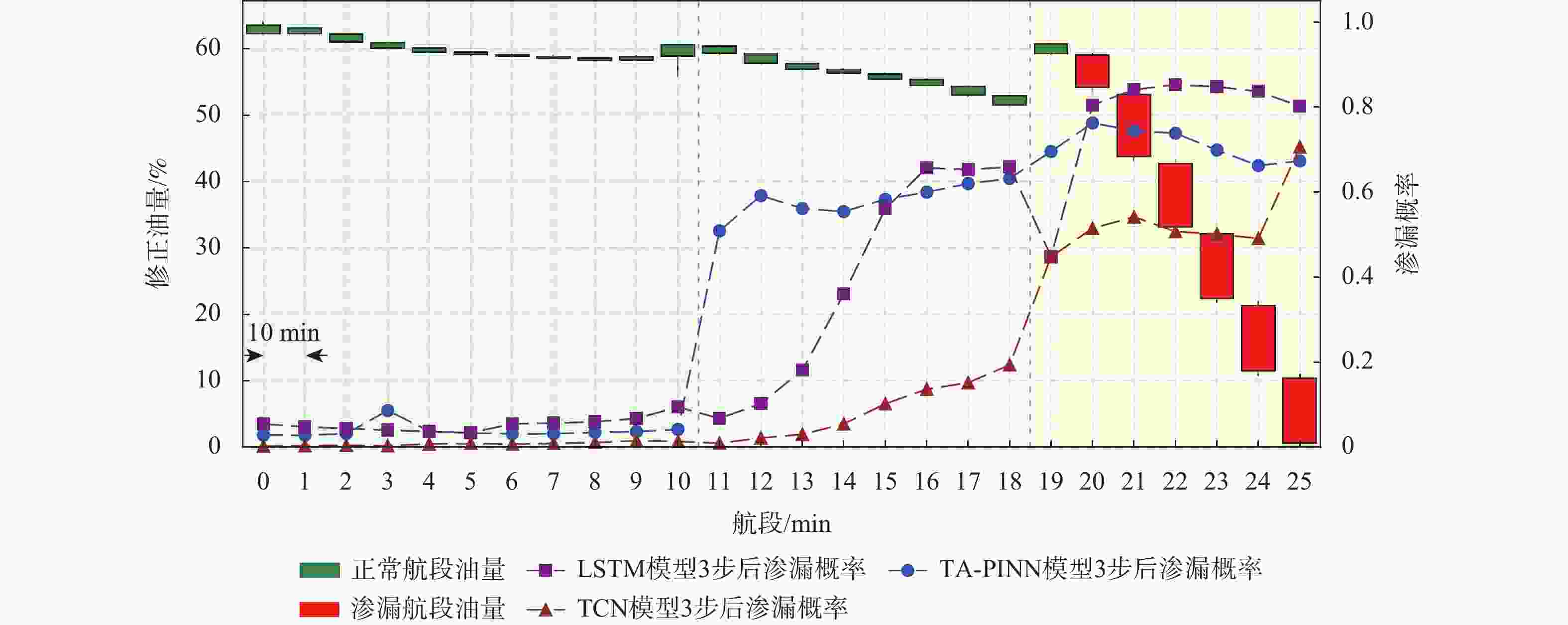

图 6 提前30 min油液渗漏预测分析结果

Figure 6. Analysis results of 30-minute early fluid leakage prediction

下载: 全尺寸图片幻灯片

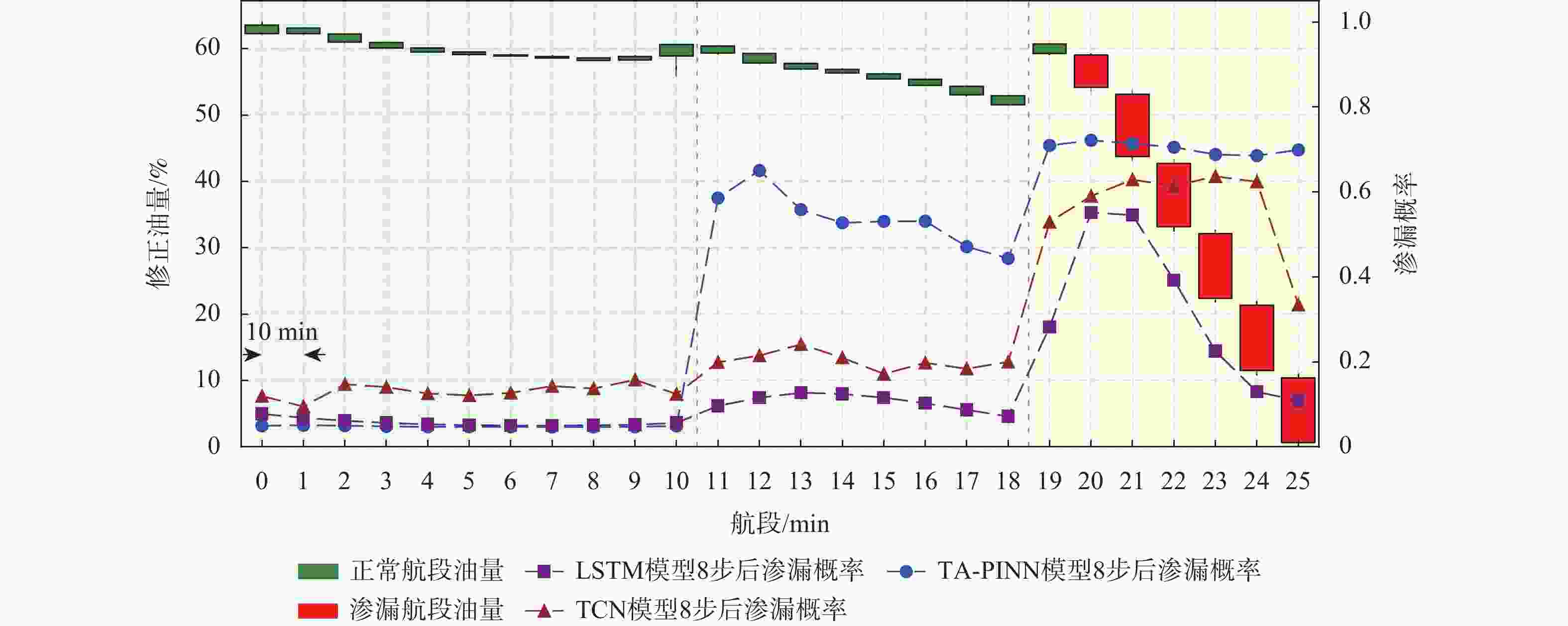

图 7 提前80 min油液渗漏预测分析结果

Figure 7. Analysis results of 80-minute early fluid leakage prediction

下载: 全尺寸图片幻灯片

表 1 液压系统油液渗漏案例

Table 1. Hydraulic system fluid leakage cases

序号	飞机注册号	日期	事件简述
1	B-3XX7	2021-07-13	12日温州落地检查发现2号液压系统液压油漏光
2	B-3XX8	2020-07-17	空中出现EICAS告警信息“HYD 2 PRESS LO”“HYD 2 QTY LO”
3	B-6XXA	2022-04-06	航后检查右发下部排气格栅有大量疑似液压油
4	B-6XXE	2022-08-01	航前发现右发EDP漏油
5	B-6XXN	2022-08-01	机务检查发现右发EDP漏油
6	B-6XXT	2023-01-04	机务检查发现右发EDP漏油
7	B-6XXD	2023-03-10	机务报告左发EDP漏油
8	B-3XX6	2023-05-30	机务检查发现右发EDP漏油

下载: 导出CSV

表 2 ARJ21液压系统油液渗漏数据概况

Table 2. Overview of ARJ21 hydraulic system fluid leakage data

序号	飞机注册号	航班架次	是否渗漏
1	B-6XXN	256	是
2	B-6XXM	270	否
3	B-3XX6	57	是
4	B-3XX1	30	否
5	B-3XX7	32	是
6	B-6XXA	10	否

下载: 导出CSV

表 3 各模型评价指标

Table 3. Evaluation metrics of each model

模型		AUC	F₁分数	精确率	召回率	训练时间/s
提前30 min预测	TA-PINN	0.9973	0.8	0.625	0.8333	44.53
	LSTM	0.9907	0.625	0.4444	0.6667	19.66
	TCN	0.9953	0.8	0.625	0.8333	55.95
提前80 min预测	TA-PINN	0.9637	0.3704	0.1905	0.8	36.07
	LSTM	0.9288	0.2326	0.1081	0.8	17.5
	TCN	0.9656	0.3125	0.1538	0.8	63.49

下载: 导出CSV
