镁合金半固态触变射铸技术研究进展

姜巨福; 张金泽; 崔竞波; 王迎; 张晓东

doi:10.13700/j.bh.1001-5965.2025.0584

镁合金半固态触变射铸技术研究进展

doi: 10.13700/j.bh.1001-5965.2025.0584

姜巨福^{1, 2, ,},
张金泽^{1, 2},
崔竞波^{1, 2},
王迎³,
张晓东^{1, 2}

1.
哈尔滨工业大学材料科学与工程学院，哈尔滨 150001
2.
哈尔滨工业大学精密热成形全国重点实验室，哈尔滨 150001
3.
哈尔滨工业大学机电工程学院，哈尔滨 150001

基金项目:

国家自然科学基金(52431004)；东莞市重点领域研发项目(20241200300012)

详细信息

通讯作者:
E-mail：jiangjufu@hit.edu.cn

中图分类号: TG146.22
计量
- 文章访问数: 291
- HTML全文浏览量: 129
- PDF下载量: 9
- 被引次数: 0
出版历程
- 收稿日期: 2025-08-21
- 录用日期: 2025-10-10
- 网络出版日期: 2025-11-06
- 整期出版日期: 2026-10-01

Research progress in semi-solid thixomolding technology of magnesium alloys

JIANG Jufu^{1, 2
, ,},
ZHANG Jinze^{1, 2},
CUI Jingbo^{1, 2},
WANG Ying³,
ZHANG Xiaodong^{1, 2}

1.
School of Materials Science and Engineering，Harbin Institute of Technology，Harbin 150001，China
2.
National Key Laboratory of Precision Hot Forming，Harbin Institute of Technology，Harbin 150001，China
3.
School of Mechatronics Engineering，Harbin Institute of Technology，Harbin 150001，China

Funds:

National Natural Science Foundation of China (52431004); Dongguan City Key Field Research and Development Projects (20241200300012)

More Information

Corresponding author: E-mail：jiangjufu@hit.edu.cn

摘要

摘要:
镁合金因其低密度特性，在交通设施轻量化领域具有重要的战略意义，但传统铸造工艺面临缩孔、气孔及氧化等技术瓶颈，基于半固态加工原理的创新成形工艺——触变射铸技术，为有效突破上述瓶颈提供了可行途径。为此，系统阐述了触变射铸技术的基本原理，揭示了非枝晶结构的形成机制与半固态浆料的制备方法，并重点分析了该技术对AZ系及AM系镁合金综合性能的提升作用。目前，该技术已在消费电子及交通运输载具领域实现规模化应用。依托新一代大吨位成形设备，其应用领域逐步拓展至大型结构件制造领域，在新能源汽车产业中展现出突出的发展潜力。未来研究需重点关注新型半固态触变射铸镁合金的成分设计、成形过程的多物理场耦合模拟及大型构件缺陷控制机制等方面。
- 镁合金 /
- 半固态成形 /
- 触变射铸 /
- 力学性能 /
- 轻量化
Abstract:
Because of their low density, magnesium alloys are strategically valuable for lightweight transportation equipment. Nevertheless, conventional casting processes encounter technical challenges, including shrinkage porosity, gas porosity, and oxidation. Thixomolding—an innovative forming process based on semi-solid processing principles-provides a viable approach to overcome these limitations. This work systematically elucidates the fundamental mechanisms of thixomolding, reveals the formation principles of non-dendritic microstructures and preparation methodologies for semi-solid slurries, and comprehensively analyzes the technology’s enhancement effects on the comprehensive properties of AZ-series and AM-series magnesium alloys. Currently, this technology has achieved industrial-scale implementation in consumer electronics and transportation equipment sectors. Supported by next-generation higher-tonnage forming systems, its applications are progressively expanding to large-scale structural component manufacturing, demonstrating exceptional development potential within the new energy vehicle industry. Among other crucial areas, future research should focus on defect control mechanisms for large-scale components, multi-physics coupled modeling of the forming process, and composition design of innovative thixomolded magnesium alloys.
- magnesium alloy /
- semi-solid forming /
- thixomolding /
- mechanical properties /
- lightweight

HTML全文

图 1 半固态加工原理示意图^[18]

Figure 1. Schematic diagram of semi-solid forming^[18]

下载: 全尺寸图片幻灯片

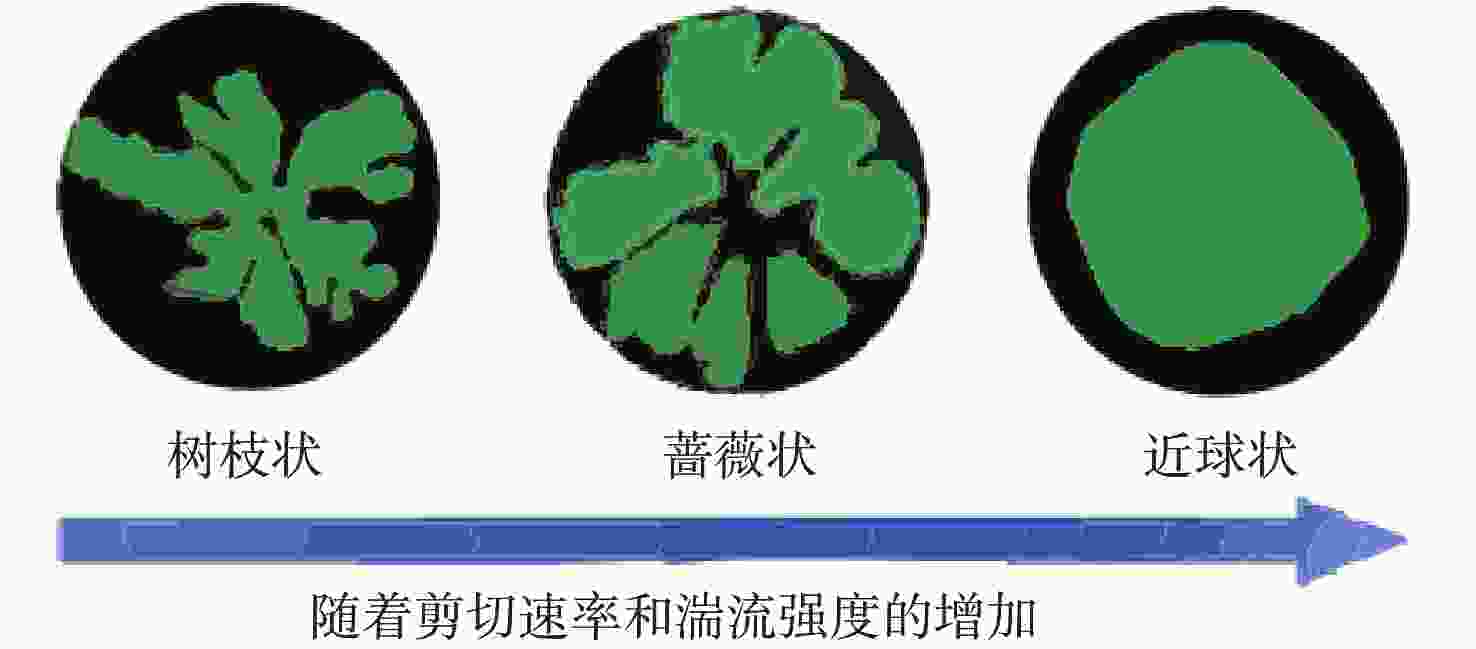

图 2 剪切速率和湍流强度对凝固过程中生长模式影响的示意图^[25]

Figure 2. Schematic diagram of influence of shear rate and turbulence intensity on growth patterns in solidification process^[25]

下载: 全尺寸图片幻灯片

图 3 第2个三次枝晶臂脱落过程中溶质富集的演变^[29]

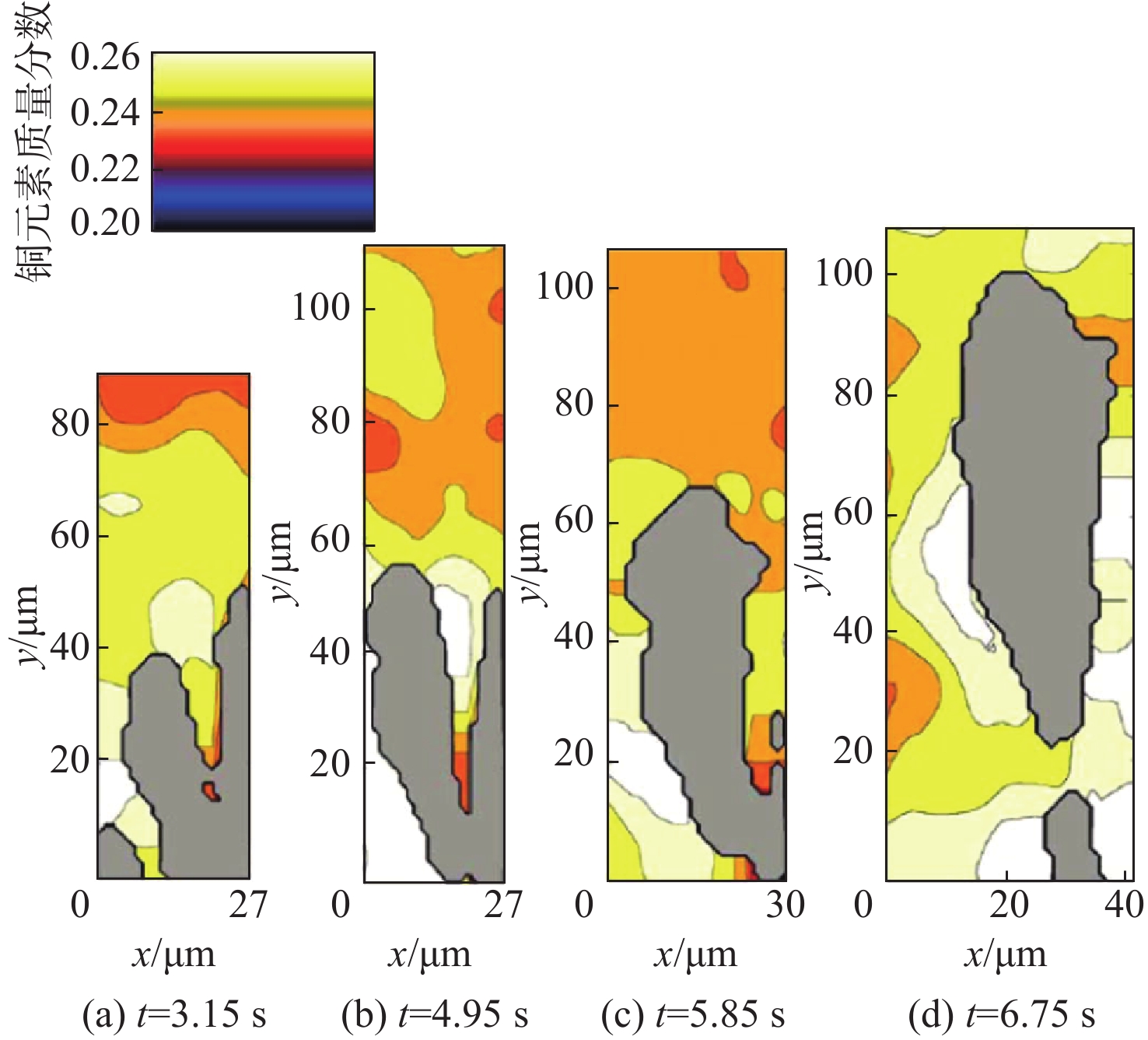

Figure 3. Evolution of solute-enrichment during fragmentation of a second tertiary dendrite arm^[29]

下载: 全尺寸图片幻灯片

图 4 双螺杆流变成形工艺示意图^[34]

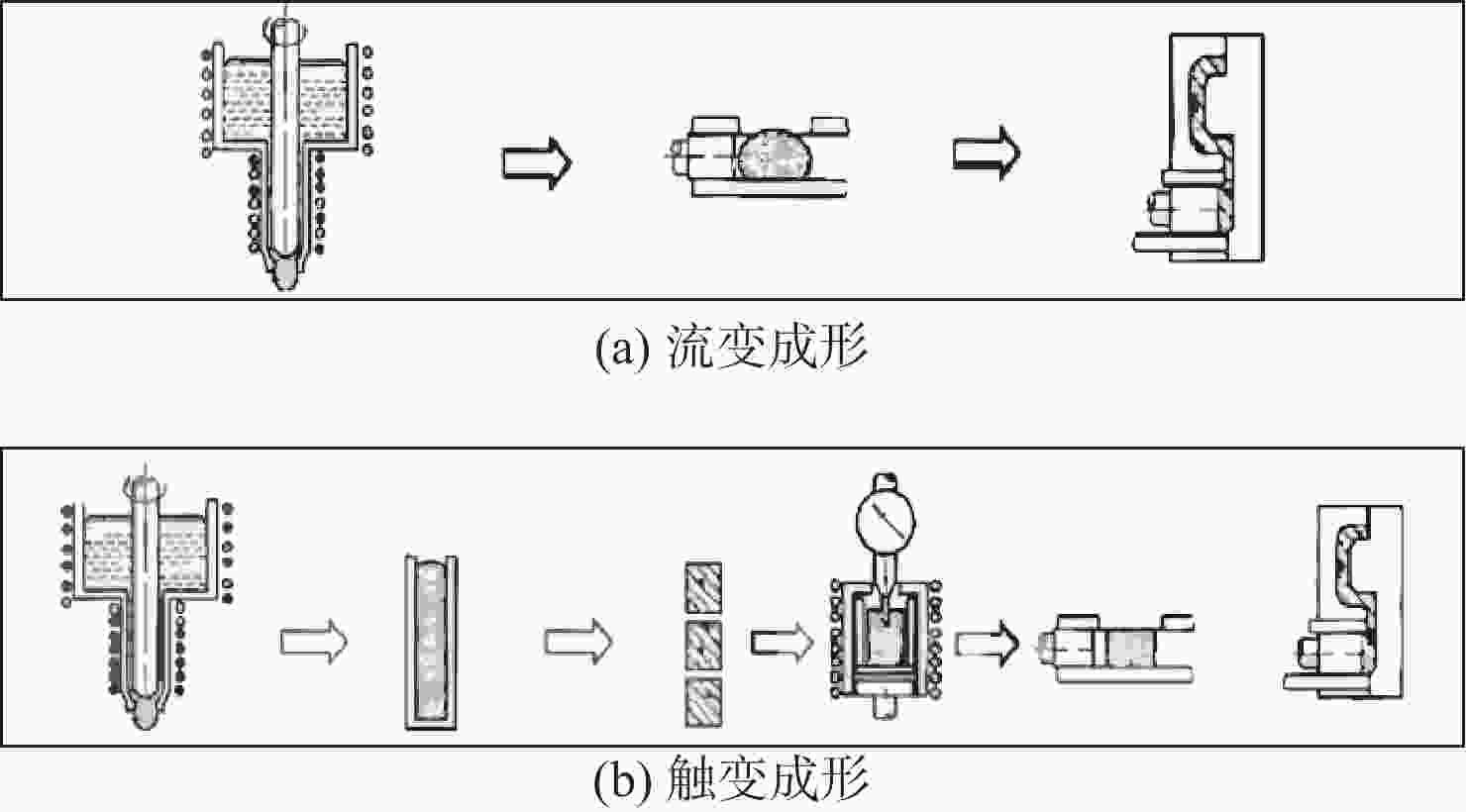

Figure 4. Schematic illustration of twin-screw rheomolding process^[34]

下载: 全尺寸图片幻灯片

图 5 电磁搅拌装置结构示意图^[35]

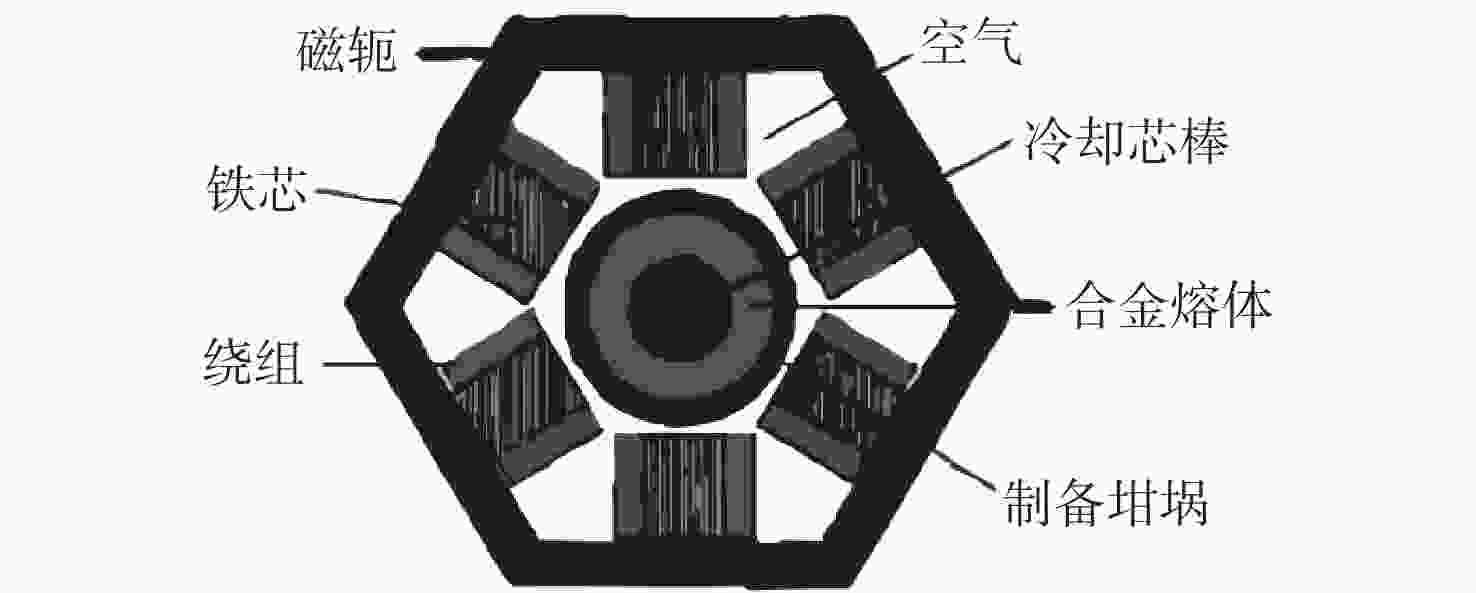

Figure 5. Schematic diagram of electromagnetic stirring device^[35]

下载: 全尺寸图片幻灯片

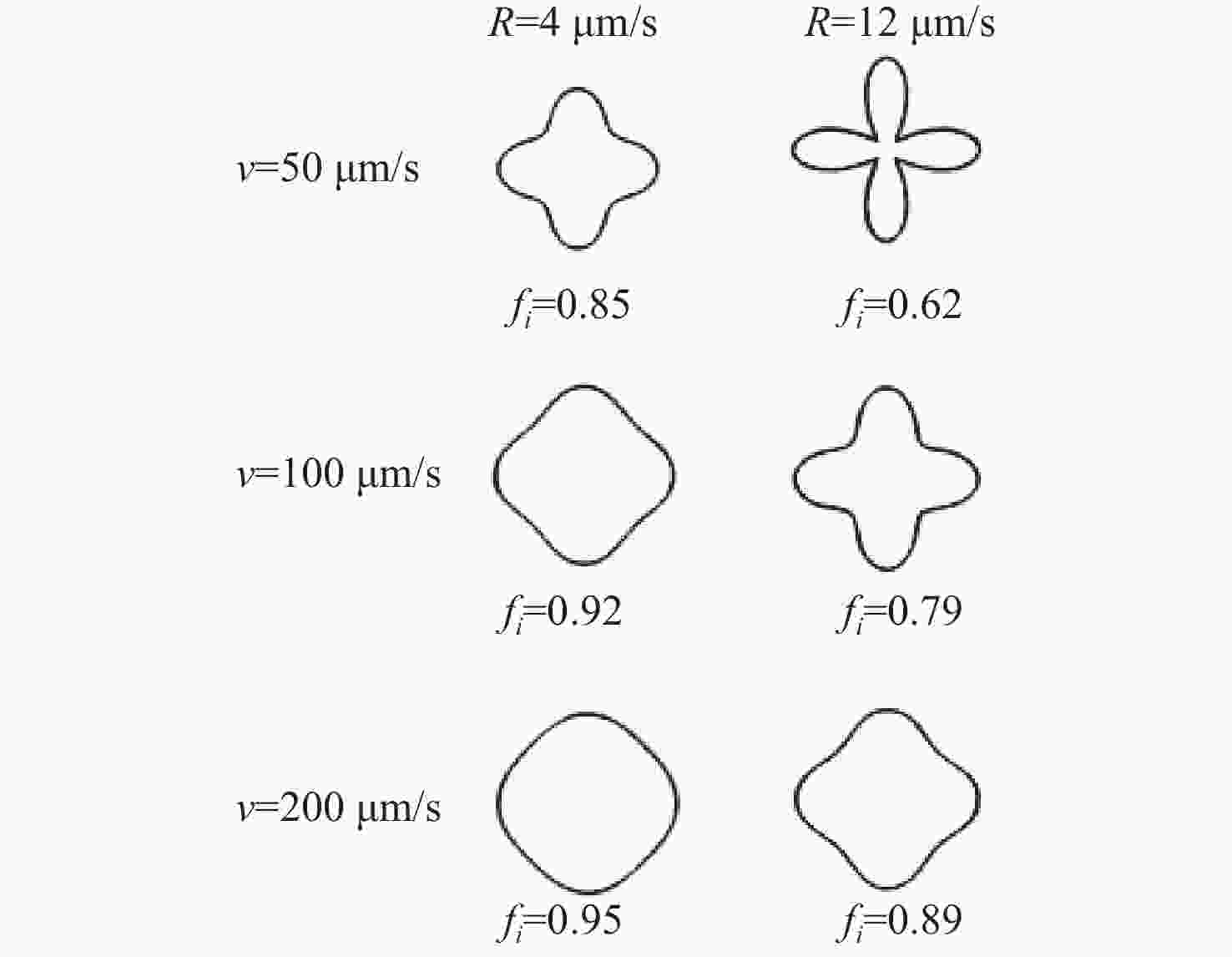

图 6 凝固速率R与熔体流动速度v对晶粒形貌影响的模拟结果^[40]

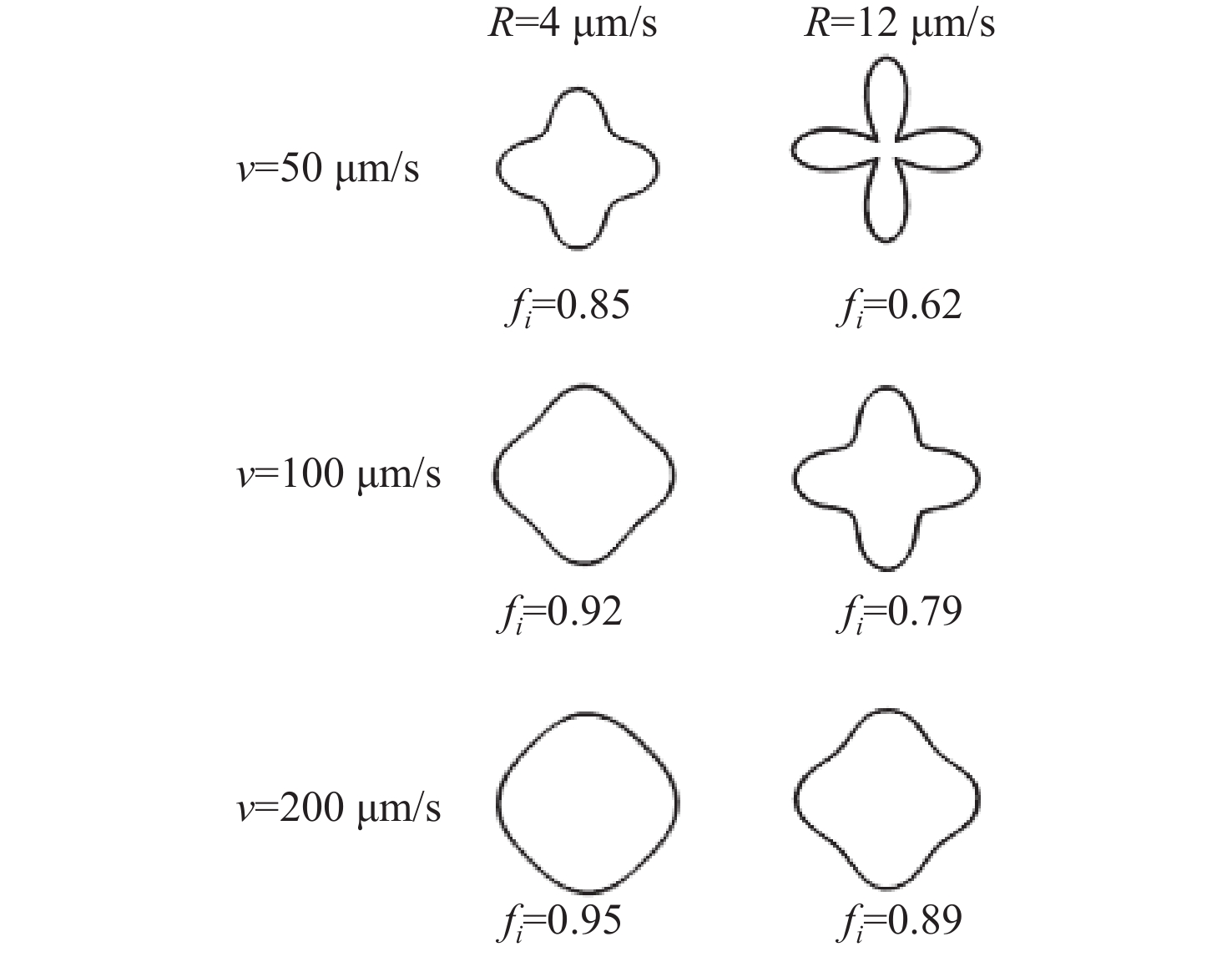

Figure 6. Simulated grain morphologies under different solidification velocities R and liquid flow velocities v^[40]

下载: 全尺寸图片幻灯片

图 7 SIMA法工艺路线图^[50]

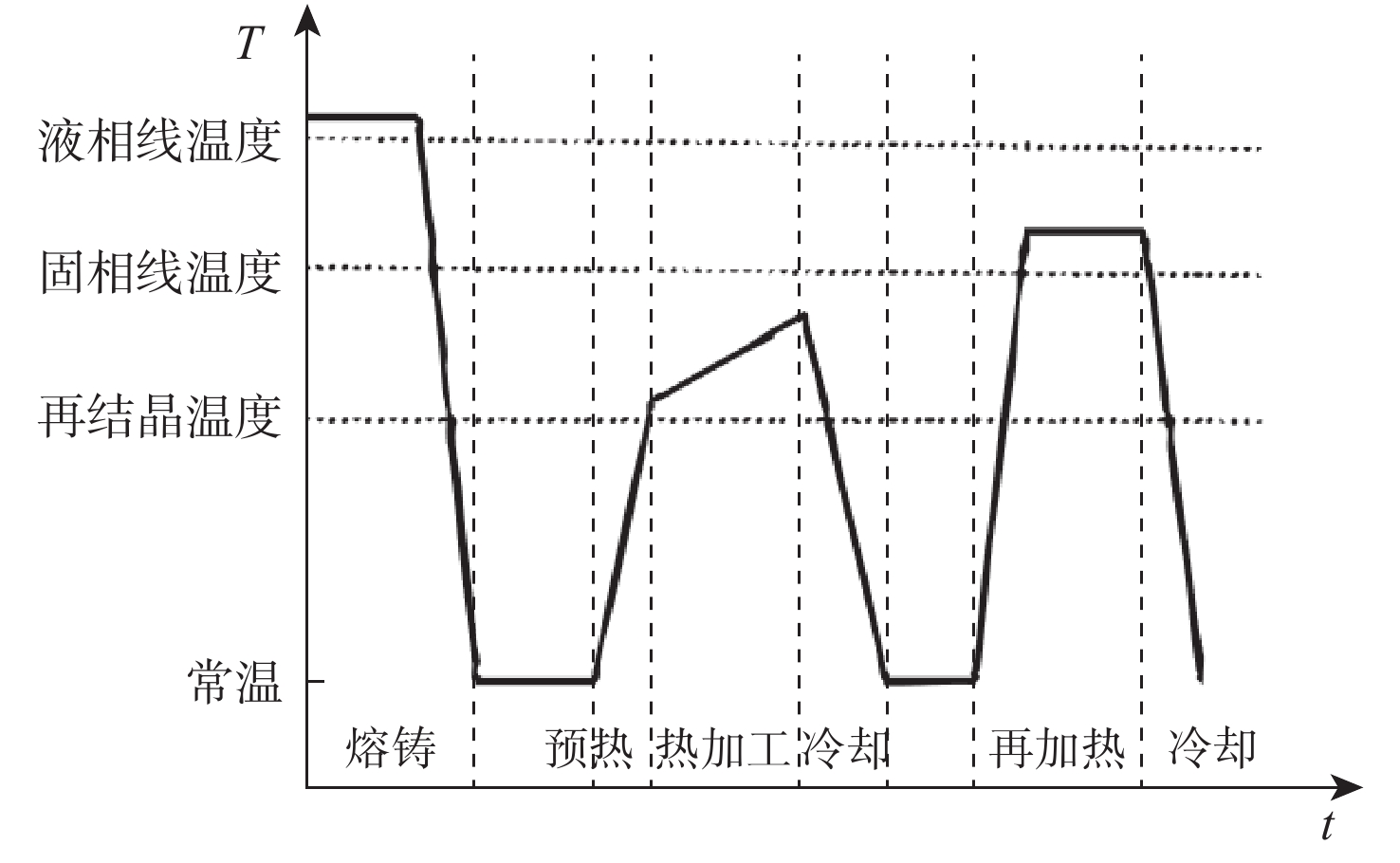

Figure 7. Process map of SIMA^[50]

下载: 全尺寸图片幻灯片

图 8 采用新SIMA法制备的AZ80合金半固态浆料在不同温度下的显微组织^[62]

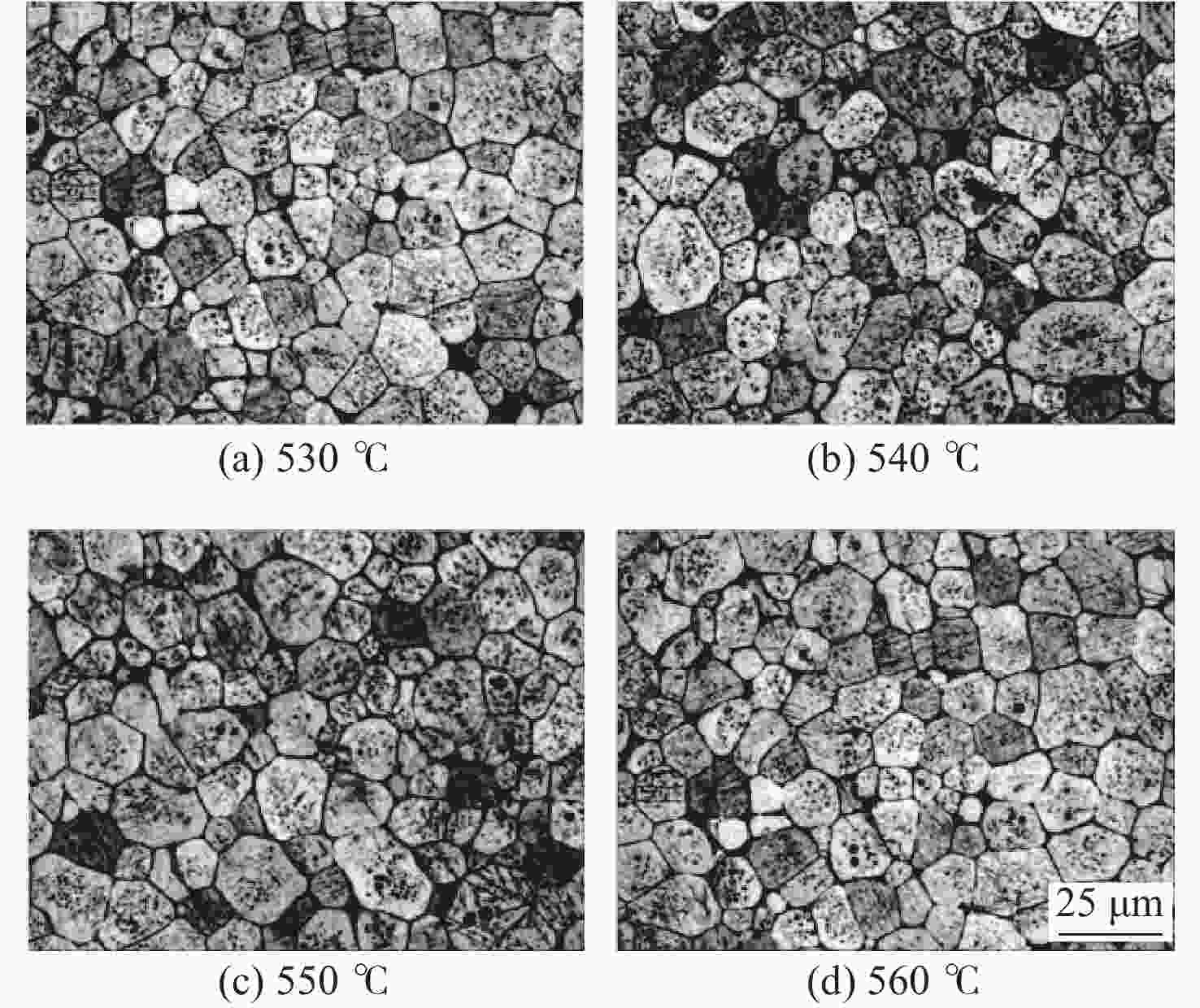

Figure 8. Microstructure of AZ80 alloy semisolid billet fabricated by new SIMA at different temperatures^[62]

下载: 全尺寸图片幻灯片

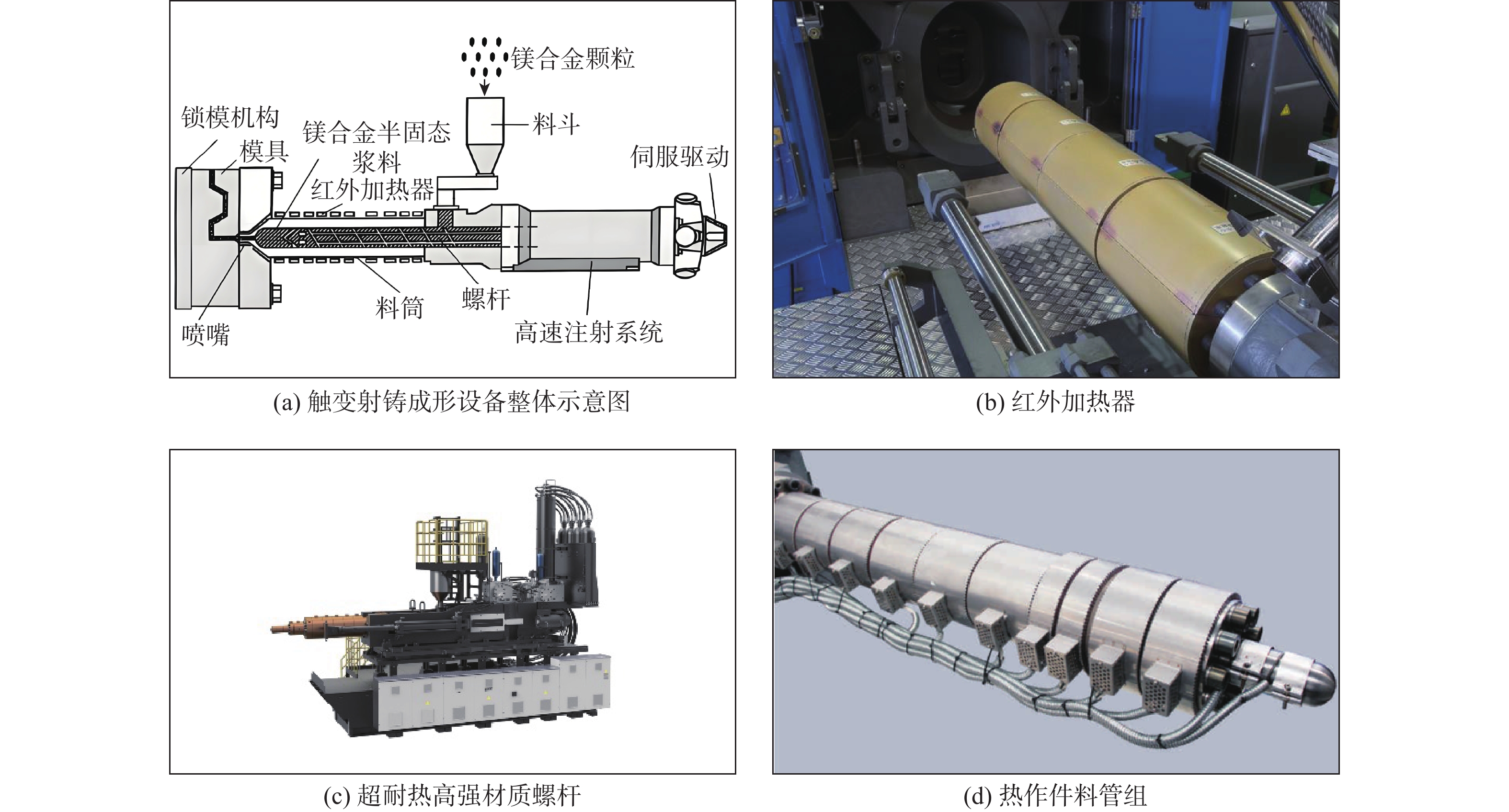

图 9 镁合金触变射铸设备及其关键部件^[2,69-70]

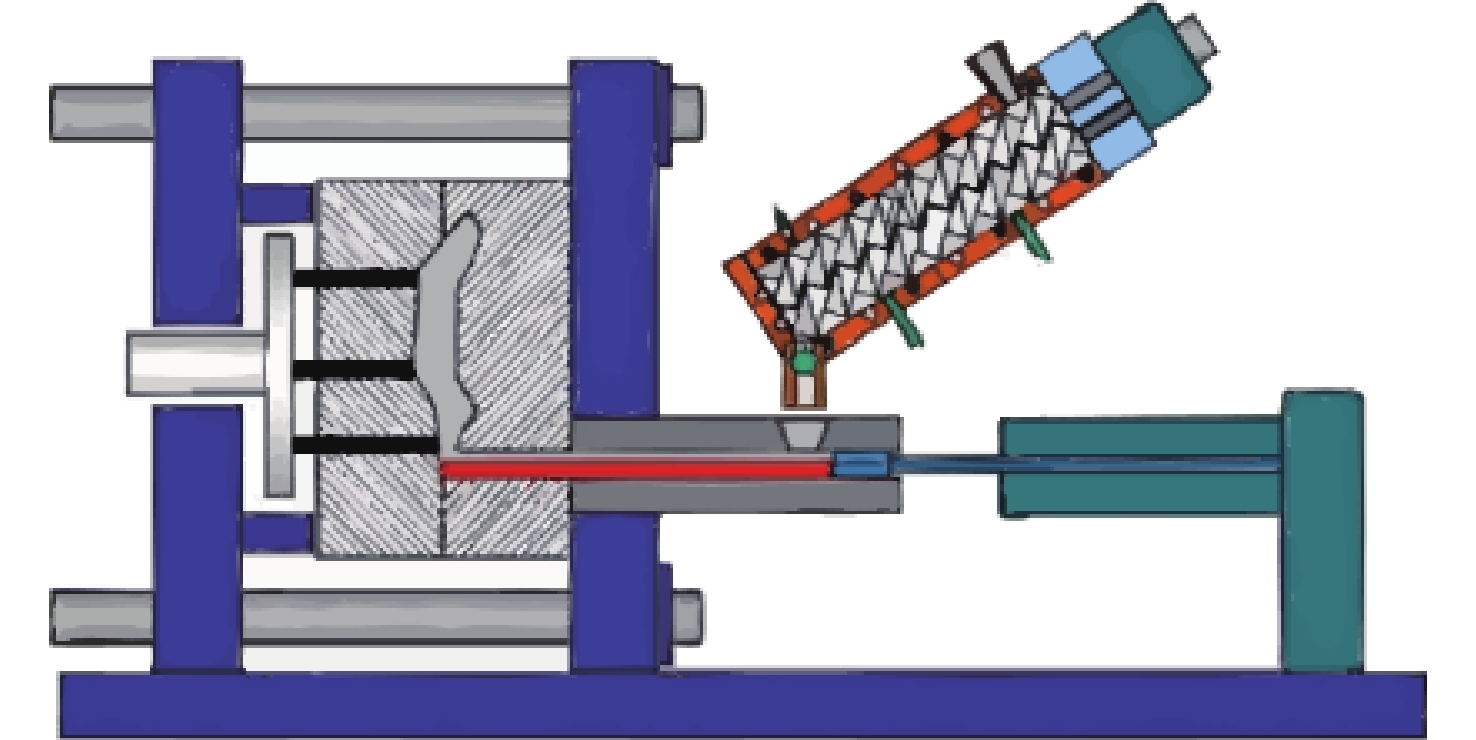

Figure 9. Magnesium alloy thixomolding equipment and its key components^[2,69-70]

下载: 全尺寸图片幻灯片

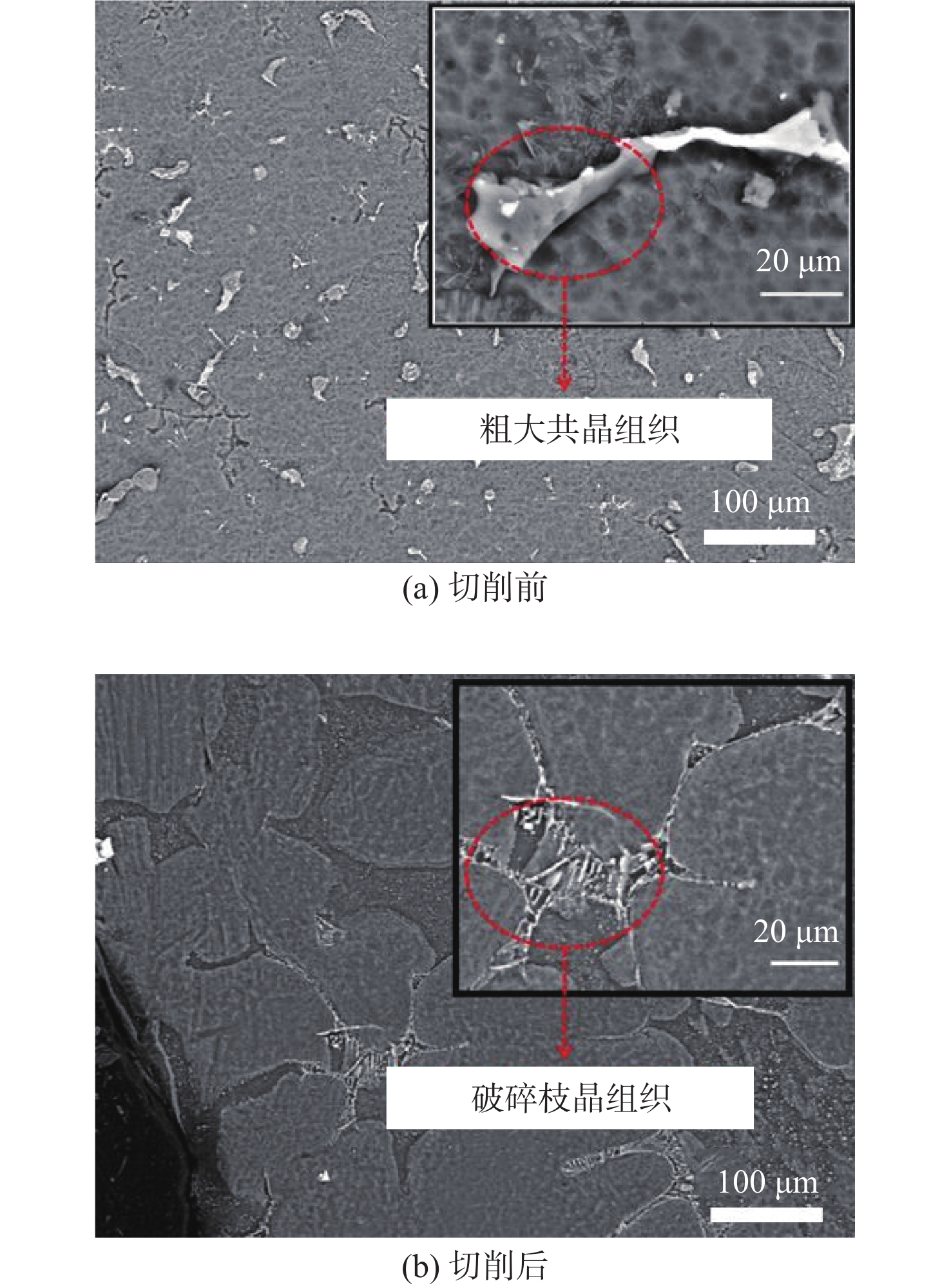

图 10 镁合金切削前后显微组织^[74]

Figure 10. Microstructure of magnesium alloy before and after cutting^[74]

下载: 全尺寸图片幻灯片

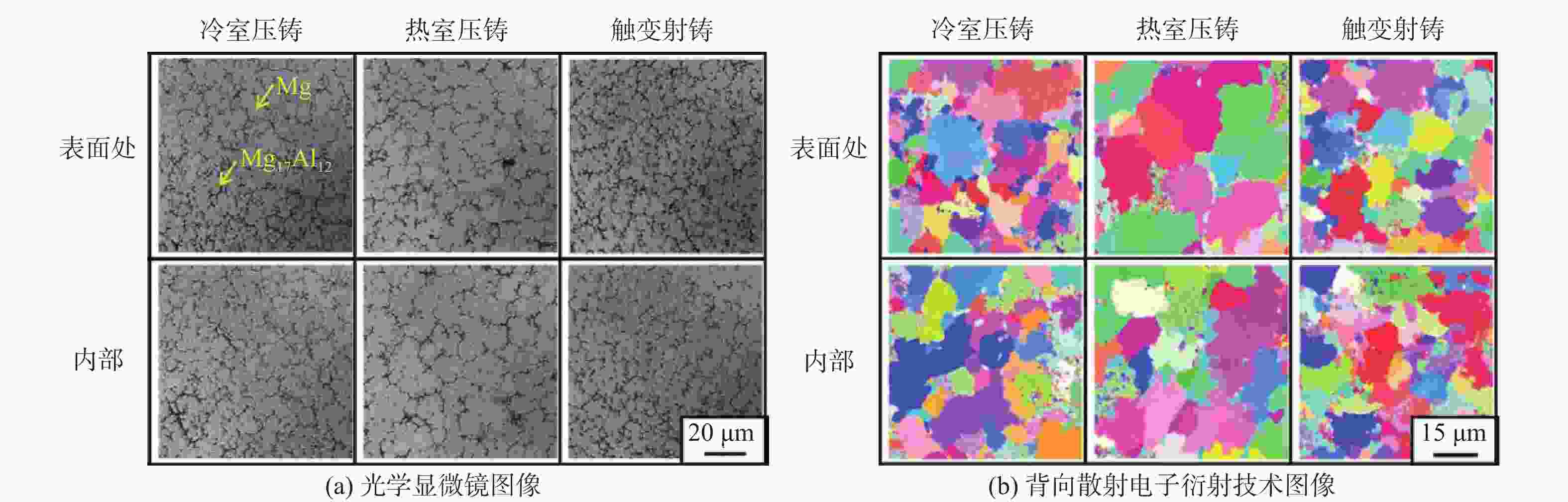

图 11 冷室压铸、热室压铸和触变射铸试样的微观结构^[20]

Figure 11. Microstructures of cold-chamber die-casting, hot-chamber die-casting, and thixomolding samples^[20]

下载: 全尺寸图片幻灯片

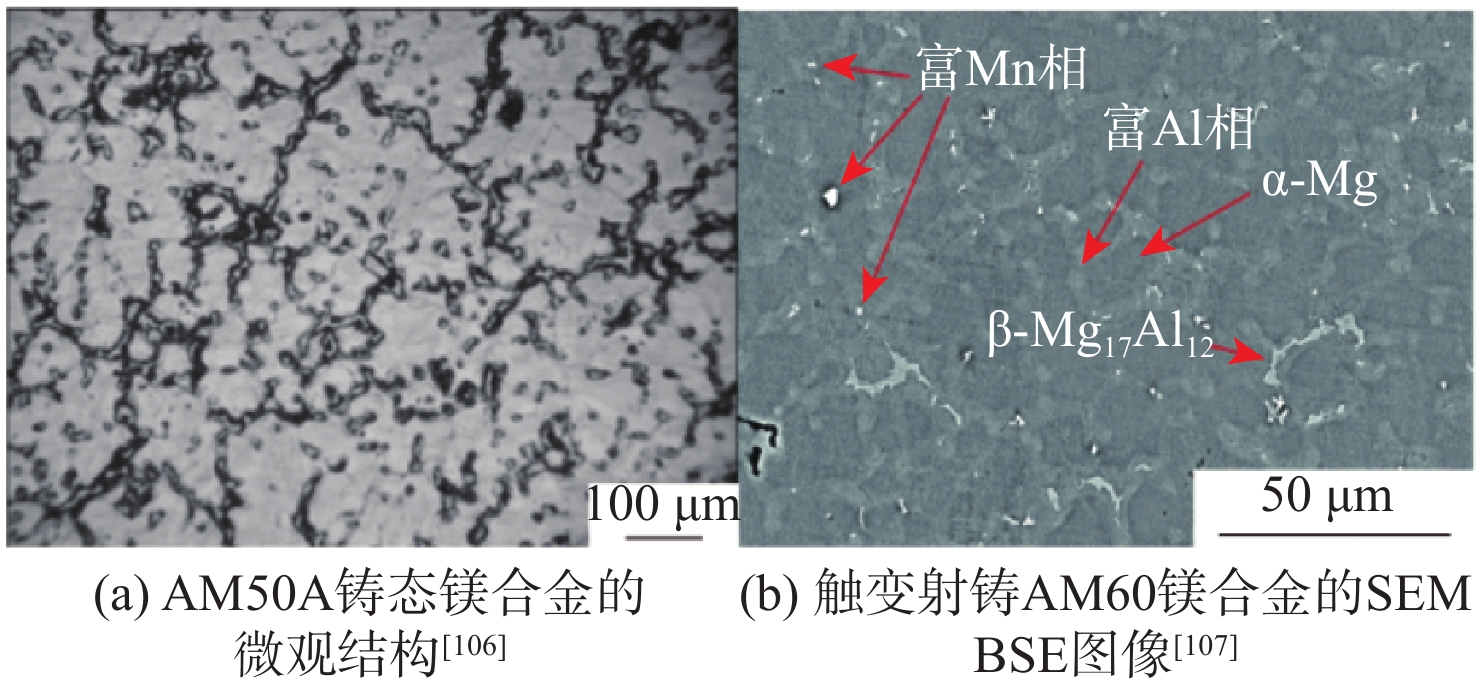

图 12 常规铸态与触变射铸态AM系镁合金的微观组织特征

Figure 12. Microstructure characteristics of AM series magnesium alloys prepared by conventional casting and thixomolding

下载: 全尺寸图片幻灯片

图 13 触变射铸镁合金试样的TEM图像^[67]

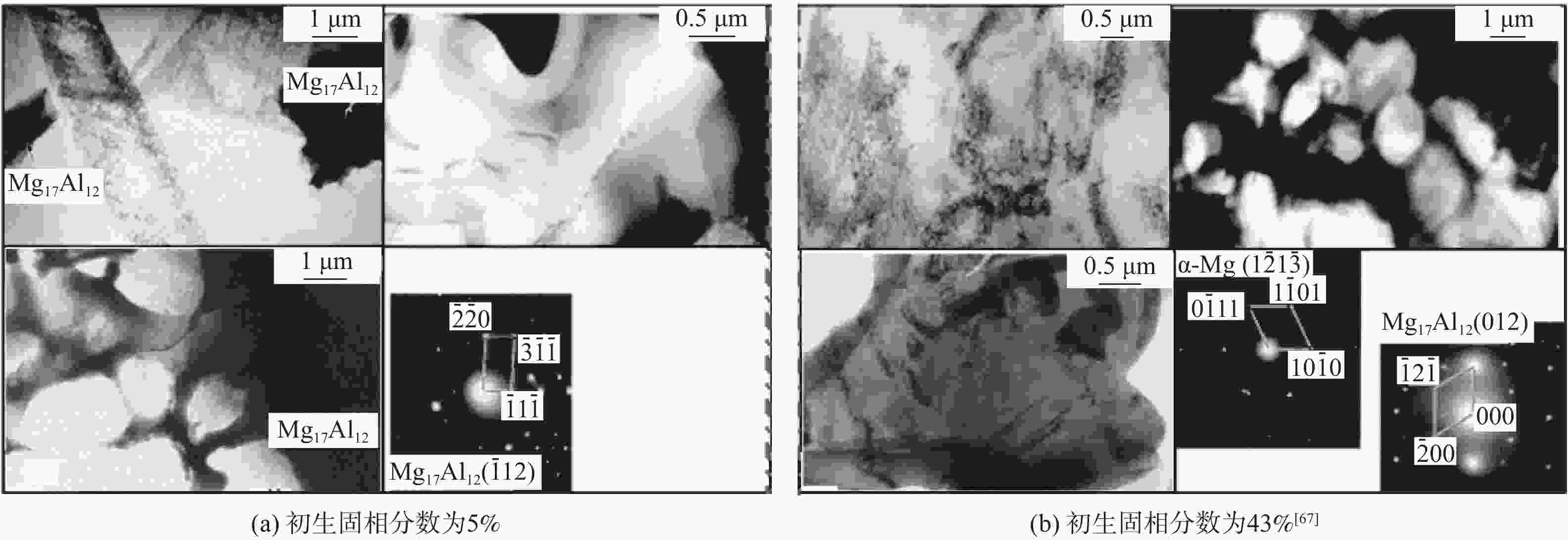

Figure 13. TEM images of thixomolding magnesium alloy specimens^[67]

下载: 全尺寸图片幻灯片

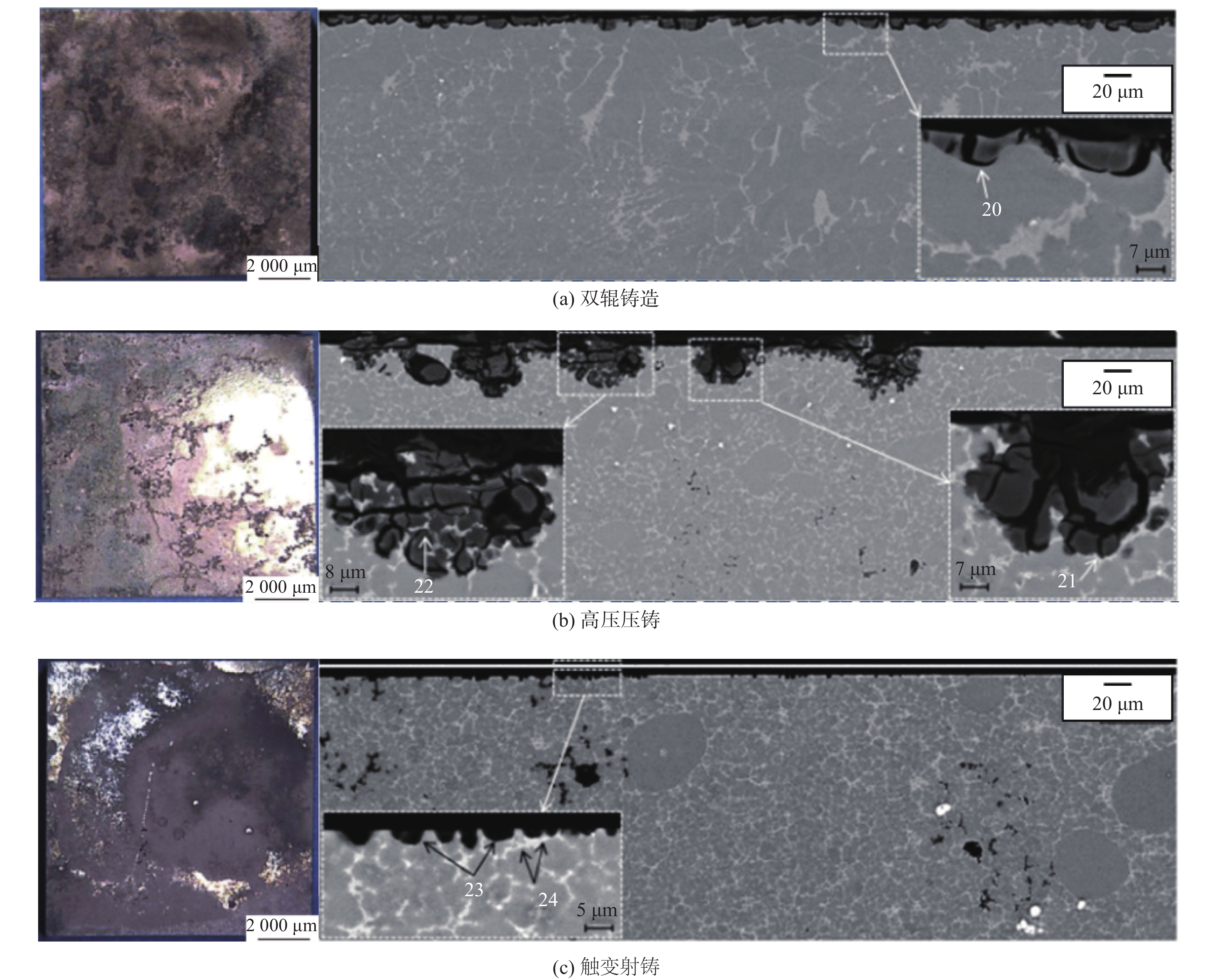

图 14 不同工艺的镁合金试样在室温下经5×10⁻⁴ mol/L NaCl溶液浸泡约4.5天后的顶面腐蚀形貌与横截面SEM图像^[122]

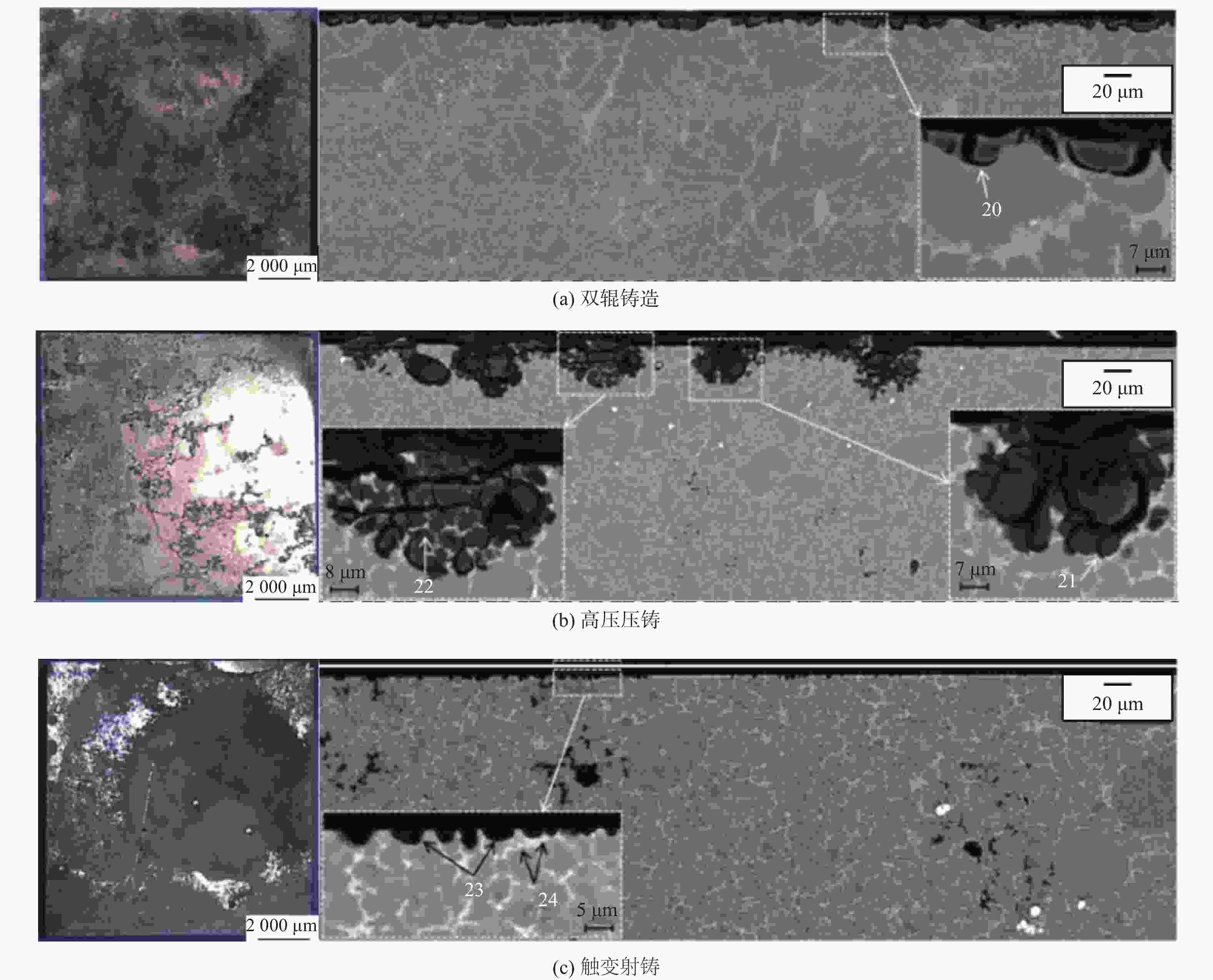

Figure 14. Top surface corrosion morphology and cross-sectional SEM images of magnesium alloy specimens with different processes after immersion in 5×10⁻⁴ mol/L NaCl solution at room temperature for approximately 4.5 days^[122]

下载: 全尺寸图片幻灯片

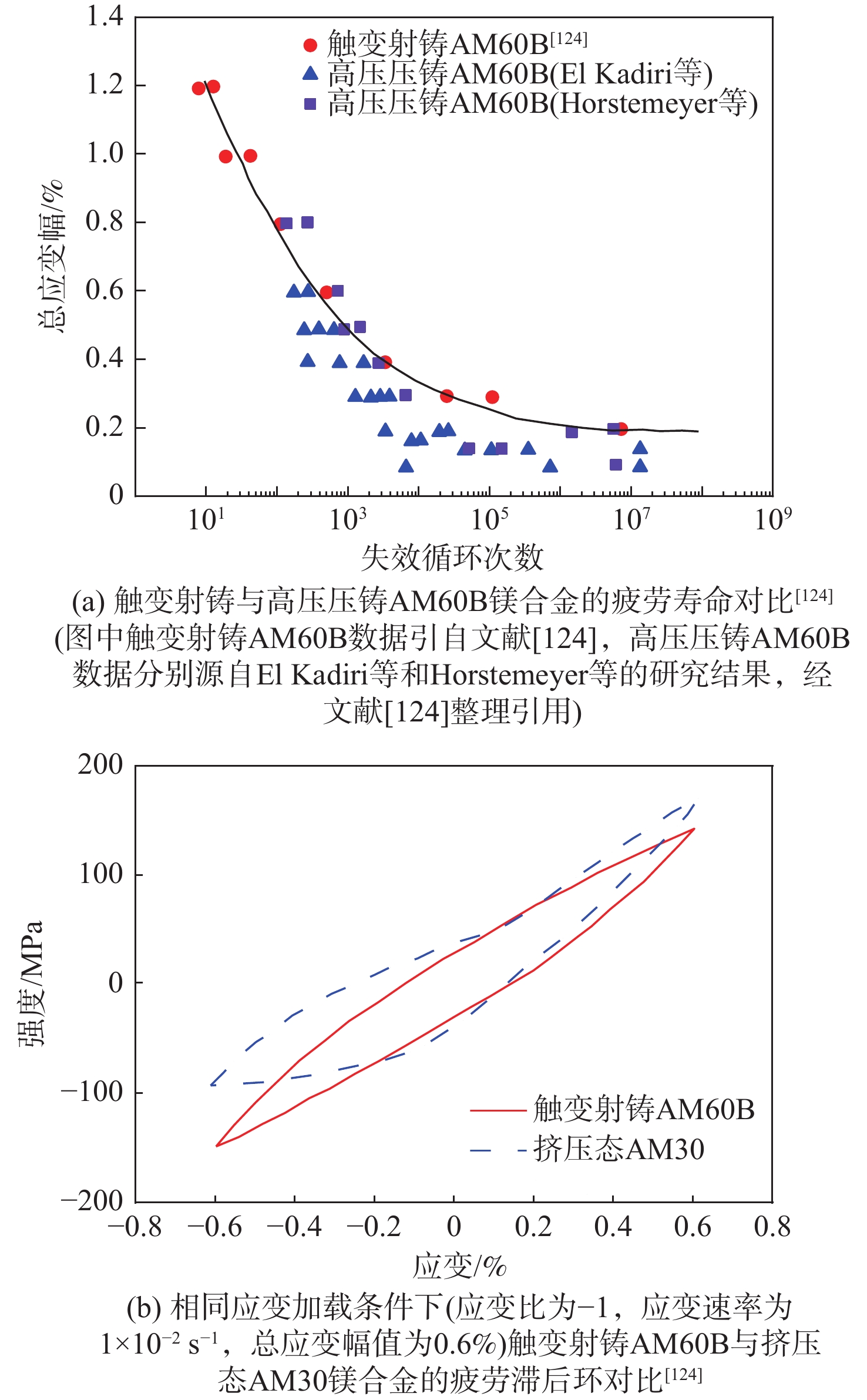

图 15 触变射铸AM60B镁合金与不同工艺制备同系镁合金的疲劳性能对比^[124]

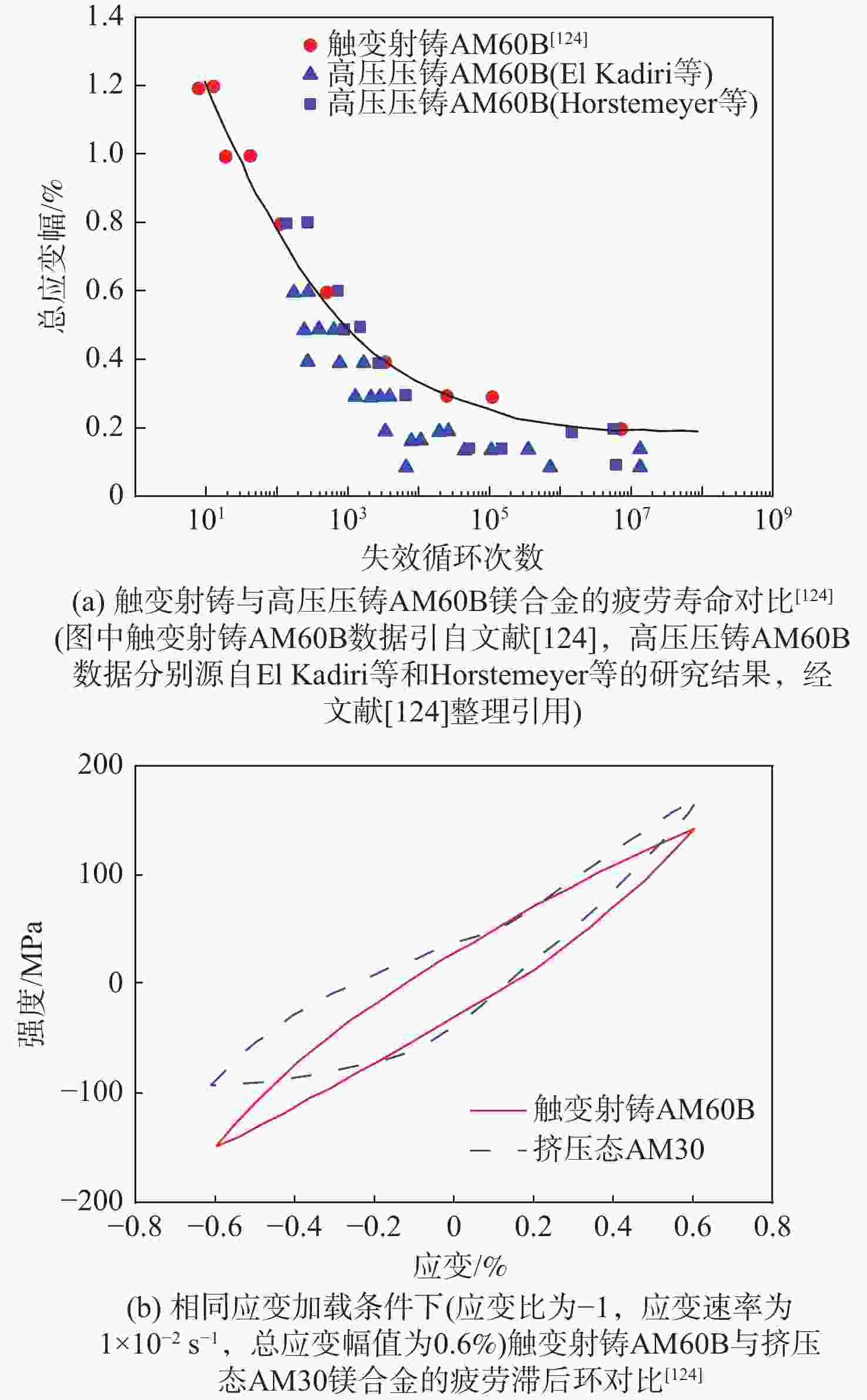

Figure 15. Comparison of fatigue properties between thixomolding AM60B magnesium alloy and counterpart Mg alloys fabricated by conventional processes^[124]

下载: 全尺寸图片幻灯片

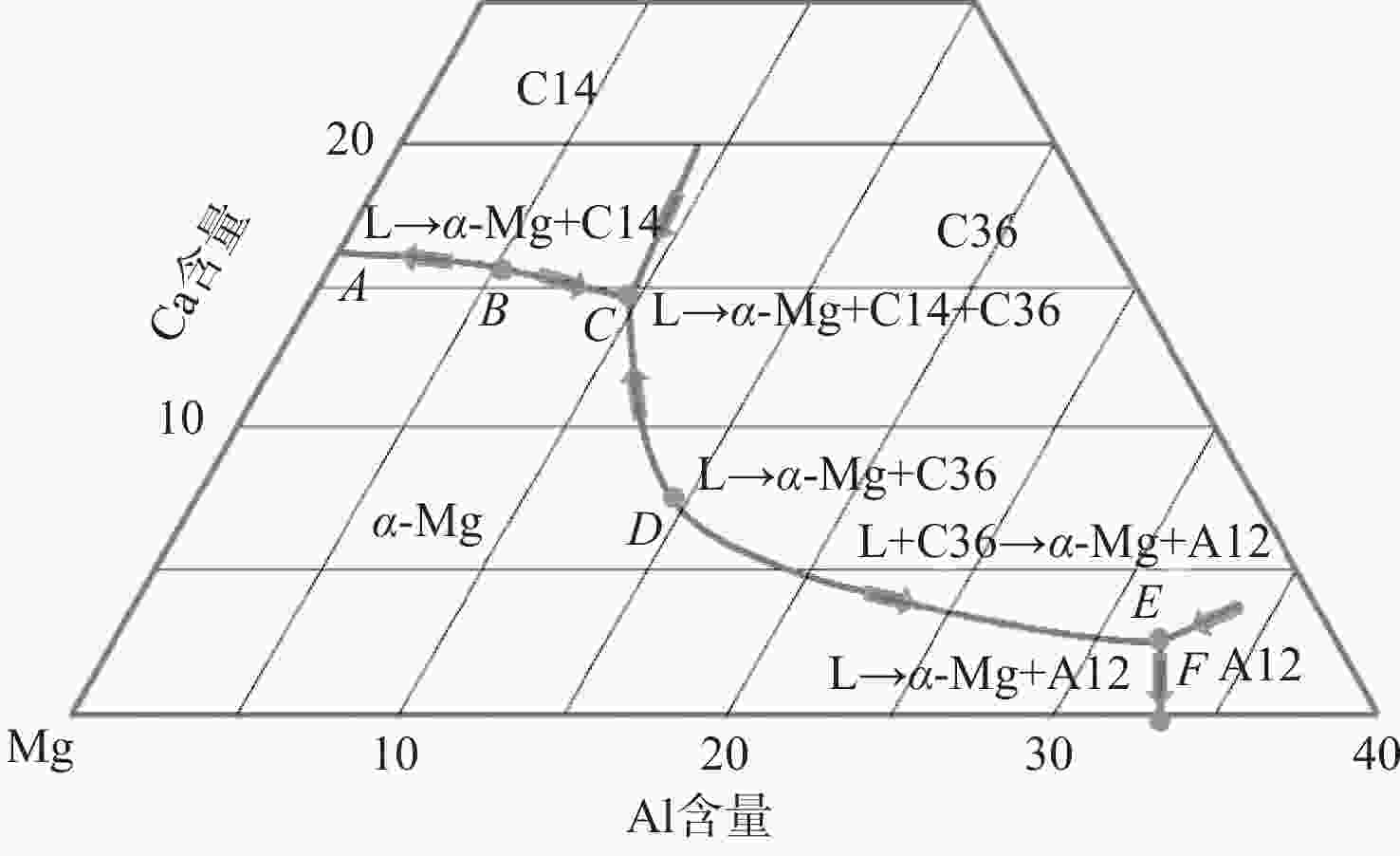

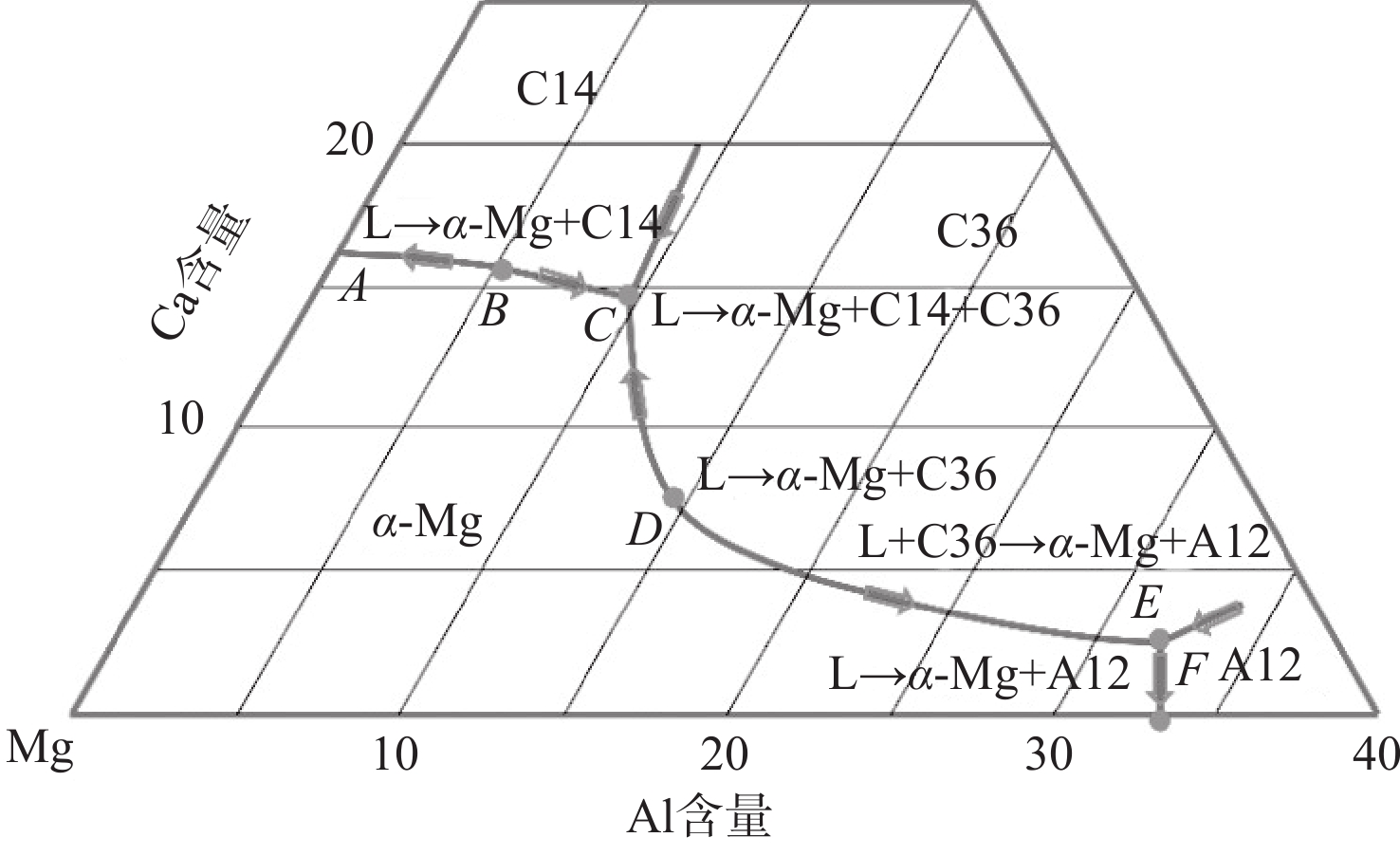

图 16 Mg-Al-Ca合金体系富Mg角的液相线投影图^[128]

Figure 16. Phase line projection of Mg rich angle in Mg-Al-Ca alloy system^[128]

下载: 全尺寸图片幻灯片

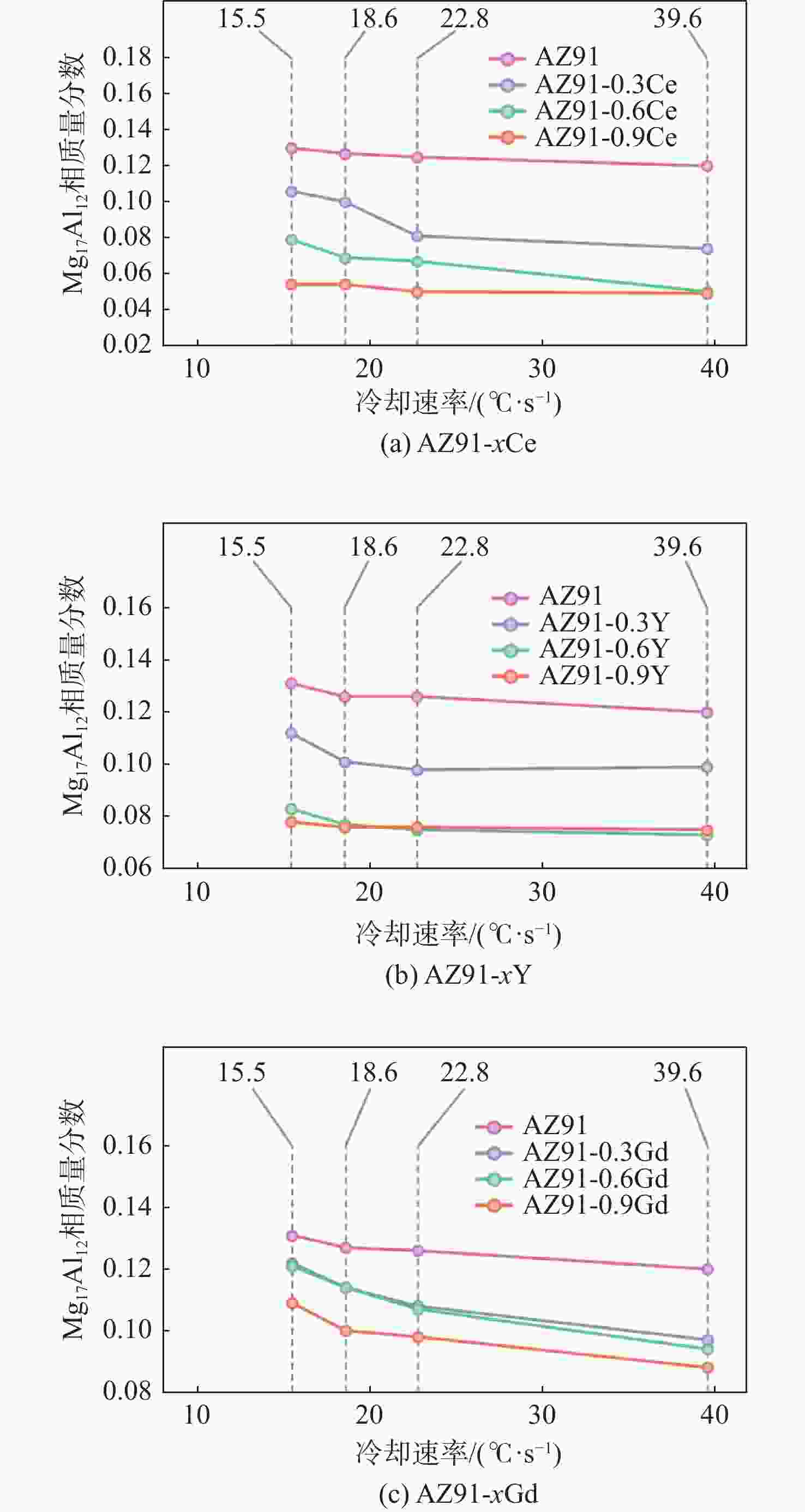

图 17 AZ91-xRE(Ce、Y、Gd，x = 0, 0.3, 0.6, 0.9)合金中Mg₁₇Al₁₂化合物的质量分数^[132]

Figure 17. Mass fraction of Mg₁₇Al₁₂ compound in AZ91-xRE (Ce, Y, Gd, x = 0, 0.3, 0.6, 0.9) alloys^[132]

下载: 全尺寸图片幻灯片

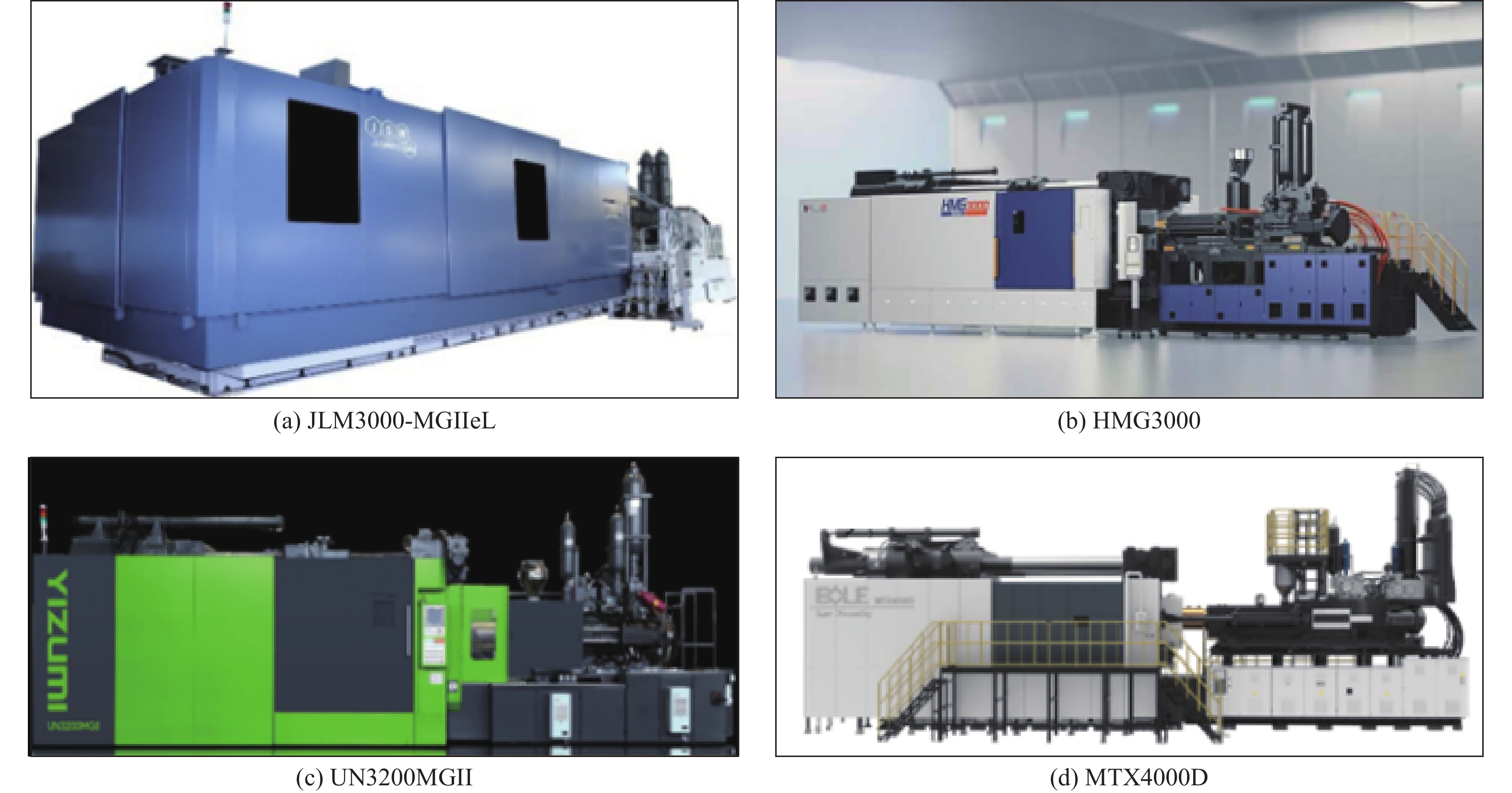

图 18 大型镁合金触变射铸成形设备^{[70,136,140-142]}

Figure 18. Large magnesium alloy thixomolding equipment^{[70,136,140-142]}

下载: 全尺寸图片幻灯片

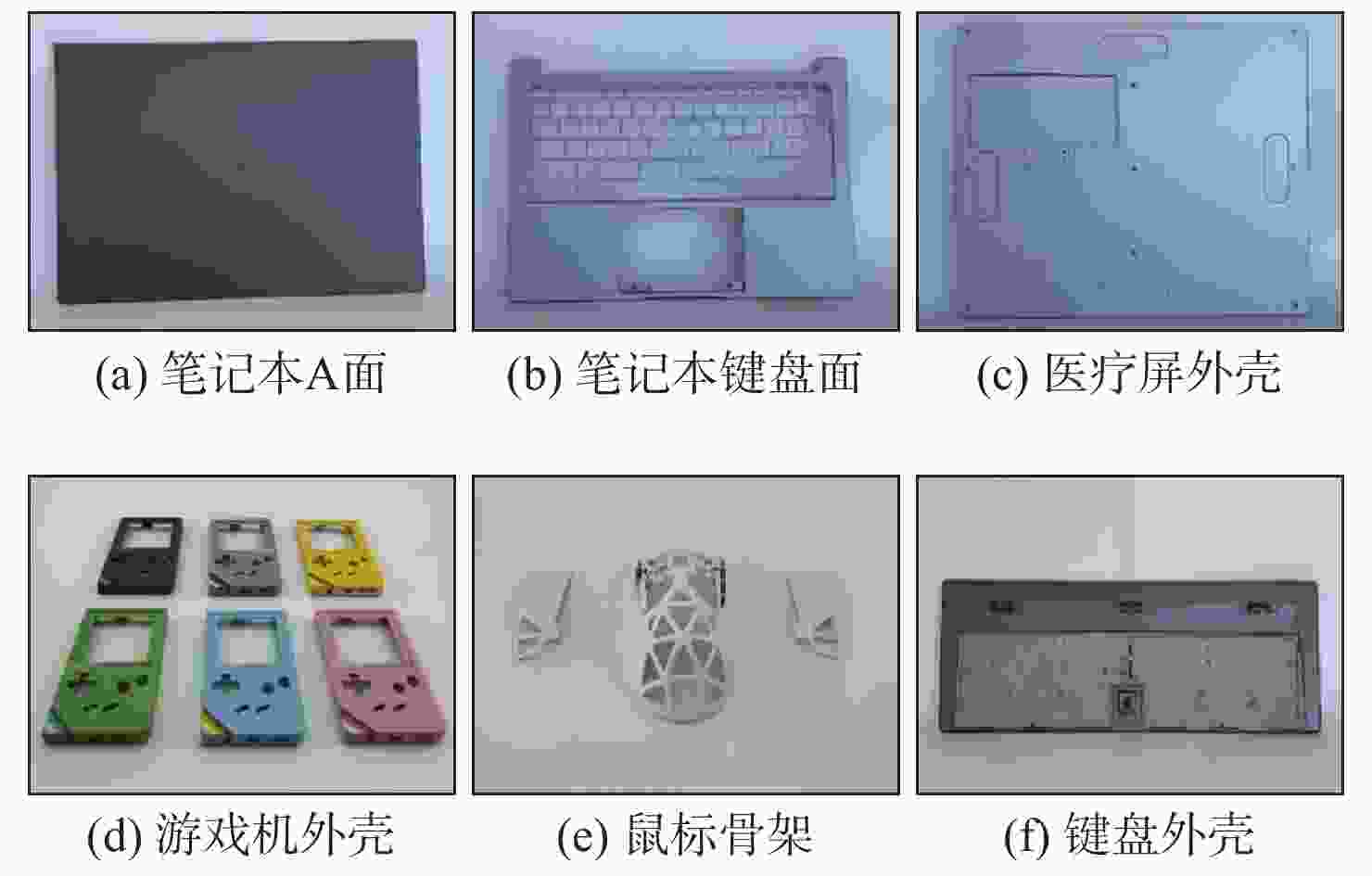

图 19 消费电子结构件、外壳件^[145,147]

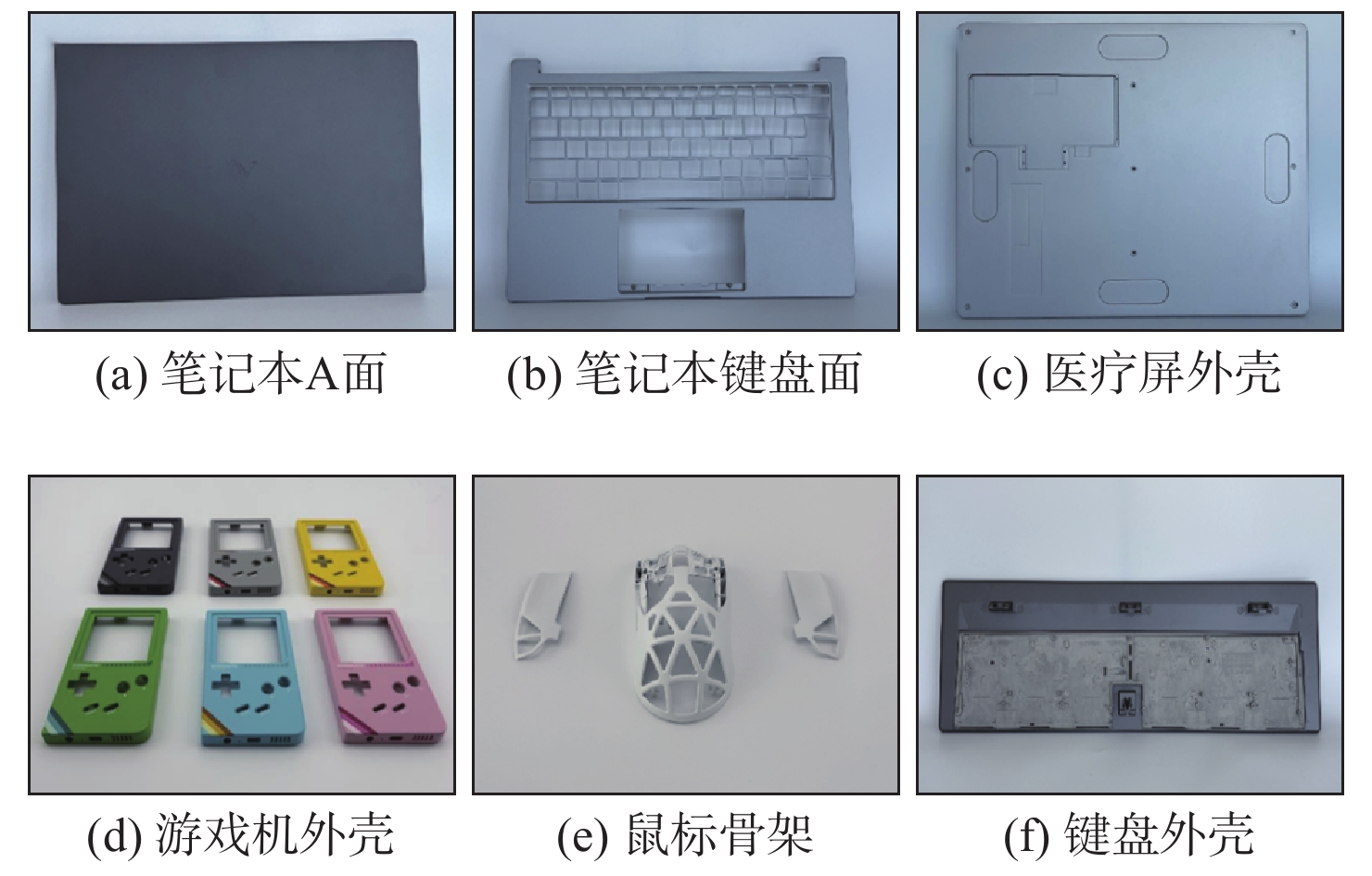

Figure 19. Structural components and housings for consumer electronics^[145,147]

下载: 全尺寸图片幻灯片

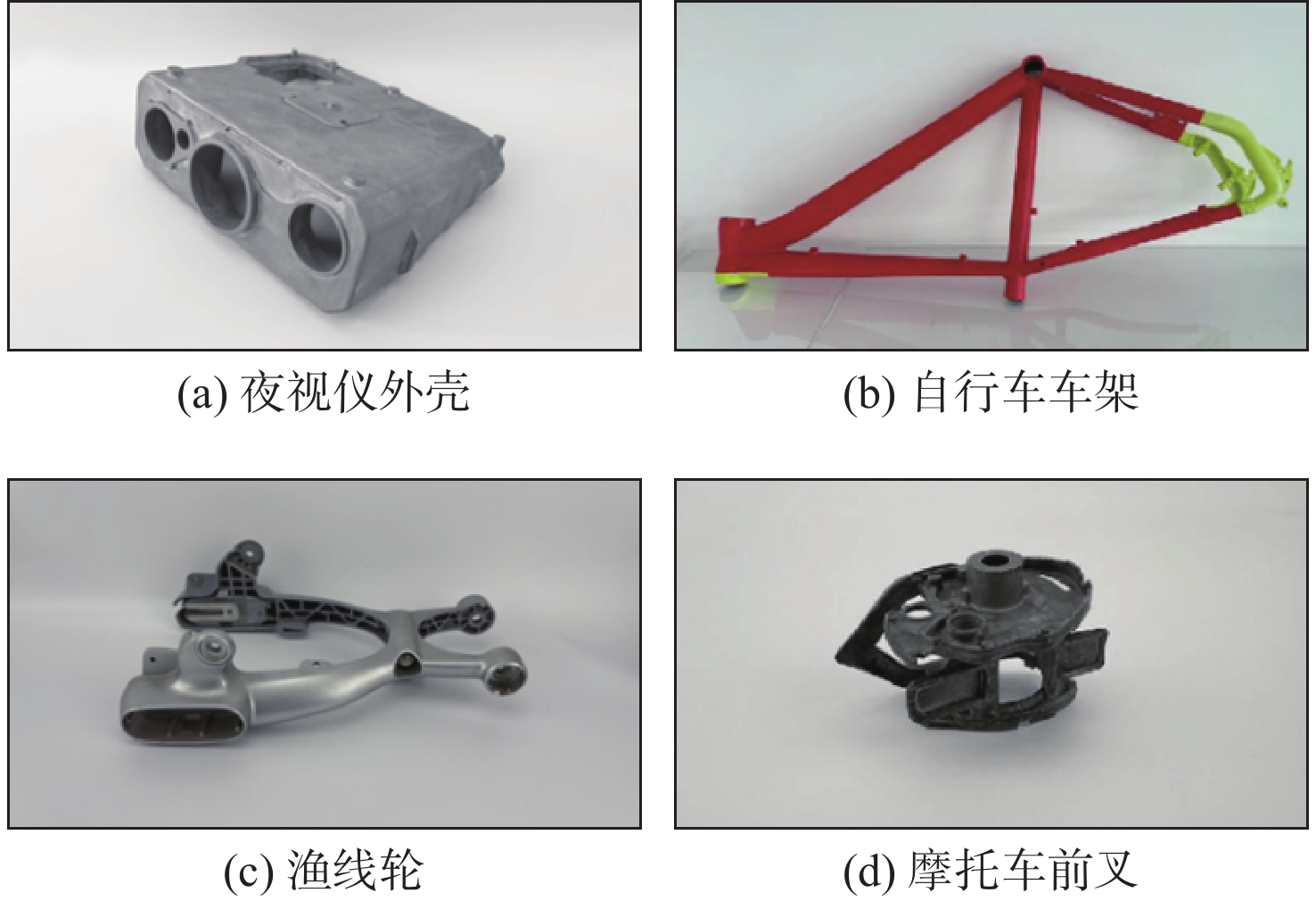

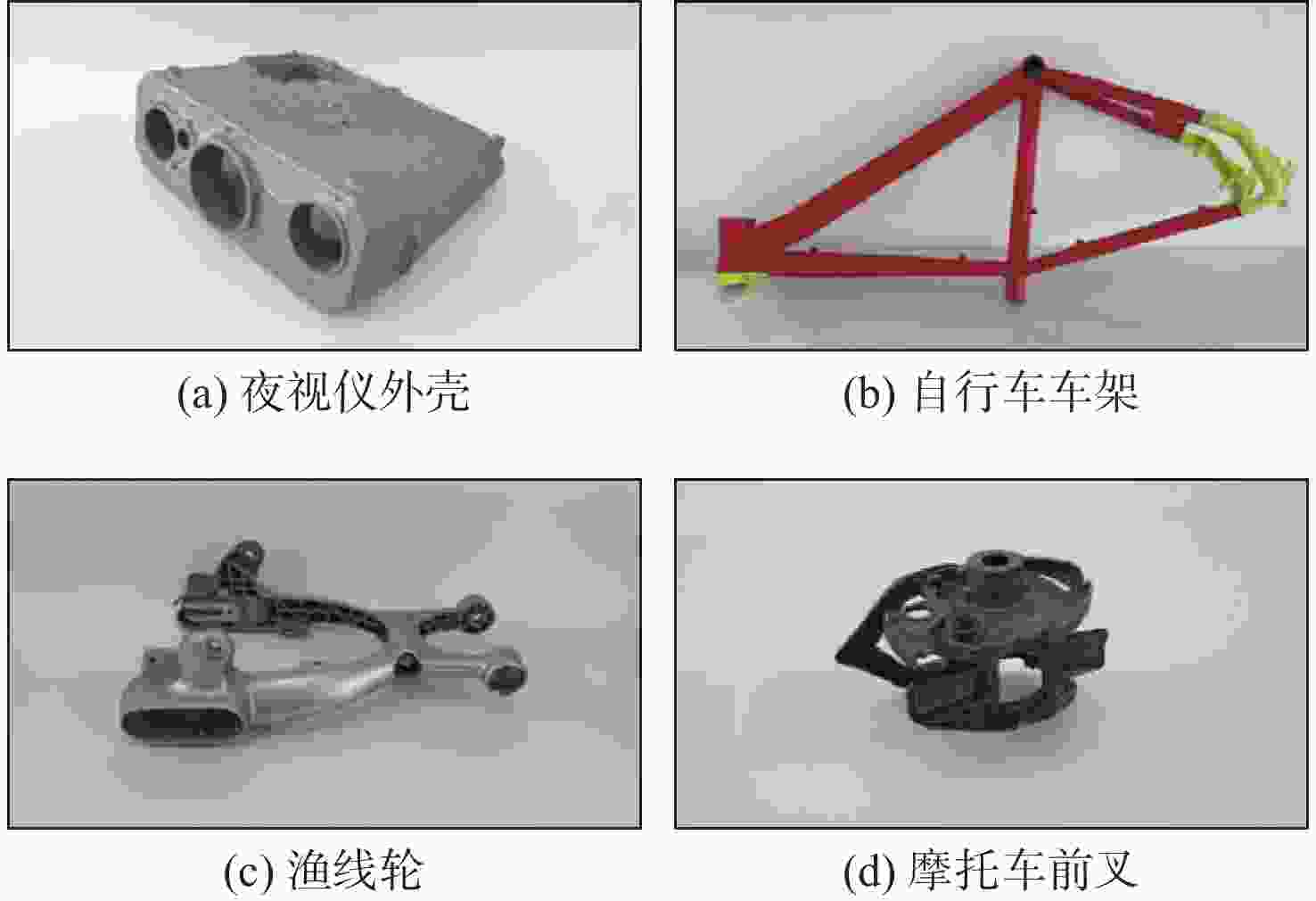

图 20 户外运动产品结构件、外壳件^[145]

Figure 20. Structural components and housings for outdoor sports products^[145]

下载: 全尺寸图片幻灯片

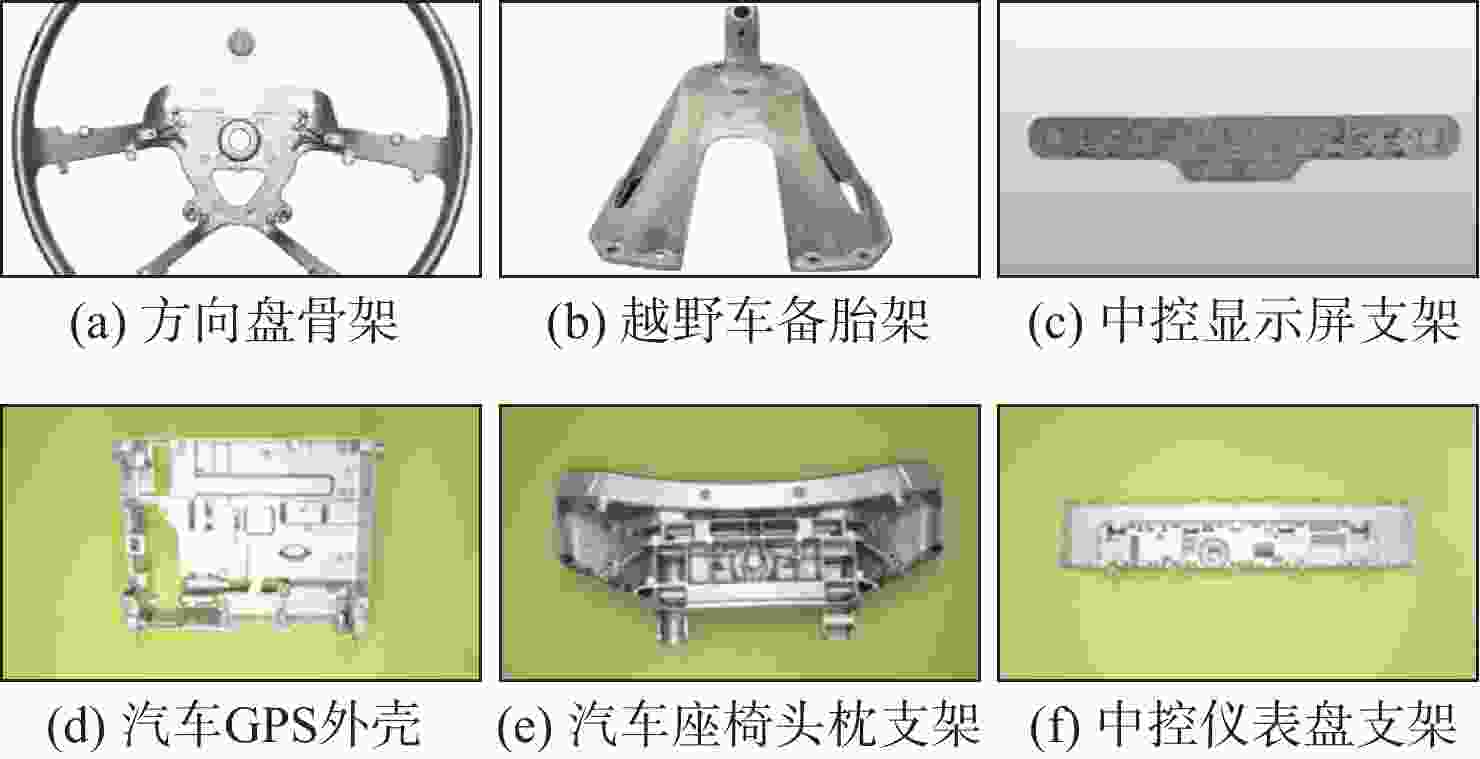

图 21 汽车结构件^[68,145,147]

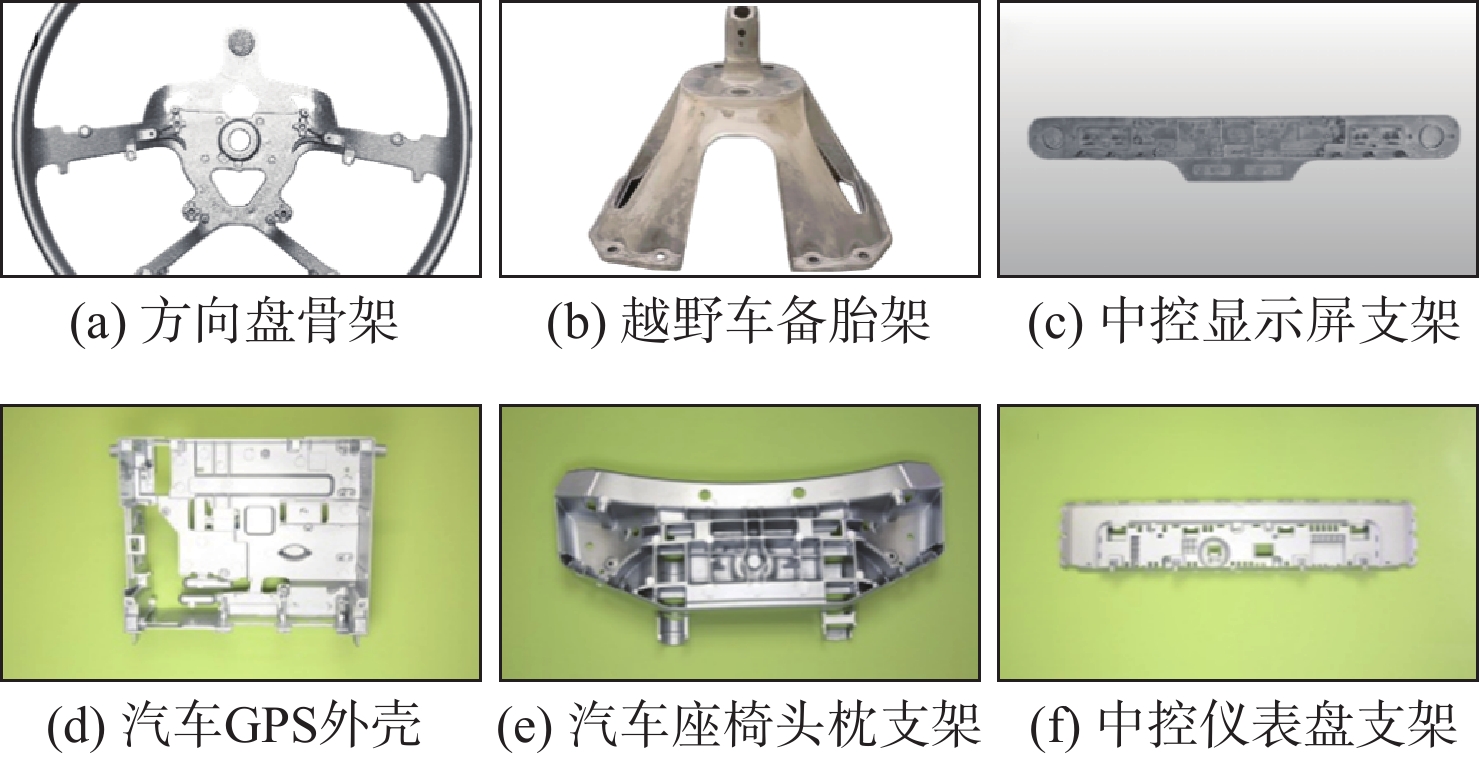

Figure 21. Structural components for automobiles^[68,145,147]

下载: 全尺寸图片幻灯片

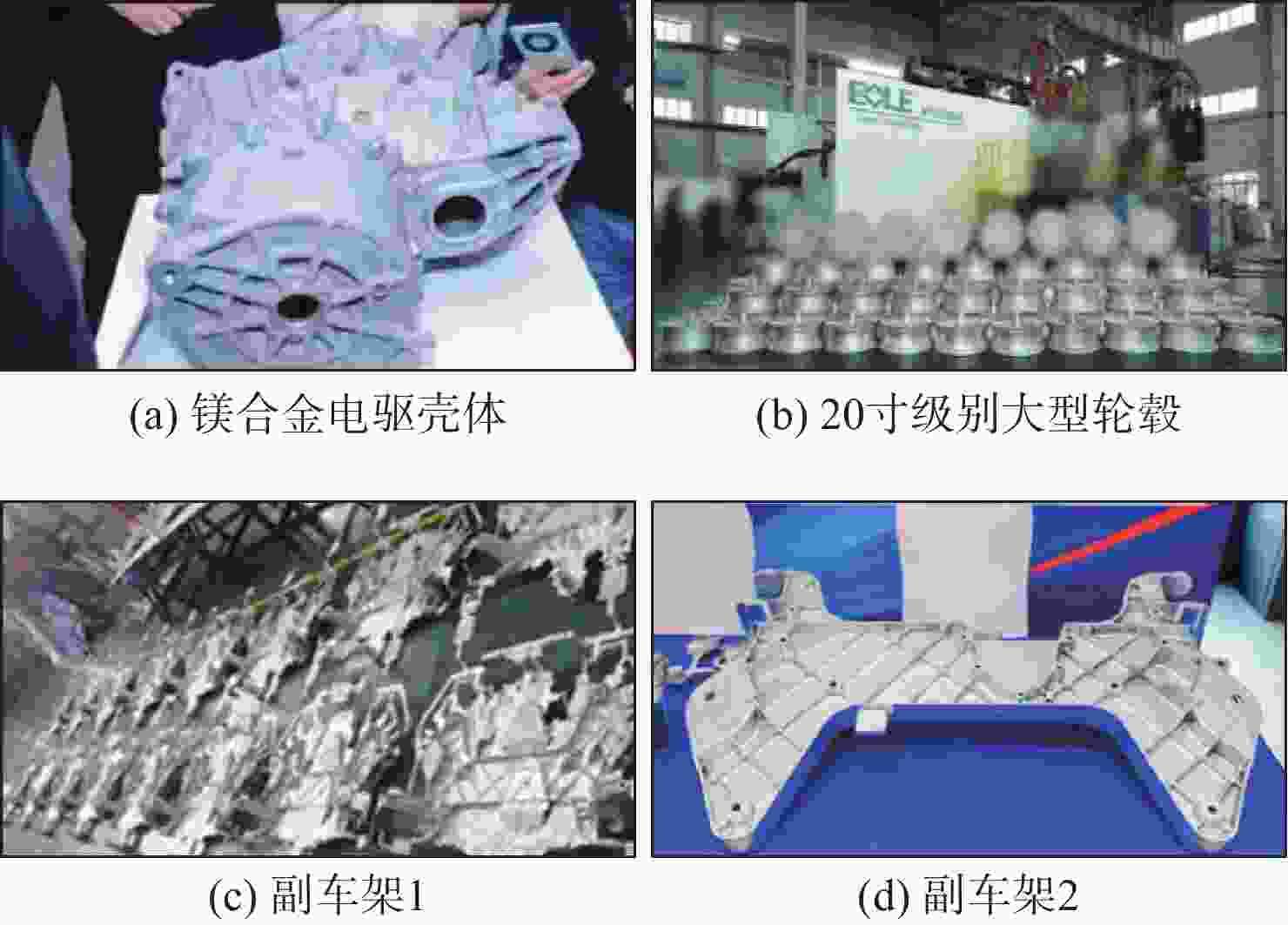

图 22 汽车关键大型结构件^{[140,142,148-149]}

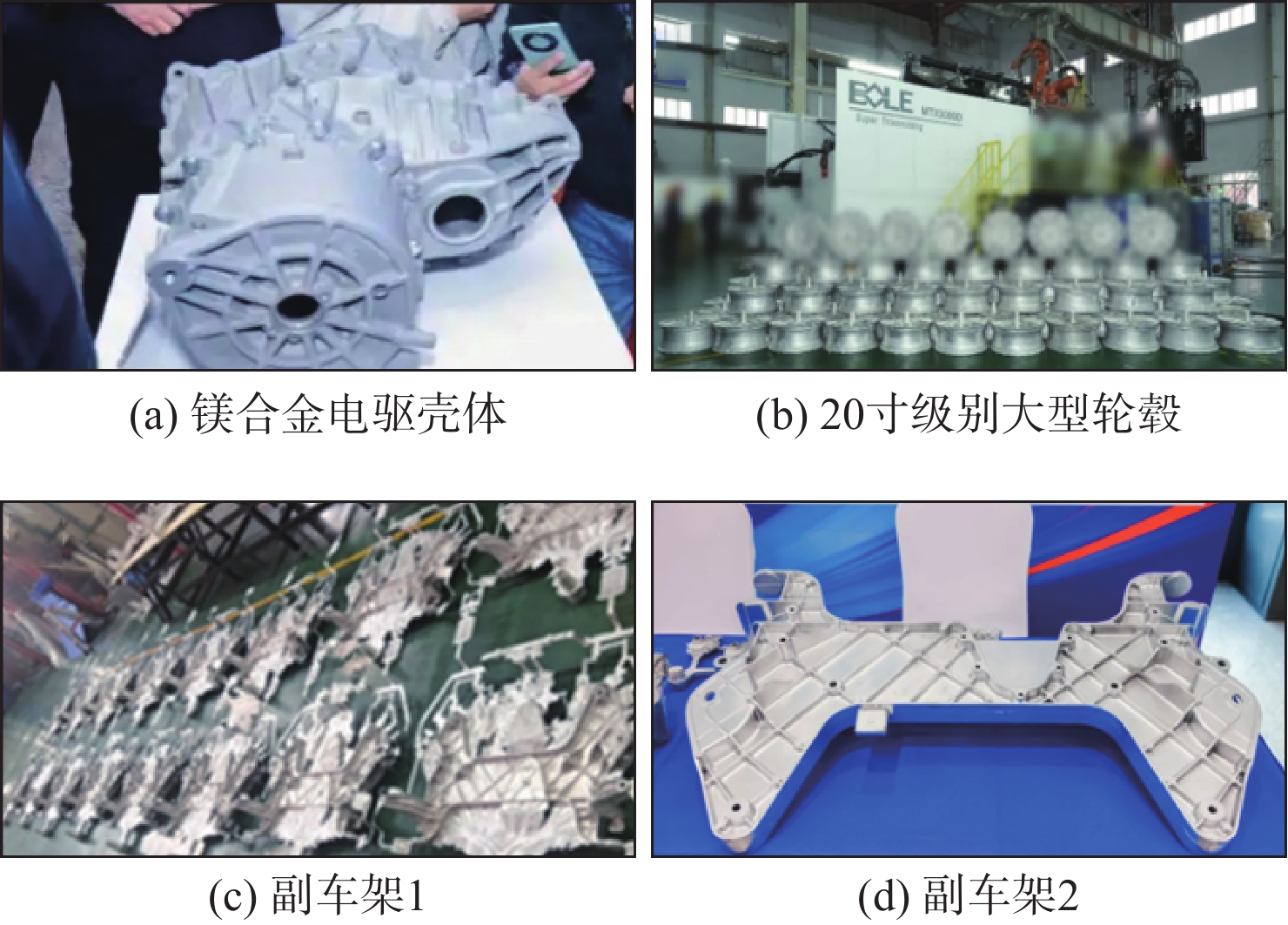

Figure 22. Critical large structural components for automobiles^{[140,142,148-149]}

下载: 全尺寸图片幻灯片

表 1 半固态浆料组织形成机制的主要假说

Table 1. Major hypotheses on formation mechanism of semi-solid slurries microstructure

假说	特点及适用范围	主导因素	对实际生产的指导
枝晶臂破碎与枝晶臂根部重熔理论	应用广泛，解释了晶核增殖过程的机制，对实际生产有重要指导意义，但尚无法解释枝晶到蔷薇状晶、近球状晶的转变路径	破碎枝晶	机械搅拌法、电磁搅拌法等成熟制浆工艺
生长控制理论	解释了枝晶在剪切作用下，向蔷薇状晶、近球状晶的转变机制	剪切速率	双螺杆挤出机等
有效持续形核机制	半固态浆料微观结构主要依赖于湍流而不是剪切速率，湍流的作用提高了浆料的形核速率	形核速率	双螺杆剪切制浆、流变压铸等工艺
自由晶核生成机制	利用临界密度的游离晶核在凝固过程中直接诱导近球状晶形核	游离晶核	液相线铸造、剪切低温浇注法等新型工艺

下载: 导出CSV

表 2 国内外镁合金触变射铸与传统半固态制浆法的组织参数对比

Table 2. Comparison of microstructural parameters between domestic and international magnesium alloy thixomolding and traditional semi-solid slurry processing methods

镁合金成分	固相晶粒尺寸/μm	形状因子	工艺	参考文献
AZ91D	32.0	0.72	触变射铸	[67]
AM60	50.0		触变射铸	[77]
AZ91D	66.6		触变射铸	[78]
AZ91D	30.0		触变射铸	[79]
AZ91	10.5		触变射铸	[80]
AZ91	50.0		触变射铸	[81]
AZ91D	70.0		触变射铸	[82]
AZ91D	45.3	0.65	触变射铸	[83]
AZ61	60.0	0.70	半固态等温处理	[53]
AM60B	200.6	0.71	半固态等温处理	[63]
AZ80	62.0	0.71	半固态等温处理	[84]
Mg-10Gd-3Y-0.5Zr	90.0	0.70	半固态等温处理	[85]
Mg-3Nd-0.2Zn-0.4Zr	46.0	0.59	电磁搅拌	[86]
AZ91D	77.2	0.59	气泡诱导法	[87]
AZ91-2Ca	50.0	0.70	气泡诱导法	[88]
Mg-2.5Gd-1Zn	180.0	0.29	低频电磁搅拌	[37]
Mg-Gd-Zn	501.0	0.30	低频电磁搅拌	[89]
Mg-6Zn-1.4Y	32.0	0.76	超声振动法	[90]
Mg-11Gd-3Y-1Zn-0.2Zr	63.0		旋转热焓平衡装置法	[91]
AZ91	50.0	0.81	剪切低温浇注法	[92]
AZ91D	45.3	0.85	内部快速冷却搅拌工艺	[93]
AM60	65.0		自孕育法	[94]
AM60	100.0	0.70	再结晶重熔	[53]
Mg-8.20Gd-4.48Y-3.34Zn-0.36Zr	62.0		SIMA法	[95]
AZ80	12.5	0.89	新SIMA法	[62]
AM60B	15.1	0.88	新SIMA法	[63]
AZ80	15.6	0.87	新SIMA法	[96]

下载: 导出CSV

表 3 国内外半固态触变射铸Mg-Al系镁合金力学性能分析

Table 3. Analysis of mechanical properties of domestic and foreign semi-solid thixomolding Mg-Al series magnesium alloys

镁合金成分	屈服强度/MPa	抗拉强度/MPa	延伸率/%	成形方法	参考文献
AZ91D	169	299	8.0	触变射铸	[15]
AZ91D	192	279	10.0	触变射铸	[20]
AZ91D		240	4.5	触变射铸	[67]
AZ91D	180	230	4.4	触变射铸	[77]
AZ91D		245	3.9	触变射铸	[110]
AZ91D		285	7.6	触变射铸	[111]
AZ91D		253	4.3	触变射铸	[112]
AZ91D		170	3.0	触变射铸	[113]
AZ91D	170	273	7.2	触变射铸	[71]
AZ91D	158	256	6.0	触变射铸	[114]
AZ91D	145	248	7.4	流变射铸	[34]
AZ91D	138	225	4.5	流变压铸	[115]
AZ91D	144	200	2.5	高压压铸	[115]
AM60	127	192	5.0	触变射铸	[15]
AM50A	138	268	20.0	触变射铸	[22]
AM60B	147	278	18.8	触变射铸	[22]
AM60B	160	240	7.2	触变射铸	[77]
AM60	140	210	5.4	触变射铸	[116]
AM60B	146	269	11.0	触变射铸	[117]
AM50A	140	269	7.8	触变射铸	[118]
AM60B	102	155	8.0～9.0	高压压铸	[103]
AM60B		141	5.3	高压压铸	[119]
AM50A		103	5.5	高压压铸	[120]

下载: 导出CSV

表 4 国内外部分设备制造商旗下3000～4000 t级镁合金触变射铸成形机参数^{[70,136,139-143]}

Table 4. Parameters of 3000−4000 t thixomolding machines from selected domestic and international equipment manufacturers^{[70,136,139-143]}

设备厂家	型号	设备吨位/t	锁模机构	螺杆直径/mm	最大理论注射量/kg	已公布下一代设备吨位/t
日本制钢所	JLM3000-MGIIeL	3000	三板式	130	8
海天金属	HMG3000	3000	三板式	150	10	5000
伊之密	UN3200MGII	3200	三板式	160	11	6600
伯乐智能	MTX4000D	4000	二板式	170	17

下载: 导出CSV

参考文献(149)

[1]	王渠东. 镁合金及其成形技术[M]. 北京: 机械工业出版社, 2017: 5. Wang Q D. Magnesium alloys and their forming technologies[M]. Beijing: China Machine Press, 2017: 5(in Chinese).
[2]	Powell B R, Krajewski P E, Luo A A. Magnesium alloys for lightweight powertrains and automotive structures[M]//Mallick P K. Materials, design and manufacturing for lightweight vehicles. 2nd ed. Cambridge: Woodhead Publishing, 2021: 125-186.
[3]	邓辉, 郭学锋, 黄丹, 等. 镁合金半固态成形技术的研究和发展[J]. 热加工工艺, 2011, 40(23): 9-13. Deng H, Guo X F, Huang D, et al. Research and development of semi-solid processing of magnesium alloy[J]. Hot Working Technology, 2011, 40(23): 9-13(in Chinese).
[4]	潘帅, 李强, 于宝义, 等. 镁合金半固态研究进展[J]. 稀有金属材料与工程, 2019, 48(7): 2379-2385. Pan S, Li Q, Yu B Y, et al. Research progress of Mg alloy semisolid forming[J]. Rare Metal Materials and Engineering, 2019, 48(7): 2379-2385(in Chinese).
[5]	D’Errico F, Rivolta B, Gerosa R, et al. Thixomolded magnesium alloys: strategic product innovation in automobiles[J]. JOM, 2008, 60(11): 70-76.
[6]	Fang X G, Lü S L, Zhao L, et al. Microstructure and mechanical properties of a novel Mg-RE-Zn-Y alloy fabricated by rheo-squeeze casting[J]. Materials & Design, 2016, 94: 353-359.
[7]	She J, Chen J, Xiong X M, et al. Research advances of magnesium and magnesium alloys globally in 2023[J]. Journal of Magnesium and Alloys, 2024, 12(9): 3441-3475.
[8]	Czerwinski F. Magnesium research in Canada: highlights of the last two decades[J]. Journal of Magnesium and Alloys, 2023, 11(10): 3484-3510.
[9]	Janudom S, Wannasin J, Basem J, et al. Characterization of flow behavior of semi-solid slurries containing low solid fractions in high-pressure die casting[J]. Acta Materialia, 2013, 61(16): 6267-6275.
[10]	Luo A A. Magnesium casting technology for structural applications[J]. Journal of Magnesium and Alloys, 2013, 1(1): 2-22.
[11]	Michaeli W, Rettemeier G. Thixomoulding injection moulding of semi-solid magnesium alloys[J]. Journal of Polymer Engineering, 2004, 24(1-3): 49-64.
[12]	Wu G H, Wang C L, Sun M, et al. Recent developments and applications on high-performance cast magnesium rare-earth alloys[J]. Journal of Magnesium and Alloys, 2021, 9(1): 1-20.
[13]	Spencer D B, Mehrabian R, Flemings M C. Rheological behavior of Sn-15 pct Pb in the crystallization range[J]. Metallurgical Transactions, 1972, 3(7): 1925-1932.
[14]	Czerwinski F. Magnesium injection molding[M]. Berlin: Springer, 2008: 81.
[15]	Decker R, Lebeau S, Wilson B, et al. Thixomolding^® at 25 years[J]. Solid State Phenomena, 2016, 256: 3-8.
[16]	徐平, 杨昆. 金属半固态成型发展现状及展望[J]. 世界科技研究与发展, 2010, 32(1): 77-79. Xu P, Yang K. The development and prospects of semi-solid metal forming[J]. World Sci-Tech R & D, 2010, 32(1): 77-79(in Chinese).
[17]	Kirkwood D H. Semisolid metal processing[J]. International Materials Reviews, 1994, 39(5): 173-189.
[18]	Lebeau S E, Walukas M W, Decker R F, et al. Evaluation of thixomolded, magnesium alloy components for structural automotive applications[C]//Proceedings of the SAE 2004 World Congress & Exhibition. Warrendale: SAE International, 2004.
[19]	肖冠菲, 姜巨福, 王迎, 等. 高熔点合金半固态加工技术研究进展[J]. 塑性工程学报, 2019, 26(2): 62-68. Xiao G F, Jiang J F, Wang Y, et al. Research progress of semi-solid processing technology of high-melting alloy[J]. Journal of Plasticity Engineering, 2019, 26(2): 62-68(in Chinese).
[20]	Okayasu M, Fukui T. A study of the mechanical properties of a Mg-Al-Zn alloy (AZ91) produced via thixomolding[J]. International Journal of Material Forming, 2021, 14(2): 271-280.
[21]	罗守靖, 田文彤, 李金平. 21世纪最具发展前景的近净成形技术——半固态加工[J]. 特种铸造及有色合金, 2001(S1): 175-180. Luo S J, Tian W T, Li J P. The most promising near-net forming technology in 21 Century—semi-solid processing[J]. Special Casting and Nonferrous Alloys, 2001(S1): 175-180(in Chinese).
[22]	Kiuchi M, Kopp R. Mushy/semi-solid metal forming technology–present and future[J]. CIRP Annals, 2002, 51(2): 653-670.
[23]	Flemings M C. Behavior of metal alloys in the semisolid state[J]. Metallurgical Transactions B, 1991, 22(3): 269-293.
[24]	Flemings M C, Martinez R A. Principles of microstructural formation in semi-solid metal processing[J]. Solid State Phenomena, 2006, 116-117: 1-8.
[25]	Chang Z Y, Su N, Wu Y J, et al. Semisolid rheoforming of magnesium alloys: a review[J]. Materials & Design, 2020, 195: 108990.
[26]	Vogel A, Cantor B. Stability of a spherical particle growing from a stirred melt[J]. Journal of Crystal Growth, 1977, 37(3): 309-316.
[27]	Doherty R D, Lee H I, Feest E A. Microstructure of stir-cast metals[J]. Materials Science and Engineering, 1984, 65(1): 181-189.
[28]	Apaydin N, Prabhakar K V, Doherty R D. Special grain boundaries in rheocast Al-Mg[J]. Materials Science and Engineering, 1980, 46(2): 145-150.
[29]	Ruvalcaba D, Mathiesen R H, Eskin D G, et al. In situ observations of dendritic fragmentation due to local solute-enrichment during directional solidification of an aluminum alloy[J]. Acta Materialia, 2007, 55(13): 4287-4292.
[30]	Hellawell A, Liu S, Lu S Z. Dendrite fragmentation and the effects of fluid flow in castings[J]. JOM, 1997, 49(3): 18-20.
[31]	Li T, Lin X, Huang W. Morphological evolution during solidification under stirring[J]. Acta Materialia, 2006, 54(18): 4815-4824.
[32]	Paradies C J, Smith R N, Glicksman M E. The influence of convection during solidification on fragmentation of the mushy zone of a model alloy[J]. Metallurgical and Materials Transactions A, 1997, 28(3): 875-883.
[33]	Behnamfard S, Mousavian R T, Khosroshahi R A, et al. A comparison between hot-rolling process and twin-screw rheo-extrusion process for fabrication of aluminum matrix nanocomposite[J]. Materials Science and Engineering: A, 2019, 760: 152-157.
[34]	Fan Z. Development of the rheo-diecasting process for magnesium alloys[J]. Materials Science and Engineering: A, 2005, 413: 72-78.
[35]	毛卫民. 半固态金属浆料先进制备技术的研究进展[J]. 铸造, 2012(8): 839-855. Mao W M. Research progress of advanced preparation technology for semi-solid metal slurry[J]. Foundry, 2012(8): 839-855(in Chinese).
[36]	Vives C. Elaboration of semisolid alloys by means of new electromagnetic rheocasting processes[J]. Metallurgical Transactions B, 1992, 23(2): 189-206.
[37]	Wang C L, Chen A T, Zhang L, et al. Preparation of an Mg-Gd-Zn alloy semisolid slurry by low frequency electro-magnetic stirring[J]. Materials & Design, 2015, 84: 53-63.
[38]	Ji S, Fan Z. Solidification behavior of Sn-15 wt pct Pb alloy under a high shear rate and high intensity of turbulence during semisolid processing[J]. Metallurgical and Materials Transactions A, 2002, 33(11): 3511-3520.
[39]	Das A, Ji S, Fan Z. Morphological development of solidification structures under forced fluid flow: a Monte-Carlo simulation[J]. Acta Materialia, 2002, 50(18): 4571-4585.
[40]	Wu S S, Wu X P, Xiao Z H. A model of growth morphology for semi-solid metals[J]. Acta Materialia, 2004, 52(12): 3519-3524.
[41]	Qin R S, Wallach E R. Phase-field simulation of semisolid metal processing under conditions of laminar and turbulent flow[J]. Materials Science and Engineering: A, 2003, 357(1-2): 45-54.
[42]	Fan Z, Liu G. Solidification behaviour of AZ91D alloy under intensive forced convection in the RDC process[J]. Acta Materialia, 2005, 53(16): 4345-4357.
[43]	张景新, 张奎, 刘国钧, 等. 电磁搅拌制备半固态材料非枝晶组织的形成机制[J]. 中国有色金属学报, 2000, 10(4): 511. Zhang J X, Zhang K, Liu G J, et al. Formation mechanism of non-dendritic structure in semi-solid metals produced by ES process[J]. The Chinese Journal of Nonferrous Metals, 2000, 10(4): 511(in Chinese).
[44]	Martinez R A, Flemings M C. Evolution of particle morphology in semisolid processing[J]. Metallurgical and Materials Transactions A, 2005, 36(8): 2205-2210.
[45]	赵春芳, 马光全, 颜泽华, 等. 浇注温度对近液相线挤压铸造AZ91D镁合金组织及性能的影响[J]. 特种铸造及有色合金, 2024, 44(1): 105-110. Zhao C F, Ma G Q, Yan Z H, et al. Effects of pouring temperature on microstructure and mechanical property of near-liquidus squeeze casting AZ91D alloy[J]. Special Casting and Nonferrous Alloys, 2024, 44(1): 105-110(in Chinese).
[46]	王娜, 周志敏, 路贵民. 近液相线铸造过程中近球形α相的形成机理[J]. 材料科学与工艺, 2011, 19(2): 139-143. Wang N, Zhou Z M, Lu G M. Formation mechanism of sphere-like α phase in near-liquidus casting[J]. Materials Science and Technology, 2011, 19(2): 139-143(in Chinese).
[47]	郭洪民, 杨湘杰. LSPSF流变铸造工艺及其应用[J]. 特种铸造及有色合金, 2008(S1): 355-359. Guo H M, Yang X J. Overview of LSPSF rheocasting process and its applications[J]. Special Casting and Nonferrous Alloys, 2008(S1): 355-359(in Chinese).
[48]	Zhang Y F, Liu Y B, Zhang Q Q, et al. Microstructural evolution of thixomolded AZ91D magnesium alloy with process parameters variation[J]. Materials Science and Engineering: A, 2007, 444(1-2): 251-256.
[49]	Young K P, Kyonka C P, Courtois J A. Fine grained metal composition: US4415374[P]. 1983-11-15.
[50]	Zhang L, Liu Y B, Cao Z Y, et al. Effects of isothermal process parameters on the microstructure of semisolid AZ91D alloy produced by SIMA[J]. Journal of Materials Processing Technology, 2009, 209(2): 792-797.
[51]	程远胜, 卢华领, 陈善荣, 等. 高稀土Mg-Gd合金半固态等温处理过程中微观组织演变[J]. 特种铸造及有色合金, 2019, 39(3): 238-242. Cheng Y S, Lu H L, Chen S R, et al. Microstructure evolution of high rare earth Mg-Gd alloy during semi-solid isothermal treatment process[J]. Special Casting and Nonferrous Alloys, 2019, 39(3): 238-242(in Chinese).
[52]	Kirkwood D H, Sellars C M, Elias-Boyed L G. Thixotropic materials: US5133811[P]. 1992-07-28.
[53]	Chen Q, Zhao Z D, Chen G, et al. Effect of accumulative plastic deformation on generation of spheroidal structure, thixoformability and mechanical properties of large-size AM60 magnesium alloy[J]. Journal of Alloys and Compounds, 2015, 632: 190-200.
[54]	Jiang J F, Wang Y, Xiao G F, et al. Comparison of microstructural evolution of 7075 aluminum alloy fabricated by SIMA and RAP[J]. Journal of Materials Processing Technology, 2016, 238: 361-372.
[55]	Jiang J F, Luo S J. Reheating microstructure of refined AZ91D magnesium alloy in semi-solid state[J]. Transactions of Nonferrous Metals Society of China, 2004, 14(6): 1074-1081.
[56]	Luo S J, Chen Q, Zhao Z D. Effects of processing parameters on the microstructure of ECAE-formed AZ91D magnesium alloy in the semi-solid state[J]. Journal of Alloys and Compounds, 2009, 477(1-2): 602-607.
[57]	Jiang J F, Wang Y, Luo S J. Application of equal channel angular extrusion to semi-solid processing of magnesium alloy[J]. Materials Characterization, 2007, 58(2): 190-196.
[58]	Fu J L, Jiang H J, Wang K K. Influence of processing parameters on microstructural evolution and tensile properties for 7075 Al alloy prepared by an ECAP-based SIMA process[J]. Acta Metallurgica Sinica (English Letters), 2018, 31(4): 337-350.
[59]	Kim W J, Jeong H G, Jeong H T. Achieving high strength and high ductility in magnesium alloys using severe plastic deformation combined with low-temperature aging[J]. Scripta Materialia, 2009, 61(11): 1040-1043.
[60]	Yang B W, Wang Y, Gao M Q, et al. Microstructural evolution and strengthening mechanism of Al-Mg alloys with fine grains processed by accumulative continuous extrusion forming[J]. Journal of Materials Science & Technology, 2022, 128: 195-204.
[61]	Mohammadi A, Enikeev N A, Murashkin M Y, et al. Developing age-hardenable Al-Zr alloy by ultra-severe plastic deformation: significance of supersaturation, segregation and precipitation on hardening and electrical conductivity[J]. Acta Materialia, 2021, 203: 116503.
[62]	Jiang J F, Wang Y, Du Z M, et al. Microstructure and properties of AZ80 alloy semisolid billets fabricated by new strain induced melt activated method[J]. Transactions of Nonferrous Metals Society of China, 2012, 22: s422-s427.
[63]	Jiang J F, Wang Y, Qu J J, et al. Microstructure evolution of AM60 magnesium alloy semisolid slurry prepared by new SIMA[J]. Journal of Alloys and Compounds, 2010, 497(1-2): 62-67.
[64]	Jiang J F, Lin X, Wang Y, et al. Microstructural evolution of AZ61 magnesium alloy predeformed by ECAE during semisolid isothermal treatment[J]. Transactions of Nonferrous Metals Society of China, 2012, 22(3): 555-563.
[65]	Czerwinski F. On the generation of thixotropic structures during melting of Mg-9%Al-1%Zn alloy[J]. Acta Materialia, 2002, 50(12): 3267-3283.
[66]	Czerwinski F. Magnesium alloy particulates for thixomolding applications manufactured by rapid solidification[J]. Materials Science and Engineering: A, 2004, 367(1-2): 261-271.
[67]	Czerwinski F, Zielinska-Lipiec A, Pinet P J, et al. Correlating the microstructure and tensile properties of a thixomolded AZ91D magnesium alloy[J]. Acta Materialia, 2001, 49(7): 1225-1235.
[68]	Zirps M. How thixomolding is redefining electric vehicle production[EB/OL]. (2024-01-15). [2025-08-02]. https://www.lightmetalage.com/news/industry-news/magnesium/how-thixomolding-is-redefining-electric-vehicle-production/.
[69]	伊之密. 半固态镁合金注射成型机[EB/OL]. [2025-08-02]. https://www.yizumi.com/tms/thixomolding-machine. YIZUMI. Thixomolding magnesium machine[EB/OL]. [2025-08-02]. https://www.yizumi.com/tms/thixomolding-machine(in Chinese).
[70]	海天金属. 镁合金注射成型机[EB/OL]. [2025-08-02]. https://haitian-dc.com/products/hmg-series/. Haitian Die Casting. Thixomolding magnesium machine[EB/OL]. [2025-08-02]. https://haitian-dc.com/products/hmg-series/(in Chinese).
[71]	Gu L D, Shang X Q, Wang J, et al. Effect of hierarchical cell structure and internal pores on mechanical properties of thixomolded AZ91D magnesium alloy[J]. Transactions of Nonferrous Metals Society of China, 2025, 35(3): 749-764.
[72]	Qin Z H, Kang N, Zhang F Y, et al. Role of defects on the high cycle fatigue behavior of selective laser melted Al-Mg-Sc-Zr alloy[J]. International Journal of Fracture, 2022, 235(1): 129-143.
[73]	Murakami Y, Miwa K J, Omura N, et al. Effects of injection speed and fraction solid on tensile strength in semisolid injection molding of AZ91D magnesium alloy[J]. Materials Transactions, 2012, 53(10): 1775-1781.
[74]	胡宇阳. 热处理工艺对半固态注射成形镁合金组织及性能研究[D]. 西安: 西安科技大学, 2023. Hu Y Y. Effect of heat treatment process on microstructure and performance of semi-solid injection molded magnesium alloy[D]. Xi’an: Xi’an University of Science and Technology, 2023(in Chinese).
[75]	Fu J L, Wang K K, Li X W, et al. Microstructure evolution and thixoforming behavior of 7075 aluminum alloy in the semi-solid state prepared by RAP method[J]. International Journal of Minerals, Metallurgy, and Materials, 2016, 23(12): 1404-1415.
[76]	徐升亮, 郭洪民, 杨湘杰. 金属半固态浆料非枝晶微观组织形成机制与表征[J]. 精密成形工程, 2024, 16(7): 109-123. Xu S L, Guo H M, Yang X J. Formation mechanism and characterization of non-dendritic microstructure in metal semi-solid slurry[J]. Journal of Netshape Forming Engineering, 2024, 16(7): 109-123(in Chinese).
[77]	Patel H A, Chen D L, Bhole S D, et al. Microstructure and tensile properties of thixomolded magnesium alloys[J]. Journal of Alloys and Compounds, 2010, 496(1-2): 140-148.
[78]	Buzolin R H, Volovitch P, Maltseva A, et al. Thixomolded AZ91D and MRI153M magnesium alloys and their enhanced corrosion resistance[J]. Materials and Corrosion, 2020, 71(3): 339-351.
[79]	Yang L J, Wei Y H, Hou L F. Microstructure evolution of thixomolding AZ91D magnesium alloy during heat treatment[J]. Journal of Materials Science, 2010, 45(13): 3626-3634.
[80]	Sadayappan K, Vassos M. Evaluation of a thixomolded magnesium alloy component for automotive application[C]//Proceedings of the SAE 2010 World Congress & Exhibition. Warrendale: SAE International, 2010.
[81]	Otarawanna S, Gourlay C M, Laukli H I, et al. Agglomeration and bending of equiaxed crystals during solidification of hypoeutectic Al and Mg alloys[J]. Acta Materialia, 2010, 58(1): 261-271.
[82]	Luo A A, Sachdev A K, Apelian D. Alloy development and process innovations for light metals casting[J]. Journal of Materials Processing Technology, 2022, 306: 117606.
[83]	Czerwinski F, Zielinska-Lipiec A. The microstructure evolution during semisolid molding of a creep-resistant Mg-5Al-2Sr alloy[J]. Acta Materialia, 2005, 53(12): 3433-3444.
[84]	Chen G, Zhang S, Zhang H M, et al. Controlling liquid segregation of semi-solid AZ80 magnesium alloy by back pressure thixoextruding[J]. Journal of Materials Processing Technology, 2018, 259: 88-95.
[85]	Wu G H, Zhang Y, Liu W C, et al. Microstructure evolution of semi-solid Mg-10Gd-3Y-0.5Zr alloy during isothermal heat treatment[J]. Journal of Magnesium and Alloys, 2013, 1(1): 39-46.
[86]	Chen Y S, Zhang L, Liu W C, et al. Preparation of Mg-Nd-Zn-(Zr) alloys semisolid slurry by electromagnetic stirring[J]. Materials & Design, 2016, 95: 398-409.
[87]	Zhang Y, Wu G H, Liu W C, et al. Effects of processing parameters on microstructure of semi-solid slurry of AZ91D magnesium alloy prepared by gas bubbling[J]. Transactions of Nonferrous Metals Society of China, 2015, 25(7): 2181-2187.
[88]	Zhang Y, Wu G H, Liu W C, et al. Preparation and rheo-squeeze casting of semi-solid AZ91–2 wt% Ca magnesium alloy by gas bubbling process[J]. Journal of Materials Research, 2015, 30(6): 825-832.
[89]	Wang C L, Wu G H, Sun M, et al. Formation of non-dendritic microstructures in preparation of semi-solid Mg-RE alloys slurries: roles of RE content and cooling rate[J]. Journal of Materials Processing Technology, 2020, 279: 116545.
[90]	Fang X G, Wu S S, Lü S L, et al. Microstructure evolution and mechanical properties of quasicrystal-reinforced Mg-Zn-Y alloy subjected to ultrasonic vibration[J]. Materials Science and Engineering: A, 2017, 679: 372-378.
[91]	Chang Z Y, Deng Q C, Lan Q, et al. Microstructure and mechanical properties of Mg-Gd-Y-Zn-Zr alloy prepared by rheo-diecasting[J]. Materials Science and Engineering: A, 2022, 848: 143287.
[92]	Guo H M, Zhang A S, Hu B, et al. Refining microstructure of AZ91 magnesium alloy by introducing limited angular oscillation during initial stage of solidification[J]. Materials Science and Engineering: A, 2012, 532: 221-229.
[93]	Yang X J, Yu A S, Zheng B, et al. Microstructure evolution of a semisolid magnesium alloy slurry obtained via an internal rapid cooling stirring process (IRCSP)[J]. Metallurgical and Materials Transactions B, 2020, 51(6): 2895-2904.
[94]	Xing B, Li Y D, Ma Y, et al. Microstructure of partially remelted billet of AM60 alloy prepared with self-inoculation method[J]. Transactions of Nonferrous Metals Society of China, 2010, 20(9): 1622-1629.
[95]	Meng Y, Chen Q, Sugiyama S, et al. Effects of reheating and subsequent rapid cooling on microstructural evolution and semisolid forming behaviors of extruded Mg-8.20Gd-4.48Y-3.34Zn-0.36Zr alloy[J]. Journal of Materials Processing Technology, 2017, 247: 192-203.
[96]	Jiang J F, Wang Y, Qu J J, et al. Preparation and thixoforging of semisolid billet of AZ80 magnesium alloy[J]. Transactions of Nonferrous Metals Society of China, 2010, 20(9): 1731-1736.
[97]	Meng Z Y, Wang C, Hua Z M, et al. Achieving extraordinary thermal stability of fine-grained structure in a dilute magnesium alloy[J]. Materials Research Letters, 2022, 10(12): 797-804.
[98]	Pan H C, Kang R, Li J R, et al. Mechanistic investigation of a low-alloy Mg-Ca-based extrusion alloy with high strength-ductility synergy[J]. Acta Materialia, 2020, 186: 278-290.
[99]	蒋文明, 樊自田. 铝/镁合金特种精密铸造技术的研究进展及发展趋势[J]. 金属加工(热加工), 2023(2): 1-9. Jiang W M, Fan Z T. Research progress and development trend of special precision casting technology for Al alloy and Mg alloy[J]. MW Metal Forming, 2023(2): 1-9(in Chinese).
[100]	贾海龙, 丁家源, 查敏, 等. 镁合金压力下凝固技术研究进展[J]. 当代化工研究, 2022(20): 148-151. Jia H L, Ding J Y, Zha M, et al. Current research progress on solidification techniques under pressure for magnesium alloys[J]. Modern Chemical Research, 2022(20): 148-151(in Chinese).
[101]	Berman T D, Pollock T M, Jones J W. Microstructure and texture through thixomolding and thermomechanical processing and the role of Mg₁₇Al₁₂ particles[J]. Metallurgical and Materials Transactions A, 2016, 47(6): 3125-3136.
[102]	Li Z X, Li D J, Zhou W K, et al. Characterization on the formation of porosity and tensile properties prediction in die casting Mg alloys[J]. Journal of Magnesium and Alloys, 2022, 10(7): 1857-1867.
[103]	Jiang J F, Chen G, Wang Y, et al. Microstructure and mechanical properties of thin-wall and high-rib parts of AM60B Mg alloy formed by double control forming and die casting under the optimal conditions[J]. Journal of Alloys and Compounds, 2013, 552: 44-54.
[104]	Decker R, Lebeau S, Berman T, et al. Thermomechanical processing of thixomolded alloys[C]//Proceedings of the Magnesium Technology 2017. Berlin: Springer, 2017: 235-243.
[105]	Song J, Xiong S M, Li M, et al. In situ observation of tensile deformation of high-pressure die-cast specimens of AM50 alloy[J]. Materials Science and Engineering: A, 2009, 520(1-2): 197-201.
[106]	Zhao Z D, Chen Q, Huang S H, et al. Microstructure and tensile properties of AM50A magnesium alloy prepared by recrystallisation and partial melting process[J]. Transactions of Nonferrous Metals Society of China, 2010, 20(9): 1630-1637.
[107]	Anthony B T, Dowdell B G, Miller V M. Evolution of the intermetallic particle distribution in thixomolded magnesium alloys[C]//Proceedings of the Magnesium Technology 2019. Berlin: Springer, 2019: 193-197.
[108]	杨丽景, 卫英慧, 侯利锋, 等. 触变成型镁合金铸件热处理显微组织的演变[J]. 材料热处理学报, 2010, 31(4): 100-104. Yang L J, Wei Y H, Hou L F, et al. Effect of heat treatment on microstructure of thixoformed AZ91D magnesium alloy[J]. Transactions of Materials and Heat Treatment, 2010, 31(4): 100-104(in Chinese) .
[109]	Zhang Y, Li X P, Sun S P, et al. Microstructure evolution and mechanical properties of rheo-squeeze casting AZ91-Ca alloy during heat treatment[J]. China Foundry, 2017, 14(6): 485-491.
[110]	张婷, 赵宇宏, 陈利文, 等. 触变注射成形法制备石墨烯纳米片增强镁基复合材料[J]. 金属学报, 2019, 55(5): 638-646. Zhang T, Zhao Y H, Chen L W, et al. Graphene nanoplatelets reinforced magnesium matrix composites fabricated by thixomolding[J]. Acta Metallurgica Sinica, 2019, 55(5): 638-646(in Chinese).
[111]	Zhang Y F, Liu Y B, Cao Z Y, et al. Mechanical properties of thixomolded AZ91D magnesium alloy[J]. Journal of Materials Processing Technology, 2009, 209(3): 1375-1384.
[112]	Chen L W, Zhao Y H, Li M X, et al. Reinforced AZ91D magnesium alloy with thixomolding process facilitated dispersion of graphene nanoplatelets and enhanced interfacial interactions[J]. Materials Science and Engineering: A, 2021, 804: 140793.
[113]	Czerwinski F, Pinet P J, Overbeeke J. The influence of primary solid content on the tensile properties of a thixomolded AZ91D magnesium alloy[M]//Hryn J N. Magnesium technology 2001. Warrendale: TMS, 2001.
[114]	Decker R. The technology and commercialization of thixomolding®[J]. Solid State Phenomena, 2012, 192-193: 47-57.
[115]	Yang L Q, Kang Y L, Zhang F, et al. Rheo-diecasting of AZ91D magnesium alloy by taper barrel rheomoulding process[J]. Transactions of Nonferrous Metals Society of China, 2010, 20(6): 966-972.
[116]	Mansoor B, Mukherjee S, Ghosh A. Microstructure and porosity in thixomolded Mg alloys and minimizing adverse effects on formability[J]. Materials Science and Engineering: A, 2009, 512(1-2): 10-18.
[117]	Czerwinski F. The generation of Mg-Al-Zn alloys by semisolid state mixing of particulate precursors[J]. Acta Materialia, 2004, 52(17): 5057-5069.
[118]	Lebeau S, Decker R. Microstructural design of thixomolded magnesium alloys[C]//Proceedings of the 5th International Conference on Semi-solid Processing of Alloys and Composites. Zurich: Trans Tech Publications, 1998: 301-306.
[119]	Jiang J F, Wang Y, Li Y F, et al. Microstructure and mechanical properties of the motorcycle cylinder body of AM60B magnesium alloy formed by combining die casting and forging[J]. Materials & Design, 2012, 37: 202-210.
[120]	Jiang J F, Wang Y, Qu J J. Effect of process parameters on microstructure and properties of AM50A magnesium alloy parts formed by double control forming[J]. Transactions of Nonferrous Metals Society of China, 2014, 24(2): 321-333.
[121]	高志恒. 镁合金的腐蚀特性及防护技术[J]. 表面技术, 2016, 45(3): 169-177. Gao Z H. Corrosion characteristics and protection techniques for Mg alloys[J]. Surface Technology, 2016, 45(3): 169-177(in Chinese).
[122]	Zander D, Schnatterer C. The influence of manufacturing processes on the microstructure and corrosion of the AZ91D magnesium alloy evaluated using a computational image analysis[J]. Corrosion Science, 2015, 98: 291-303.
[123]	Zhang Y, He C Y, Yu Q, et al. Nacre-like surface nanolaminates enhance fatigue resistance of pure titanium[J]. Nature Communications, 2024, 15: 6917.
[124]	Patel H A, Chen D L, Bhole S D, et al. Low cycle fatigue behavior of a semi-solid processed AM60B magnesium alloy[J]. Materials & Design, 2013, 49: 456-464.
[125]	Patel H A, Chen D L, Bhole S D, et al. Cyclic deformation and twinning in a semi-solid processed AZ91D magnesium alloy[J]. Materials Science and Engineering: A, 2010, 528(1): 208-219.
[126]	Cepeda-Jiménez C M, Castillo-Rodríguez M, Pérez-Prado M T. Origin of the low precipitation hardening in magnesium alloys[J]. Acta Materialia, 2019, 165: 164-176.
[127]	Amberger D, Eisenlohr P, Göken M. Microstructural evolution during creep of Ca-containing AZ91[J]. Materials Science and Engineering: A, 2009, 510-511: 398-402.
[128]	张明全, 徐超, 张旭, 等. Ca、Al质量比对Mg-Al-Ca-Mn合金组织和性能的影响[J]. 特种铸造及有色合金, 2023, 43(3): 296-299. Zhang M Q, Xu C, Zhang X, et al. Effects of Ca,Al mass ratio on microstructure and properties of Mg-Al-Ca-Mn alloy[J]. Special Casting and Nonferrous Alloys, 2023, 43(3): 296-299(in Chinese).
[129]	Tsukeda T, Maehara A, Saito K, et al. Mechanical properties and microstructure of heat-resistant Mg-Al-Ca alloys formed by thixomolding[C]//Proceedings of the Magnesium Technology 2000. New York: Wiley, 2000: 395-402.
[130]	Prasad S V S, Prasad S B, Verma K, et al. The role and significance of magnesium in modern day research-a review[J]. Journal of Magnesium and Alloys, 2022, 10(1): 1-61.
[131]	Suzuki A, Saddock N D, Jones J W, et al. Solidification paths and eutectic intermetallic phases in Mg-Al-Ca ternary alloys[J]. Acta Materialia, 2005, 53(9): 2823-2834.
[132]	Cai H S, Wang Z Z, Liu L, et al. Regulation mechanism of cooling rate and RE (Ce,Y,Gd) on Mg₁₇Al₁₂ in AZ91 alloy and it’s role in fracture process[J]. Journal of Materials Research and Technology, 2022, 19: 3930-3941.
[133]	宿彦京, 付华栋, 白洋, 等. 中国材料基因工程研究进展[J]. 金属学报, 2020, 56(10): 1313-1323. Su Y J, Fu H D, Bai Y, et al. Progress in materials genome engineering in China[J]. Acta Metallurgica Sinica, 2020, 56(10): 1313-1323(in Chinese).
[134]	Zhu Y B, Midson S P. The status of magnesium injection molding in China[J]. Solid State Phenomena, 2019, 285: 436-440.
[135]	Liu B, Yang J, Zhang X Y, et al. Development and application of magnesium alloy parts for automotive OEMs: a review[J]. Journal of Magnesium and Alloys, 2023, 11(1): 15-47.
[136]	The Japan Steel Works. Technical review[EB/OL]. (2023-11-01) [2025-08-02]. https://www.jsw.co.jp/ja/technology/technical_review/2023/.
[137]	查敏, 顾焘, 马品奎, 等. 轻合金大型一体化结构部件压铸成形技术研究进展[J]. 特种铸造及有色合金, 2024, 44(8): 1009-1022. Zha M, Gu T, Ma P K, et al. Research progress in die-casting technology for large-scale integrated structural components of light alloy[J]. Special Casting and Nonferrous Alloys, 2024, 44(8): 1009-1022(in Chinese).
[138]	压铸周刊. 全球首台3000T镁合金半固态双射台注射成型机投产[EB/OL]. (2024-12-29) [2025-08-02]. https://www.yzweekly.com/xyzd/qiche/9738.htm. Yzweekly. The world’s first 3000-ton magnesium alloy semi-solid dual-shot injection molding machine commissioned[EB/OL]. (2024-12-29) [2025-08-02]. https://www.yzweekly.com/xyzd/qiche/9738.htm(in Chinese).
[139]	The Japan Steel Works. Magnesium injection molding machine[EB/OL]. [2025-08-02]. https://www.jsw.co.jp/en/product/business/molding_machine/mm_1600/.
[140]	伊之密. 伊之密镁合金半固态设备, 助力开启新能源汽车20万吨级镁应用[EB/OL]. (2024-11-29) [2025-08-02]. https://www.yizumi.com/news/product/tms/tms-20241129. YIZUMI. YIZUMI’s semi-solid magnesium alloy equipment drives 200,000-ton-level magnesium application in new energy vehicles[EB/OL]. (2024-11-29) [2025-08-02]. https://www.yizumi.com/news/product/tms/tms-20241129(in Chinese).
[141]	伯乐智能. 高能镁合金半固态注射成型机[EB/OL]. [2025-08-02]. https://www.bole-machinery.com/contents/10/6.html. BOLE. High energy magnesium alloy semi-solid injection molding machine[EB/OL]. [2025-08-02]. https://www.bole-machinery.com/contents/10/6.html(in Chinese).
[142]	伯乐智能. 4000 t半固态镁合金注射成型机启运, 伯乐智能助力合作伙伴技术升级[EB/OL]. (2025-01-16) [2025-08-02]. https://www.bole-machinery.com/contents/17/38.html. BOLE. 4000 t semi-solid magnesium alloy injection molding machine starts shipping, Bole Intelligent helps partners to upgrade technology[EB/OL]. (2025-01-16) [2025-08-02]. https://www.bole-machinery.com/contents/17/38.html(in Chinese).
[143]	伊之密. 上海压铸展Day2 \| 伊之密 6600 T半固态镁合金注射成型机成功交付, 开启大型一体化镁合金成型时代[EB/OL]. (2025-07-17) [2025-08-02]. https://www.yizumi.com/news/product/tms/CHINA-DIECASTING-20250717. YIZUMI. Day 2 of Shanghai die casting exhibition\|Yizumi’s 6600 T semi-solid magnesium alloy injection molding machine successfully delivered, marking the beginning of the era of large-scale integrated magnesium alloy forming[EB/OL]. (2025-07-17) [2025-08-02]. https://www.yizumi.com/news/product/tms/CHINA-DIECASTING-20250717(in Chinese).
[144]	冯维彦, 杨锐. TPI模组——镁合金半固态成型的一种新工艺[C]//重庆市铸造年会. 重庆: 重庆市机械工程学会, 2025: 357-362. Feng W Y, Yang R. TPI module—a new process for semi-solid forming of magnesium alloys[C]//Proceedings of the Chongqing Foundry Annual Conference. Chongqing: Chongqing Society of Mechanical Engineering, 2025: 357-362(in Chinese).
[145]	宜镁泰. 镁合金制品[EB/OL]. [2025-08-02]. http://www.jsymt.com.cn/list/74_1.html. EMT. Magnesium alloy products[EB/OL]. [2025-08-02]. http://www.jsymt.com.cn/list/74_1.html(in Chinese).
[146]	陶永亮, 任登安, 赵勇, 等. 镁合金半固态注射成型在笔记本电脑上应用[J]. 模具制造, 2022, 22(2): 48-51. Tao Y L, Ren D A, Zhao Y, et al. Application of magnesium alloy semi-solid injection molding in notebook computer industry[J]. Die & Mould Manufacture, 2022, 22(2): 48-51(in Chinese).
[147]	伊之密. 内饰件[EB/OL]. [2025-08-02]. https://www.yizumi.com/tms/interior-parts. YIZUMI. Interior parts[EB/OL]. [2025-08-02]. https://www.yizumi.com/tms/interior-parts(in Chinese).
[148]	伯乐智能. 伯乐智能携手产学研联盟全球首例20寸镁合金半固态轮毂, 引领新能源汽车轻量化革命[EB/OL]. (2025-04-03) [2025-08-02]. https://www.bole-machinery.com/contents/17/56.html. BOLE. Bole Intelligent and industry-university-research alliance jointly developed the world’s first 20-inch magnesium alloy semi-solid wheel hub, leading the lightweight revolution of new energy vehicles[EB/OL]. (2025-04-03) [2025-08-02]. https://www.bole-machinery.com/contents/17/56.html(in Chinese).
[149]	压铸周刊. 4000 t超大型镁合金半固态注射成型机[EB/OL]. (2024-05-23) [2025-08-02]. https://www.yzweekly.com/cd2016/9144.htm. Yzweekly. 4000 -ton ultra-large-scale magnesium alloy semi-solid injection molding machine[EB/OL]. (2024-05-23) [2025-08-02]. https://www.yzweekly.com/cd2016/9144.htm(in Chinese).
