摘要:
氧化亚氮(N2O)作为一种无毒绿色、稳定安全的自增压推进剂，广泛应用于单组元和双组元火箭发动机，尤其在姿轨控动力领域具有重要的研究价值与应用潜力。对几类氧化亚氮推进系统的发展历程与研究现状进行综述，总结氧化亚氮推进系统的特点，指出推动其工程应用的关键技术，并进一步展望了氧化亚氮推进技术在姿轨控动力方向的未来研究重点，以期为航天姿轨控动力系统的创新与工程实践提供参考。
Abstract:Both monopropellant and bipropellant rocket engines frequently employ nitrous oxide (N2O) as a non-toxic, stable, and secure self-pressurizing propellant. It holds significant research value and application potential, especially in the field of attitude and orbit control propulsion. In addition to outlining research priorities and development recommendations for N2O propulsion technology in the field of attitude and orbit control, this paper reviews the development history and current research status of several types of nitrous oxide-based propulsion systems, summarizes their features and advantages, and identifies the key technologies facilitating their engineering application. The aim is to provide valuable references for the innovation and engineering practice of aerospace attitude and orbit control propulsion systems.
-

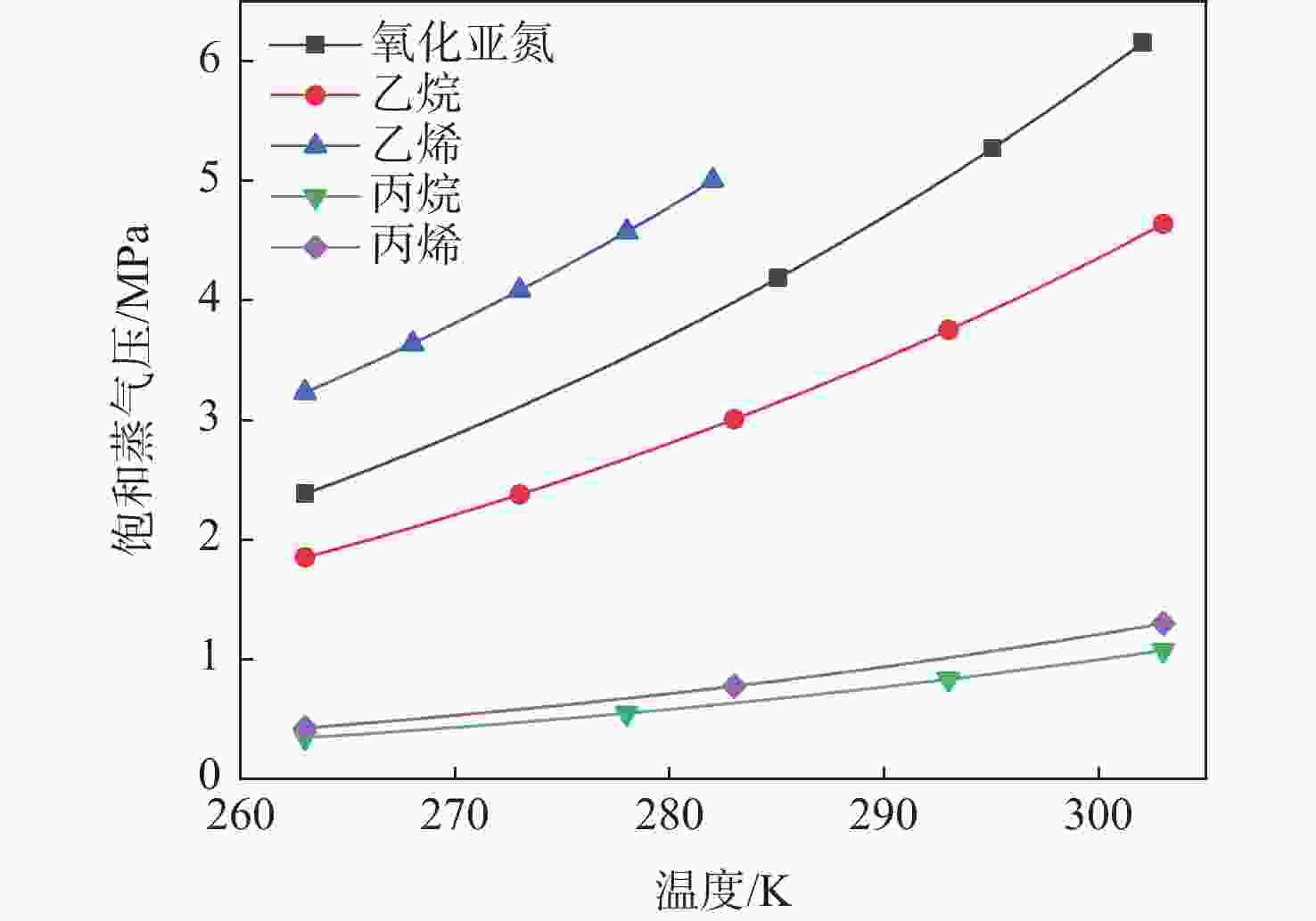

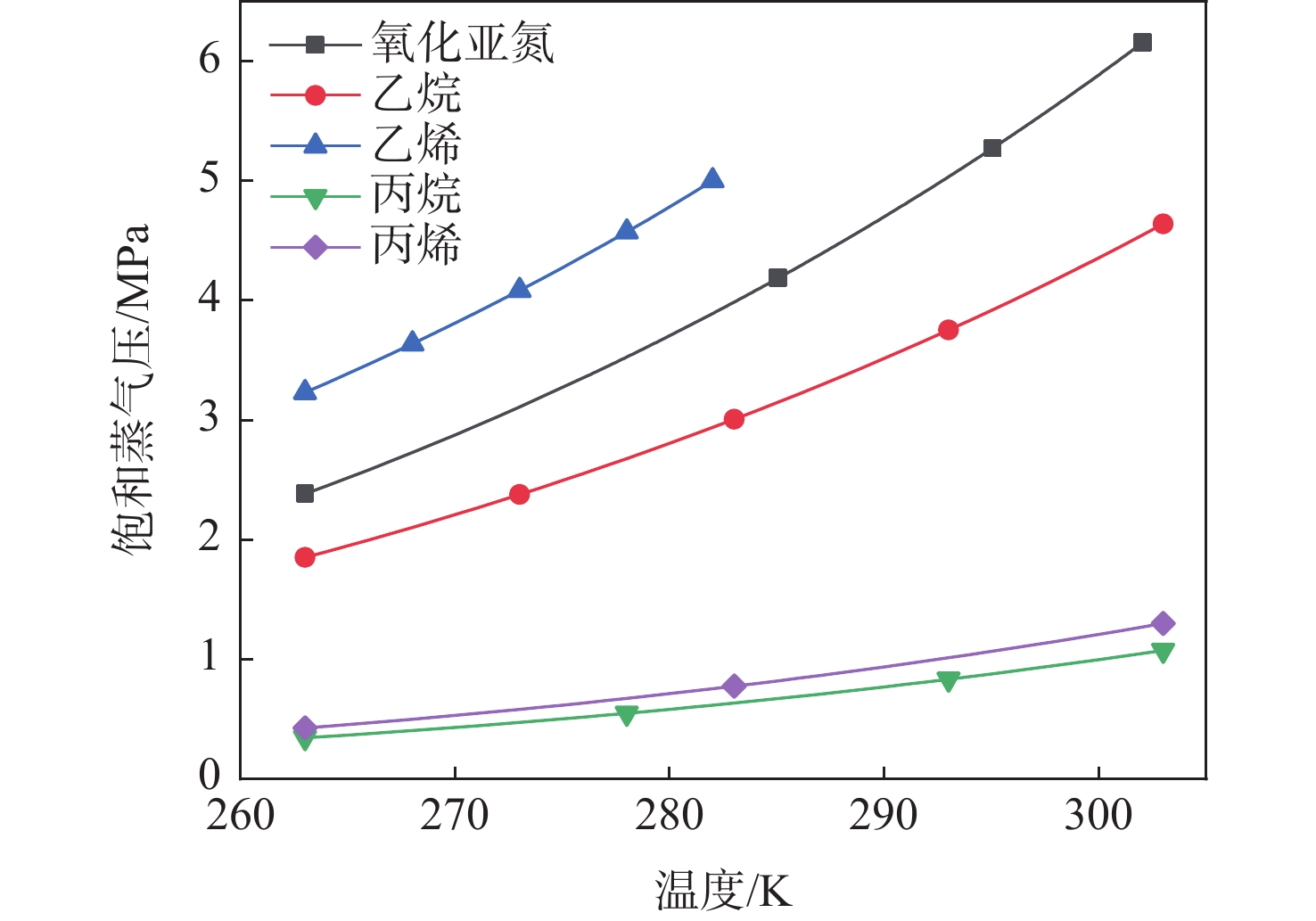

图 9 氧化亚氮、乙烷、乙烯、丙烷和丙烯的饱和蒸汽压
Figure 9. Saturated vapor pressures of nitrous oxide, ethane, ethylene, propane and propylene
表 1 氧化亚氮发动机研究概况
Table 1. Research overview of nitrous oxide engines
年份 研究机构 推进剂组成 发动机推力/N 应用 2020 德国-航空航天中心[4] N2O/乙烷 1，22 2000～2010 法国-机电一体化研究中心[9] N2O/PE 1000 探空火箭 2020 新西兰-黎明宇航公司[5] N2O/丙烯 0.49～1.35，6.1～16.7 B1和B20推进器，卫星推进 2000～2010 美国-斯坦福大学[10] N2O/石蜡 “游隼”探空火箭 2010～2020 美国-桑迪亚国家实验室[11] N2O/乙醇 577 空间推进 2010～2020 美国-Firester公司[12] NOFBX 450 推进动力-火星单级入轨火箭 2000～2010 美国-阿拉巴马大学 N2O/丙烷 200 空间推进 2000～2010 美国-阿拉巴马大学[13] N2O/乙醇 1 卫星推进 2000～2010 美国-鲁坦及美国缩尺复合体公司[14] N2O/HTPB 73500 “太空船一号”载人亚轨道飞行器 2010～2020 美国-斯卡尔德复合材料公司和英国-维珍银河公司[15] N2O/HTPB 310000 “太空船二号”载人亚轨道飞行器 2020 美国-脉冲公司[16] N2O/乙烷 26 空间推进 2020 美国-脉冲公司[17] N2O/乙烷 800 空间推进 2010～2020 日本-宇宙航空研究开发机构JAXA[18] N2O/乙醇 700 高超声速飞行器火箭验证平台 2010～2020 日本-宇宙航空研究开发机构JAXA[19] N2O/乙醇 2000 上面级主发动机 2010～2020 日本-宇宙航空研究开发机构JAXA[19] N2O/乙醇 20 系统推进 2010～2020 英国-AEL公司[20] N2O/乙醇（预混） 600 2000～2010 英国-萨里大学[21] N2O 5.00×10−4 “UoSAT-12”卫星推进 2000～2010 中国-北京航空航天大学[22] N2O/HTPB 7000 “北航二号”探空火箭 2000～2010 中国-北京航空航天大学[23] N2O 1 卫星推进 2020～2023 中国-西北工业大学[24] N2O/煤油 500 轨控定推力发动机 2023～2025 中国-西北工业大学[25] N2O/煤油 80～400 轨控变推力发动机 2024 中国-北京交通大学[26] N2O/煤油 2025 中国-北京理工大学[27] N2O/乙烷 2009 中国-国防科学技术大学[28] N2O/乙醇 注：HTPB为端羟基聚丁二烯（hydroxyl-terminated polybutadiene）；PE为聚乙烯（polyethylene））。
下载: 导出CSV
表 2 氧化亚氮双组元推进剂及其他推进剂的理论计算性能
Table 2. Calculated theoretical performance for nitrous oxide bipropellant and others
推进剂组合 燃烧温度/K 余氧系数α 特征速度C*/(m·s−1) 燃气相对分子质量Mc/(kg·mol−1) 比冲Isp/(m·s−1) N2O/C2H5OH 3219.3 0.8 1560.5 25.65 2460.7 N2O/CH4 3229.6 0.7 1622.7 23.67 2550.5 N2O/C2H6 3302.7 0.7 1615.8 24.38 2538.4 N2O/C2H4 3400.1 0.6 1643.5 24.10 2573.4 N2O/C2H2 3585.2 0.4 1732.3 22.41 2685.3 N2O/C3H8 3320.9 0.7 1609.8 24.69 2528.5 N2O4/MMH 3384.3 0.6 1730.6 20.40 2725.7 LOX/LCH4 3405.9 0.7 1835.6 19.91 2918.3 LOX/JP-10 3631.0 0.7 1755.5 22.98 2777.4 LOX/LH2 2694.7 0.4 2417.1 8.95 3794.6 注：燃烧室压强约为7.09 MPa；喷管出口及环境压强均为 101325 Pa；计算结果为最佳比冲；模型采用冻结流。燃气按理想气体处理，燃烧为绝热过程，喷管膨胀为等熵流动膨胀。
下载: 导出CSV
氧化剂 比冲
性能密度 密度
比冲化学
稳定性毒性 可存
储性自增压
能力气相
燃烧自燃性 易操
作性材料
成本化学
相容性性能调
节能力发动机稳定性/
燃烧效率综合安
全性O2 5 4 4 5 5 1 1 1 1 3 5 5 1 2 3 N2O 3 2 1 4 4 5 5 3 1 5 4 5 2 5 2 Nytrox 4 4 3 4 4 3 3 5 1 4 4 5 5 4 5 注：5为性能最佳, 1为性能最差。
下载: 导出CSV
-
[1] 赵婷, 陈夏超, 杨成虎, 等. 面向高轨卫星的液体轨控发动机研制进展[J]. 火箭推进, 2018, 44(1): 1-7.Zhao T, Chen X C, Yang C H, et al. Developing progress of liquid bipropellant orbit control engine for high orbit satellite[J]. Journal of Rocket Propulsion, 2018, 44(1): 1-7(in Chinese). [2] 刘志泉, 叶超, 林庆国. 微小型双组元姿控发动机技术研究[J]. 火箭推进, 2014, 40(4): 1-6.Liu Z Q, Ye C, Lin Q G. Study on miniature liquid bipropellant attitude control rocket engine[J]. Journal of Rocket Propulsion, 2014, 40(4): 1-6(in Chinese). [3] Jang Y H, Lee K H. A development trend study of bipropellant rocket engine for orbit transfer and attitude control of satellite[J]. Journal of the Korean Society of Propulsion Engineers, 2015, 19(1): 50-60. [4] Werling L, Lauck F, Dobusch J, et al. Mono-and bipropellants based on nitrous oxide and fuels: state of the art, recent developments in academia and industry, and a special focus on DLR’s activities[C]//Proceedings of the Recent Advancements in Green Propulsion: Green Propellants for Micropropulsion Systems. Berlin: Springer, 2024: 161-186. [5] Dawn Aerospace. In-space propulsion[EB/OL]. (2025-05-15)[2026-04-29]. https://www.dawnaerospace.com/green-propulsion#anchors-mido9m7e7. [6] Impulse Space. Impulse Space selected for $34.5M contract by Space Systems Command in support of VICTUS SURGO and VICTUS SALO missions[EB/OL]. (2024-10-03)[2026-04-29]. https://www.impulsespace.com/updates/impulse-space-selected-for-345m-contract-by-space-systems-command. [7] Relativity Space. Impulse Space and Relativity Space announce first commercial mission to Mars[EB/OL]. (2022-07-19)[2026-04-29]. https://www.relativityspace.com/press-release/2022/7/19/impulse-space-and-relativity-space-announce-first-commercial-mission-to-mars. [8] Vast. Vast acquires Launcher in quest to build artificial gravity space stations[EB/OL]. (2023-02-21)[2026-04-29]. https://www.vastspace.com/updates/vast-acquires-launcher-to-accelerate-growth. [9] Bristeau P J, Petit N. Trajectory estimation for a hybrid rocket[C]//Proceedings of the AIAA Guidance, Navigation, and Control Conference. Reston: AIAA, 2009. [10] Zilliac G, Waxman B, Doran E, et al. Peregrine hybrid rocket motor ground test results[C]//Proceedings of the 48th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2012. [11] Phillip J, Youngblood S, Grubelich M, et al. Development and testing of a nitrous-oxide/ethanol bi-propellant rocket engine[C]//Proceedings of the 52nd AIAA/SAE/ASEE Joint Propulsion Conference. Reston: AIAA, 2016. [12] Mungas G, Fisher D, Vozoff J, et al. NOFBX™ single stage to Orbit Mars Ascent Vehicle[C]//Proceedings of the IEEE Aerospace Conference. Piscataway: IEEE Press, 2012: 1-11. [13] Kakami A, Egawa T, Yamamoto N, et al. Plasma-assisted combustion of N2O/ethanol propellant for space propulsion[C]//Proceedings of the 46th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2010. [14] 杨威, 毛成立, 戴祖明. 混合发动机的研究现状及应用前景[J]. 火箭推进, 2006, 32(3): 35-39.Yang W, Mao C L, Dai Z M. Investigation on status and prospective application of hybrid motors[J]. Journal of Rocket Propulsion, 2006, 32(3): 35-39(in Chinese). [15] Menshenina Y, Crawleyb E. Model-based concept framework for suborbital human spaceflight missions[C]//Proceedings of the 69th International Astronautical Congress. Paris: International Astronautical Federation, 2018: 11597. [16] Impulse Space. Mira-the agile spacecraft[EB/OL]. (2025-04-15)[2026-04-29]. https://www.impulsespace.com/mira. [17] SatNow. Hello, solar system! introducing impulse space propulsion [EB/OL]. (2025-09-10)[2026-04-29]. https://www.satnow.com/videos/details/575-hello-solar-system-introducing-impulse-space-propulsion. [18] Tokudome S, Yagishita T, Habu H, et al. Experimental study of an N2O/ethanol propulsion system[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007. [19] Tokudome S, Goto K, Yagishita T, et al. An experimental study of a nitrous oxide/ethanol (NOEL) propulsion system[C]//Proceedings of the AIAA Propulsion and Energy 2019 Forum. Reston: AIAA, 2019. [20] Waugh I, Moore E, Macfarlanej, et al. Testing of anovel nitrous-oxide and ethanol fuel blend[C]//Proceedings of the Space Propulsion Conference. Paris: European Space Agency, 2018: 14-18. [21] Gibbon D, Baker A, Coxhill I, et al. The development of a family of resistojet thruster propulsion systems for small spacecraft[C]//Proceedings of the 17th Annual AIAA/USU Conference on Small Satellites. Reston: AIAA, 2003. [22] 蔡国飙. 固液混合火箭发动机技术综述与展望[J]. 推进技术, 2012, 33(6): 831-839.Cai G B. Development and application of hybrid rocket motor technology: overview and prospect[J]. Journal of Propulsion Technology, 2012, 33(6): 831-839(in Chinese). [23] 孙威, 方杰, 吴靖, 等. 亚牛级N2O单组元推力器研制[C]//中国化学会第五届全国化学推进剂学术会议论文集. 北京: 中国化学会, 2011: 131-135.Sun W, Fang J, Wu J, et al. Development of a sub-Newton N2O monopropellant thruster[C]//Proceedings of the 5th National Conference on Chemical Propellants, Chinese Chemical Society. Beijing: Chinese Chemical Society, 2011: 131-135(in Chinese). [24] 杨中旭. 氧化亚氮煤油火箭发动机燃烧及热防护技术研究[D]. 西安: 西北工业大学, 2024.Yang Z X. Research on combustion and thermal protection technology of nitrous oxide/kerosene rocket motor[D]. Xi’an: Northwestern Polytechnical University, 2024(in Chinese). [25] 张峻铭. 氧化亚氮自增压供应特性研究[D]. 西安: 西北工业大学, 2024.Zhang J M. Investigation of the characteristics of nitrous oxide self-pressurized supply[D]. Xi’an: Northwestern Polytechnical University, 2024(in Chinese). [26] 王志杰. 煤油/氧化亚氮空间发动机燃烧与再生冷却换热特性研究[D]. 北京: 北京交通大学, 2024.Wang Z J. Study on the heat transfer characteristics of combustion and regeneration cooling of kerosene/nitrous oxide space engines[D]. Beijing: Beijing Jiaotong University, 2024(in Chinese). [27] 刘轩坤, 苏泽, 戴磊, 等. 液态氧化亚氮/乙烷发动机设计及试验研究[C]//第九届空天动力联合会议暨中国航天第三专业信息网第四十五届技术交流会论文集. 贵阳: 中国空天动力联合会, 浙大宁波理工学院, 2025: 142-146.Liu X K, Su Z, Dai L, et al. Design and experimental study of a liquid nitrous oxide/ethane engine[C]//Proceedings of the 9th Joint Conference on Aerospace Propulsion & the 45th Technical Exchange Conference of the 3rd Professional Information Network of China Aerospace. Guiyang: China Aerospace Propulsion Federation, NingboTech University, 2025: 142-146(in Chinese). [28] 邓德涛, 沈赤兵, 李清廉, 等. N2O/酒精发动机试验研究[C]//第二届高超声速科技学术会议会议日程及摘要集. 北京: 中国力学学会, 2009.Deng D T, Shen C B, Li Q L, et al. Experimental study on N2O/alcohol engine[C]//Proceedings of the Program and Abstracts of the 2nd Hypersonic Science and Technology Academic Conference. Beijing: Chinese Society of Theoretical and Applied Mechanics, 2009(in Chinese). [29] Zakirov V, Richardson G, Sweeting M. Surrey research update on N2O catalytic decomposition for space applications[C]//Proceedings of the 37th Joint Propulsion Conference and Exhibit. Reston: AIAA, 2001. [30] 李茂, 韩乐, 方杰, 等. N2O单组元微推力器高空模拟实验研究[J]. 推进技术, 2011, 32(3): 307-311.Li M, Han L, Fang J, et al. Simulated altitude experimental investigation for N2O monopropellant micro-thruster[J]. Journal of Propulsion Technology, 2011, 32(3): 307-311(in Chinese). [31] 方杰, 田辉, 蔡国飙. N2O单组元微推进系统及其喷管流场的初步研究[J]. 推进技术, 2005, 26(6): 495-498.Fang J, Tian H, Cai G B. Preliminary study on a N2O micro propulsion system and its nozzle flow field[J]. Journal of Propulsion Technology, 2005, 26(6): 495-498(in Chinese). [32] 韩乐, 李茂, 方杰, 等. N2O单组元微推力器真空试验设计与分析[J]. 航空动力学报, 2011, 26(10): 2358-2363.Han Y, Li M, Fang J, et al. Vacuum experiment study on a N2O monopropellant micro-thruster[J]. Journal of Aerospace Power, 2011, 26(10): 2358-2363(in Chinese). [33] 吴靖, 孙威, 蔡国飙. 内加热式N2O单组元推力器预热过程仿真与试验[J]. 航空动力学报, 2013, 28(3): 556-560.Wu J, Sun W, Cai G B. Simulation and experiment for preheating process of N2O monopropellant thruster with inner-heater[J]. Journal of Aerospace Power, 2013, 28(3): 556-560(in Chinese). [34] 霍雪亮, 韦迪, 李路明. N2O单组元推进器预热过程的建模[J]. 推进技术, 2005, 26(1): 80-83.Huo X L, Wei D, Li L M. Modeling of N2O monopropellant thruster pre-heating[J]. Journal of Propulsion Technology, 2005, 26(1): 80-83(in Chinese). [35] 万科, 李路明, 韦迪, 等. N2O混合火箭发动机的催化点火研究[J]. 推进技术, 2007, 28(1): 1-3.Wan K, Li L M, Wei D, et al. Experimental investigation on catalytic ignition of N2O hybrid rocket motor[J]. Journal of Propulsion Technology, 2007, 28(1): 1-3(in Chinese). [36] 逄凯, 李新艳, 李效斯, 等. NOFBX推进剂技术的发展概况[J]. 兵器装备工程学报, 2023, 44(10): 147-158.Pang K, Li X Y, Li X S, et al. Review of the development of NOFBX propellant technology[J]. Journal of Ordnance Equipment Engineering, 2023, 44(10): 147-158(in Chinese). [37] Mungas G, Vozoff M, Rishikof B. NOFBX: a new non-toxic, green propulsion technology with high performance and low cost[C]//Proceedings of the 63 International Astronautical Congress. Paris: International Astronautical Federation, 2012: 1-5. [38] Mayer A, Wieling W, Watts A, et al. European fuel blend development for in-space propulsion[C]//Proceedings of the Space Propulsion Conference. Paris: European Space Agency, 2018: 14-18. [39] 朱成财, 韩伟, 于忻立, 等. 氧化亚氮基单元复合推进剂技术研究述评[J]. 火箭推进, 2016, 42(2): 79-85.Zhu C C, Han W, Yu X L, et al. Review of nitrous-oxide-based composite monopropellants technology[J]. Journal of Rocket Propulsion, 2016, 42(2): 79-85(in Chinese). [40] 曾祥敏, 张玉刚, 蒋榕培, 等. N2O/C2H4/CO2预混气体火焰传播及爆炸特性的试验研究[J]. 火炸药学报, 2018, 41(5): 501-505.Zeng X M, Zhang Y G, Jiang R P, et al. Experimental investigation of flame propagation and explosion properties of premixed gases N2O/C2H4/CO2[J]. Chinese Journal of Explosives & Propellants, 2018, 41(5): 501-505(in Chinese). [41] Yang X S, Hong X, Dong W. Investigation on self-pressurization and ignition performance of nitrous oxide fuel blend ethylene thruster[J]. Aerospace Science and Technology, 2018, 82-83: 161-171. [42] 段志强, 郑东, 周斌. N2O-C2烃类燃料推进剂燃烧化学反应机理与动力学分析[J]. 火箭推进, 2021, 47(3): 43-51.Duan Z Q, Zheng D, Zhou B. Chemical reaction mechanism and kinetic analysis of N2O: C2 hydrocarbons propellant[J]. Journal of Rocket Propulsion, 2021, 47(3): 43-51(in Chinese). [43] 郑东, 熊鹏飞, 钟北京. NOFBX新型绿色推进剂燃烧化学反应动力学模型[J]. 物理化学学报, 2019, 35(11): 1241-1247.Zheng D, Xiong P F, Zhong B J. Chemical kinetic model for the combustion of the green propellant of the nitrous oxide fuel blend[J]. Acta Physico-Chimica Sinica, 2019, 35(11): 1241-1247(in Chinese). [44] 魏豪, 李国岫, 虞育松. 氧化亚氮基单组元绿色无毒推进剂燃烧特性仿真研究[C]//中国化学会第八届全国化学推进剂学术会议. 北京: 中国化学会, 2017: 101-109.Wei H, Li G X, Yu Y S. Simulation study on combustion characteristics of nitrous oxide green non-toxic propellant[C]//Proceedings of the 8th National Chemical Inpropellant Conference of Chinese Chemical Society. Beijing: Chinese Chemical Society, 2017: 101-109(in Chinese). [45] 杨猛, 丁晓倩, 余涛, 等. 甲烷/氧化亚氮绿色推进剂自着火特性实验及动力学[J]. 化工学报, 2025(3): 1221-1229.Yang M, Ding X Q, Yu T, et al. Experimental and kinetic studies for the ignition characteristic of the green propellant of methane/nitrous oxide[J]. CIESC Journal, 2025(3): 1221-1229(in Chinese). [46] Yang M, Yang Y, Liao C Y, et al. The auto-ignition boundary of ethylene/nitrous oxide as a promising monopropellant[J]. Combustion and Flame, 2020, 221: 64-73. [47] Werling L K, Hochheimer B, Baral A L, et al. Experimental and numerical analysis of the heat flux occurring in a nitrous oxide/ethene green propellant combustion demonstrator[C]//Proceedings of the 51st AIAA/SAE/ASEE Joint Propulsion Conference. Reston: AIAA, 2015. [48] Bangalore Venkatesh P, Meyer S E, Bane S P M, et al. Deflagration-to-detonation transition in nitrous oxide/oxygen-fuel mixtures for propulsion[J]. Journal of Propulsion and Power, 2019, 35(5): 944-952. [49] Taylor R. Safety and performance advantages of nitrous oxide fuel blends (NOFBX) propellants for manned and unmanned spaceflight applications[C]//Proceedings of the 5th IAASS Conference ‘A Safer Space for a Safer World’. Paris: European Space Agency, 2012: 67. [50] 贾平, 李辉. DARPA取消“机载发射辅助空间进入”项目简析[J]. 中国航天, 2016(1): 33-35.Jia P, Li H. Analysis of DARPA’s cancellation of “airborne launch assisted space entry” project[J]. Aerospace China, 2016(1): 33-35(in Chinese). [51] Mayer A, Waugh I, Poucet M, et al. European fuel blend development final report: TNO 2018 R10640[R]. Rijswijk: NTO, 2018: 14-16. [52] 杨学森, 洪鑫, 王子模, 等. 新型自增压单元推进剂流动特性研究[C]//中国航天第三专业信息网第三十七届技术交流会暨第一届空天动力联合会议论文集. 西安: 中国航天第三专业信息网, 2016: 449-456.Yang X S, Hong X, Wang Z M, et al. Study on flow characteristics of a novel self-pressurizing monopropellant[C]//Proceedings of the 37th Technical Exchange Conference of the 3rd Professional Information Network of China Aerospace & the 1st Joint Conference on Aerospace Propulsion. Xi’an: The 3rd Professional Information Network of China Aerospace, 2016: 449-456(in Chinese). [53] Smith N, Moser M, Charles Kopicz J Jr, et al. Nitrous oxide/propane rocket test results[C]//Proceedings of the 36th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit. Reston: AIAA, 2000. [54] Tiliakos N, Tyll J, Herdy R, et al. Development and testing of a nitrous oxide/propane rocket engine[C]//Proceedings of the 37th Joint Propulsion Conference and Exhibit. Reston: AIAA, 2001. [55] 王栋, 郭红杰, 梁国柱, 等. N2O/C3H8点火器初步实验[J]. 北京航空航天大学学报, 2010, 36(10): 1162-1165.Wang D, Guo H J, Liang G Z, et al. Preliminary experimental investigation on nitrous oxide/propane igniter[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010, 36(10): 1162-1165(in Chinese). [56] Hageman M D, Knadler M. Detonation cell size of methane with nitrous oxide[C]//Proceedings of the AIAA Propulsion and Energy 2020 Forum. Reston: AIAA, 2020. [57] Perry M, Hunt A, Christian S. Ground test development of 800lbf nitrous oxide-ethane bipropellant engine[C]//Proceedings of the AIAA Propulsion and Energy 2020 Forum. Reston: AIAA, 2020. [58] Browne E, Rasmussen J, Marchese A, et al. Modeling single-channel and dual-channel regenerative cooling systems for an ethylene/ethane/nitrous oxide liquid fuel rocket engine[C]//Proceedings of the AIAA Scitech 2021 Forum. Reston: AIAA, 2021. [59] 魏祥庚, 宋泽林, 张峻铭, 等. 一种氧化亚氮煤油双组元液体火箭发动机动力系统: CN114776479B[P]. 2023-04-28.Wei X G, Song Z L, Zhang J M, et al. A nitrous oxide/kerosene bipropellant liquid rocket engine propulsion system: CN114776479B[P]. 2023-04-28(in Chinese). [60] Huzel D K, Huang D H. Modern engineering for design of liquid-propellant rocket engines[M]. Reston: AIAA, 1992. [61] Ewig R. Vapor pressurization (VaPak) systems history, concepts, and applications: Corpus ID 198920145[R]. Renton: Holder Consulting Group, 2009, 4: 1-14. [62] Whitmore S A, Chandler S N. Engineering model for self-pressurizing saturated-N2O-propellant feed systems[J]. Journal of Propulsion and Power, 2010, 26(4): 706-714. [63] Sargent D H, Tran Y. Liquid nitrous oxide BLEVE tests[C]//Proceedings of the 49th AIAA/ASME/SAE/ASEE Joint PropulsionConference. Reston: AIAA, 2013. [64] Fernandez M M. Propellant tank pressurization modeling for a hybrid rocket[M]. Rochester: Rochester Institute of Technology, 2009. [65] Dyer J, Zilliac G, Sadhwani A, et al. Modeling feed system flow physics for self-pressurizing propellants[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007. [66] Zilliac G, Karabeyoglu M. Modeling of propellant tank pressurization[C]//Proceedings of the 41st AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2005. [67] Kardaś D, Szymborski J. Development of a novel model for emptying of a self-pressurising nitrous oxide tank[J]. Journal of Physics: Conference Series, 2021, 1781(1): 012001. [68] 宋长青, 徐万武, 陈健. N2O贮箱自增压模拟[J]. 航空动力学报, 2016, 31(4): 1019-1024.Song C Q, Xu W W, Chen J. Self-pressurization modeling of nitrous oxide tank[J]. Journal of Aerospace Power, 2016, 31(4): 1019-1024(in Chinese). [69] 宋长青. 氧化亚氮自增压研究[D]. 长沙: 国防科学技术大学, 2014: 14-33.Song C Q. Investigation of a nitrous oxide self-pressurized tank[D]. Changsha: National University of Defense Technology, 2014: 14-33(in Chinese). [70] 朱浩, 郭子豪, 张源俊, 等. 氧化亚氮温控增压系统: CN107829842A[P]. 2018-03-23.Zhu H, Guo Z H, Zhang Y J, et al. Temperature-controlled pressurization system for nitrous oxide: CN107829842A[P]. 2018-03-23(in Chinese). [71] Kozlov A, Hinckel J, Comiran A, et al. A self-pressurization system for cryogenic propellant tanks[C]//Proceedings of the 32nd Joint Propulsion Conference and Exhibit. Reston: AIAA, 1996. [72] 龚亮. 一氧化二氮单组元发动机系统方案设计及仿真研究[D]. 长沙: 国防科学技术大学, 2013: 35-65.Gong L. Design and simulation study on nitrous oxide monopropellant engine system[D]. Changsha: National University of Defense Technology, 2013: 35-65(in Chinese). [73] Greason J K, Delong D L, Jones D B. System and method for cooling rocket engines: US7784269[P]. 2010-08-31. [74] 王正凯. 基于再生冷却的自增压方案研究[D]. 长沙: 国防科学技术大学, 2015.Wang Z K. Research on self-pressurization scheme based on regenerative cooling[D]. Changsha: National University of Defense Technology, 2015(in Chinese). [75] Yeul S, Bae J. System and method for cooling engines: KR20120015402[P]. 2012-02-21. [76] 方杰, 李开阳, 孙冰, 等. 实现氧化亚氮自增压稳定供应的再生热补偿系统及方法: CN111734554B[P]. 2020-11-20.Fang J, Li K Y, Sun B, et al. Regenerative thermal compensation system and method for achieving stable self-pressurized supply of nitrous oxide: CN111734554B[P]. 2020-11-20(in Chinese). [77] Karabeyoglu M A. Nitrous oxide and oxygen mixtures (nytrox) as oxidizers for rocket propulsion applications[J]. Journal of Propulsion and Power, 2014, 30(3): 696-706. [78] 张灿宇, 胡松启, 刘林林, 等. 氧化亚氮和氧气二元组分气-液相平衡研究[J]. 上海航天, 2019, 36(S1): 104-108.Zhang C Y, Hu S Q, Liu L L, et al. Study of gas-liquid equilibrium for nitrous oxide and oxygen[J]. Aerospace Shanghai (Chinese & English), 2019, 36(S1): 104-108(in Chinese). [79] Lohner K, Dyer J, Doran E, et al. Design and development of a sub-scale nitrous oxide monopropellant gas generator[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007. [80] Balasubramanyam M, Moser M, Sharp D. Catalytic ignition of nitrous oxide with propane/propylene mixtures for rocket motors[C]//Proceedings of the 41st AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2005. [81] Scherson Y, Lohner K, Lariviere B, et al. A monopropellant gas generator based on N2O decomposition for “green” propulsion and power generation[C]//Proceedings of the 45th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2009. [82] Hitch B, Wickham D. Design of a catalytic nitrous oxide decomposition reactor[C]//Proceedings of the 46th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2010. [83] Orth M R, Pandey U, Pourpoint T L. Preparation for pressure drop measurement in monolithic 3D-printed catalyst beds[C]//Proceedings of the AIAA Propulsion and Energy 2021 Forum. Reston: AIAA, 2021. [84] Karabeyoglu A, Stevens J, Geyzel D, et al. High performance hybrid upper stage motor[C]//Proceedings of the 47th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2011. [85] 罗盟, 王铁岩, 张青松, 等. 低温流体闪蒸喷雾研究[J]. 宇航总体技术, 2021, 5(6): 27-34.Luo M, Wang T Y, Zhang Q S, et al. Investigation of cryogenic flashing sprays[J]. Astronautical Systems Engineering Technology, 2021, 5(6): 27-34(in Chinese). [86] Waxman B, Cantwell B, Zilliac G. Effects of injector design and impingement techniques on the atomization of self-pressurizing oxidizers[C]//Proceedings of the 48th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2012. [87] Waxman B, Beckwith R, Tybor F, et al. Paraffin and nitrous oxide hybrid rocket as a Mars ascent vehicle demonstrator[C]//Proceedings of the AIAA SPACE 2010 Conference & Exposition. Reston: AIAA, 2010. [88] Karabeyoglu A, Stevens J, Cantwell B. Investigation of feed system coupled low frequency combustion instabilities in hybrid rockets[C]//Proceedings of the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. Reston: AIAA, 2007. [89] Waxman B S, Zimmerman J E, Cantwell B, et al. Effects of injector design on combustion stability in hybrid rockets using self-pressurizing oxidizers[C]//Proceedings of the 50th AIAA/ASME/SAE/ASEE Joint Propulsion Conference. Reston: AIAA, 2014. [90] Berg P M V D, Botchu J, Hermsen R J G. Investigation of thermal behaviour of additively manufactured green bi-propellant thrusters in cubesat applications using transient thermal modelling[C]//Proceedings of the 72nd International Astronautical Congress. Paris: IAF, 2021: 1-10. [91] Gallo G, Miyahara Y, Kamps L, et al. Regenerative cooling in hybrid rocket engines based on self-pressurized liquid nitrous oxide[J]. Applied Thermal Engineering, 2024, 254: 123928. [92] Kumar A, Saini V, Usurumarti P R, et al. Feasibility studies on the cooling of hybrid rocket nozzles using supercritical nitrous oxide[J]. Energy Procedia, 2017, 109: 338-345. [93] 刘盛田, 胡兴伟, 柳琪, 等. 一氧化二氮/乙醇燃气发生器试验研究[J]. 舰船科学技术, 2008, 30(S2): 223-226.Liu S T, Hu X W, Liu Q, et al. The experimental studies of gas generator based on nitrous oxide and ethanol[J]. Ship Science and Technology, 2008, 30(S2): 223-226(in Chinese). [94] 刘盛田, 柳琪, 高磊, 等. N2O/H2富燃火炬式点火器研究[J]. 舰船科学技术, 2008, 30(2): 94-97.Liu S T, Liu Q, Gao L, et al. Study on N2O/H2 fuel-rich spark igniter[J]. Ship Science and Technology, 2008, 30(2): 94-97(in Chinese). [95] Werling L K, Hörger T, Manassis K, et al. Nitrous oxide fuels blends: research on premixed monopropellants at the German aerospace center (DLR) since 2014[C]//Proceedings of the AIAA Propulsion and Energy 2020 Forum. Reston: AIAA, 2020. -
