飞轮壳体黏弹性阻尼环的仿真分析与试验研究

金富蕴; 王永锋; 王虹; 刘珊珊; 马艳红

doi:10.13700/j.bh.1001-5965.2022.0963

飞轮壳体黏弹性阻尼环的仿真分析与试验研究

doi: 10.13700/j.bh.1001-5965.2022.0963

1.
北京航空航天大学航空发动机研究院，北京 100191
2.
北京航空航天大学能源与动力工程学院，北京 100191
3.
北京控制工程研究所精密转动和传动机构长寿命技术北京市重点实验室，北京 100094
4.
西安飞行自动控制研究所导航系统部，西安 710076

基金项目:

国家自然科学基金(52075018,52175072)；精密转动和传动机构长寿命技术北京市重点实验室开放基金(BZ0388202102)

详细信息

通讯作者:
E-mail：wangyongfeng@buaa.edu.cn

中图分类号: V474
计量
- 文章访问数: 873
- HTML全文浏览量: 250
- PDF下载量: 77
- 被引次数: 0
出版历程
- 收稿日期: 2022-12-03
- 录用日期: 2023-03-04
- 网络出版日期: 2023-03-13
- 整期出版日期: 2025-01-31

Simulation analysis and experimental study of viscoelastic damping ring of flywheel housing

1.
Research Institute of Aero-Engine，Beihang University，Beijing 100191，China
2.
School of Energy and Power Engineering，Beihang University，Beijing 100191，China
3.
Beijing Key Laboratory of Long-Life Technology of Precision Rotation and Transmission Mechanism，Beijing Institute of Control Engineering，Beijing 100094，China
4.
Department of Navigation System，Xi’an Flight Automatic Control Research Institute，Xi’an 710076，China

Funds:

National Natural Science Foundation of China (52075018,52175072);Open fund of Beijing Key Laboratory of Long-Life Technology of Precision Rotation and Transmission Mechanism (BZ0388202102)

More Information

Corresponding author: E-mail：wangyongfeng@buaa.edu.cn

摘要

摘要:
随着航天器平台性能指标要求的提高，飞轮微振动对航天器平台的影响越加突出，需要对其进行振动抑制。根据飞轮上壳体的模态特性，提出一种圆环形黏弹性阻尼环结构的设计方法，并针对黏弹性阻尼环的敷设位置、厚度、宽度对其减振效果影响规律进行数值仿真与试验验证，验证圆环形黏弹性阻尼环的有效性。结果表明：圆环形黏弹性阻尼环结构对宽频振动具有良好的减振效果，黏弹性阻尼环的敷设位置对飞轮系统的各阶固有频率变化和减振效果起决定性作用，在飞轮外径的60%处敷设圆环形黏弹性阻尼环减振效果较好，宽度设计为飞轮外径的6%以内、厚度设计为壳体厚度的4倍以内时，随着宽度、厚度的增加，减振效果提高。
- 飞轮系统 /
- 黏弹性阻尼环 /
- 薄壳结构 /
- 多参数分析 /
- 振动抑制 /
- 宽频减振
Abstract:
As the requirements for performance indicators of spacecraft platforms increase, the influence of micro-vibrations generated by flywheels on spacecraft platforms is becoming increasingly prominent and needs to be suppressed. Based on the modal characteristics of the upper housing of the flywheel, a design method of circular viscoelastic damping ring structure was proposed, and numerical simulations and experiments were carried out to verify the damping effects of the viscoelastic damping ring in terms of the position, thickness, and width and verify the validity of circular viscoelastic damping ring. The results show that the circular viscoelastic damping ring structure has a good damping effect on broadband vibration, and the position of the viscoelastic damping ring plays a decisive role in the change of the inherent frequency of the flywheel system and the damping effect. The damping effect is better when a circular viscoelastic damping ring is applied at 60% of the outer diameter of the flywheel. When the width is designed to be within 6% of the outer diameter of the flywheel, and the thickness is designed to be within 4 times the thickness of the housing, the damping effect increases with the increase in width and thickness.
- flywheel system /
- viscoelastic damping layer /
- thin-housing structure /
- multi-parameter analysis /
- vibration suppression /
- broadband vibration damping

HTML全文

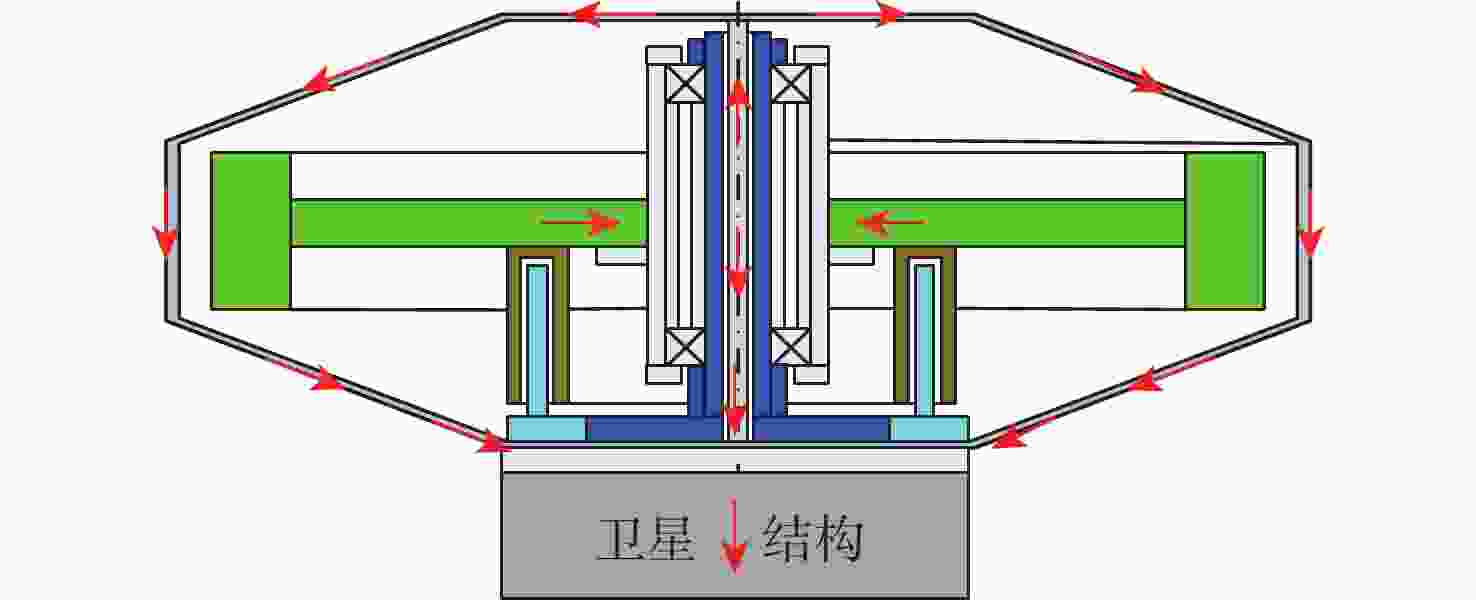

图 1 飞轮振动传递路径

Figure 1. Flywheel vibration transfer path

下载: 全尺寸图片幻灯片

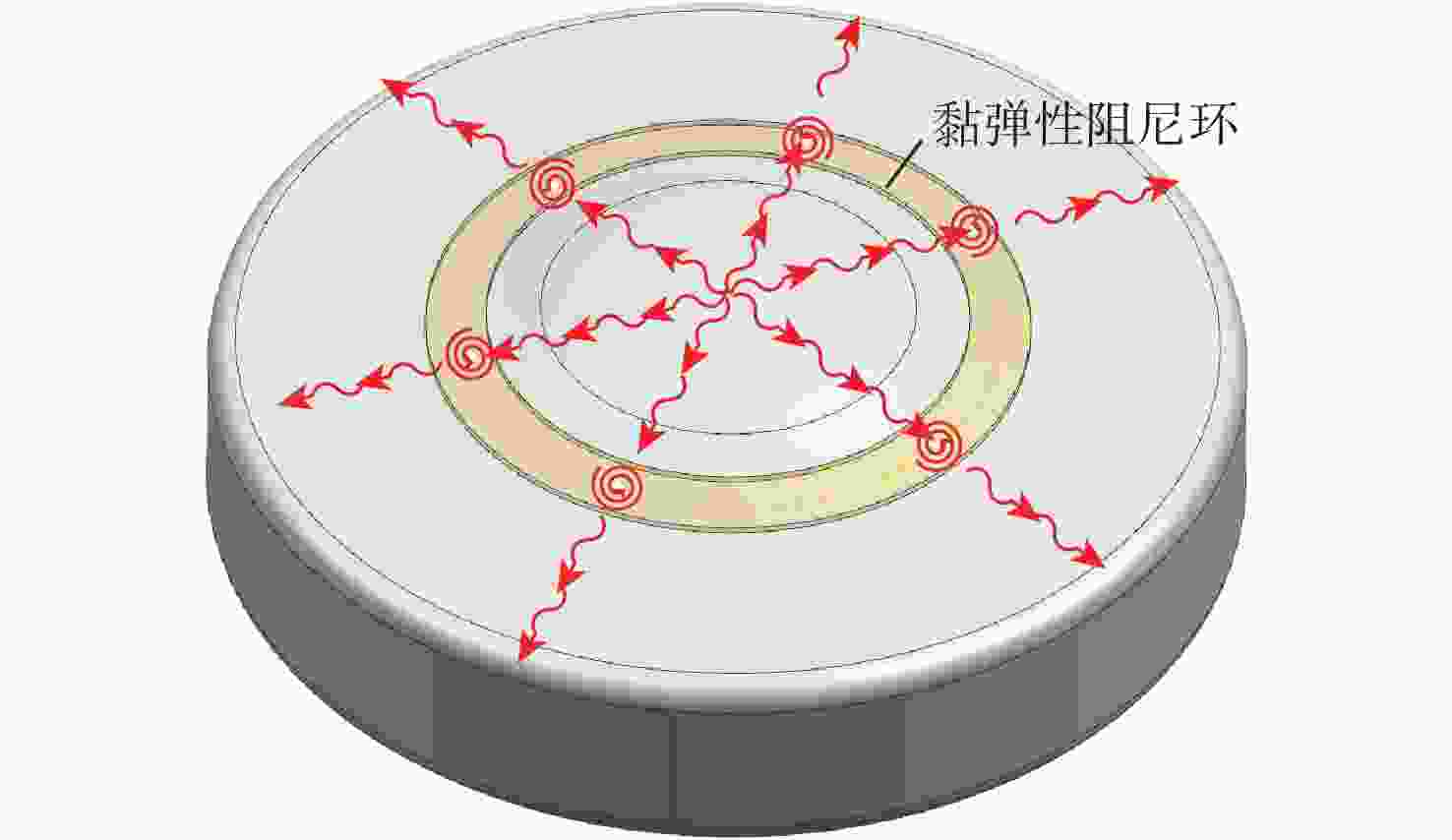

图 2 振动传递路径及黏弹性阻尼环

Figure 2. Vibration transfer path and viscoelastic damping ring

下载: 全尺寸图片幻灯片

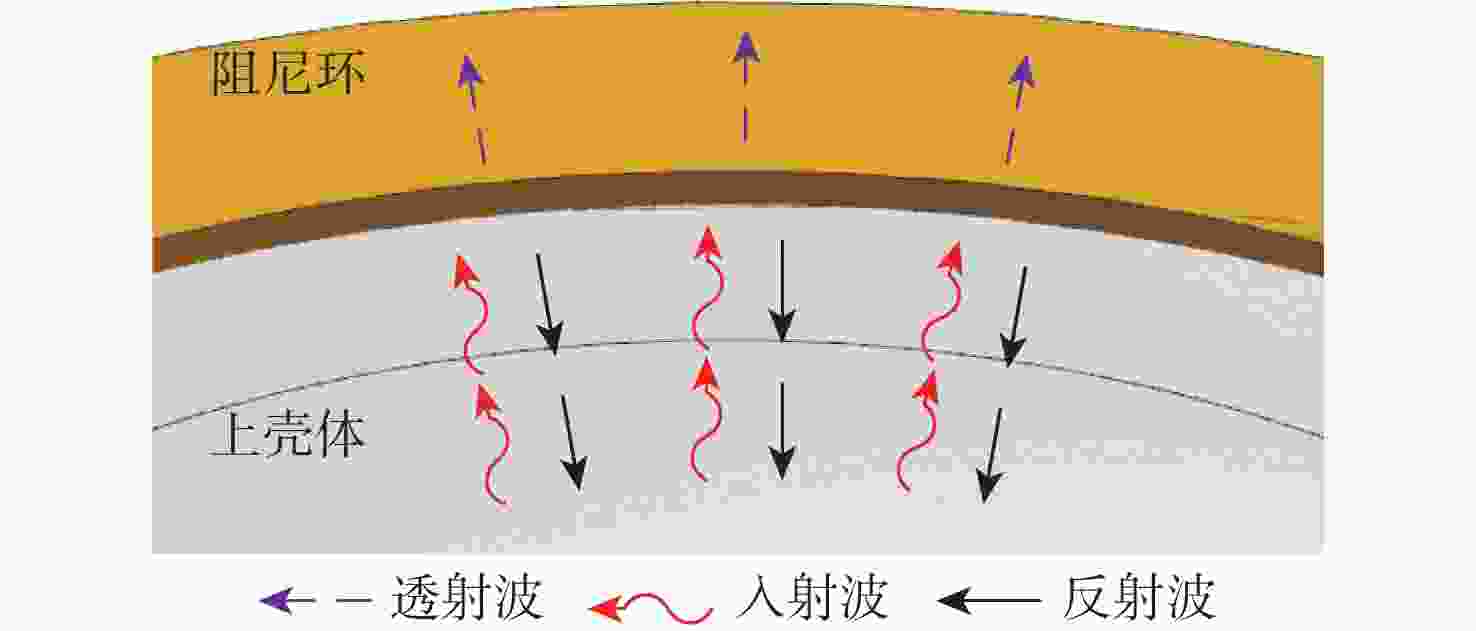

图 3 非连续平板波传播示意图

Figure 3. Discontinuous flat wave propagation

下载: 全尺寸图片幻灯片

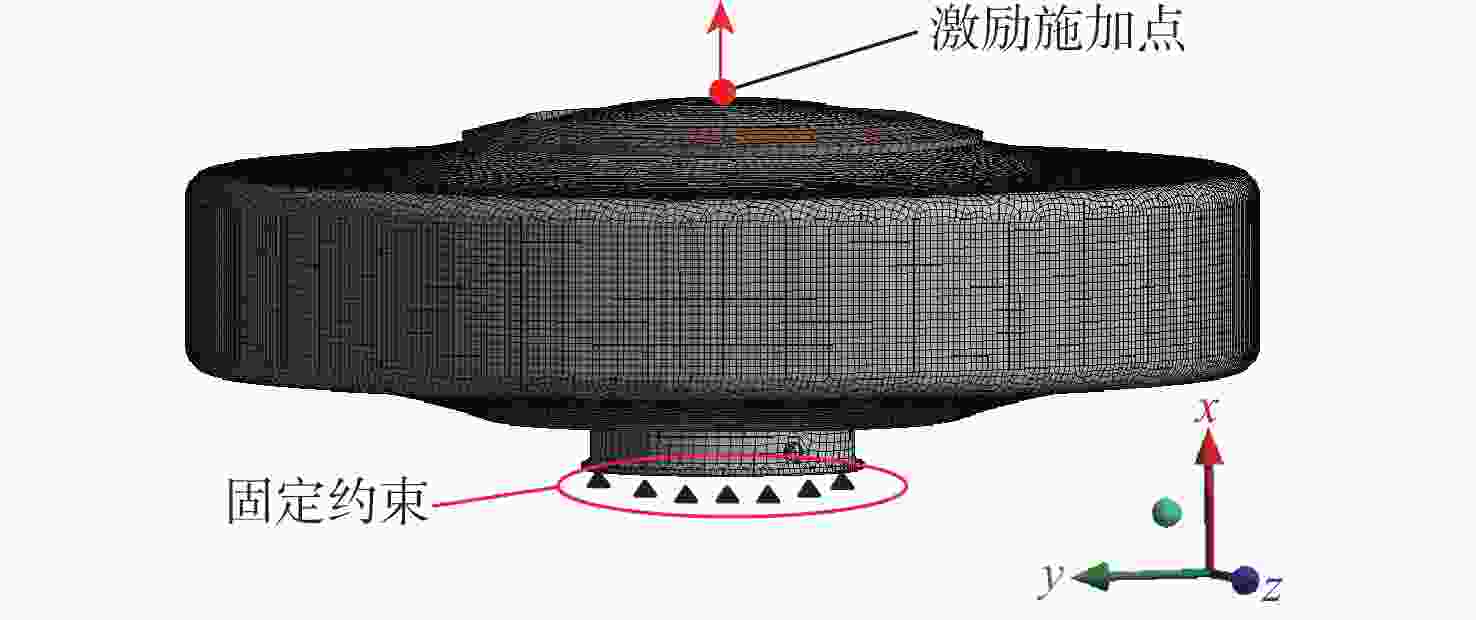

图 4 飞轮有限元模型及载荷、边界条件

Figure 4. Flywheel finite element model with loads and boundary conditions

下载: 全尺寸图片幻灯片

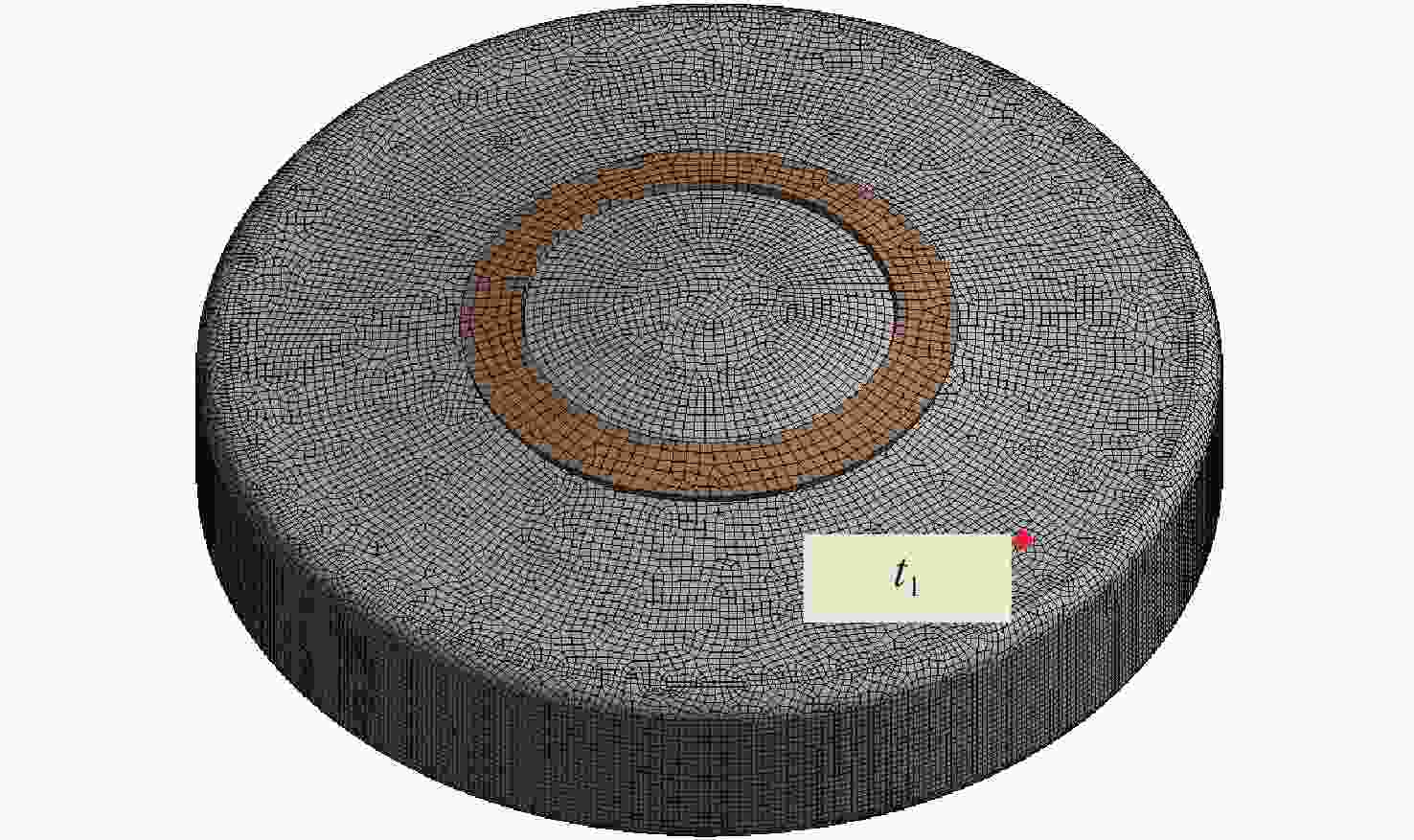

图 5 拾振点位置

Figure 5. Vibration response points

下载: 全尺寸图片幻灯片

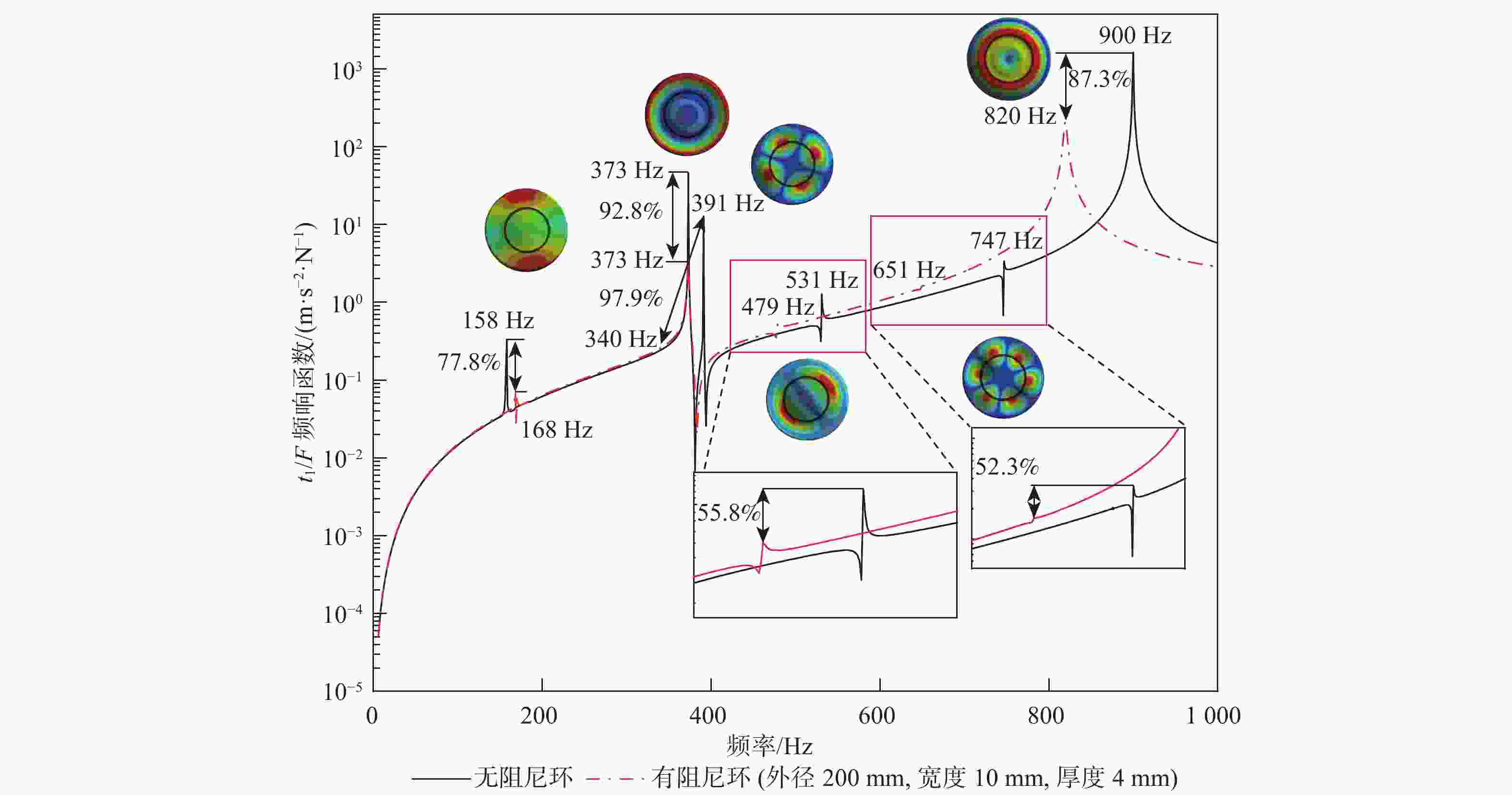

图 6 t₁测点振动响应频响函数

Figure 6. Frequency response function of t₁ measurement point vibration

下载: 全尺寸图片幻灯片

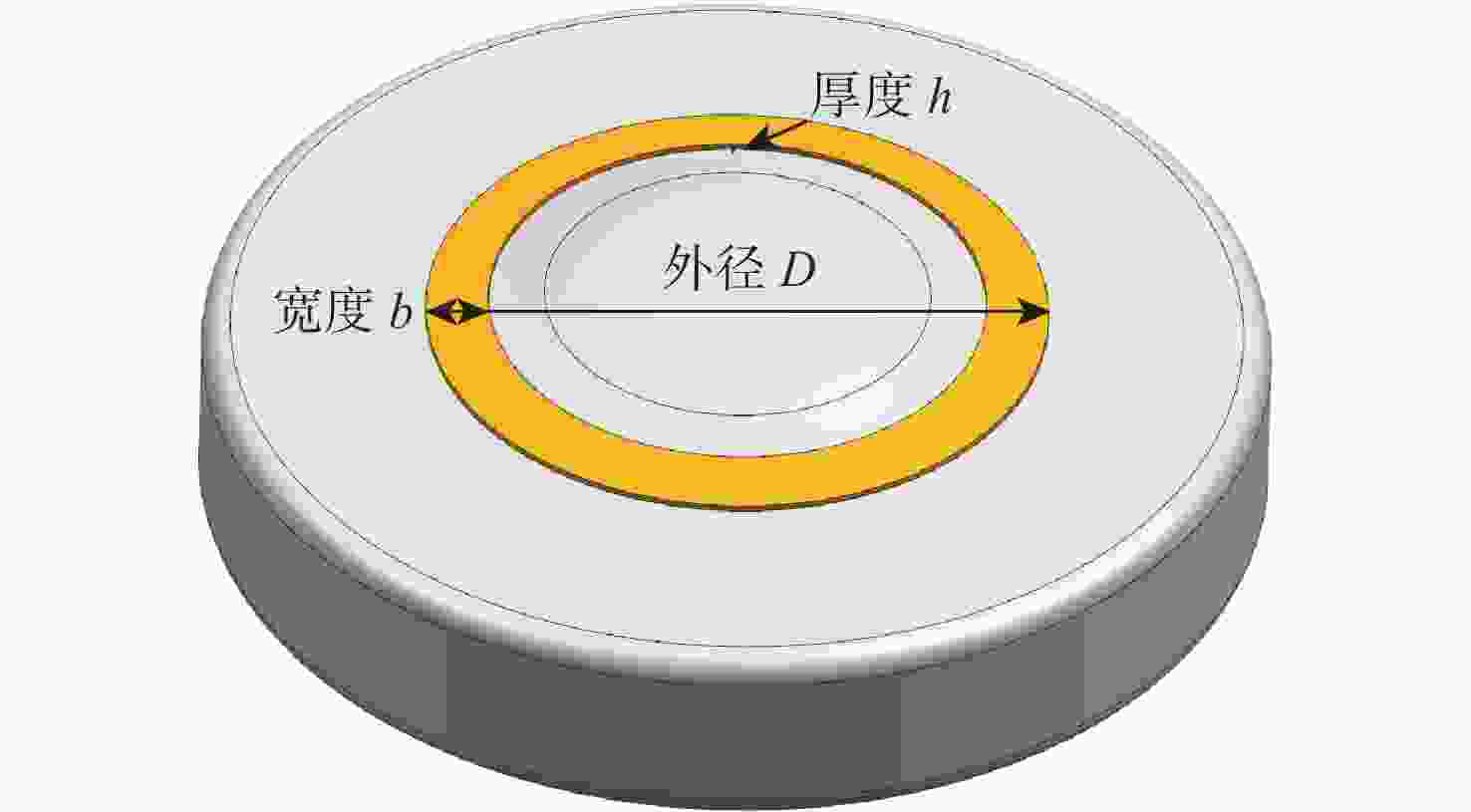

图 7 几何参数

Figure 7. Geometric parameters

下载: 全尺寸图片幻灯片

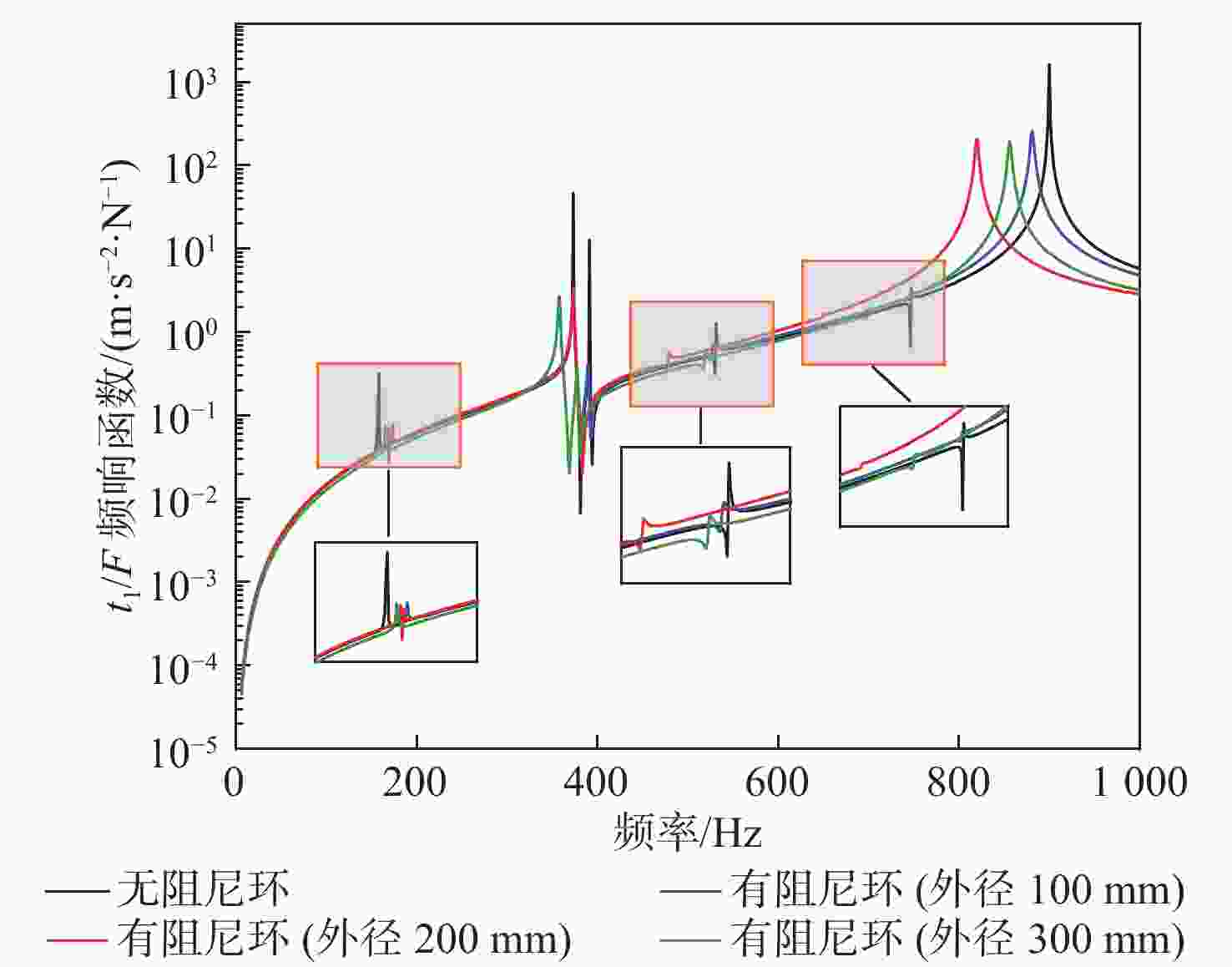

图 8 黏弹性阻尼环改变外径时的t₁/F频响函数

Figure 8. t₁/F frequency response function when viscoelastic damping ring changes outer diameter

下载: 全尺寸图片幻灯片

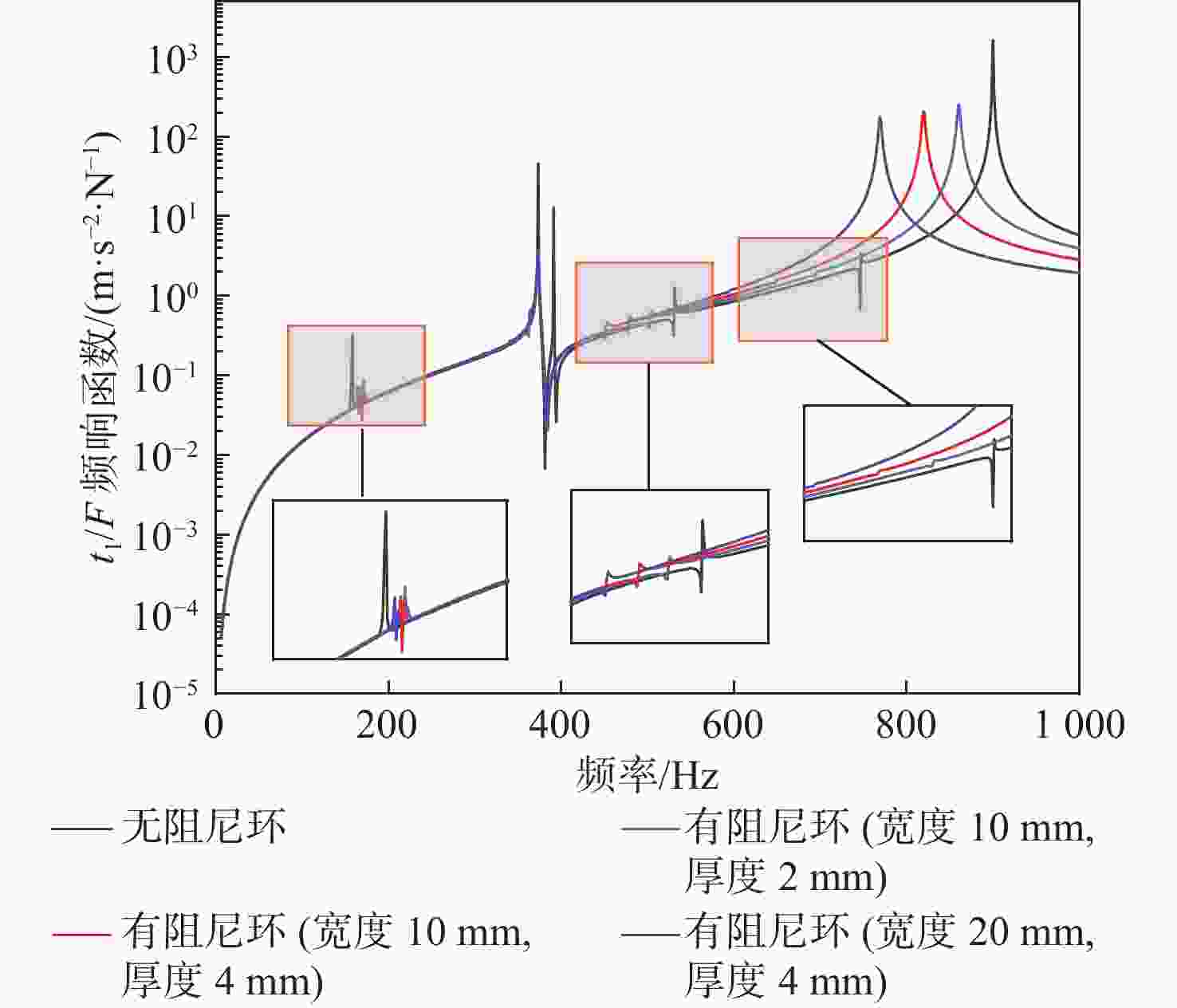

图 9 黏弹性阻尼环改变厚度或宽度时的t₁/F频响函数

Figure 9. t₁/F frequency response function when viscoelastic damping ring changes thickness or width

下载: 全尺寸图片幻灯片

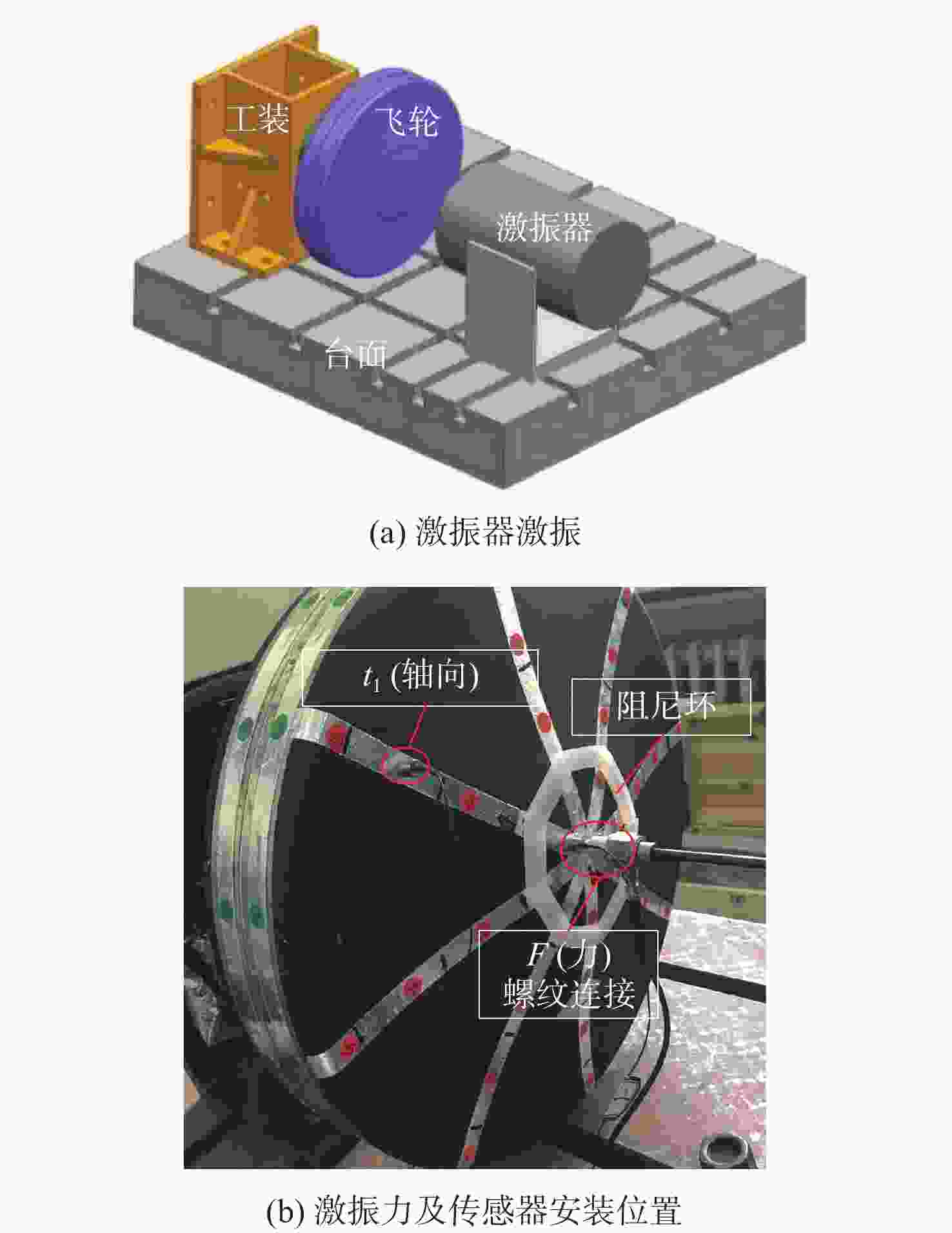

图 10 试验装置原理和实物图

Figure 10. Principle and physical drawings of test device

下载: 全尺寸图片幻灯片

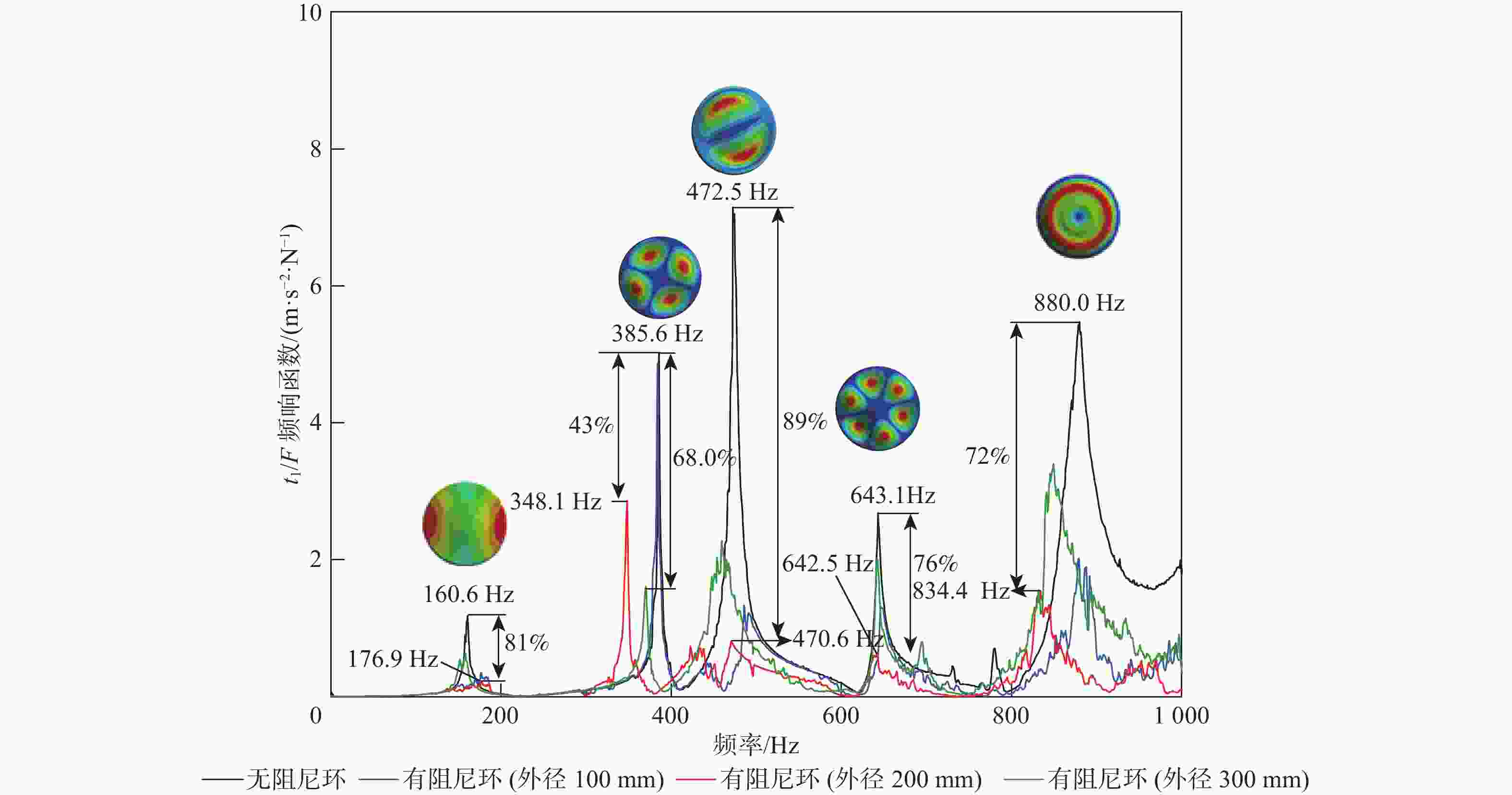

图 11 黏弹性阻尼环改变外径时的t₁/F频响函数的试验结果

Figure 11. Experimental results of t₁/F frequency response function when viscoelastic damping ring changes outer diameter

下载: 全尺寸图片幻灯片

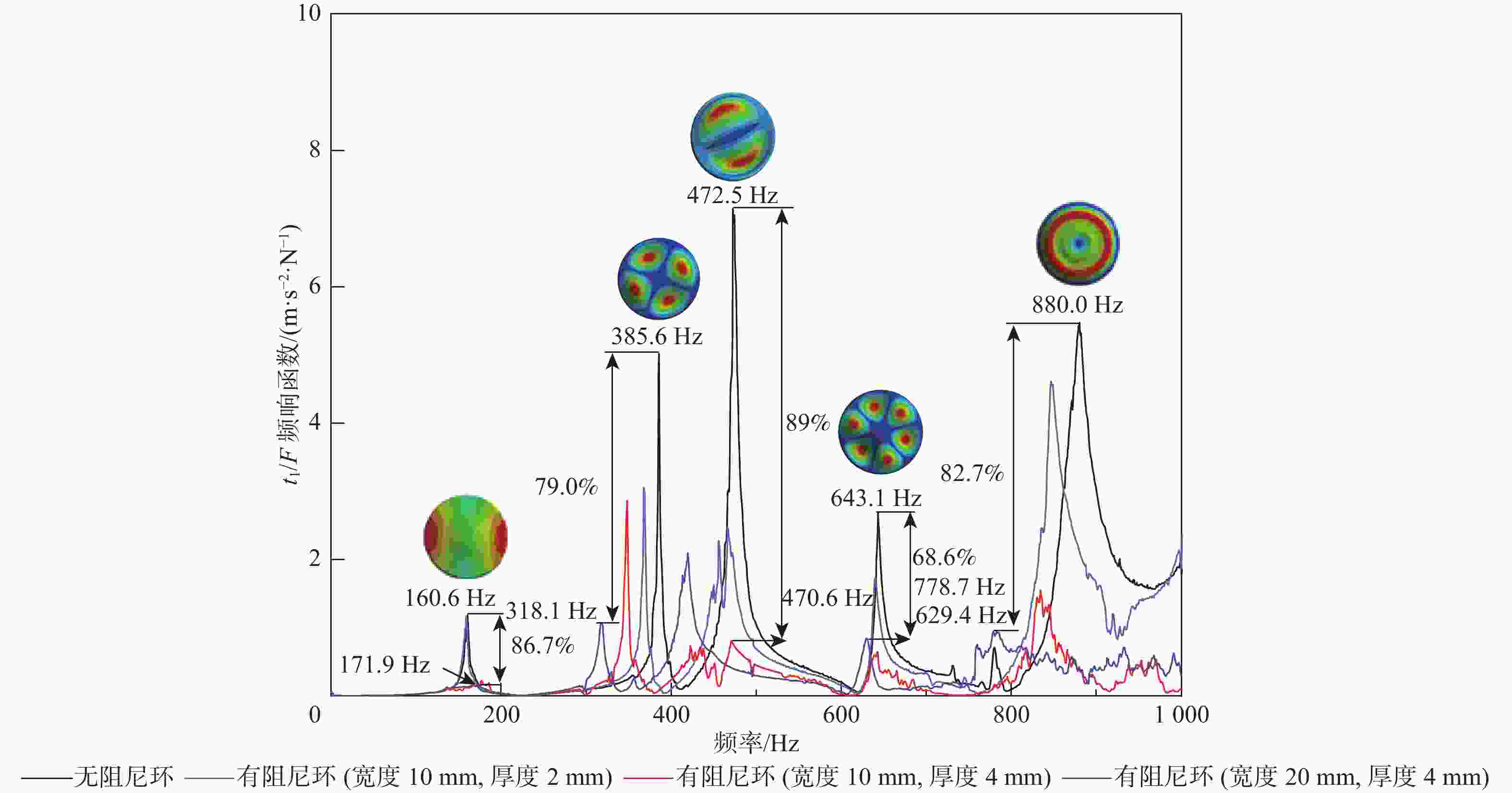

图 12 黏弹性阻尼环改变厚度或宽度时的t₁/F频响函数的试验结果

Figure 12. Experimental results of t₁/F frequency response function when viscoelastic damping ring changes thickness or width

下载: 全尺寸图片幻灯片

表 1 飞轮壳体系统1 000 Hz内前6阶频响函数峰值提取

Table 1. Peak extraction of the first six frequency response functions within 1 000 Hz of flywheel housing system

频响函数阶数	响应峰值/(m·s⁻²·N⁻¹)
频响函数阶数	无阻尼	有阻尼
1阶	0.324	0.072
2阶	46.273	3.346
3阶	12.808	0.268
4阶	1.277	0.565
5阶	3.405	1.623
6阶	1625.3	206.92

下载: 导出CSV

表 2 1 000 Hz内不同几何参数黏弹性阻尼环RMS值减振效果

Table 2. Vibration damping effect within 1 000 Hz for different geometric parameters of viscoelastic damping ring with RMS value

外径/mm	宽度/mm	厚度/mm	RMS/(m·s⁻²·N⁻¹)	减振效果/%
100	10	4	19.69	67.2
200	10	2	18.68	68.9
200	10	4	15.95	73.4
200	20	4	12.90	78.5
300	10	4	14.85	75.3

下载: 导出CSV

表 3 敷设黏弹性阻尼环的减振效果对比

Table 3. Comparison of vibration damping effects with viscoelastic damping rings

阶次	仿真减振效果/%	试验减振效果/%	绝对误差/%
第1阶	78.0	86.7	8.7
第2阶	98.5	79.0	19.5
第3阶	63.1	70.6	7.5
第4阶	61.8	68.6	6.8
第5阶	89.3	82.7	6.5

下载: 导出CSV

表 4 不同几何参数黏弹性阻尼环RMS值减振效果对比

Table 4. Comparison of vibration damping effects of different geometrical parameters of viscoelastic damping rings with RMS values

外径/mm	宽度/mm	厚度/mm	RMS/ (m·s⁻²·N⁻¹)	试验减振效果/%	仿真减振效果/%	绝对误差/%
100	10	4	0.341	78	67.2	10.8
200	10	2	0.296	81	68.9	12.1
200	10	4	0.068	96	73.4	22.6
200	20	4	0.052	97	78.5	18.5
300	10	4	0.813	48	75.3	27.3

下载: 导出CSV
