多目标RCS耦合特性的试验研究

张世健; 李尧尧; 曹成; 陈凌

doi:10.13700/j.bh.1001-5965.2023.0633

多目标RCS耦合特性的试验研究

doi: 10.13700/j.bh.1001-5965.2023.0633

张世健^{1, 2},
李尧尧^1, ,,
曹成¹,
陈凌¹

1.
北京航空航天大学前沿科学技术创新研究院，北京 100191
2.
中国人民解放军 93251部队，齐齐哈尔 161000

基金项目:

国家自然科学基金(62293495)

详细信息

通讯作者:
E-mail：liyaoyao@buaa.edu.cn

中图分类号: O571.55⁺3；O212.6
计量
- 文章访问数: 319
- HTML全文浏览量: 51
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2023-10-04
- 录用日期: 2024-01-12
- 网络出版日期: 2024-02-26
- 整期出版日期: 2025-11-25

Experimental study of multi-target RCS coupling characteristics

ZHANG Shijian^{1, 2},
LI Yaoyao^{1
, ,},
CAO Cheng¹,
CHEN Ling¹

1.
Research Institute for Frontier Science，Beihang University，Beijing 100191，China
2.
The PLA Unit 93251，Qiqihar 161000，China

Funds:

National Natural Science Foundation of China (62293495)

More Information

Corresponding author: E-mail：liyaoyao@buaa.edu.cn

摘要

摘要:
针对空中多目标进行位置与姿态调整时，影响各目标之间的电磁耦合特性的问题，定义了一种基于雷达散射截面（RCS）统计特性的耦合特性表示方法——耦合量，以仿真试验与内场测量相结合的方法，对双机编队的电磁耦合特性变化规律进行研究。获取了一定空间范围内部分编队因素与电磁耦合特性之间的影响关系，验证了耦合量表示方法的有效性。研究结果可以为多目标RCS耦合性能的评估与优化提供研究思路，具有工程应用价值。
- 多目标 /
- 雷达散射截面 /
- 耦合特性 /
- 内场测量 /
- 正交设计
Abstract:
A coupling characteristic representation method based on the statistical characteristics of radar scattering cross-section-coupling quantity is defined with the aim of addressing the issue of influencing the electromagnetic coupling characteristics between targets when multiple targets in the air make position and attitude adjustments. The method of combining the simulation test with the infield measurement is used to investigate the changing law of the electromagnetic coupling characteristics of the two-aircraft formation. The influence relationship between some formation factors and electromagnetic coupling characteristics in a certain spatial range is obtained, and the validity of the coupling quantity representation method is verified. The findings have engineering application value and may inspire future study on the assessment and improvement of multi-objective RCS coupling performance.
- multi-target /
- radar cross section /
- coupling characteristics /
- infield measurement /
- orthogonal design

HTML全文

图 1 F16战斗机几何结构

Figure 1. F16 fighter jet geometry

下载: 全尺寸图片幻灯片

图 2 双机编队

Figure 2. Two-aircraft formation

下载: 全尺寸图片幻灯片

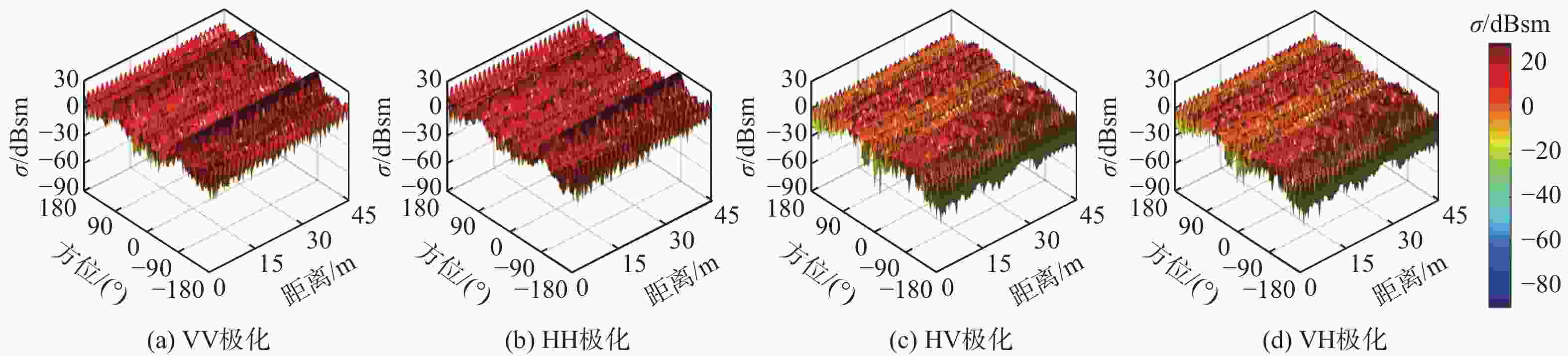

图 3 双机编队随左右间距变化时的动态RCS分布

Figure 3. Dynamic RCS distribution of two-aircraft formation with left and right spacing

下载: 全尺寸图片幻灯片

图 4 双机编队随前后间距变化时的动态RCS分布

Figure 4. Dynamic RCS distribution of two-aircraft formation with front and back spacing

下载: 全尺寸图片幻灯片

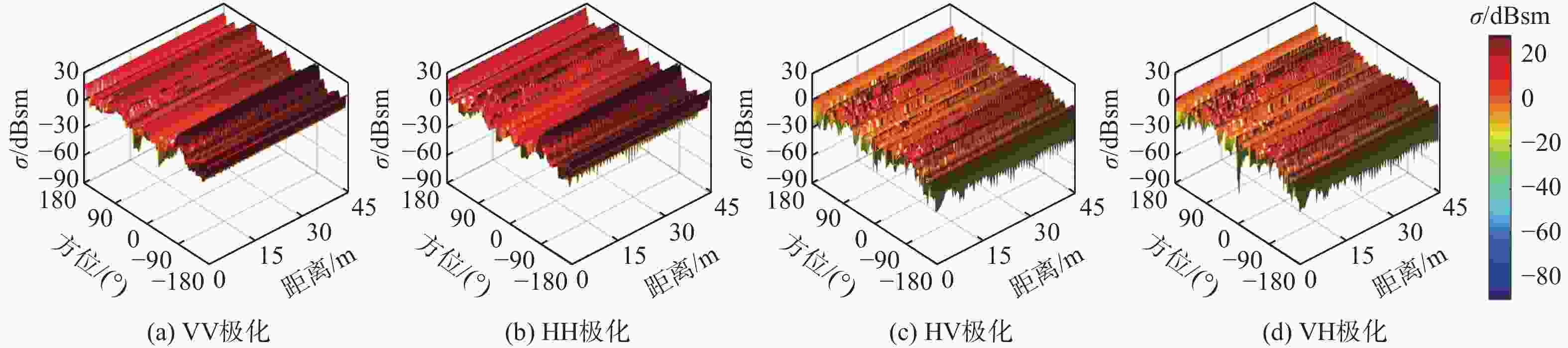

图 5 双机编队随上下间距变化时的动态RCS分布

Figure 5. Dynamic RCS distribution of two-aircraft formation with upper and lower spacing

下载: 全尺寸图片幻灯片

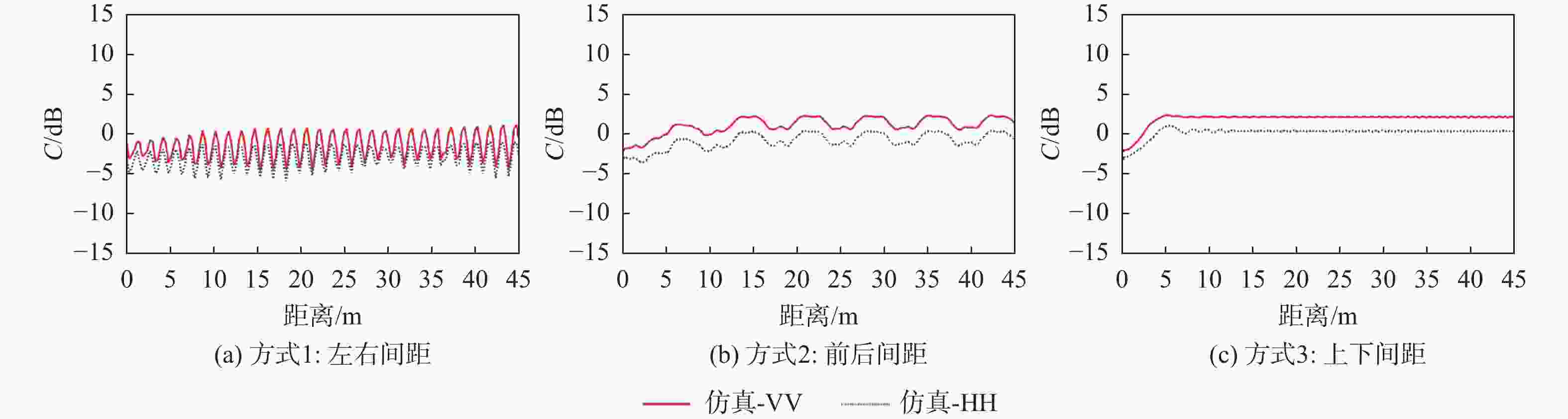

图 6 双机编队在3种编队方式下的耦合量变化趋势

Figure 6. The trend of C changes for two-aircraft formation under 3 formation modes

下载: 全尺寸图片幻灯片

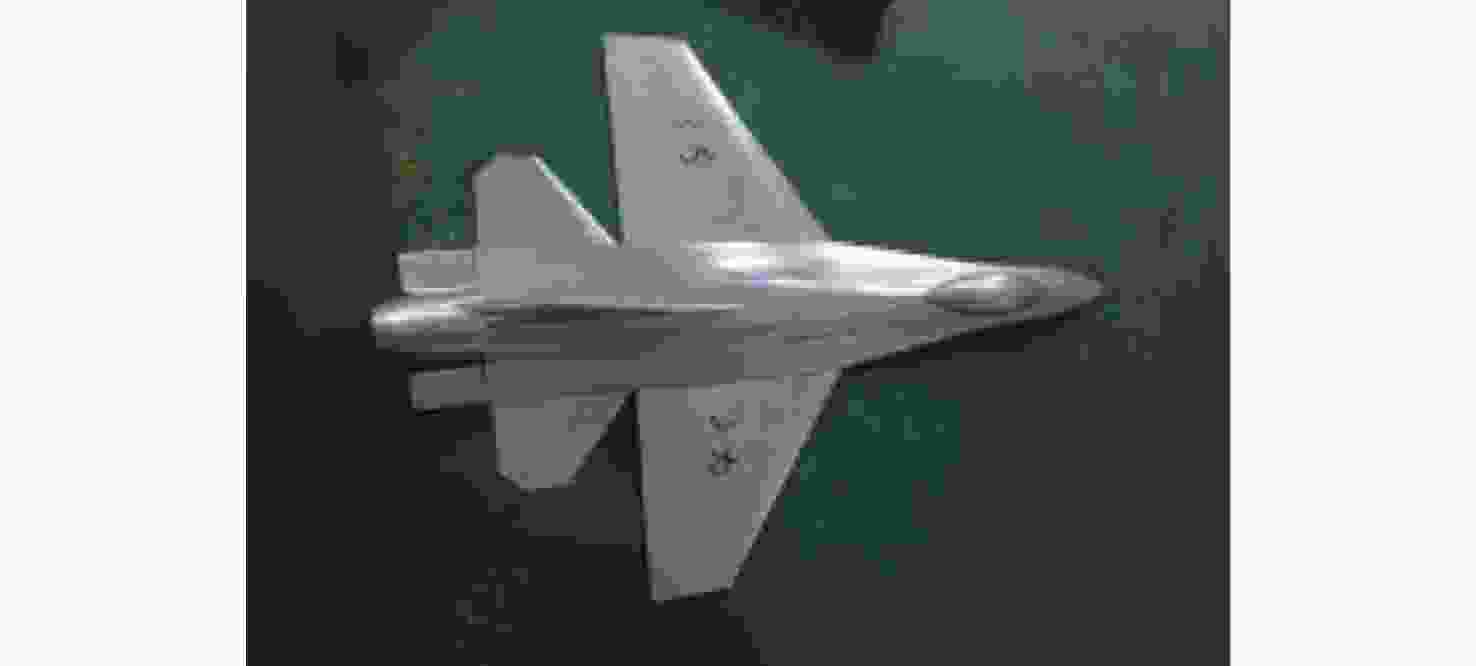

图 7 1/30缩比模型

Figure 7. 1/30 scale model

下载: 全尺寸图片幻灯片

图 8 双机编队RCS测量与仿真数据对比

Figure 8. Comparison of two-aircraft formation RCS measurement and simulation data

下载: 全尺寸图片幻灯片

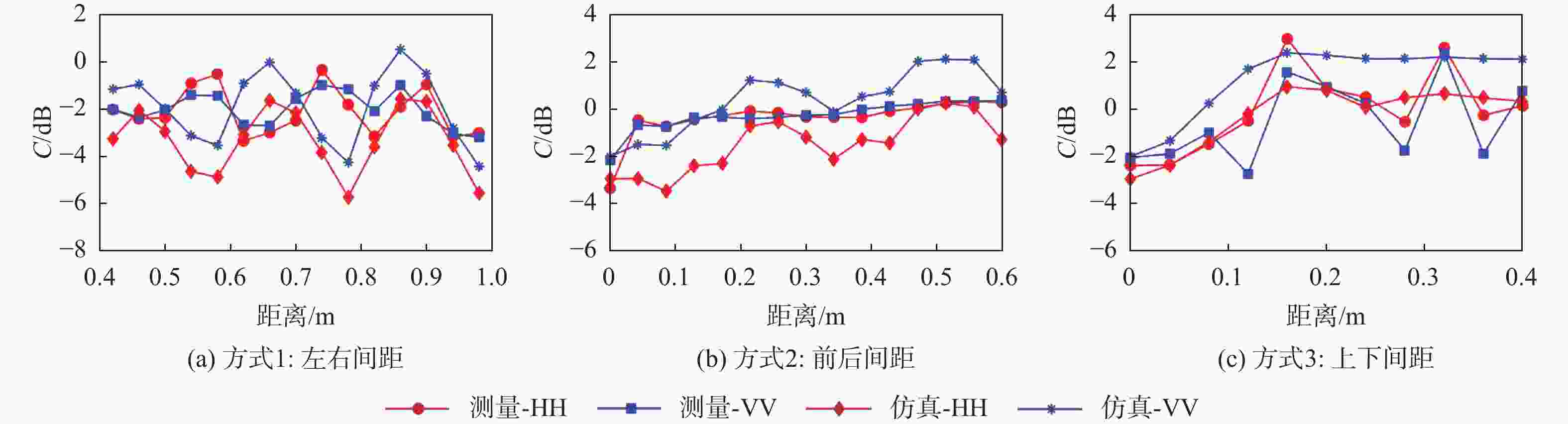

图 9 耦合量的测量与仿真数据对比

Figure 9. Measurement of C compared with simulation data

下载: 全尺寸图片幻灯片

图 10 双机编队RCS测量正交试验

Figure 10. Orthogonal experiment of RCS measurement for two-aircraft formation

下载: 全尺寸图片幻灯片

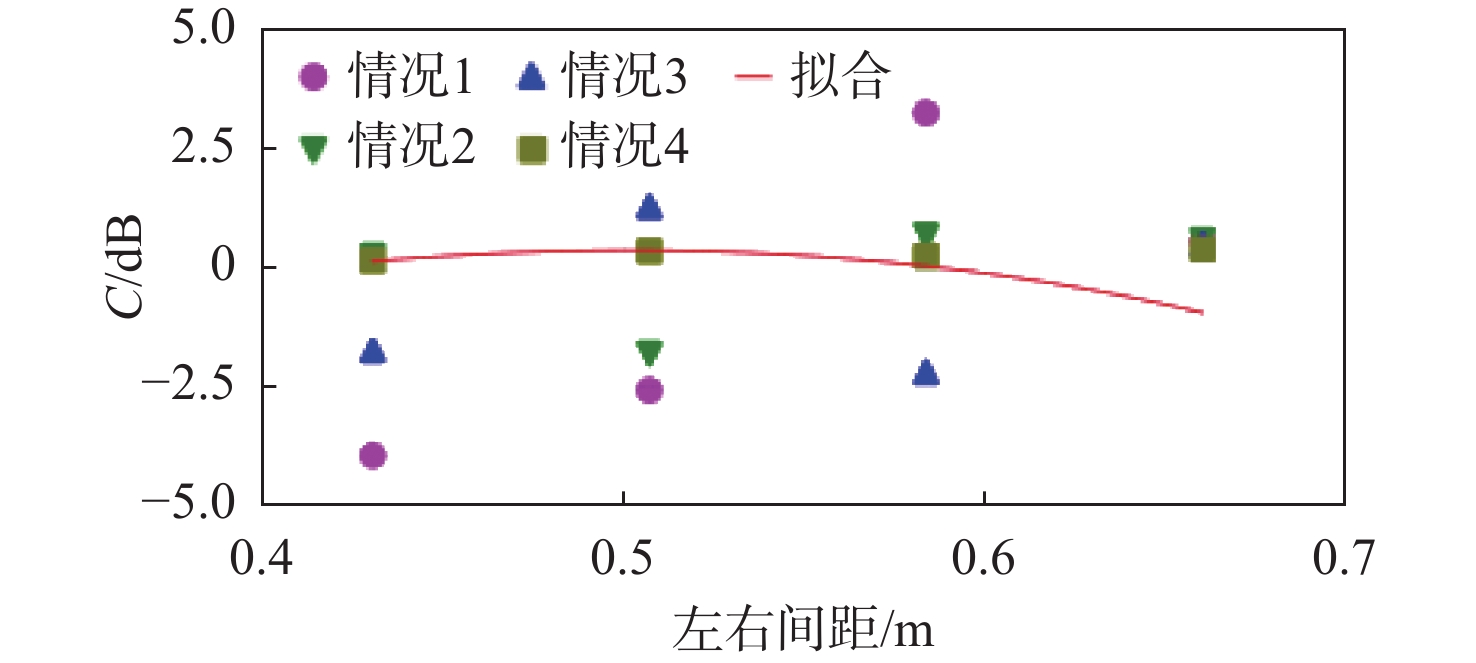

图 11 左右间距与耦合量关系

Figure 11. The relationship between the left and right spacing and C

下载: 全尺寸图片幻灯片

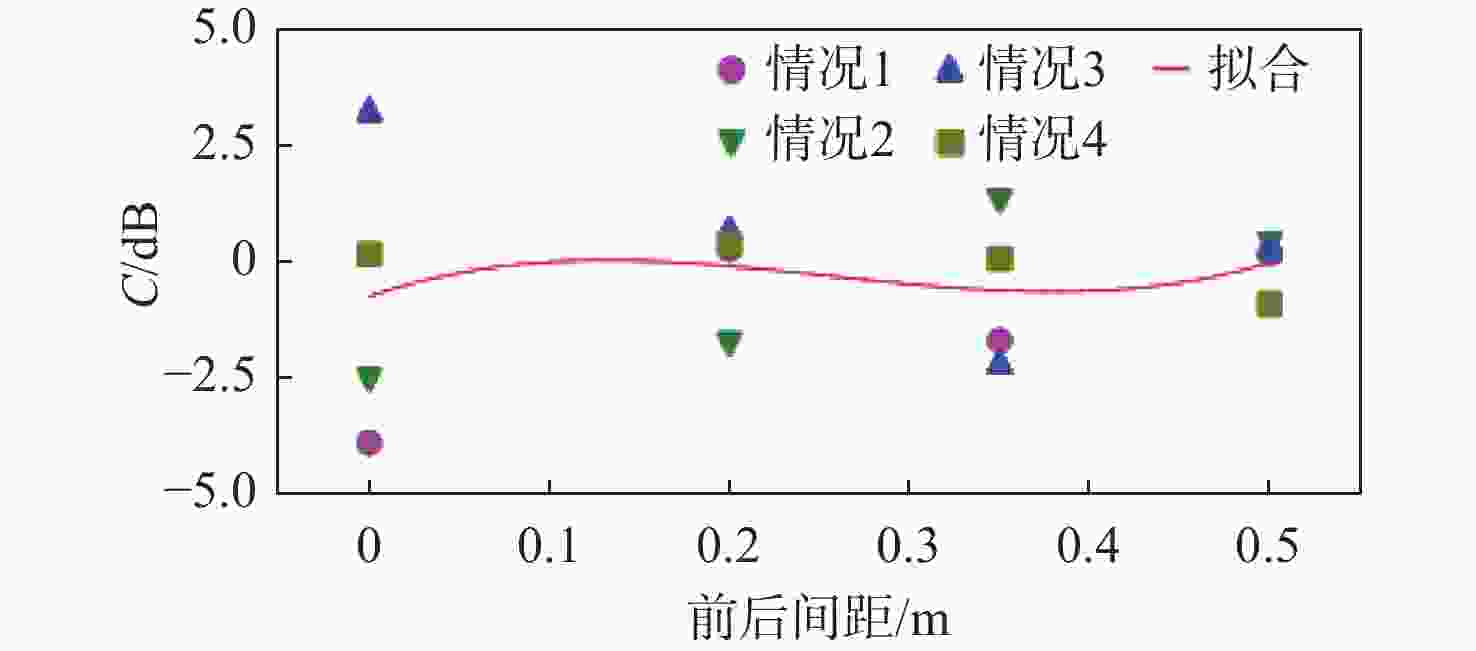

图 12 前后间距与耦合量关系

Figure 12. The relationship between the front and back spacing and C

下载: 全尺寸图片幻灯片

图 13 上下间距与耦合量关系

Figure 13. The relationship between the upper and lower spacing and C

下载: 全尺寸图片幻灯片

图 14 横滚角组合与耦合量关系

Figure 14. The relationship between the cross roll angle combination and C

下载: 全尺寸图片幻灯片

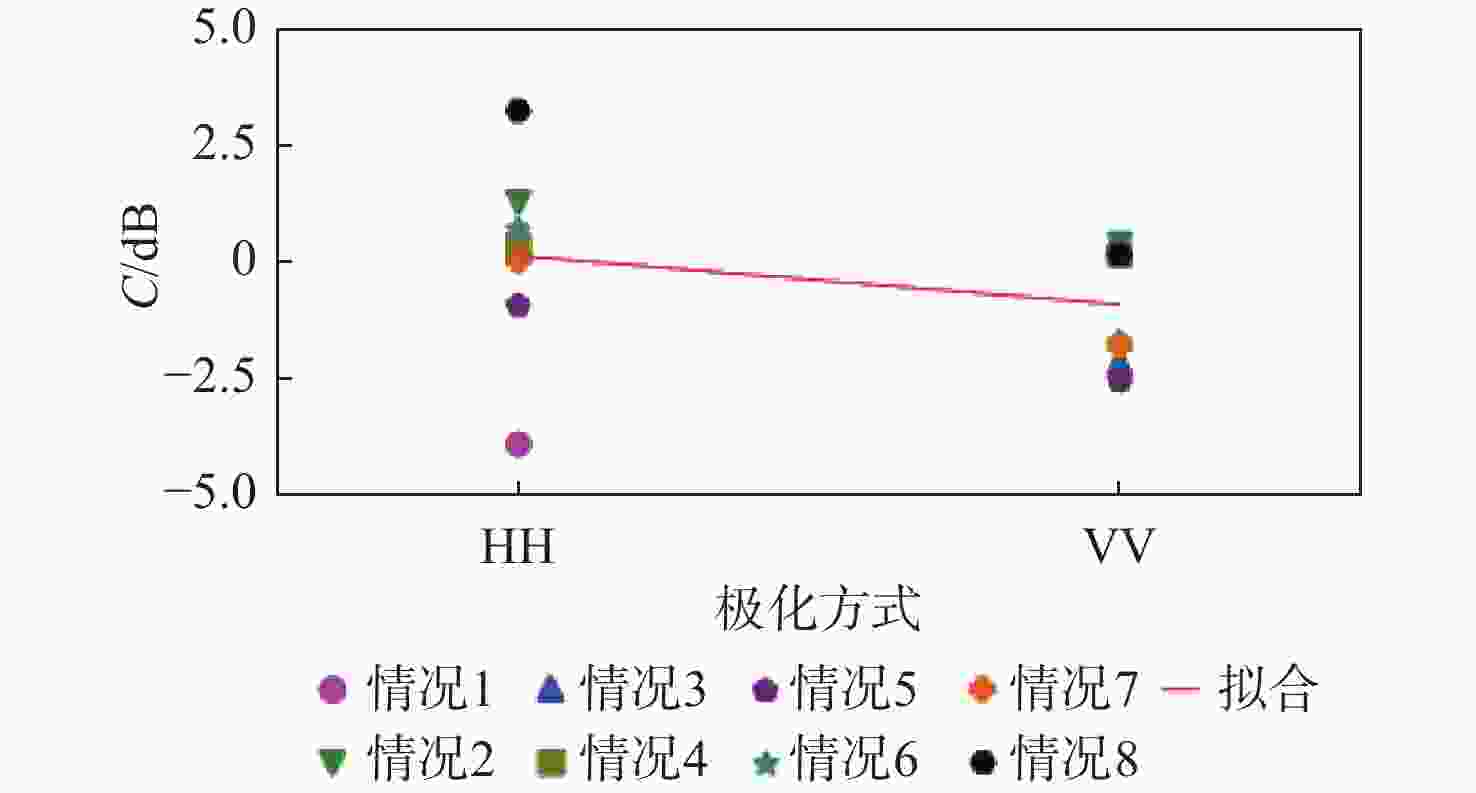

图 15 极化方式与耦合量关系

Figure 15. The relationship between the polarisation and C

下载: 全尺寸图片幻灯片

表 1 不同编队方式设置

Table 1. Different formation methods settings

编队方式	调整参数/m	固定参数/m	步进/m
方式1/左右间距	$ 0 \leqslant \Delta {D_x} \leqslant 45 $	${D_x} = 12.6,{D_y} = 0,{D_{\textit{z}}} = 0$	0.30
方式2/前后间距	$ 0 \leqslant \Delta {D_y} \leqslant 45 $	${D_x} = 15.0,{D_y} = 0,{D_{\textit{z}}} = 0$	0.30
方式3/上下间距	$ 0 \leqslant \Delta {D_{\textit{z}}} \leqslant 45 $	${D_x} = 15.0,{D_y} = 0,{D_{\textit{z}}} = 0$	0.30

下载: 导出CSV

表 2 试验因素编码

Table 2. Codes of experimental factors

水平	左右间距/m	前后间距/m	上下间距/m	横滚角组合/(°)	极化方式
1	0.43	0.00	0.00	0,0	HH
2	0.51	0.20	0.12	30,30	VV
3	0.58	0.35	0.24	−30,30
4	0.66	0.50	0.36	30,−30

下载: 导出CSV

表 3 试验计划

Table 3. Experimental plan

试验号	水平							y₁/dB	y₂/dB
试验号	A	B	C	D	E	F	G	y₁/dB	y₂/dB
1	1	1	1	1	1	1	1	−1.82	−2.10
2	1	2	2	2	1	2	2	0.49	−0.22
3	1	3	3	3	2	1	2	−0.91	−0.80
4	1	4	4	4	2	2	1	0.04	0.14
5	2	1	2	3	2	1	1	−0.92	−1.63
6	2	2	1	4	2	2	2	−1.12	−0.66
7	2	3	4	1	1	1	2	0.70	0.61
8	2	4	3	2	1	2	1	0.41	−0.03
9	3	1	3	4	1	1	2	2.17	1.11
10	3	2	4	3	1	2	1	0.68	0.03
11	3	3	1	2	2	1	1	−1.17	−1.00
12	3	4	2	1	2	2	2	0.25	0.02
13	4	1	4	2	2	1	2	0.71	−0.55
14	4	2	3	1	2	2	1	0.01	0.38
15	4	3	2	4	1	1	1	0.16	−1.00
16	4	4	1	3	1	2	2	−0.75	−1.17

下载: 导出CSV

表 4 耦合量极差分析

Table 4. Range analysis of C

编码	K₁	K₂	K₃	K₄	k₁	k₂	k₃	k₄	R
A	−5.17	−2.65	1.58	−0.31	−0.65	−0.33	0.20	−0.04	0.84
B	−3.03	−0.41	−2.51	−0.59	−0.38	−0.052	−0.31	−0.07	0.33
C	−8.79	−2.45	2.34	2.36	−1.10	−0.31	0.29	0.29	1.39
D	−2.44	−1.38	−4.47	1.75	−0.31	−0.17	−0.56	0.22	0.78
E	1.17	−7.71			0.07	−0.48			0.56

下载: 导出CSV

表 5 耦合量方差分析

Table 5. Variance analysis of C

因素	平方和	自由度	均方	F	P
A	3.64	3	1.21	3.95	0.03
B	0.82	3	0.27	0.89	0.47
C	10.37	3	3.46	11.26	0.00
D	2.44	3	0.81	2.65	0.08
E	2.19	1	2.19	7.15	0.02

下载: 导出CSV
