横向非均匀积水对飞机滑水偏出跑道行为影响

李岳; 张耀华; 蔡靖; 任怡楠

doi:10.13700/j.bh.1001-5965.2023.0845

横向非均匀积水对飞机滑水偏出跑道行为影响

doi: 10.13700/j.bh.1001-5965.2023.0845

李岳¹,
张耀华¹,
蔡靖^{1, 2, ,},
任怡楠¹

1.
中国民航大学交通科学与工程学院，天津 300300
2.
民航机场智能建造与工业化工程技术研究中心，天津 300456

基金项目:

国家自然科学基金面上项目(52472369)；民航机场智能建造与工业化工程技术研究中心开放课题(MHJGKFKT-2025-01)

详细信息

通讯作者:
E-mail：caijing75@163.com

中图分类号: V351.11；U8
计量
- 文章访问数: 172
- HTML全文浏览量: 68
- PDF下载量: 13
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-02
- 录用日期: 2024-02-23
- 网络出版日期: 2024-03-09
- 整期出版日期: 2026-03-31

Influence on veer-off behavior of aircraft hydroplaning due to transverse uneven water accumulation

LI Yue¹,
ZHANG Yaohua¹,
CAI Jing^{1, 2
, ,},
REN Yinan¹

1.
College of Transportation Science and Engineering，Civil Aviation University of China，Tianjin 300300，China
2.
Research Center of Airport Intelligent Construction and Industrialization Engineering Technology of Civil Aviation，Tianjin 300456，China

Funds:

General Program of the National Natural Science Foundation of China (52472369); Open Topic for the Research Center of Airport Intelligent Construction and Industrialization Engineering Technology of Civil Aviation (MHJGKFKT-2025-01)

More Information

Corresponding author: E-mail：caijing75@163.com

摘要

摘要:
机场道面积水受多重因素影响，非均匀分布特征显著，可导致飞机偏出跑道事故，仅以单一积水厚度指标表征能力不足。对此，建立飞机滑水偏出跑道行为理论模型，基于美国足尺加载试验开展飞机轮组滑水仿真分析，分段量化机场道面横向非均匀积水分布，对比两侧飞机轮组摩阻作用差异。提出一种非均匀积水临界长度评价指标，通过ADAMS整机运动学分析探讨飞机滑行轨迹及速度变化与评价指标关联，验证其合理性与适用性。结果表明：飞机在横向非均匀积水机场道面着陆时，两侧飞机轮组所受摩阻作用存在明显时程差异；飞机处于非对称偏转力交错影响之下，偏出跑道风险贯穿着陆滑行全过程；3组案例分析所得非均匀积水临界长度与理论值相差在6.6%以下，该指标可考察由横向非均匀积水引发的偏转作用累积影响，为起降安全保障及机场道面积水控制提供参考。
- 飞机轮组 /
- 轮胎滑水 /
- 非均匀积水 /
- 偏出跑道 /
- ADAMS
Abstract:
Accumulated water film on the pavement is unevenly distributed due to several factors, which may lead to an aircraft veer-off accident. The single index of water film thickness lacks the ability to characterize the water film distribution condition. In this paper, a theoretical model of the deviation behavior of aircraft hydroplaning was established. A hydroplaning simulation of an aircraft wheel group was carried out on the basis of the American full-scale test result of pavement loading. The transverse water film uneven distribution was quantified section by section. The differences in the frictional effect between both sides of aircraft wheel group were compared. It was suggested to use a new type of evaluation index called the critical length of unevenly distributed water film. The rationality and applicability of such an index were verified through a correlation study between critical length and aircraft taxing performance variation by using ADAMS-based kinematic analysis. The result indicated that notable differences exist between the time-history curve of the frictional effect between both sides of the wheel group in the case that the aircraft lands on the pavement with a transversely unevenly distributed water film. The entire landing procedure raised the likelihood of a veer-off mishap because asymmetric deviation forces constantly impact the aircraft's taxing performance. The critical length of uneven distributed water film derived from three study cases were merely 6.6% differed from theoretical results. The proposed evaluation index may take the accumulative impact of deviation forces due to transversely unevenly distributed water film into consideration, which may provide useful reference for take-off and landing safety protection and water distribution control on the pavement.
- aircraft wheel group /
- tire hydroplaning /
- uneven water accumulation /
- veer-off /
- ADAMS

HTML全文

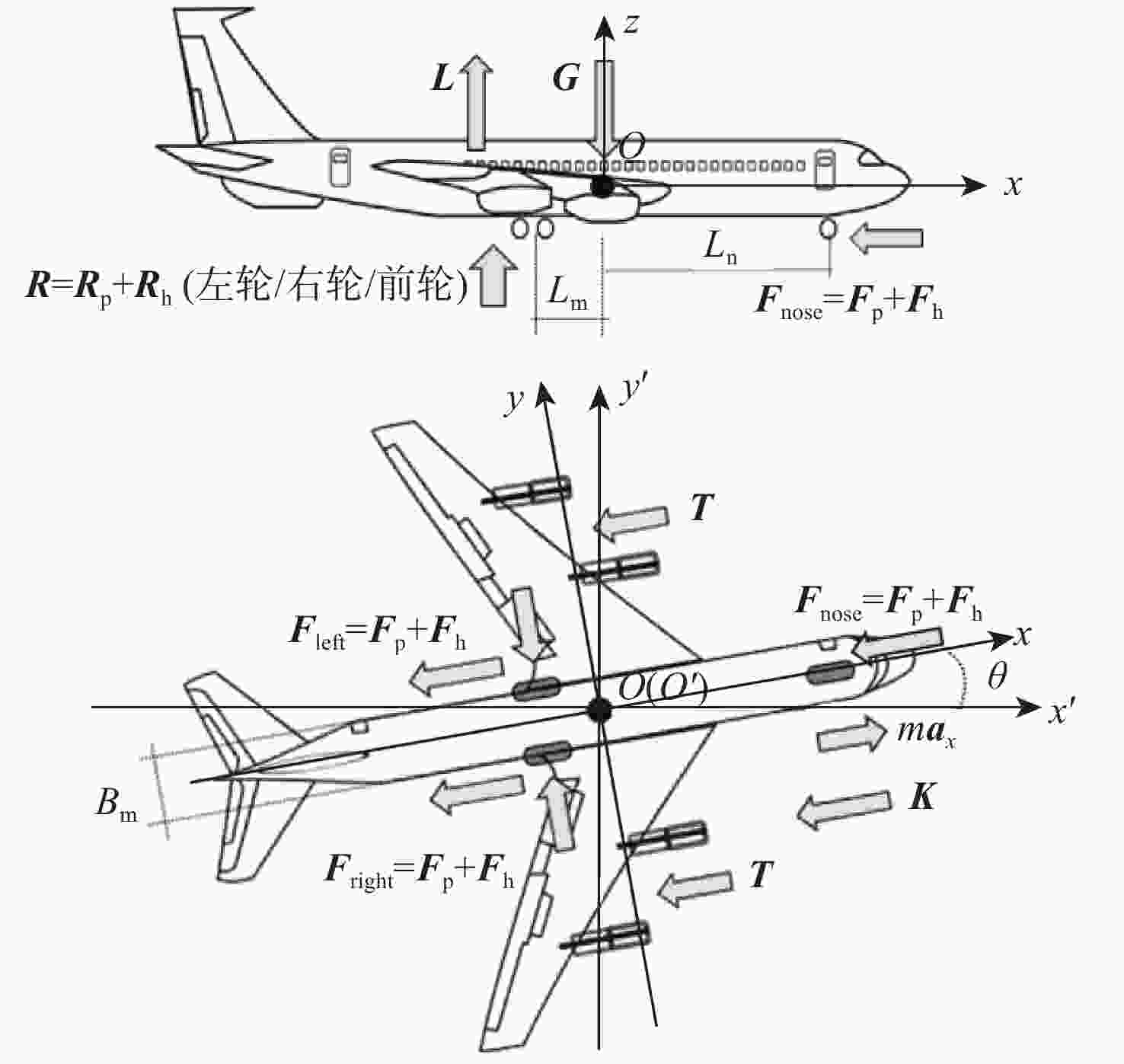

图 1 飞机着陆滑行分析模型

Figure 1. Analytical model of aircraft landing and taxing

下载: 全尺寸图片幻灯片

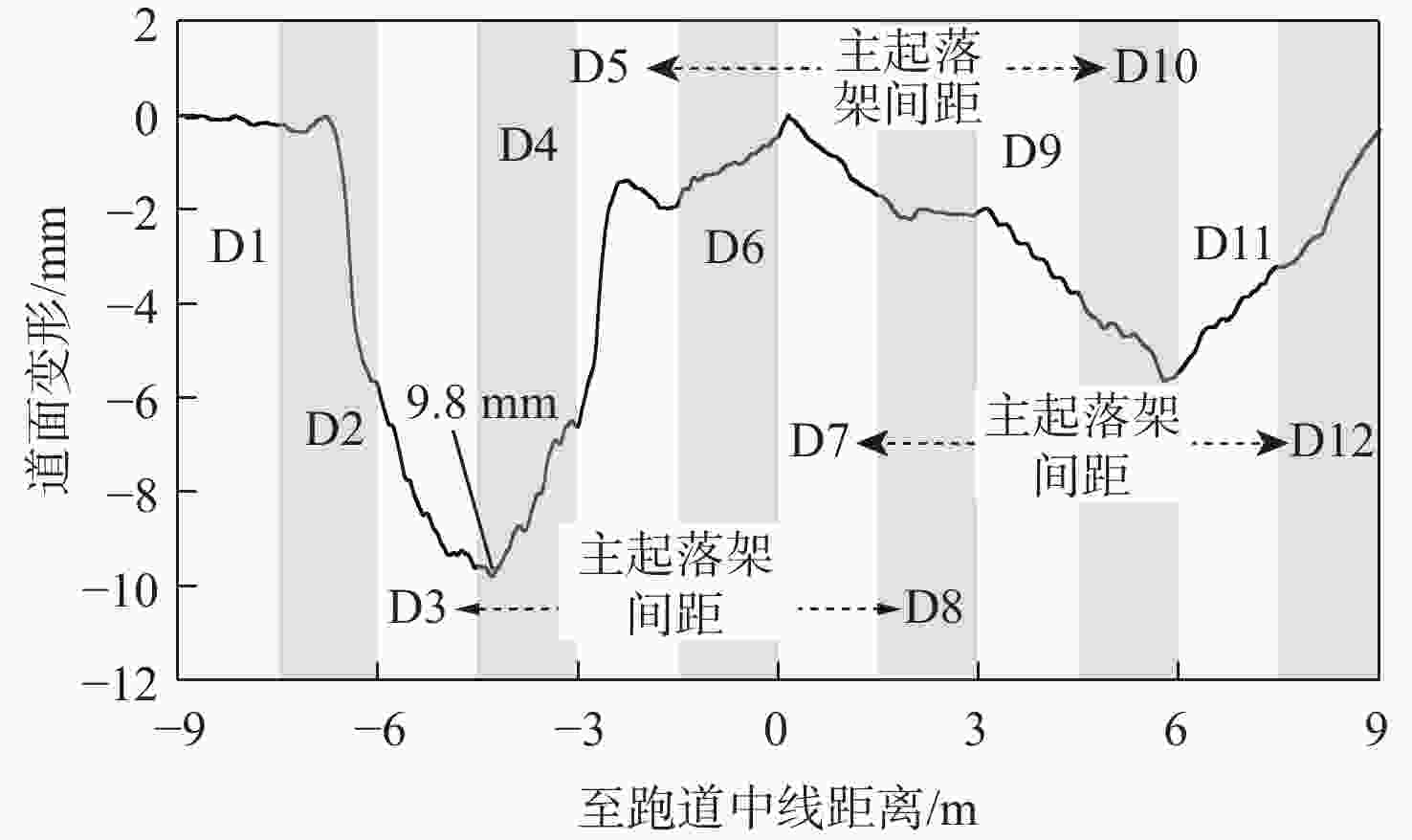

图 2 机场道面横断面变形曲线

Figure 2. Deformation curve of pavement transverse profile

下载: 全尺寸图片幻灯片

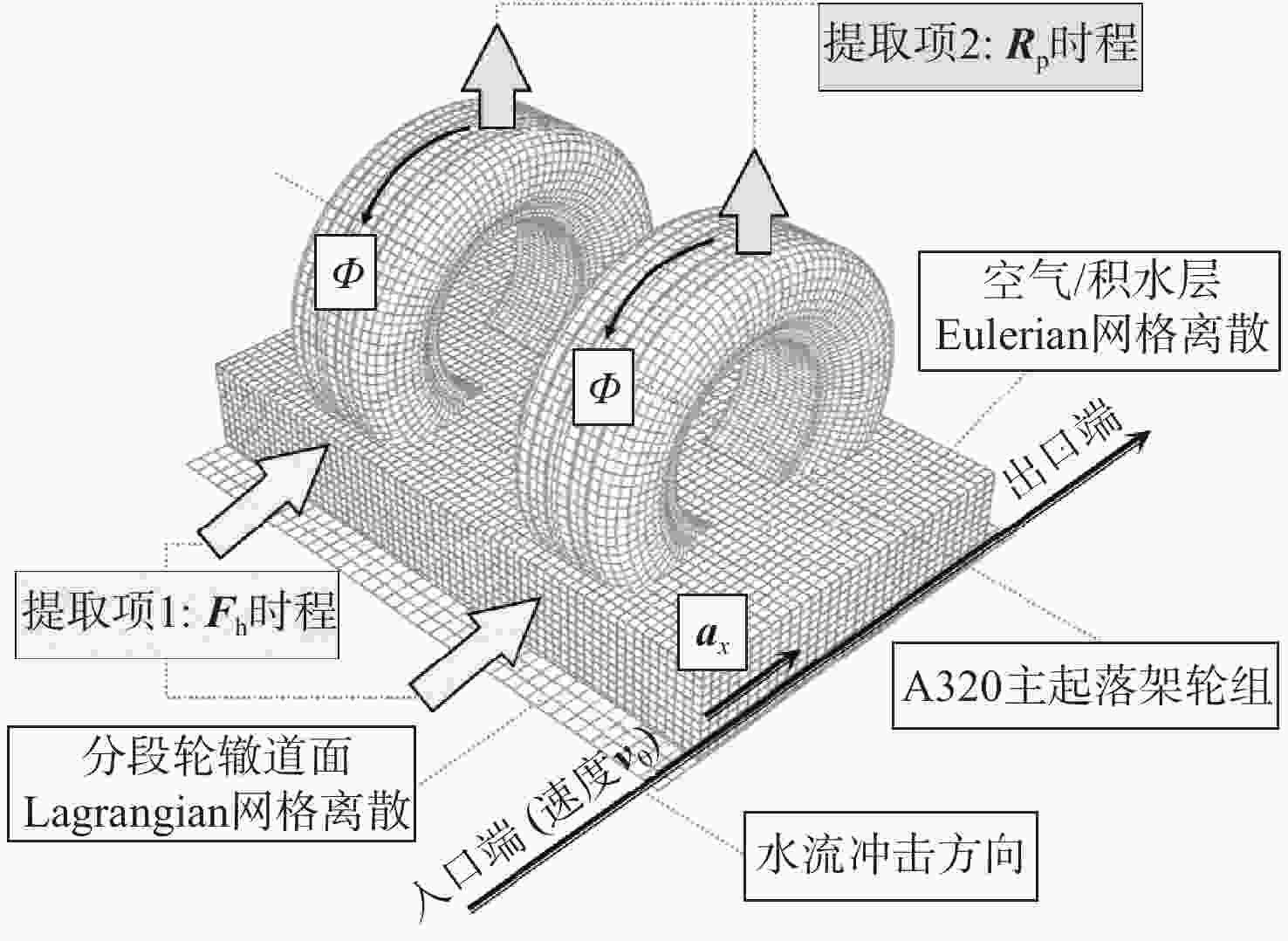

图 3 飞机轮组滑水模型

Figure 3. Hydroplaning model of aircraft tire group

下载: 全尺寸图片幻灯片

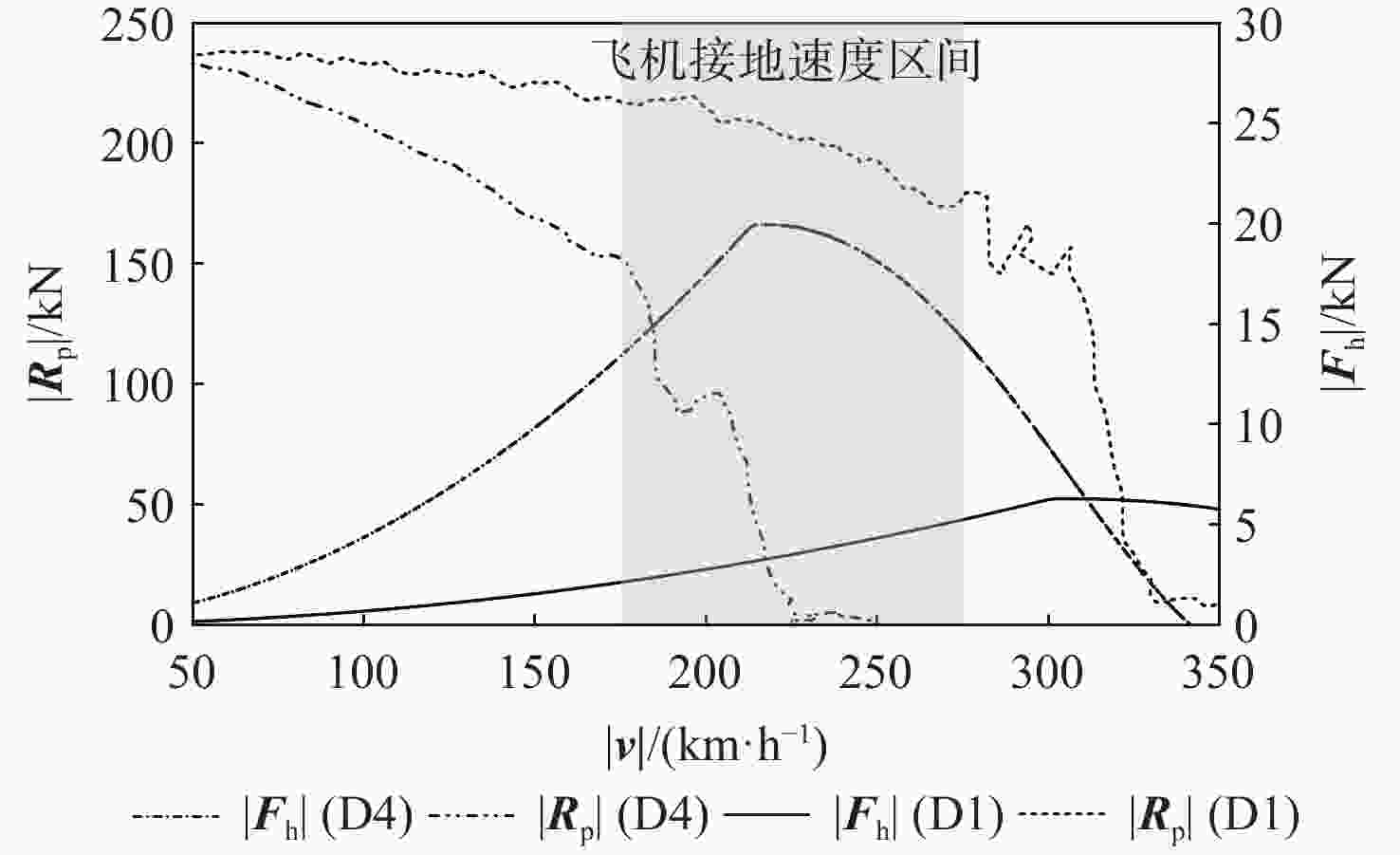

图 4 |R_p|和|F_h|时程曲线

Figure 4. Time history curves of |R_p| and |F_h|

下载: 全尺寸图片幻灯片

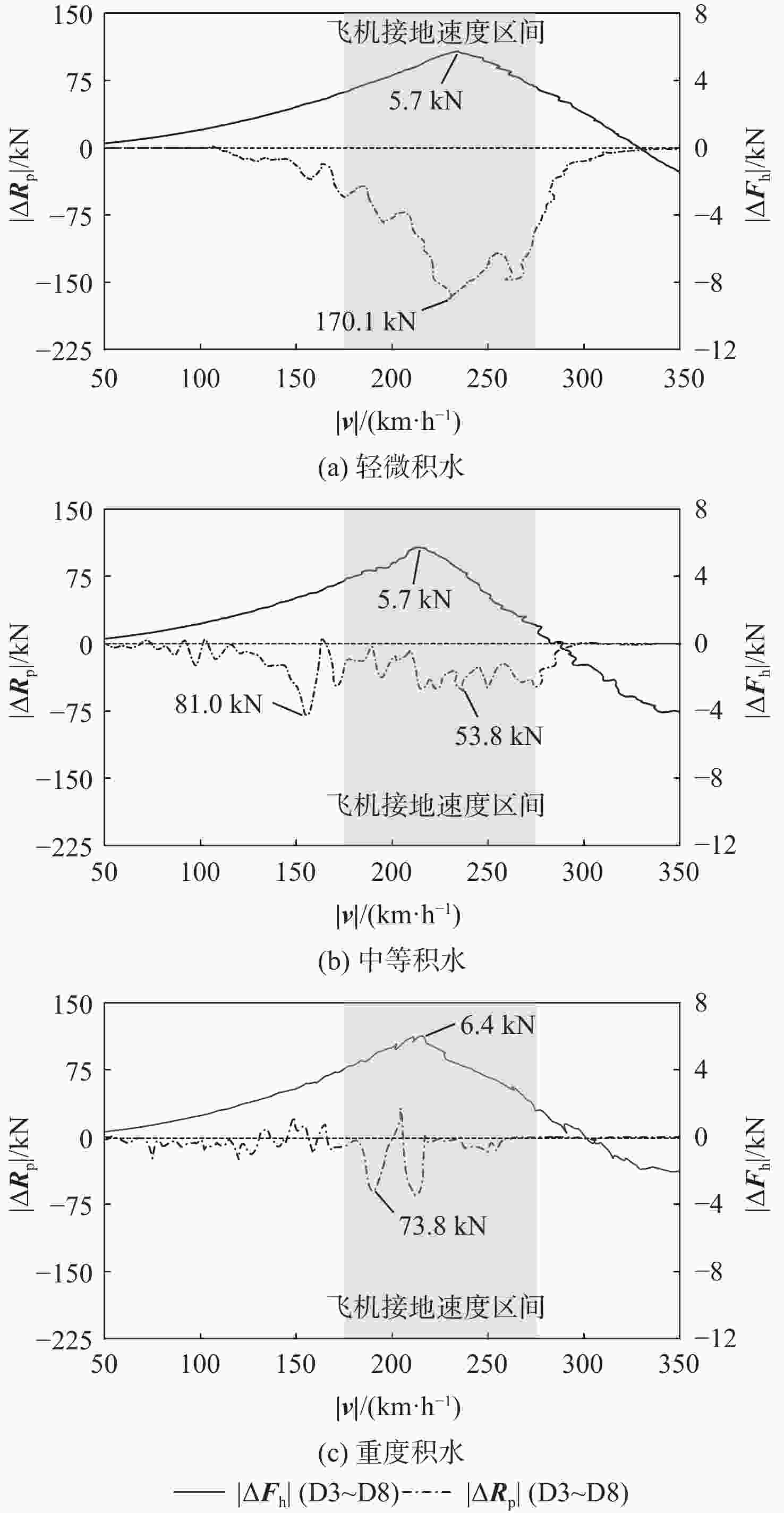

图 5 |ΔR_p|和|ΔF_h|时程曲线

Figure 5. Time history curves of |ΔR_p| and |ΔF_h|

下载: 全尺寸图片幻灯片

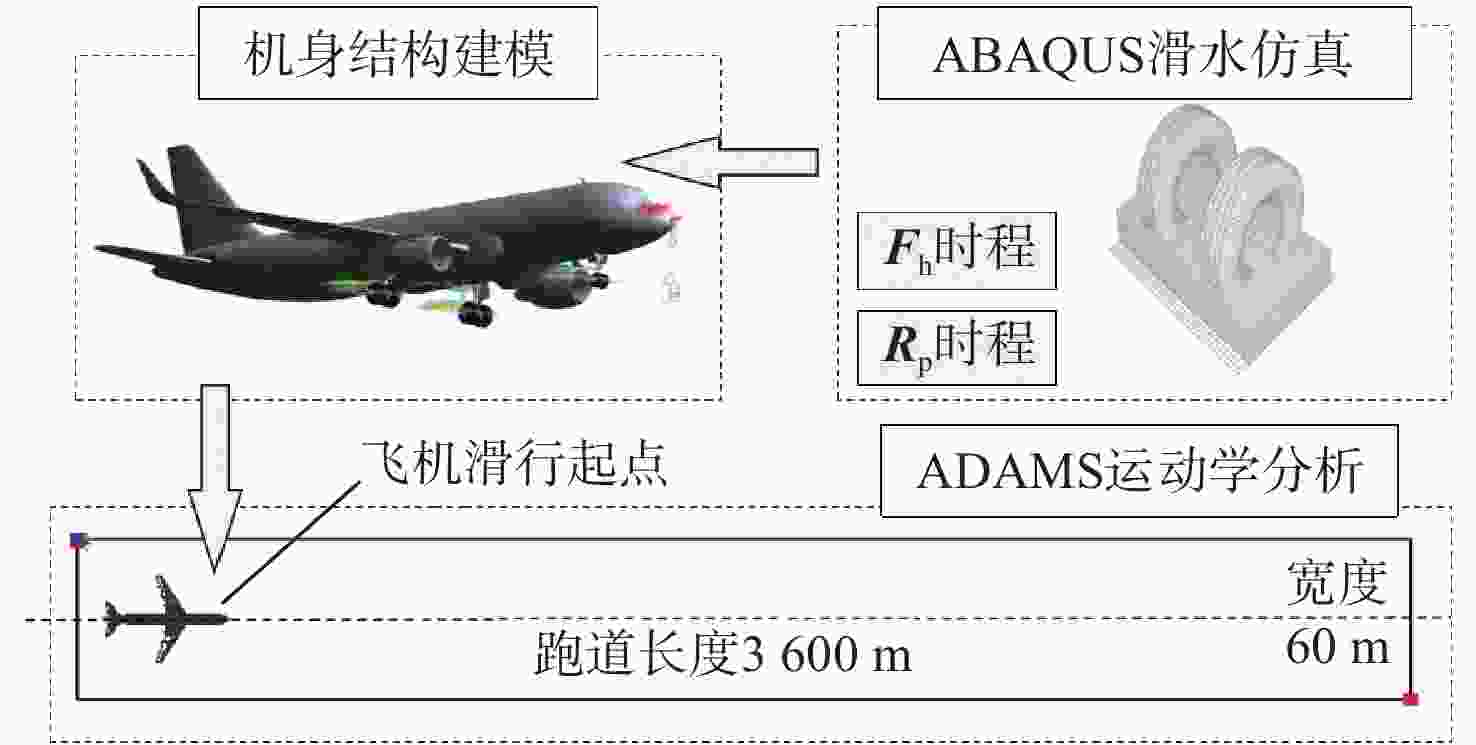

图 6 A320建模与ADAMS运动学模型

Figure 6. A320 modeling and ADAMS-based kinematic model

下载: 全尺寸图片幻灯片

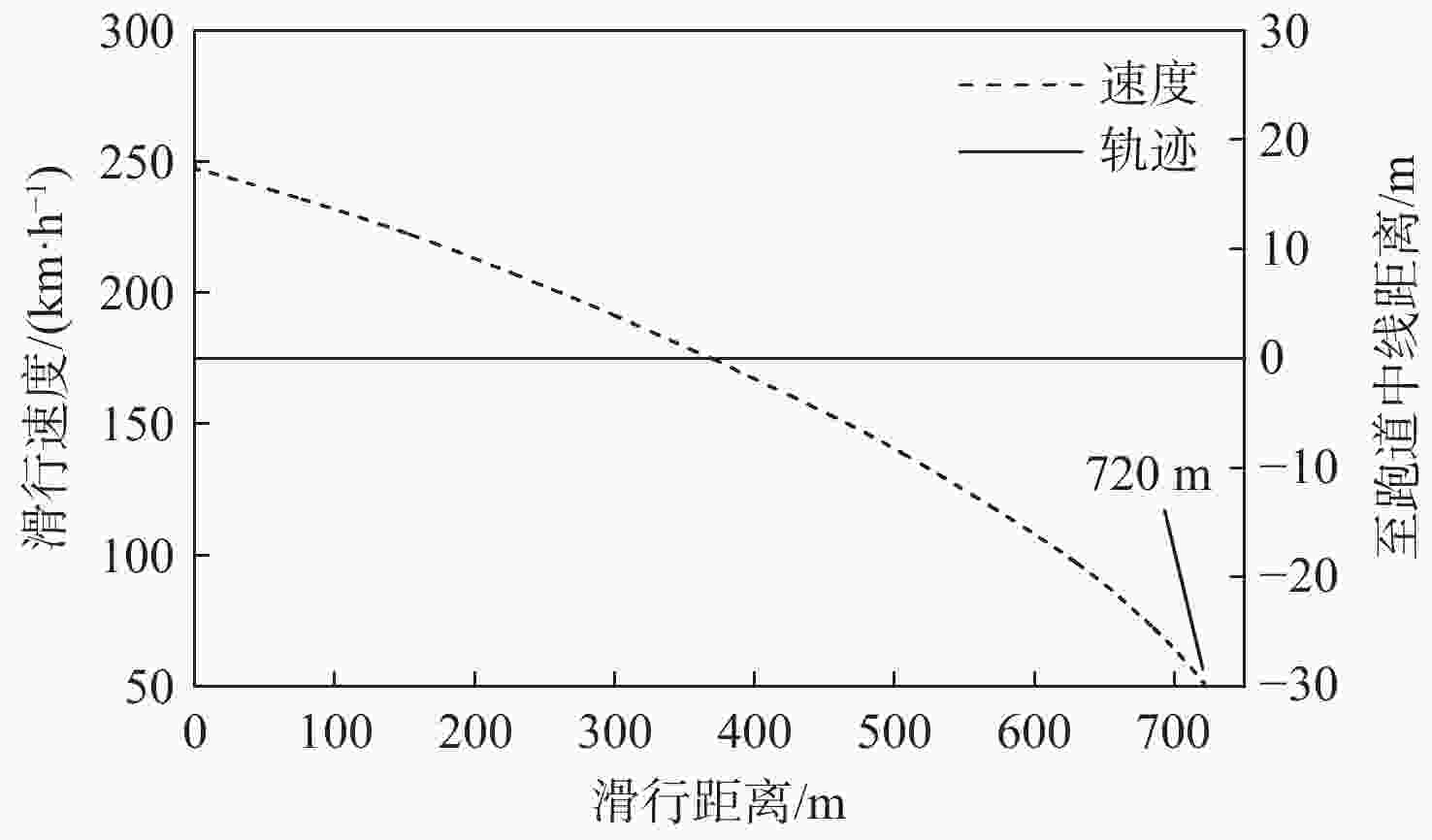

图 7 均匀积水道面滑行轨迹及速度曲线

Figure 7. Taxing track and speed curves under even distributed water film pavement condition

下载: 全尺寸图片幻灯片

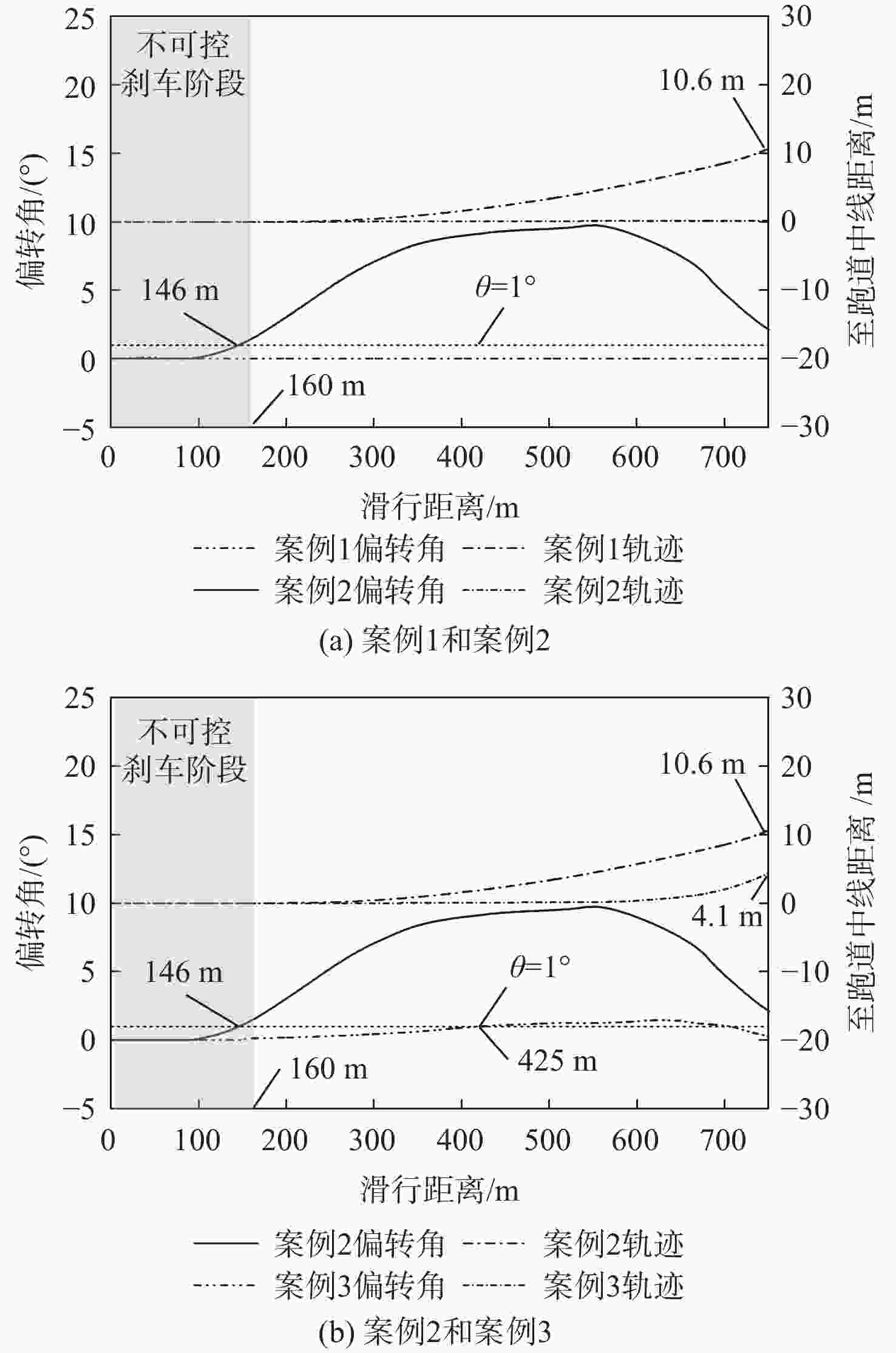

图 8 非均匀积水道面滑行轨迹及速度曲线

Figure 8. Taxing track and speed curves under uneven distributed water film pavement condition

下载: 全尺寸图片幻灯片

表 1 机场道面分段积水分布结果

Table 1. Water film distribution results of independent pavement sections

道面分段	分段变形量/mm	轻微积水时W_i/mm	中等积水时W_i/mm	重度积水时W_i/mm
D1	0.2	3.2	7.2	13.2
D2	6.2	9.2	13.2	19.2
D3	9.6	12.6	16.6	22.6
D4	9.8	12.8	16.8	22.8
D5	6.3	9.3	13.3	19.3
D6	1.6	4.6	8.6	14.6
D7	1.7	4.7	8.7	14.7
D8	2.2	5.2	9.2	15.2
D9	3.8	6.8	10.8	16.8
D10	6.6	9.6	13.6	19.6
D11	5.4	8.4	12.4	18.4
D12	3.3	6.6	10.3	16.3

下载: 导出CSV

表 2 飞机滑水偏出跑道行为案例参数组合

Table 2. Parameters combination of aircraft hydroplaning veer-off behavior cases

案例编号	积水条件	左轮组接地分段	右轮组接地分段	积水厚度差/mm	非均匀积水长度/m	L_cw理论值/m
案例1	中等积水	D3	D8	7.4	50	137
案例2	中等积水	D3	D8	7.4	750	137
案例3	中等积水	D1	D6	1.4	750	408

下载: 导出CSV
